Toyota Coaster
1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan
Discontinued model
Data version 2016-12

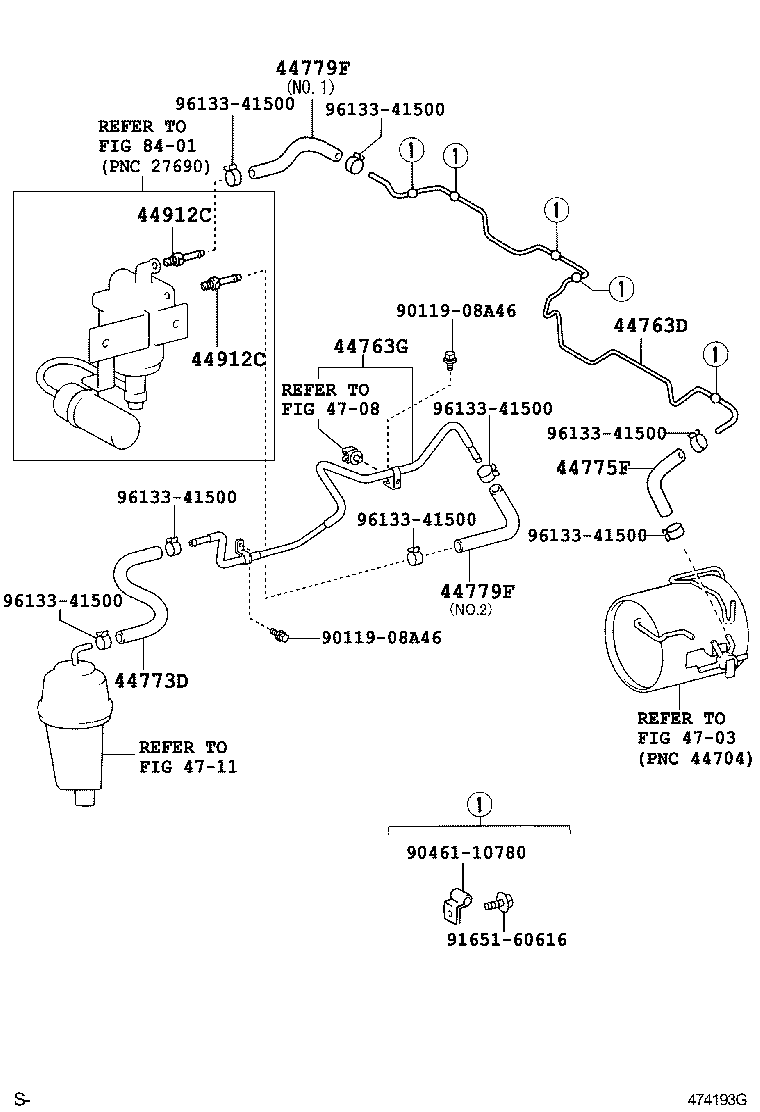

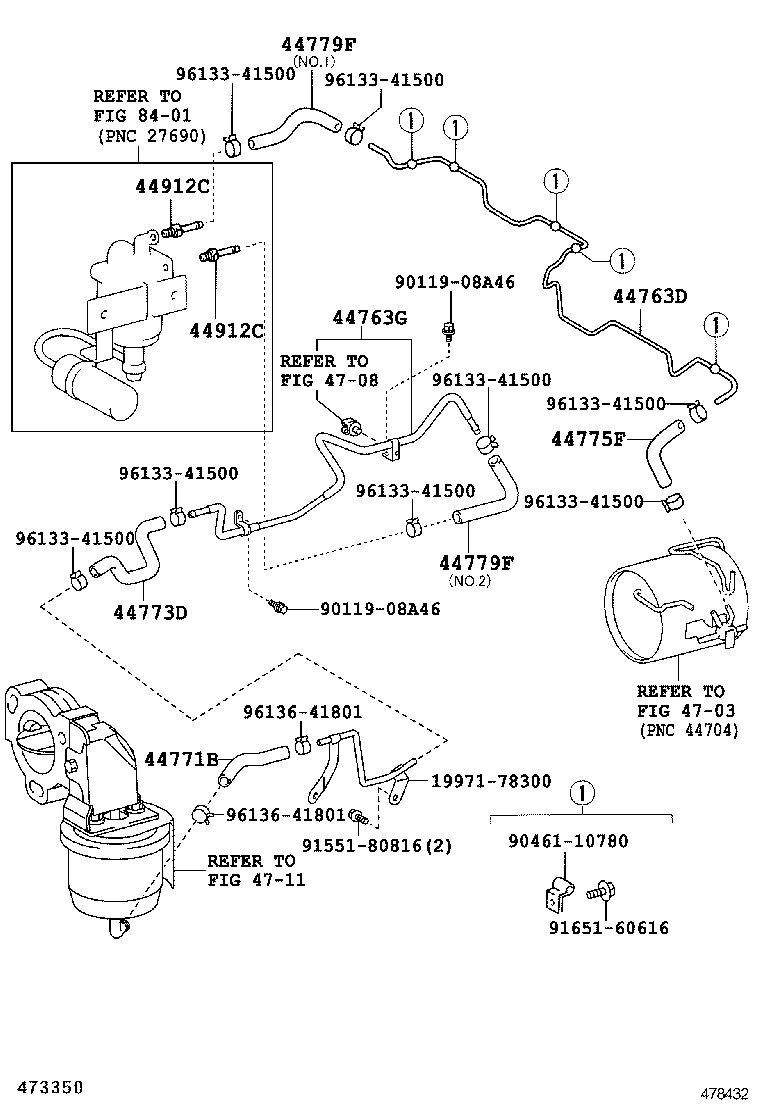

Exhaust Brake Tube & Clamp
9 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 44763D | Tube, Hose TO Hose, NO.1 |
| 44763G | Tube, Hose TO Hose, NO.2 |
| 44771B | Hose, Vacuum Tube Connector |
| 44773D | Hose, Solenoido TO Retarder |
| 44775F | Hose, Way TO Connector |
| 44775G | Hose, Air Cleaner TO Solenoid |
| 44779F | Hose, Connector Tube TO Solenoid, NO.1 |
| 44912C | Union(FOR 3 WAY TO MAGNETIC VALVE TUBE) |
| 46740C | Cleaner Assy, Exhaust Retarder Air |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
