Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan

Discontinued model Data version 2016-12

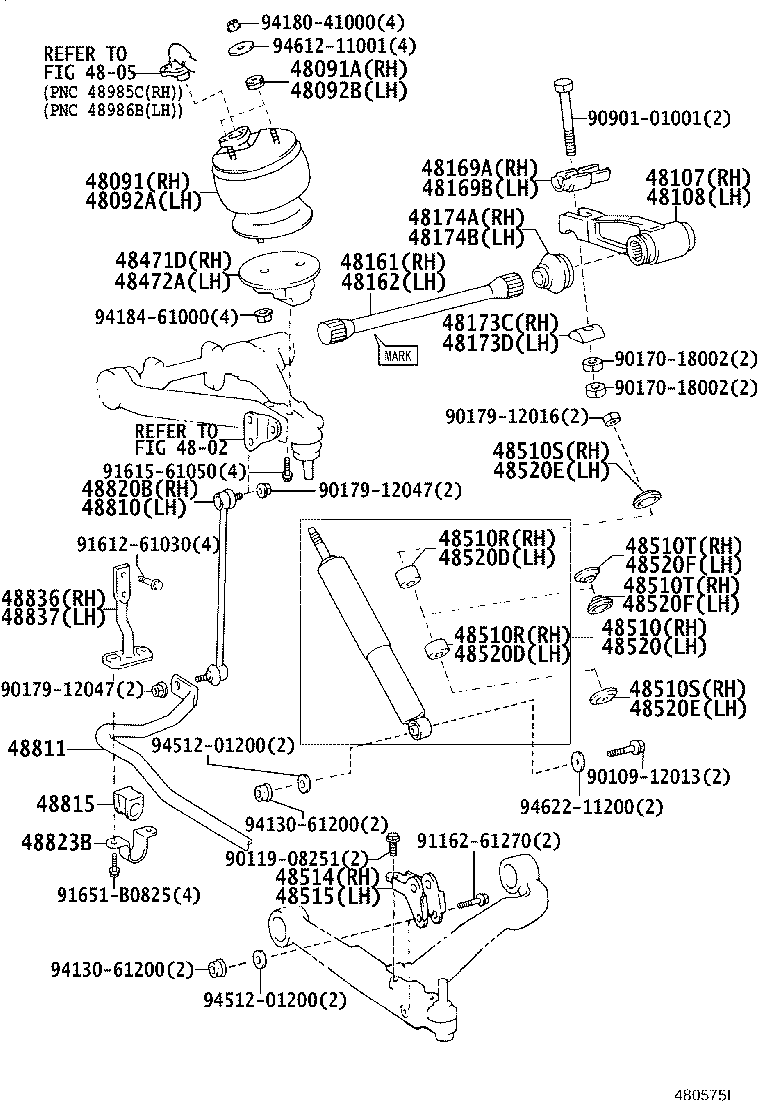

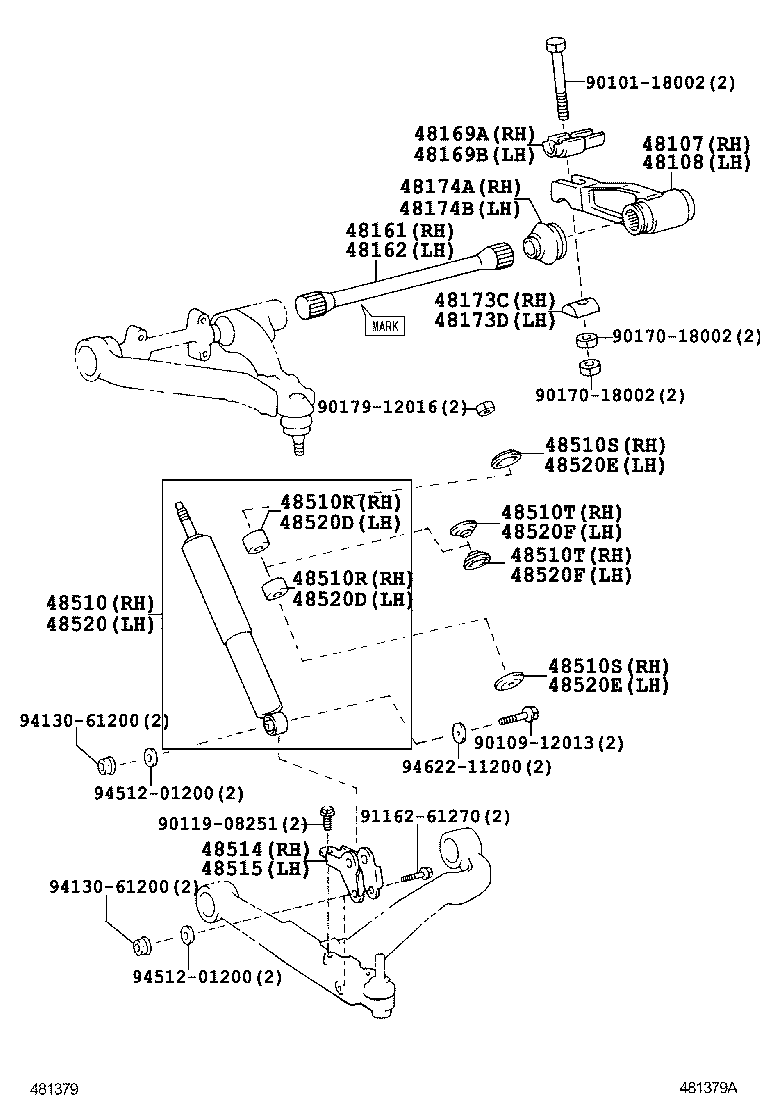

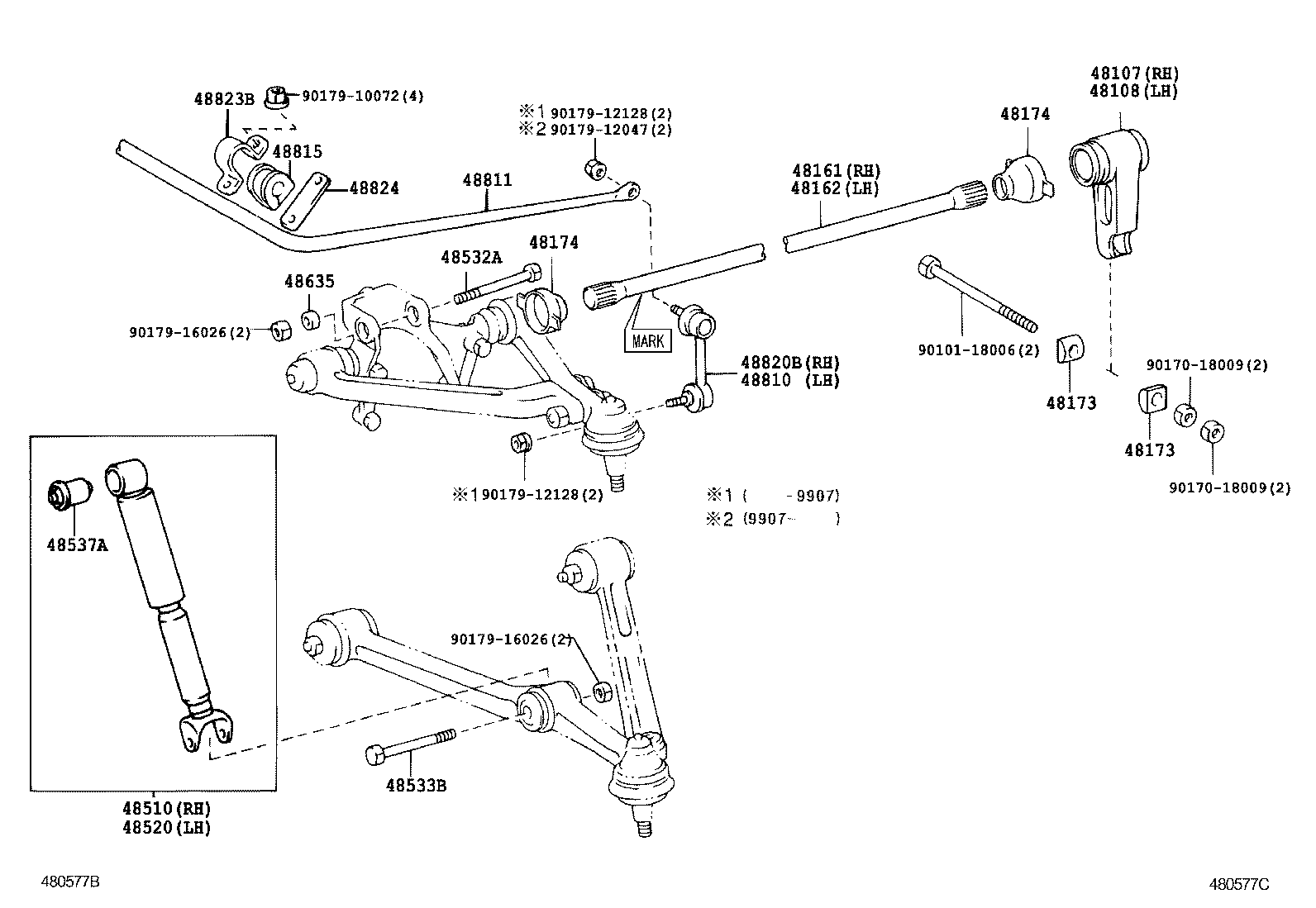

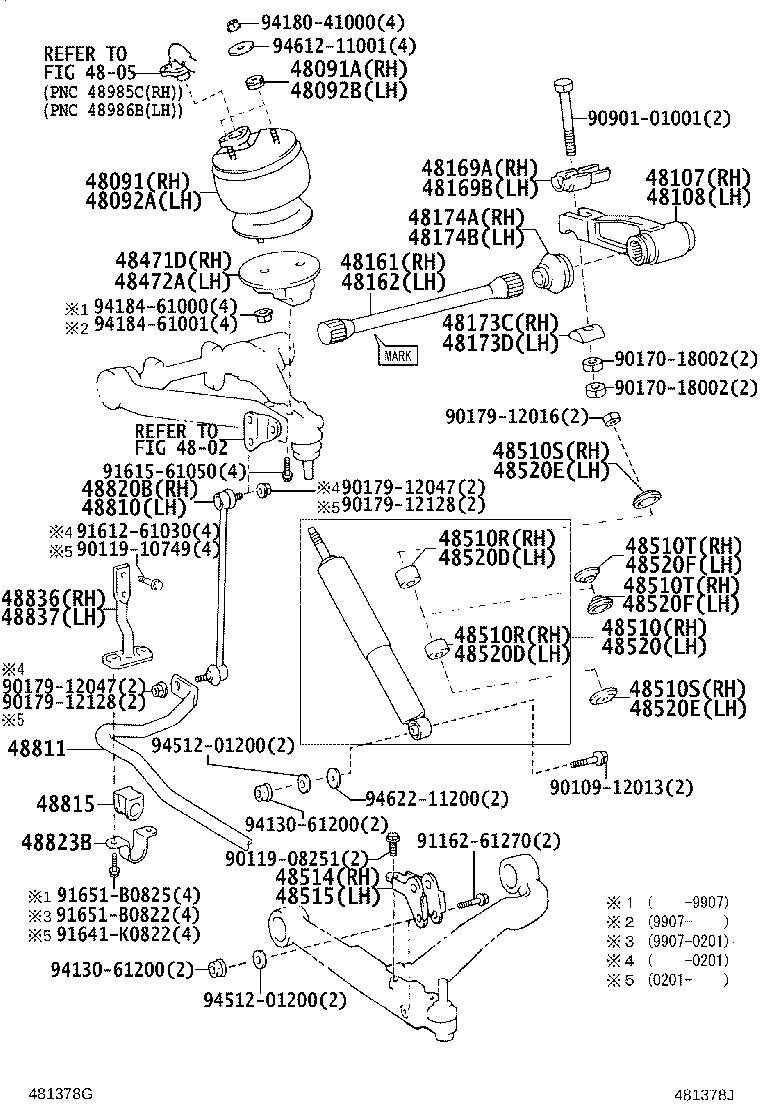

Front Spring & Shock Absorber

40 part groups · 5 illustrations

PNC	Description
48091	Sleeve Sub-assy, Front Suspension, RH
48091A	Grommet(FOR FRONT SUSPENSION SLEEVE RH)
48092A	Sleeve Sub-assy, Front Suspension, LH
48092B	Grommet(FOR FRONT SUSPENSION SLEEVE LH)
48107	Arm Sub-assy, Anchor, RH
48108	Arm Sub-assy, Anchor, LH
48161	Spring, Torsion Bar, RH
48162	Spring, Torsion Bar, LH
48169A	Swivel, Anchor Arm, RH
48169B	Swivel, Anchor Arm, LH
48173	Seat, Anchor Arm Adjuster
48173C	Seat, Anchor Arm Adjuster, RH
48173D	Seat, Anchor Arm Adjuster, LH
48174	Cover, Torsion Bar Dust
48174A	Cover, Torsion Bar Dust, RH
48174B	Cover, Torsion Bar Dust, LH
48471D	Seat, Front Spring, RH
48472A	Seat, Front Spring, LH
48510	Absorber Assy, Shock, Front RH
48510R	Cushion, Front Shock Absorber, NO.1 RH
48510S	Retainer, Front Shock Absorber Cushion, NO.1 RH
48510T	Retainer, Front Shock Absorber Cushion, NO.2 RH
48514	Bracket, Front Shock Absorber, Lower RH
48515	Bracket, Front Shock Absorber, Lower LH
48520	Absorber Assy, Shock, Front LH
48520D	Cushion, Front Shock Absorber, NO.1 LH
48520E	Retainer, Front Shock Absorber Cushion, NO.1 LH
48520F	Retainer, Front Shock Absorber Cushion, NO.2 LH
48532A	Pin, Front Shock Absorber Upper Pivot
48533B	Pin, Front Shock Absorber Lower Pivot
48537A	Bush, Rear Shock Absorber, NO.2
48635	Bush, Upper Arm, Rear
48810	Link Assy, Front Stabilizer, LH
48811	Bar, Stabilizer, Front
48815	Bush, Front Stabilizer Bar, NO.1
48820B	Link Assy, Front Stabilizer, RH
48823B	Cover, Front Stabilizer Bracket
48824	Bracket, Stabilizer, Front
48836	Bracket, Front Stabilizer End, RH
48837	Bracket, Front Stabilizer End, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
