Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan

Discontinued model Data version 2016-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Frame

110 part groups · 16 illustrations

Illustrations

510315D 1993-01 → 2004-08

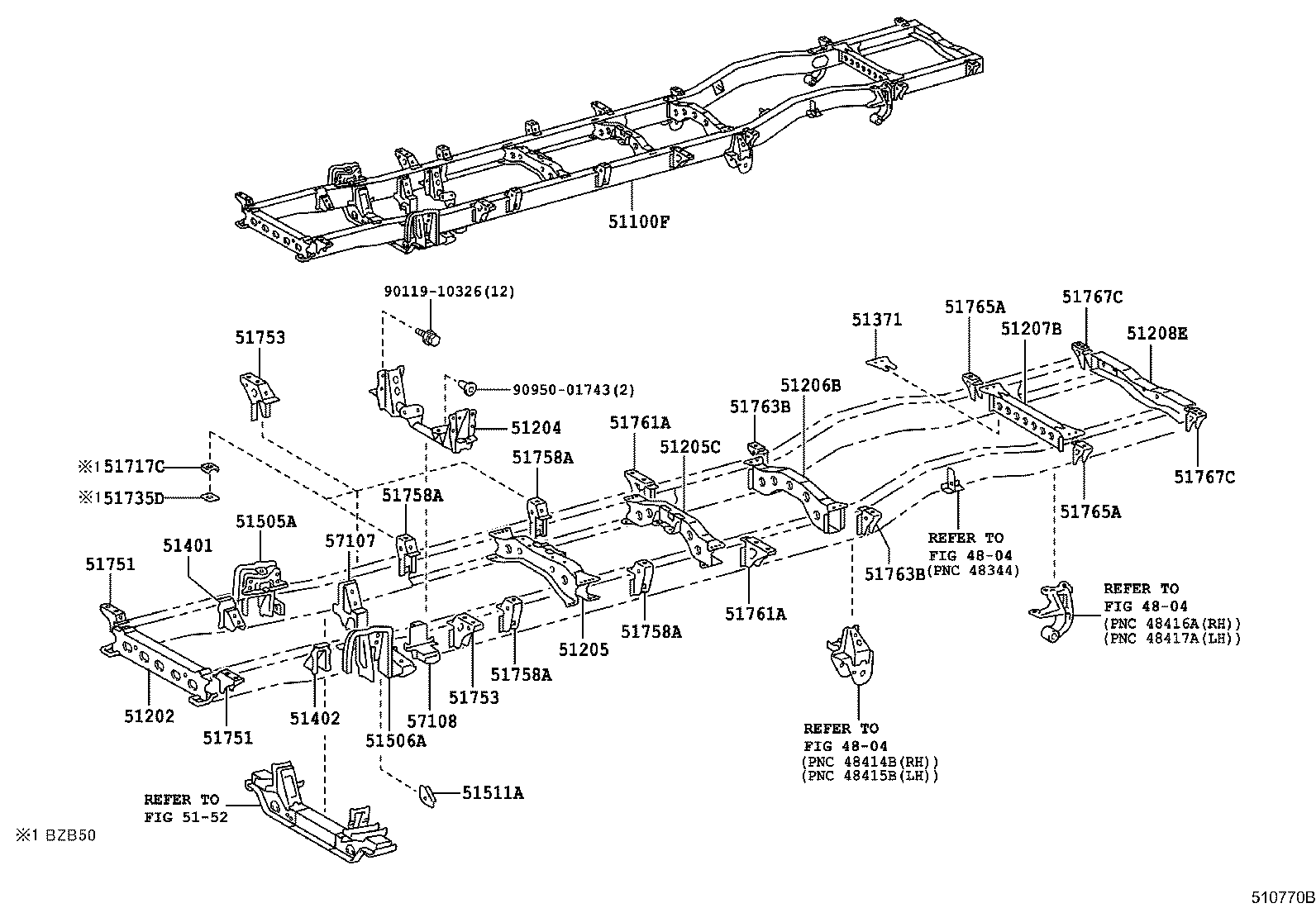

510770B 1993-01 → 2004-08

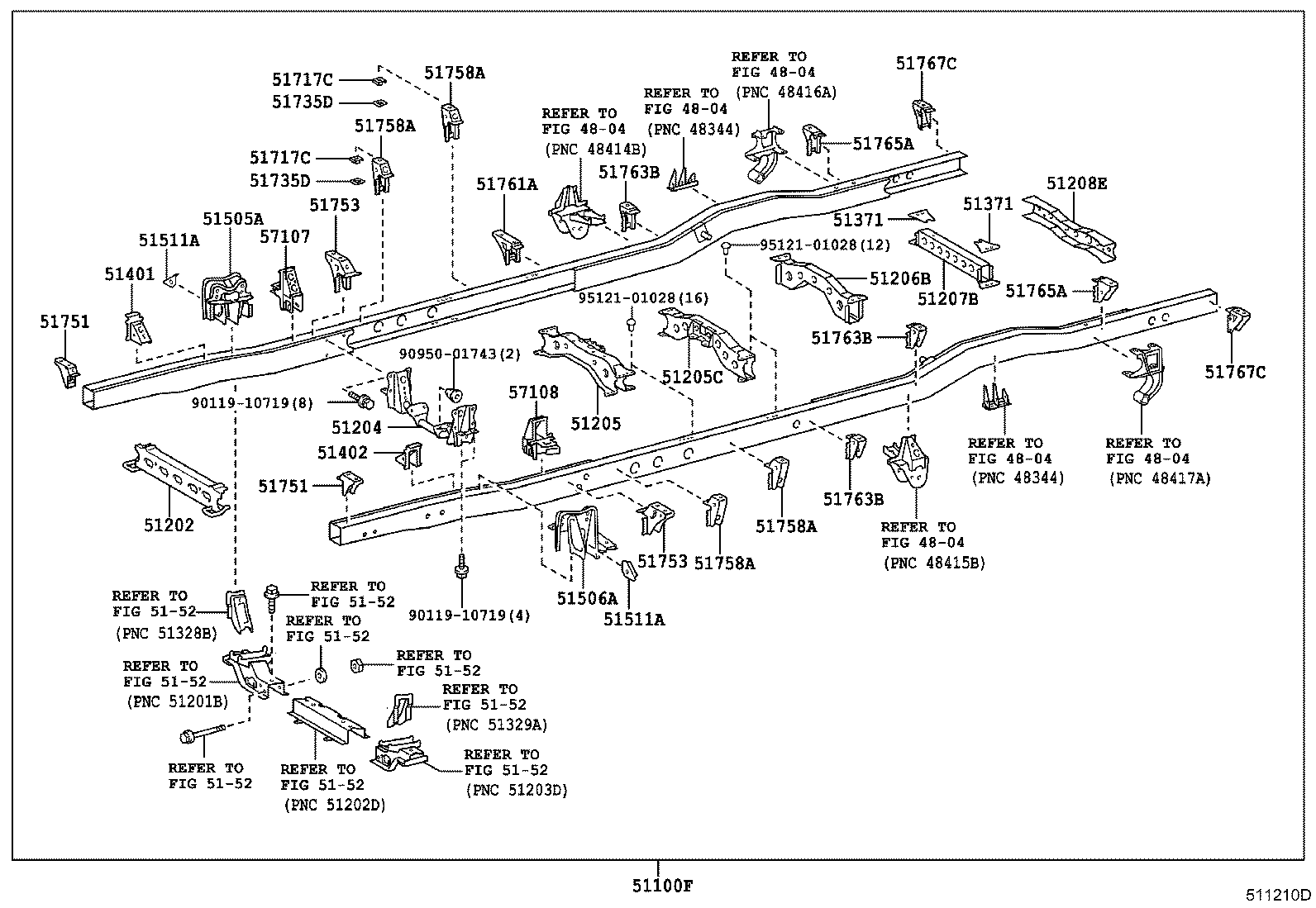

511210D 2004-08 → —

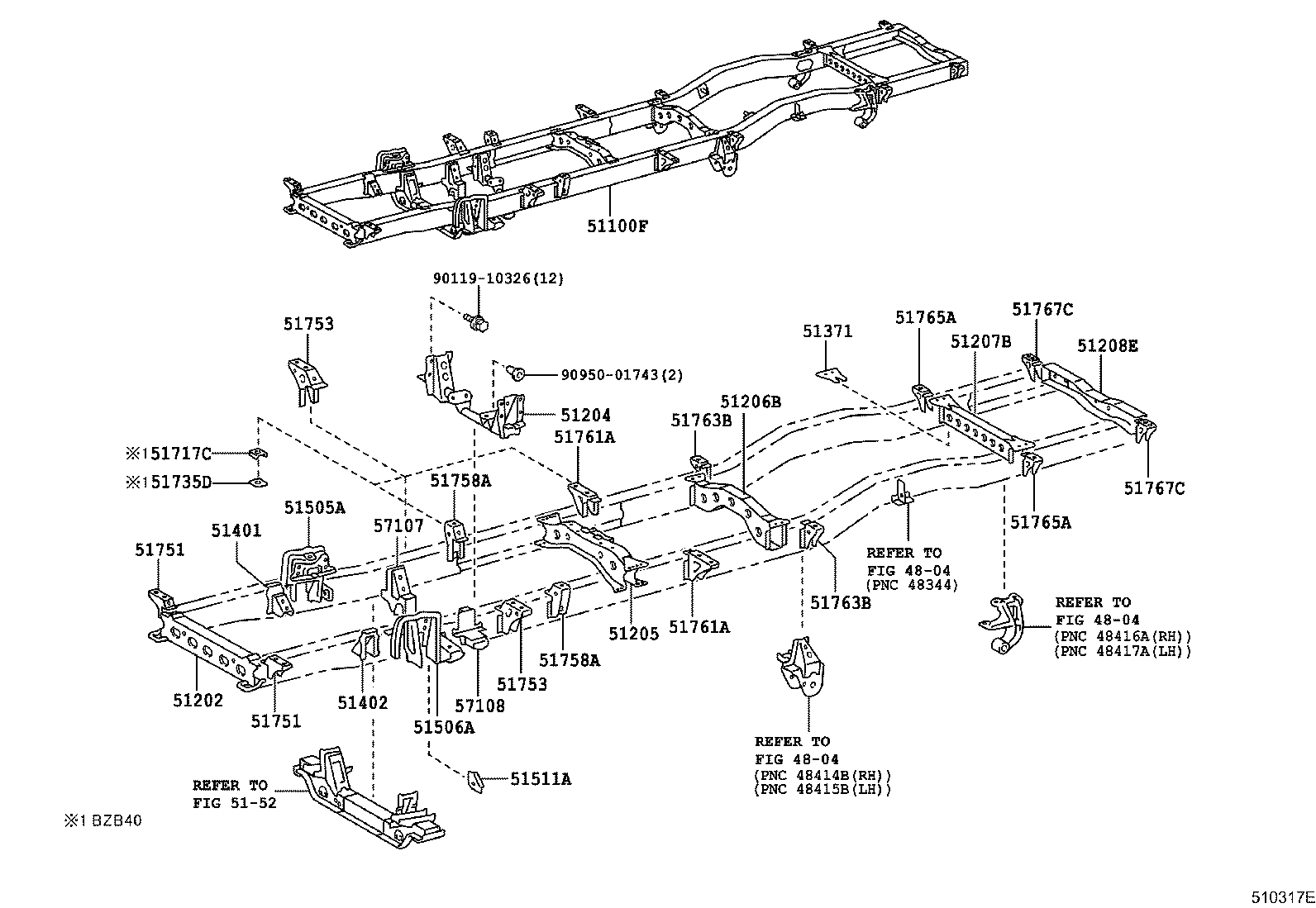

510317E 1993-01 → 2004-08

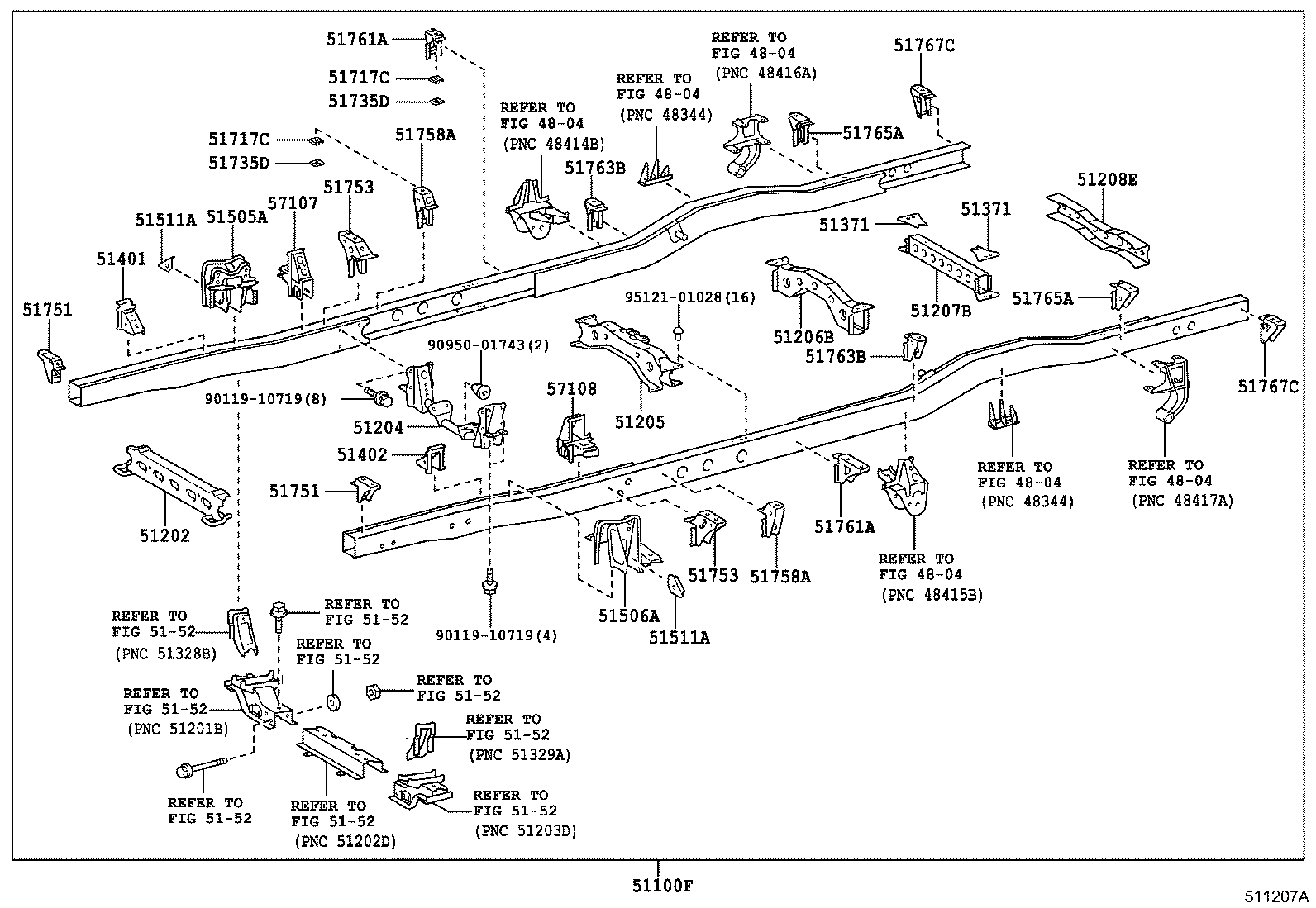

511207A 2004-08 → —

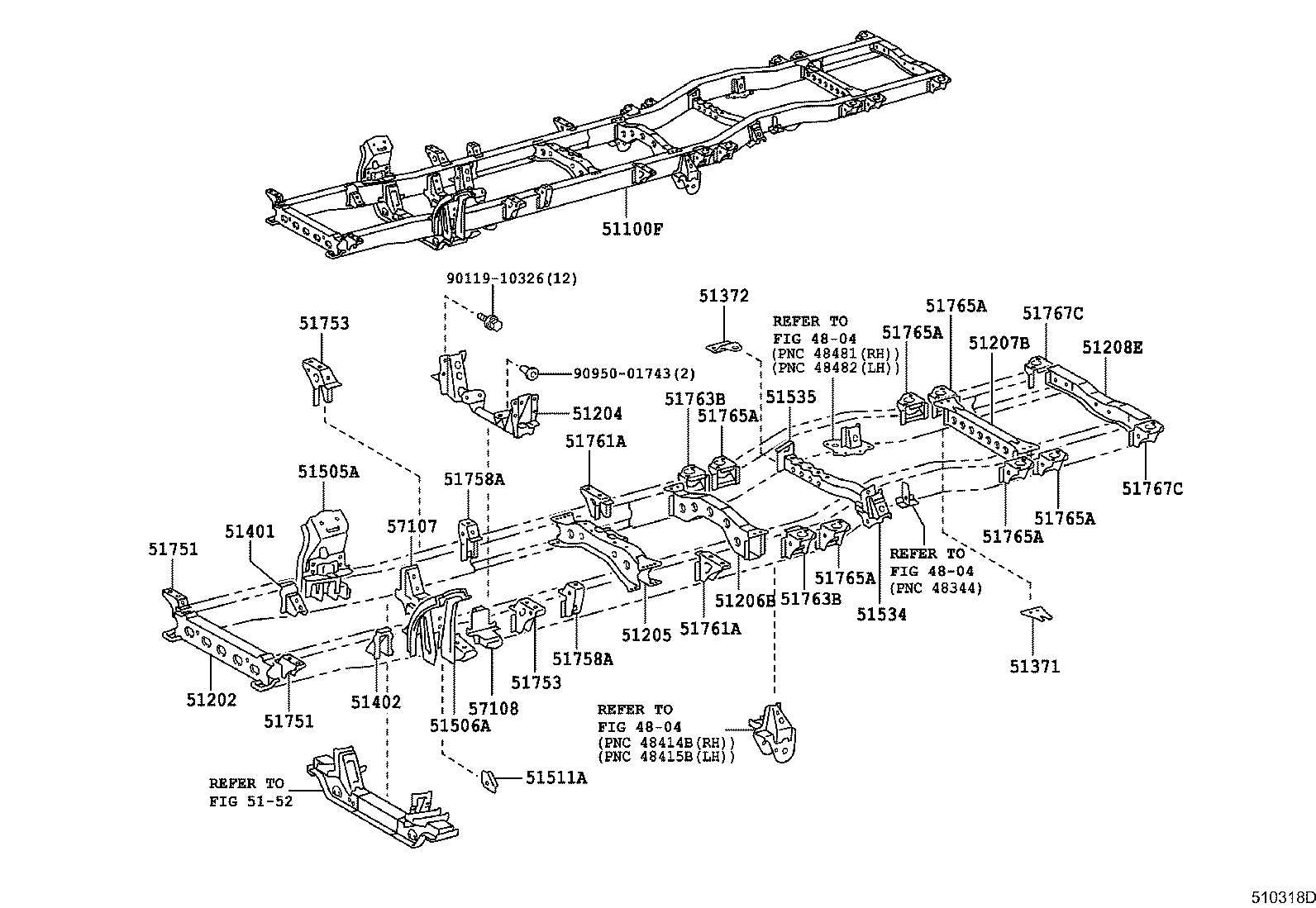

510318D 1993-01 → 2004-08

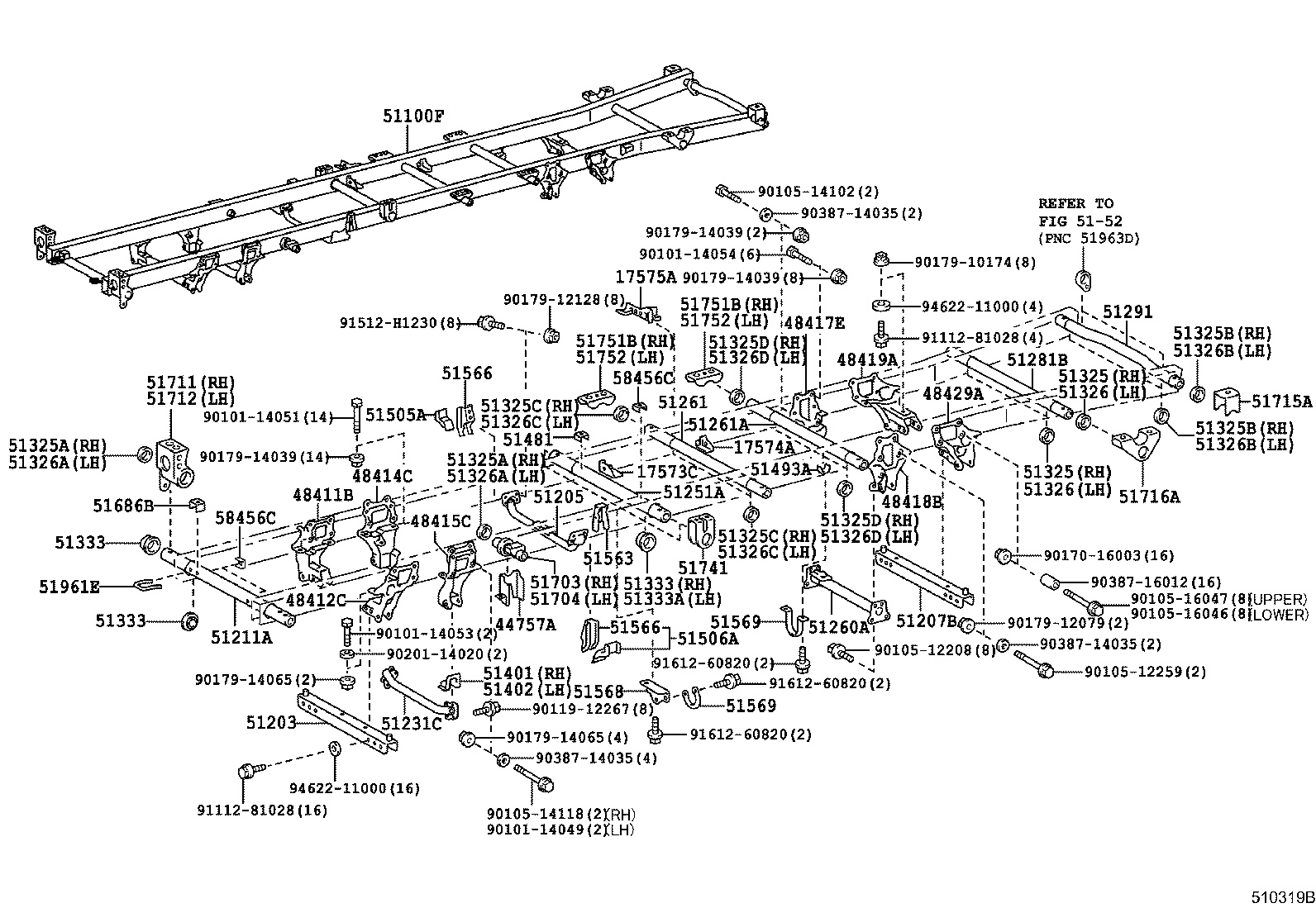

510319B 1995-12 → 1997-05

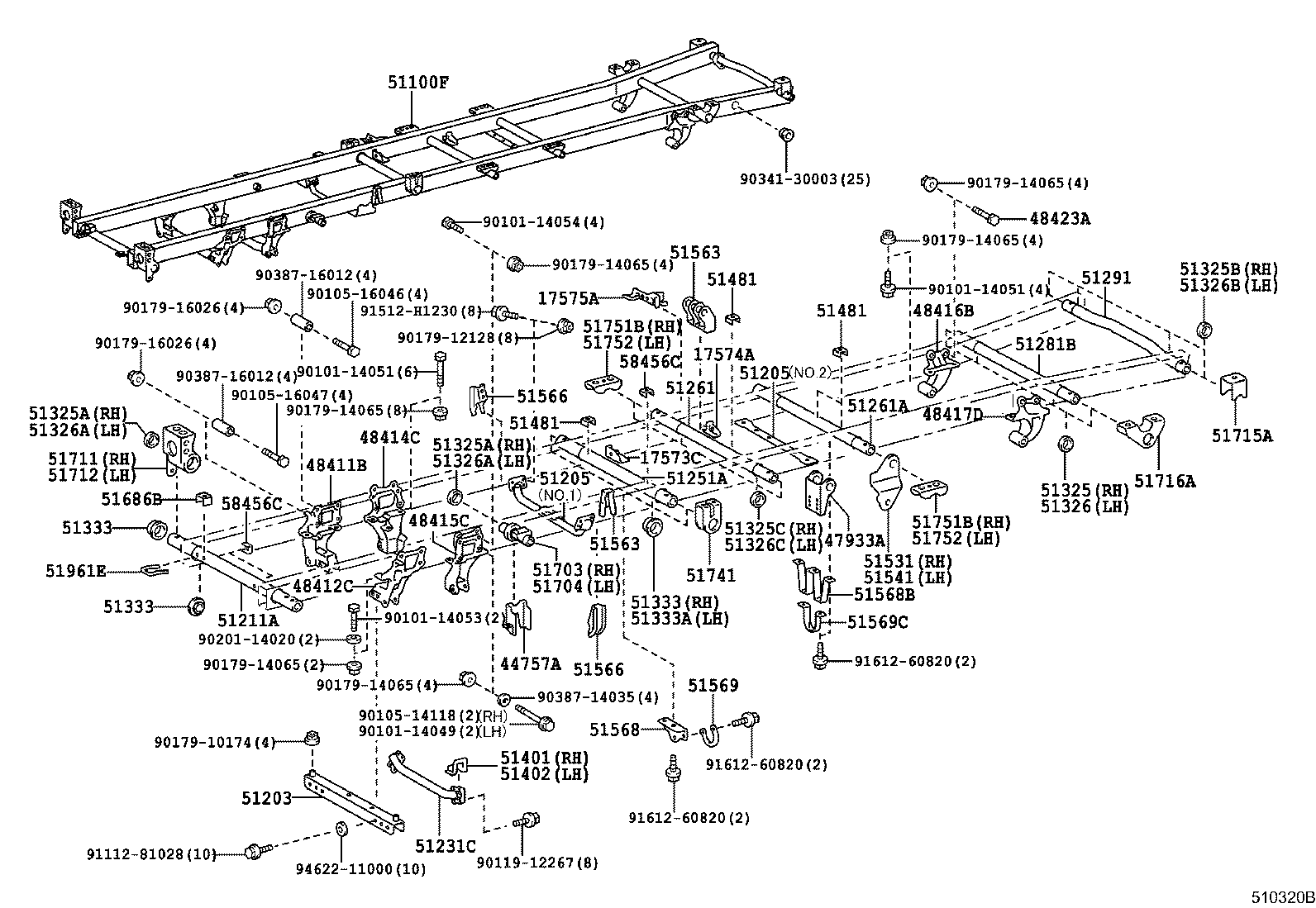

510320B 1996-10 → 1999-07

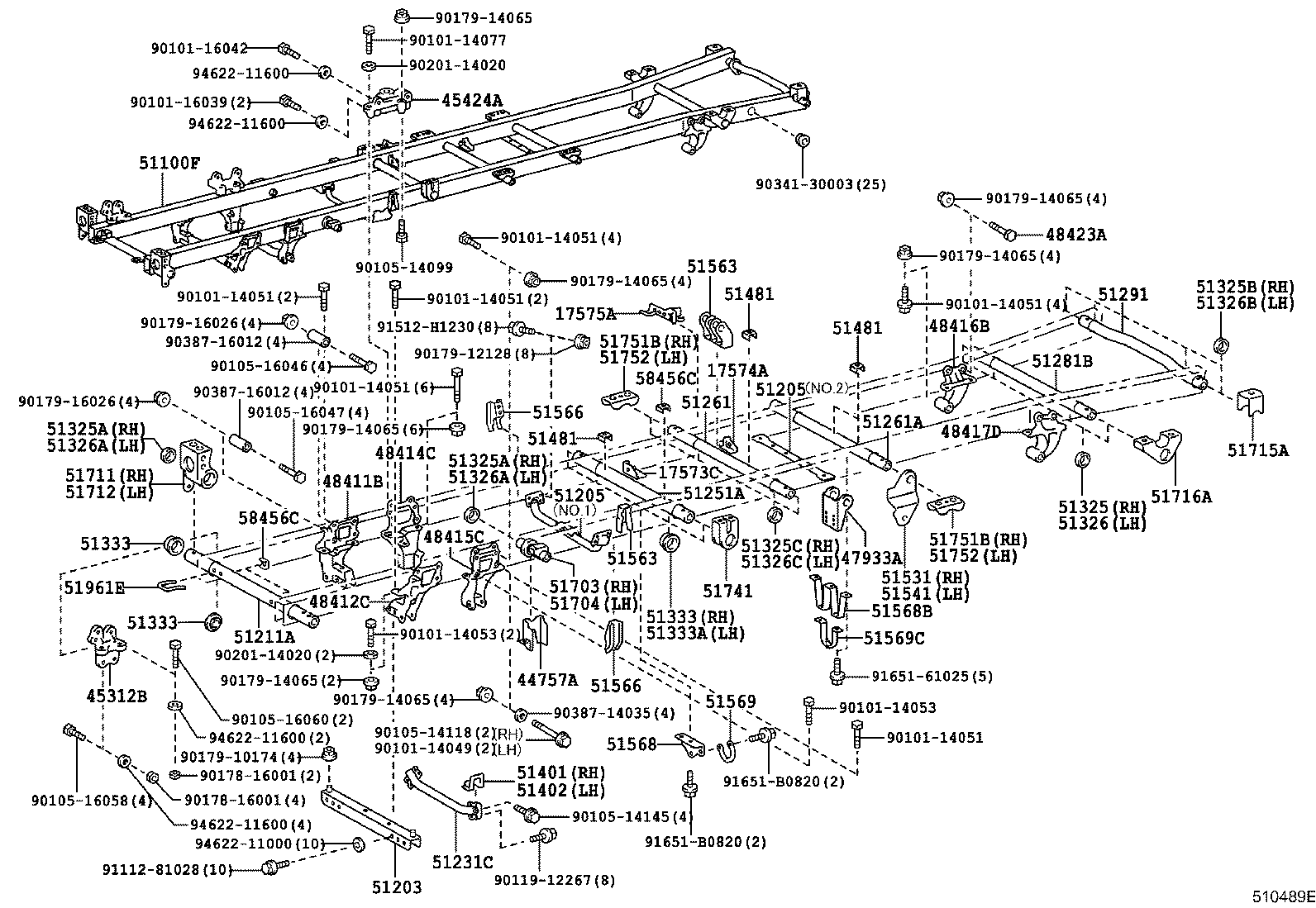

510489E 1999-07 → 2004-08

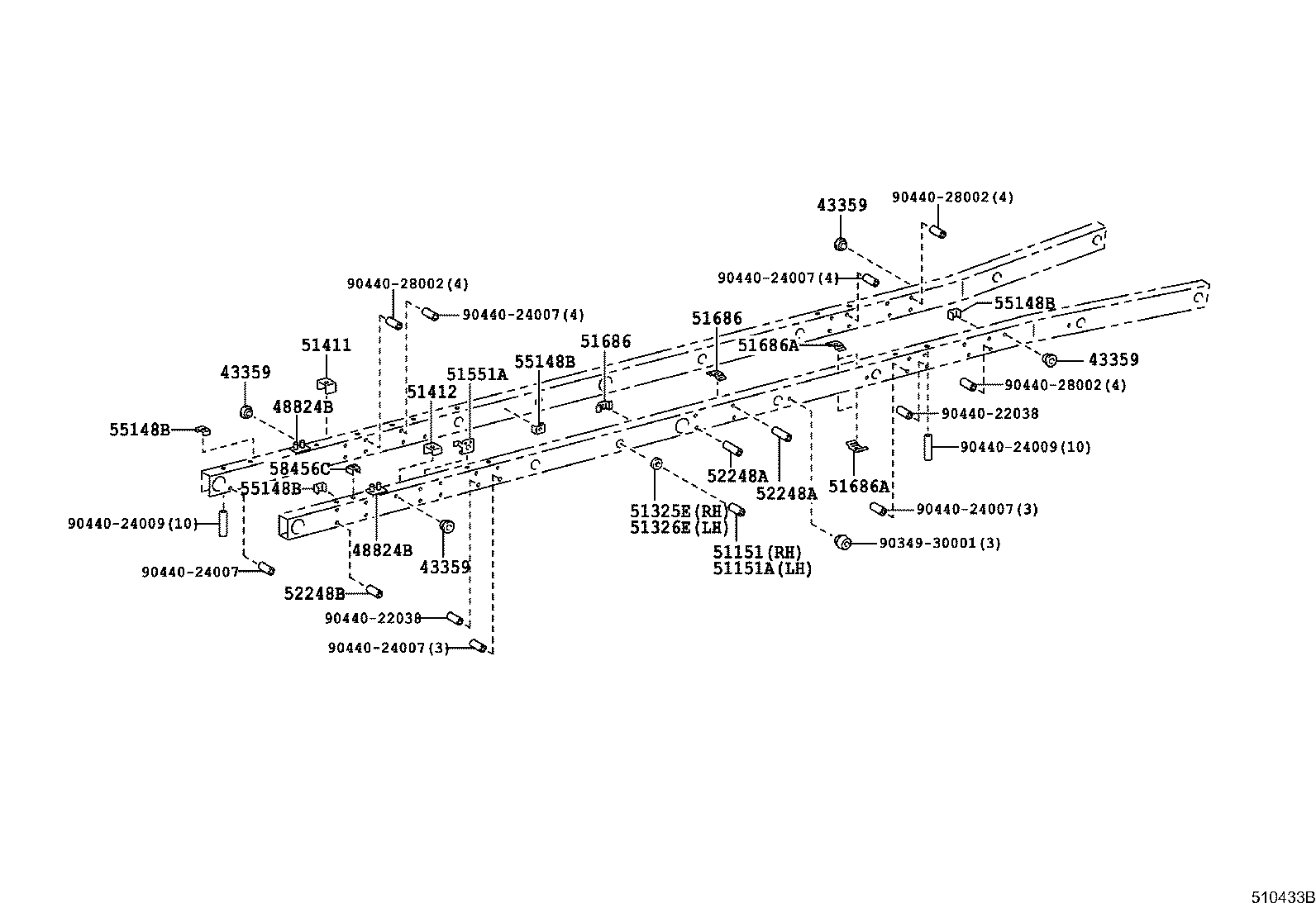

510433B 1995-12 → 1997-05

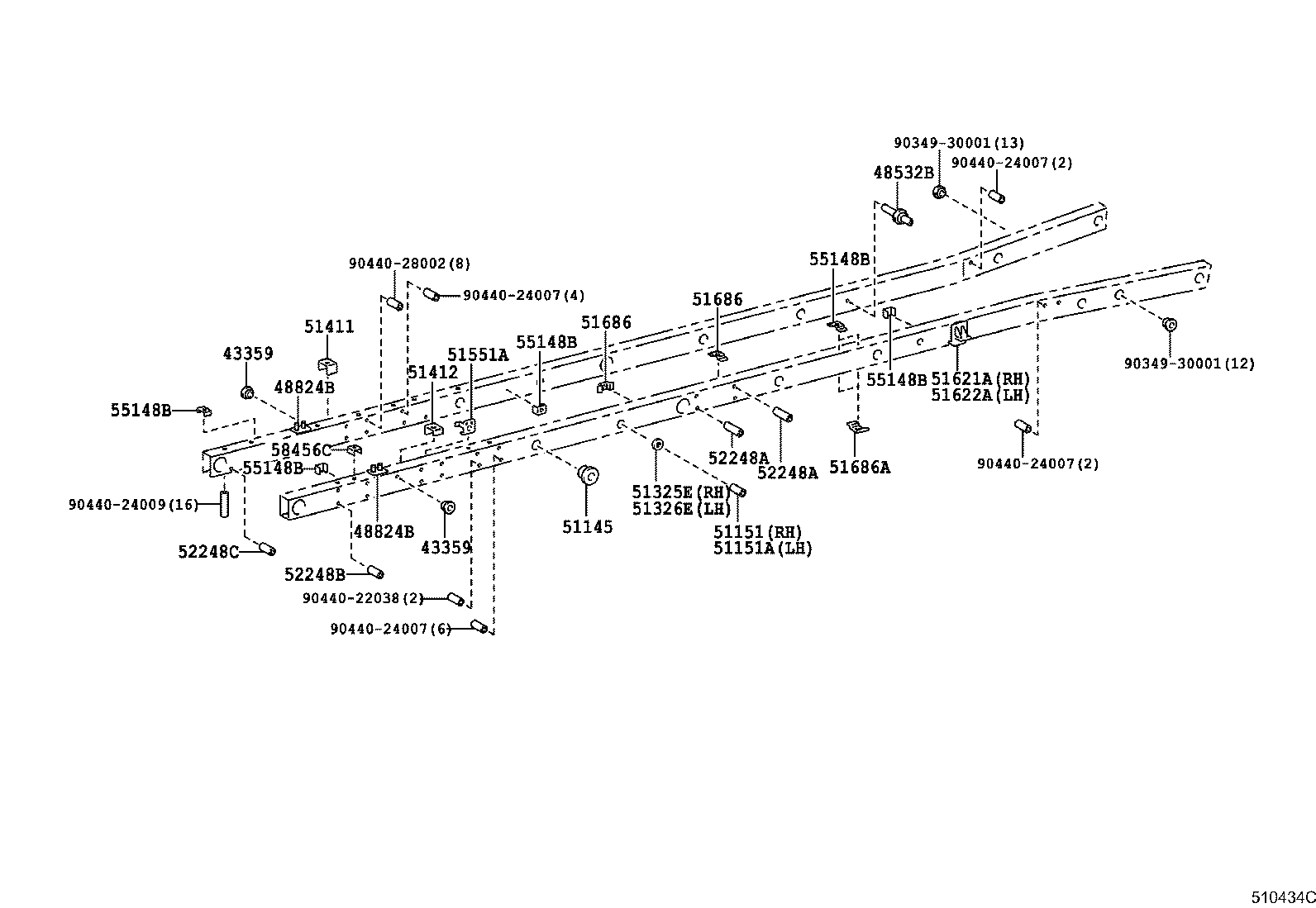

510434C 1996-10 → 1999-07

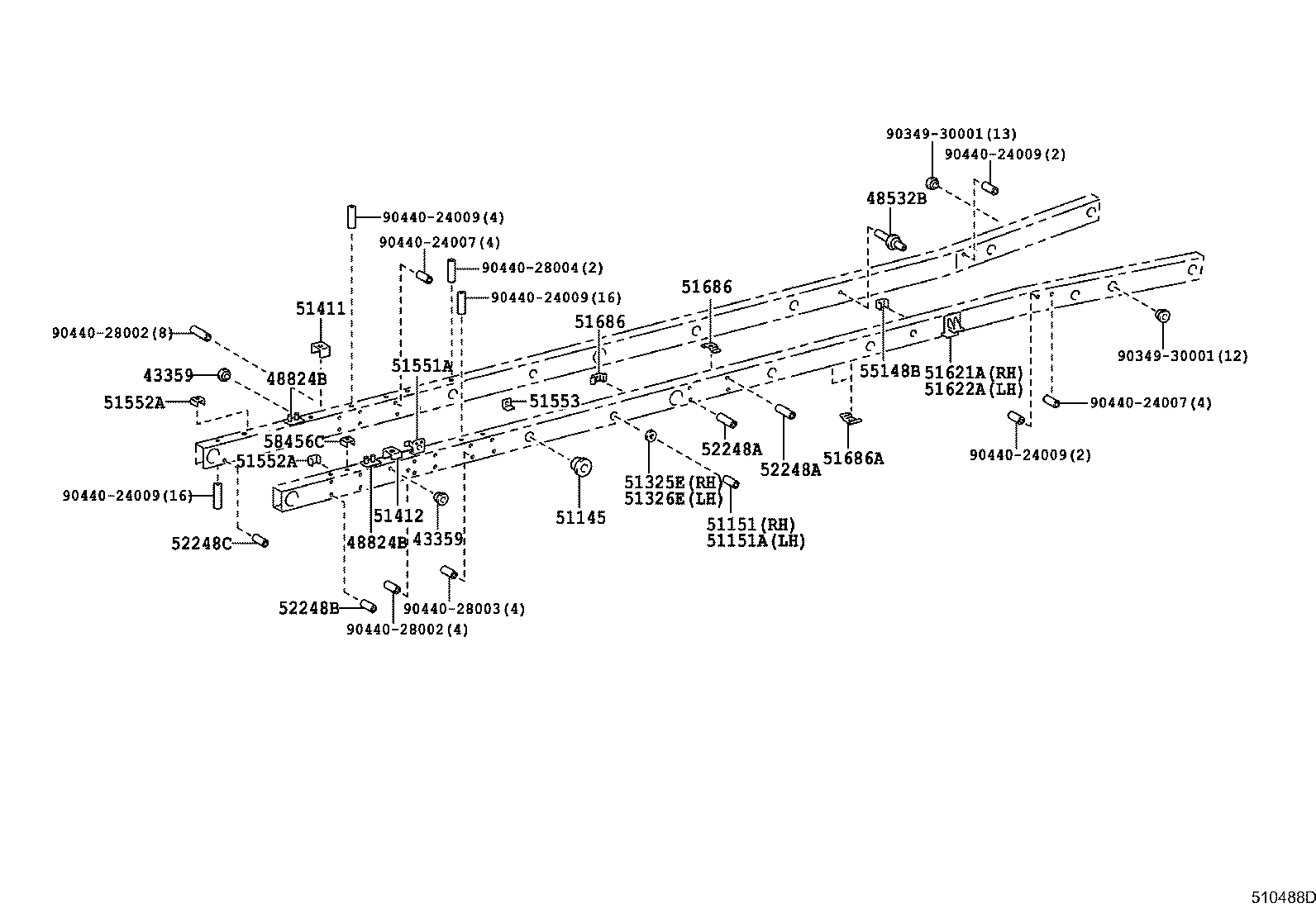

510488D 1999-07 → 2004-08

Part groups

PNC	Description
17573C	Bracket, Exhaust Pipe Support, NO.3
17574A	Bracket, Exhaust Pipe Support, NO.4
17575A	Bracket, Exhaust Pipe Support, NO.5
43359	Nut, Ice Deflector
44757A	Bracket, Vacuum Tank Clamp, NO.2
45312B	Bracket, Steering Gear Housing
45424A	Bracket, Center Arm
47933A	Bracket, Load Sensing Valve Side Rail
48411B	Bracket, Spring, NO.1 RH
48412C	Bracket, Spring, NO.1 LH
48414C	Bracket, Spring, NO.3 RH
48415C	Bracket, Spring, NO.3 LH
48416B	Bracket, Spring, NO.4 RH
48417D	Bracket, Spring, NO.4 LH
48417E	Bracket, Spring, NO.5
48418B	Bracket, Spring, NO.6
48419A	Bracket, Spring, NO.7
48423A	Pin, Spring Bracket
48429A	Bracket, Spring, NO.8
48532B	Pin, Rear Shock Absorber Upper Pivot
48824B	Bracket, Stabilizer
51100F	Frame Sub-assy
51145	Stiffener, Frame Side Rail
51151	Reinforcement, Side Rail, NO.1
51151A	Reinforcement, Side Rail, NO.1
51202	Crossmember Sub-assy, Frame, NO.1
51203	Crossmember Sub-assy, Frame, NO.2
51204	Crossmember Sub-assy, Frame, NO.3
51205	Crossmember Sub-assy, Frame, NO.4
51205C	Crossmember Sub-assy, Frame, NO.5
51206B	Crossmember Sub-assy, Frame, NO.6
51207B	Crossmember Sub-assy, Frame, NO.7
51208E	Crossmember Sub-assy, Frame, NO.8
51211A	Crossmember, Frame, Front
51231C	Crossmember, Frame, NO.3
51251A	Crossmember, Frame, NO.5
51260A	Crossmember Assy, Frame, NO.6
51261	Crossmember, Frame, NO.6
51261A	Crossmember, Frame, NO.6
51281B	Crossmember, Frame, NO.8
51291	Crossmember, Frame, Rear
51325	Retainer, Frame NO.2 Crossmember
51325A	Retainer, Frame NO.2 Crossmember
51325B	Retainer, Frame NO.2 Crossmember, RH
51325C	Retainer, Frame NO.2 Crossmember, RH
51325D	Retainer, Frame NO.2 Crossmember, RH
51325E	Retainer, Frame NO.2 Crossmember, RH
51326	Retainer, Frame NO.2 Crossmember, LH
51326A	Retainer, Frame NO.2 Crossmember, LH
51326B	Retainer, Frame NO.2 Crossmember, LH
51326C	Retainer, Frame NO.2 Crossmember, LH
51326D	Retainer, Frame NO.2 Crossmember, LH
51326E	Retainer, Frame NO.2 Crossmember, LH
51333	Retainer, Frame NO.3 Crossmember, RH
51333A	Retainer, Frame NO.3 Crossmember, RH
51371	Gusset, Frame NO.7 Crossmember, NO.1
51372	Gusset, Frame NO.7 Crossmember, NO.2
51401	Bracket Sub-assy, Engine Front Mounting, RH
51402	Bracket Sub-assy, Engine Front Mounting, LH
51411	Bracket, Radiator Support, RH
51412	Bracket, Radiator Support, LH
51481	Bracket, Power Steering Tube Clamp
51493A	Bracket, Under Guard, Front NO.1
51505A	Support Sub-assy, Upper Control Arm
51506A	Support Sub-assy, Upper Control Arm, LH
51511A	Seat, Front Spring Support
51531	Bracket, Rear Spring Support, RH
51534	Bracket, Lateral Rod Support, NO.4
51535	Crossmember, Lateral Rod Support
51541	Bracket, Rear Spring Support, LH
51551A	Bracket, Tube Clamp, NO.1
51552A	Bracket, Tube Clamp, NO.2
51553	Bracket, Tube Clamp, NO.3
51563	Bracket, Anchor Arm Support
51566	Support, Anchor Arm
51568	Bracket, Propeller Shaft Guard
51568B	Bracket, Propeller Shaft Guard
51569	Guard, Propeller Shaft
51569C	Guard, Propeller Shaft
51621A	Bracket, Rear Bound Stopper, LH
51622A	Bracket, Rear Bound Stopper, RH
51686	Bracket, Cable Clamp Side Rail
51686A	Bracket, Cable Clamp Side Rail
51686B	Bracket, Cable Clamp Side Rail
51703	Bracket Sub-assy, Cab Mounting, NO.2, RH
51704	Bracket Sub-assy, Cab Mounting, NO.2 LH
51711	Bracket, Front Body Support OR Mounting, RH
51712	Bracket, Front Body Support OR Mounting, LH
51715A	Bracket, Body Support, Rear RH
51716A	Bracket, Body Support, Rear LH
51717C	Plate, Body Support Bracket
51735D	Reinforcement, Cab Rear Mounting
51741	Bracket, Rear Body Mounting, NO.1
51751	Bracket, Body Support, NO.1
51751B	Bracket, Body Support, NO.1 RH
51752	Bracket, Body Support, NO.1 LH
51753	Bracket, Body Support, NO.2
51758A	Bracket, Body Support, NO.4 LH
51761A	Bracket, Body Support, NO.5 RH
51763B	Bracket, Body Support, NO.6
51765A	Bracket, Frame Body Mounting, NO.7 RH
51767C	Bracket, Frame Body Mounting, NO.8 RH
51961E	Hook, Front
52248A	Collar, Body Mounting, Rear
52248B	Collar, Body Mounting, Rear
52248C	Collar, Body Mounting, Rear
55148B	Bracket, Power Steering Tube
57107	Bracket Sub-assy, Strut Bar, RH
57108	Bracket Sub-assy, Strut Bar, LH
58456C	Bracket, Brake Tube Clamp

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
