Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

23 part groups · 6 illustrations

Illustrations

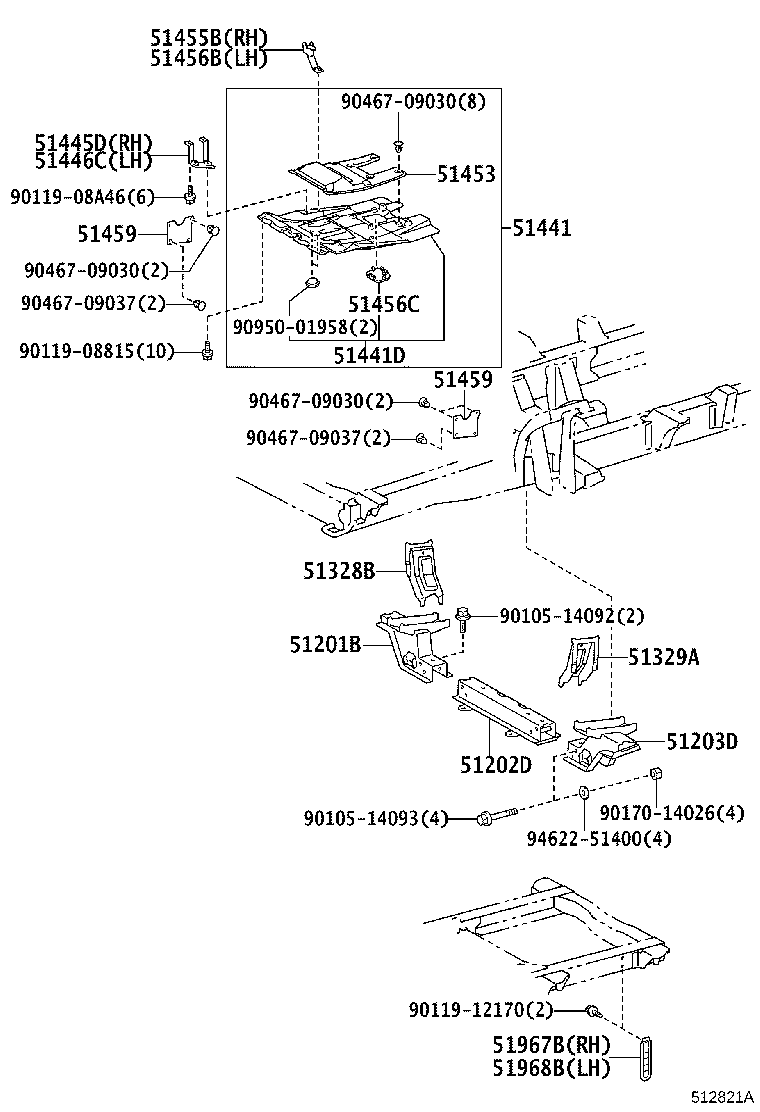

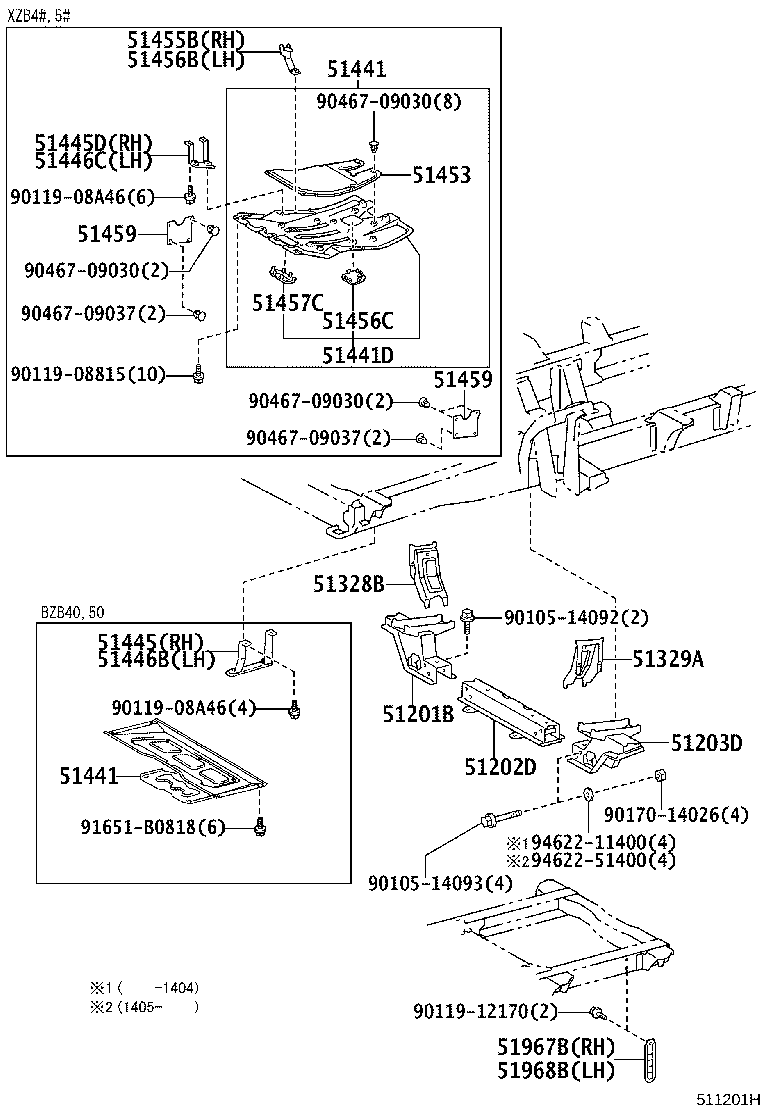

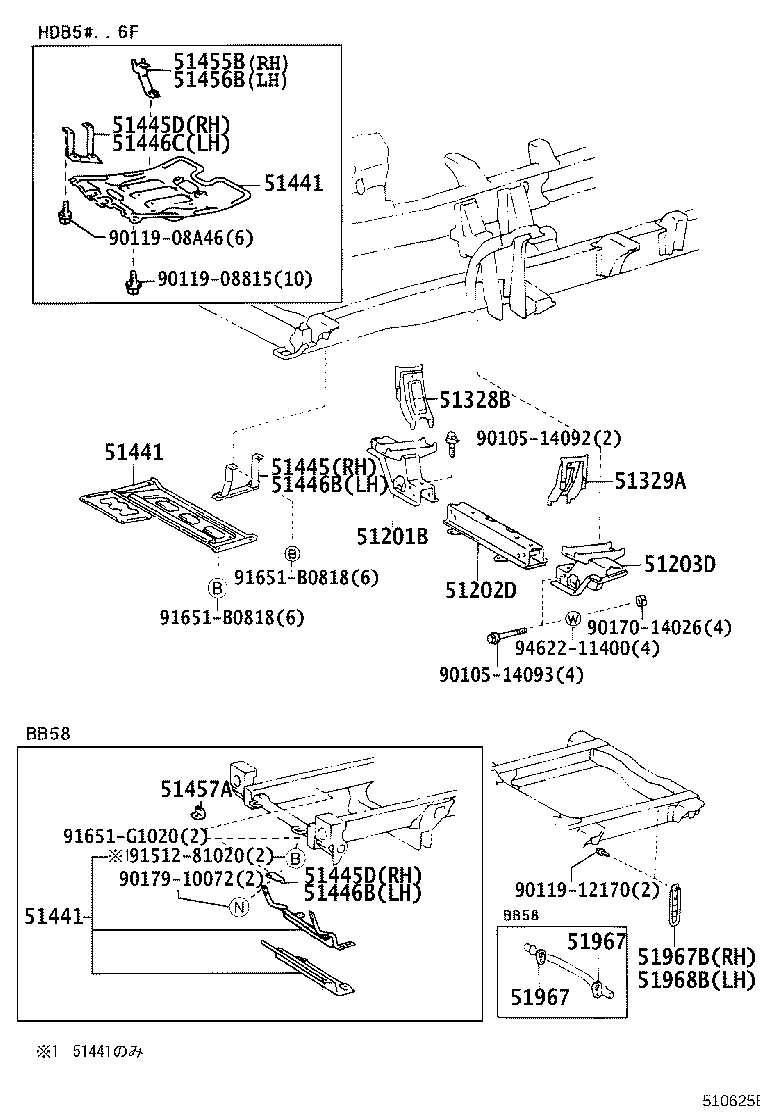

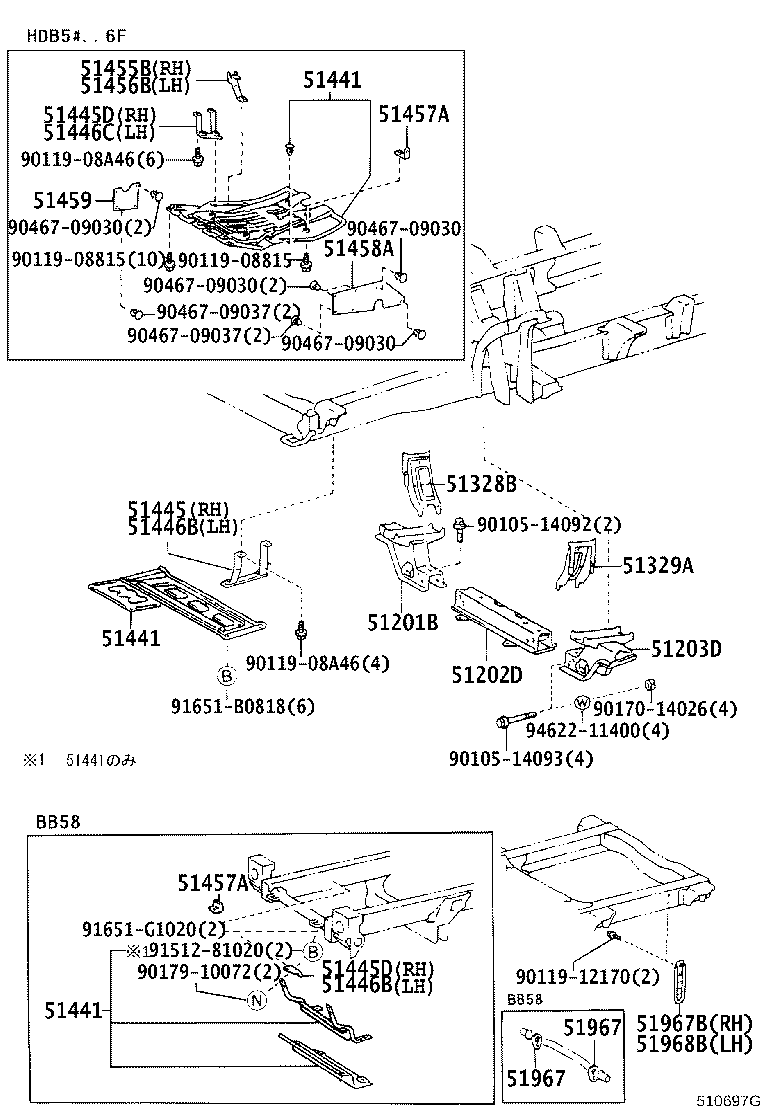

Figure 510324C 510324C 1993-01 → 1999-07 Figure 510625E 510625E 1999-07 → 2001-08 Figure 510697G 510697G 2001-08 → 2004-08 Figure 511201H 511201H 2004-08 → 2015-01 Figure 511201H 511201H 2015-01 → — Figure 512821A 512821A 2015-01 → —

Part groups

PNCDescription
51201B Crossmember Sub-assy, Front Suspension, RH
51202D Crossmenber Sub-assy, Front Suspension, Lower
51203D Crossmenber Sub-assy, Front Suspension, LH
51328B Support, Front Suspension Member, RH
51329A Support, Front Suspension Member, LH
51407B Bracket Sub-assy, Engine Under Cover
51441 Cover, Engine Under, NO.1
51441D Cover, Engine Under
51445 Bracket, Engine Under Cover
51445D Bracket, Engine Under Cover, RH
51446B Bracket, Engine Under Cover, NO.2
51446C Bracket, Engine Under Cover, LH
51453 Silencer, Engine Under Cover, Front
51455B Bracket, Engine Under Cover, Rear RH
51456B Bracket, Engine Under Cover, Rear LH
51456C Seal, Engine Under Cover, NO.2
51457A Bracket, Engine Under Cover, NO.3
51457C Seal, Engine Under Cover, NO.3
51458A Seal, Engine Side Cover, Lower
51459 Stay, Engine Side Cover
51967 Hook, Transport, Rear
51967B Hook, Transport, Rear RH
51968B Hook, Transport, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
