Toyota Coaster
1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan
Discontinued model
Data version 2016-12

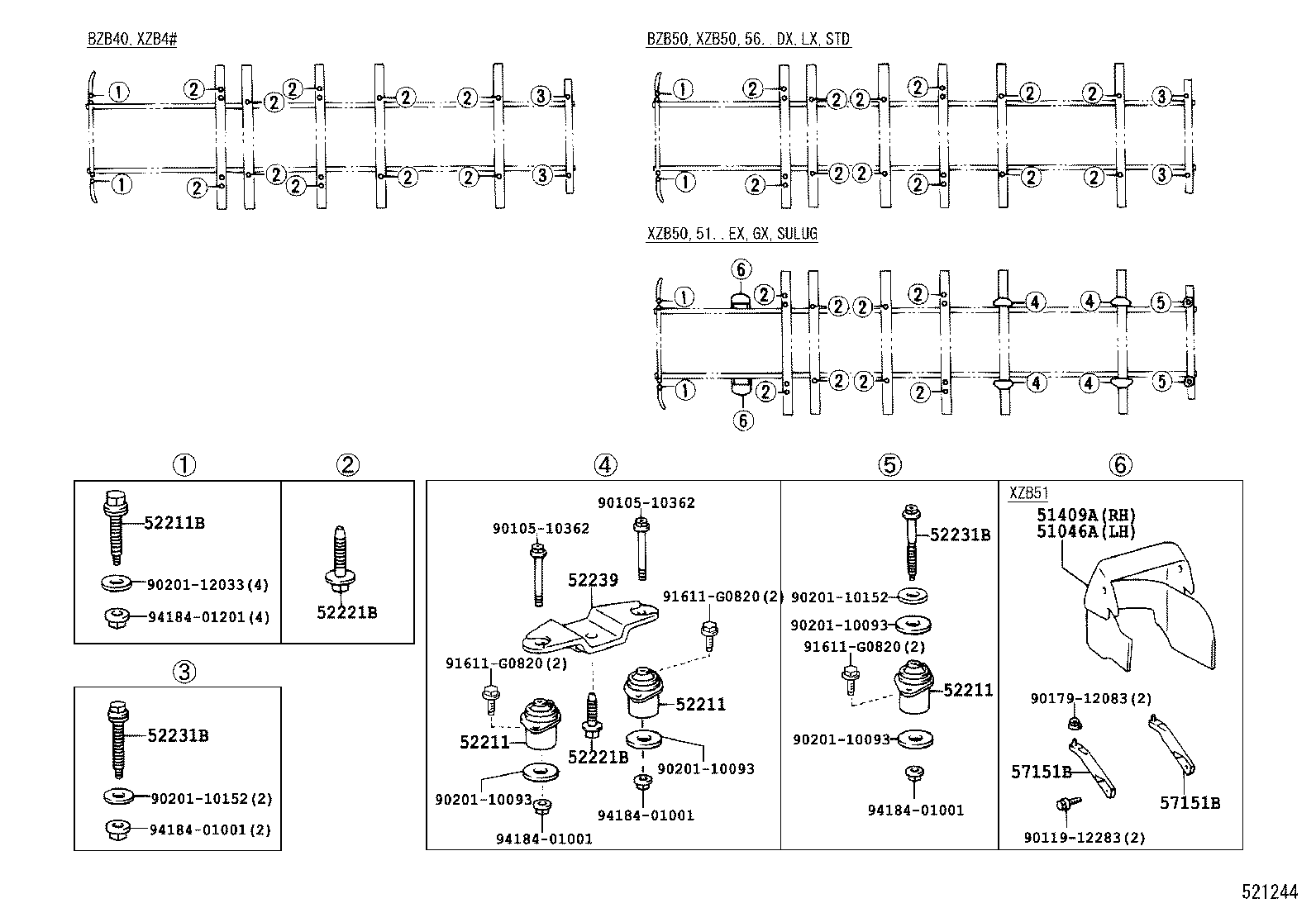

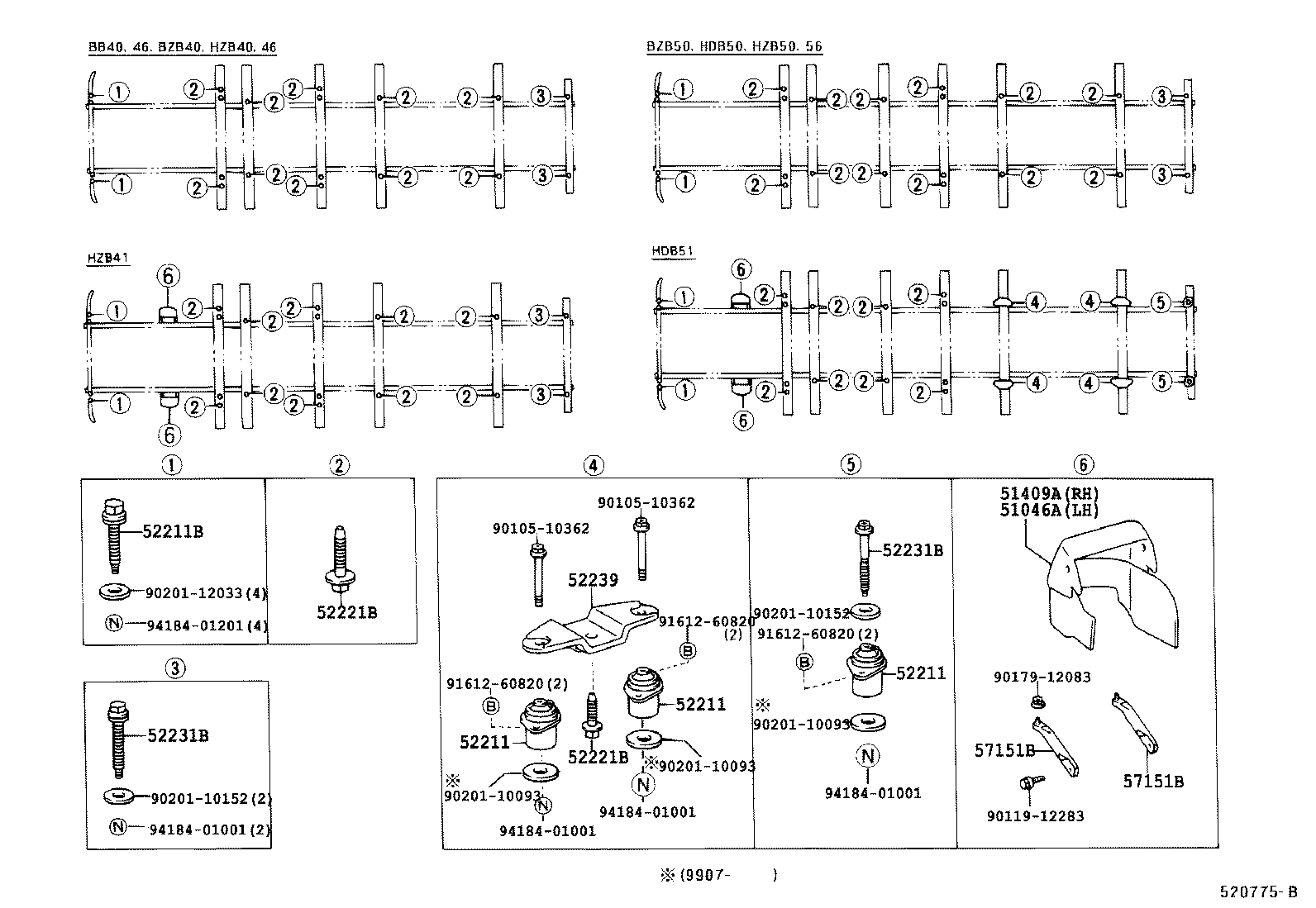

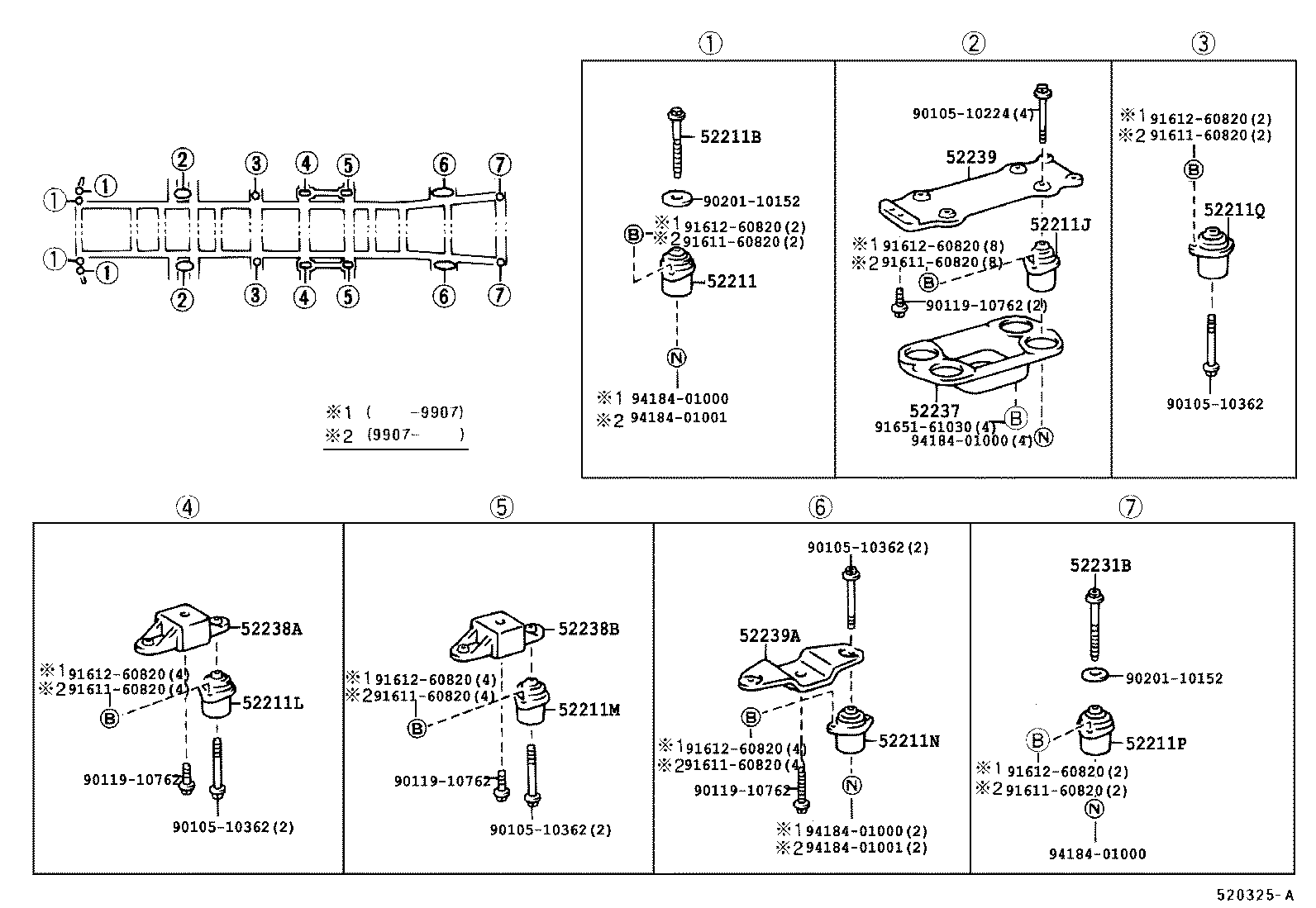

Cab Mounting & Body Mounting
18 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 51046A | Cover Sub-assy, Engine Under, NO.5 |
| 51409A | Cover Sub-assy, Engine Under, NO.4 |
| 52211 | Cushion, Body Mounting, NO.1 Upper |
| 52211B | Bolt(FOR BODY MOUNTING NO.1 CUSHION) |
| 52211J | Cushion, Front Suspension Member Body Mounting, Front |
| 52211L | Cushion, Body Mounting, NO.1 |
| 52211M | Cushion, Body Mounting, NO.1 |
| 52211N | Cushion, Body Mounting, NO.1 |
| 52211P | Cushion, Body Mounting, NO.1 |
| 52211Q | Cushion, Body Mounting, NO.1 |
| 52221B | Bolt(FOR BODY MOUNT NO.2 CUSHION) |
| 52231B | Bolt(FOR BODY MOUNT NO.3 CUSHION) |
| 52237 | Holder, Body Mounting, Front |
| 52238A | Holder, Body Mounting, Rear |
| 52238B | Holder, Body Mounting, Rear |
| 52239 | Plate, Body Mounting |
| 52239A | Plate, Body Mounting |
| 57151B | Stay, Crossmember, A |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
