Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

14 part groups · 3 illustrations

Illustrations

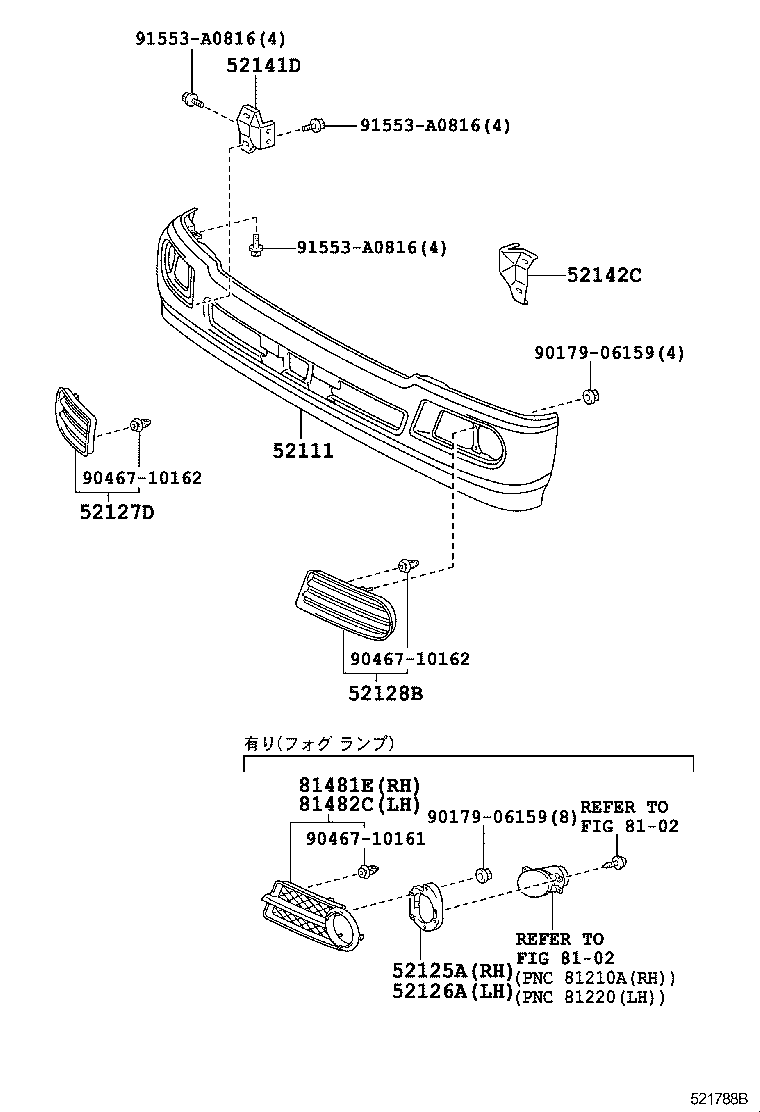

Figure 520749F 520749F 1993-01 → 2007-08 Figure 520323A 520323A 1995-12 → 2004-08 Figure 521788B 521788B 2007-08 → —

Part groups

PNCDescription
52013 Arm Sub-assy, Front Bumper, Inner RH
52014 Arm Sub-assy, Front Bumper, Inner LH
52111 Bumper Assy, Front
52125A Bracket, Fog Lamp Mounting, RH
52126A Bracket, Fog Lamp Mounting, LH
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52141D Stay, Front Bumper, RH
52142C Stay, Front Bumper, LH
52533 Bracket, Front Bumper Retainer, NO.1
52534 Bracket, Front Bumper Retainer, NO.2
61391B Packing, Center Body Pillar, NO.1
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
