Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

16 part groups · 2 illustrations

Illustrations

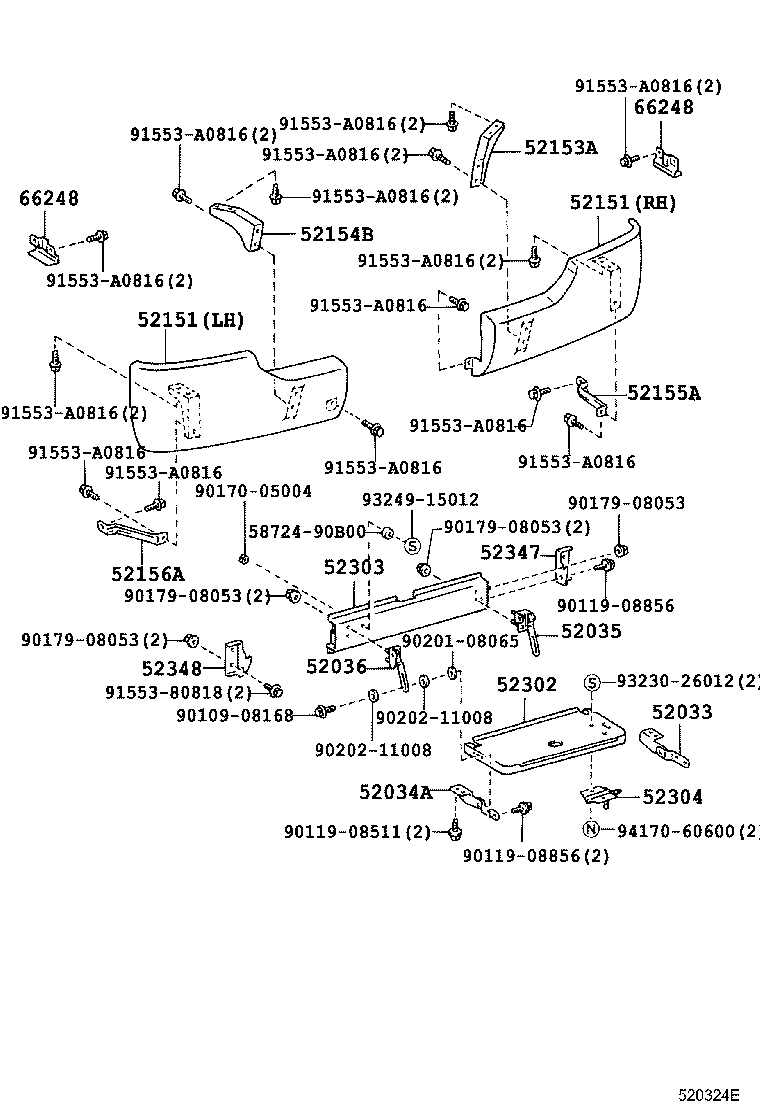

Figure 520464D 520464D 1993-01 → — Figure 520324E 520324E 1993-01 → —

Part groups

PNCDescription
52033 Hinge Sub-assy, Back Step, RH
52034A Hinge Sub-assy, Back Step, LH
52035 Stay Sub-assy, Back Step, RH
52036 Stay Sub-assy, Back Step, LH
52151 Bumper Assy, Rear
52153A Stay, Rear Bumper Side, RH
52154B Stay, Rear Bumper Side, LH
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52302 Step Sub-assy, Back
52303 Member Sub-assy, Back Step
52304 Lock Sub-assy, Back Step
52347 Bracket, Back Step Frame, Outer RH
52348 Bracket, Back Step Frame, Outer LH
61875B Lid, Spare Wheel Carrier, NO.1
66248 Protector, Rear Body Side Panel, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
