Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Floor Panel & Rear Floor Member

47 part groups · 11 illustrations

Illustrations

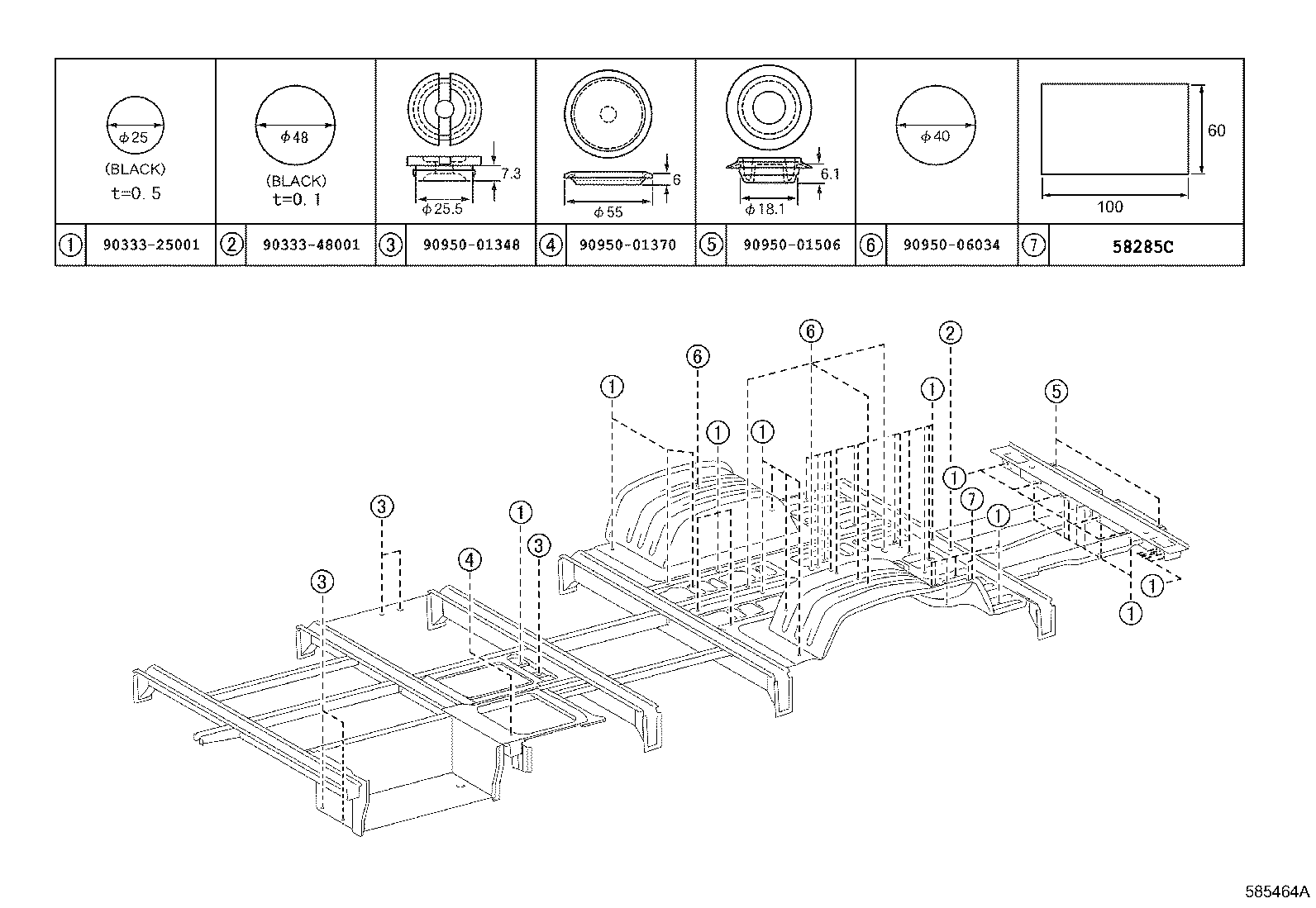

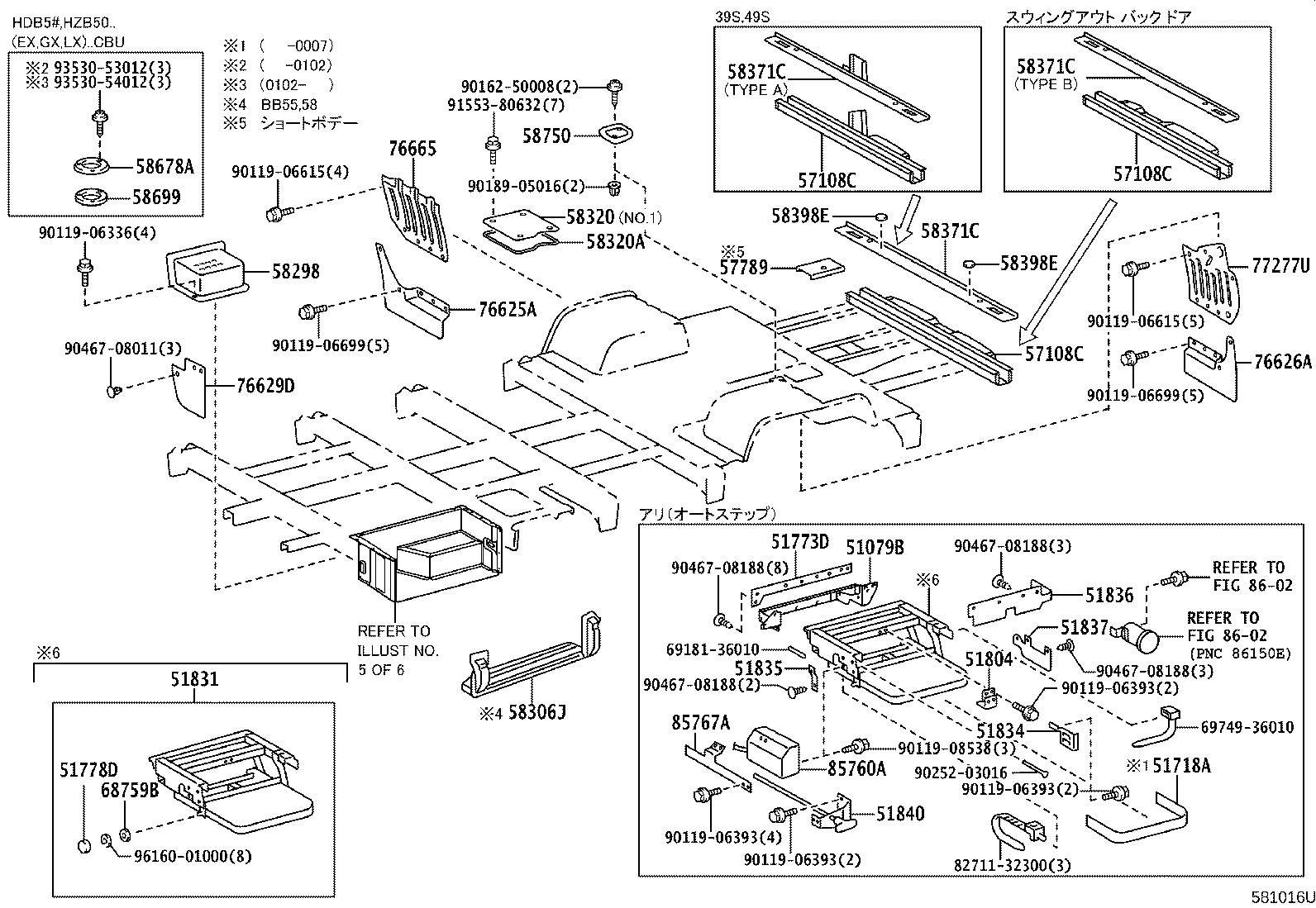

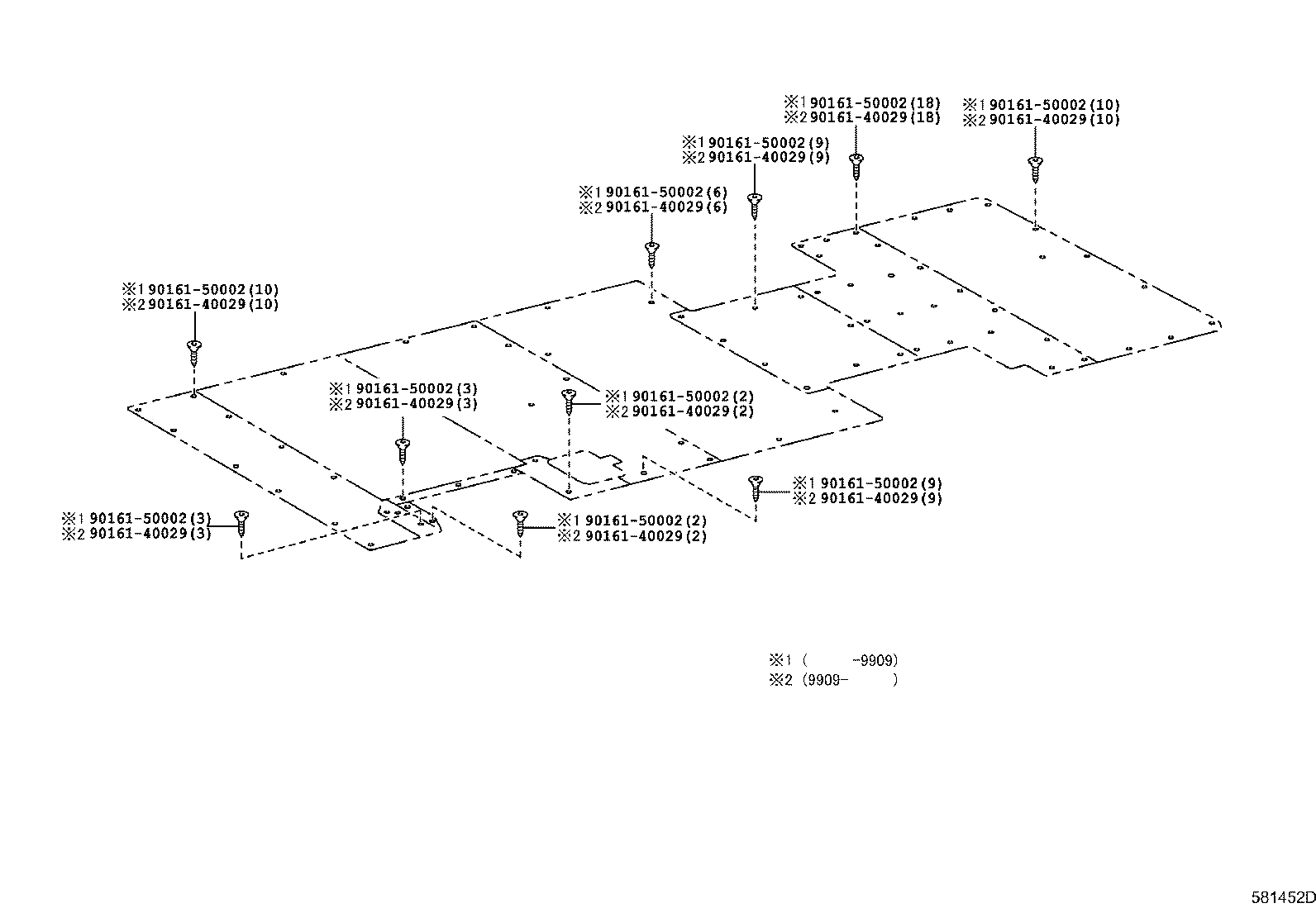

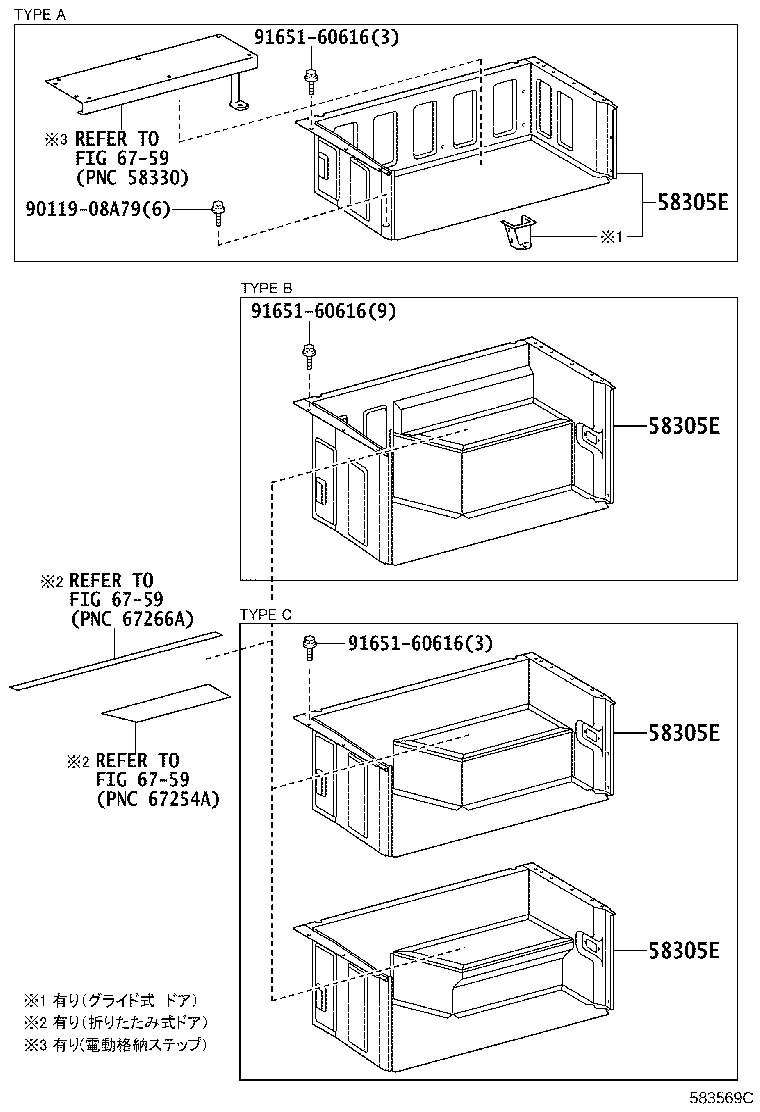

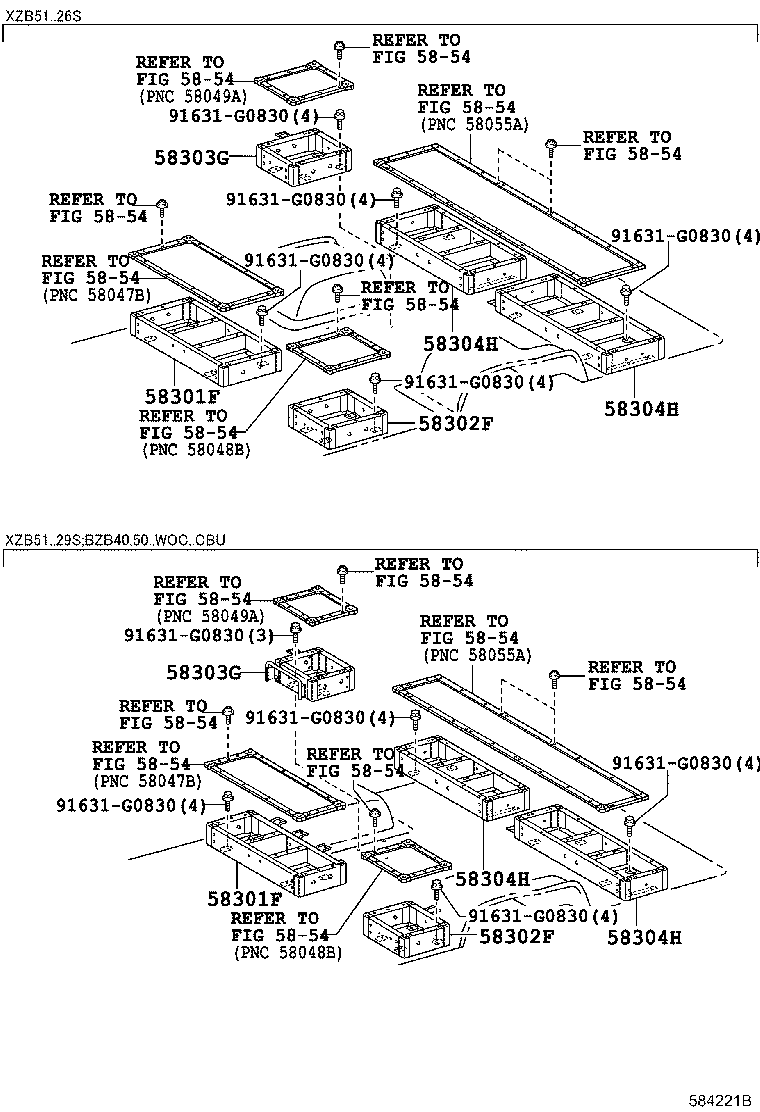

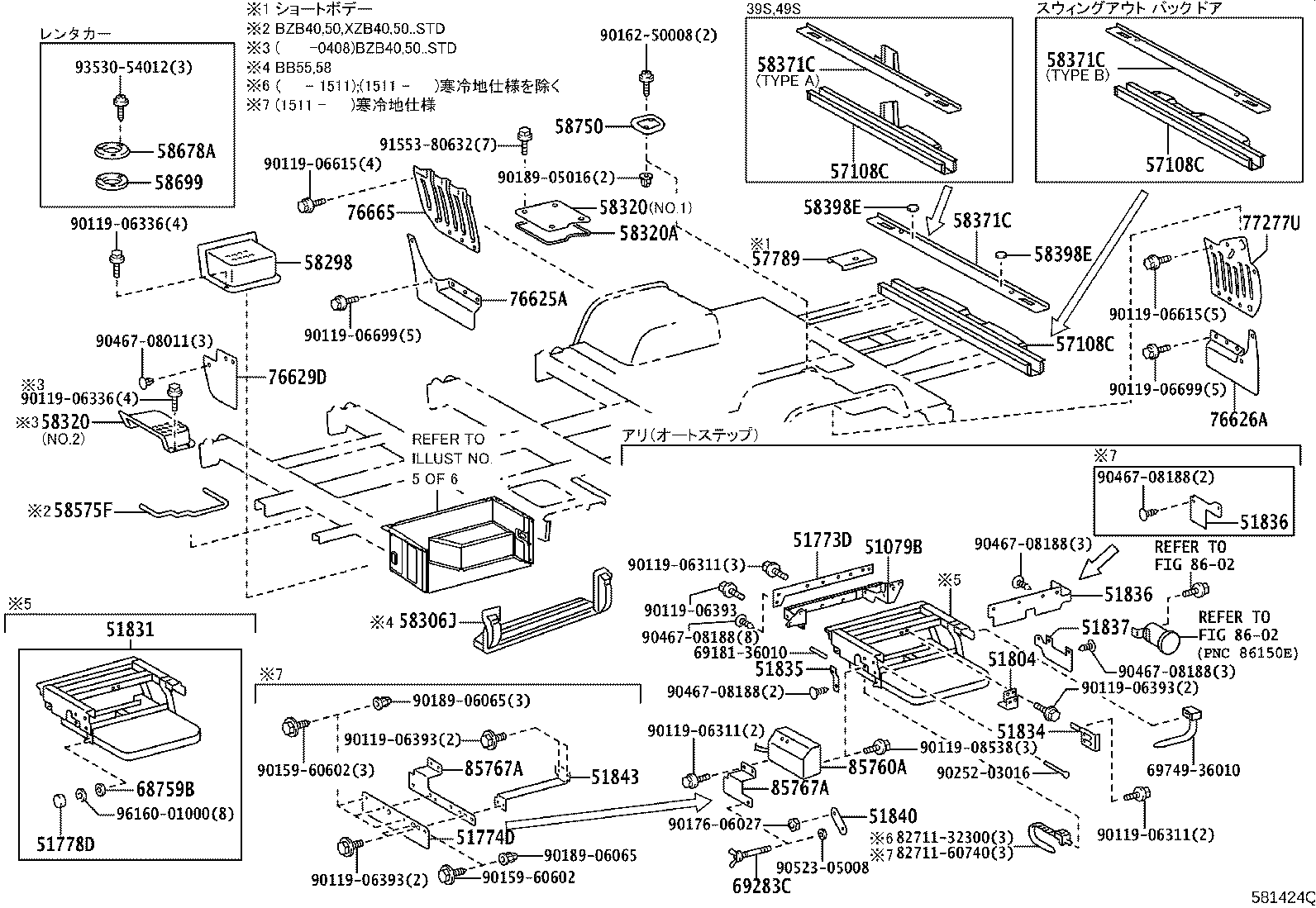

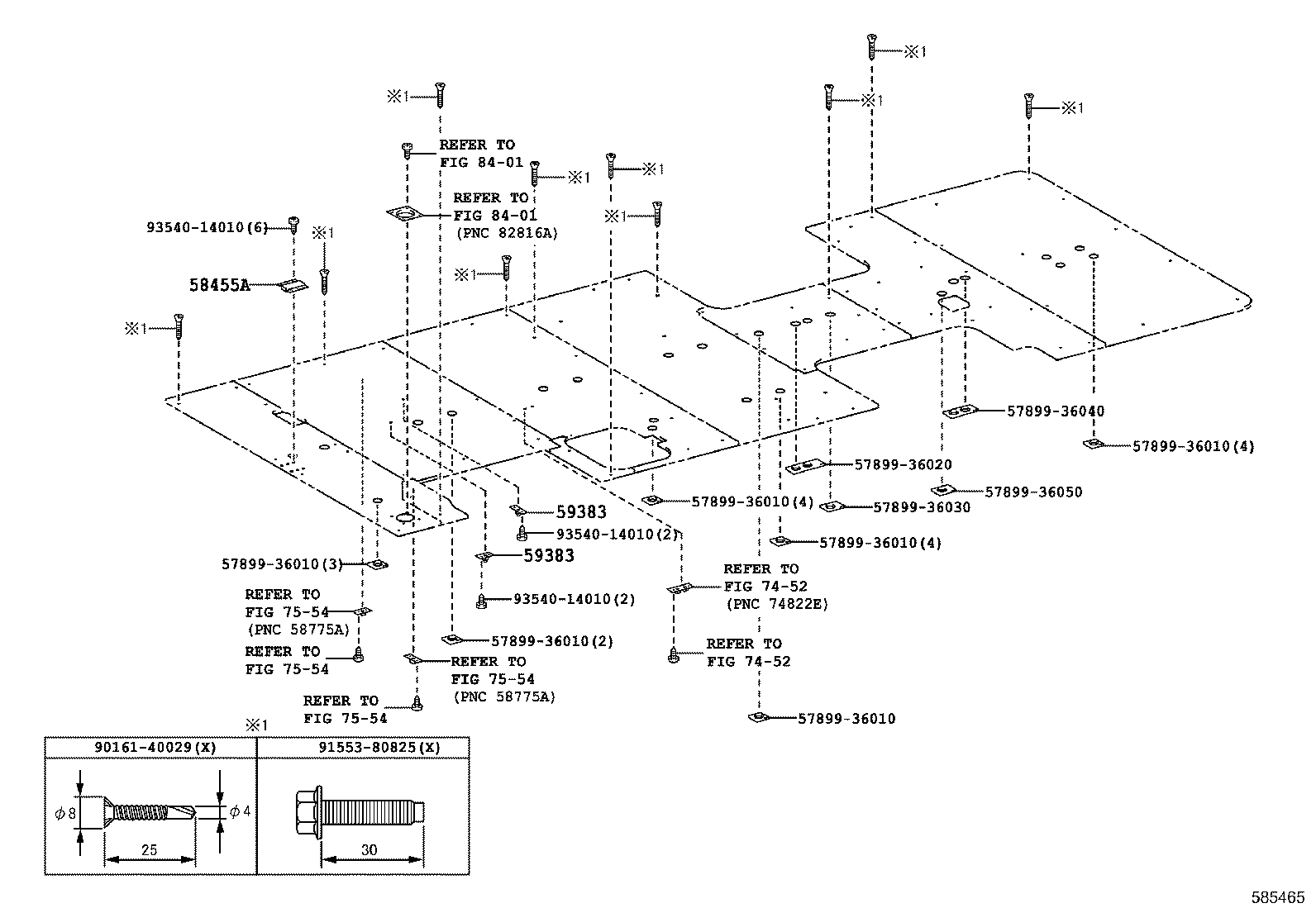

Figure 580726G 580726G 1993-01 → 2015-01 Figure 585464A 585464A 2015-01 → — Figure 581016U 581016U 1993-01 → 2001-08 Figure 581424Q 581424Q 2001-08 → — Figure 581452D 581452D 1993-01 → 2015-01 Figure 585465 585465 2015-01 → — Figure 585466 585466 2015-01 → — Figure 581442C 581442C 1993-01 → 2004-08 Figure 581442C 581442C 2004-08 → 2011-08 Figure 583569C 583569C 1993-01 → — Figure 584221B 584221B 2011-08 → 2015-01

Part groups

PNCDescription
51079B Bracket Sub-assy, Side Step
51718A Protector, Step Cover, RH
51773D Cover, Step Plate, RH
51774D Cover, Step Plate, LH
51778D Cover, Side Door Step Plate, NO.1
51804 Stopper Sub-assy, Side Auto Step
51831 Step, Side Auto
51834 Protector, Side Auto Step
51835 Cover, Side Auto Step, NO.1
51836 Cover, Side Auto Step, NO.2
51837 Cover, Side Auto Step, NO.3
51840 Handle Assy, Side Auto Step
51843 Stay, Slide Step, NO.1
57108C Crossmember Sub-assy, Floor, NO.8
57789 Reinforcement, Rear Floor Mounting
58285C Cover, Rear Floor Hole
58298 Cover, Center Floor Hole, NO.2
58301F Footrest Sub-assy, NO.1
58302F Footrest Sub-assy, NO.2
58303G Footrest Sub-assy, NO.3
58304H Footrest Sub-assy, NO.4
58305E Panel Sub-assy, Center Door Step
58306J Panel Sub-assy, Center Door Step, Lower
58320 Cover, Rear Floor Service Hole
58320A Packing, Rear Floor Service Hole
58371C Panel, Body Lower Back, Upper
58398E Cover, Floor Under, NO.1
58455A Panel, Rear Floor Board, NO.1
58575F Pad, Rear Floor
58678A Plate, Rear Floor Mat Drip
58699 Packing, Rear Floor Mat Drip
58750 Cover Assy, Fuel Tank Inspection Hole
59302B Retainer Sub-assy, Rear Seat, NO.2
59302C Retainer Sub-assy, Rear Seat, NO.2
59303A Retainer Sub-assy, Rear Seat, NO.3
59306A Retainer Sub-assy, Rear Seat, NO.1 A
59306B Retainer Sub-assy, Rear Seat, NO.1 A
59383 Retainer, Floor Inverter, NO.3
68759B Spacer, Center Door Hinge
69283C Stopper, Door Inside Handle
76625A Mudguard, Rear Body, RH
76626A Mudguard, Rear Body, LH
76629D Mudguard, Front Side Member
76665 Brace, Rear Mudguard
77277U Protector, Fuel Tank Filler Pipe
85760A Motor Assy, Side Auto Step
85767A Protector, Side Auto Step Motor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
