Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

118 part groups · 22 illustrations

Illustrations

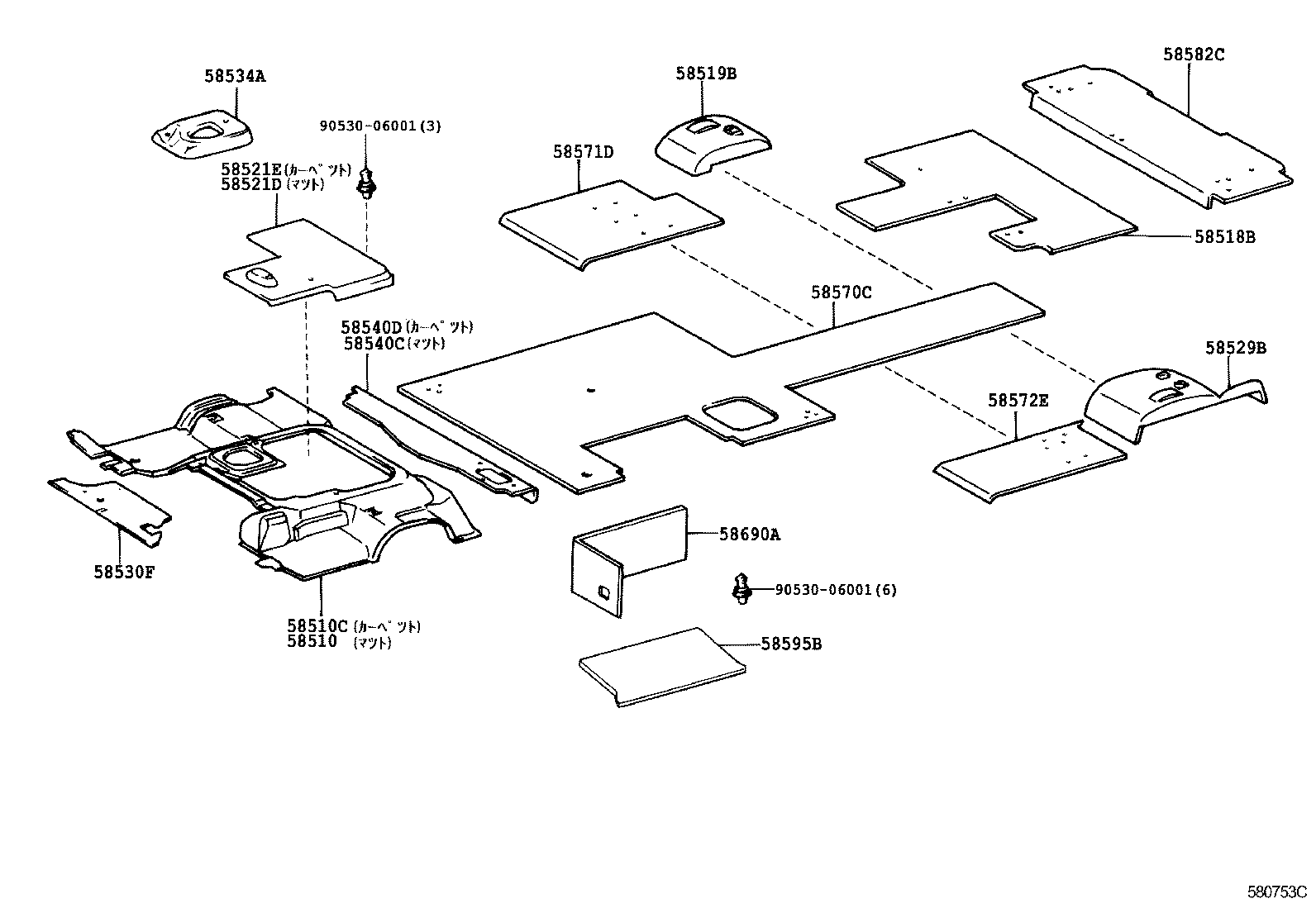

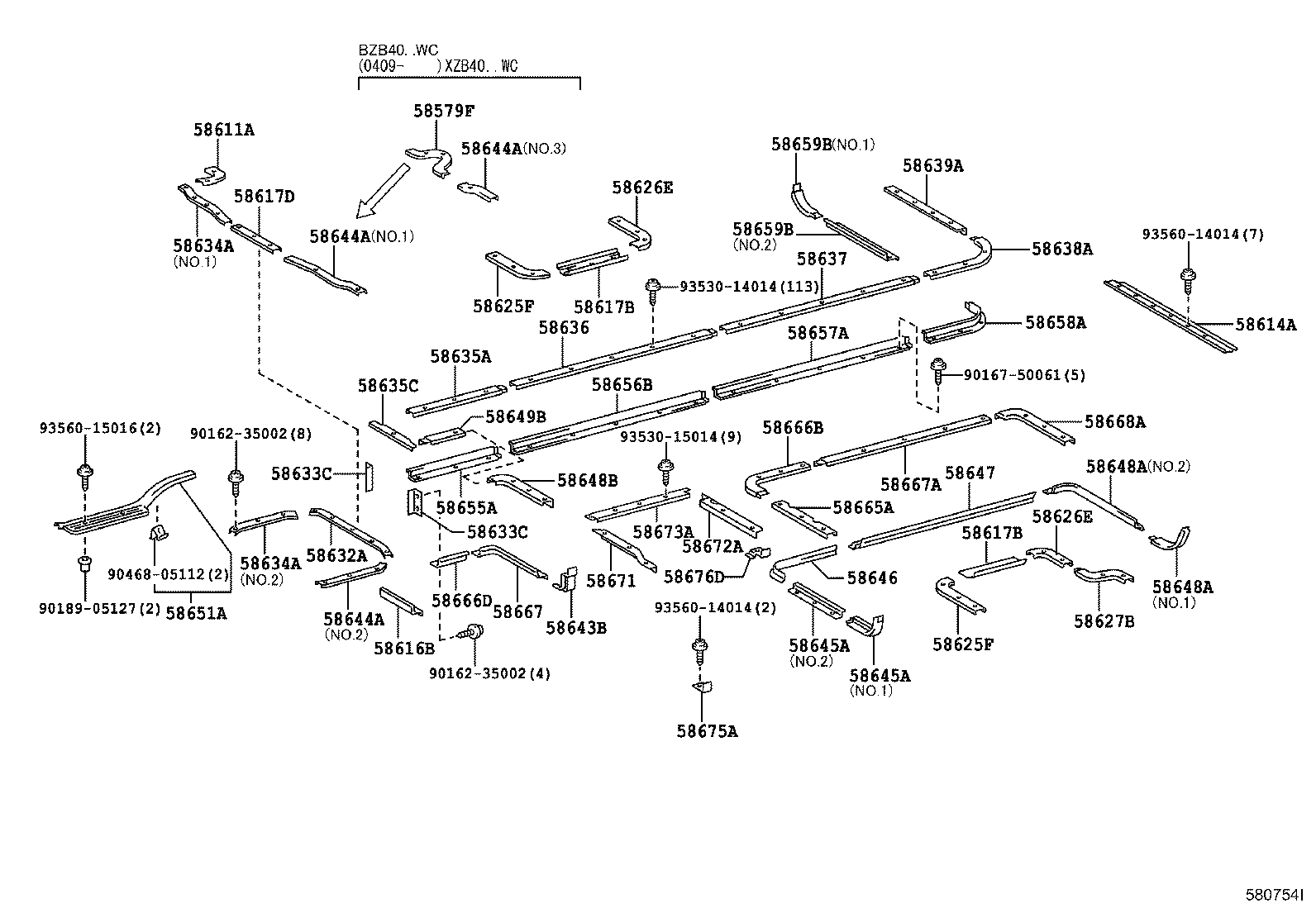

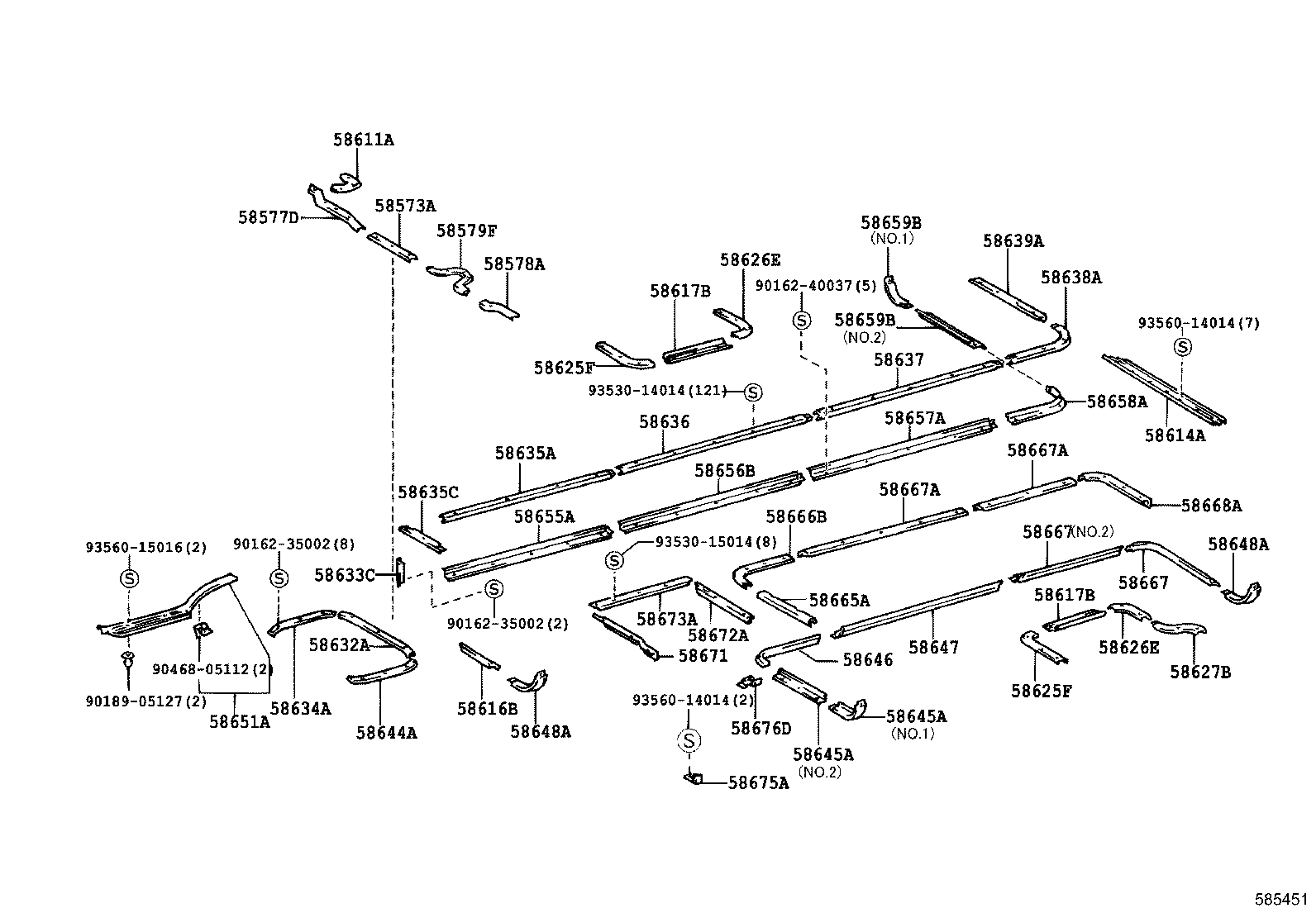

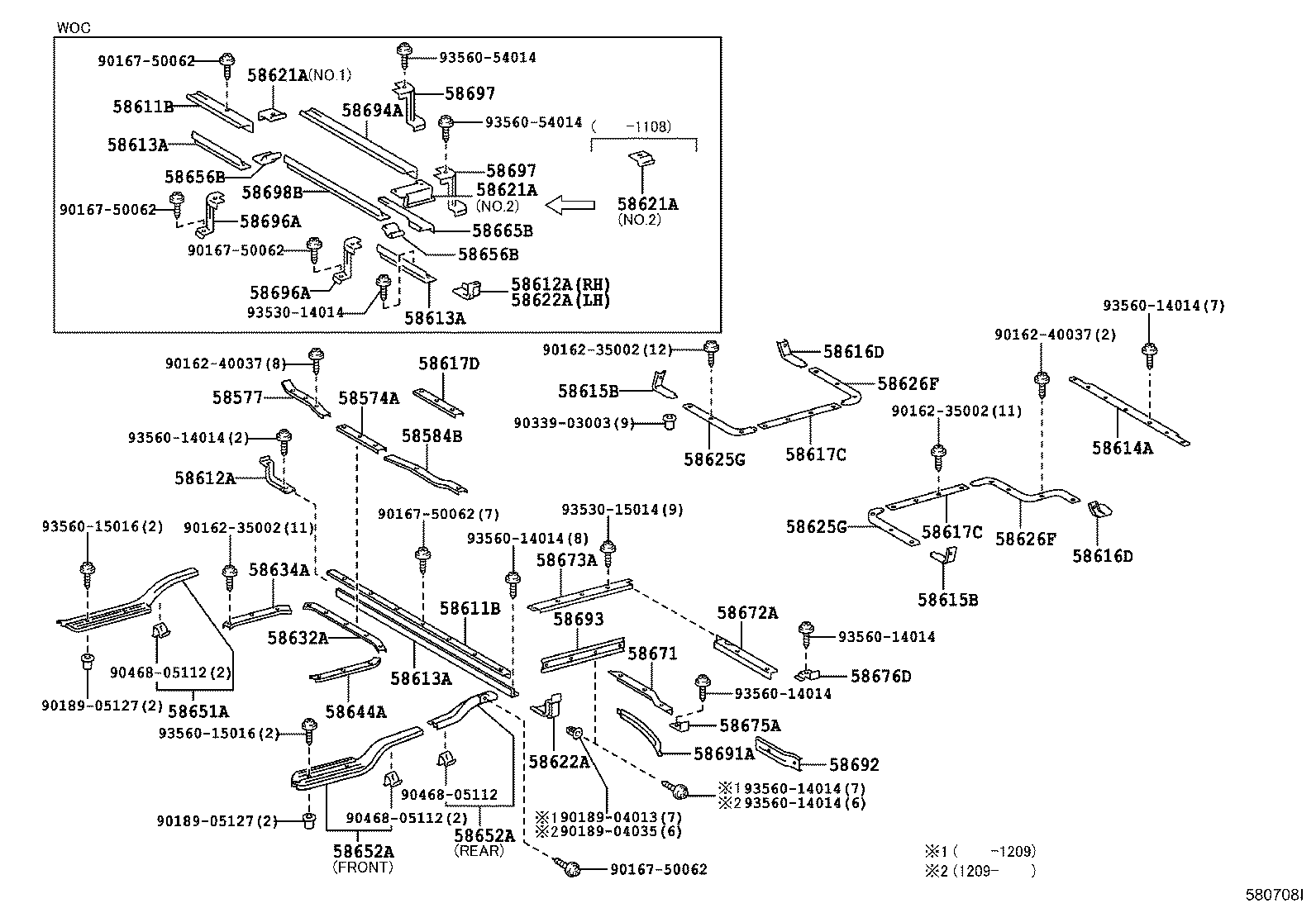

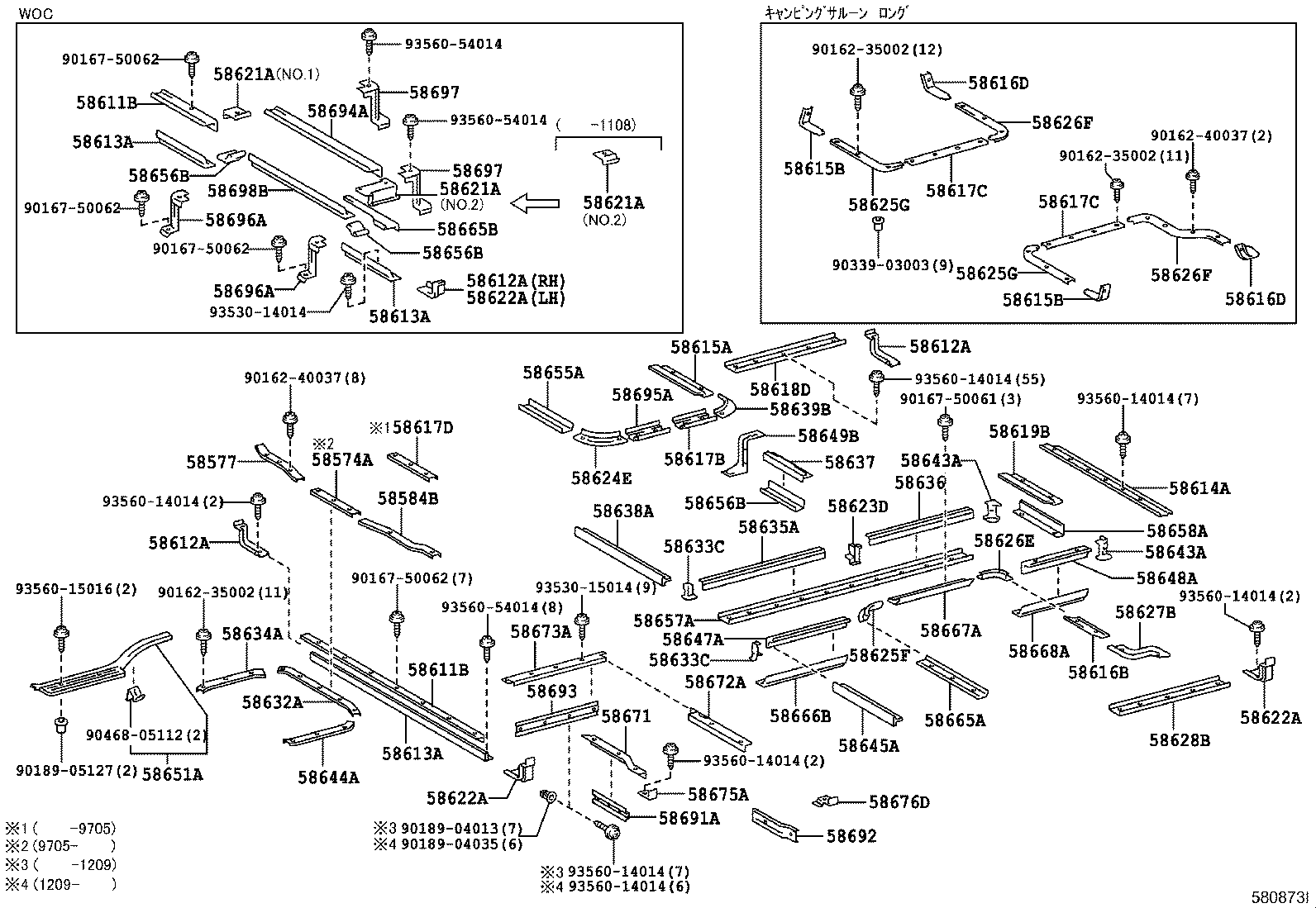

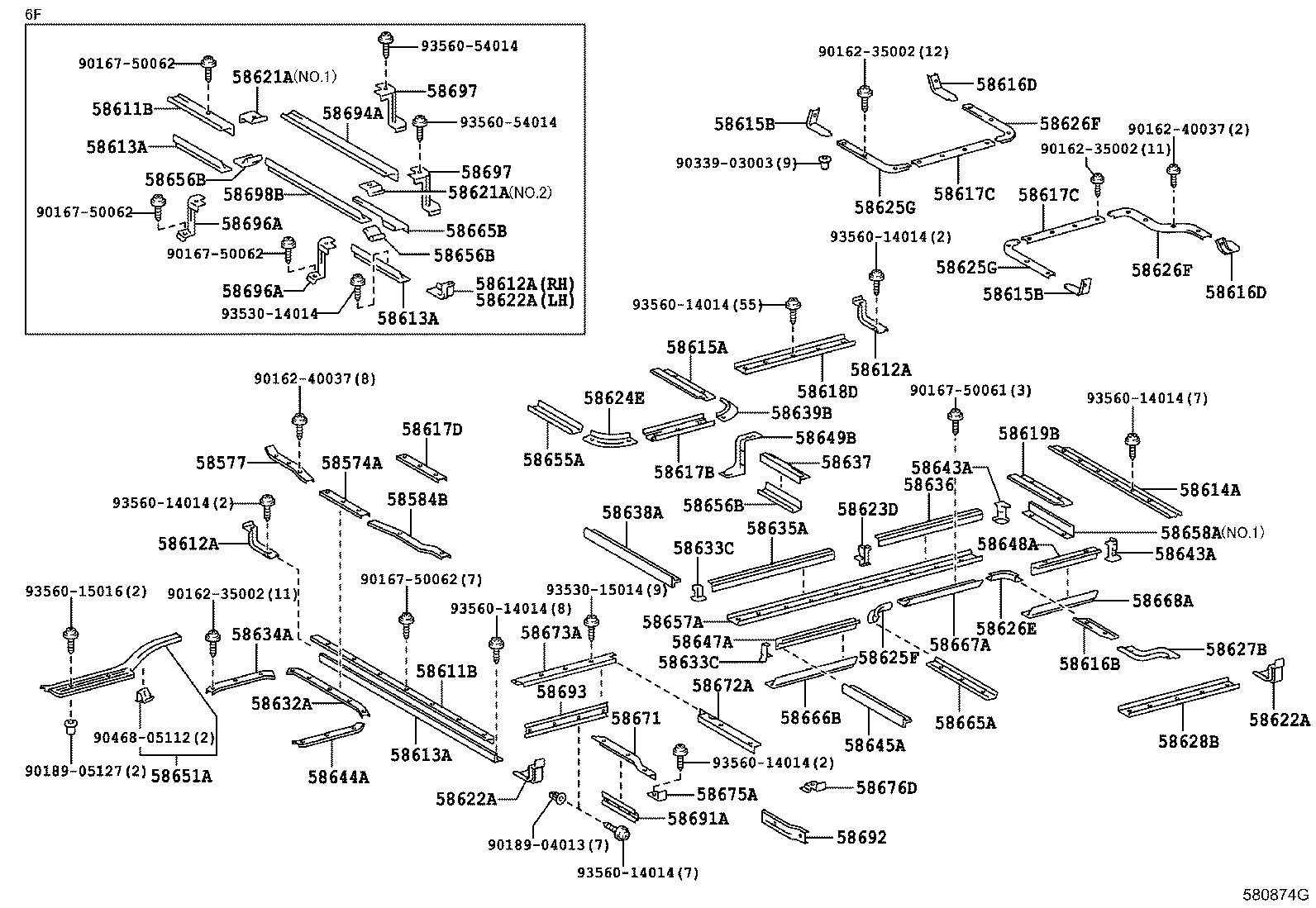

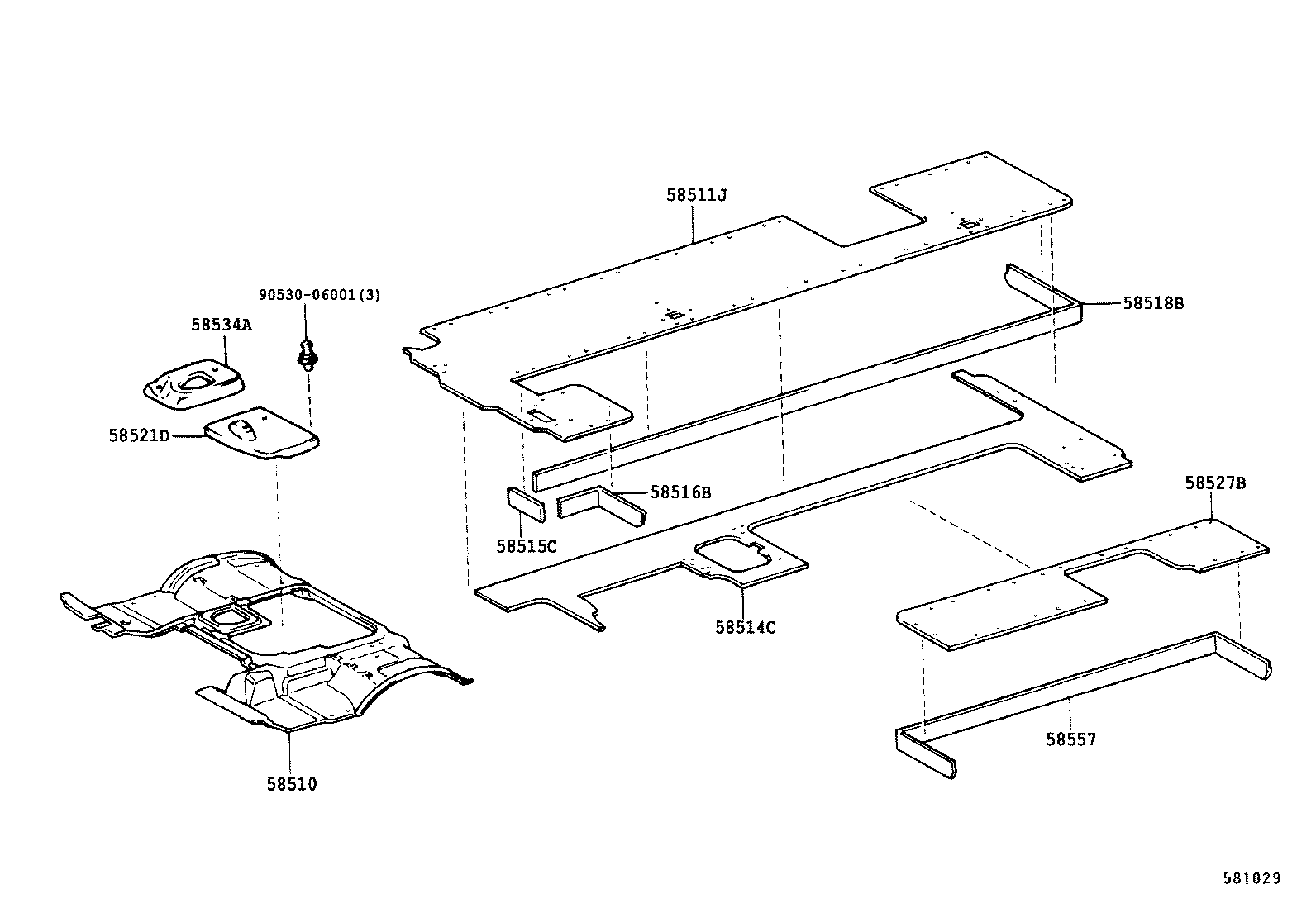

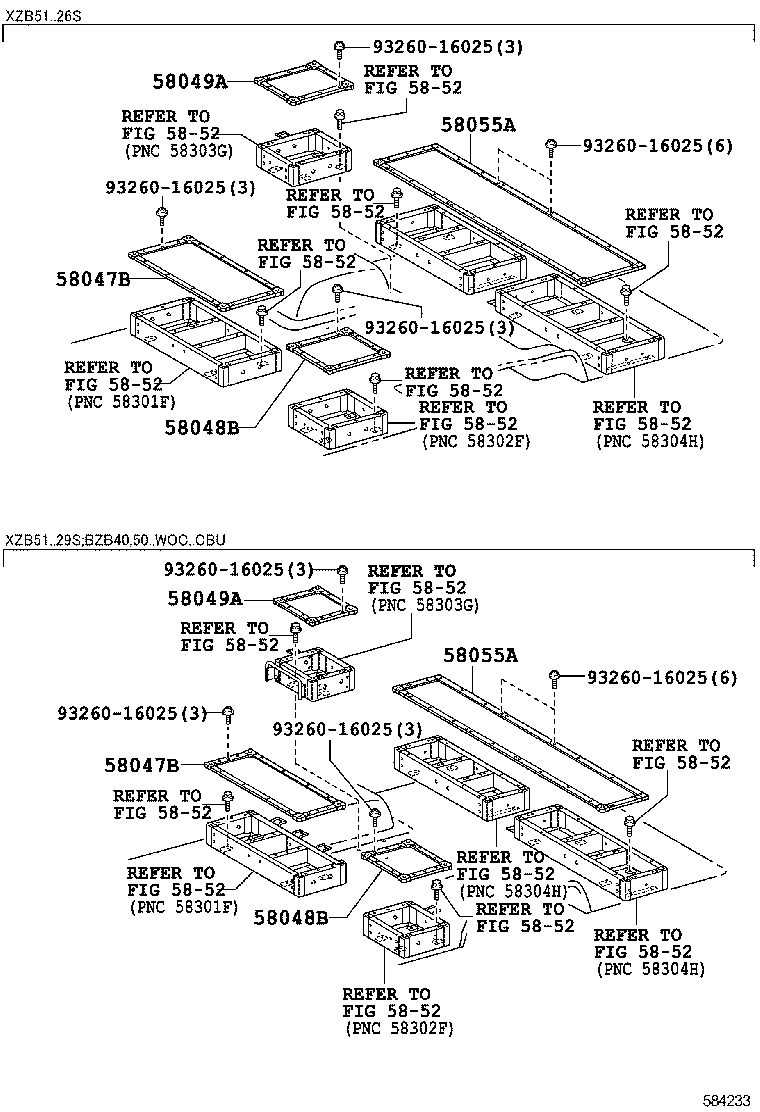

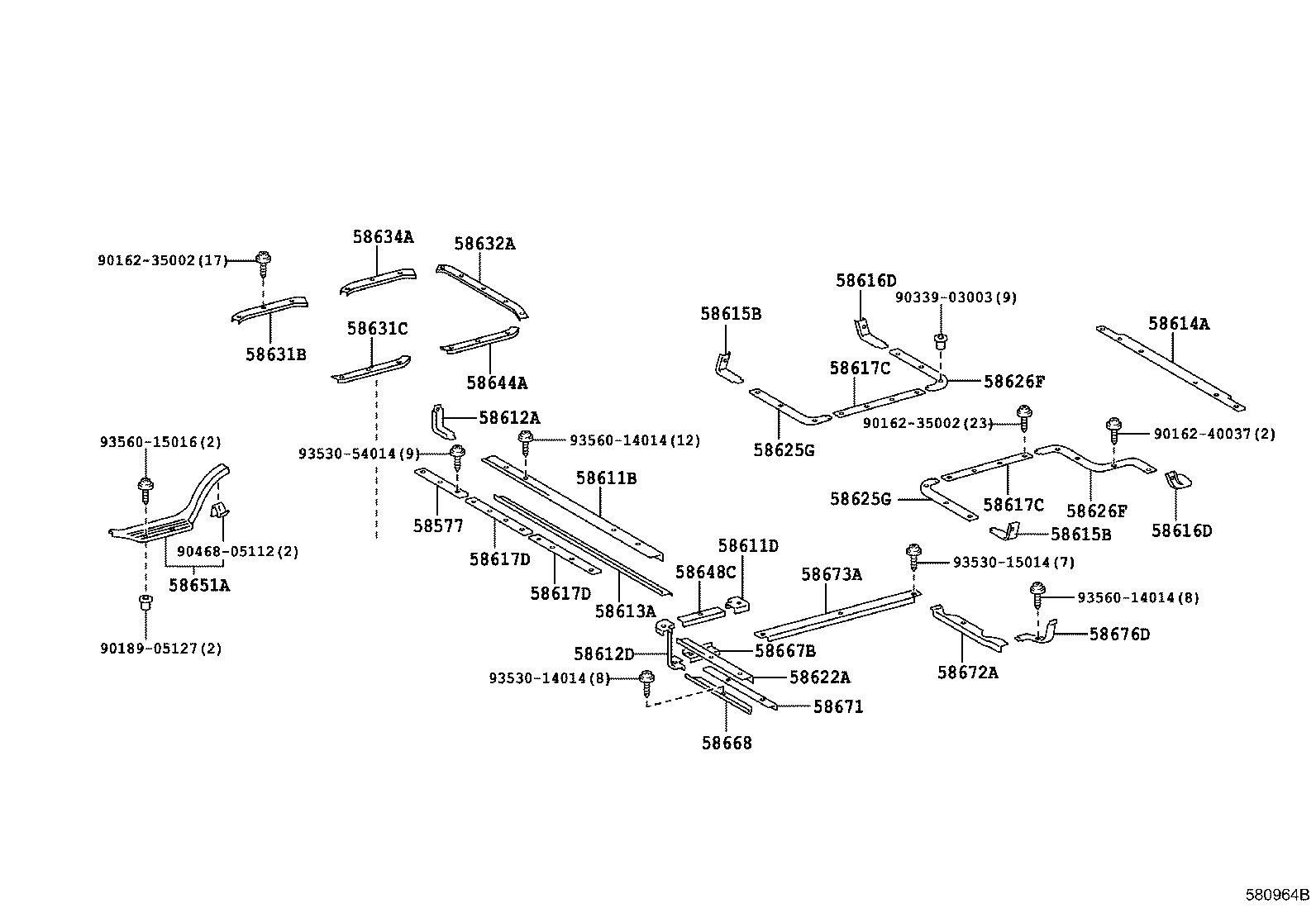

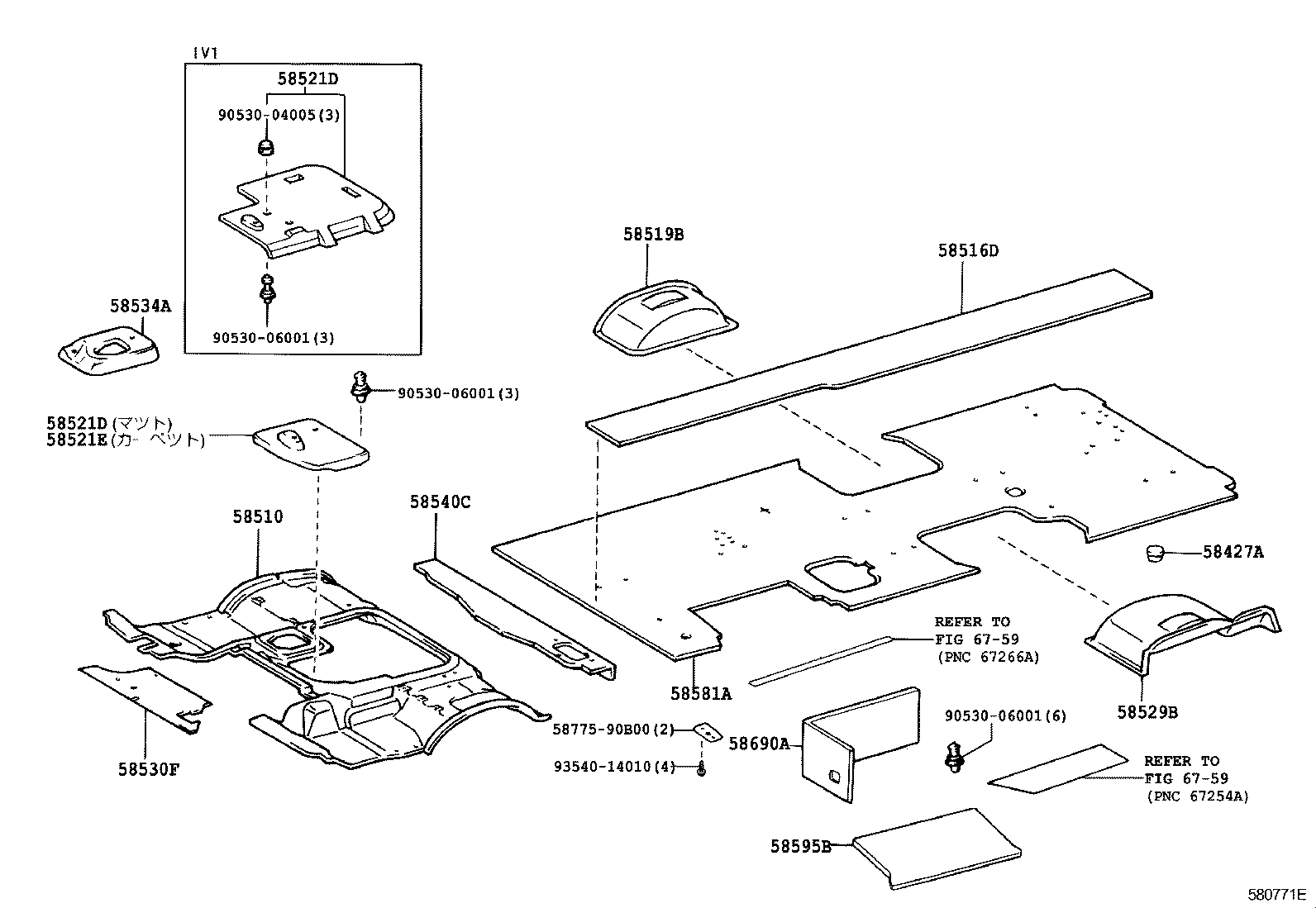

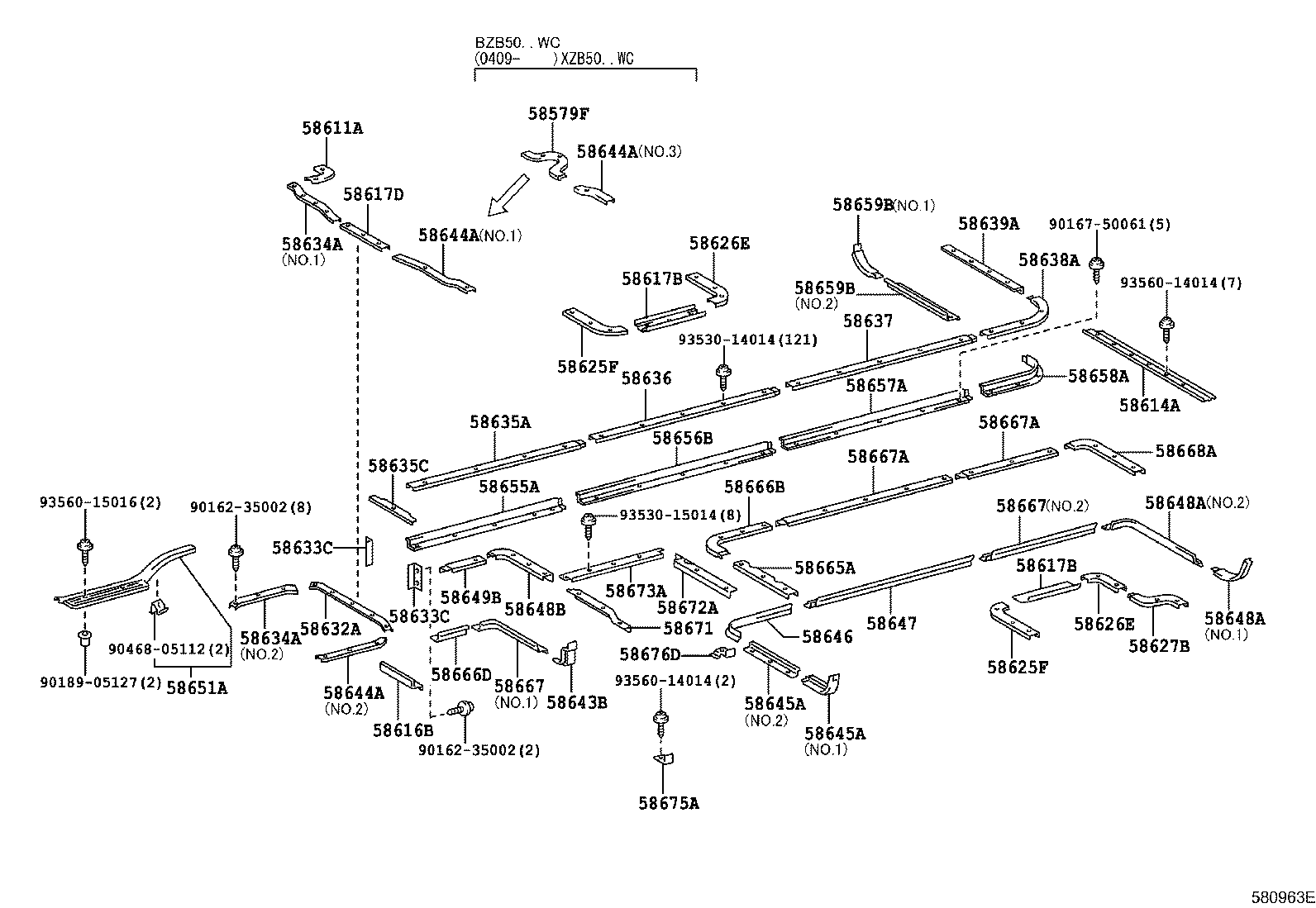

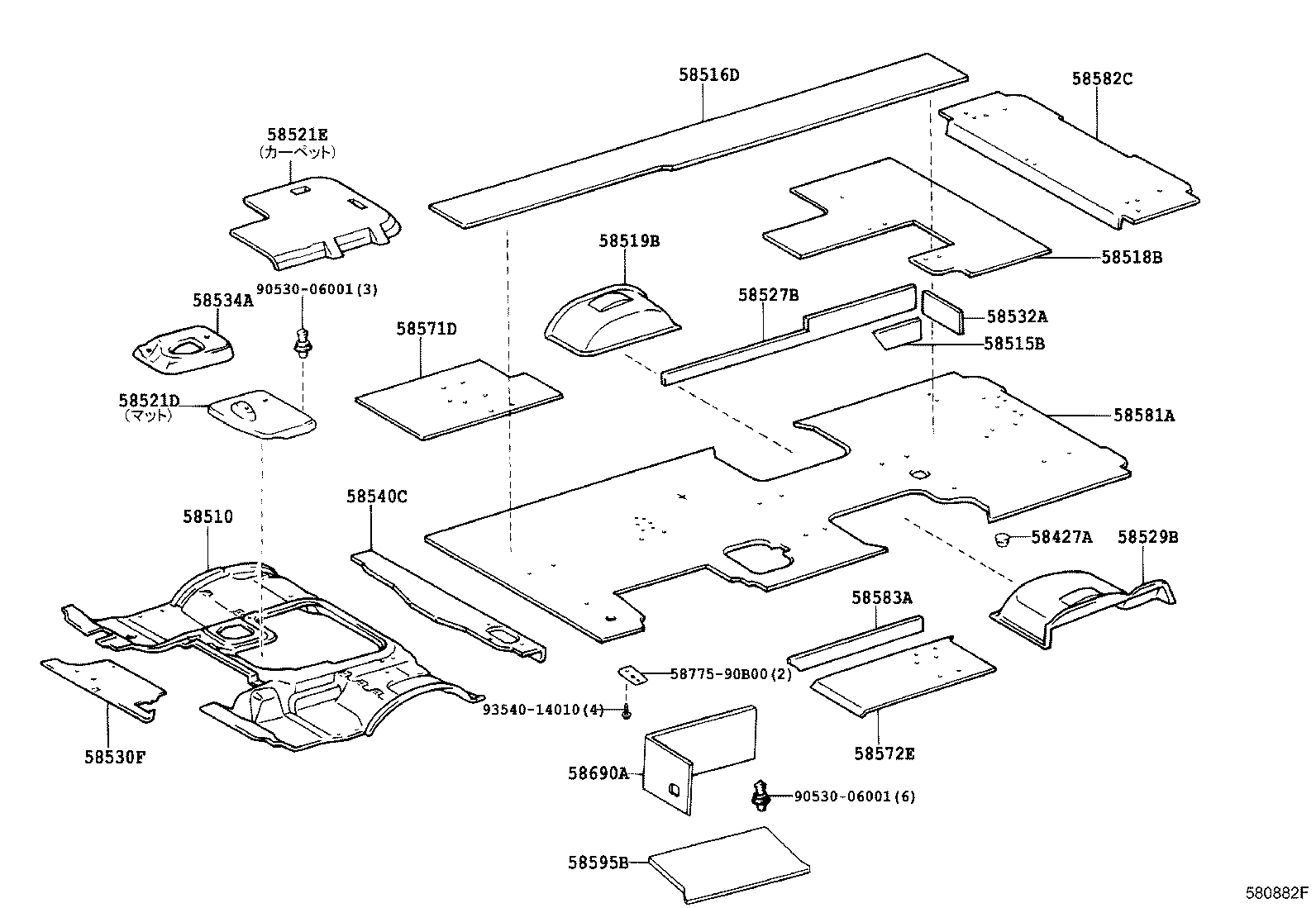

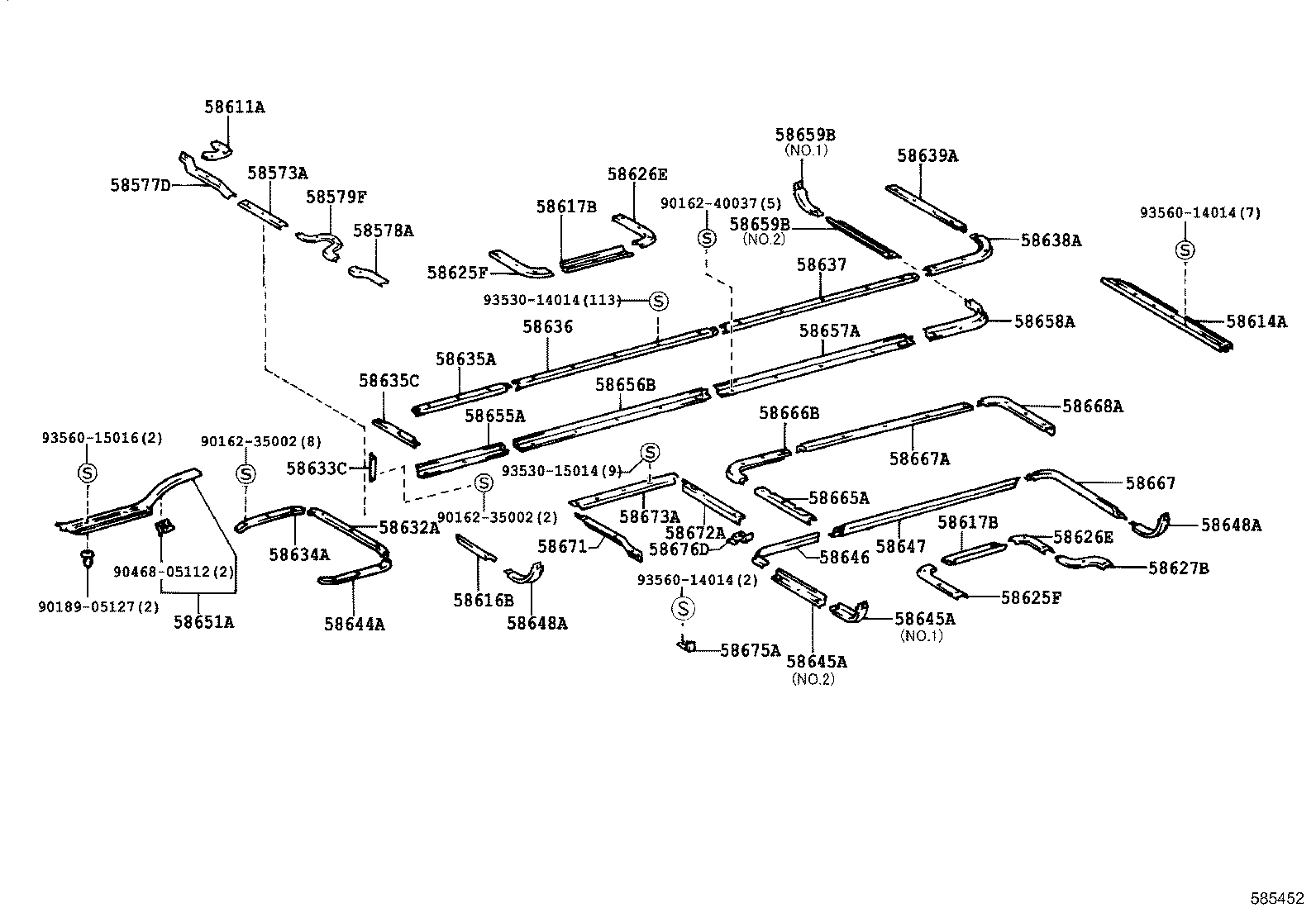

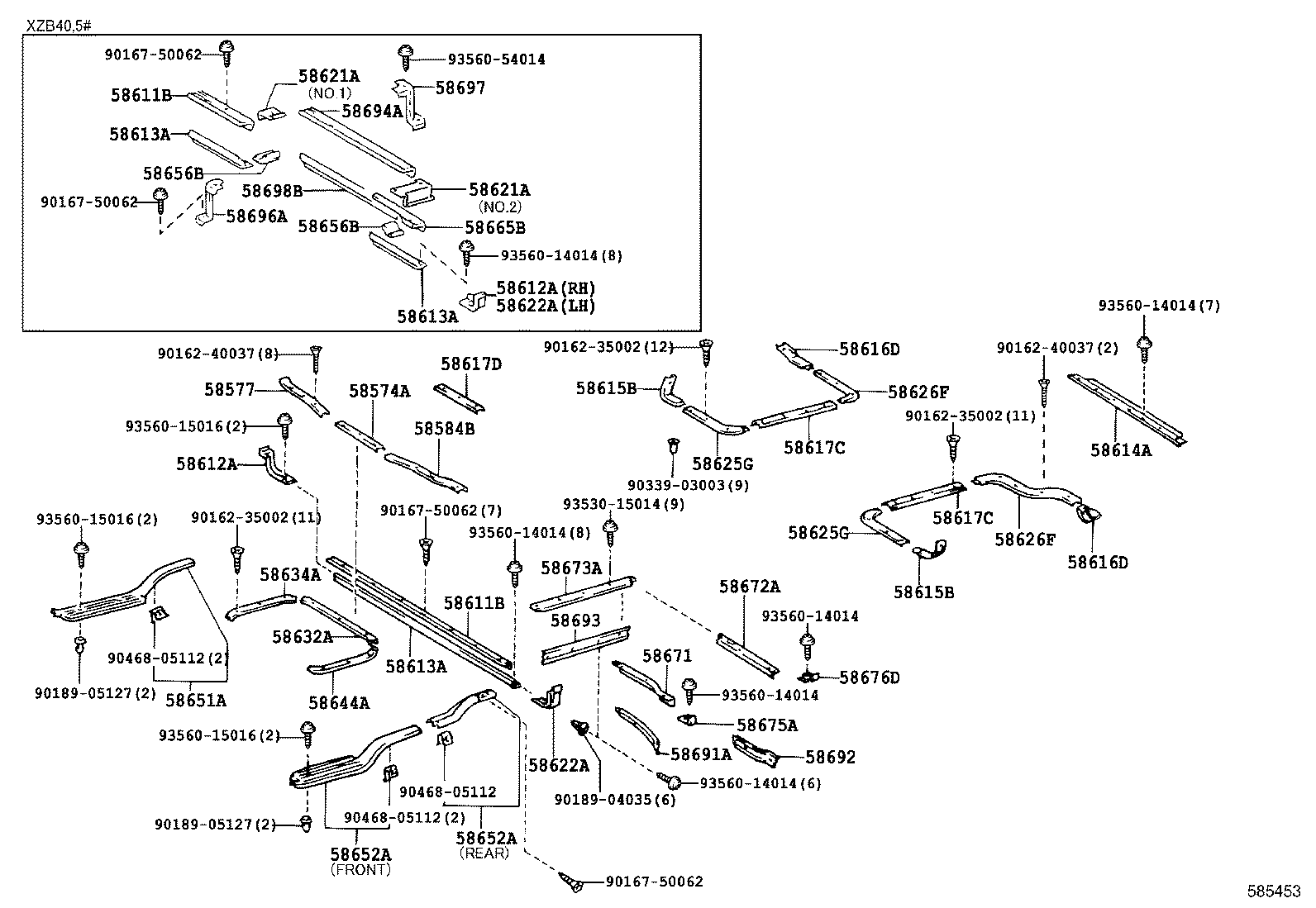

Figure 581030A 581030A 1995-12 → 2004-08 Figure 580753C 580753C 1993-01 → 2011-08 Figure 581029 581029 1993-01 → 2004-08 Figure 581029 581029 2004-08 → — Figure 580882F 580882F 1993-01 → 2004-08 Figure 580882F 580882F 2004-08 → — Figure 580771E 580771E 1993-01 → 2004-08 Figure 580771E 580771E 2004-08 → — Figure 580964B 580964B 1995-12 → 2004-08 Figure 580874G 580874G 1993-01 → 2004-08 Figure 580754I 580754I 1993-01 → 2004-08 Figure 585452 585452 2004-08 → — Figure 580963E 580963E 1993-01 → 2004-08 Figure 585451 585451 2004-08 → — Figure 580873I 580873I 1993-01 → 1999-07 Figure 580873I 580873I 1999-07 → 2004-08 Figure 580873I 580873I 2004-08 → 2015-01 Figure 580708I 580708I 1993-01 → 1999-07 Figure 580708I 580708I 1999-07 → 2004-08 Figure 580708I 580708I 2004-08 → 2015-01 Figure 585453 585453 2015-01 → — Figure 584233 584233 2011-08 → —

Part groups

PNCDescription
58047B Board Sub-assy, Rear Floor, Upper NO.1
58048B Board Sub-assy, Rear Floor, Upper NO.2
58049A Board Sub-assy, Rear Floor, Upper NO.3
58055A Board Sub-assy, Rear Floor, Upr NO.4
58427A Spacer, Rear Floor Board
58510 Mat Assy, Front Floor, Front NO.1
58510C Carpet Assy, Front Floor, Front
58511J Mat, Floor, RH
58514C Mat, Froor, Rear
58515B Mat, Floor, Rear LH
58515C Mat, Front Floor, Rear NO.1
58516B Mat, Front Floor, Rear NO.2
58516D Carpet, Floor, Rear Center
58518B Mat, Rear Floor, NO.2
58519B Mat, Rear Wheel House, RH
58521D Mat, Engine Service Hole Cover
58521E Carpet, Engine Service Hole Cover
58527B Mat, Rear Floor, NO.3
58529B Mat, Rear Wheel House, LH
58530F Mat Assy, Header
58532A Mat, Center Floor Crosmmber
58534A Mat, Transmission Cover
58540C Mat Assy, Floor, Rear
58540D Carpet Assy, Floor, Rear
58557 Mat, Rear Floor Vertical, NO.1
58570C Carpet Assy, Rear Floor
58571D Mat, Rear Floor, Front RH
58572E Mat, Rear Floor, Front
58573A Plate, Rear Floor Mat Support
58574A Plate, Rear Floor Mat Support, Rear
58577 Set Plate, Rear Floor Mat Side, Rear RH
58577D Plate, Rear Floor Mat Support Side, RH
58578A Plate, Rear Floor Mat Support Side, LH
58579F Plate, Rear Floor Mat Support Side, NO.3
58581A Mat, Rear Floor
58582C Mat, Rear Floor, Rear
58583A Mat, 3RD Seat Floor, NO.2
58584B Plate, Rear Floor Mat Support Side, NO.4
58595B Carpet, Center Door Step
58611A Plate, Mat Set, NO.1 RH
58611B Plate, Mat Set, NO.1
58611D Plate, Mat Set, NO.1 B
58612A Plate, Mat Set, NO.2 RH
58612D Plate, Mat Set, NO.2 B
58613A Plate, Mat Set, NO.3
58614A Plate, Mat Set, NO.4
58615A Plate, Mat Set, NO.5
58615B Plate, Mat Set, NO.5 A
58616B Plate, Mat Set, NO.6
58616D Plate, Mat Set, NO.6 A
58617B Plate, Rear Wheel House Mat
58617C Plate, Rear Wheel House Mat
58617D Plate, Rear Wheel House Mat
58618D Plate, Rear Floor Mat, Rear RH
58619B Plate, Rear Floor Mat, Rear Center
58621A Plate, Mat Set, NO.1 LH
58622A Plate, Mat Set, NO.2 LH
58623D Plate, Mat Set, NO.3 A
58624E Plate, Mat Set, NO.4 A
58625F Plate, Rear Wheel House Mat, NO.1
58625G Plate, Rear Wheel House Mat, NO.1
58626E Plate, Rear Wheel House Mat, NO.1
58626F Plate, Rear Wheel House Mat, NO.1
58627B Plate, Rear Wheel House Mat, LH
58628B Plate, Rear Floor Mat, Rear LH
58631B Plate, Engine Service Hole Mat, Front RH
58631C Plate, Engine Service Hole Mat, Front LH
58632A Plate, Engine Service Hole Mat, Rear
58633C Plate, Mat Set, NO.1 A
58634A Plate, Engine Service Hole Mat, RH
58635A Plate, Rear Floor, Center Upper NO.1 RH
58635C Plate, Rear Floor, Center Upper NO.1 RH
58636 Plate, Rear Floor, Center Upper NO.2 RH
58637 Plate, Rear Floor, Center Upper NO.3 RH
58638A Plate, Rear Floor, Center Upper NO.4 RH
58639A Plate, Rear Floor, Center Upper NO.5 RH
58639B Plate, Mat Set, NO.5
58643A Plate, Mat Set, NO.2 A
58643B Plate, Mat Set, NO.2 B
58644A Plate, Engine Service Hole Mat, LH
58645A Plate, Rear Floor, Center Upper NO.1 LH
58646 Plate, Rear Floor, Center Upper NO.2 LH
58647 Plate, Rear Floor, Center Upper NO.3 LH
58647A Plate, Rear Floor, Center Upper NO.3 LH
58648A Plate, Rear Floor, Center Upper NO.4 LH
58648B Plate, Rear Floor, Center Upper NO.4 LH
58648C Plate, Sub Floor, NO.2
58649B Plate, Mat Set, NO.6
58651A Plate, Front Door Mat, NO.1
58652A Plate, Front Door Mat, NO.2
58655A Plate, Rear Floor, Center Lower NO.1 RH
58656B Plate, Rear Floor, Center Lower NO.2 RH
58657A Plate, Rear Floor, Center Lower NO.3 RH
58658A Plate, Rear Floor, Center Lower NO.4 RH
58659B Plate, Rear Floor Center Lower, Rear End RH
58665A Plate, Rear Floor, Center Lower NO.1 LH
58665B Plate, Rear Floor, Center Lower NO.1 LH
58666B Plate, Rear Floor, Center Lower NO.2 LH
58666D Plate, Rear Floor, Center Lower NO.2 LH
58667 Plate, Rear Floor, Center Lower NO.3 LH
58667A Plate, Rear Floor, Center Lower NO.3 LH
58667B Plate, Sub Floor, NO.3
58668 Plate, Sub Floor, NO.4
58668A Plate, Rear Floor, Center Lower NO.4 LH
58671 Plate, Center Door Step Mat, Front
58672A Plate, Center Door Step Mat, Rear
58673A Plate, Center Door Step Mat Side
58675A Plate, Center Door Pillar Mat, Front
58676D Plate, Center Door Pillar Mat, Rear
58690A Carpet Assy, Center Door Step
58691A Plate, Center Door Step Mat, Lower Front
58692 Plate, Center Door Step Mat, Lower Rear
58693 Plate, Center Door Step Mat, Lower Side
58694A Plate, Mat Set, Upper
58695A Plate, Rear Floor Mat Vertical, NO.1
58696A Plate, Rear Floor Mat Vertical, NO.2
58697 Plate, Rear Floor Mat Vertical, NO.3
58698B Plate, Mat Set, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
