Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Window

137 part groups · 38 illustrations

Illustrations

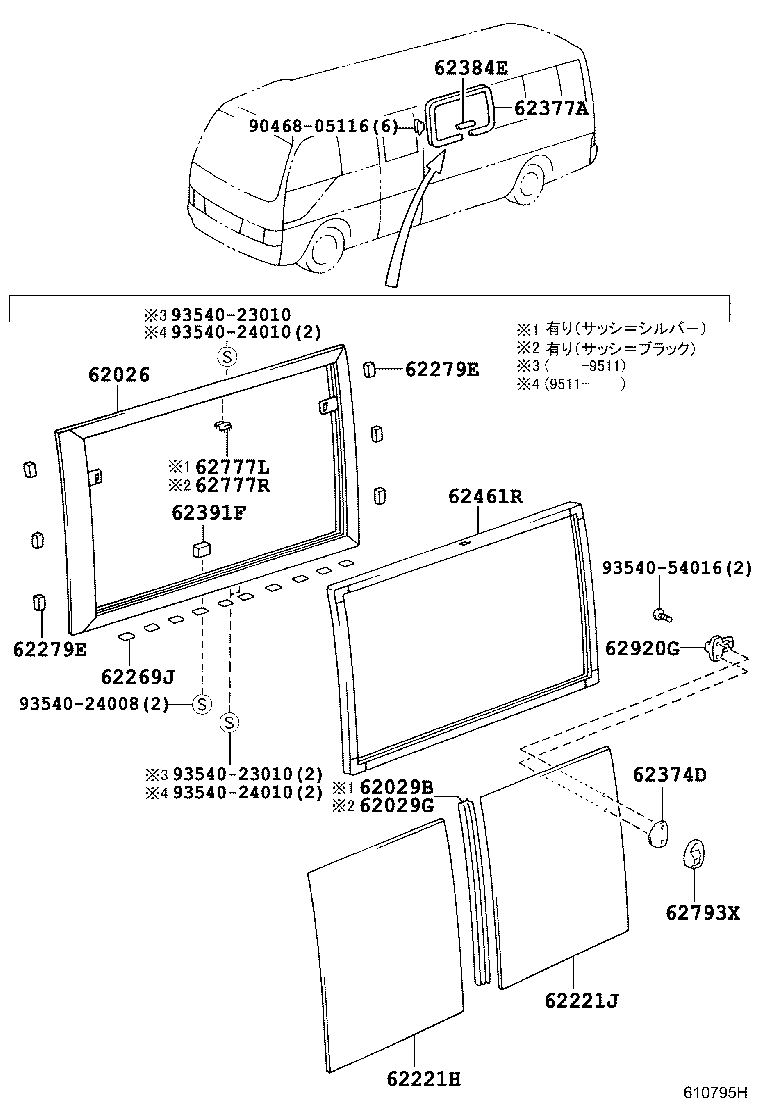

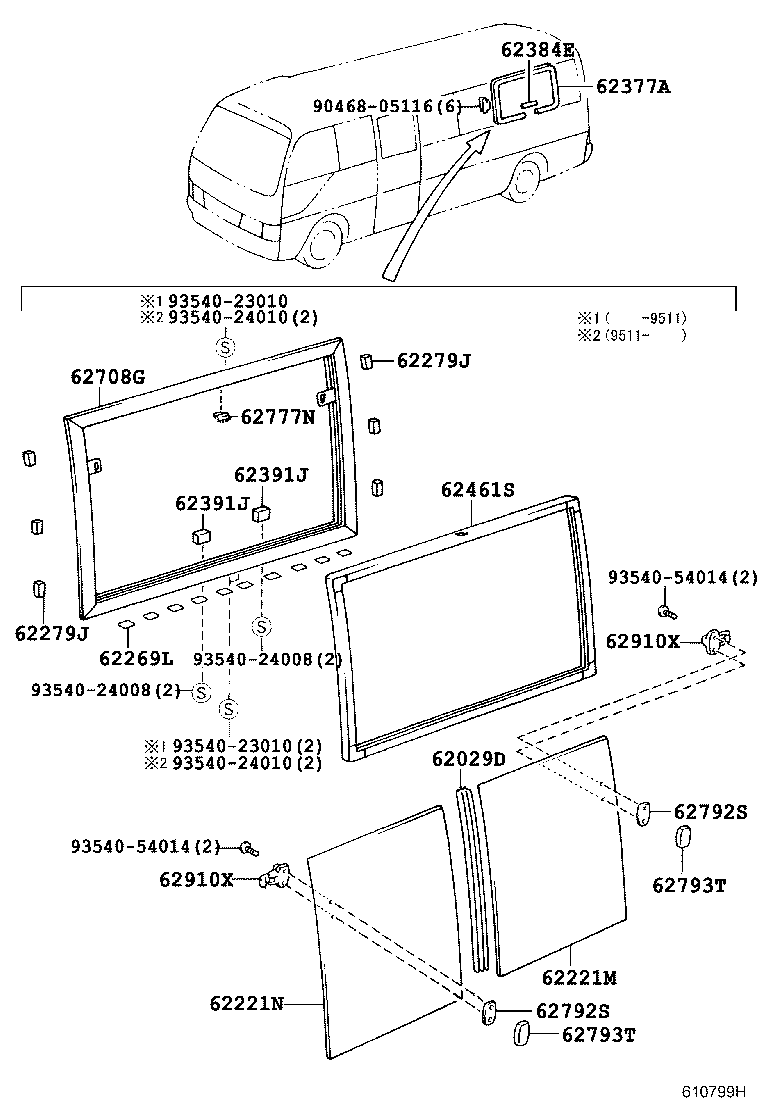

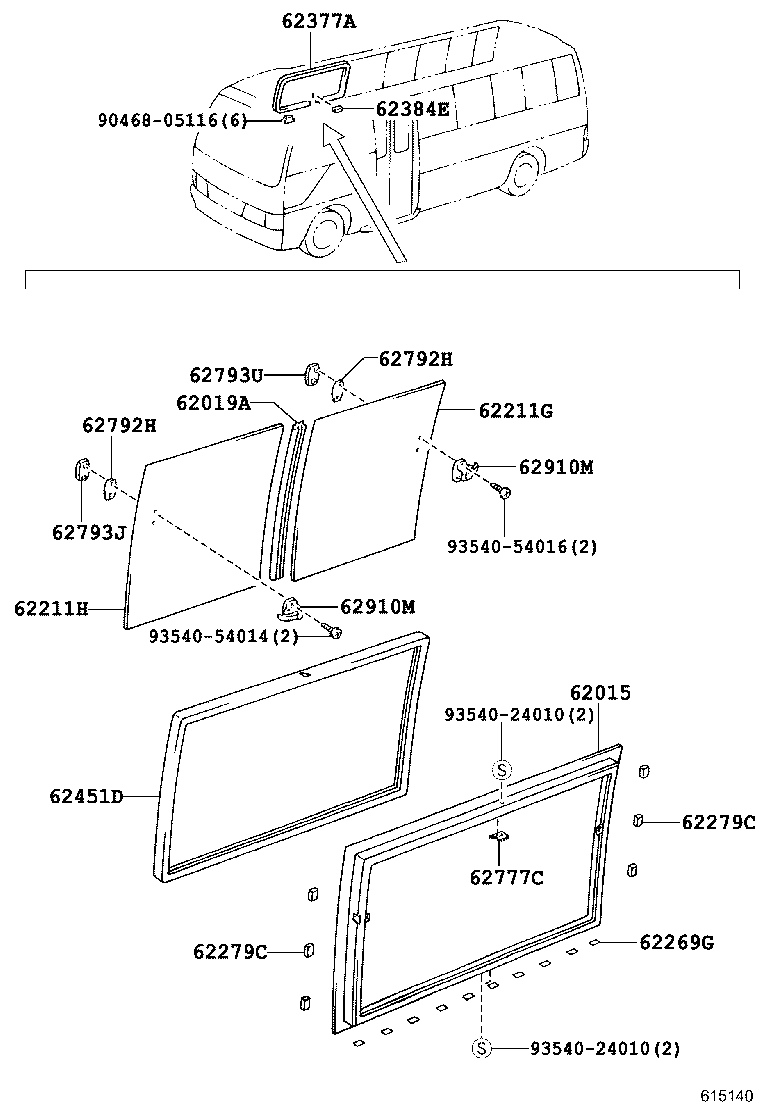

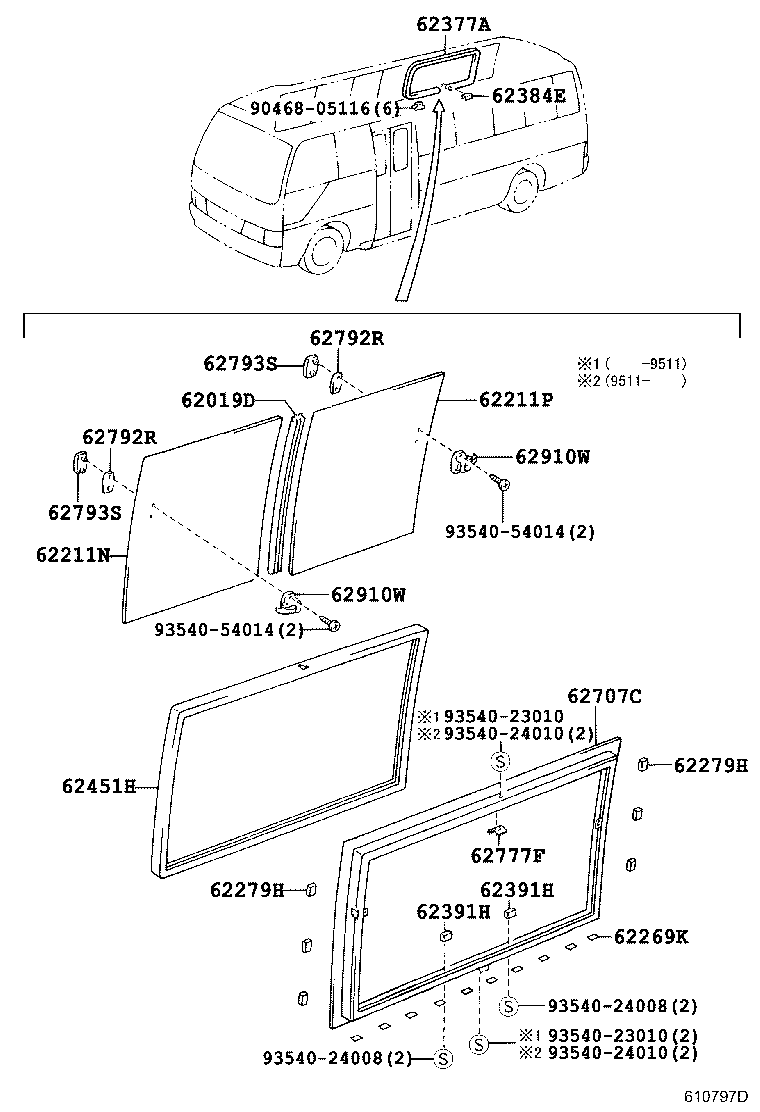

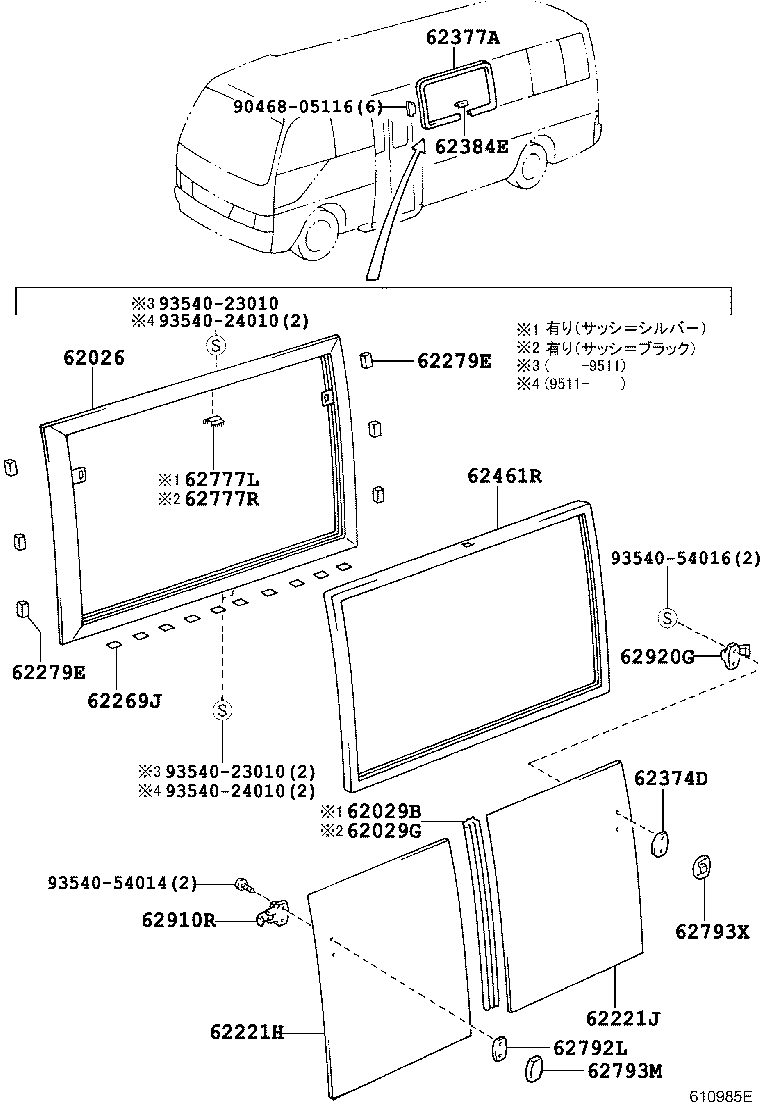

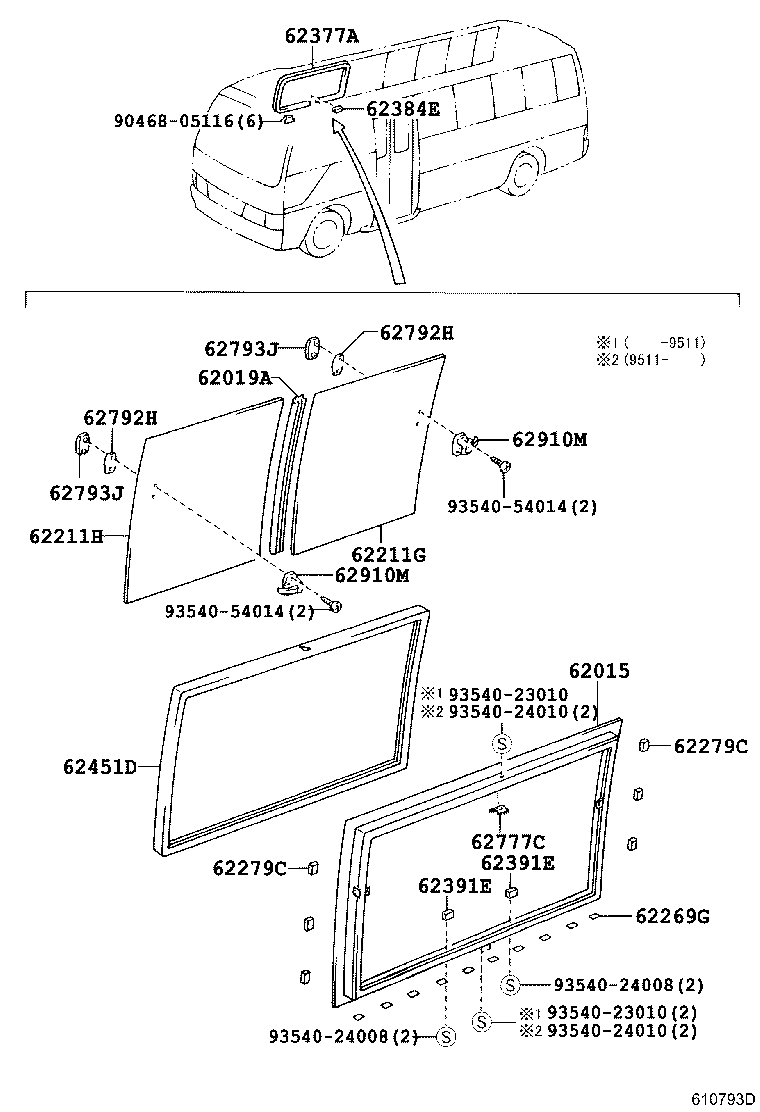

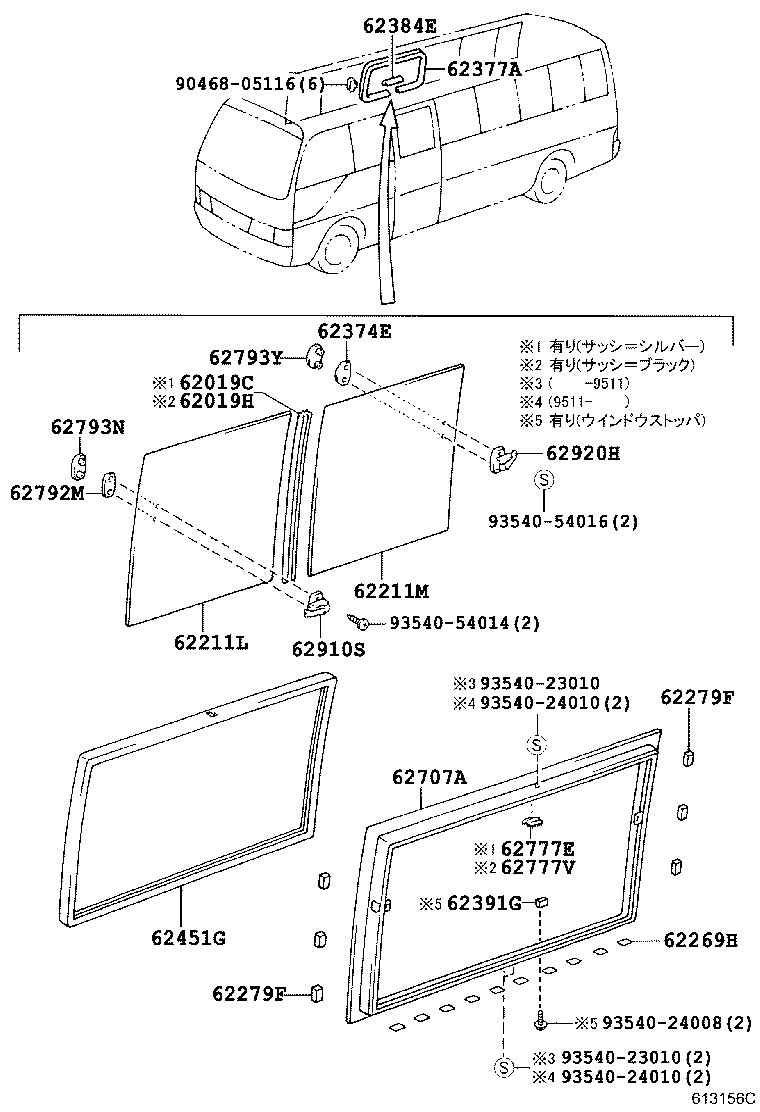

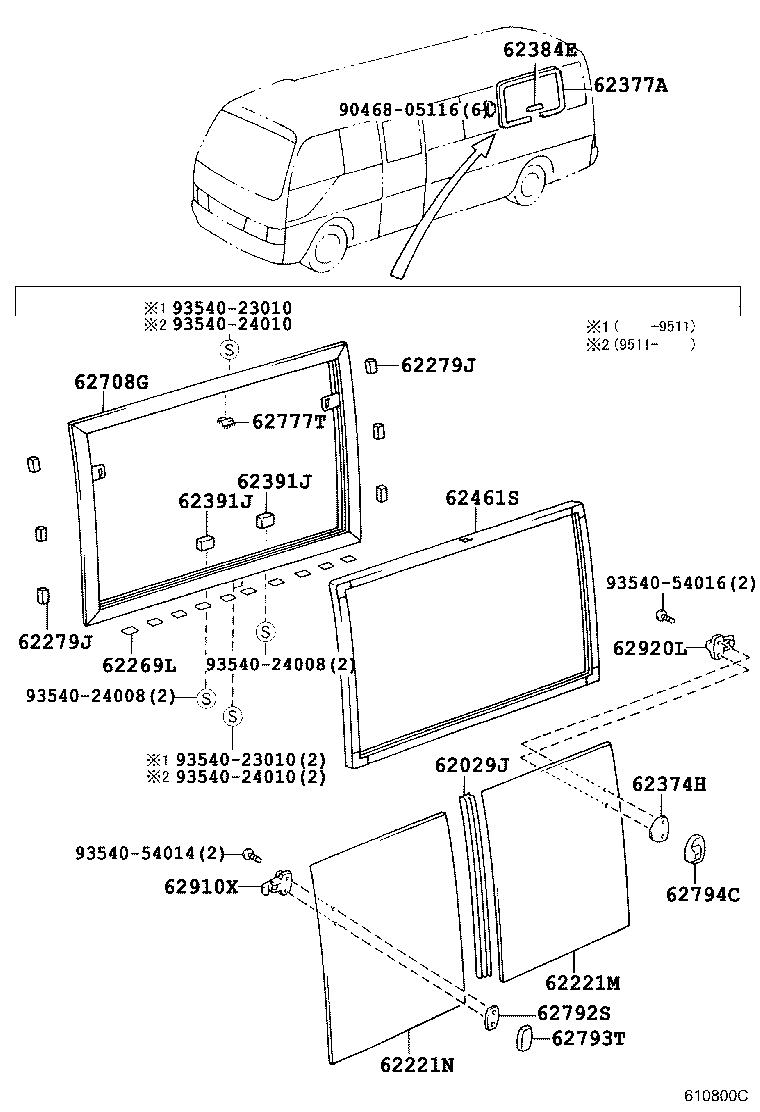

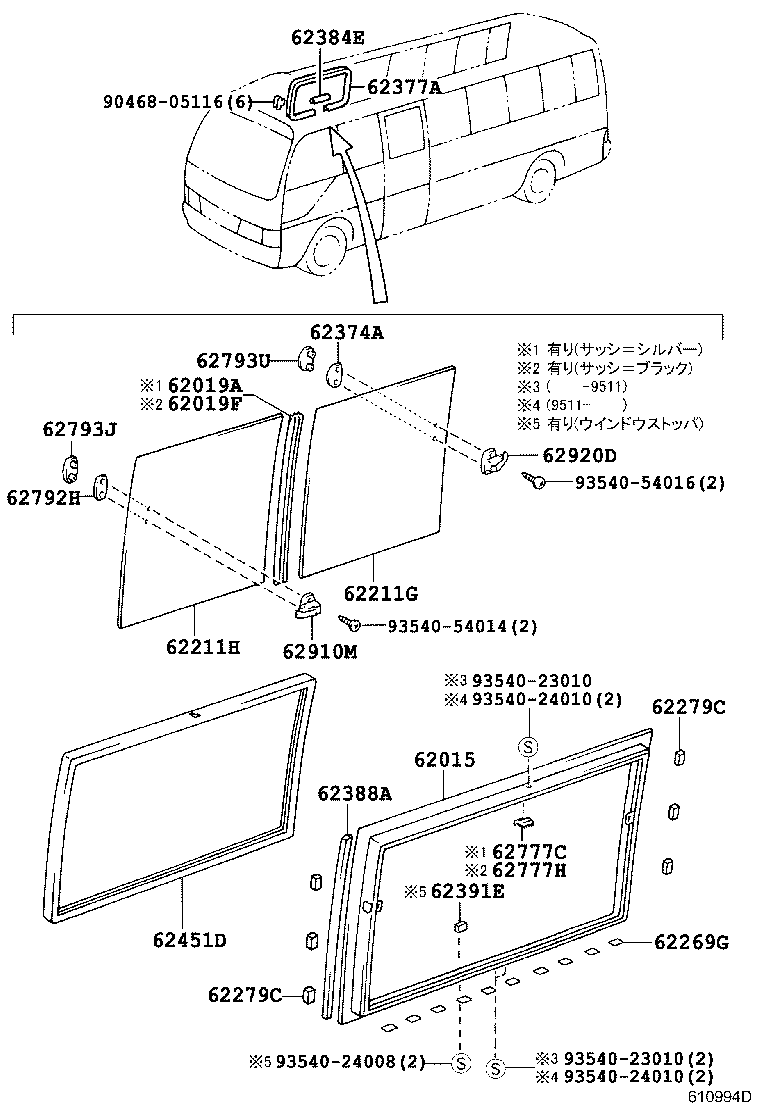

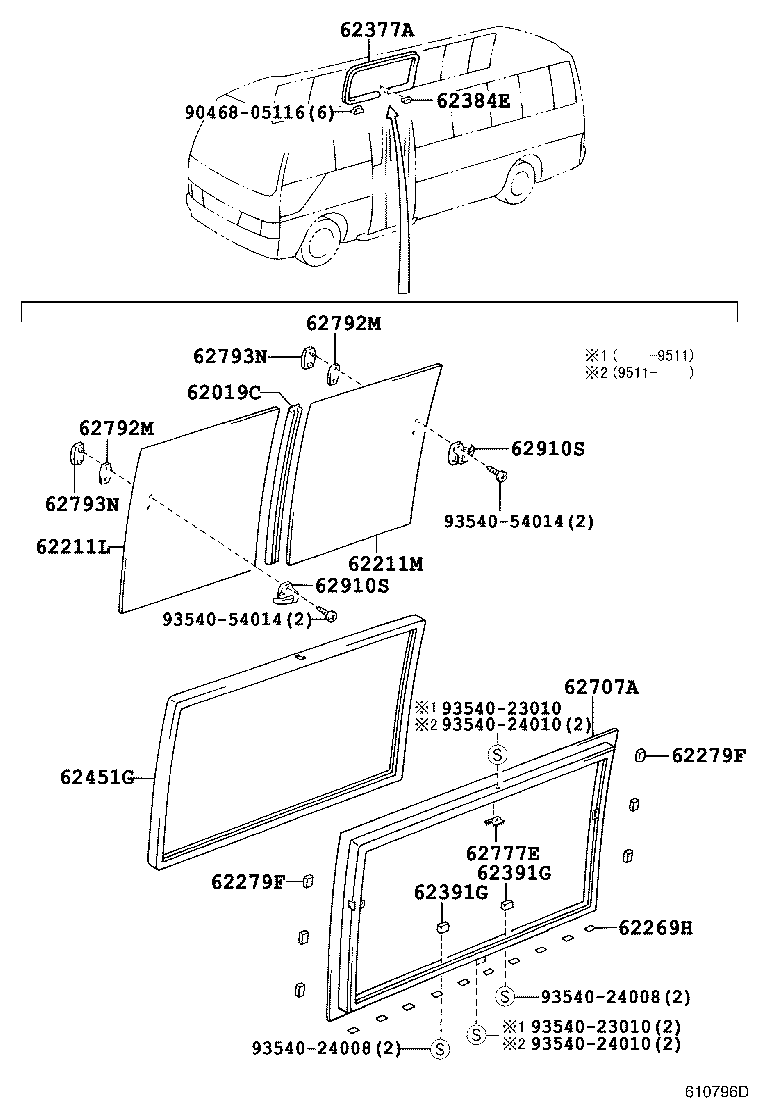

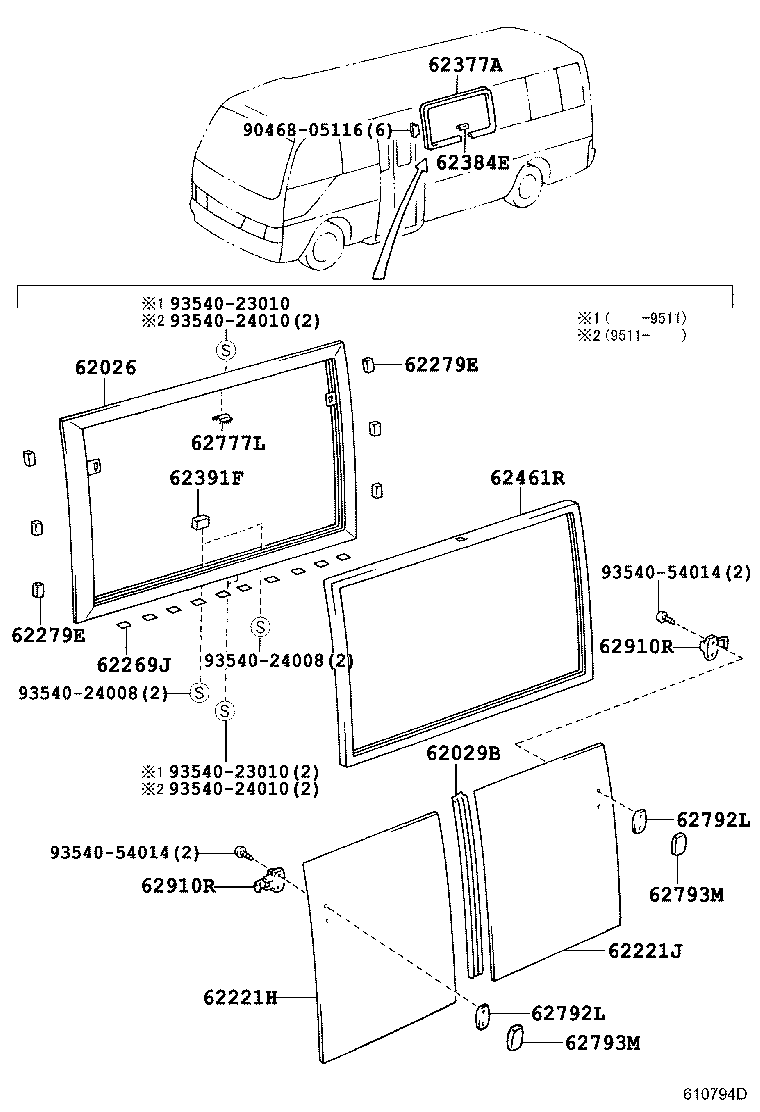

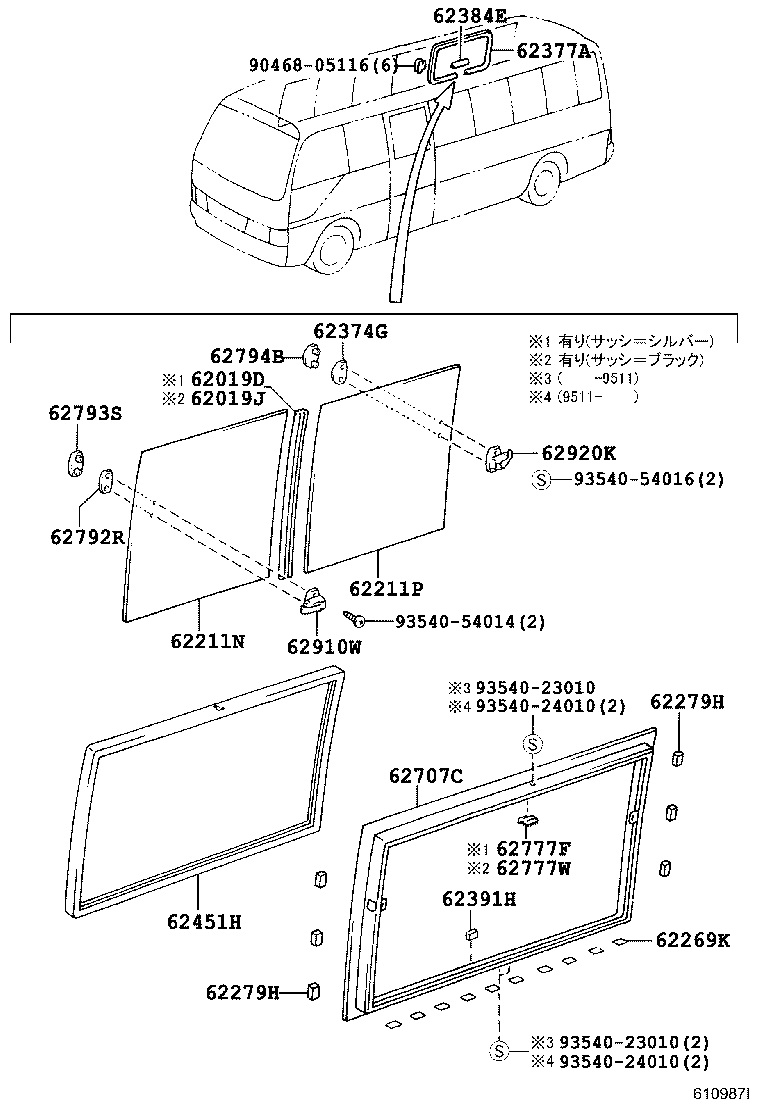

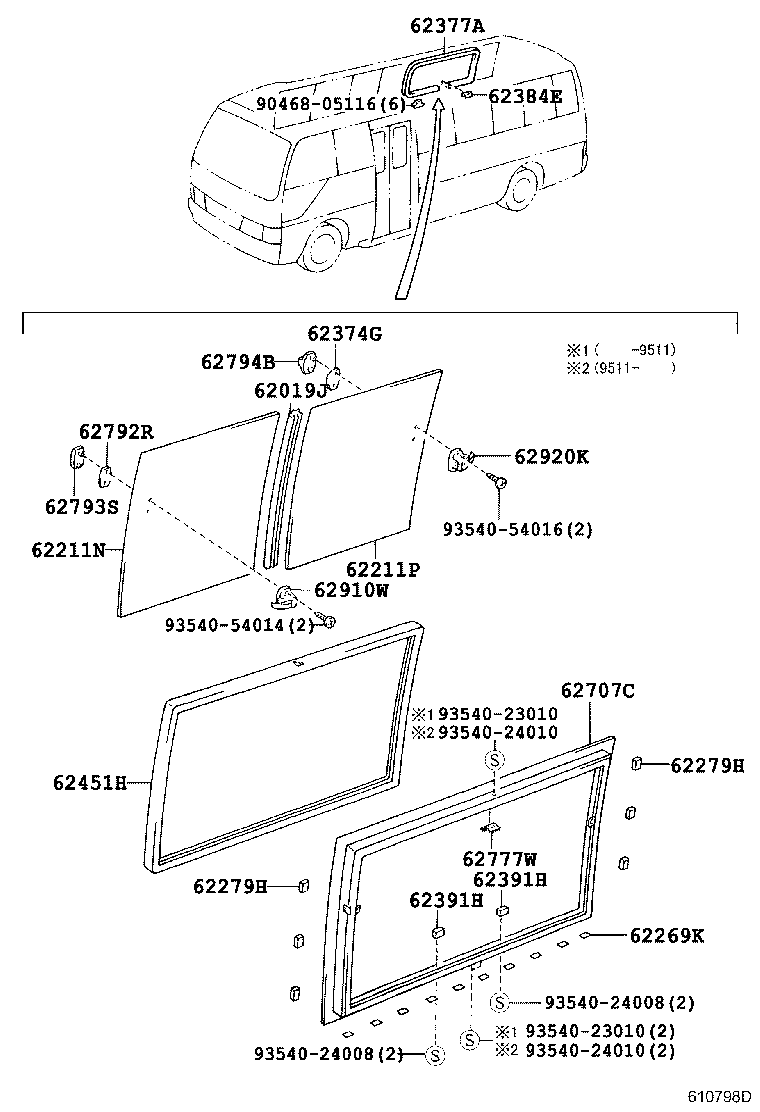

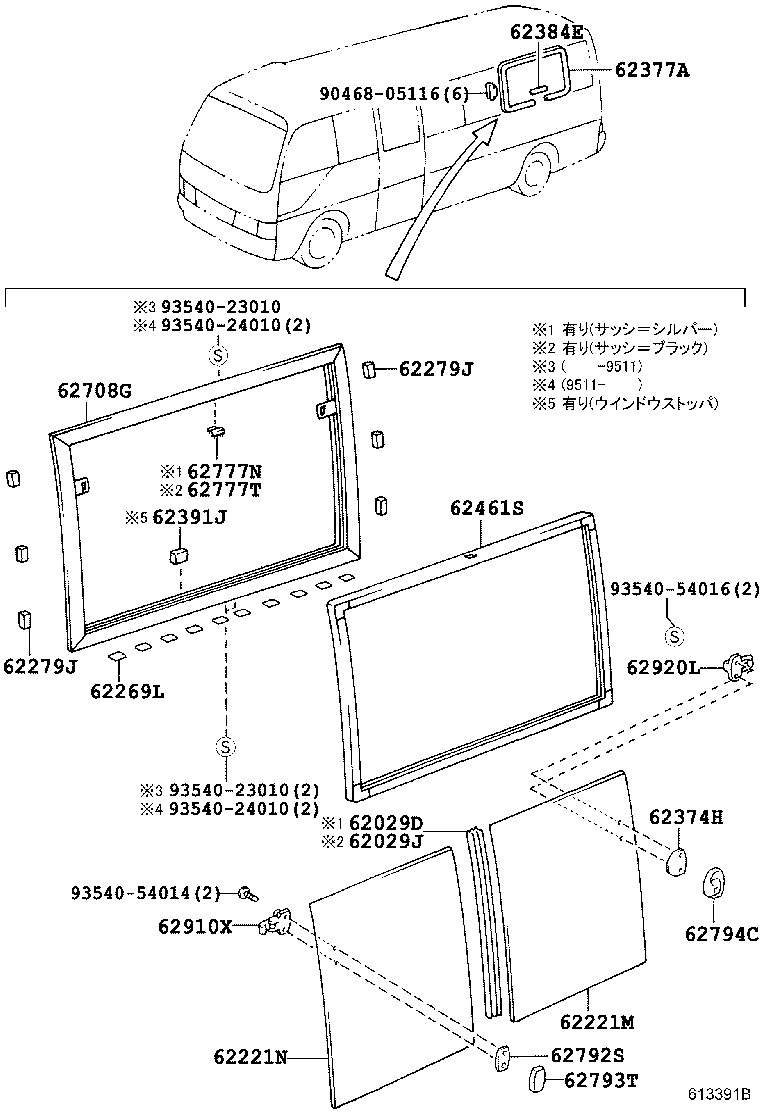

Figure 610792J 610792J 1993-01 → — Figure 611578C 611578C 1993-01 → 2004-08 Figure 611578C 611578C 2004-08 → — Figure 610994D 610994D 1993-01 → 2004-08 Figure 610994D 610994D 2004-08 → 2015-01 Figure 610793D 610793D 1993-01 → 2004-08 Figure 610793D 610793D 2004-08 → — Figure 615140 615140 2015-01 → — Figure 610985E 610985E 1993-01 → 2004-08 Figure 610985E 610985E 2004-08 → — Figure 610795H 610795H 1993-01 → 2004-08 Figure 610795H 610795H 2004-08 → — Figure 610794D 610794D 1993-01 → 2004-08 Figure 610794D 610794D 2004-08 → — Figure 613156C 613156C 1993-01 → 2004-08 Figure 613156C 613156C 2004-08 → — Figure 610796D 610796D 1993-01 → 2004-08 Figure 610796D 610796D 2004-08 → — Figure 610798D 610798D 1993-01 → 2004-08 Figure 610798D 610798D 1999-07 → 2004-08 Figure 610987I 610987I 1993-01 → 2004-08 Figure 610987I 610987I 2004-08 → — Figure 610797D 610797D 1993-01 → 2004-08 Figure 610797D 610797D 2004-08 → — Figure 610800C 610800C 1993-01 → 2004-08 Figure 610800C 610800C 1999-07 → 2004-08 Figure 613391B 613391B 1993-01 → 2004-08 Figure 613391B 613391B 2004-08 → — Figure 610799H 610799H 1993-01 → 2004-08 Figure 610799H 610799H 2004-08 → — Figure 611542A 611542A 1993-01 → 1999-07 Figure 611542A 611542A 1999-07 → 2004-08 Figure 611542A 611542A 1999-07 → 2004-08 Figure 611542A 611542A 2004-08 → — Figure 610801E 610801E 1993-01 → 2011-08 Figure 613985A 613985A 2011-08 → — Figure 611577A 611577A 1993-01 → 1999-07 Figure 613991 613991 2011-08 → 2015-01

Part groups

PNCDescription
61421 Glass, Side Lower Window
62015 Frame Sub-assy, Side Window, RH
62019A Frame Sub-assy, Side Window, Center RH
62019C Frame Sub-assy, Side Window, Center RH
62019D Frame Sub-assy, Side Window, Center RH
62019F Frame Sub-assy, Side Window, Center RH
62019H Frame Sub-assy, Side Window, Center RH
62019J Frame Sub-assy, Side Window, Center RH
62021A Frame Sub-assy, Front Side Window, Outer LH
62026 Frame Sub-assy, Side NO.2 Window, Outer LH
62029 Frame Sub-assy, Side Window, Center LH
62029B Frame Sub-assy, Side Window, Center LH
62029D Frame Sub-assy, Side Window, Center LH
62029E Frame Sub-assy, Side Window, Center LH
62029G Frame Sub-assy, Side Window, Center LH
62029J Frame Sub-assy, Side Window, Center LH
62121 Glass, Front Side Window, Front LH
62129B Dam, Rear Side Window
62179 Dam, Side Lower Window
62211F Glass, Side Window, Rear LH
62211G Glass, Side Window, Rear RH
62211H Glass, Side Window, Front RH
62211L Glass, Side Window, Front RH
62211M Glass, Side Window, Rear RH
62211N Glass, Side Window, Front RH
62211P Glass, Side Window, Front RH
62221H Glass, Side Window, Front LH
62221J Glass, Side Window, Rear LH
62221M Glass, Side Window, Rear LH
62221N Glass, Side Window, Front LH
62267 Dam, Side Window Adhesive
62267A Dam, Side Window Adhesive
62267B Dam, Side Window Adhesive
62269F Film, Side Window Frame
62269G Film, Side Window Frame
62269H Film, Side Window Frame
62269J Film, Side Window Frame
62269K Film, Side Window Frame
62269L Film, Side Window Frame
62279 Spacer, Side Window Frame, Upper
62279A Spacer, Side Window Frame
62279C Spacer, Side Window Frame, RH
62279E Spacer, Side Window Frame
62279F Spacer, Side Window Frame
62279H Spacer, Side Window Frame
62279J Spacer, Side Window Frame
62374A Packing, Side Rear Window, RH
62374D Packing, Side Window Lock
62374E Packing, Side Window Lock
62374G Packing, Side Window Lock
62374H Packing, Side Window Lock
62376A Clip, Side Window, NO.2
62377A Clip, Side Window, NO.3
62384E Cap, Side Window
62385B Seal, Side Window, NO.5
62388A Seal, Side Window, NO.4
62391D Stopper, Side Window, NO.1 LH
62391E Stopper, Side Window, NO.1
62391F Stopper, Side Window, NO.1
62391G Stopper, Side Window, NO.1
62391H Stopper, Side Window, NO.1
62391J Stopper, Side Window, NO.1
62451D Run, Rear Side Window, RH
62451G Run, Rear Side Window, RH
62451H Run, Rear Side Window, RH
62461R Run, Rear Side Window, LH
62461S Run, Rear Side Window, LH
62707A Frame Sub-assy, Side Front Window, RH
62707C Frame Sub-assy, Side Rear Window, RH
62708G Frame Sub-assy, Side Rear Window, LH
62710C Glass Sub-assy, Side Front Window, RH
62710D Glass Sub-assy, Side Front Window, RH
62720B Window Assy, Side, Front LH
62720C Glass Sub-assy, Side Front Window, LH
62720D Glass Sub-assy, Side Front Window, LH
62730A Window Assy, Side, Rear RH
62740A Window Assy, Side, Rear LH
62777C Cap, Side Window Center Sash
62777E Cap, Side Window Center Sash
62777F Cap, Side Window Center Sash
62777H Cap, Side Window Center Sash
62777J Cap, Side Window Center Sash
62777L Cap, Side Window Center Sash
62777N Cap, Side Window Center Sash
62777P Cap, Side Window Center Sash
62777R Cap, Side Window Center Sash
62777T Cap, Side Window Center Sash
62777V Cap, Side Window Center Sash
62777W Cap, Side Window Center Sash
62778 Cap, Side Window Front Sash
62785A Spacer, Quarter Window Glass
62785C Spacer, Quarter Window Glass
62785D Spacer, Quarter Window Glass
62792C Packing, Side Window Lock, LH
62792H Packing, Side Window Lock
62792L Packing, Side Window Lock
62792M Packing, Side Window Lock
62792R Packing, Side Window Lock
62792S Packing, Side Window Lock
62793C Retainer, Side Window Lock, LH
62793J Retainer, Side Window Lock
62793M Retainer, Side Window Lock
62793N Retainer, Side Window Lock
62793S Retainer, Side Window Lock
62793T Retainer, Side Window Lock
62793U Retainer, Side Window Lock
62793X Retainer, Side Window Lock
62793Y Retainer, Side Window Lock
62794B Retainer, Side Window Lock
62794C Retainer, Side Window Lock
62798B Moulding, Side Window, Front NO.1 RH
62798C Moulding, Side Window, Front NO.3 LH
62798D Moulding, Side Window, Front NO.2 LH
62798E Moulding, Side Rear Window
62806 Support Sub-assy, Side Window Guard, NO.2
62881A Bracket, Quarter Window Guard
62894B Bar, Side Window Guard, NO.4
62896A Bar, Side Window Guard, NO.2
62897 Tube, Side Window Guard
62898A Tube, Side Window Guard, LH
62910J Lock Assy, Side Window, LH
62910M Lock Assy, Side Window
62910R Lock Assy, Side Window
62910S Lock Assy, Side Window
62910W Lock Assy, Side Window
62910X Lock Assy, Side Window
62920D Lock Assy, Side Window
62920G Lock Assy, Side Window
62920H Lock Assy, Side Window
62920K Lock Assy, Side Window
62920L Lock Assy, Side Window
68142D Run, Side Front Window, LH
68217A Pin, Side Window , NO.1
68217C Pin, Side Window, NO.2
68217D Pin, Side Window, NO.3
68217E Pin, Side Window, NO.4
68218B Bush, Side Window
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
