Toyota Coaster
1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan
Discontinued model
Data version 2016-12

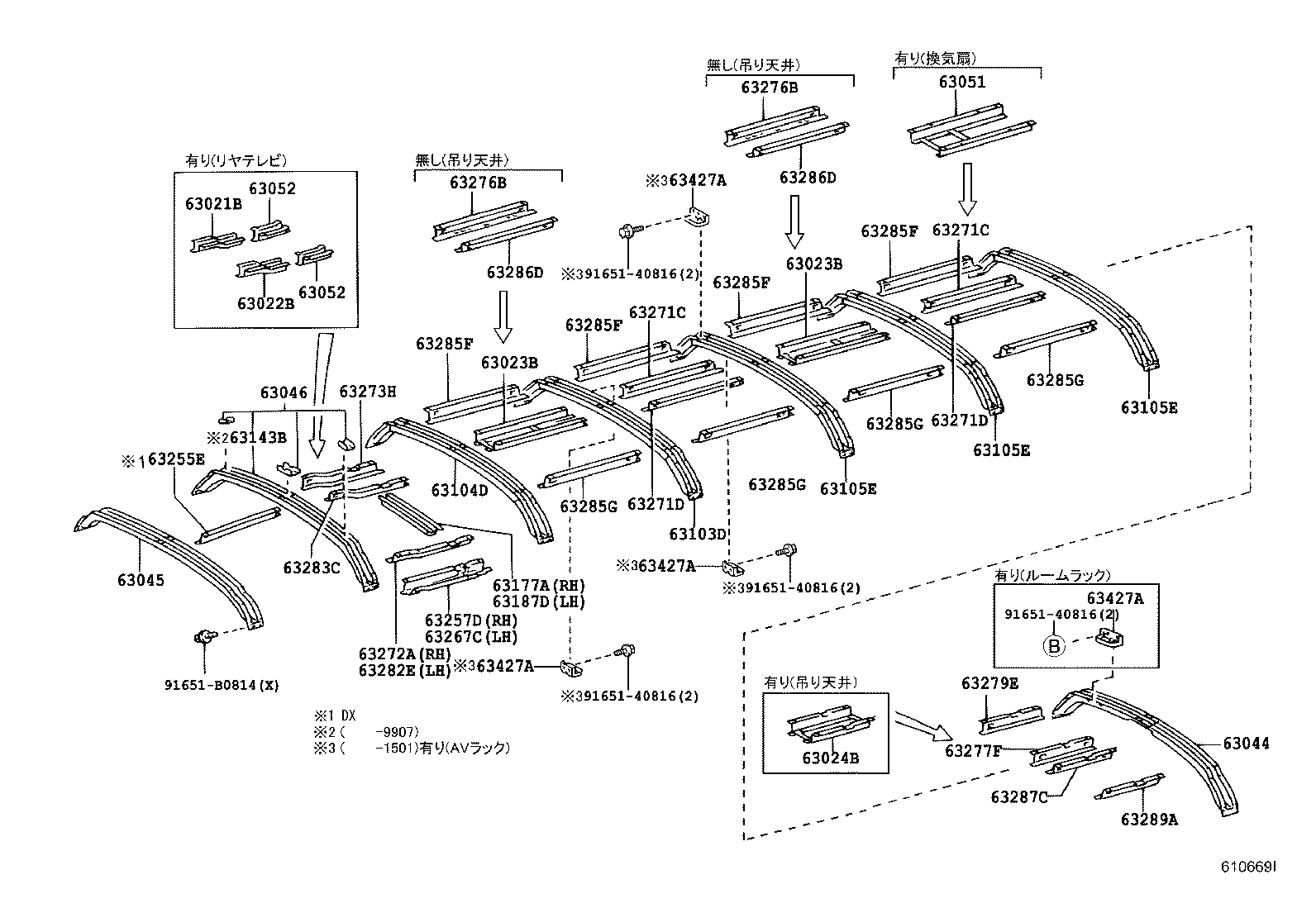

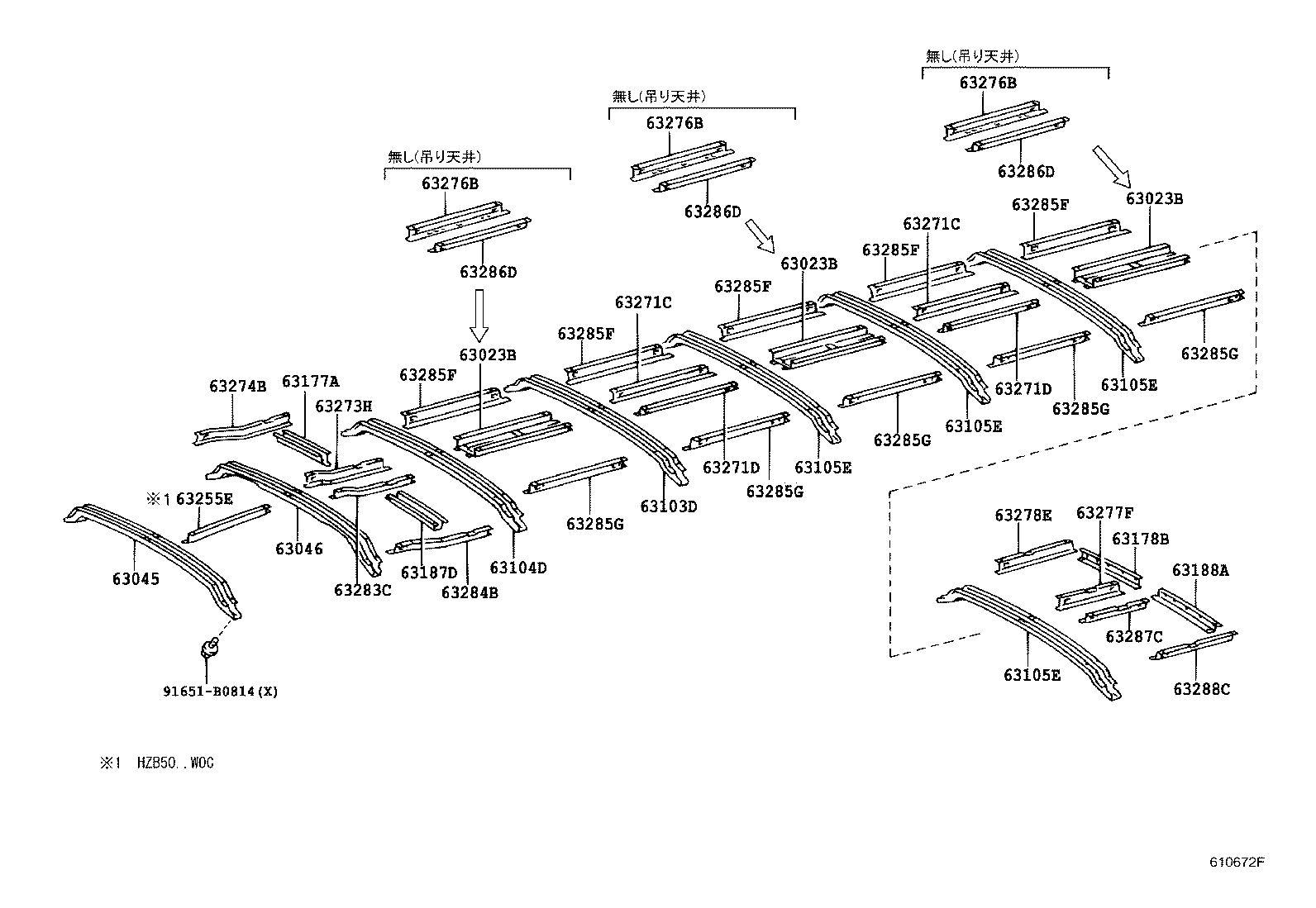

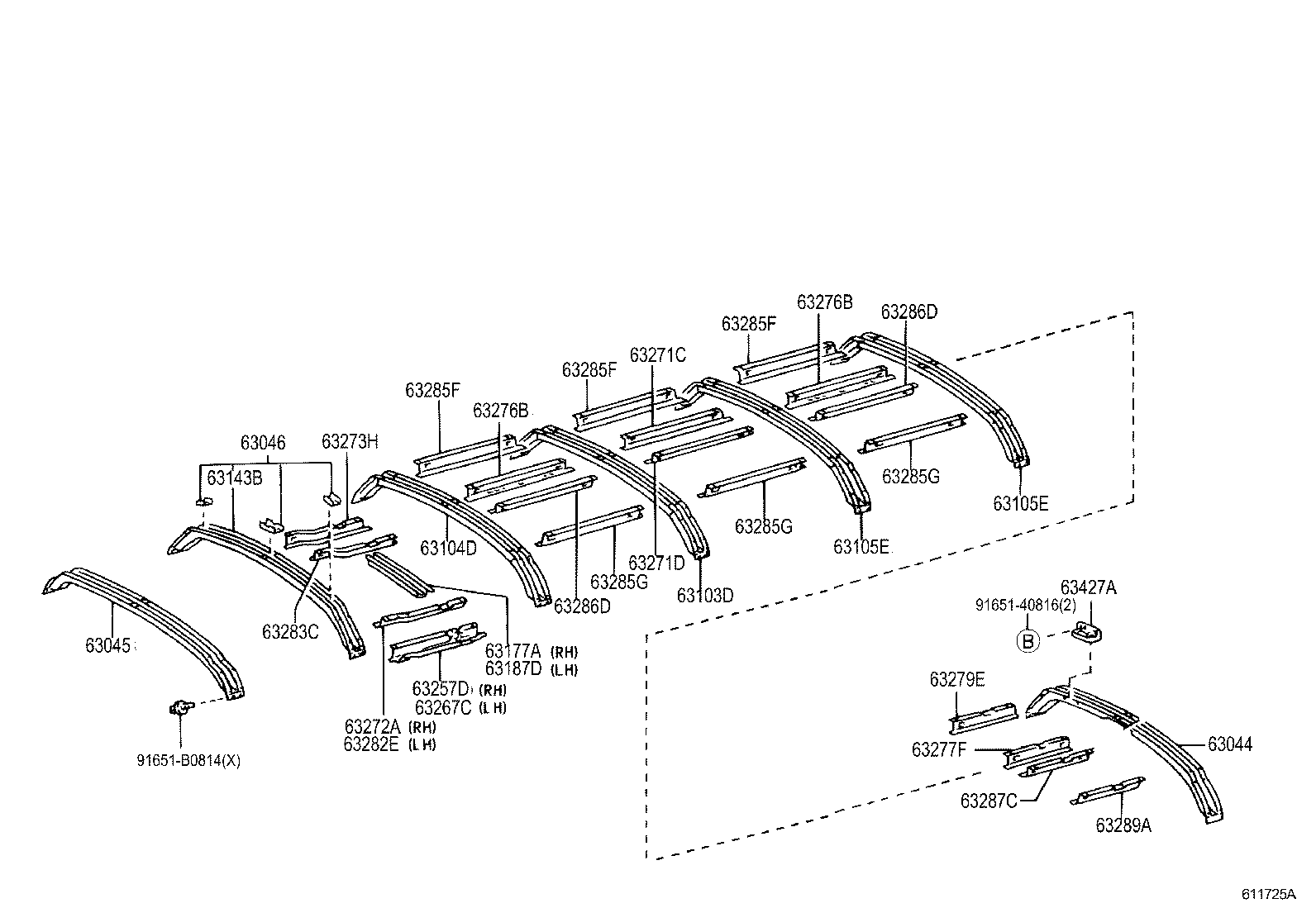

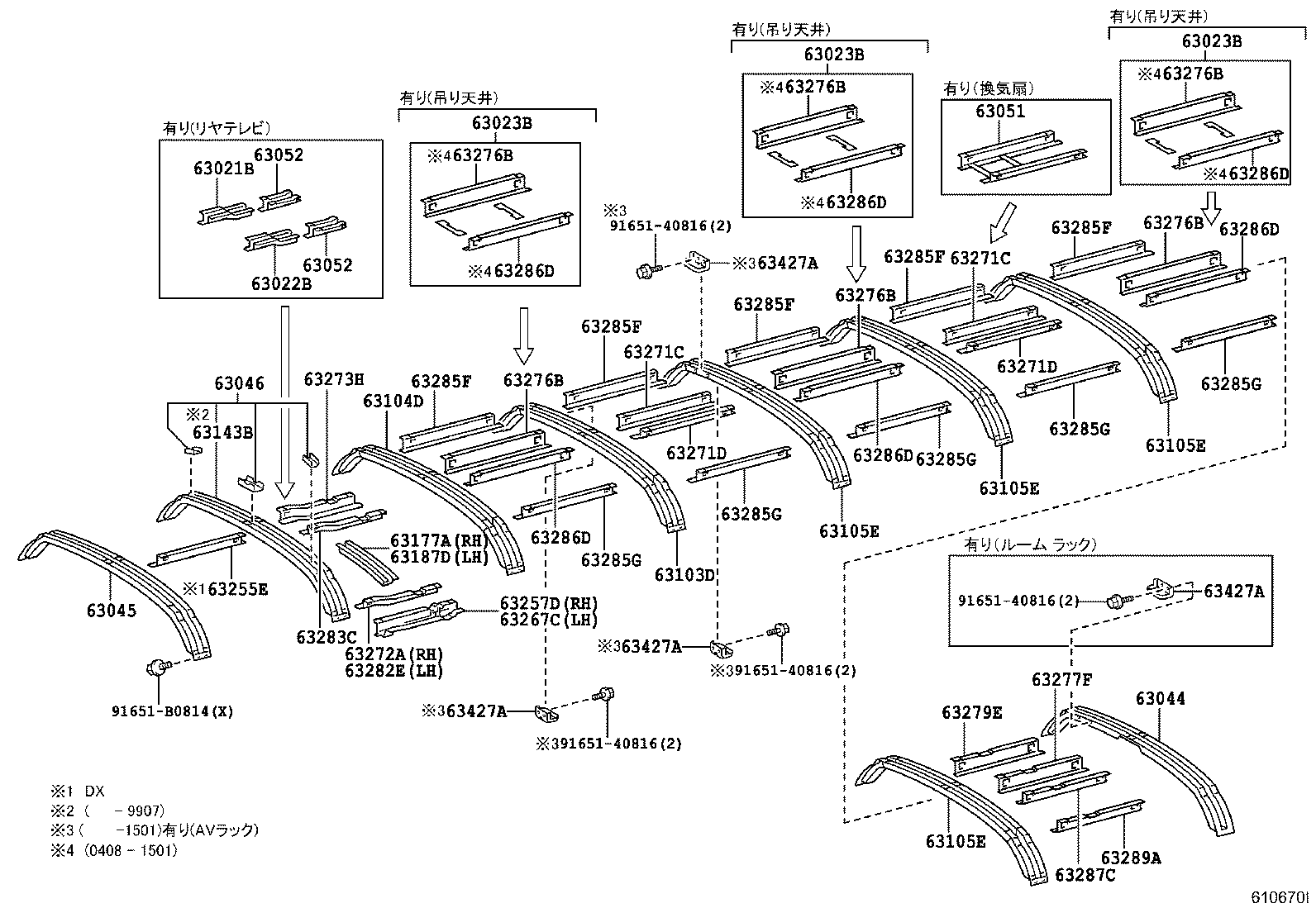

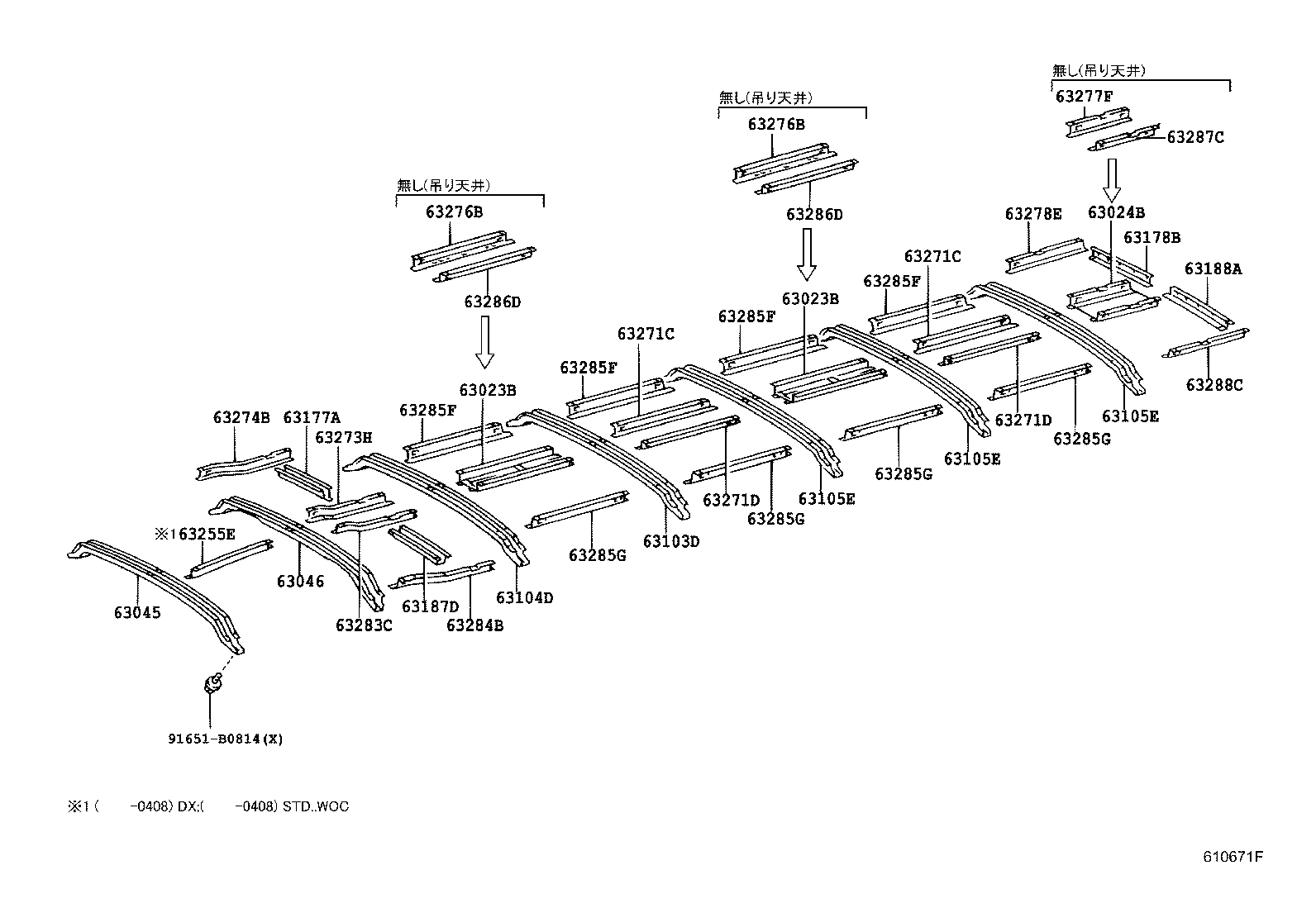

Roof Panel & Back Panel
76 part groups · 9 illustrations
Part groups
| PNC | Description |
|---|---|
| 55905H | Knob Sub-assy, Control |
| 61277A | Joint, Roof Drip Channel |
| 62956B | Retainer, Quarter Vent Louver, LH |
| 63015B | Flange Sub-assy, Boost Ventilator Hole |
| 63021B | Strength Sub-assy, Roof Panel |
| 63022B | Strength Sub-assy, Roof Panel, NO.2 |
| 63023B | Strength Sub-assy, Roof Panel, Center NO.2 |
| 63024B | Strength Sub-assy, Roof Panel, Center NO.4 |
| 63044 | Reinforcement Sub-assy, Roof Panel, NO.2 A |
| 63045 | Reinforcement Sub-assy, Roof Panel, NO.3 |
| 63046 | Reinforcement Sub-assy, Roof Panel, NO.4 A |
| 63051 | Strength Sub-assy, Roof Panel, Center |
| 63052 | Strength Sub-assy, Roof Panel, Front |
| 63083A | Panel Sub-assy, Roof Ventilator |
| 63085A | Louver Sub-assy, Roof Ventilator, RH |
| 63086A | Louver Sub-assy, Roof Ventilator, LH |
| 63103D | Reinforcement Sub-assy, Roof Panel, NO.3 |
| 63104D | Reinforcement Sub-assy, Roof Panel, NO.2 |
| 63105E | Reinforcement Sub-assy, Roof Panel, NO.3 |
| 63109A | Panel Sub-assy, Back Window, Upper |
| 63111B | Panel, Roof, NO.1 |
| 63112A | Panel, Roof, NO.2 |
| 63113A | Panel, Roof, NO.3 |
| 63114C | Support, Roof Panel, Front LH |
| 63115C | Panel, Roof, NO.4 |
| 63118A | Support, Roof Panel, Front RH |
| 63119A | Support, Roof Panel, Rear RH |
| 63127D | Retainer, Roof Television Camera |
| 63128B | Support, Roof Panel, Rear LH |
| 63132 | Panel, Windshield Header, Inner |
| 63137B | Retainer, Outer Under Rear View Mirror |
| 63139B | Bracket, Windshield Header Clock Support |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63149F | Bracket, Roof Antenna, NO.3 |
| 63154 | Reinforcement, Windshield Header Panel, Center |
| 63171B | Bracket, Inner Mirror Base |
| 63177A | Reinforcement, Roof Panel, RH NO.7 |
| 63178B | Reinforcement, Roof Panel, RH NO.8 |
| 63187D | Reinforcement, Roof Panel, LH NO.7 |
| 63188A | Reinforcement, Roof Panel, LH NO.8 |
| 63194A | Bracket, Boost Ventirator Cover, NO.1 |
| 63211B | Panel, Removable Roof |
| 63212B | Panel, Roof Wind Deflector |
| 63236B | Bracket, Room Speaker |
| 63255E | Strength, Roof Panel, Center NO.5 |
| 63257D | Strength, Roof Panel, Center NO.7 RH |
| 63267C | Strength, Roof Panel, Center NO.7 LH |
| 63271C | Strength, Roof Panel, NO.1 RH |
| 63271D | Strength, Roof Panel, NO.1 LH |
| 63272A | Strength, Roof Panel, NO.2 RH |
| 63273H | Strength, Roof Panel, NO.3 |
| 63274B | Strength, Roof Panel, NO.4 RH |
| 63276B | Strength, Roof Panel, NO.6 RH |
| 63277F | Strength, Roof Panel, NO.7 RH |
| 63278E | Strength, Roof Panel, NO.8 RH |
| 63279E | Strength, Roof Panel, NO.9 RH |
| 63282E | Strength, Roof Panel, NO.2 LH |
| 63283C | Strength, Roof Panel, NO.3 LH |
| 63284B | Strength, Roof Panel, NO.4 LH |
| 63285F | Strength, Roof Panel, NO.5 RH |
| 63285G | Strength, Roof Panel, NO.5 LH |
| 63286D | Strength, Roof Panel, NO.6 LH |
| 63287C | Strength, Roof Panel, NO.7 LH |
| 63288C | Strength, Roof Panel, NO.8 LH |
| 63289A | Strength, Roof Panel, NO.9 LH |
| 63427A | Bracket, Room Rack Flame |
| 63669A | Grommet, Sliding Roof Drain |
| 63812 | Cover, Roof Ventilator, NO.2 |
| 63830 | Duct Assy, Roof Ventilator |
| 63849 | Hose, Roof Ventilator Drain |
| 63859 | Hose, Roof Ventilator Drain, NO.2 |

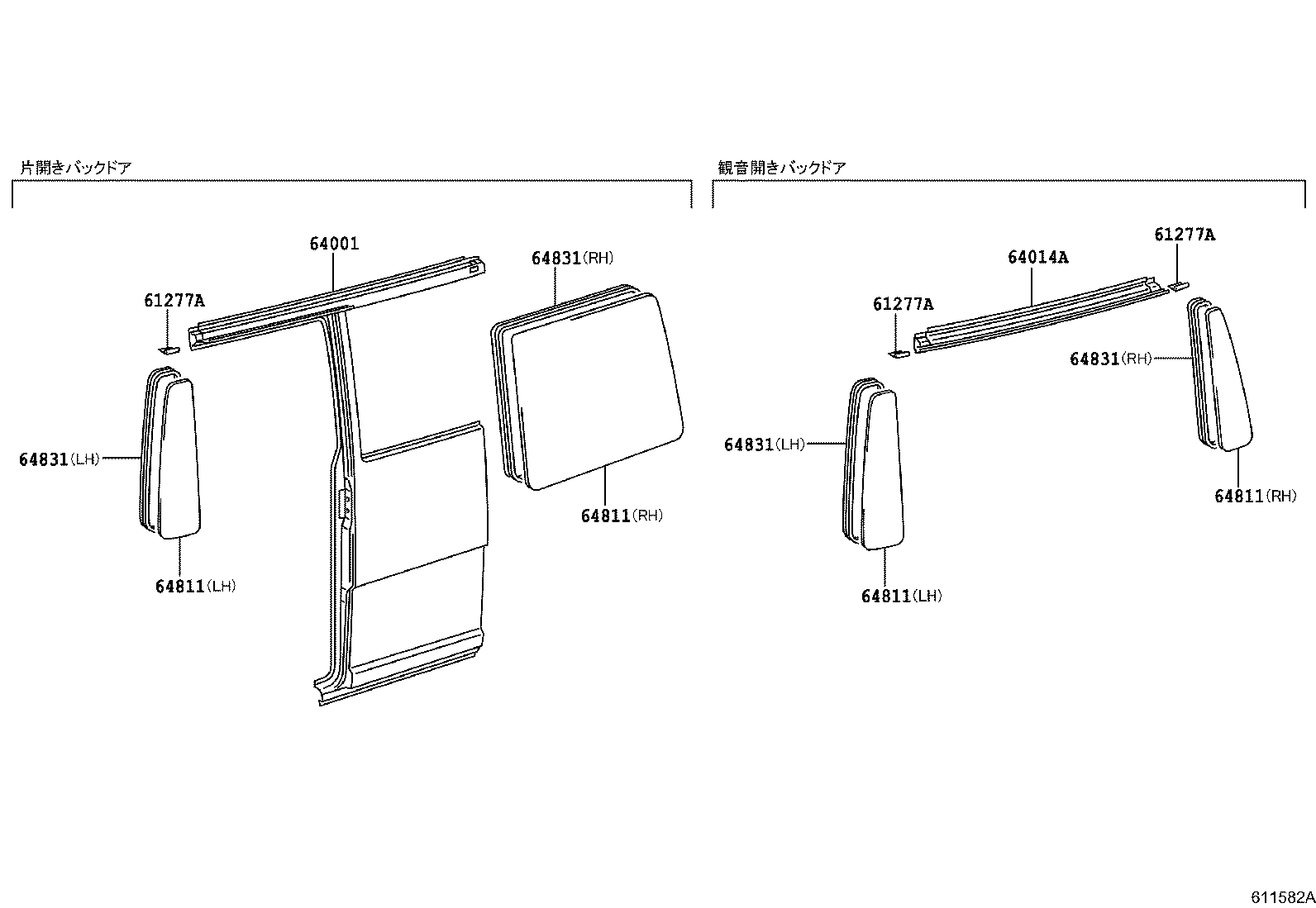

| 64001 | Panel Sub-assy, Back |
| 64013A | Rail Sub-assy, Back |
| 64014A | Rail Sub-assy, Upper Back |
| 64811 | Glass, Back Window |
| 64831 | Weatherstrip, Back Window Glass |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
