Toyota Coaster
1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan
Discontinued model
Data version 2016-12

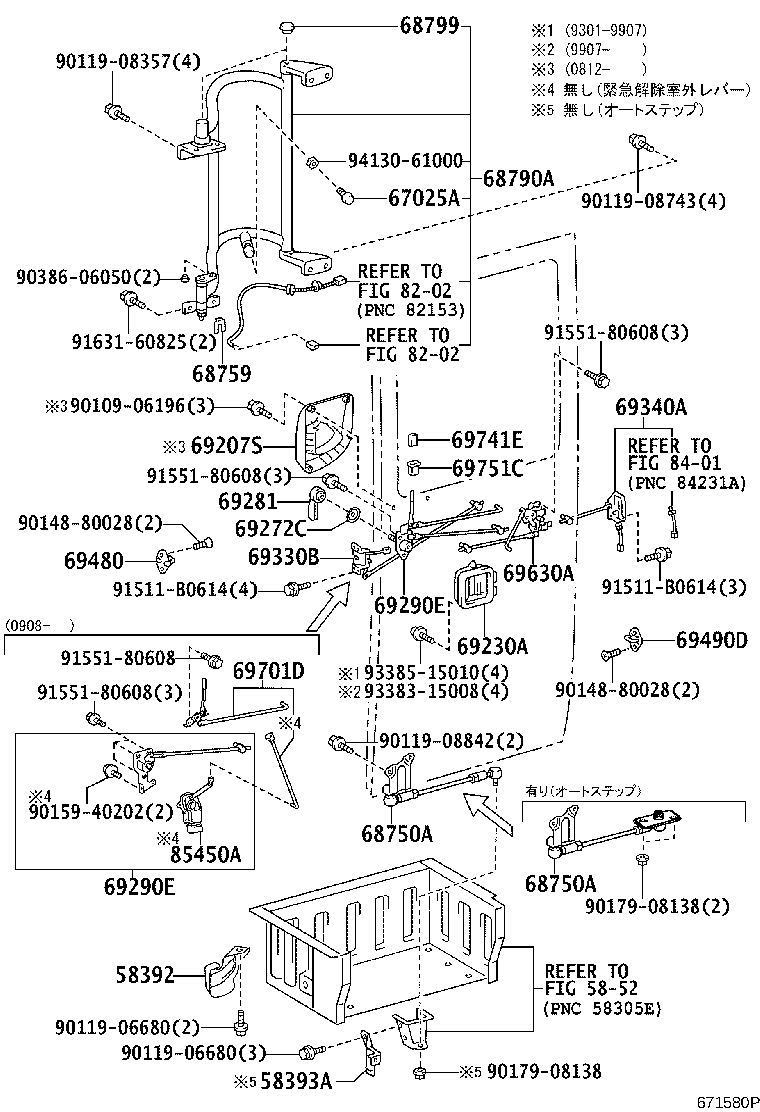

Center Door Lock & Hinge
28 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 58392 | Mudguard, Glide Door Link, Front |
| 58393A | Mudguard, Glide Door Link, Rear |
| 67025A | Stopper Sub-assy, Slide Door, Front |
| 67224 | Gum, Door Cushion, NO.2 |
| 67255 | Stopper, Center Inside Lock |
| 68750A | Link Assy, Glide Door |
| 68759 | Spacer, Glide Door Arm |
| 68790A | Arm Assy, Glide Door |
| 68799 | Cap, Glide Door Arm |
| 69207S | Cover(FOR REAR DOOR INSIDE HANDLE) |
| 69230A | Handle Assy, Glide Door Outside |
| 69272C | Plate, Glide Door Inside Handle |
| 69278 | Bezel, Door Inside Handle, NO.1 LH |
| 69281 | Handle, Glide Door Inside |
| 69290E | Base Assy, Glide Door Inside Handle |
| 69298F | Bezel, Door Inside Handle, NO.2 LH |
| 69302B | Lock Sub-assy, Center Door Inside Handle |
| 69303B | Handle Sub-assy, Center Door Lock, Outside |
| 69330B | Lock Assy, Glide Door, Front |
| 69340A | Lock Assy, Glide Door, Rear |
| 69405C | Stopper Sub-assy, Center Door Inside Look |
| 69480 | Plate Assy, Glide Door Lock Striker, Front |
| 69490D | Plate Assy, Glide Door Lock Striker, Rear |
| 69630A | Control Assy, Glide Door Lock Remote |
| 69701D | Bellcrank Sub-assy, Door Lock Control, Upper |
| 69741E | Knob, Door Lock Control |
| 69751C | Holder, Door Lock Control Knob(FOR GLIDE DOOR) |
| 85450A | Motor Assy, Door Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
