Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Separator & Separator Curtain

17 part groups · 4 illustrations

Illustrations

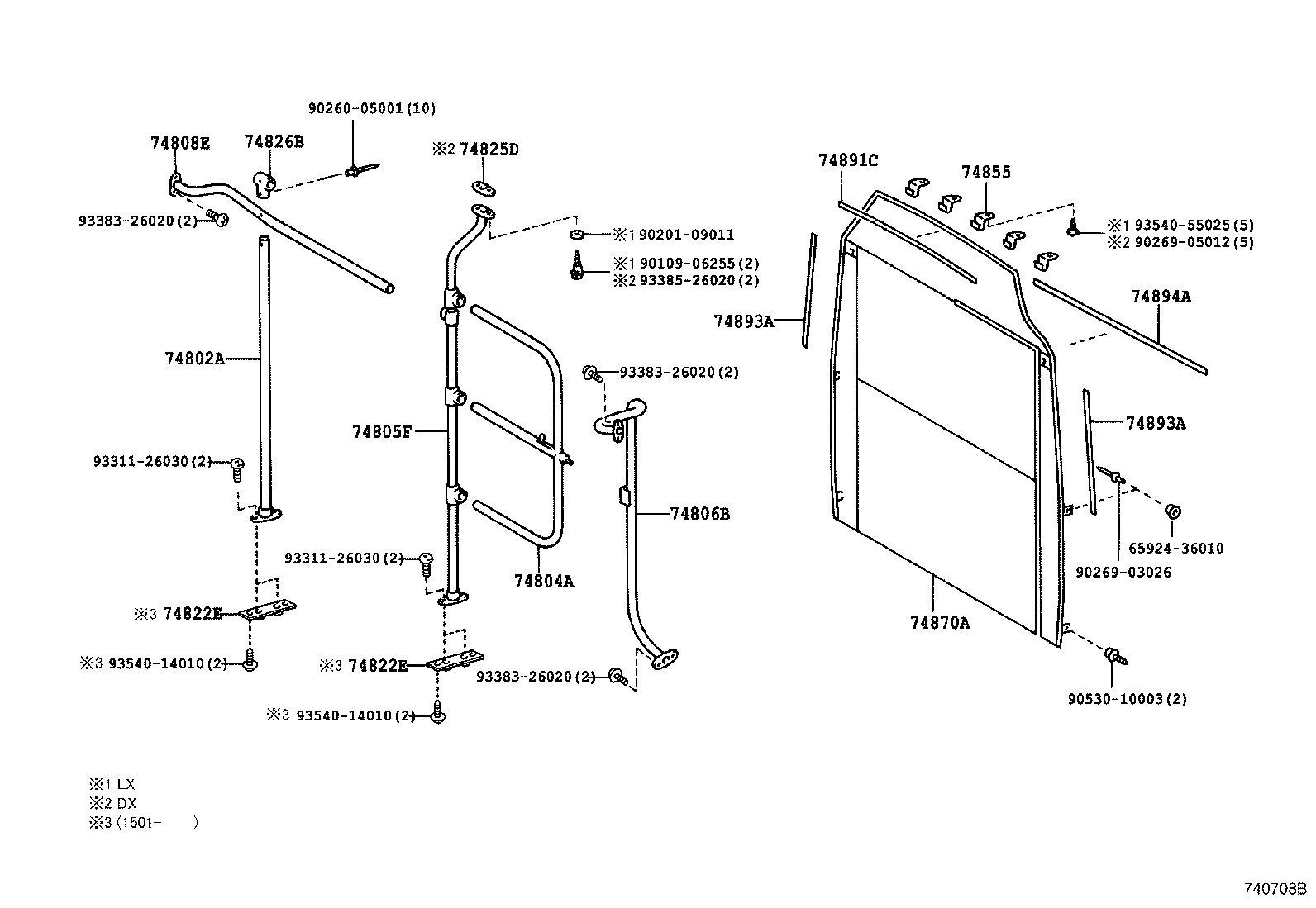

Figure 744009 744009 1993-01 → 2004-08 Figure 741472B 741472B 1993-01 → — Figure 740708B 740708B 1993-01 → — Figure 744005B 744005B 2015-01 → —

Part groups

PNCDescription
63435B Net, Room Rack
66301D Hook Sub-assy, Rope
66318A Band, Rope Hook
74802A Bar Sub-assy, Separator, E
74804A Bar Sub-assy, Separator, D
74805F Bar Sub-assy, Separator, A
74806B Bar Sub-assy, Separator, B
74808E Separator Sub-assy, Rear
74816E Pipe, Rear Protector, NO.2
74822E Retainer, Separator Bar
74825D Bracket, Separator Bar, NO.5
74826B Bracket, Separator Bar, NO.6
74855 Plate, Separator Curtain Set
74870A Curtain Assy, Separator
74891C Wire, Separator Cutain, NO.1
74893A Wire, Separator Curtain, NO.3
74894A Wire, Separator Curtain
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
