Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Protector Pipe, Roll Bar & Handrail

26 part groups · 12 illustrations

Illustrations

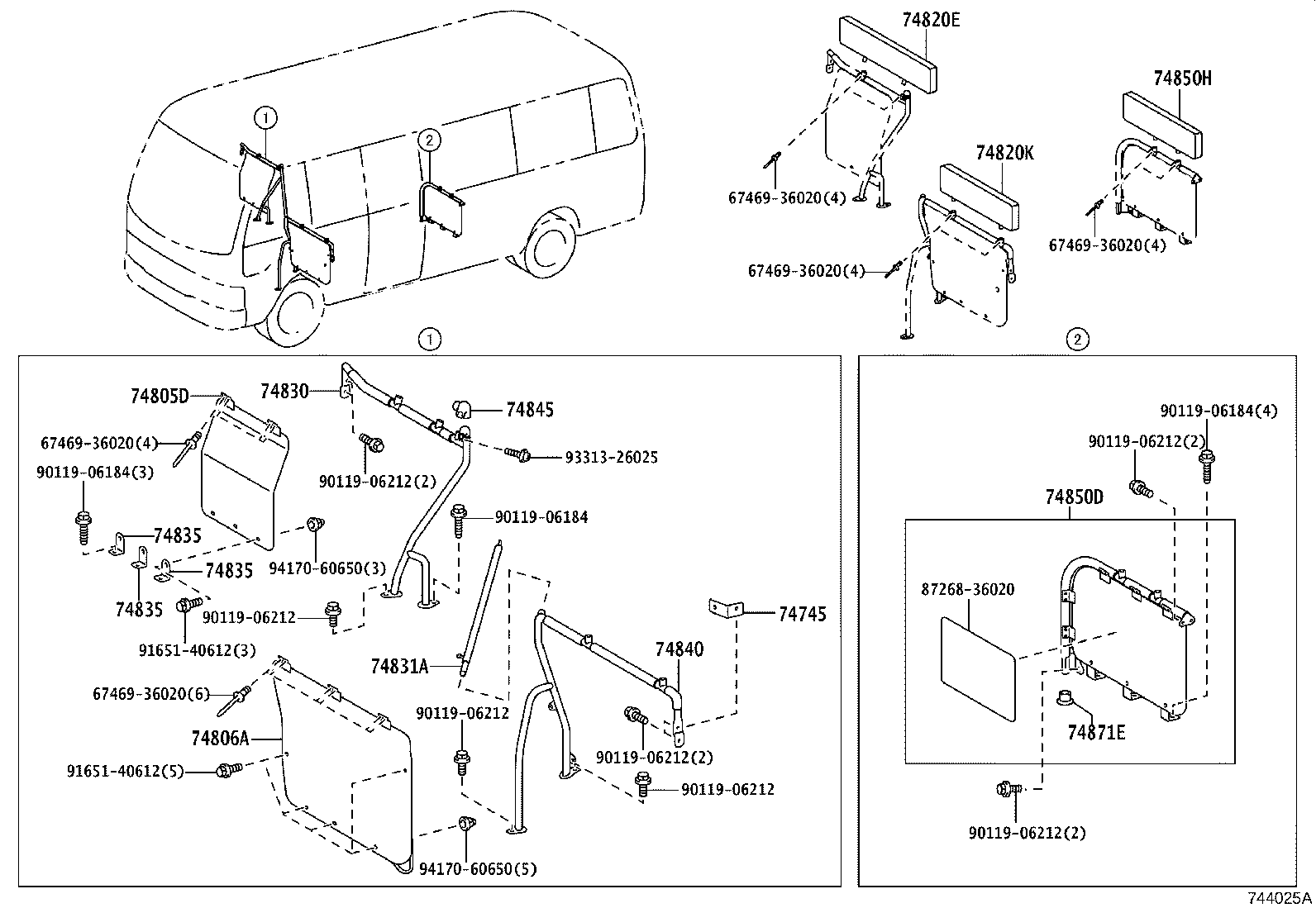

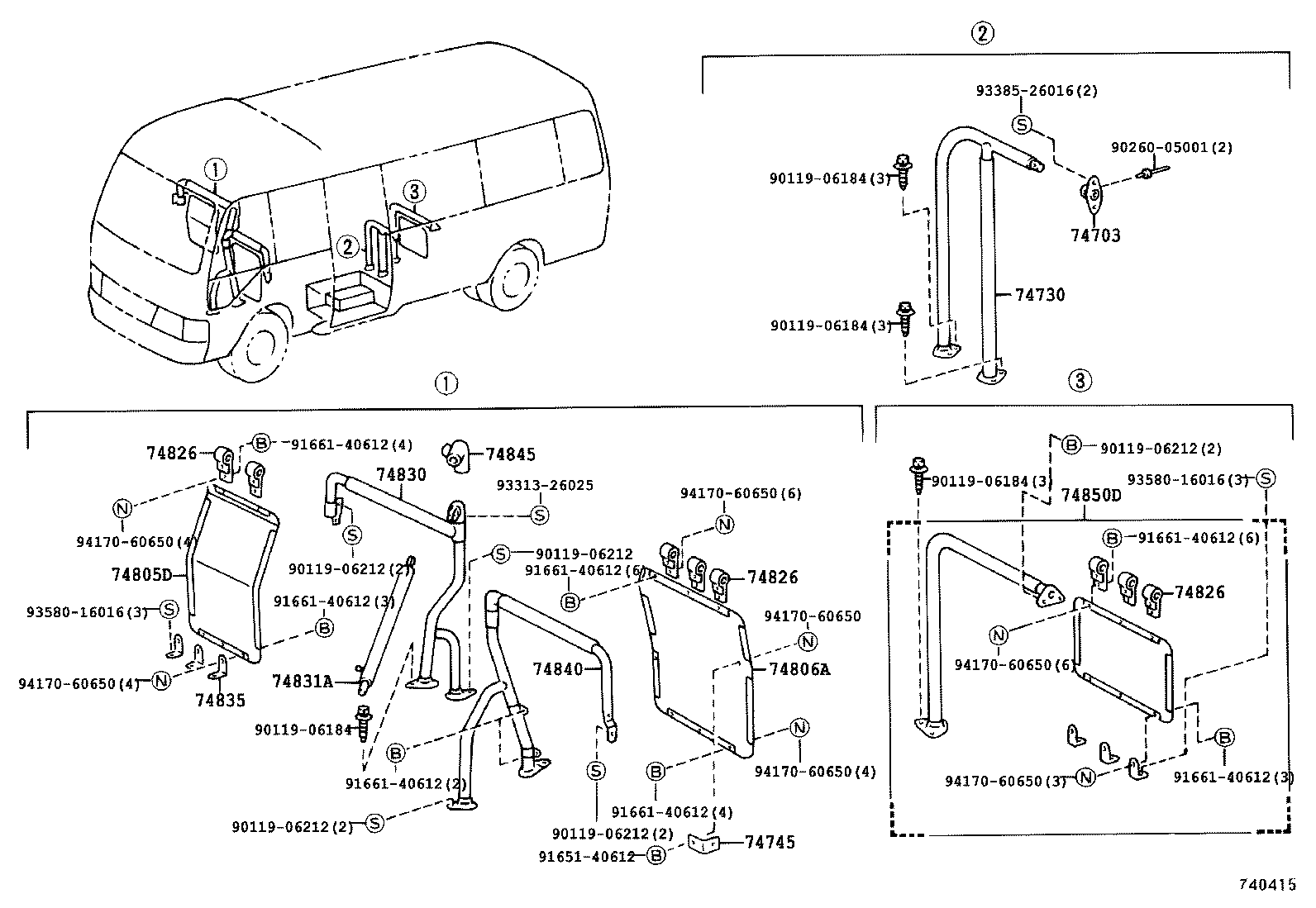

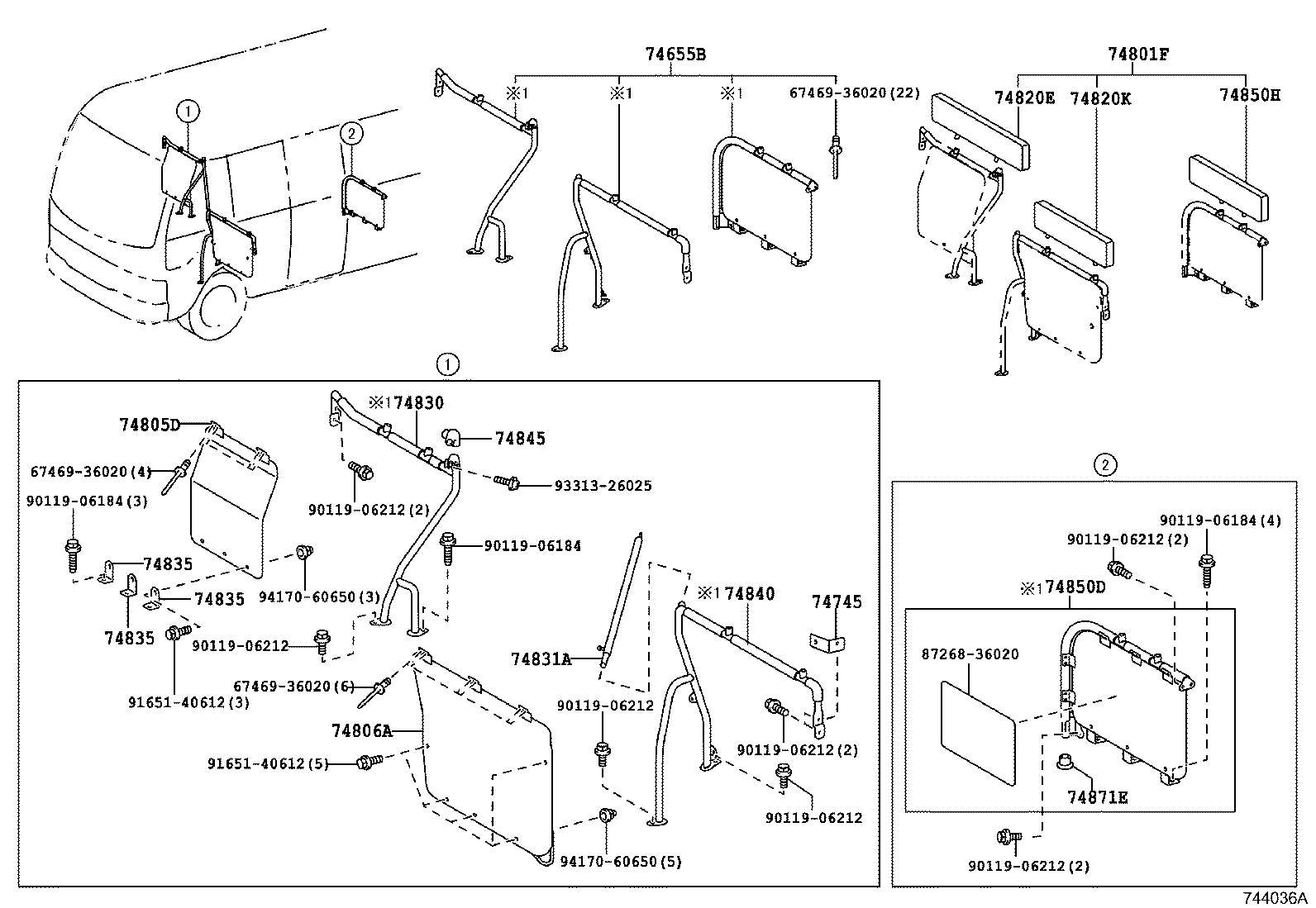

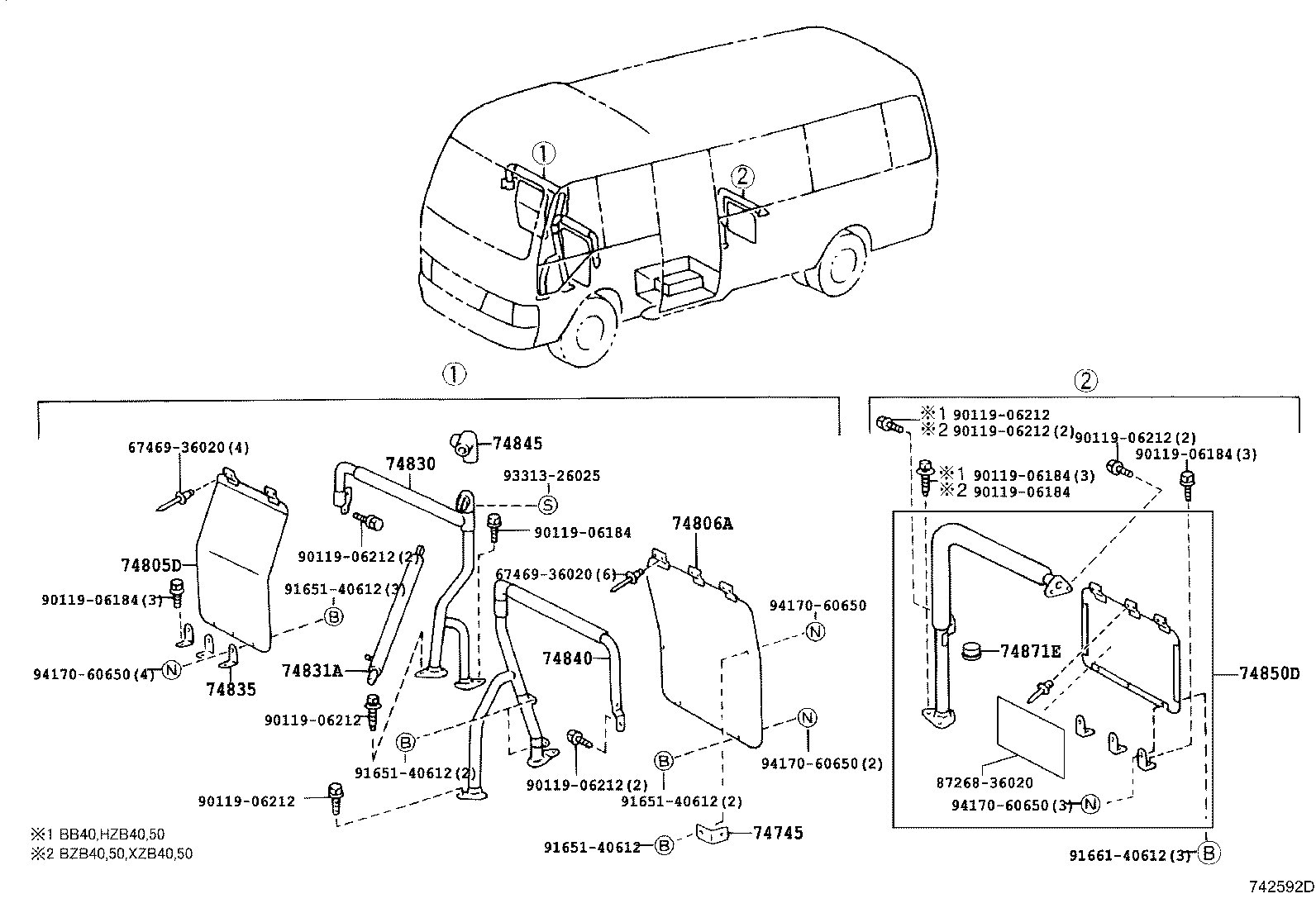

Figure 740641E 740641E 1993-01 → 2004-08 Figure 744024 744024 2004-08 → — Figure 740642D 740642D 1993-01 → 1999-07 Figure 740632C 740632C 1999-07 → 2015-01 Figure 740632C 740632C 2015-01 → — Figure 740415 740415 1993-01 → 1997-05 Figure 742592D 742592D 1997-05 → 2015-01 Figure 744036A 744036A 2014-09 → 2015-01 Figure 744025A 744025A 2015-01 → — Figure 744026 744026 1993-01 → 1995-05 Figure 744023 744023 1995-05 → 2015-01 Figure 744023 744023 2015-01 → —

Part groups

PNCDescription
62591B Stand, Umbrella
62594C Mat, Umbrella Stand
62594D Mat, Umbrella Stand, NO.2
62595F Cover, Umbrella Stand
62598C Box, Umbrella
74655B Bar, Hand Rail
74703 Frame Sub-assy, Hand Grip Side
74705B Net Sub-assy, Hand Grip Protector
74707 Frame Sub-assy, Hand Grip, NO.1
74708 Frame Sub-assy, Hand Grip, NO.2
74730 Frame Assy, Hand Grip
74745 Bracket, Hand Grip TO Net, NO.2
74801F Trim Sub-assy, Separator, Upper Front
74805D Net Sub-assy, Front Protector, RH
74806A Net Sub-assy, Front Protector, LH
74820E Protector Assy, Front RH
74820K Protector Assy, Front LH
74826 Bracket, Protector Net, Upper
74830 Pipe Assy, Front Protector, RH
74831A Pipe, Front Protector, Center
74835 Bracket, Front Protector Net, Lower RH
74840 Pipe Assy, Front Protector, LH
74845 Cover, Front Protector Pipe Horizontal, RH
74850D Protector Assy, Center
74850H Protector Assy, Center
74871E Protector, Hand Grip Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
