Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

81 part groups · 14 illustrations

Illustrations

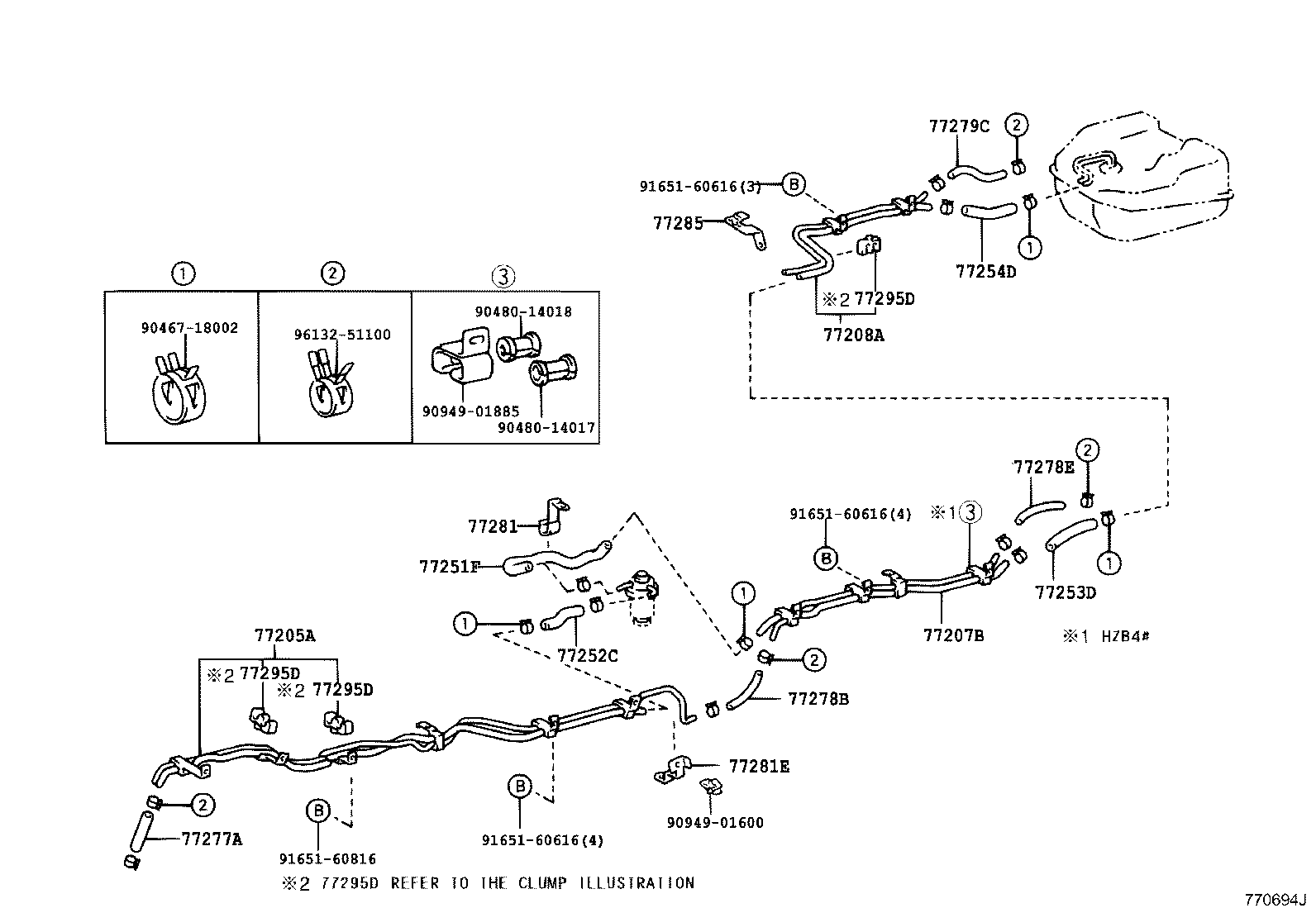

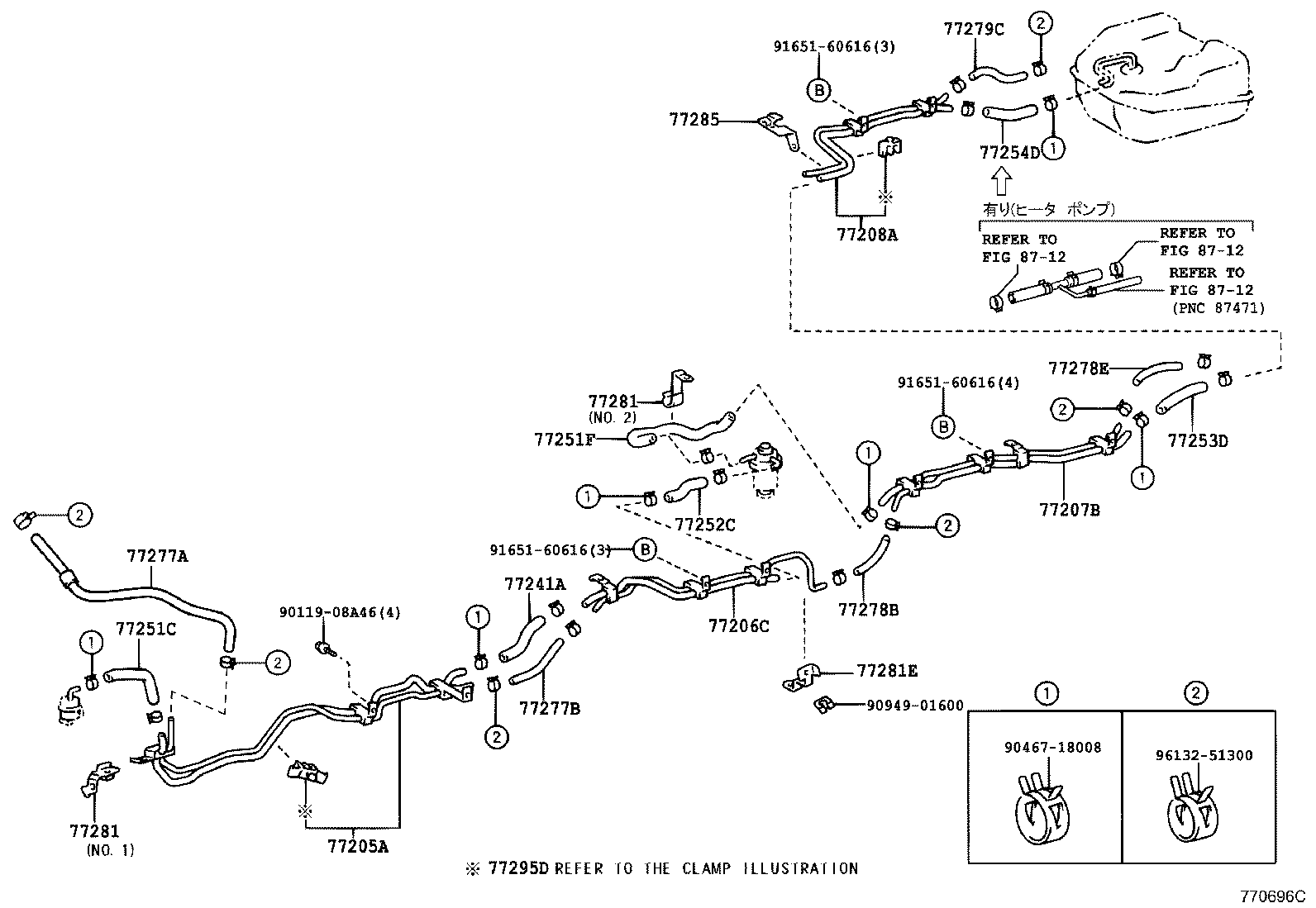

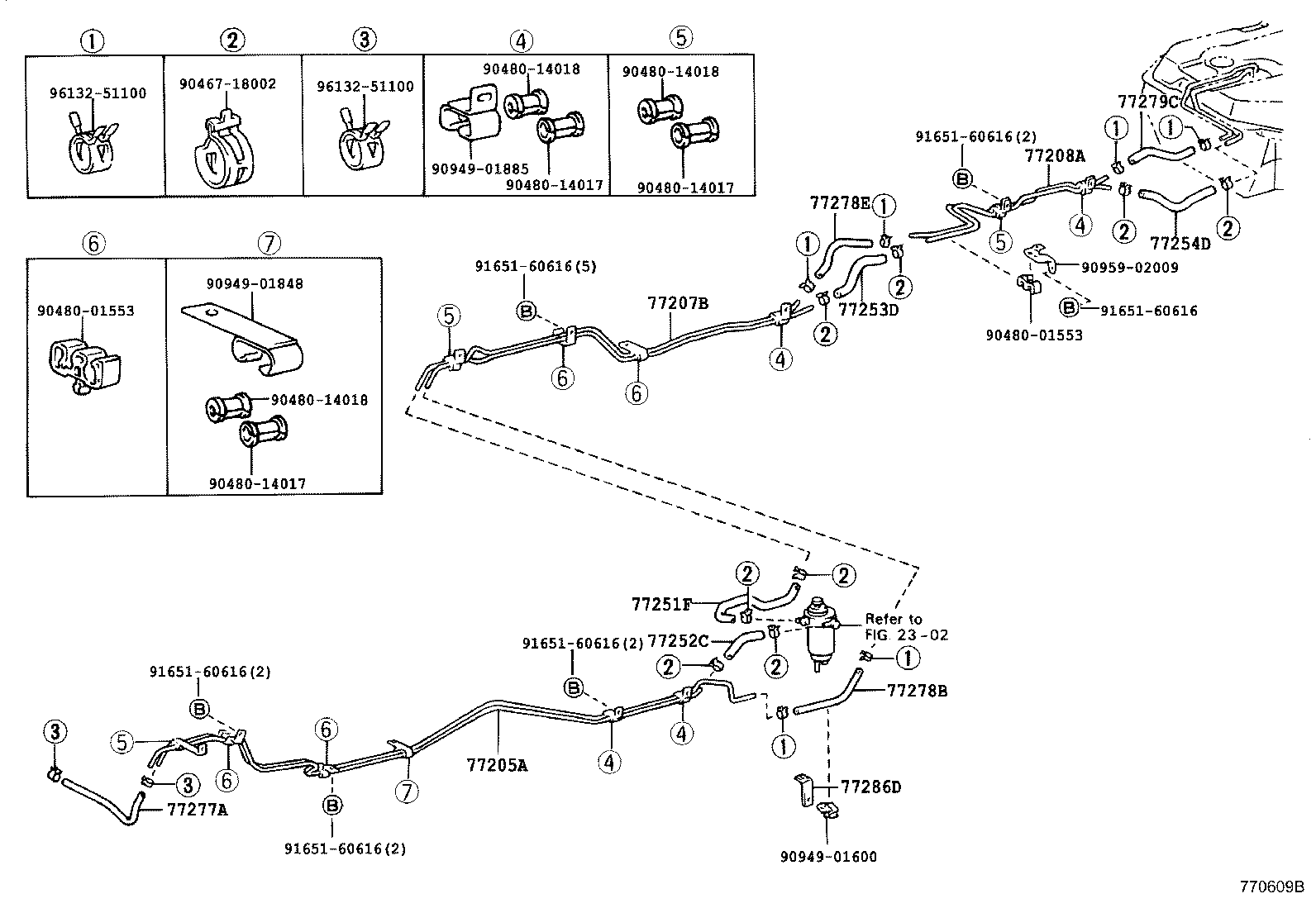

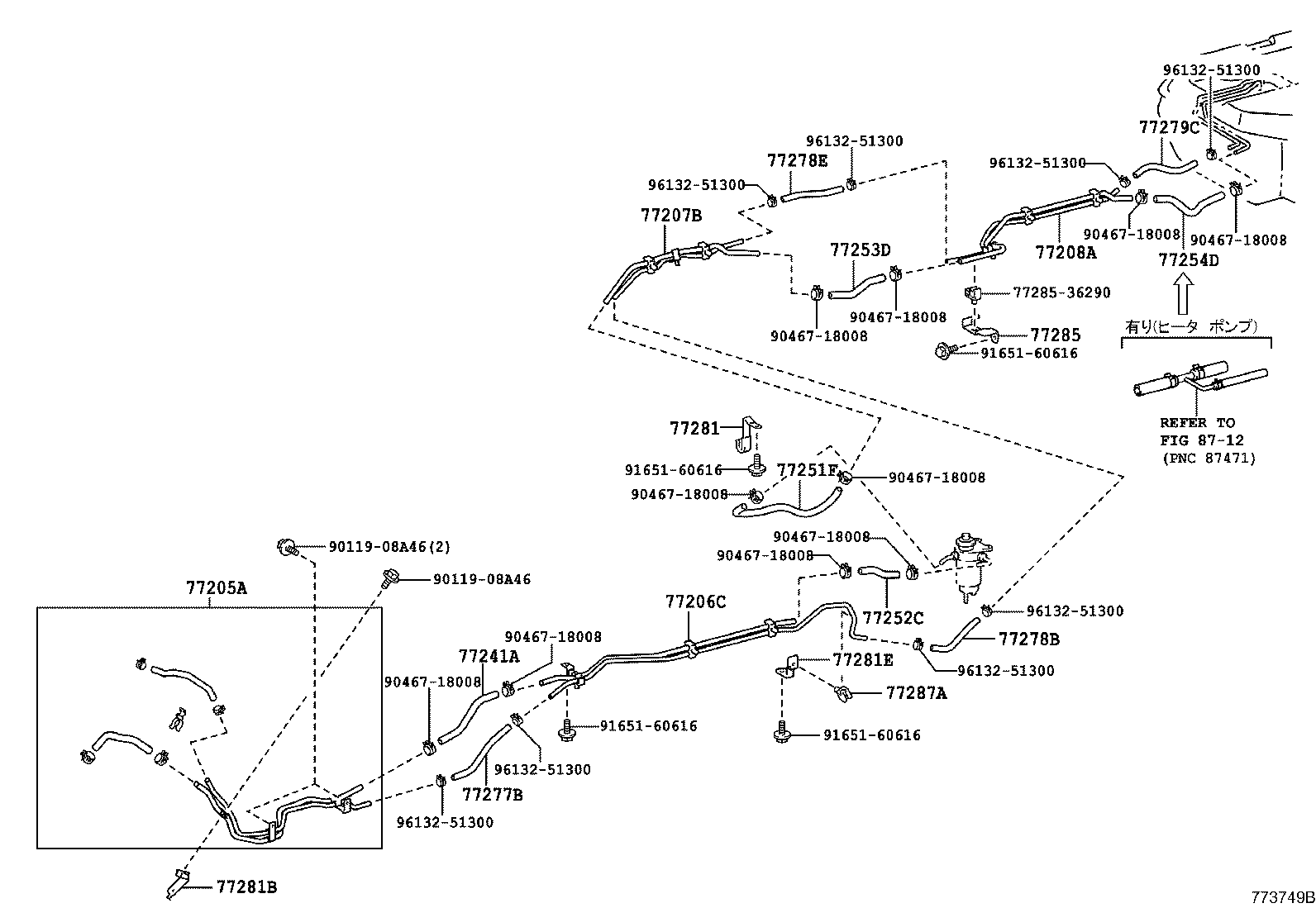

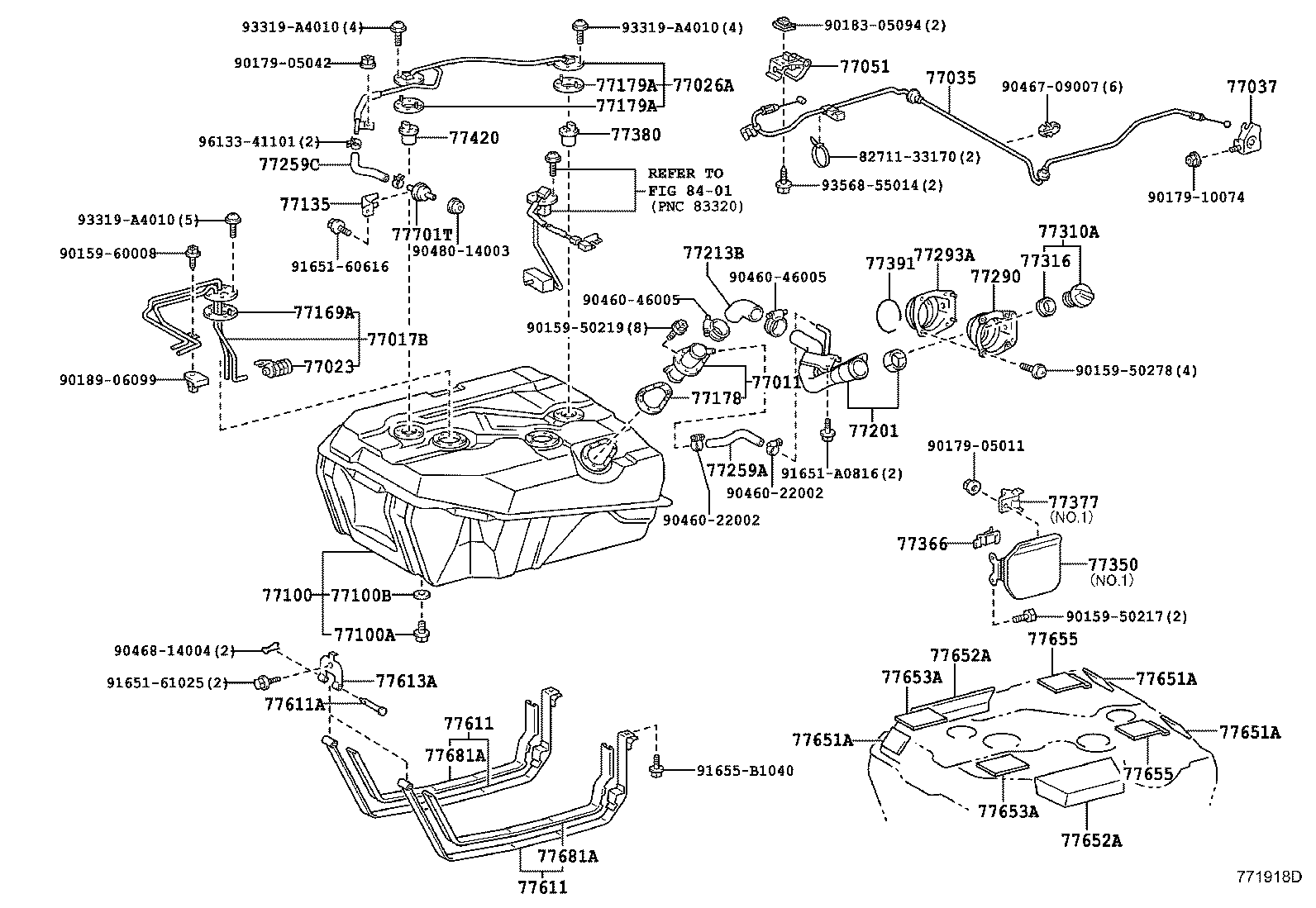

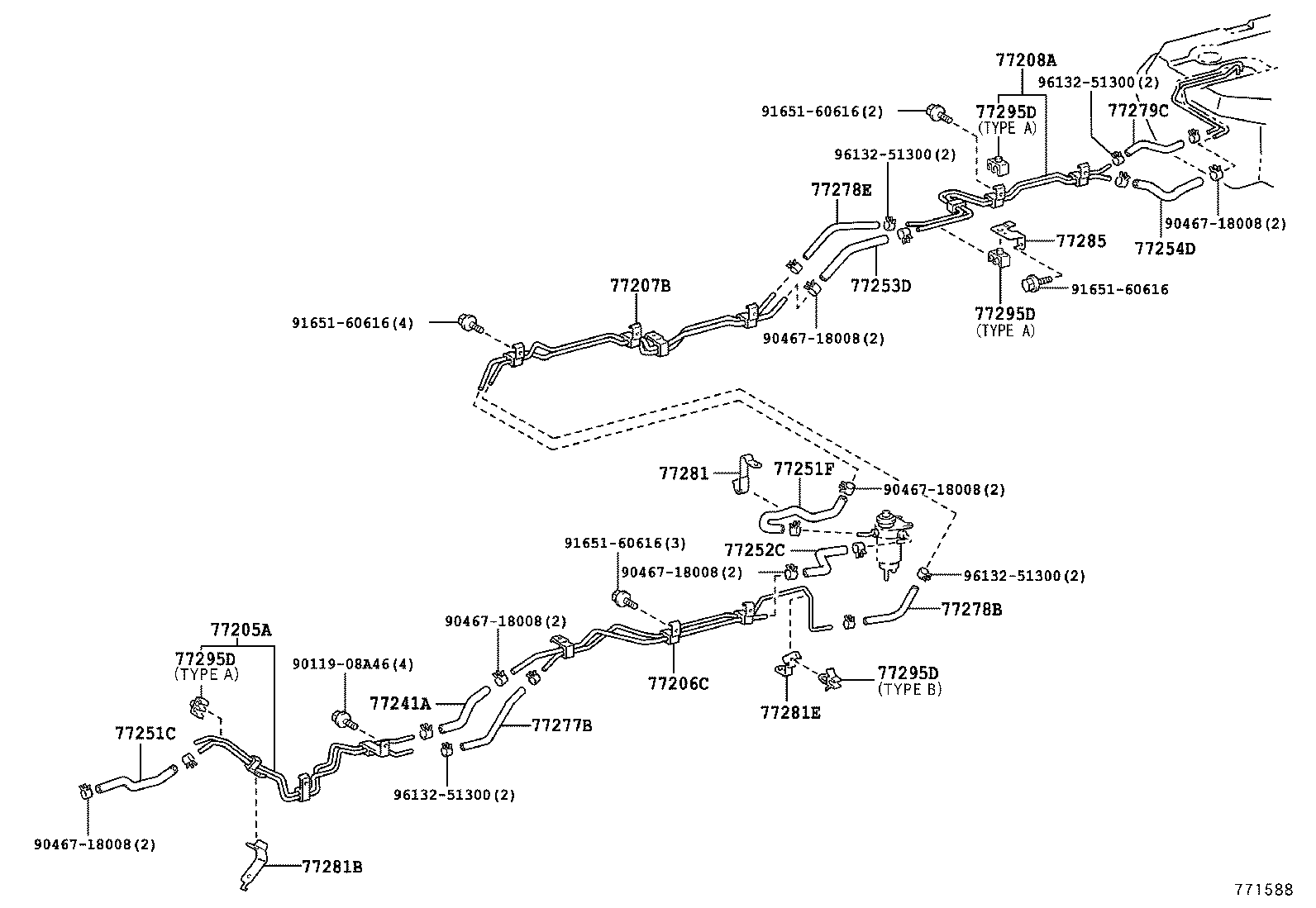

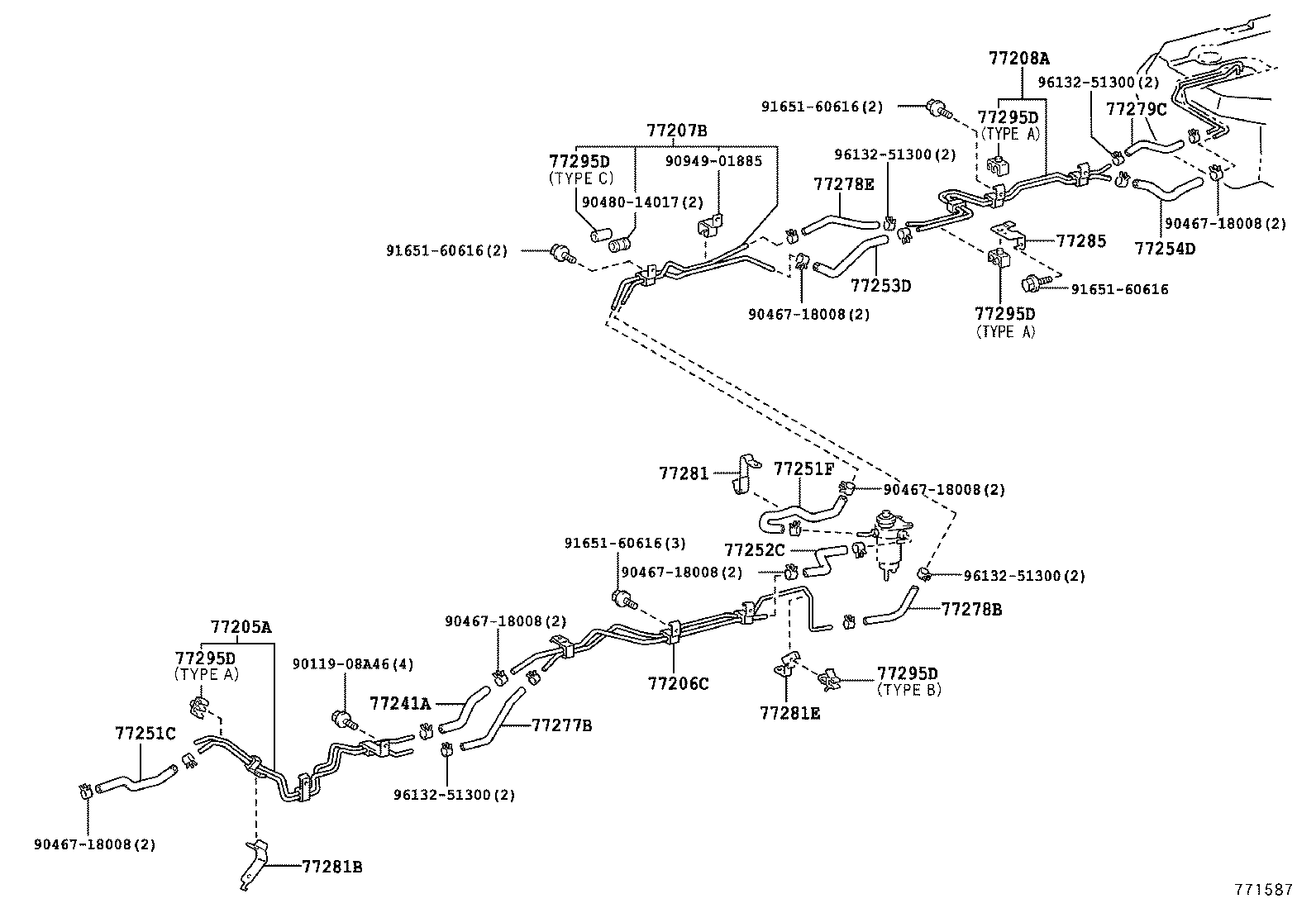

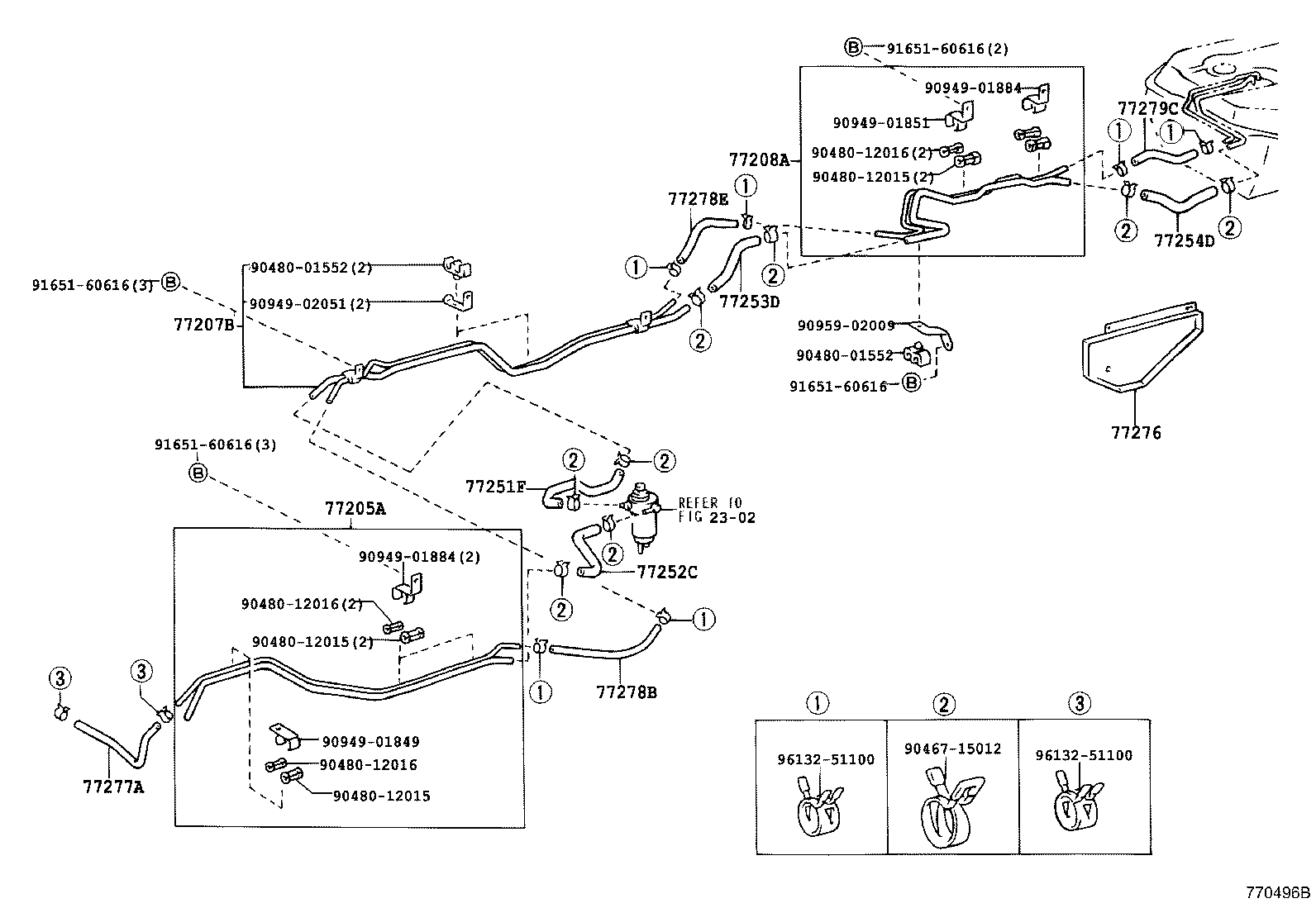

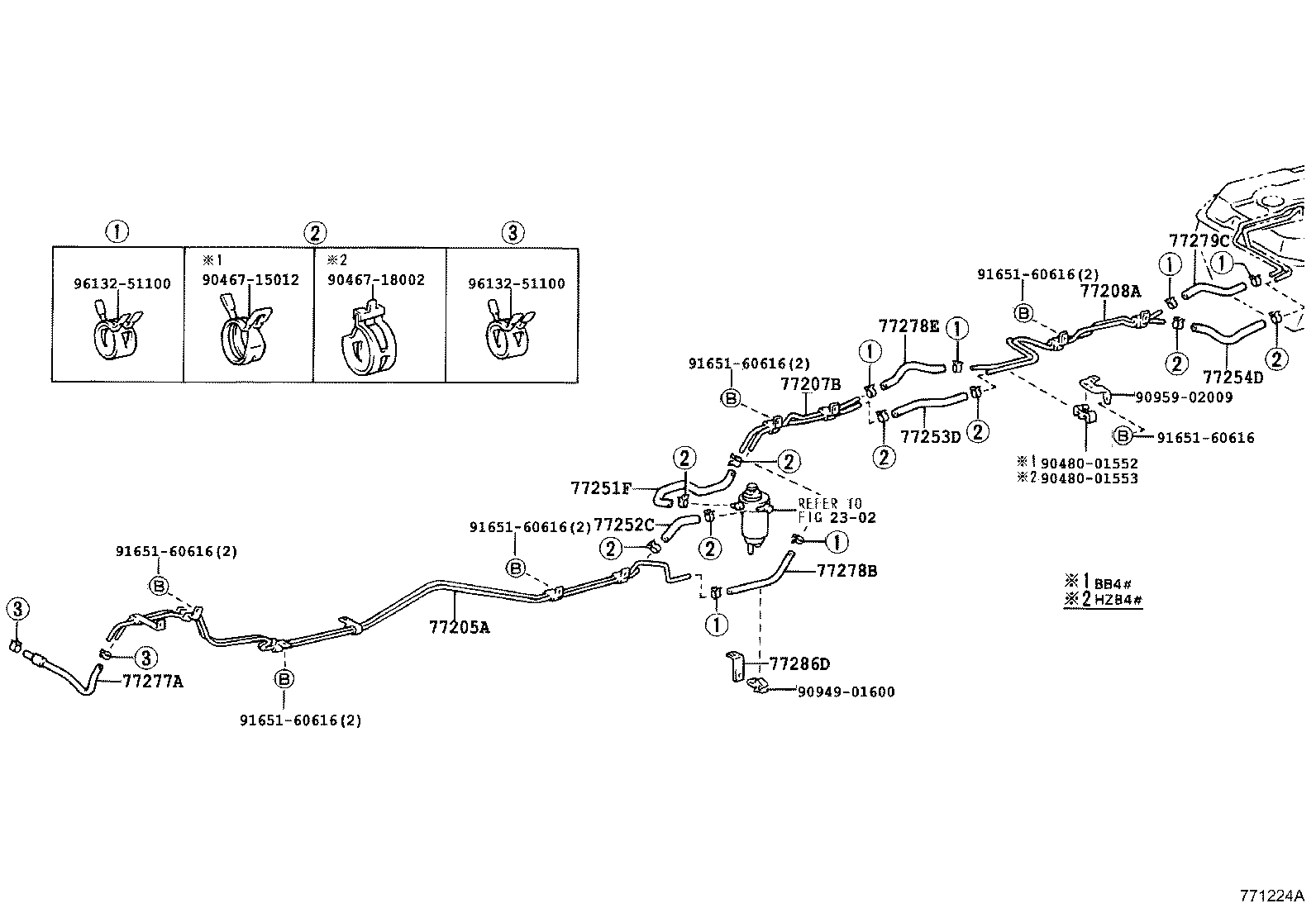

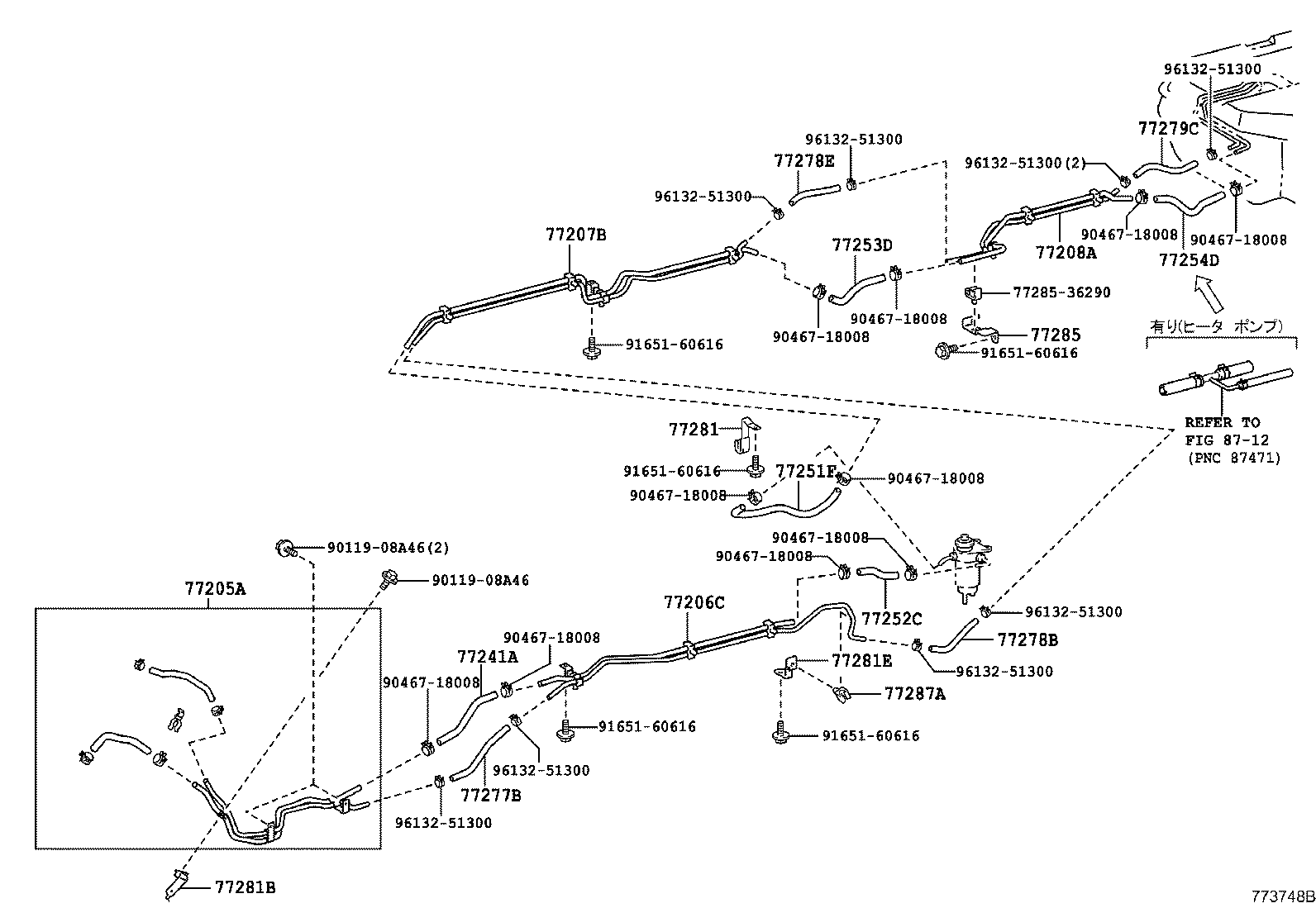

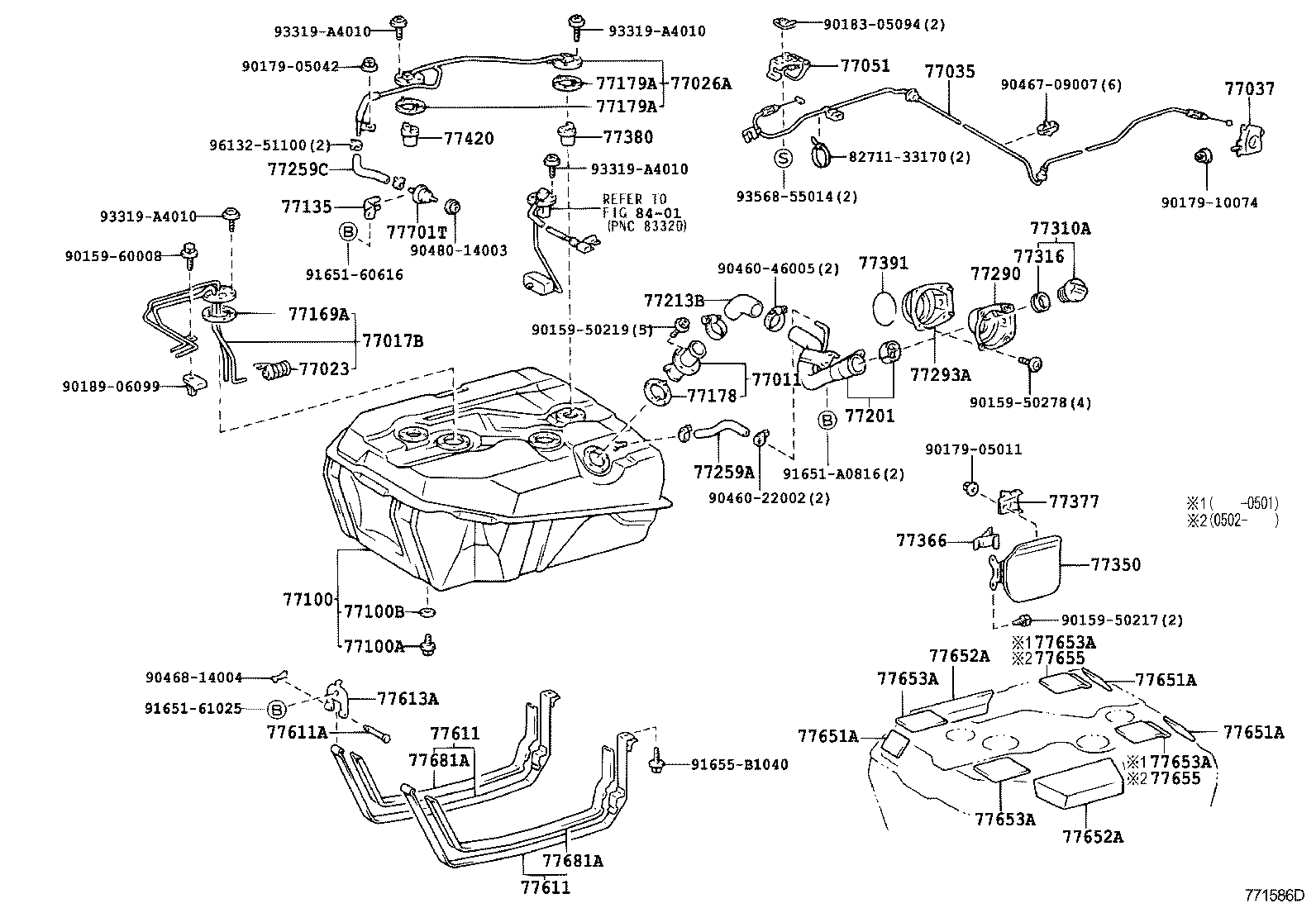

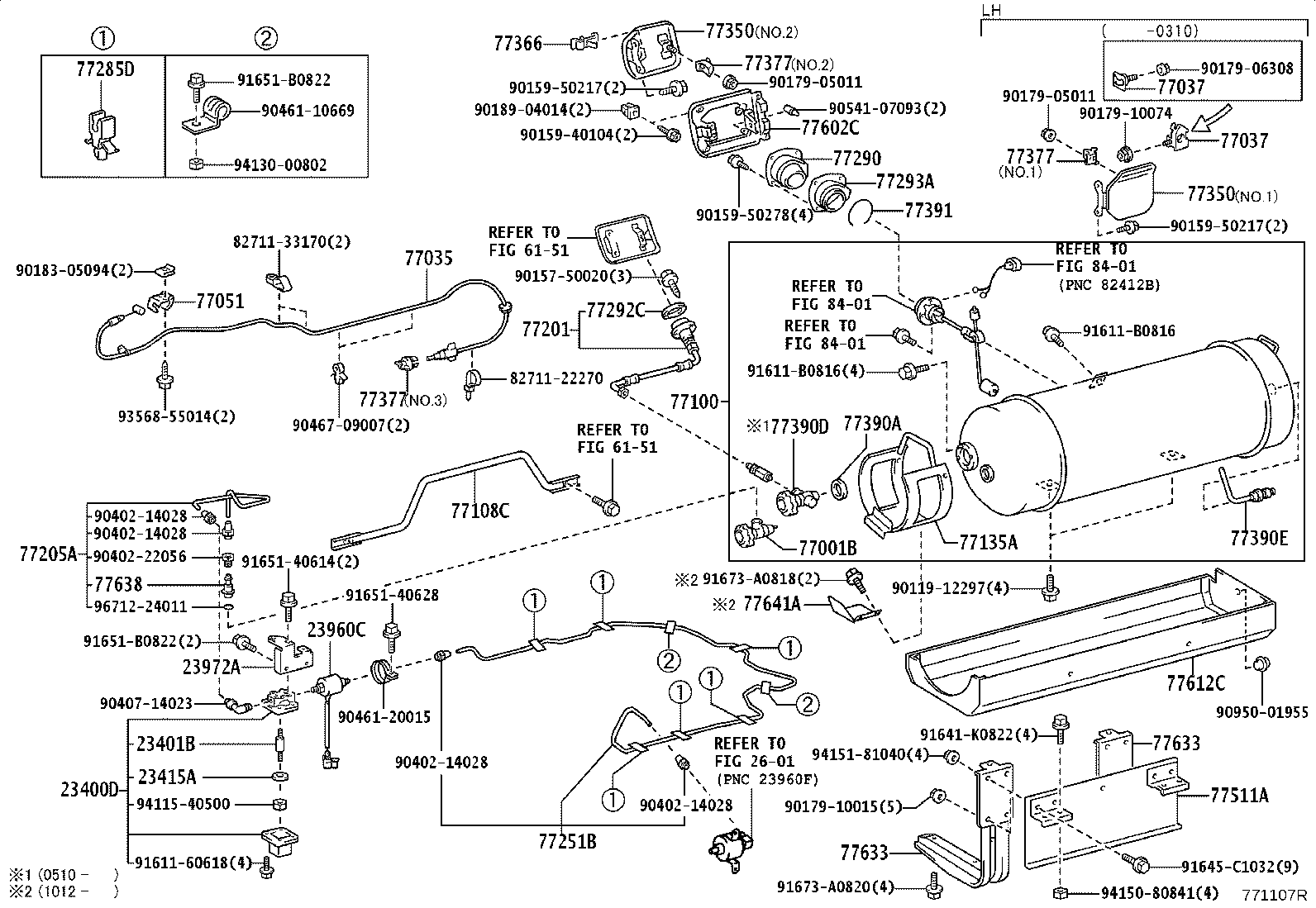

Figure 770495G 770495G 1993-01 → 2004-08 Figure 771224A 771224A 1993-01 → 1999-07 Figure 770609B 770609B 1993-01 → 1999-07 Figure 770496B 770496B 1995-12 → 1999-07 Figure 770694J 770694J 1999-07 → 2004-08 Figure 770696C 770696C 1999-07 → 2004-08 Figure 770697 770697 1999-07 → 2004-08 Figure 771586E 771586E 2004-08 → 2006-02 Figure 771918E 771918E 2006-02 → — Figure 771587 771587 2004-08 → 2015-01 Figure 771588 771588 2004-08 → 2015-01 Figure 773749B 773749B 2015-01 → — Figure 773748B 773748B 2015-01 → — Figure 771107R 771107R 2002-03 → —

Part groups

PNCDescription
23400D Filter Assy, Lpg
23401B Bolt
23415A Plate
23960C Valve Assy, Solenoid Lpg
23972A Bracket, Filter & Solenoid Valve
77001B Valve (FOR LPG TANK)
77011 Pipe Sub-assy, Fuel Tank Filler, Lower
77017B Tube Sub-assy, Fuel Tank Vent
77023 Filter Sub-assy, Fuel Suction Tube
77026A Tube Sub-assy, Fuel Evaporation, NO.1
77035 Cable Sub-assy, Fuel Lid Lock Control
77037 Lock Sub-assy, Fuel Filler Opening Lid
77051 Lever Sub-assy, Fuel Lid Open
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77108C Protector Sub-assy, Fuel Tank
77135 Bracket, Check Valve
77135A Protector, Fuel Tank Side
77169A Gasket, Fuel Suction Tube Set
77178 Gasket, Fuel Tank Filler Pipe, Lower
77179A Gasket, Fuel Tank Breather Tube
77201 Pipe Sub-assy, Fuel Tank Inlet
77205A Tube Sub-assy, Fuel Main
77206C Tube Sub-assy, Fuel Main, NO.2
77207B Tube Sub-assy, Fuel Main, NO.3
77208A Tube Sub-assy, Fuel Main, NO.4
77213B Hose, Fuel Tank TO Filler Pipe
77219 Cover, Fuel Tank Filler Pipe
77241A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
77251B Tube, Fuel Main
77251C Hose, Fuel, NO.1(FOR FUEL MAIN TUBE)
77251F Hose, Fuel
77252C Hose, Fuel, NO.2(FOR FUEL MAIN NO.2 TUBE)
77253D Hose, Fuel
77254D Hose, Fuel
77259A Hose, Fuel(FOR BREATHER TUBE)
77259C Hose, Fuel
77276 Protector, Fuel Hose
77277A Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
77277B Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
77278B Hose, Fuel, NO.2 (FOR RETURN TUBE, NO.2)
77278E Hose, Fuel
77279C Hose, Fuel
77281 Bracket, Fuel Main Tube, NO.1
77281B Clamp, Fuel Hose(FOR REAR FUEL MAIN)
77281E Bracket, Fuel Main Tube, NO.1
77285 Bracket, Fuel Tube
77285D Clamp, Fuel Tube, NO.1
77286D Clamp, Fuel Tube, NO.2
77287A Hose, Fuel
77290 Shield Assy, Fuel Tank Filler Pipe
77292C Shield, Fuel Tank Filler Pipe, NO.2
77293A Shield, Fuel Tank Filler Pipe, NO.3
77295D Grommet, Fuel Tube
77310A Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77350 Lid Assy, Fuel Filler Opening
77366 Spring, Fuel Filler Opening Lid Hinge
77377 Retainer, Fuel Filler Opening Lid Lock
77380 Valve Assy, Fuel Cut Off
77390A Gasket (FOR FUEL TANK VALVE)
77390D Valve Assy, Fuel Tank Over Fill Check
77390E Valve, Fuel(FOR LPG)
77391 Ring, Fuel Inlet Box
77420 Valve Assy, Fuel Cut Off, NO.2
77511A Bracket, Fuel Tank
77602C Cover Sub-assy, Fuel Tank, Lower
77611 Band, Fuel Tank
77611A Pin (FOR FUEL TANK BAND)
77612C Cover, Fuel Tank, Lower
77613A Bracket, Fuel Tank Band, NO.1
77633 Stay, Fuel Tank
77638 Sleeve, Tank Valve Joint
77641A Protector, Fuel Tank, NO.1
77651A Cushion, Fuel Tank, NO.1
77652A Cushion, Fuel Tank, NO.2
77653A Cushion, Fuel Tank, NO.3
77655 Cushion, Fuel Tank, NO.3
77681A Seat, Fuel Tank Band
77701T Valve, Check (FOR MAIN FUEL TANK)
