Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

18 part groups · 10 illustrations

Illustrations

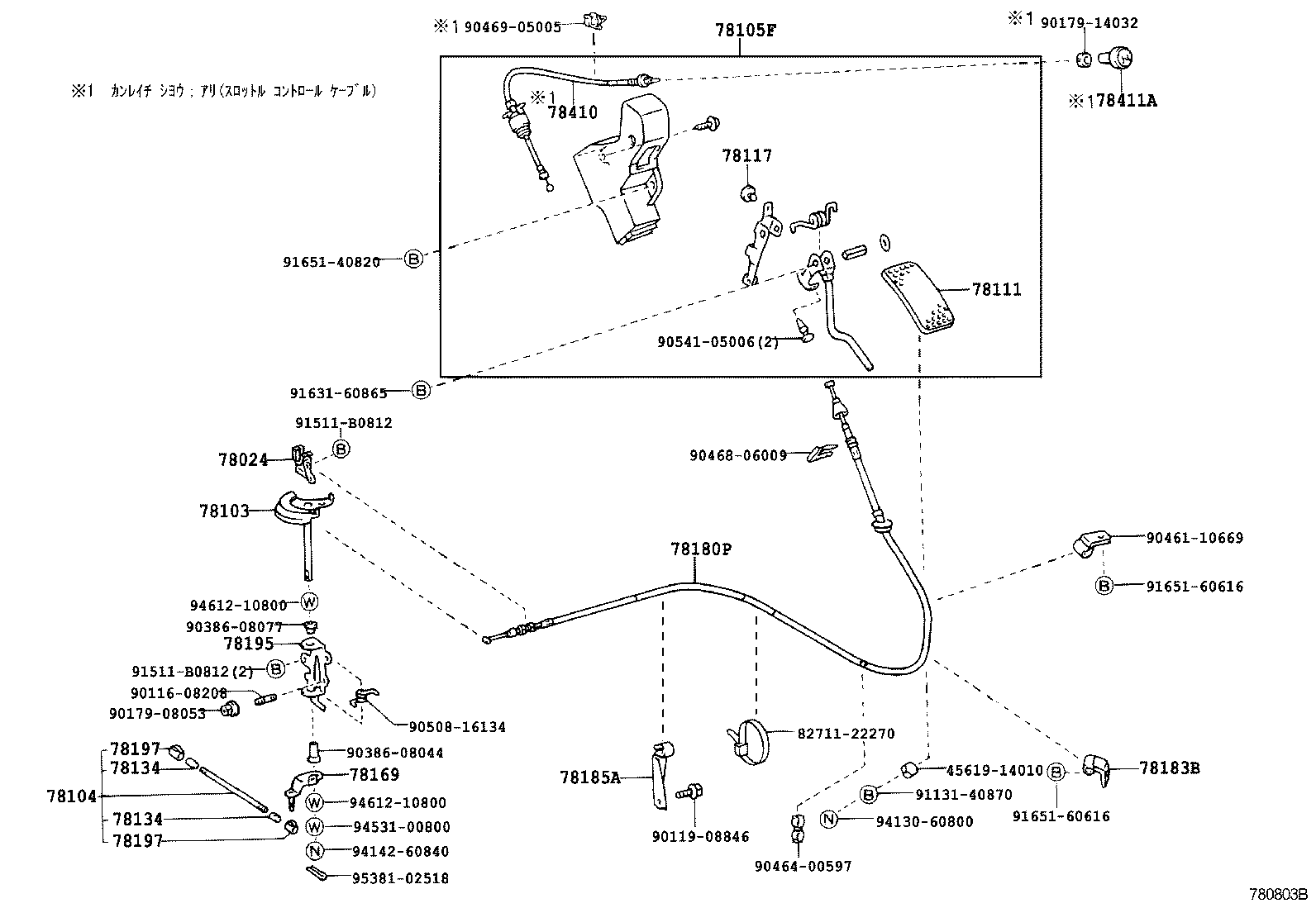

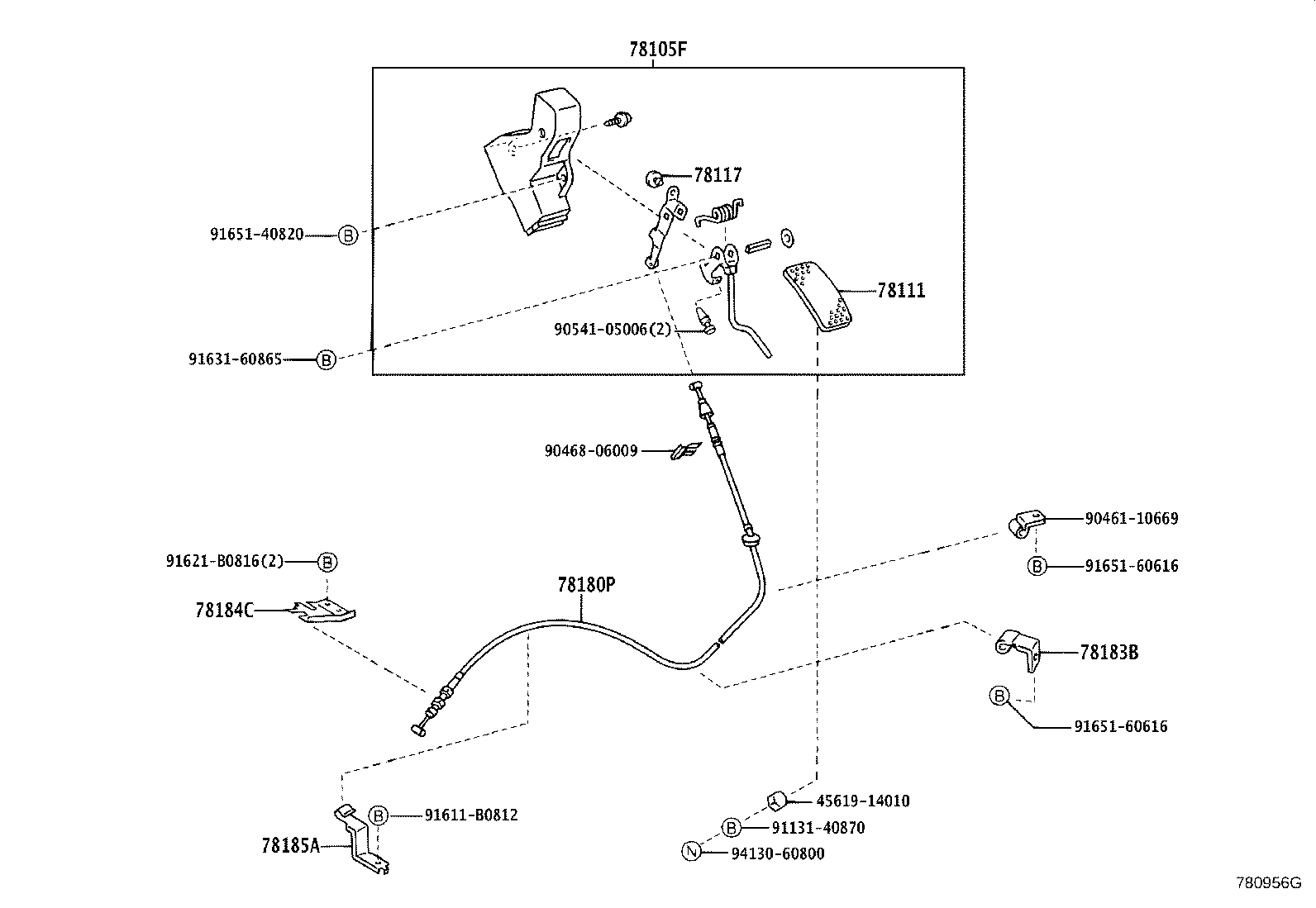

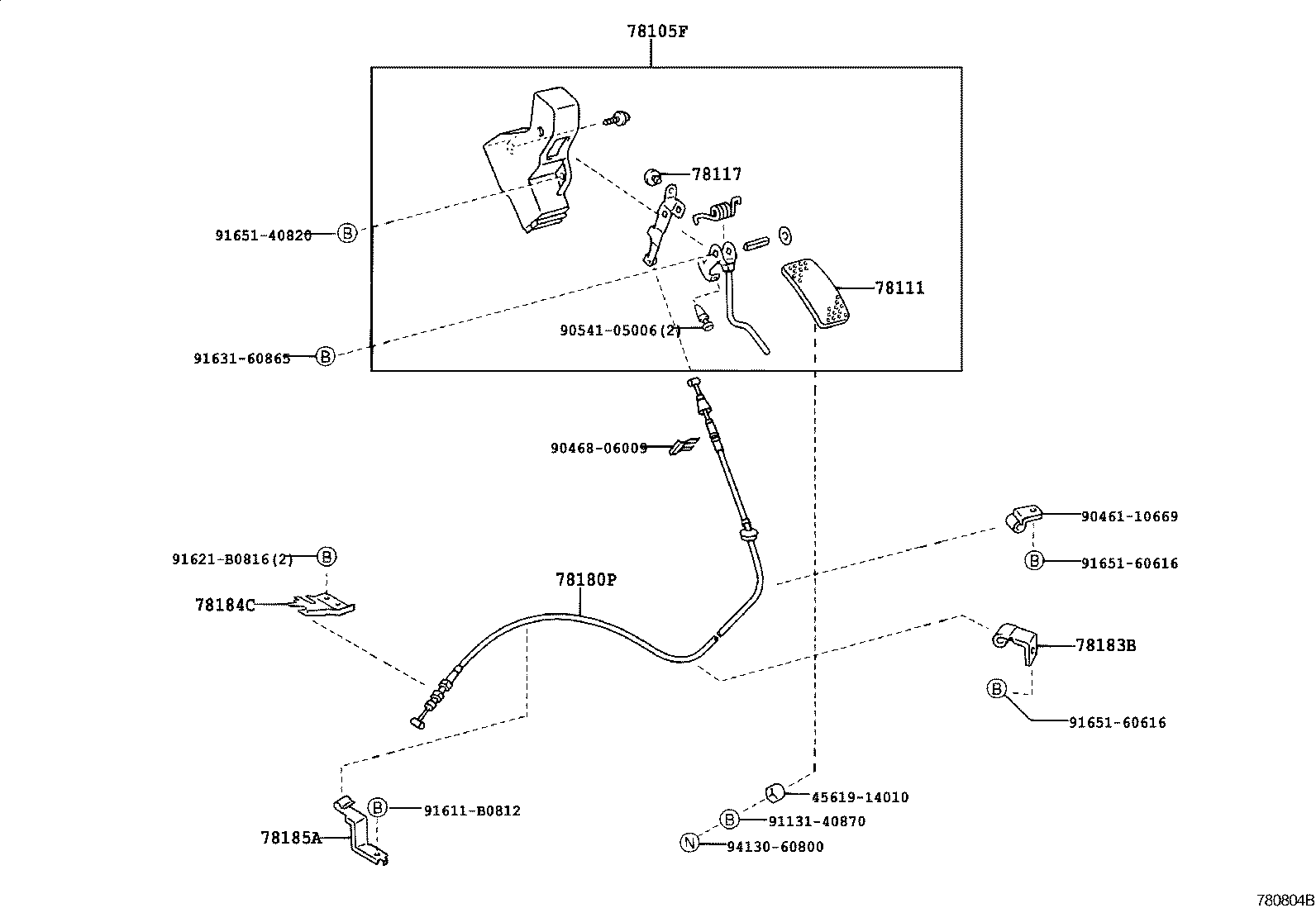

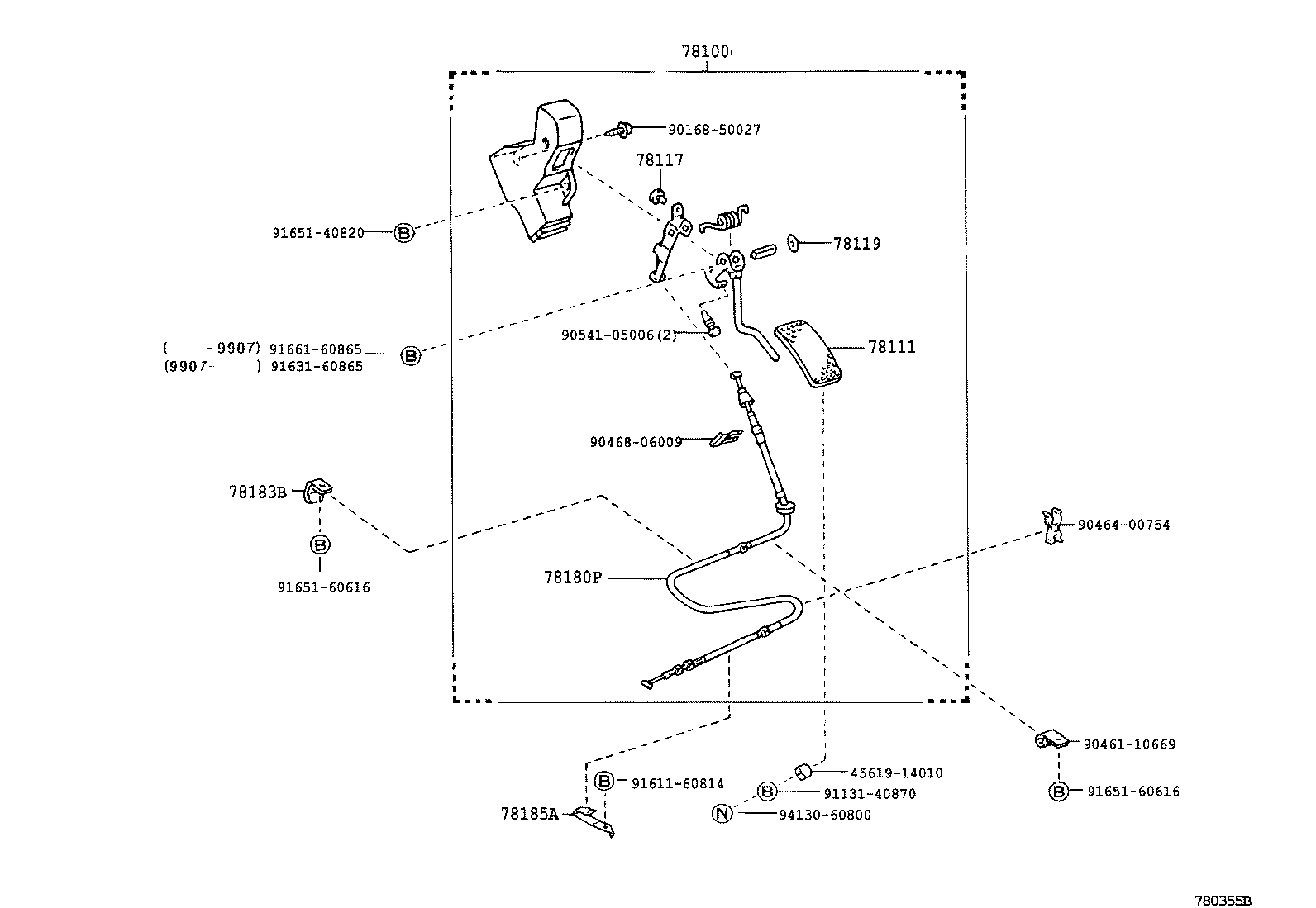

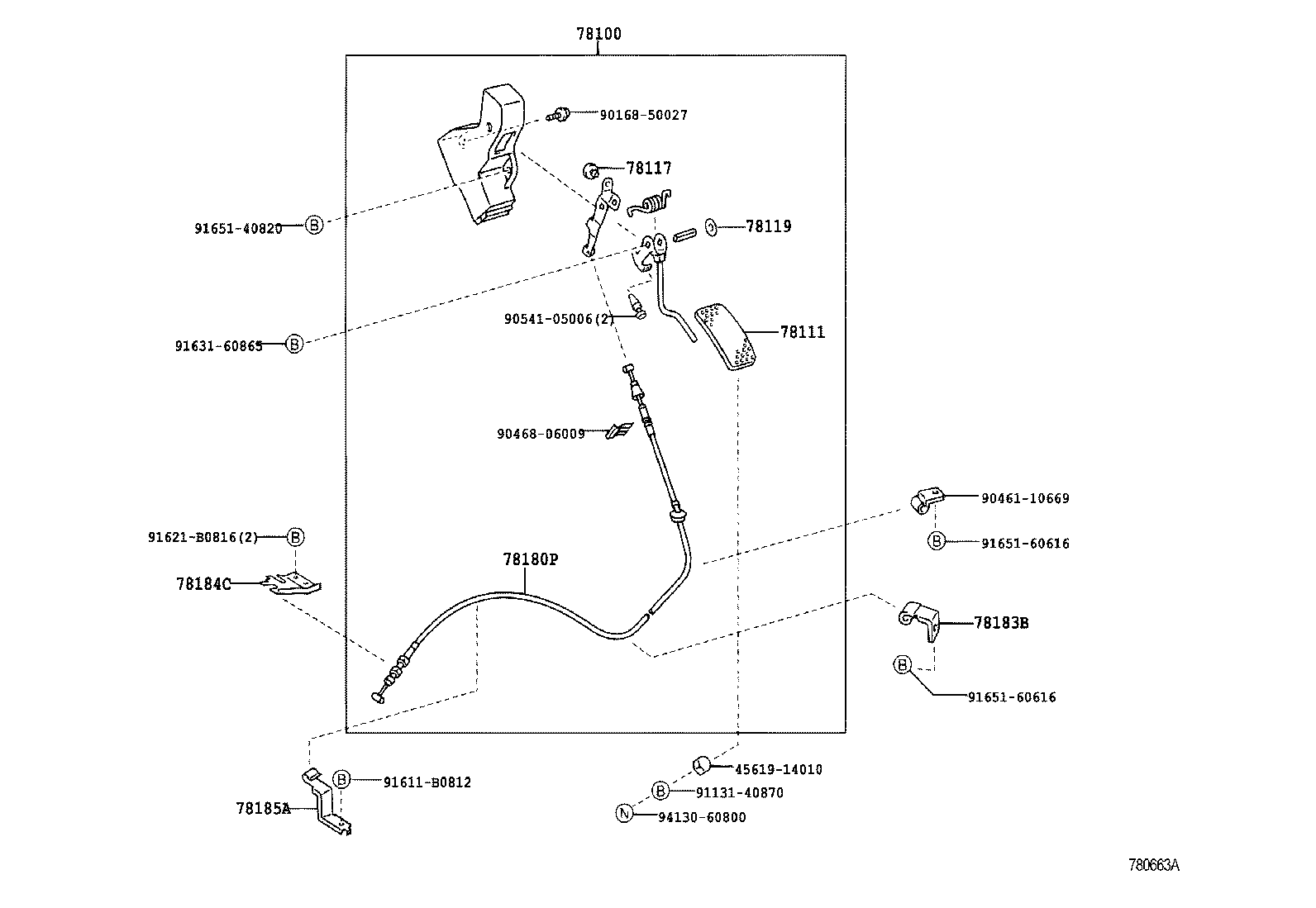

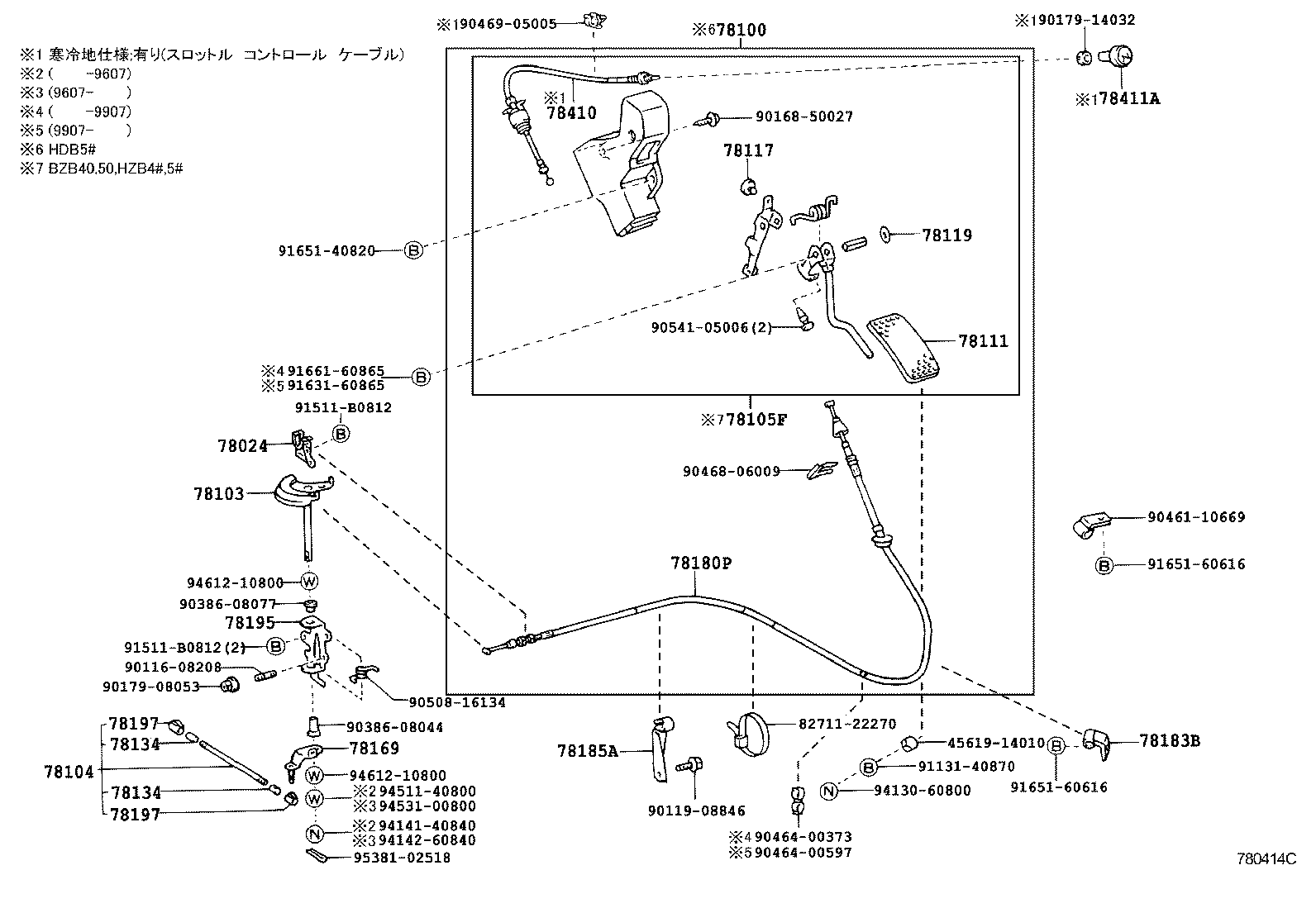

Figure MBX372A MBX372A 1993-01 → 1999-07 Figure 780414C 780414C 1993-01 → 1999-07 Figure 780414C 780414C 1993-01 → 2003-09 Figure 780803B 780803B 2003-09 → 2004-08 Figure 780355B 780355B 1995-12 → 1999-07 Figure 780411B 780411B 1999-07 → 2004-08 Figure 780663A 780663A 2002-03 → 2003-09 Figure 780804B 780804B 2003-09 → 2004-08 Figure 780956G 780956G 2004-08 → — Figure 780954I 780954I 2004-08 → —

Part groups

PNCDescription
78024 Bracket Sub-assy, Accelerator Control Cable
78100 Link Assy, Accelerator
78103 Rod Sub-assy, Accelerator Connecting, NO.1
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78105F Link Sub-assy, Accelerator
78111 Pedal, Accelerator
78117 Cushion (FOR ACCELERATOR ROD)
78119 Stopper, Accelerator Pedal Rod
78134 End, Accelerator Connecting Rod
78169 Hanger, Accelerator Spring
78180P Cable Assy, Accelerator Control
78183B Clamp, Accelerator Control Cable
78184C Bracket, Accelerator Control Cable
78185A Clamp, Accelerator Control Cable, NO.2
78195 Bracket, Accelerator Link
78197 Clip, Accelerator Joint Ball
78410 Cable Assy, Throttle Control
78411A Knob, Throttle Control Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
