Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Turn Signal Lamp & Outer Mirror Lamp

13 part groups · 2 illustrations

Illustrations

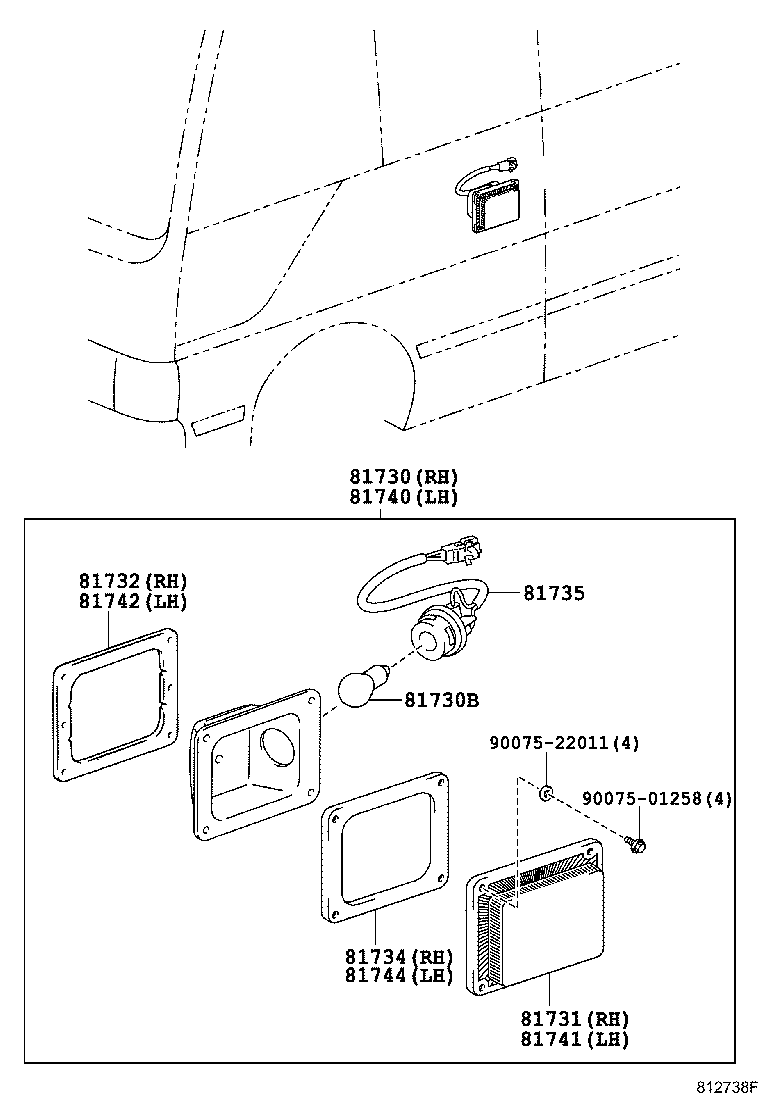

Figure 811429A 811429A 1993-01 → 2007-08 Figure 812738F 812738F 2007-08 → —

Part groups

PNCDescription
81279 Washer, Side Turn Signal Lamp
81730 Lamp Assy, Side Turn Signal, RH
81730B Bulb (FOR SIDE TURN SIGNAL LAMP)
81731 Lens, Side Turn Signal Lamp, RH
81732 Gasket, Side Turn Signal Lamp Lens, RH
81734 Gasket, Side Turn Signal Lamp Body, RH
81735 Socket And Wire, Side Turn Signal Lamp
81736 Rim, Side Turn Signal Lamp, RH
81740 Lamp Assy, Side Turn Signal, LH
81741 Lens, Side Turn Signal Lamp, LH
81742 Gasket, Side Turn Signal Lamp Lens, LH
81744 Gasket, Side Turn Signal Lamp Body, LH
81746 Rim, Side Turn Signal Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
