Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery & Battery Cable

4 part groups · 4 illustrations

Illustrations

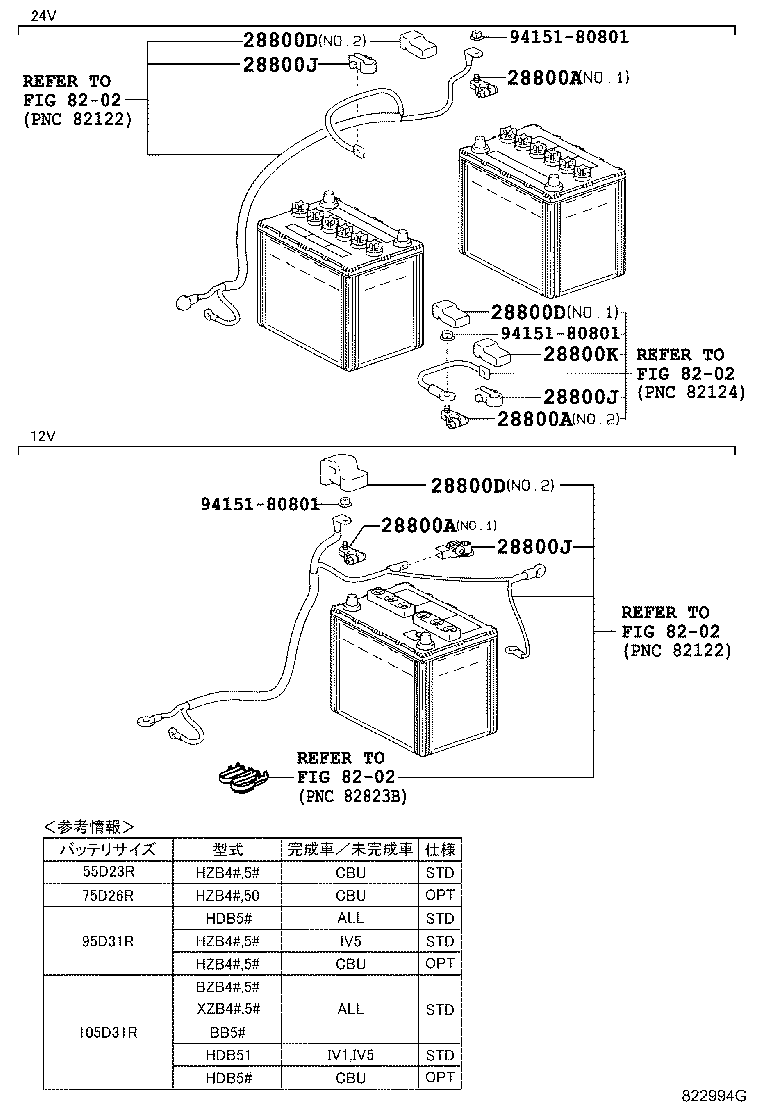

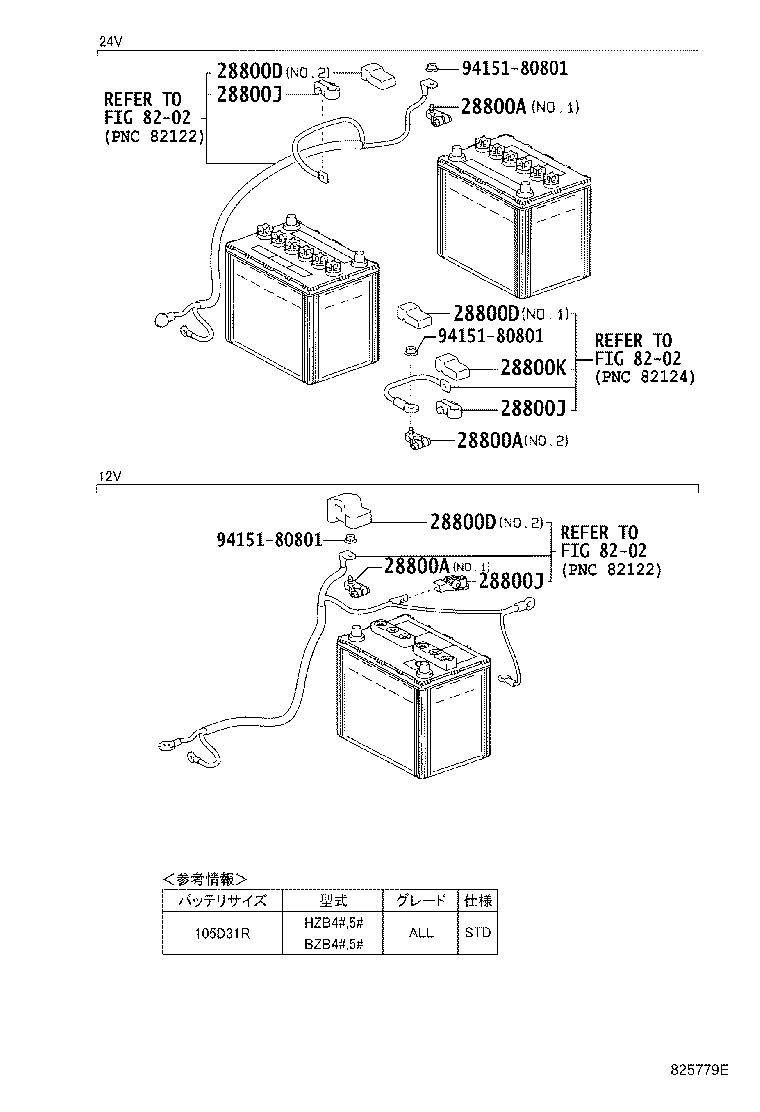

Figure 821338B 821338B 1993-01 → 1995-05 Figure 822994G 822994G 1995-05 → 2007-08 Figure 822994G 822994G 2011-08 → — Figure 825779E 825779E 2007-08 → 2011-08

Part groups

PNCDescription
28800A Terminal, Battery Positive
28800D Cover, Connector(FOR BATTERY TERMINAL)
28800J Terminal, Battery Negative
28800K Cover, Connector(FOR BATTERY TERMINAL NEGATIVE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
