Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

94 part groups · 34 illustrations

Illustrations

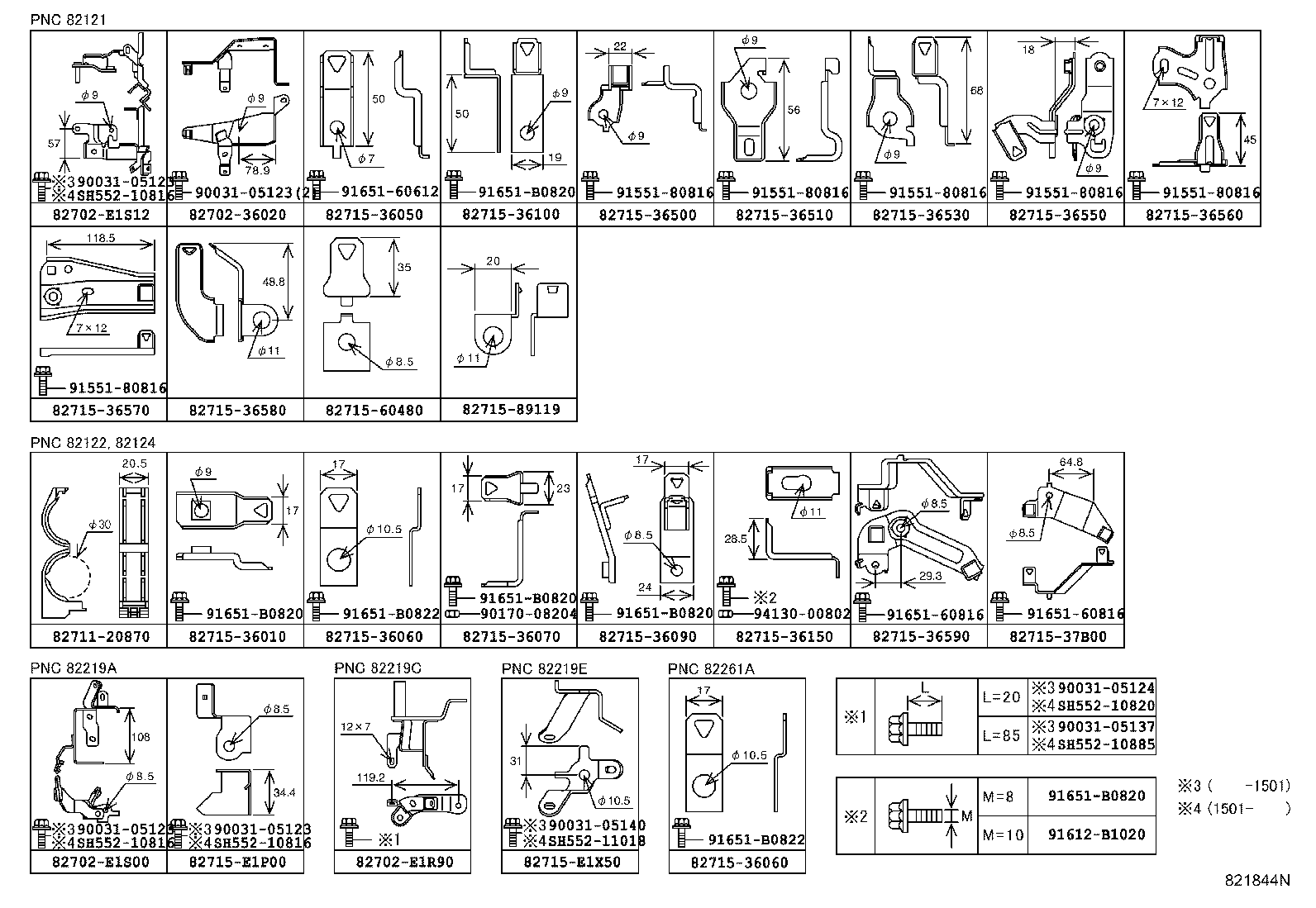

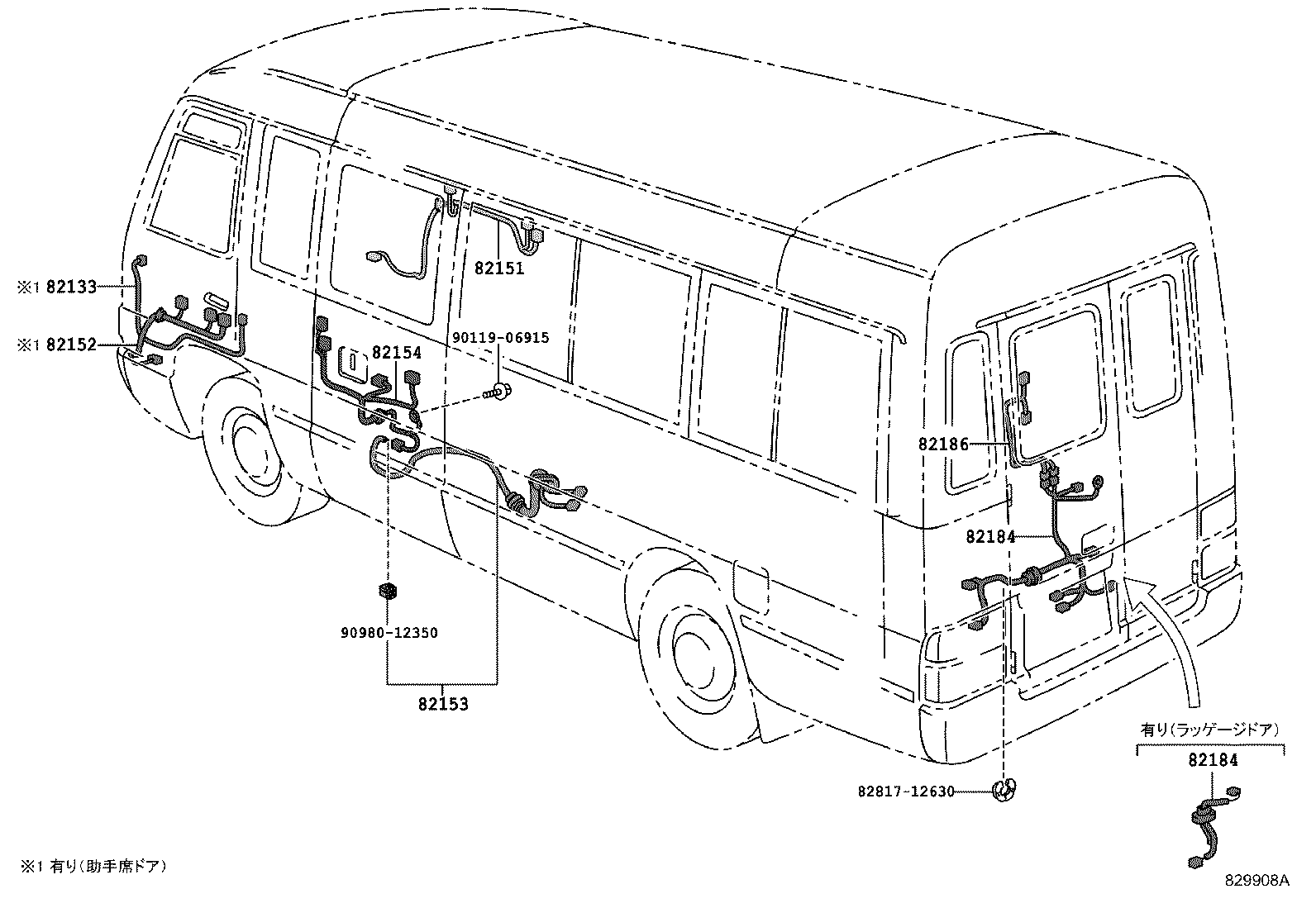

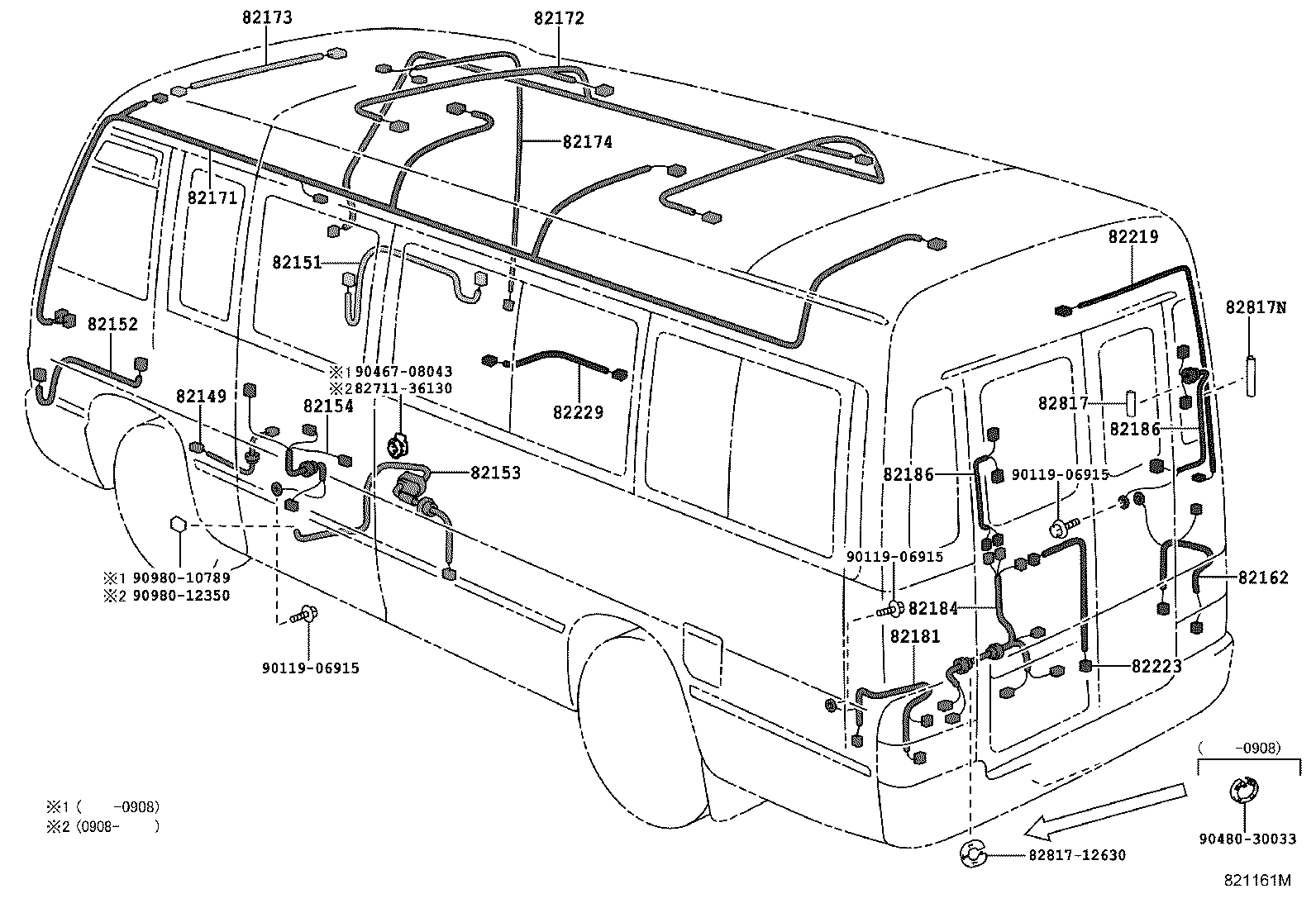

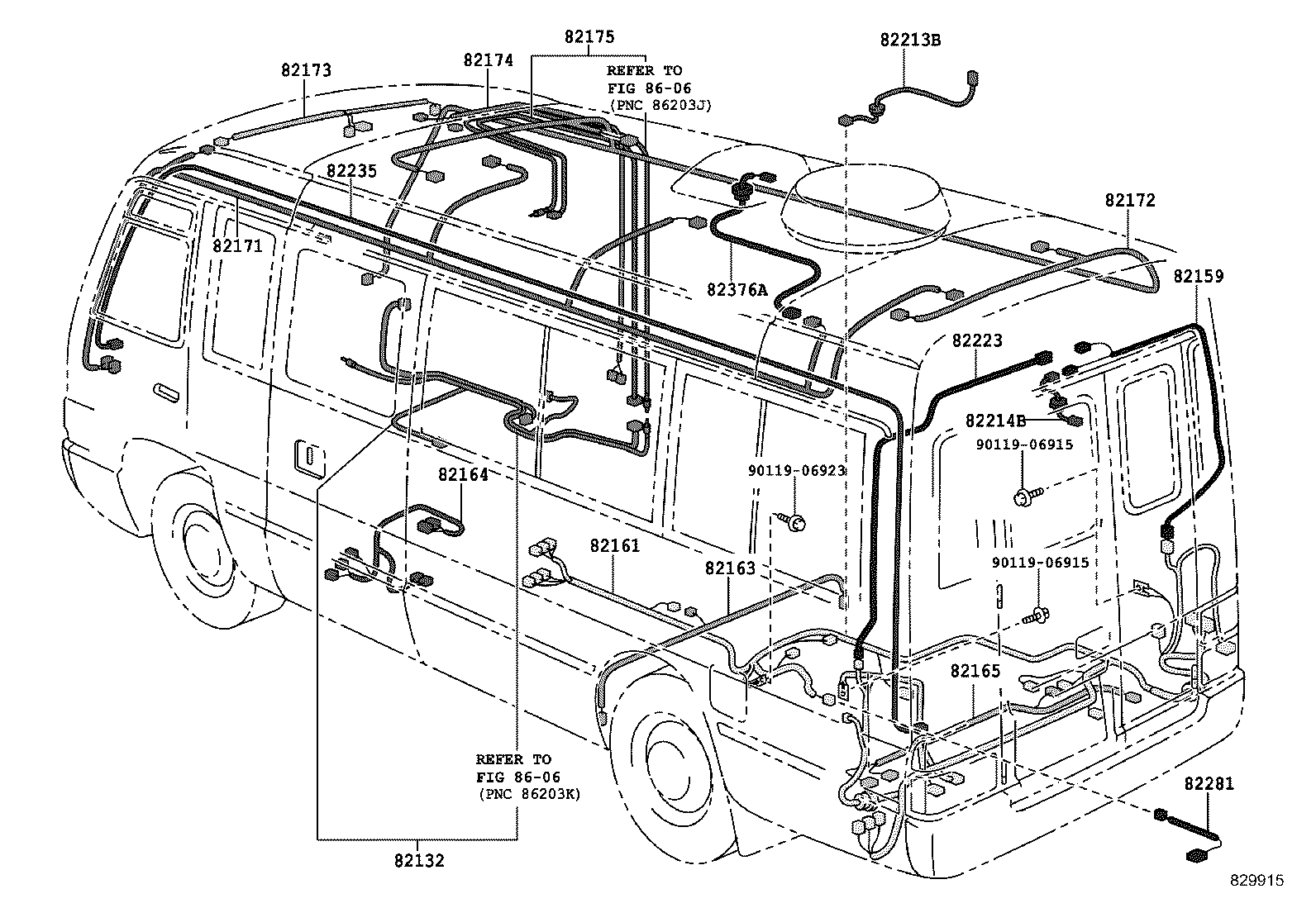

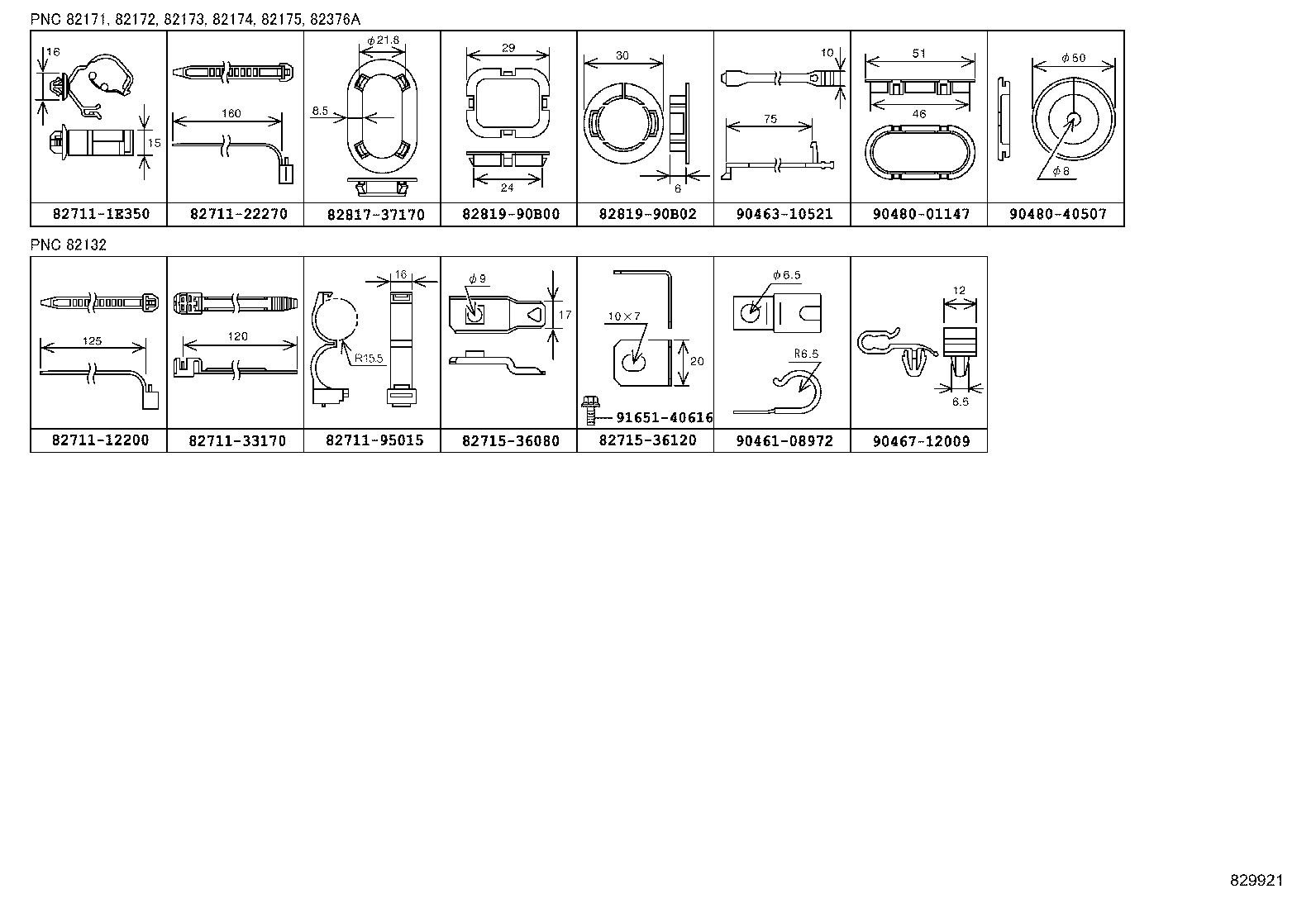

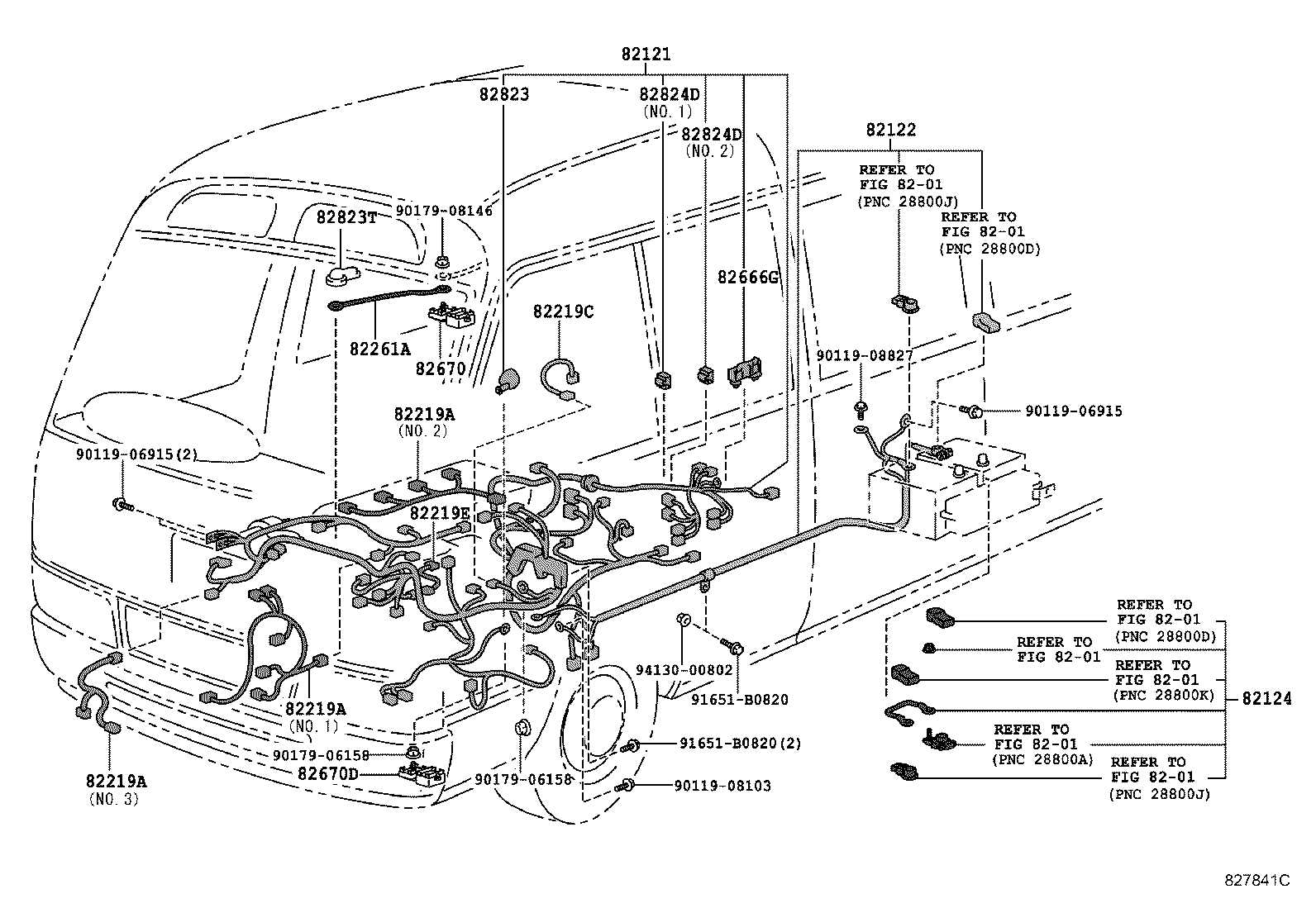

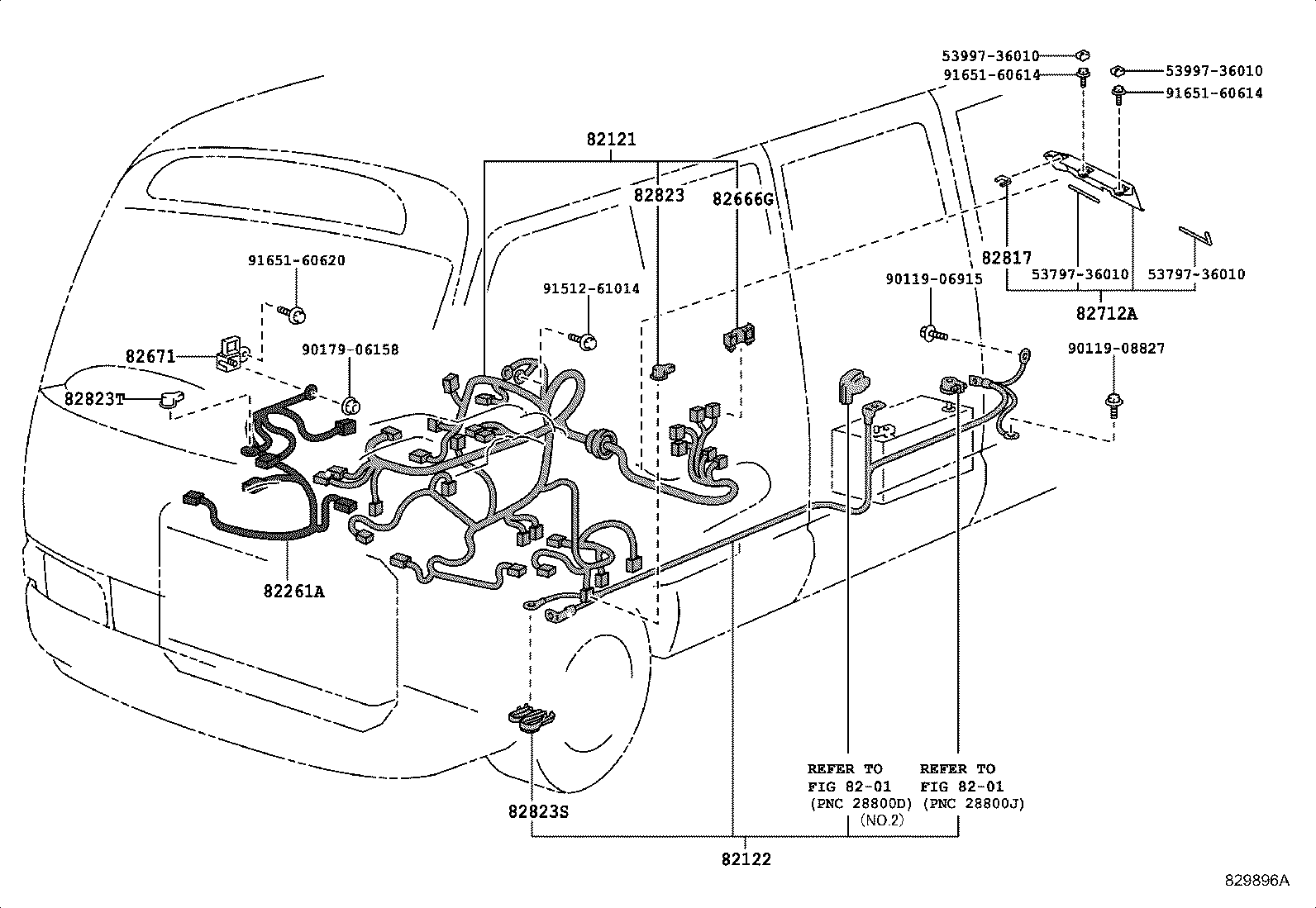

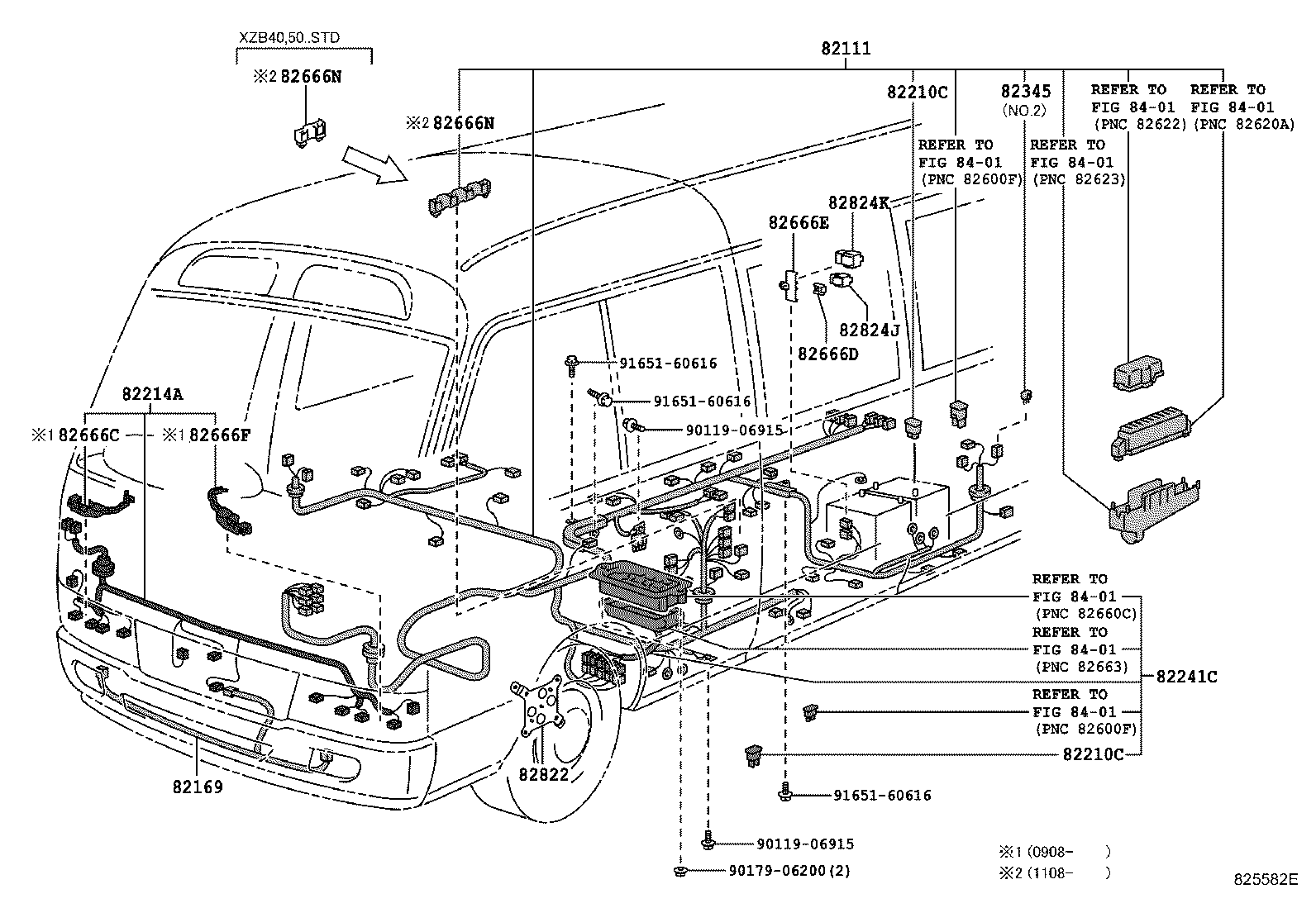

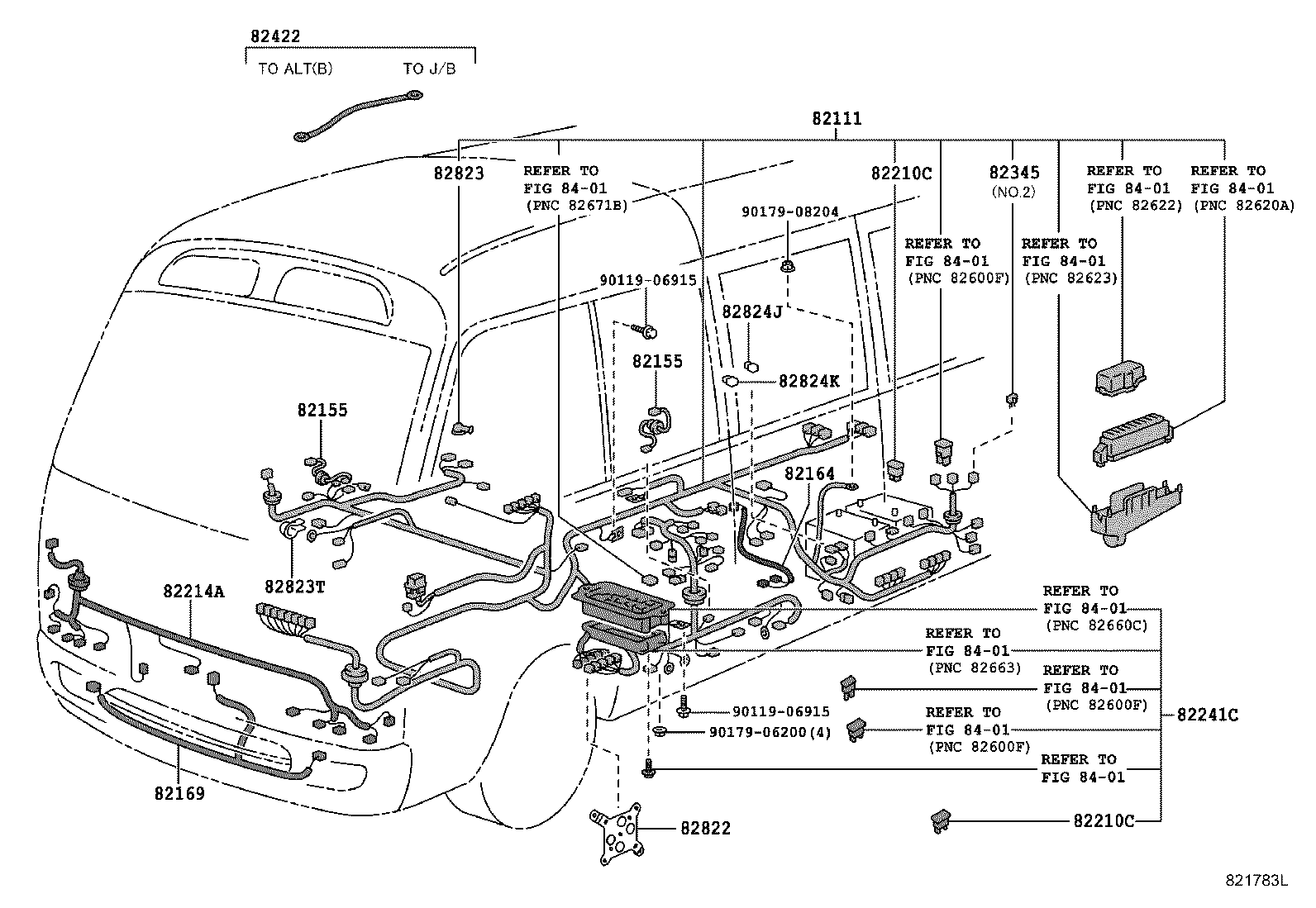

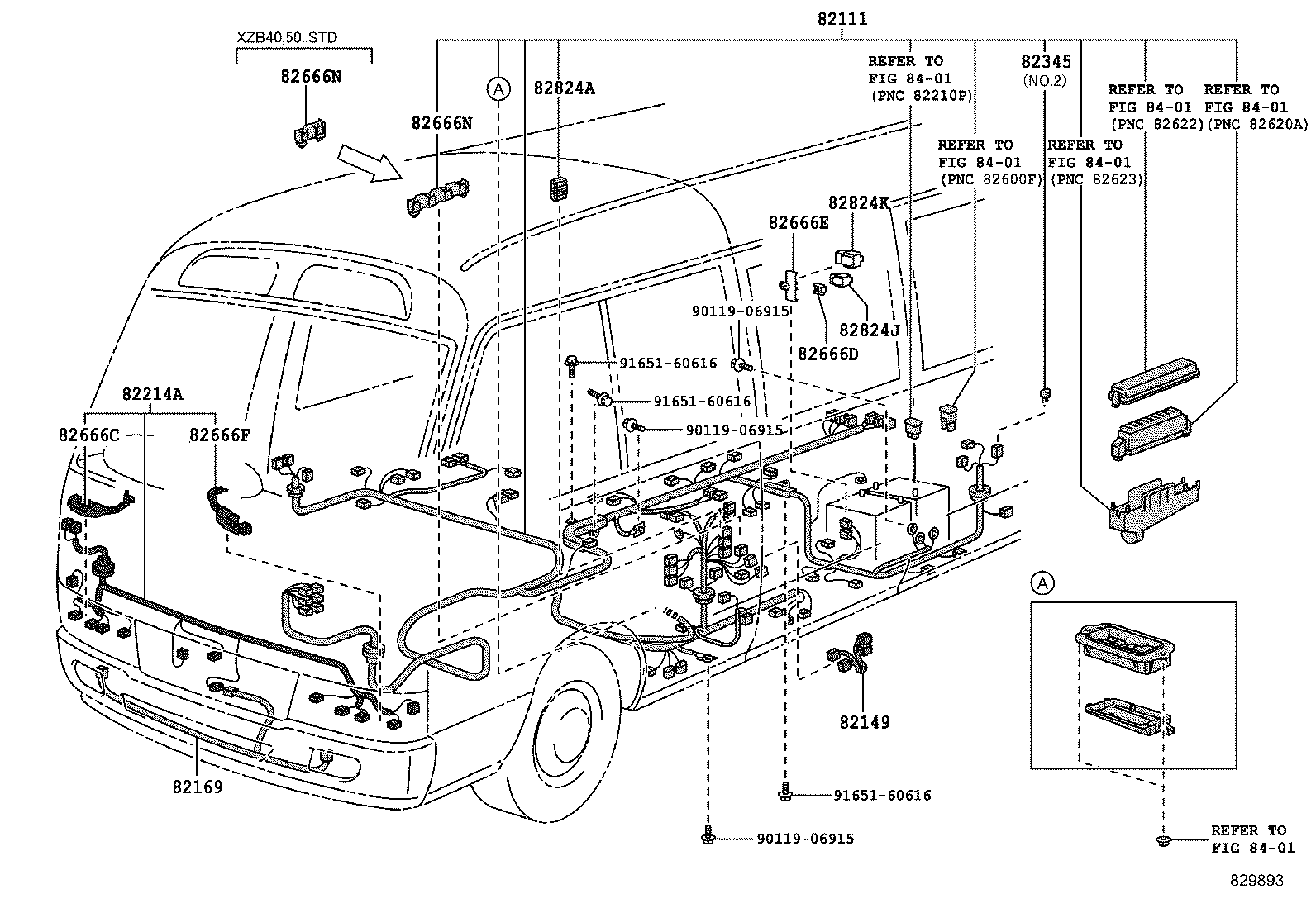

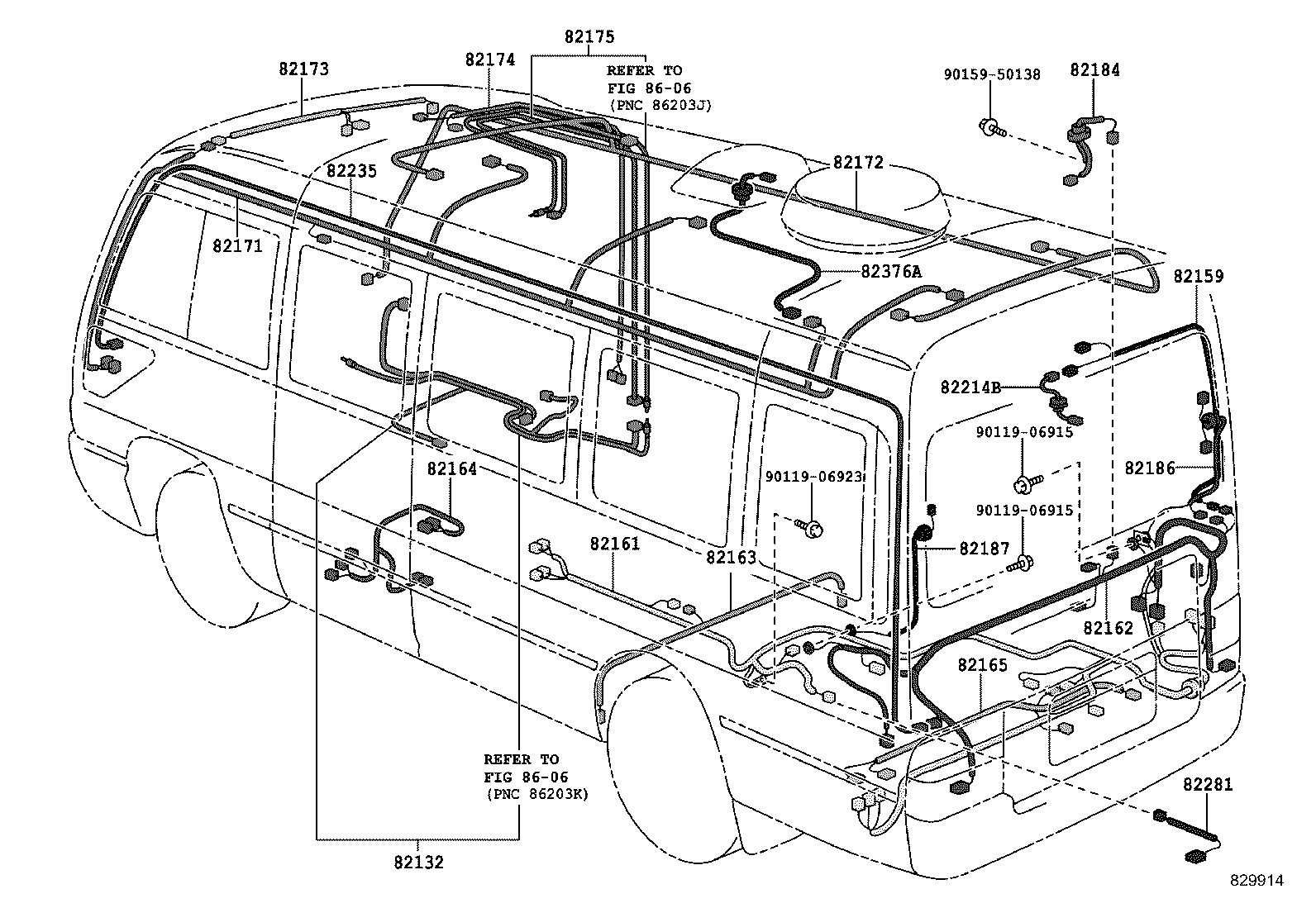

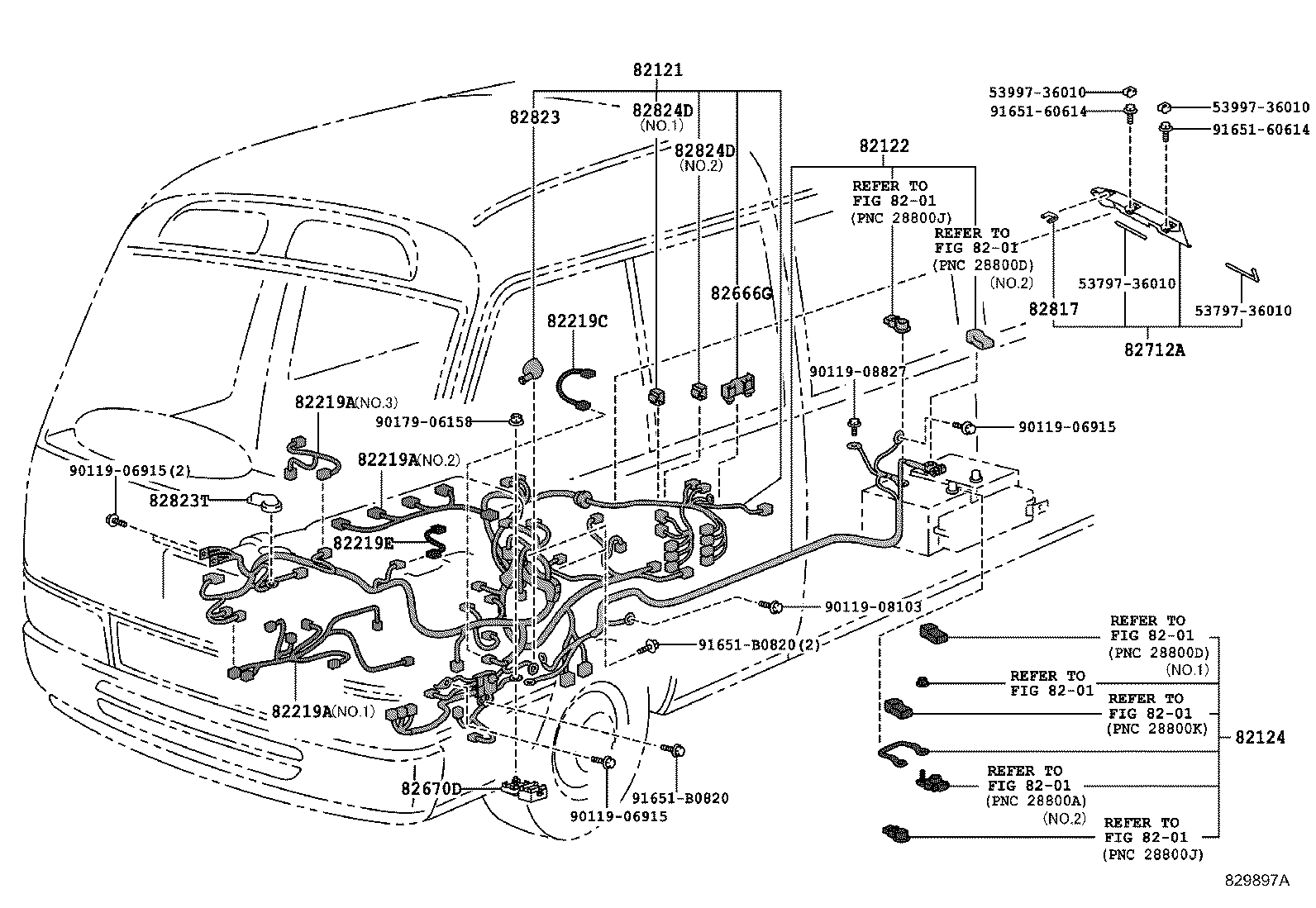

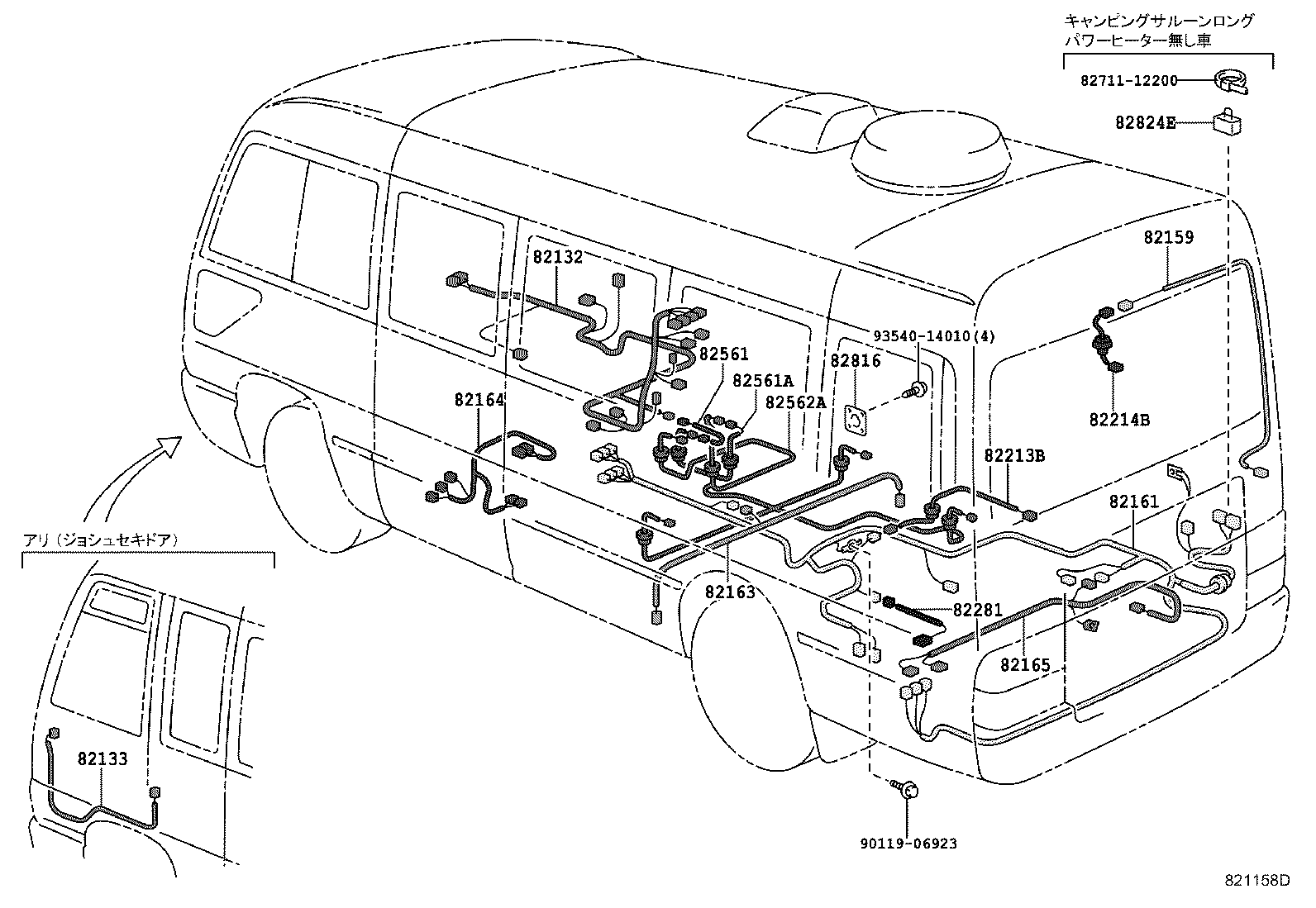

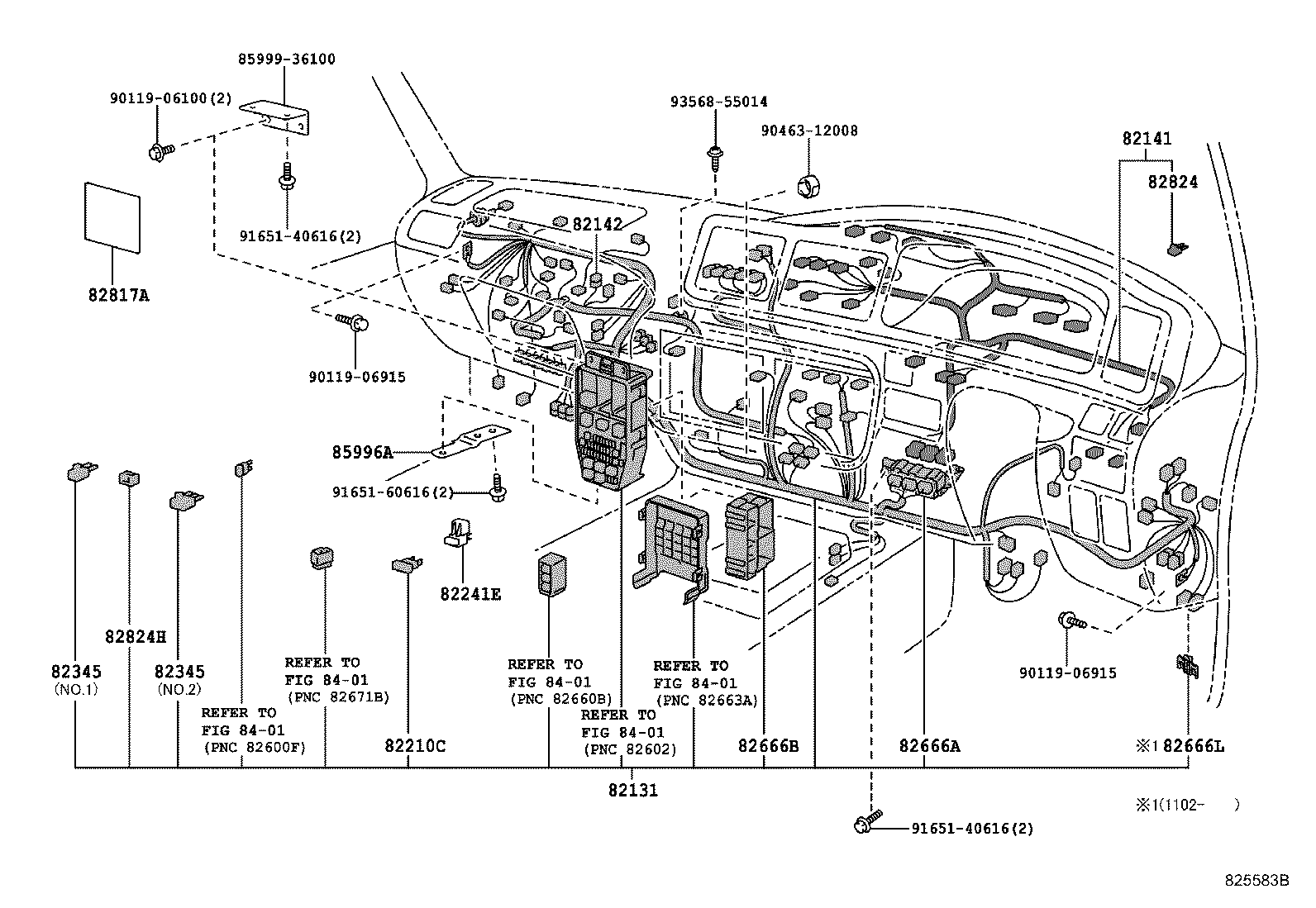

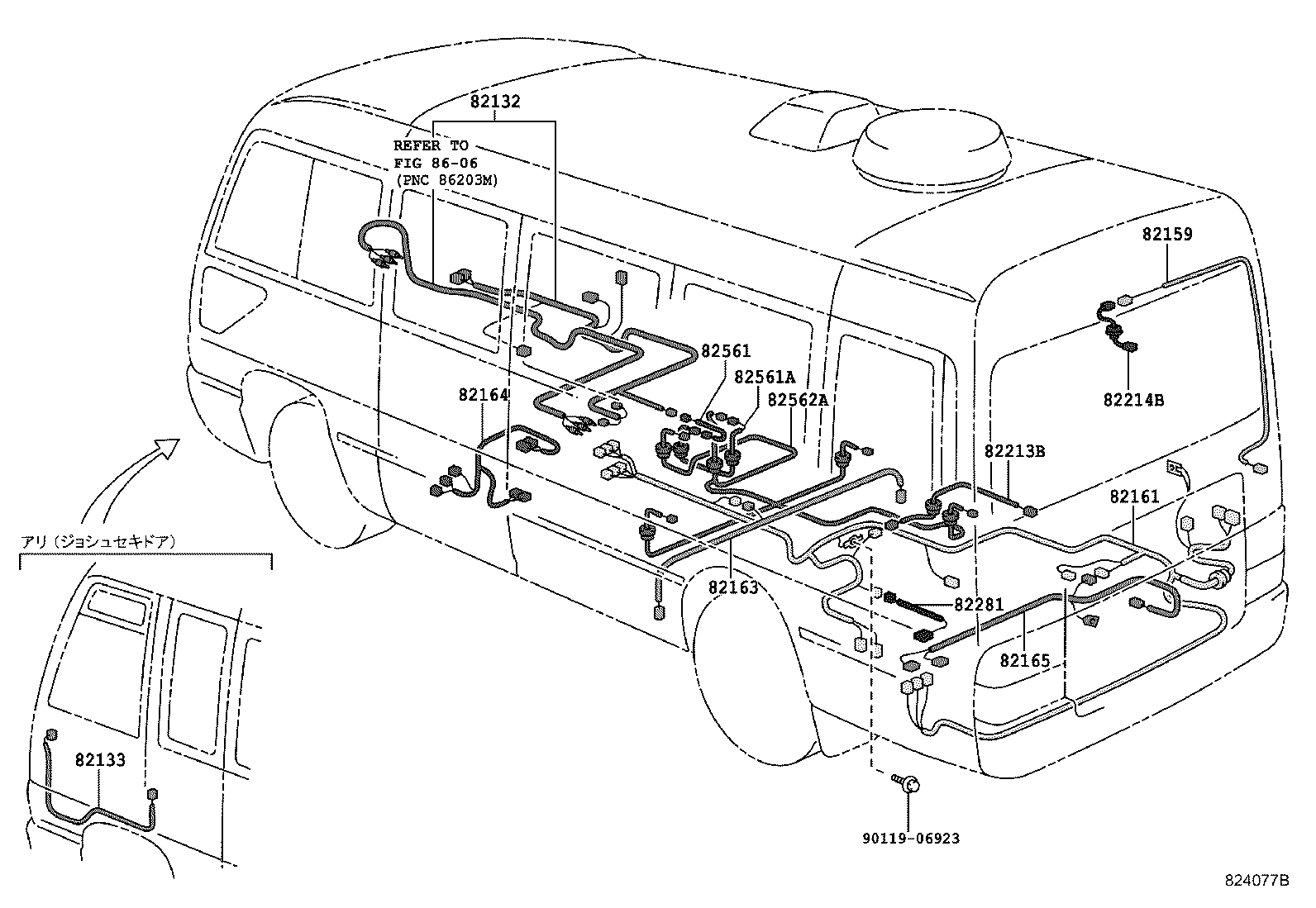

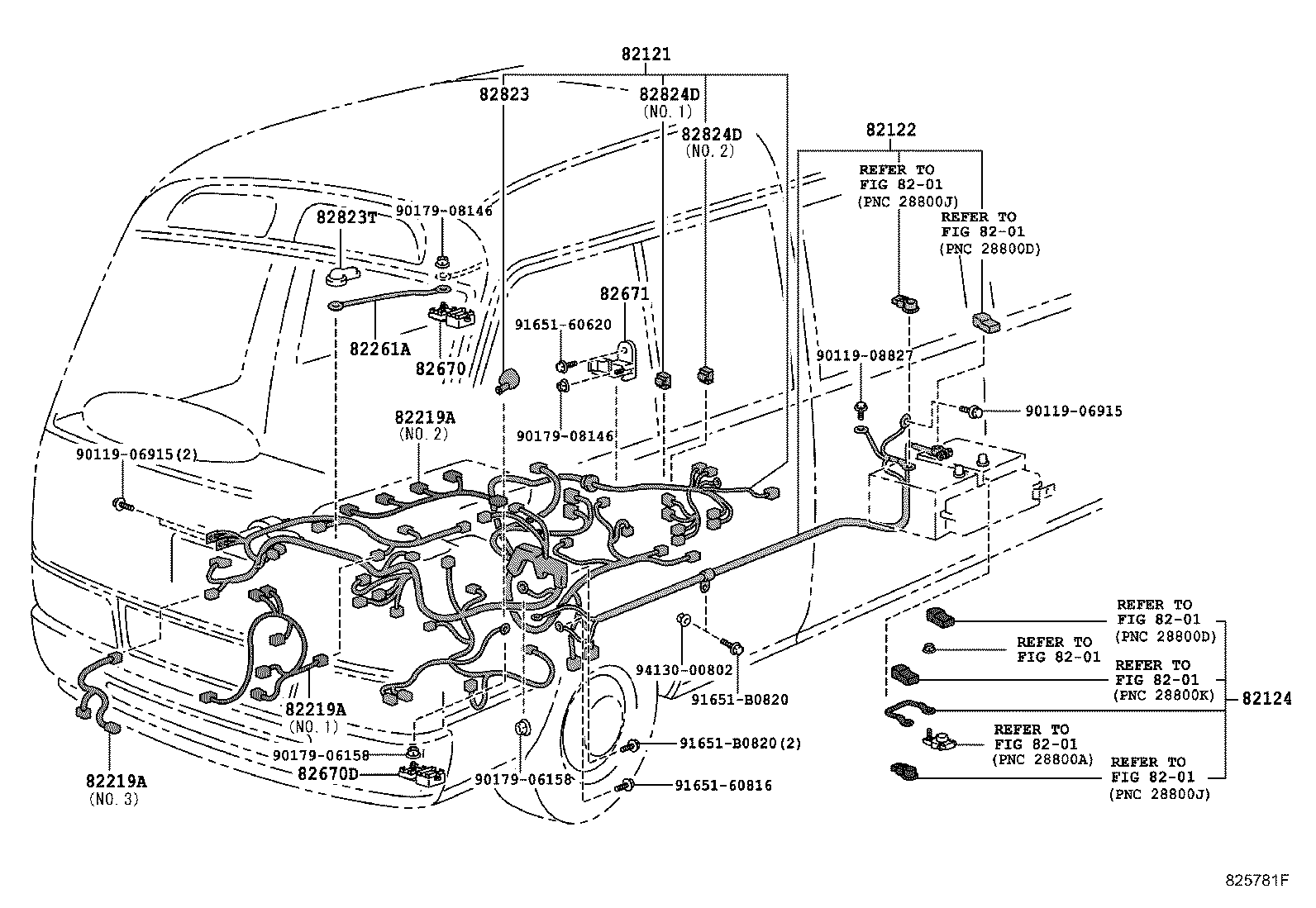

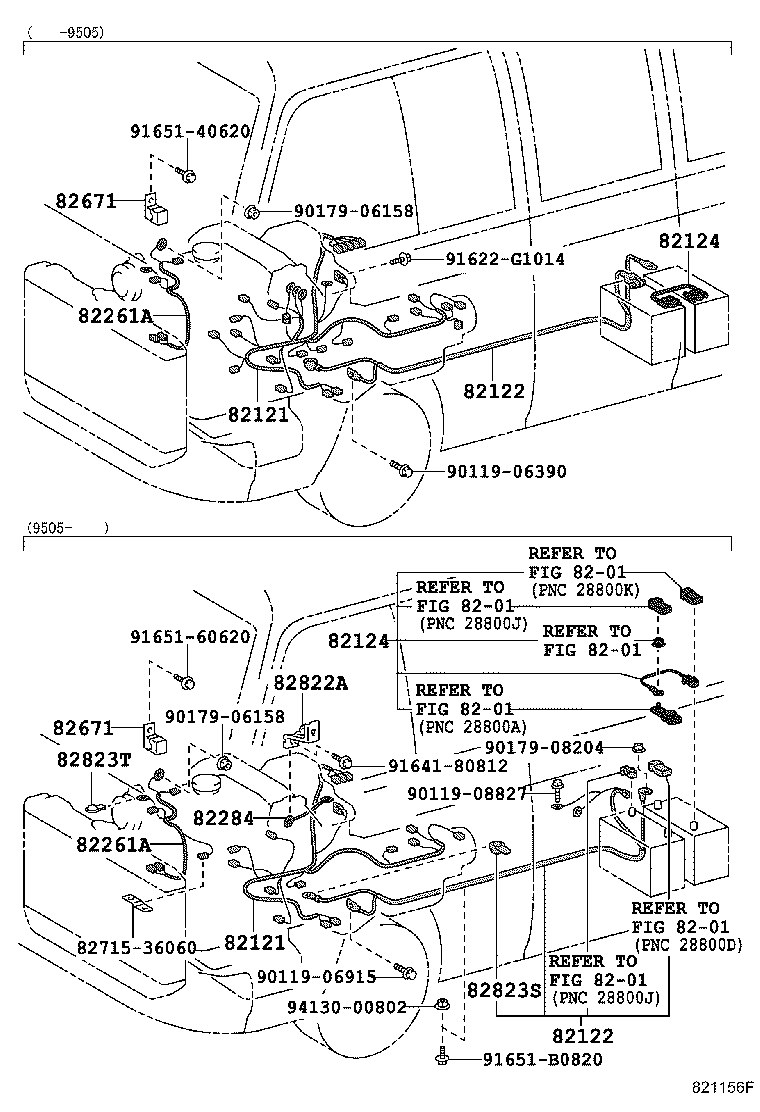

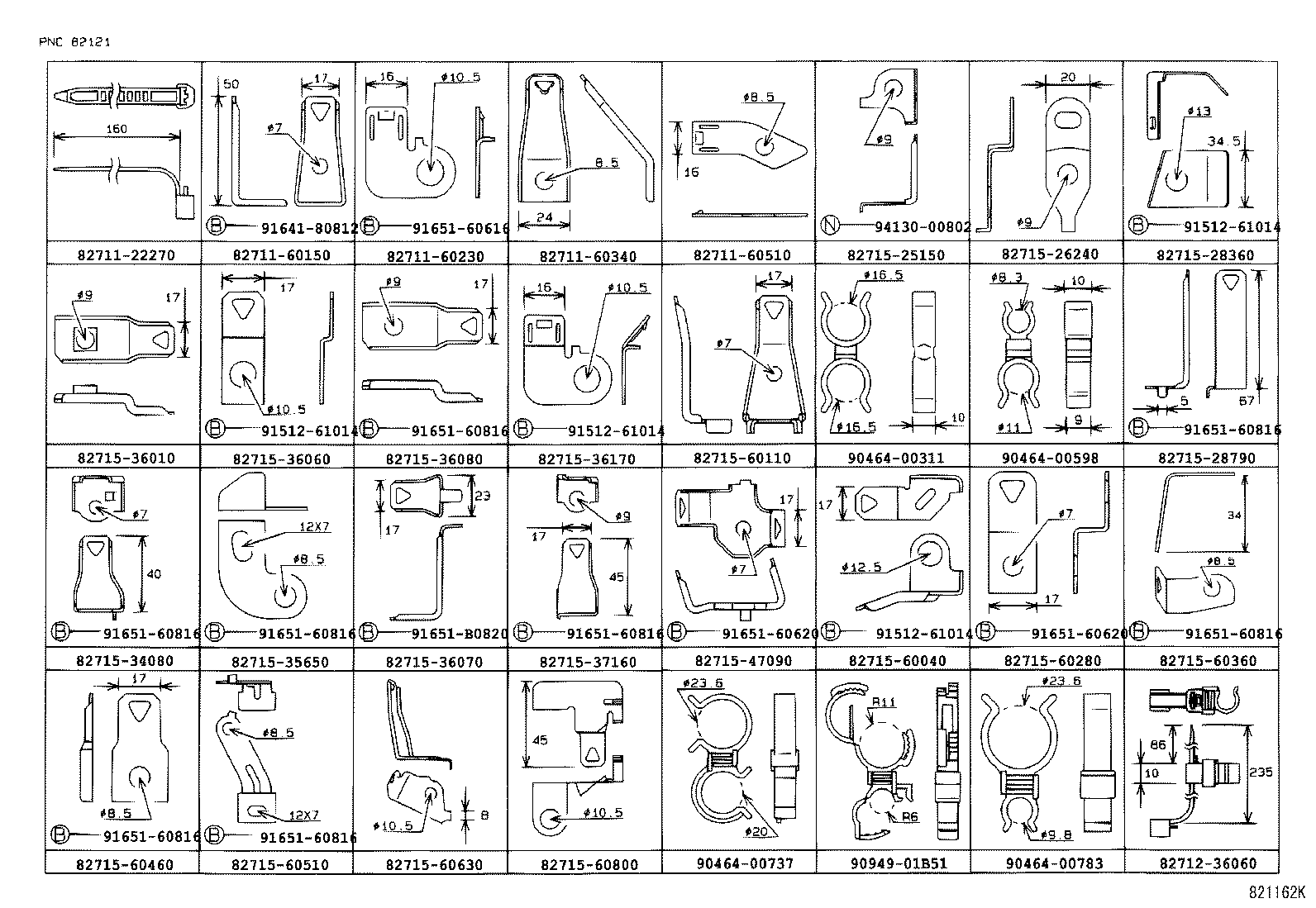

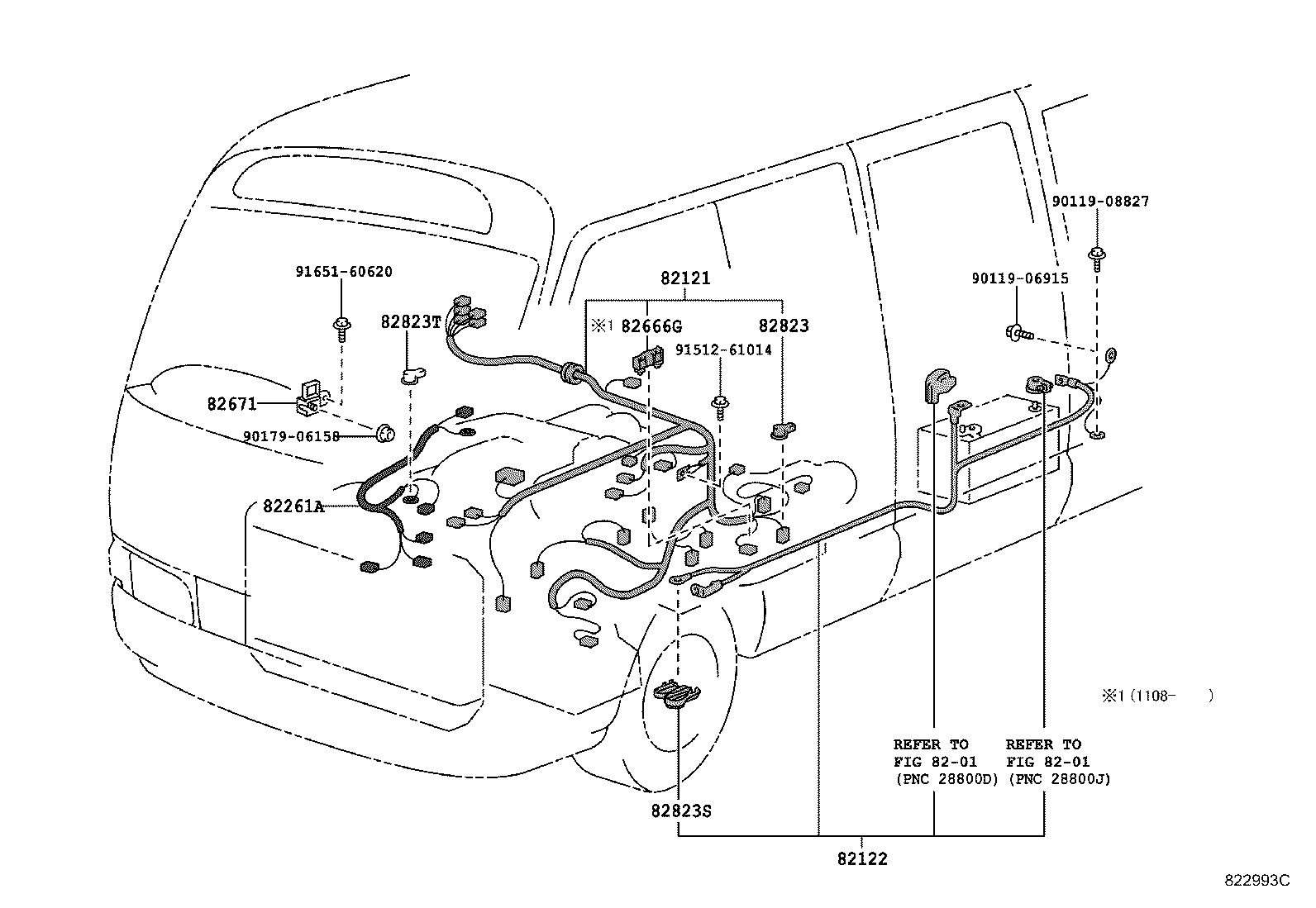

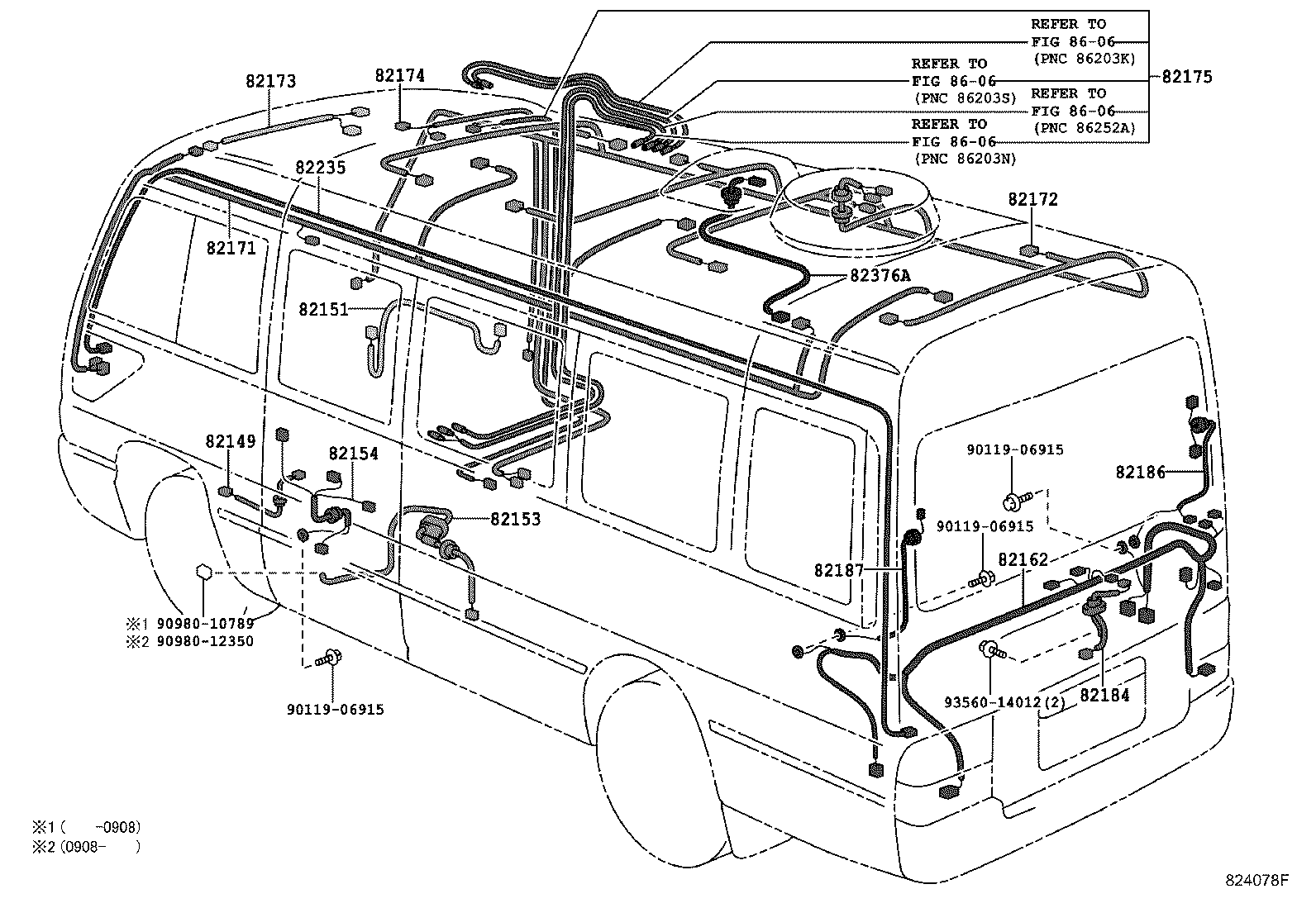

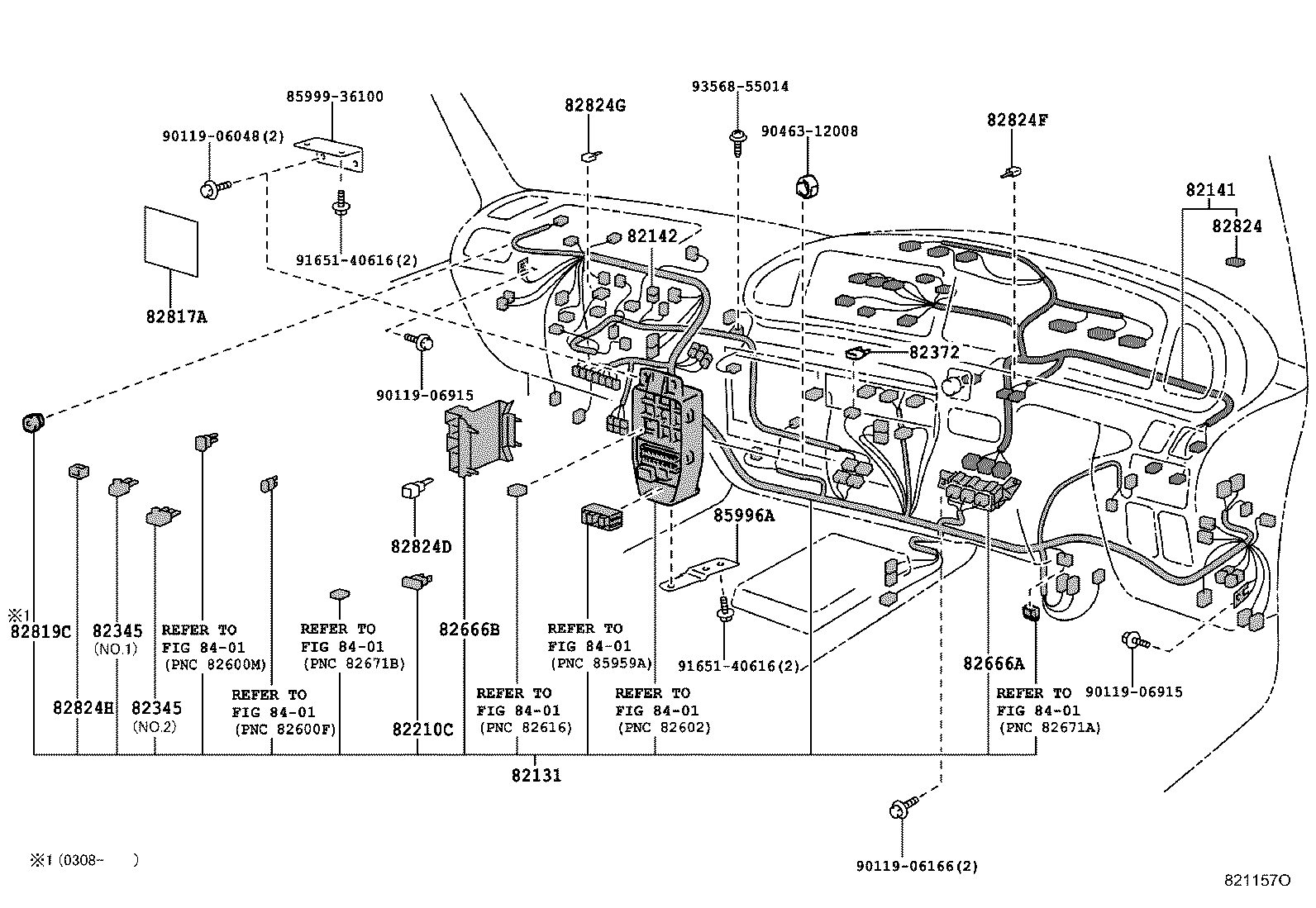

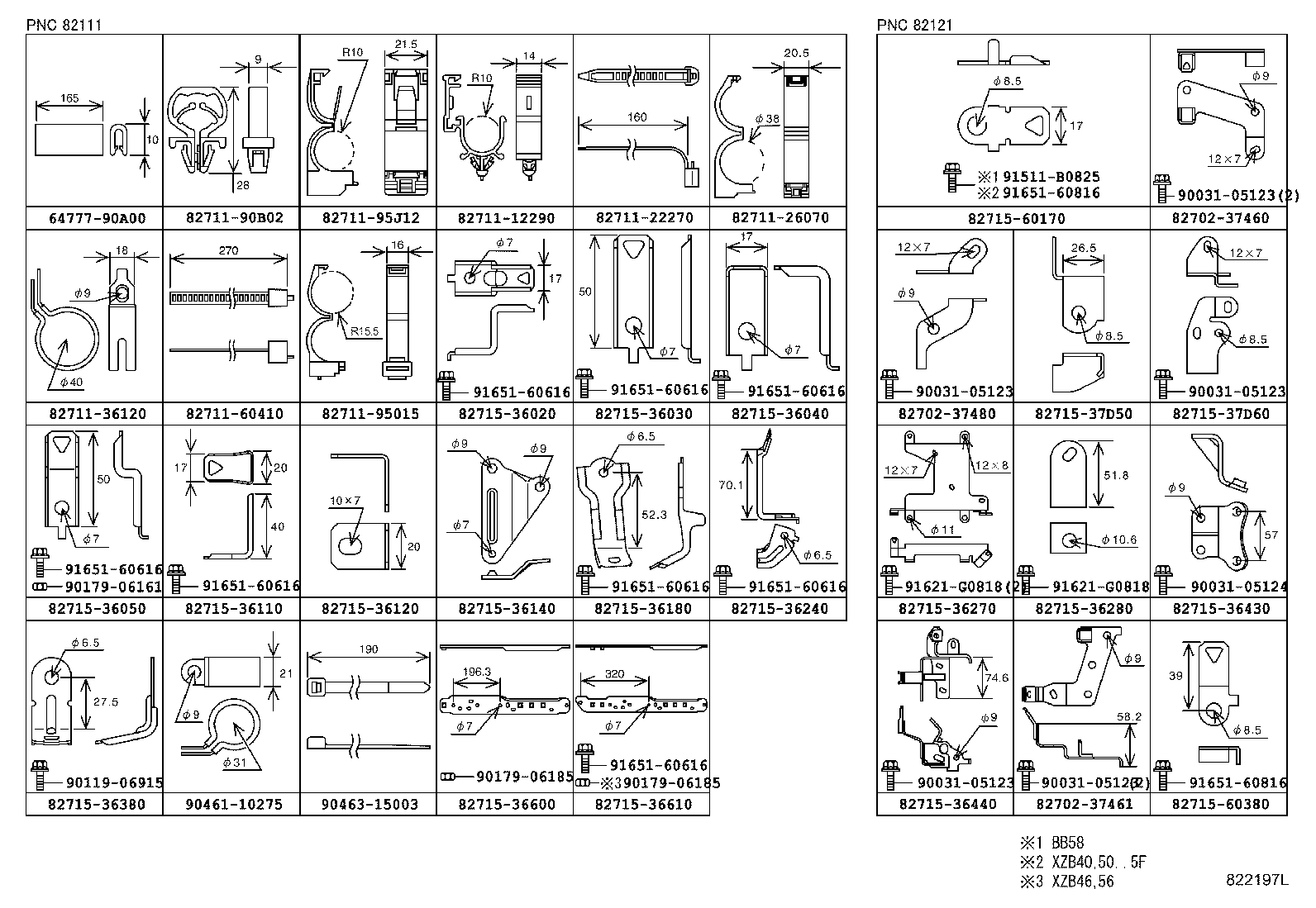

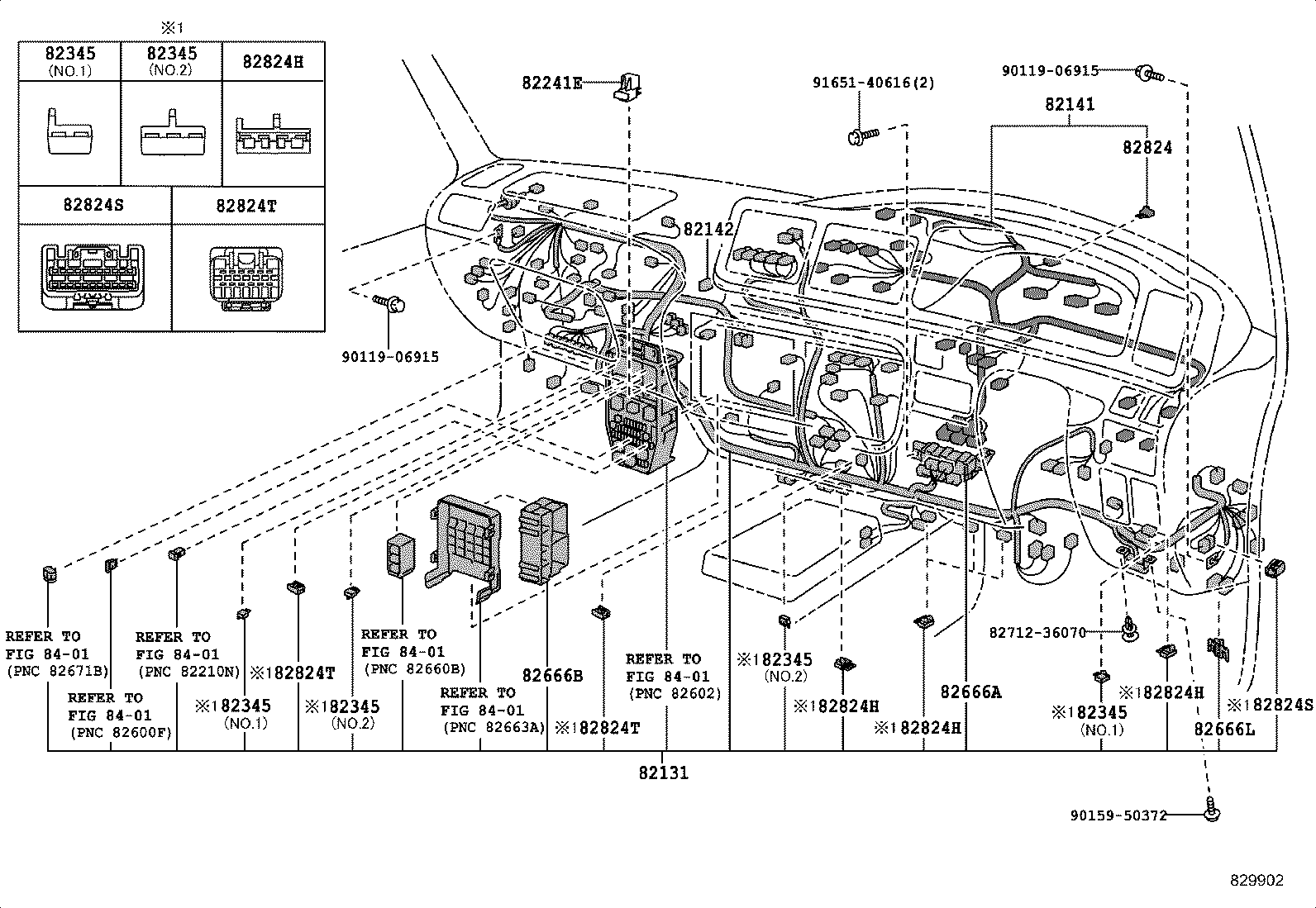

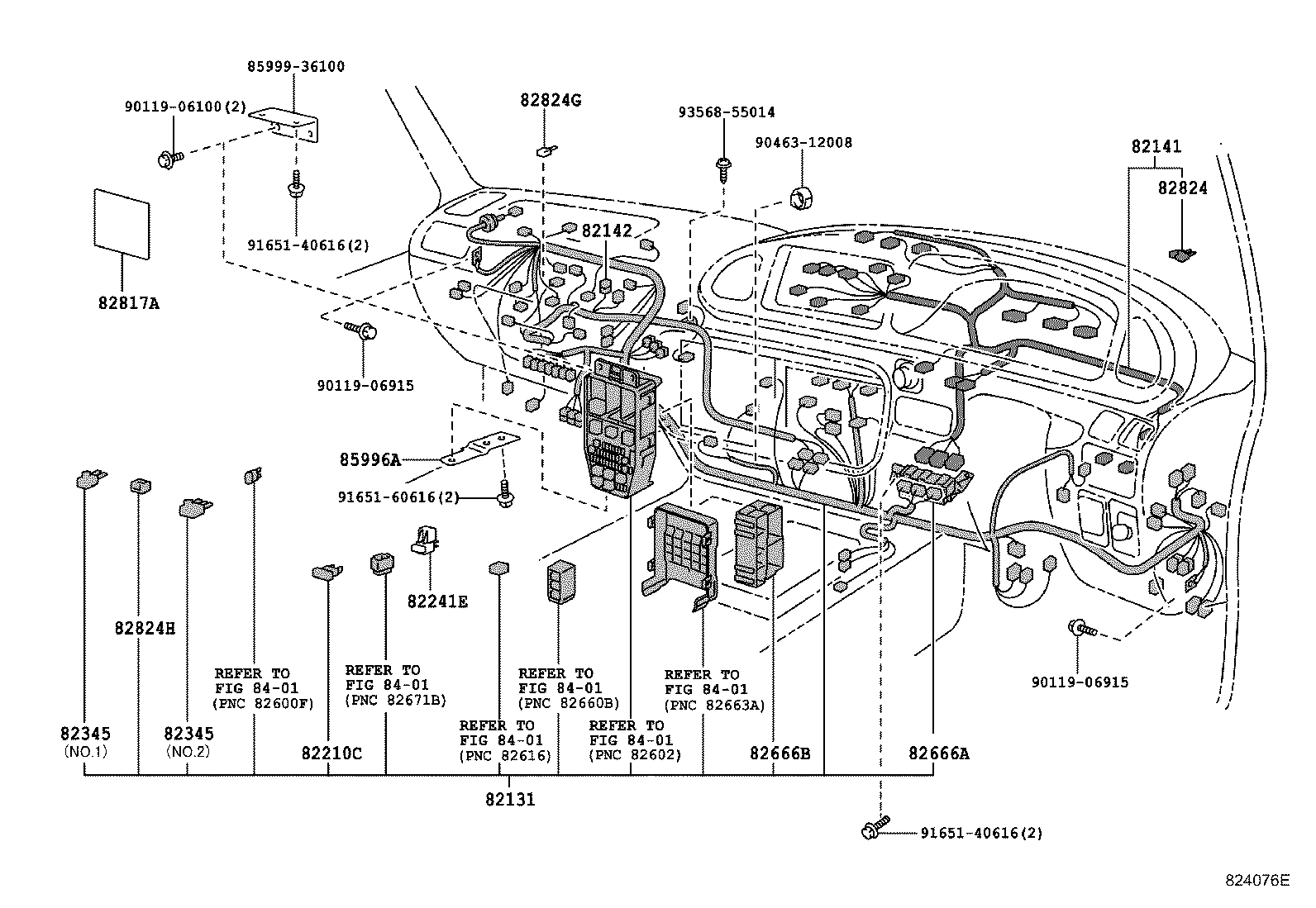

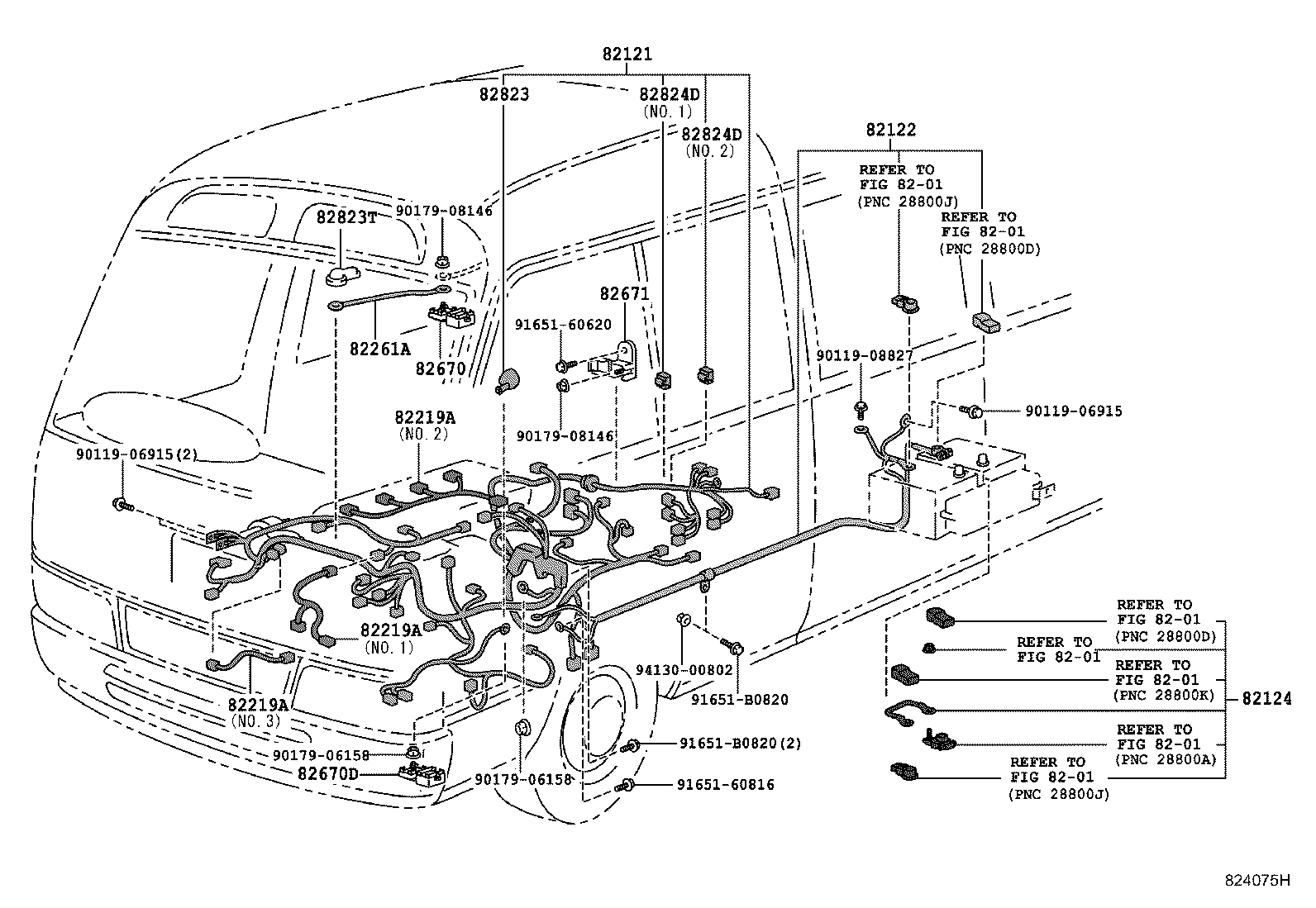

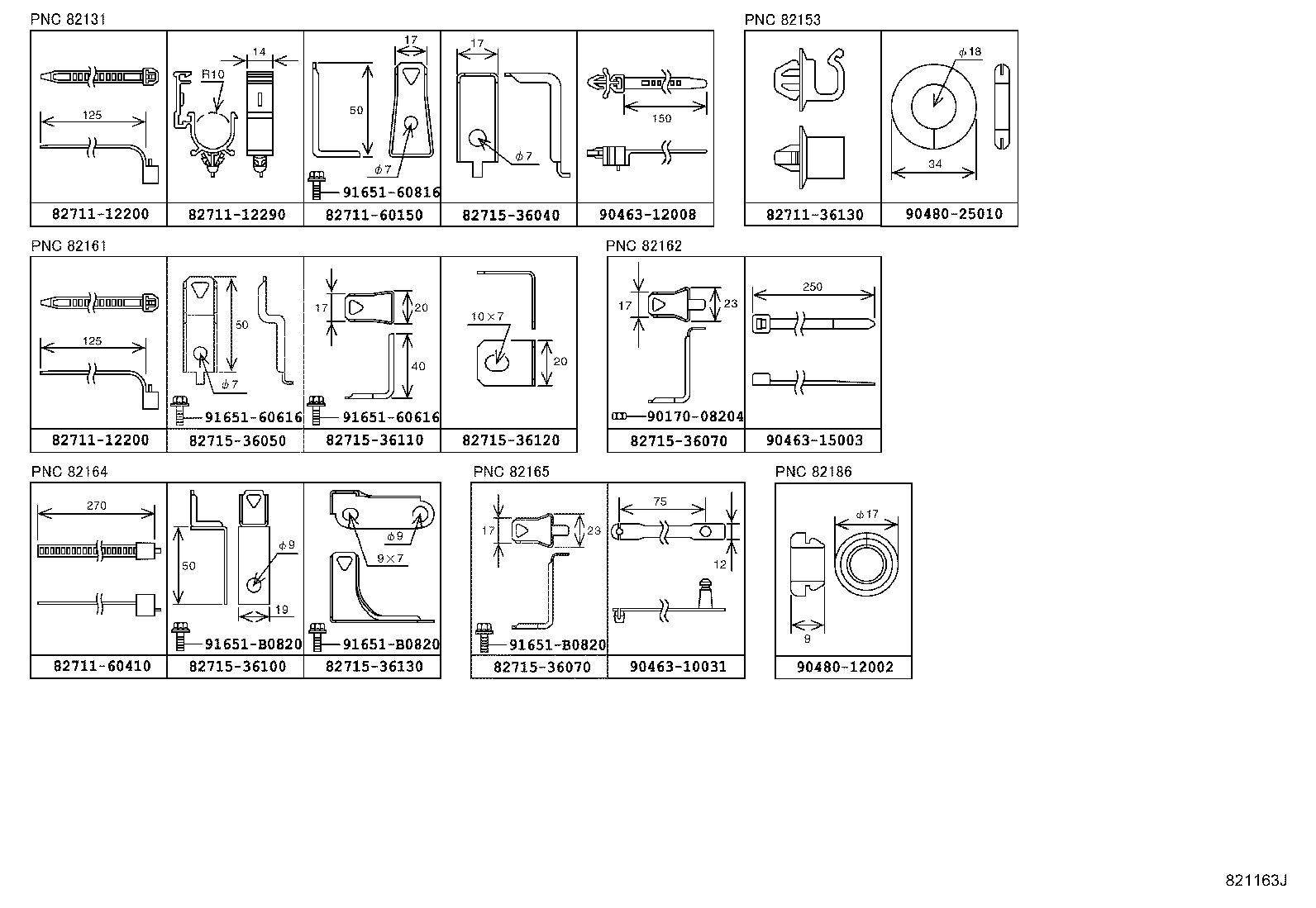

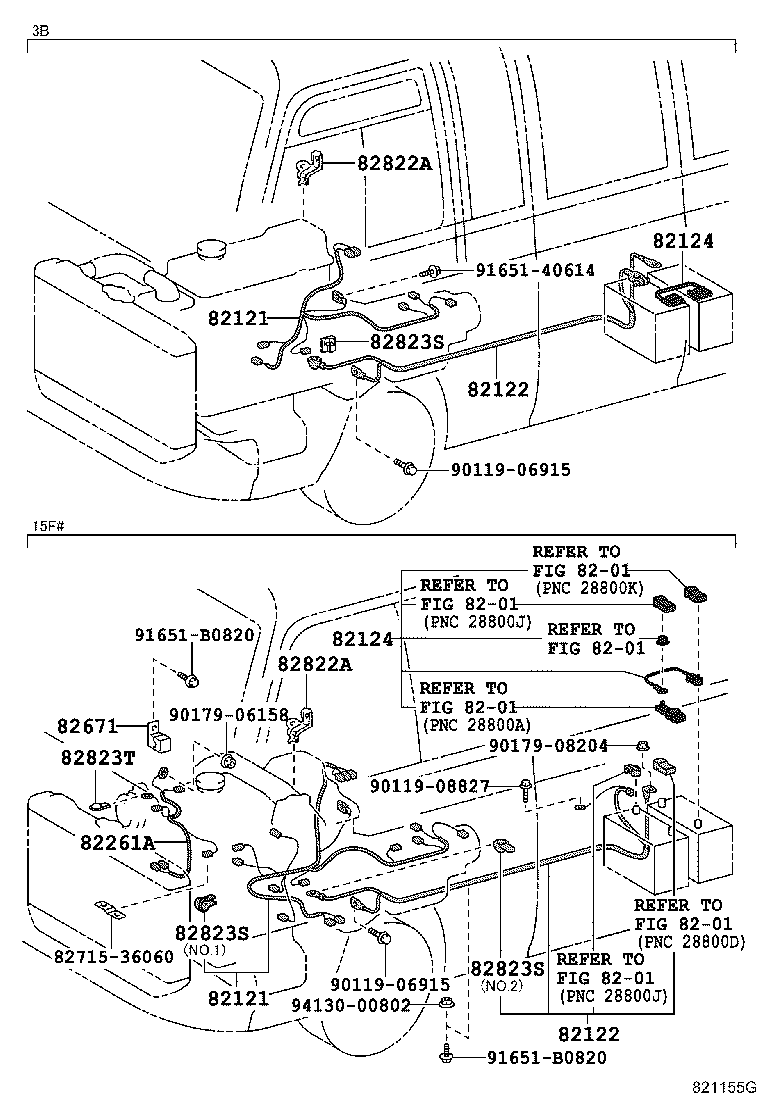

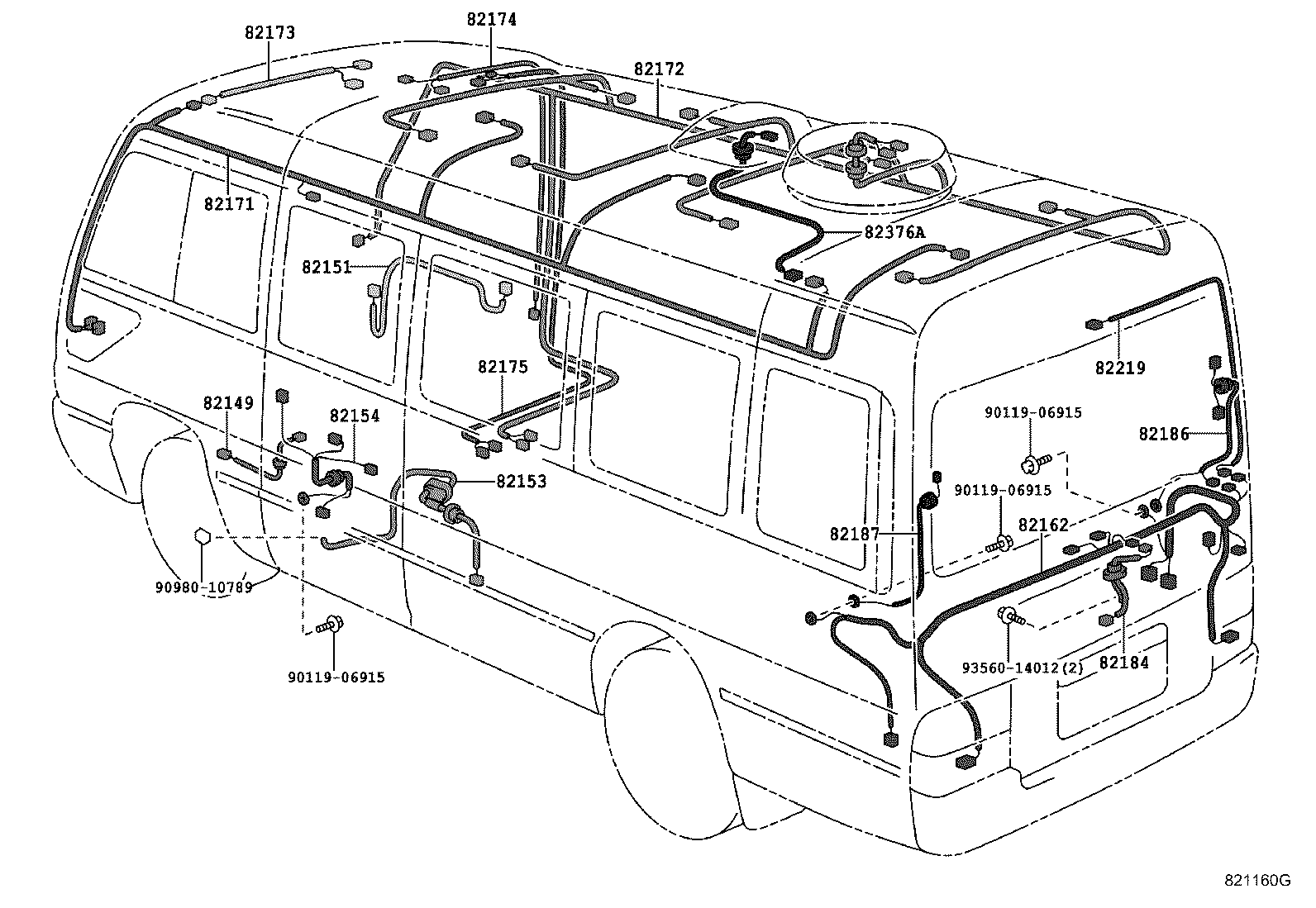

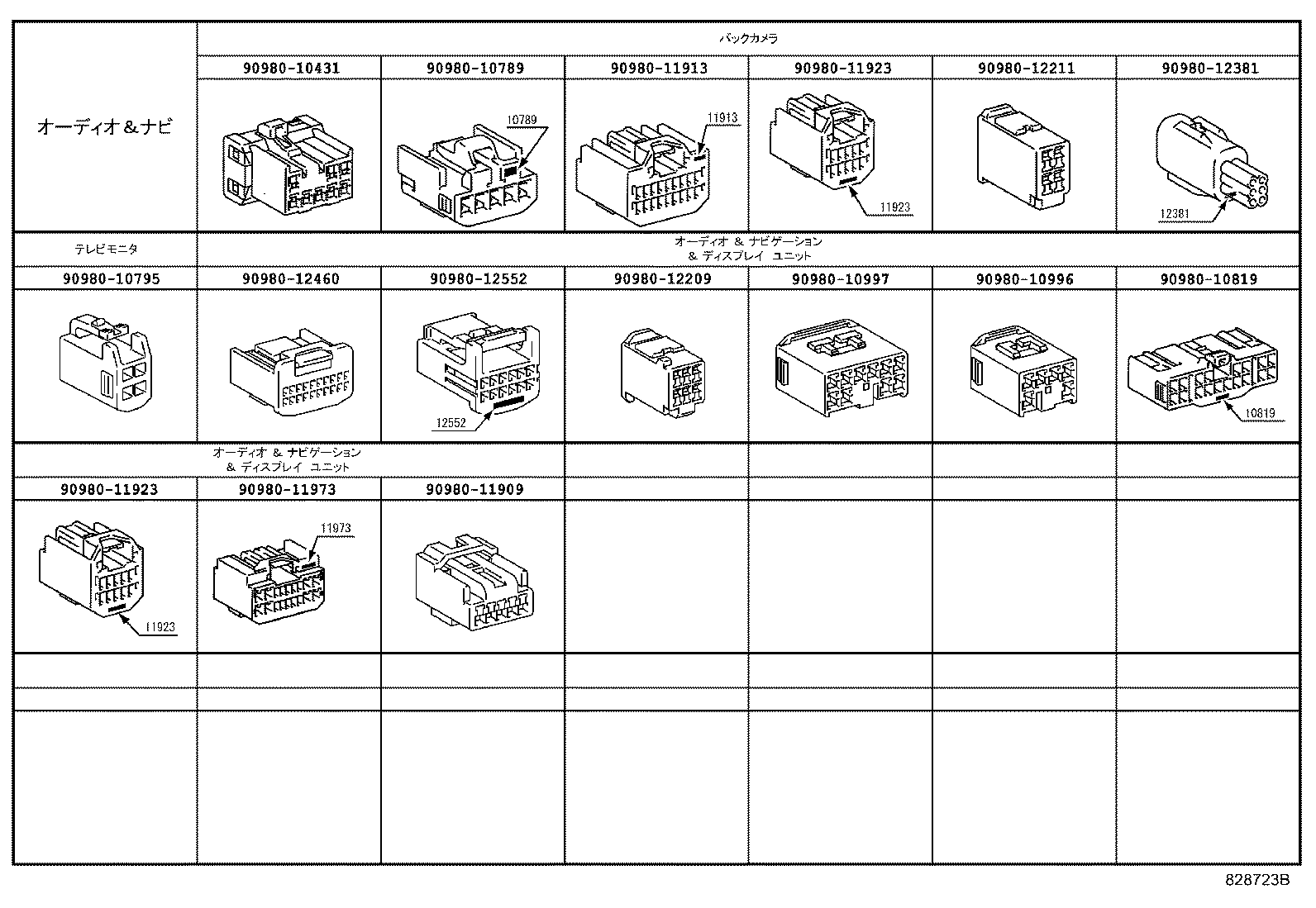

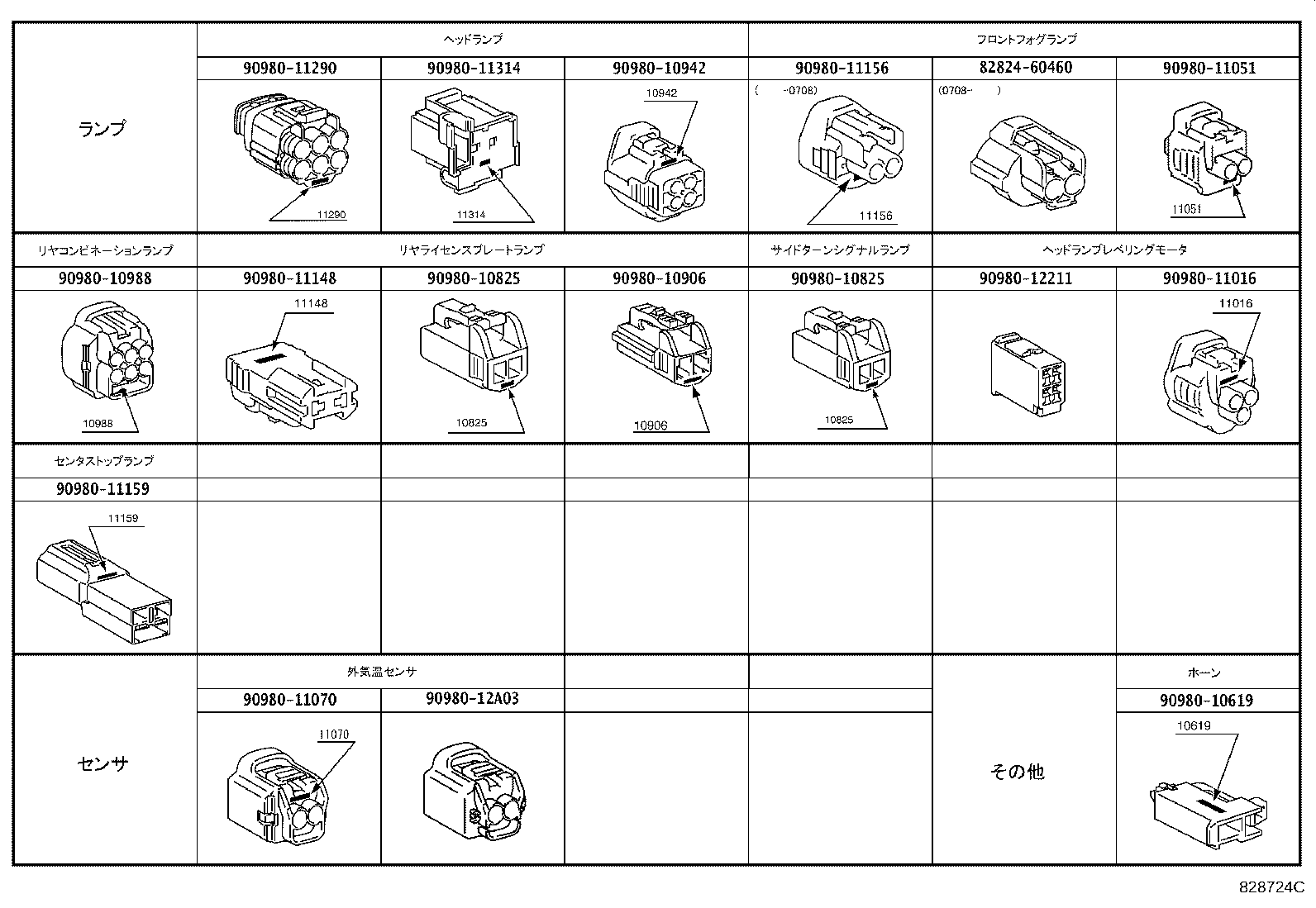

Figure 821154G 821154G 1993-01 → 1999-07 Figure 821783L 821783L 1999-07 → 2007-08 Figure 825582E 825582E 2007-08 → 2015-01 Figure 829893 829893 2015-01 → — Figure 821155G 821155G 1993-01 → 2004-08 Figure 821156F 821156F 1993-01 → 2004-08 Figure 822993C 822993C 2002-03 → 2015-01 Figure 824075H 824075H 2004-08 → 2007-08 Figure 825781F 825781F 2007-08 → 2011-08 Figure 827841C 827841C 2011-08 → 2015-01 Figure 829896A 829896A 2015-01 → — Figure 829897A 829897A 2015-01 → — Figure 821157O 821157O 1993-01 → 2004-08 Figure 824076E 824076E 2004-08 → 2007-08 Figure 825583B 825583B 2007-08 → 2015-01 Figure 829902 829902 2015-01 → — Figure 821158D 821158D 1993-01 → 2004-08 Figure 824077B 824077B 2004-08 → 2015-01 Figure 829908A 829908A 2015-01 → — Figure 821160G 821160G 1993-01 → 2004-08 Figure 824078F 824078F 2004-08 → 2015-01 Figure 821161M 821161M 1993-01 → 2015-01 Figure 829914 829914 2015-01 → — Figure 829915 829915 2015-01 → — Figure 821162K 821162K 1993-01 → — Figure 822197L 822197L 1993-01 → — Figure 821844N 821844N 1993-01 → — Figure 821163J 821163J 1993-01 → — Figure 829921 829921 1993-01 → — Figure 821164B 821164B 1993-01 → — Figure 821819B 821819B 1999-07 → 2004-08 Figure 822752C 822752C 2002-03 → — Figure 828724C 828724C 1993-01 → — Figure 828723B 828723B 1993-01 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2
82001D Cable, Bond, NO.3
82001G Cable, Bond, NO.4
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82124 Wire, Engine, NO.4
82131 Wire, Cowl
82132 Wire, Cowl, NO.2
82133 Wire, Cowl, NO.3
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82149 Wire, Pillar, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82155 Wire, Center Piller, NO.1
82159 Wire, Pillar, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82165 Wire, Frame, NO.2
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82173 Wire, Roof, NO.3
82174 Wire, Roof, NO.4
82175 Wire, Roof, NO.5
82181 Wire, Luggage Room, NO.1
82184 Wire, Back Door, NO.1
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82213B Wire, Heater
82214A Wire, Lamp
82214B Wire, Lamp, Rear
82219 Wire, Thermo Sensor
82219A Wire, Sensor
82219C Wire, Sensor
82219E Wire, Sensor
82223 Wire, Switch
82229 Wire, Heater Blower Sub
82235 Wire, Room
82241C Wire, Relay
82241E Wire Relay
82261A Wire, Alternator
82281 Wire, Gage
82284 Wire, Earth
82345 Diode
82372 Wire, Radio Installation
82376A Wire, Auto Fan
82422 Wire, Alternator Sub, NO.1
82561 Wire, Rear Speaker
82561A Wire, Rear Speaker NO.2
82562A Wire, Rear Speaker, NO.2
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82670 Block Assy, Junction, NO.1
82670D Block Assy, Junction,NO.2
82671 Block, Junction
82712A Support, Wiring Harness
82816 Bracket, Wiring Harness Grommet
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817N Protector, Wiring Harness, NO.13
82819C Grommet, Wiring Harness
82822 Bracket,Connector Block
82822A Bracket, Connector Block
82822B Bracket, Connector Block
82823 Cap, Terminal, NO.1
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824A Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
82824G Connector, Wiring Harness
82824H Connector, Wiring Harness
82824J Connector, Wiring Harness
82824K Connector, Wiring Harness
82824S Connector, Wiring Harness
82824T Connector, Wiring Harness
85996A Bracket, Relay, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
