Toyota Coaster
1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan
Discontinued model
Data version 2016-12

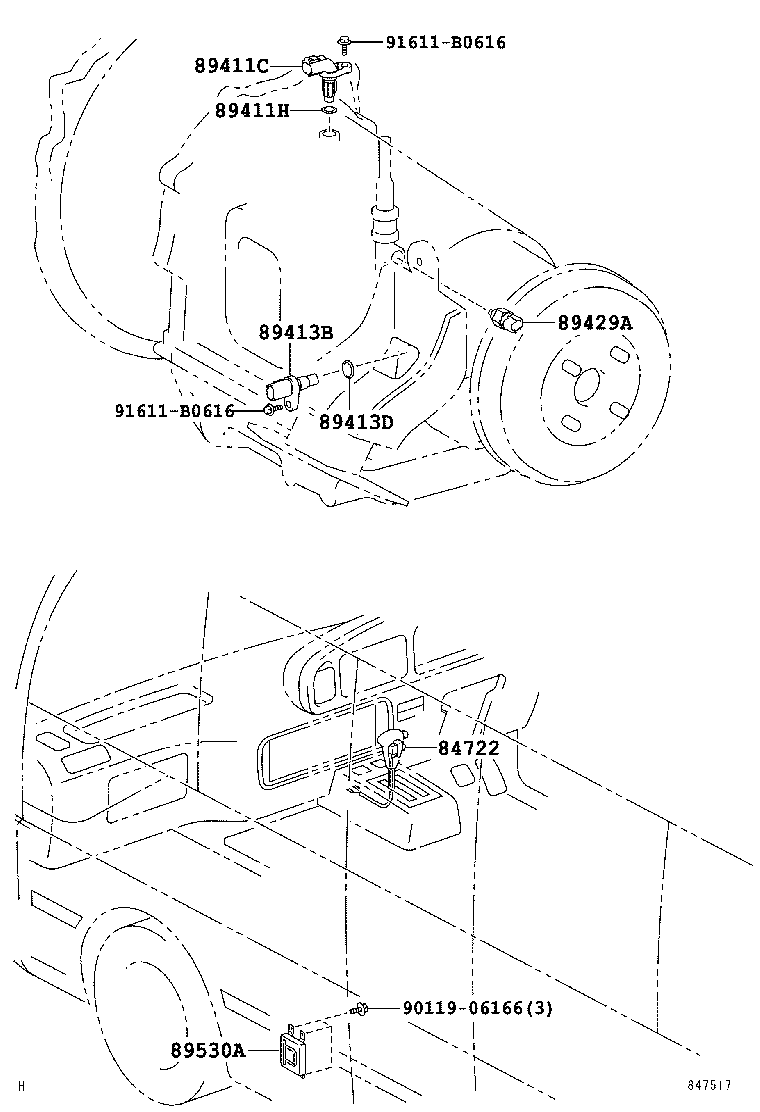

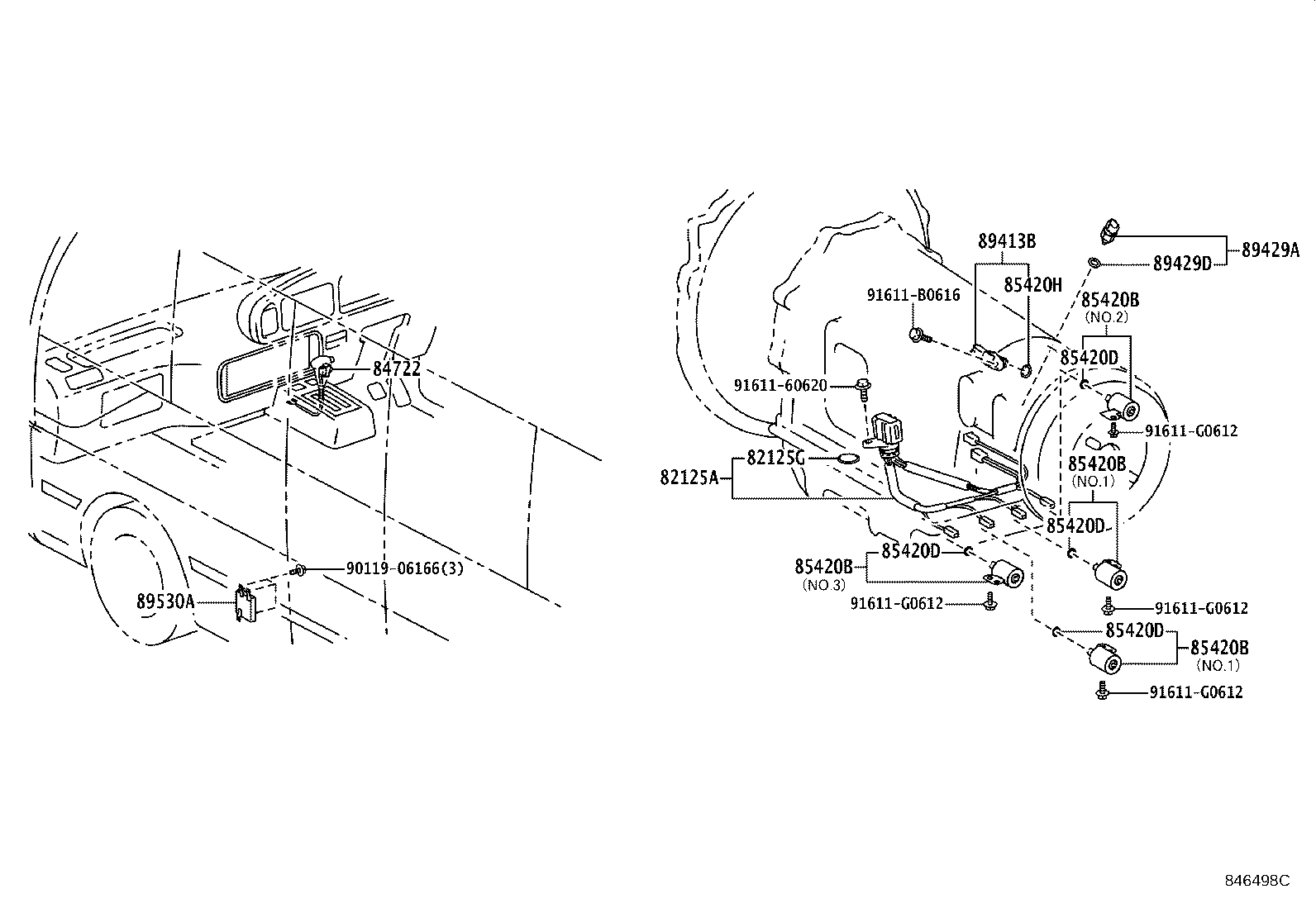

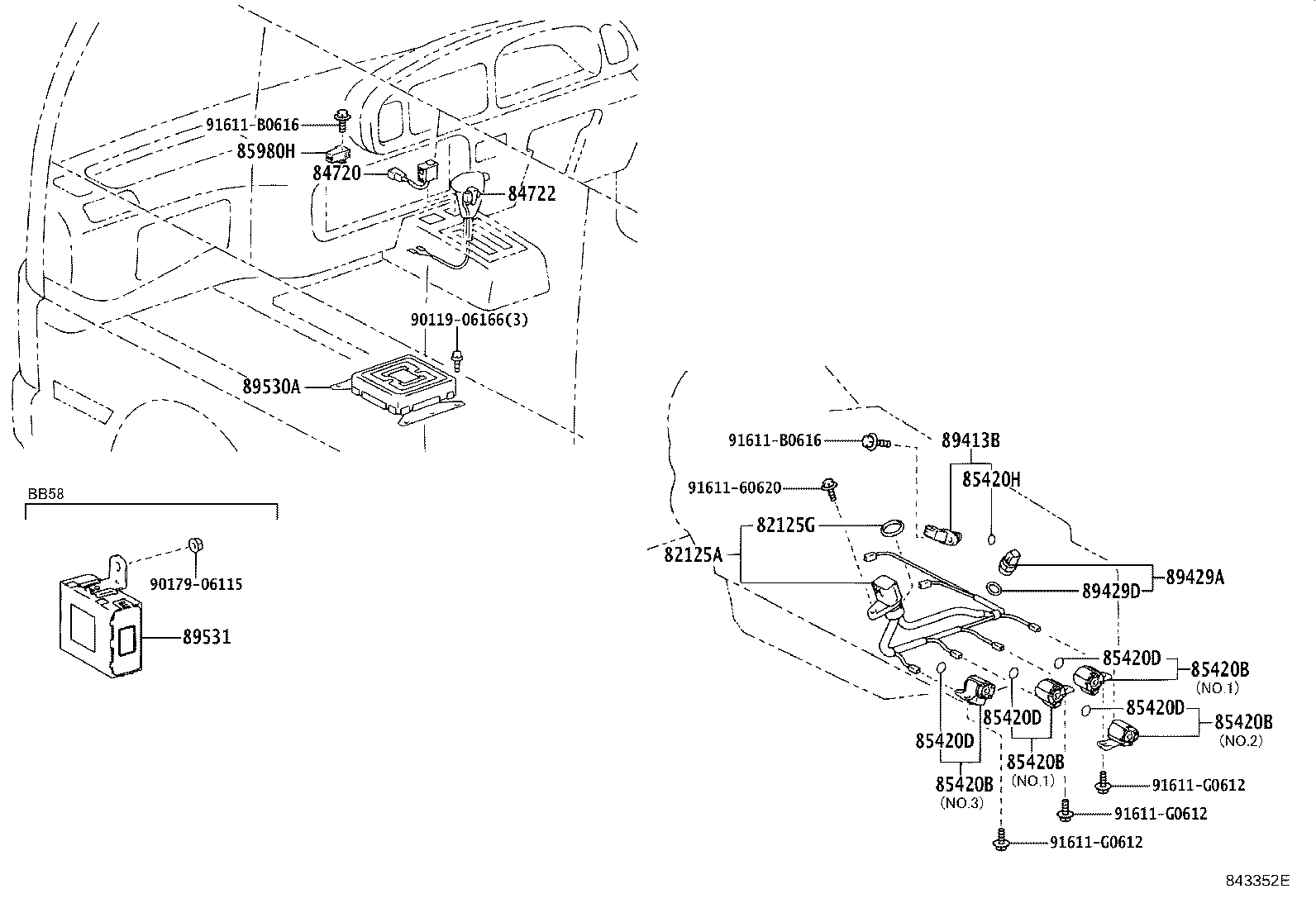

Overdrive & Electronic Controlled Transmission
18 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 35517 | Plate, Transmission Wire Lock |
| 82125A | Wire, Transmission |
| 82125G | Ring, O(FOR TRANSMISSION WIRE) |
| 84720 | Switch Assy, Pattern Select |
| 84722 | Switch, Transmission Control |
| 85420B | Solenoid Assy, Transmission |
| 85420D | Ring, O (FOR TRANSMISSION SOLENOID) |
| 85420H | Ring, O(FOR SPEED SENSOR) |
| 85980H | Relay Assy, Door Control |
| 89411C | Sensor, Speed |
| 89411H | Ring, O |
| 89413B | Sensor, Transmission Revolution |
| 89413D | Ring, O(FOR TRANSMISSION REVOLUTION SENSOR) |
| 89428D | Switch, Temperature, NO.2 |
| 89429A | Sensor, Temperature |
| 89429D | Ring, O(FOR TEMPERATURE SENSOR) |
| 89530A | Computer Assy, Transmission Control |
| 89531 | Relay, Transmission Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
