Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

22 part groups · 6 illustrations

Illustrations

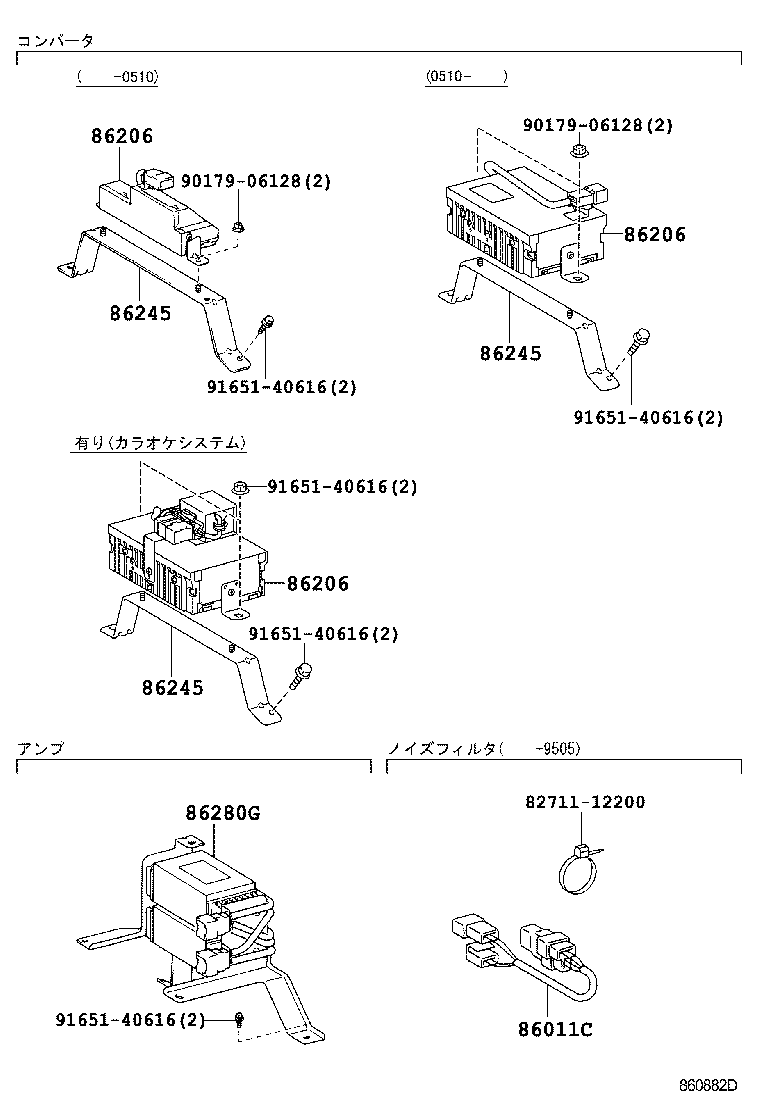

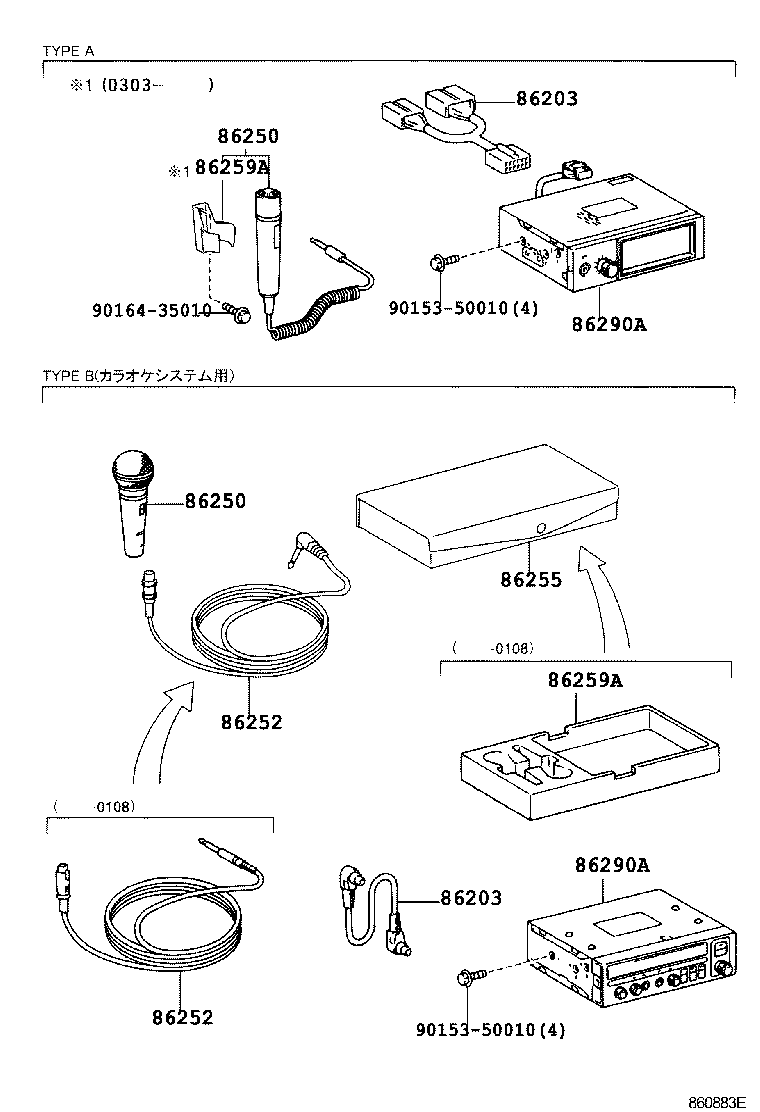

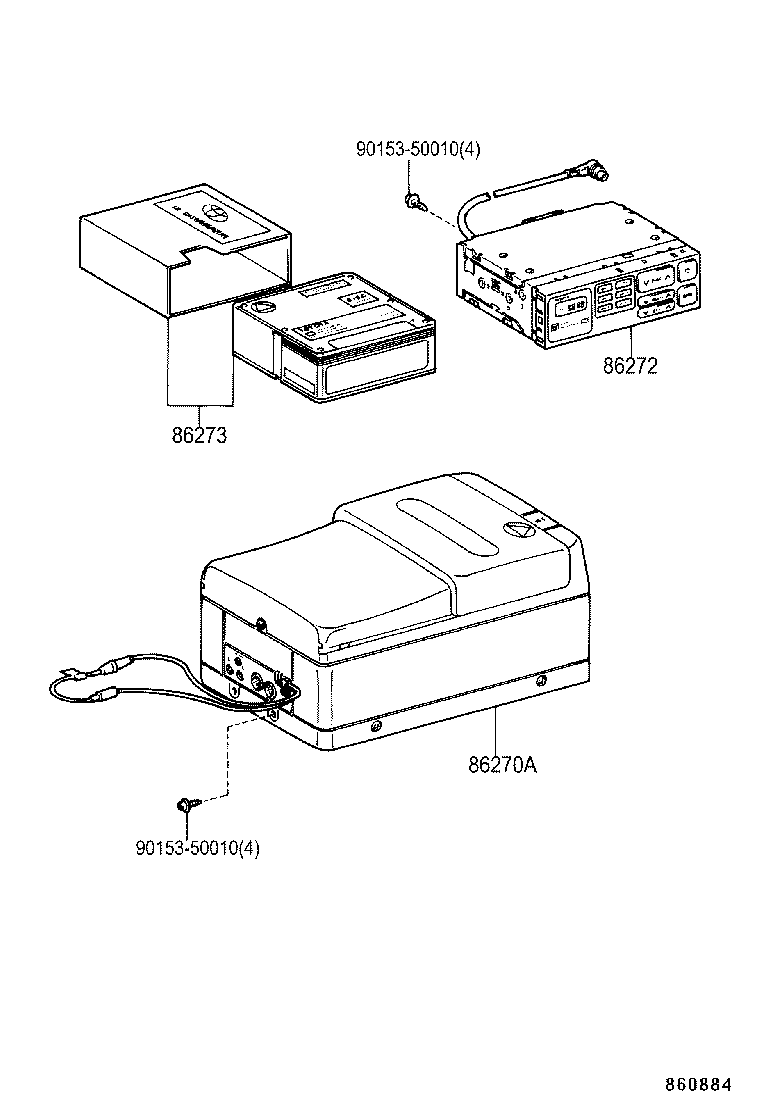

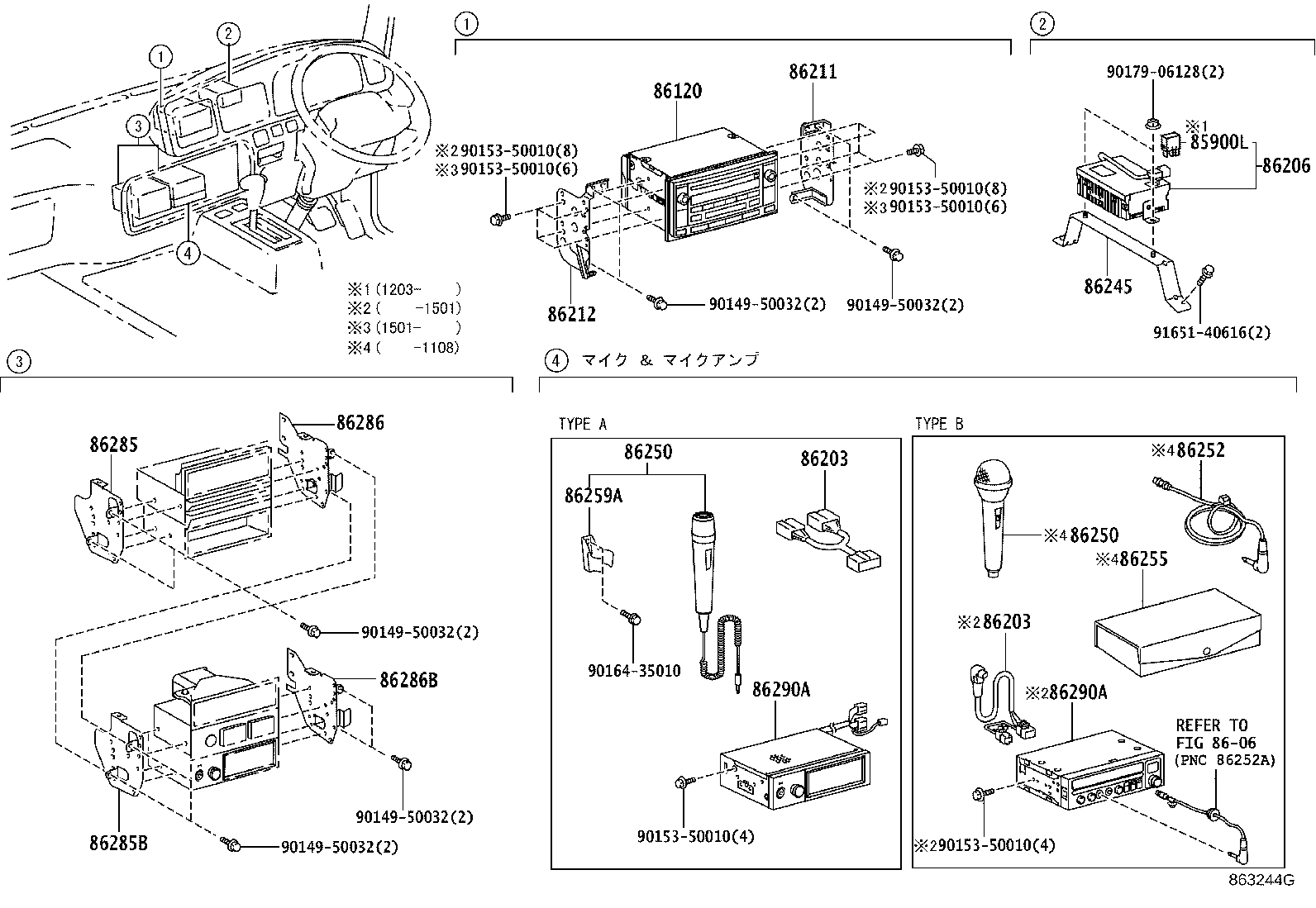

Figure 862290 862290 1993-01 → 2007-08 Figure 863244G 863244G 2007-08 → — Figure 860882D 860882D 1993-01 → 2007-08 Figure 863250A 863250A 2007-08 → — Figure 860883E 860883E 1993-01 → 2007-08 Figure 860884 860884 1993-01 → 2001-08

Part groups

PNCDescription
85900L Relay Assy, Control Unit
86011C Filter, Noise
86120 Receiver Assy, Radio
86203 Wire, Radio
86206 Converter Sub-assy, Voltage
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86245 Bracket, Voltage Converter
86250 Microphone Assy, Amplifier
86252 Code, Microphone, NO.1
86255 Case, Microphone
86259A Hanger, Microphone
86270A Disc Player Assy
86272 Controller, Disc Player
86273 Magazine, Disc Player
86280E Amplifier Set, Stereo Component
86280G Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86285B Bracket, Amplifier, NO.1
86286 Bracket, Amplifier, NO.2
86286B Bracket, Amplifier, NO.2
86290A Amplifier Assy, Microphone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
