Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

8 part groups · 5 illustrations

Illustrations

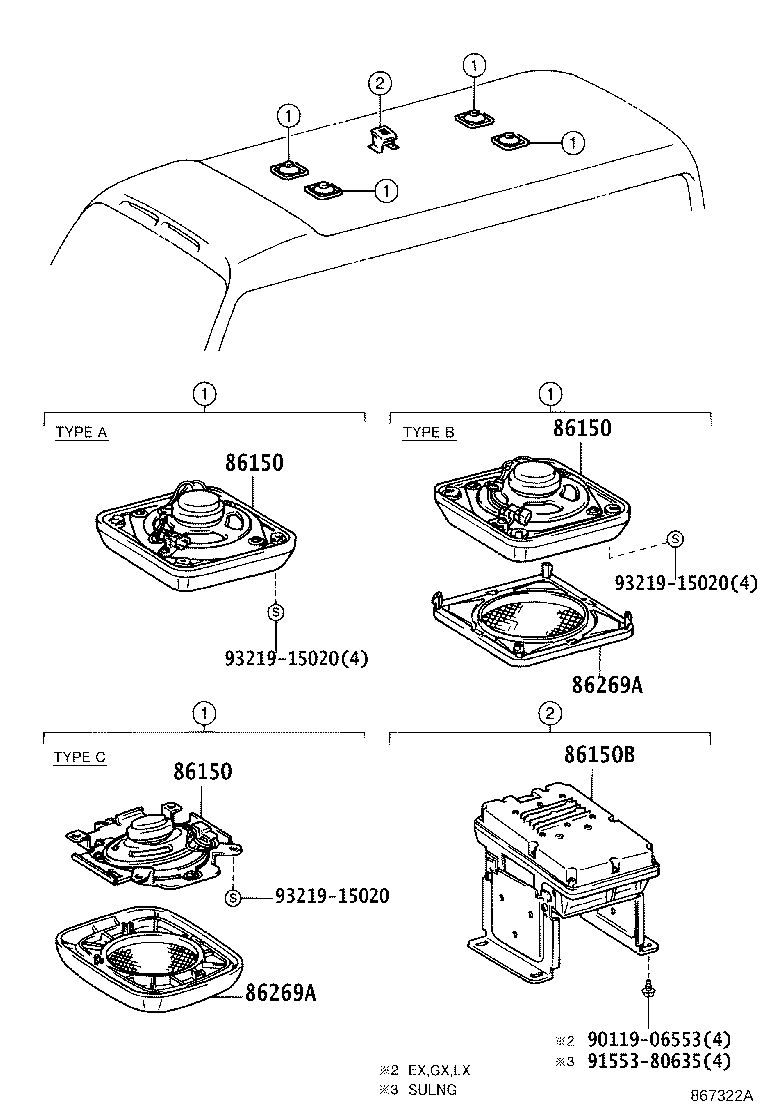

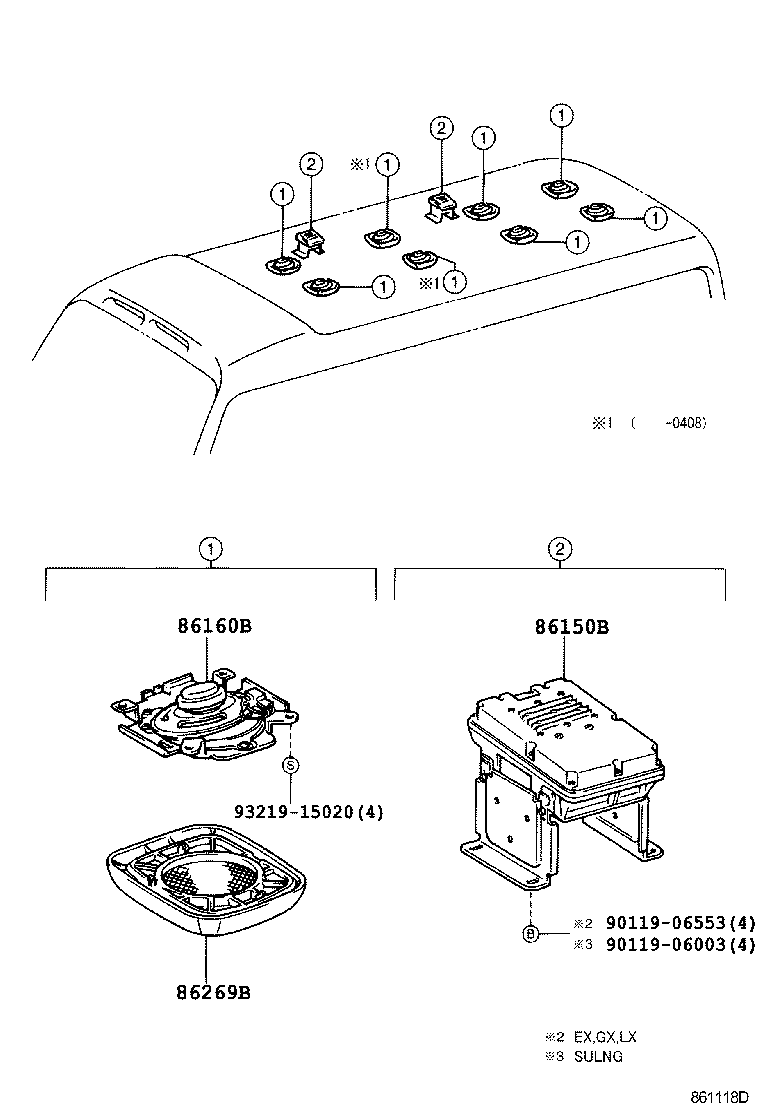

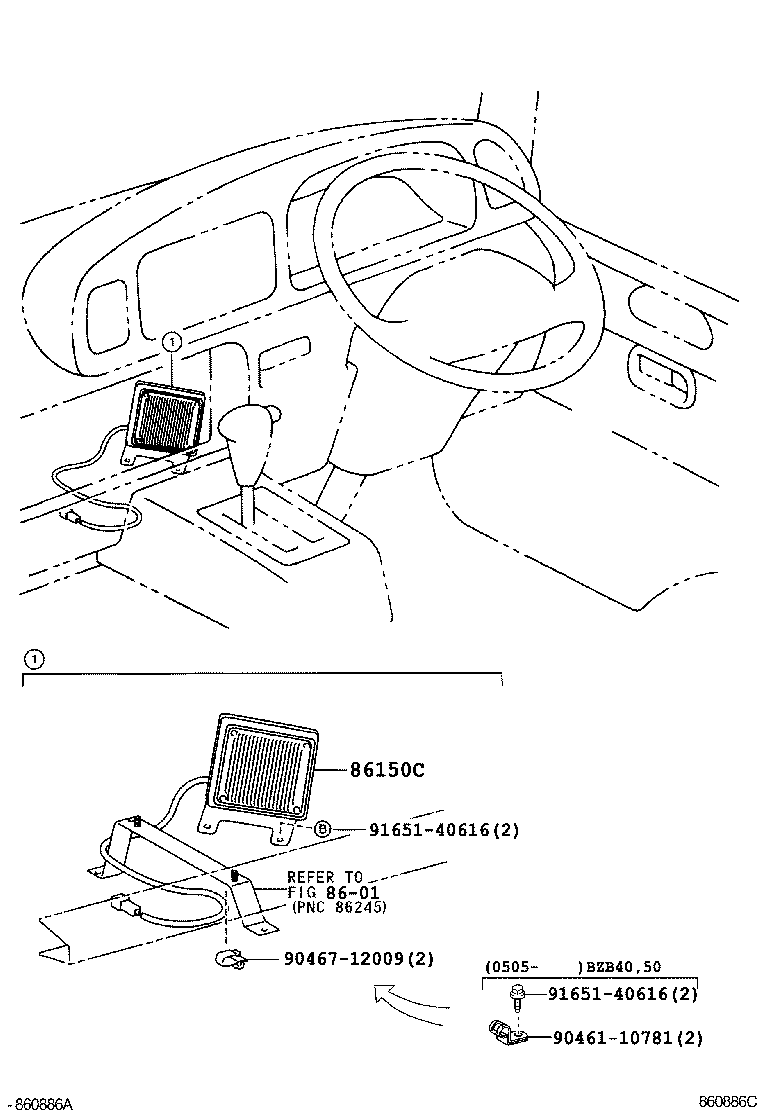

Figure 861117A 861117A 1993-01 → 2004-08 Figure 867322A 867322A 2004-08 → — Figure 861118D 861118D 1993-01 → — Figure 860886C 860886C 1997-05 → — Figure 860912 860912 1999-07 → 2001-08

Part groups

PNCDescription
86150 Speaker Assy, W/Box, NO.1
86150B Speaker Assy, W/Box, NO.2
86150C Speaker Assy, W/Box, NO.3
86150D Speaker Assy, W/Box, NO.4
86150E Speaker Assy, W/Box, NO.5
86160B Speaker Assy, Rear
86269A Grille, Speaker
86269B Grille, Speaker
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
