Toyota Coaster
1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan
Discontinued model
Data version 2016-12

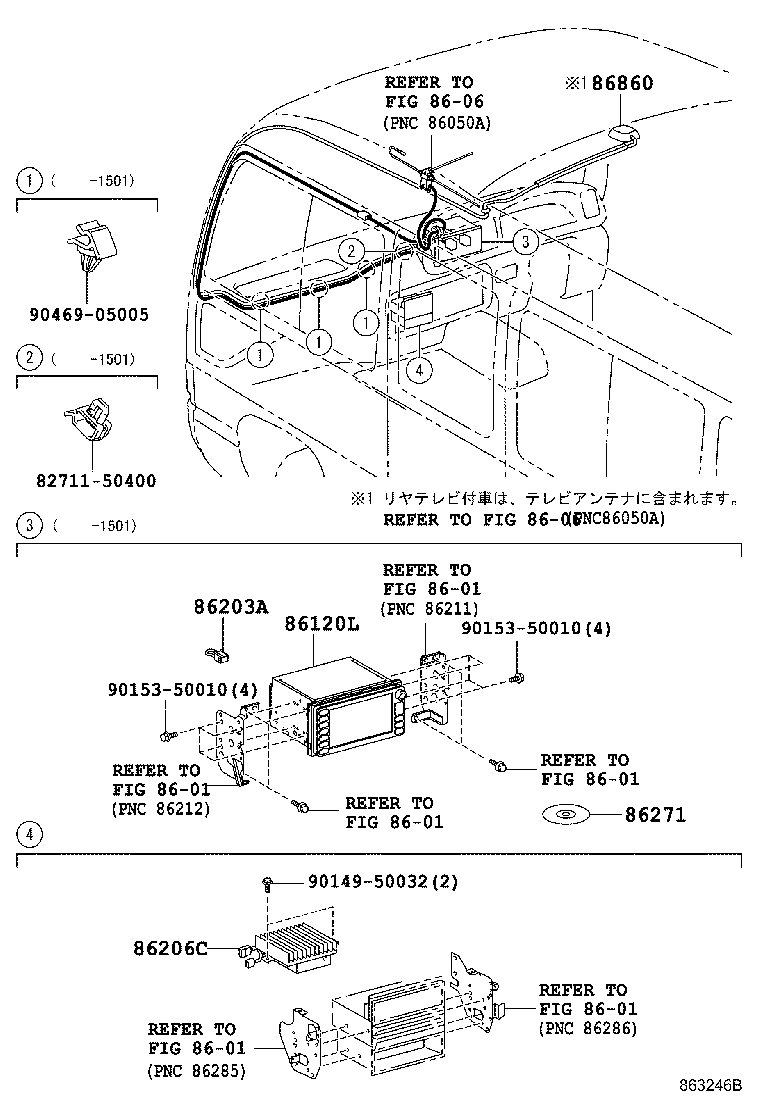

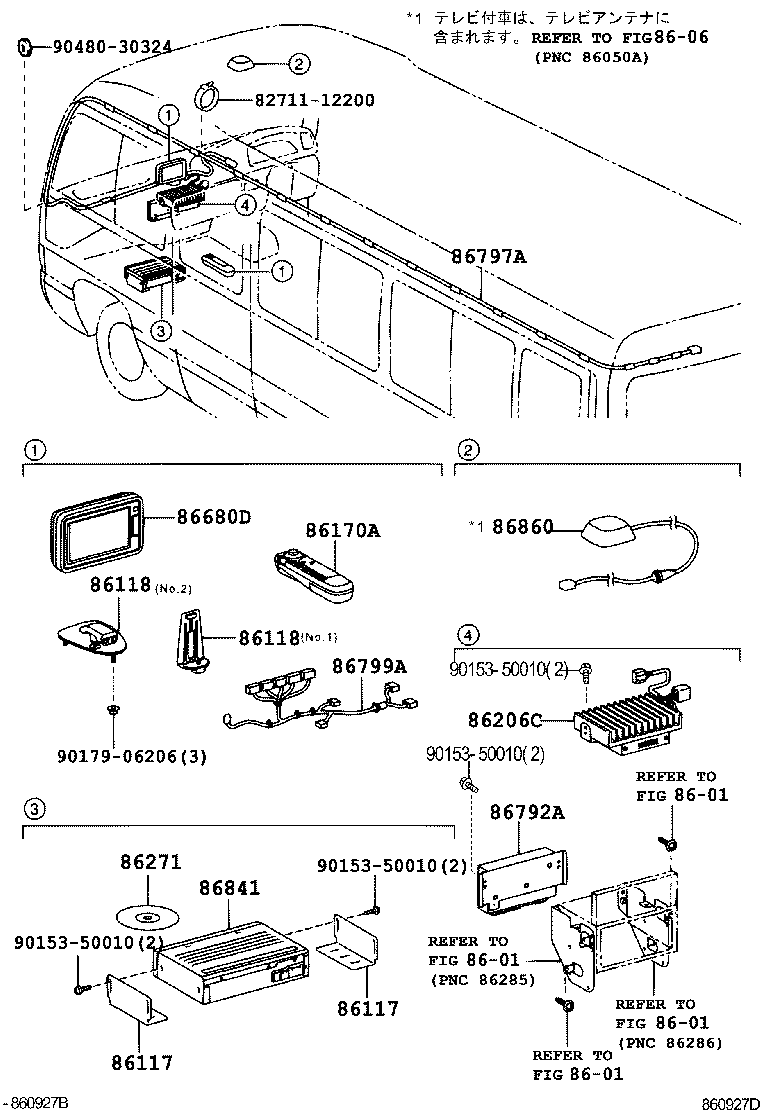

Navigation & Front Monitor Display
14 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 86117 | Bracket, Multi-display Controller, A |
| 86118 | Bracket, Multi-display Controler, B |
| 86119 | Wire, Television Switch |
| 86120L | Receiver Assy, Navigation |
| 86170A | Switch & Volume Assy |
| 86203A | Wiring Sub-assy, Television |
| 86206C | Converter Sub-assy, Voltage |
| 86271 | Disc, Disc Player |
| 86680D | Display Assy, Television |
| 86792A | Controller, Television Camera |
| 86797A | Wire, Television Camera, NO.2 |
| 86799A | Wire, Television Camera |
| 86841 | Computer, Navigation |
| 86860 | Antenna Assy, Navigation |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
