Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camera & Rear Monitor Display

73 part groups · 21 illustrations

Illustrations

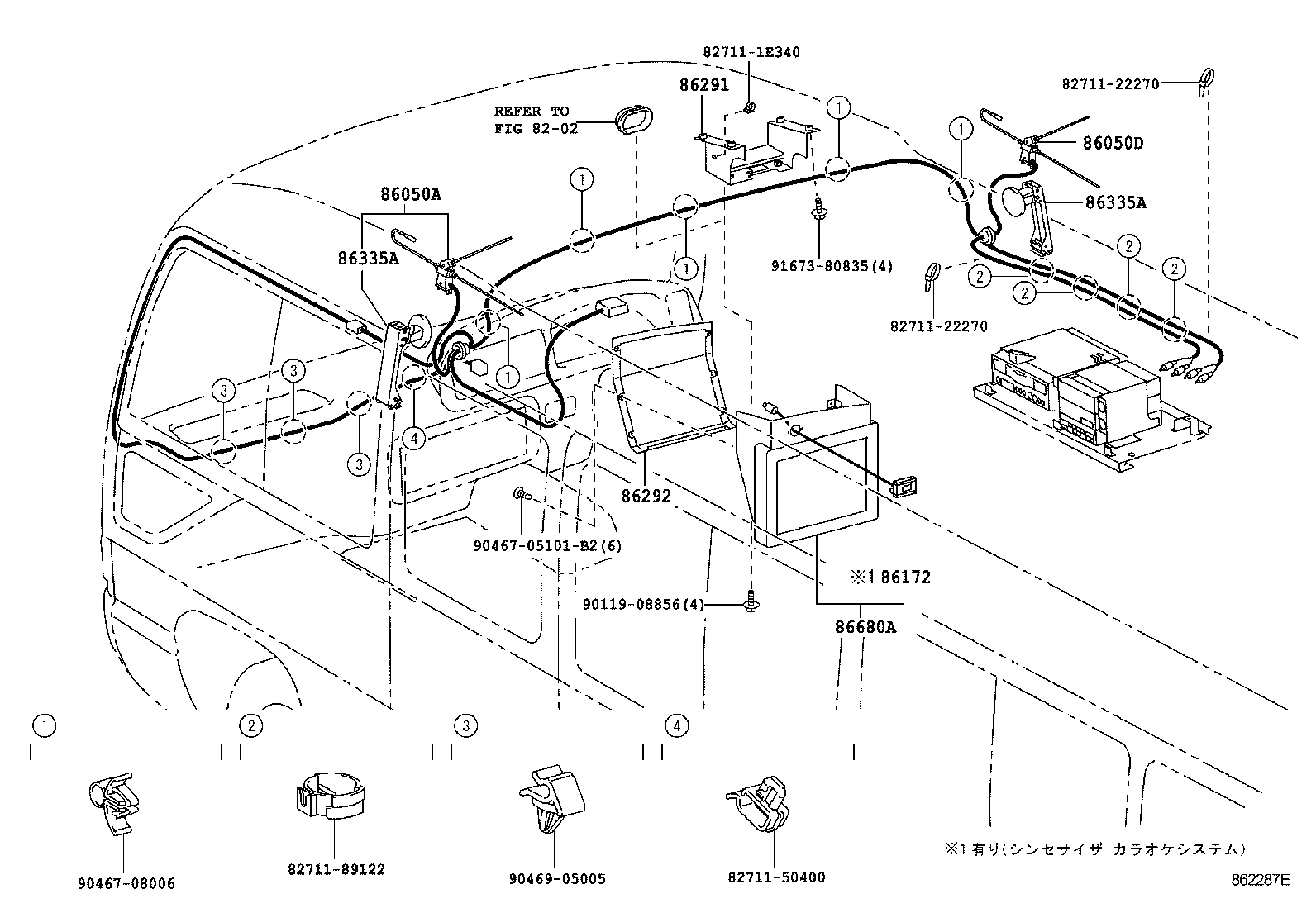

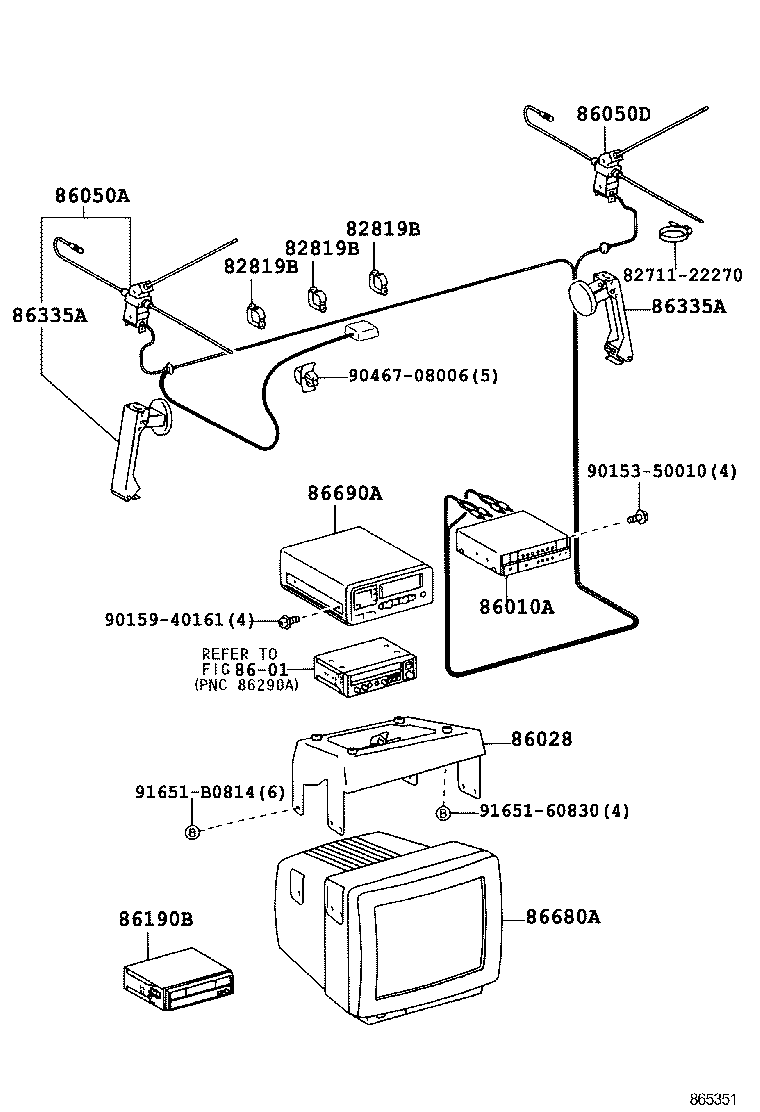

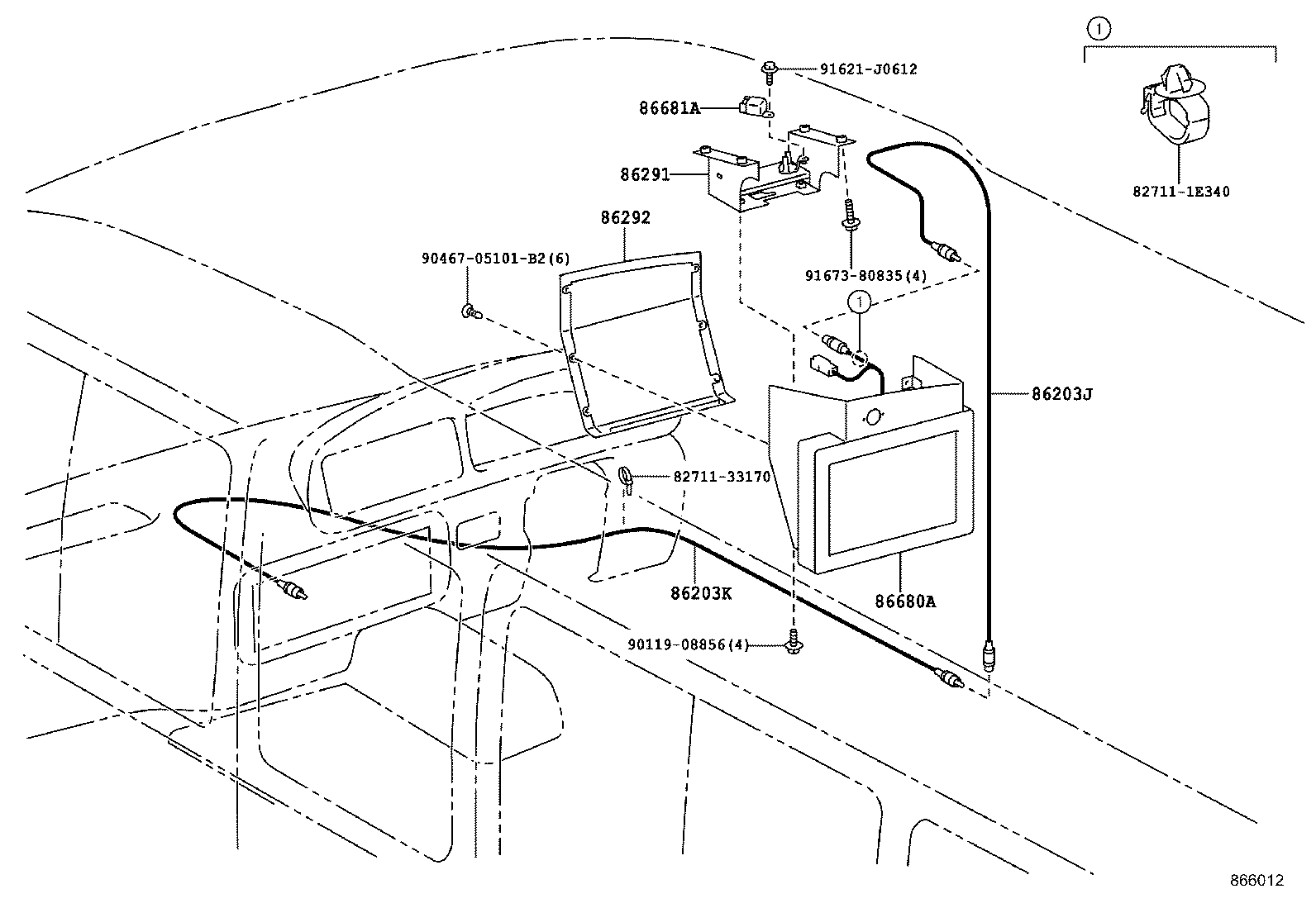

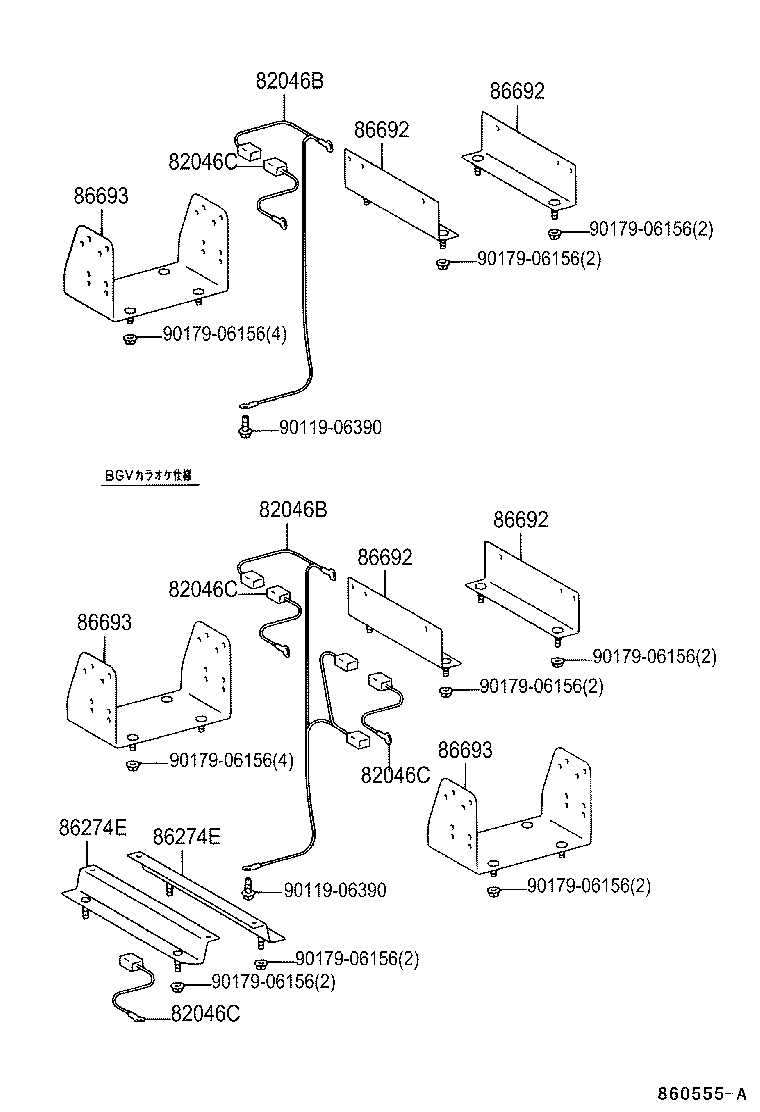

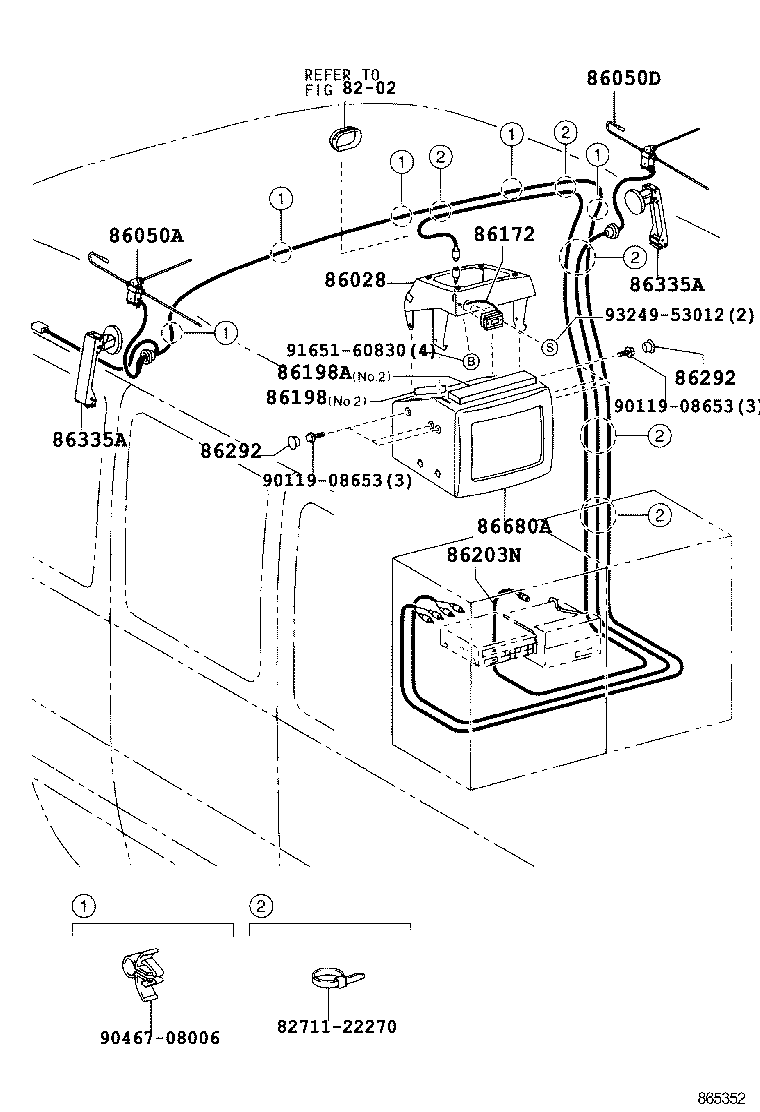

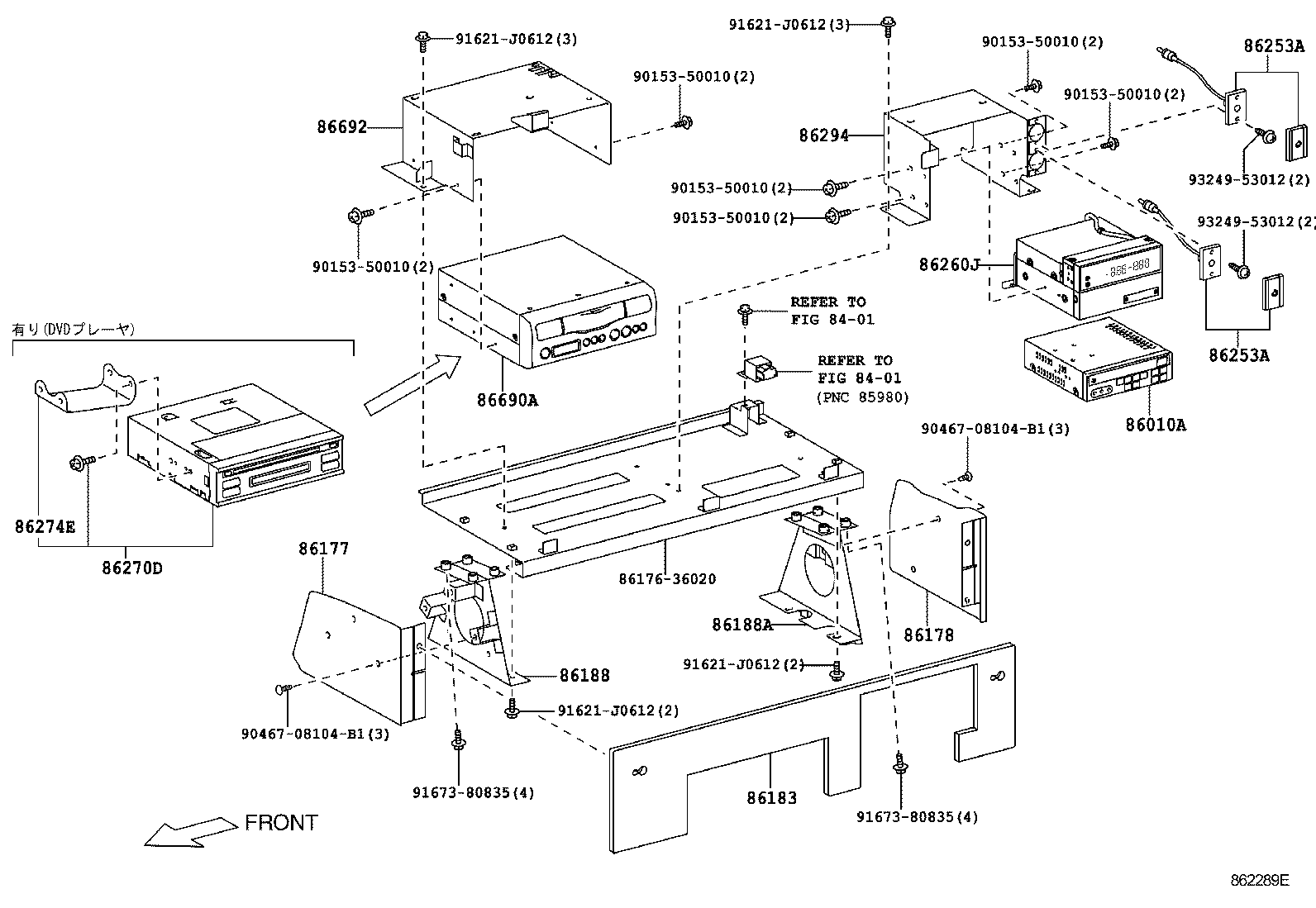

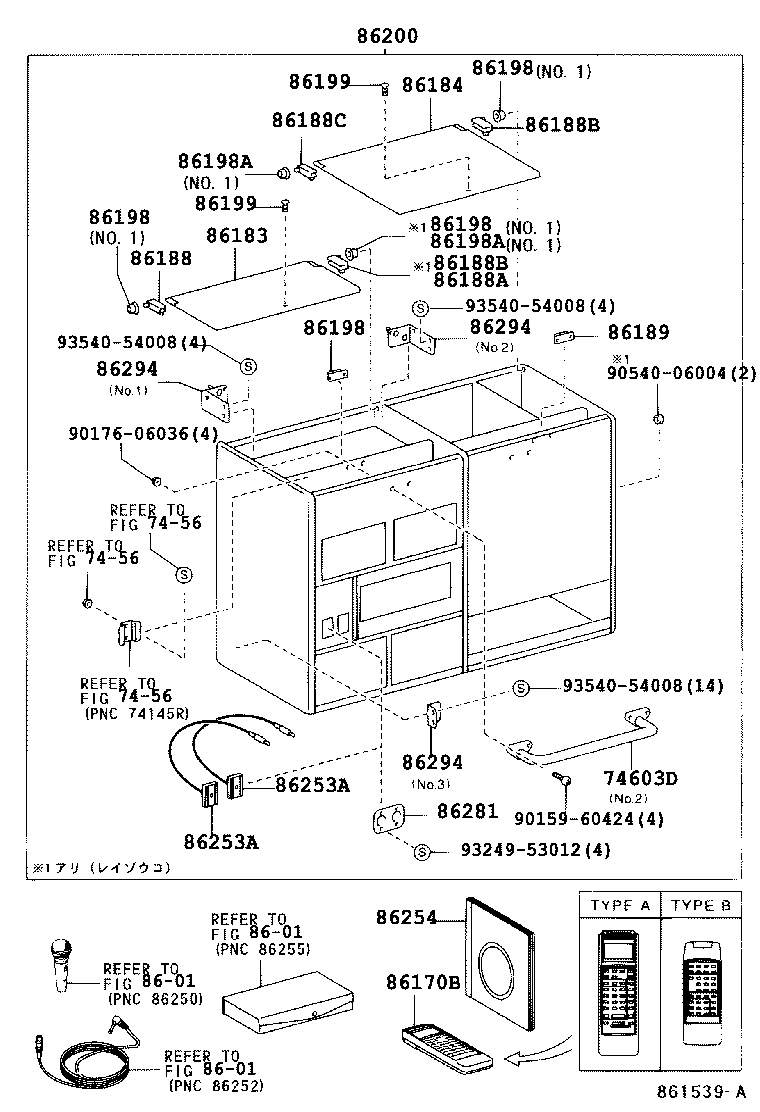

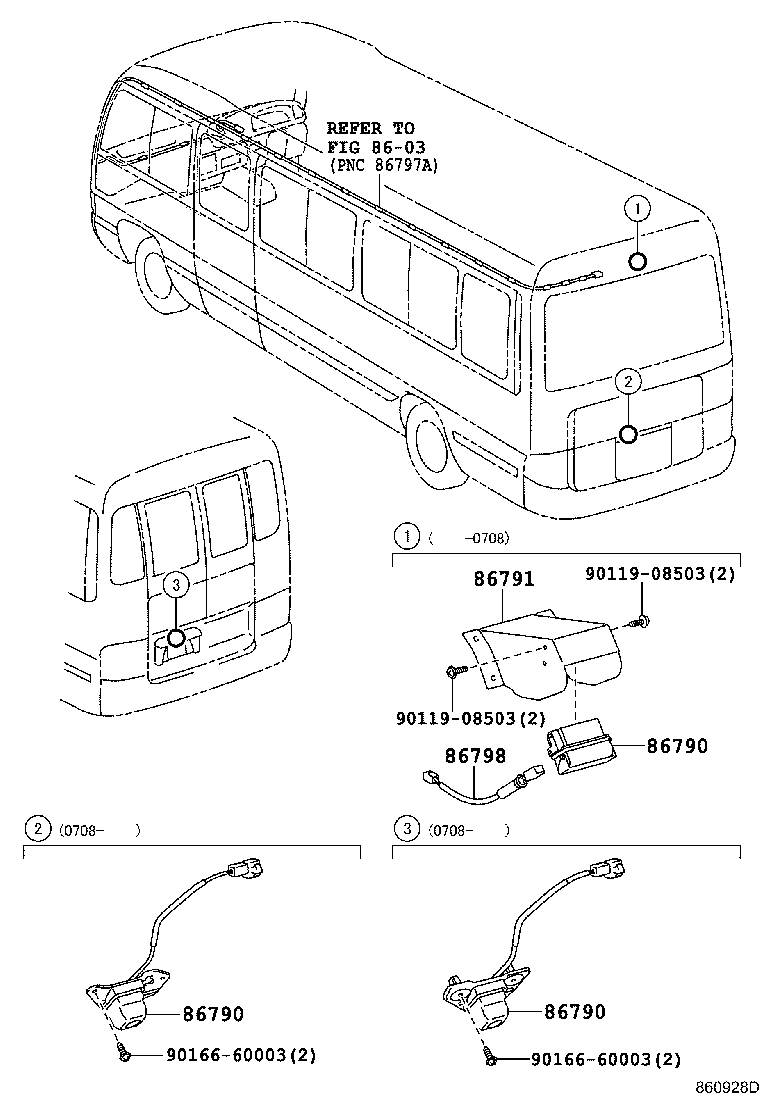

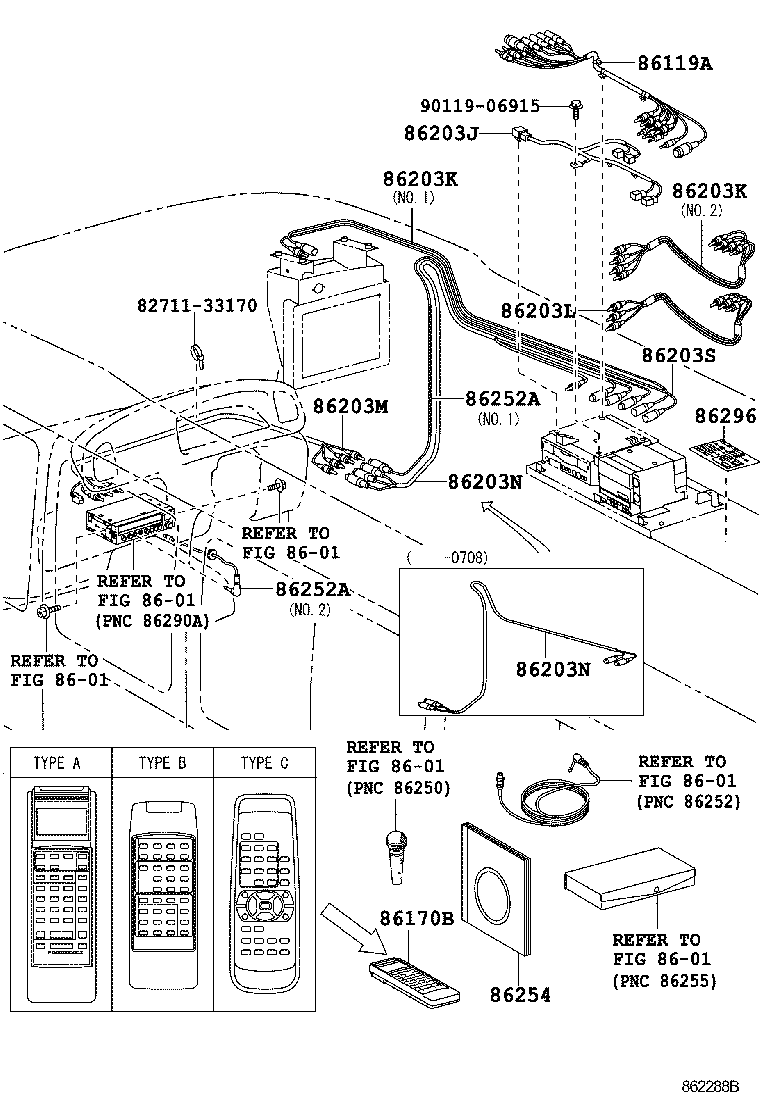

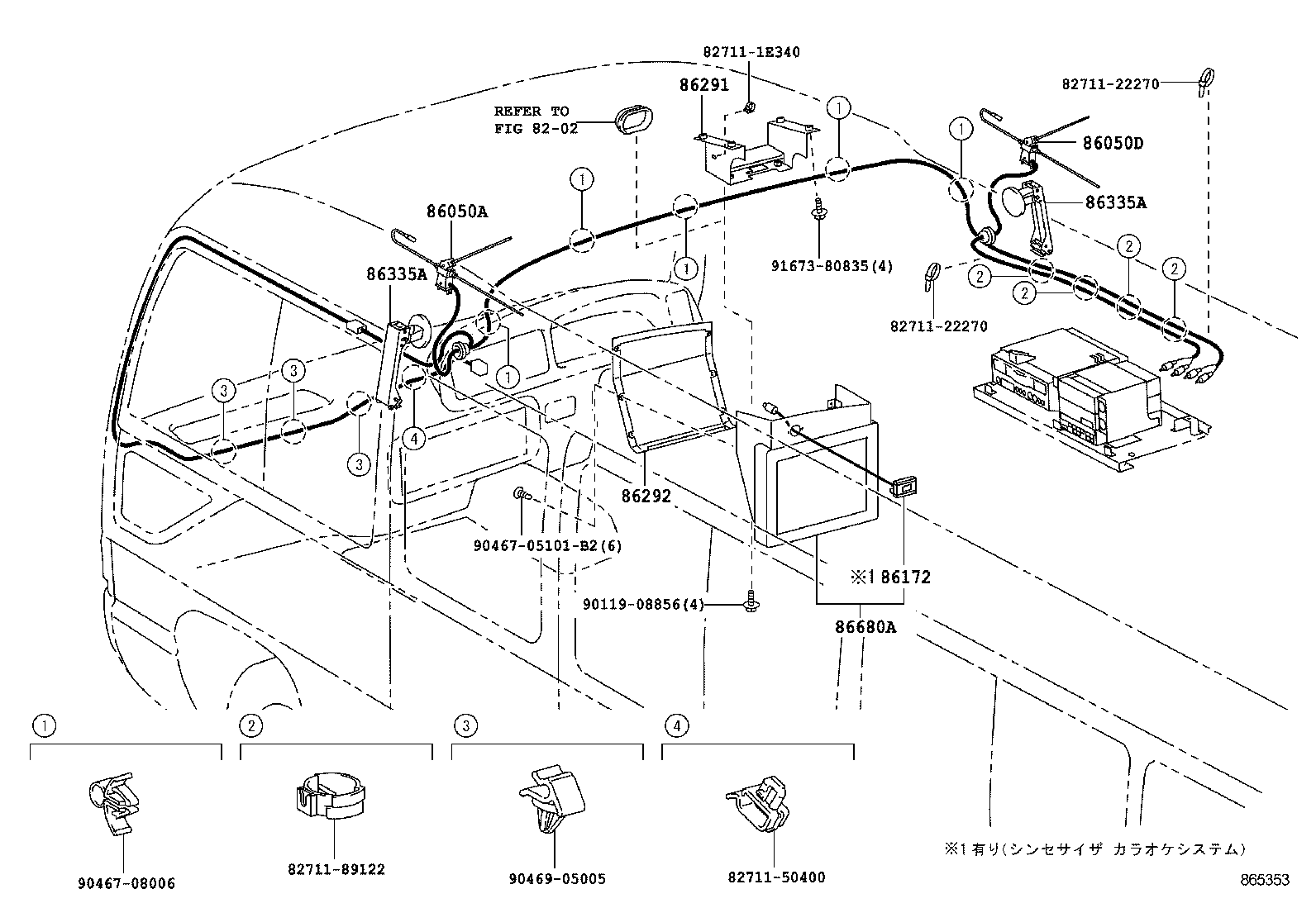

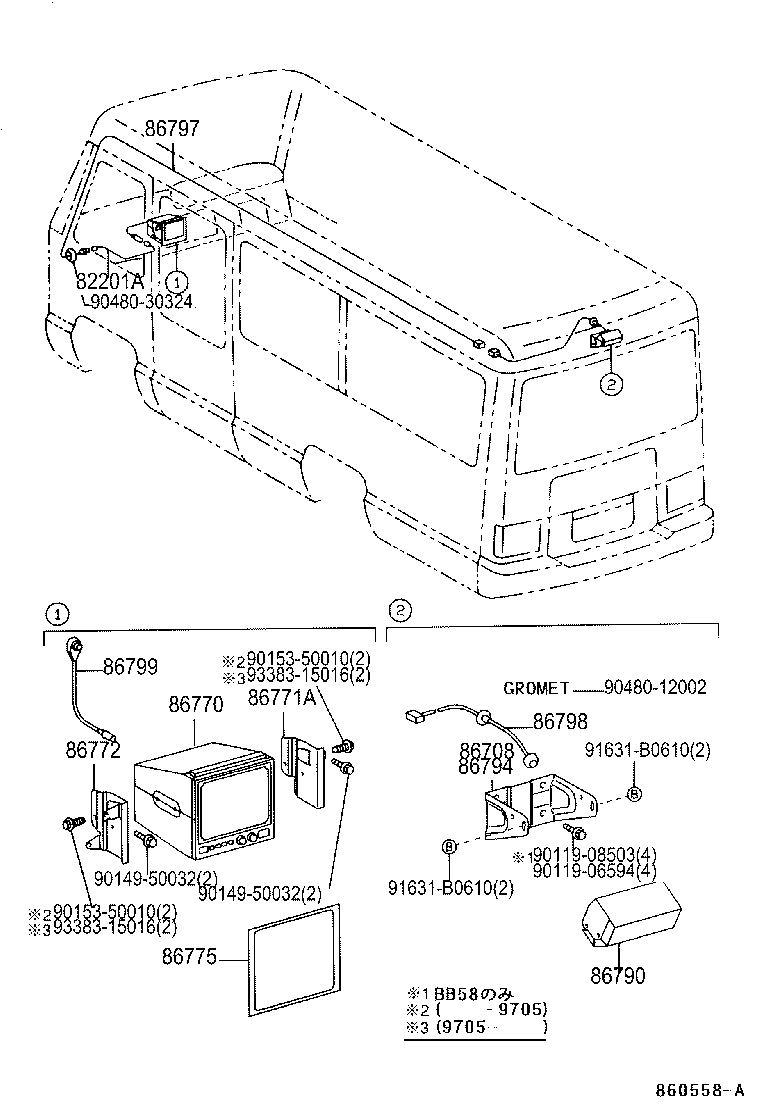

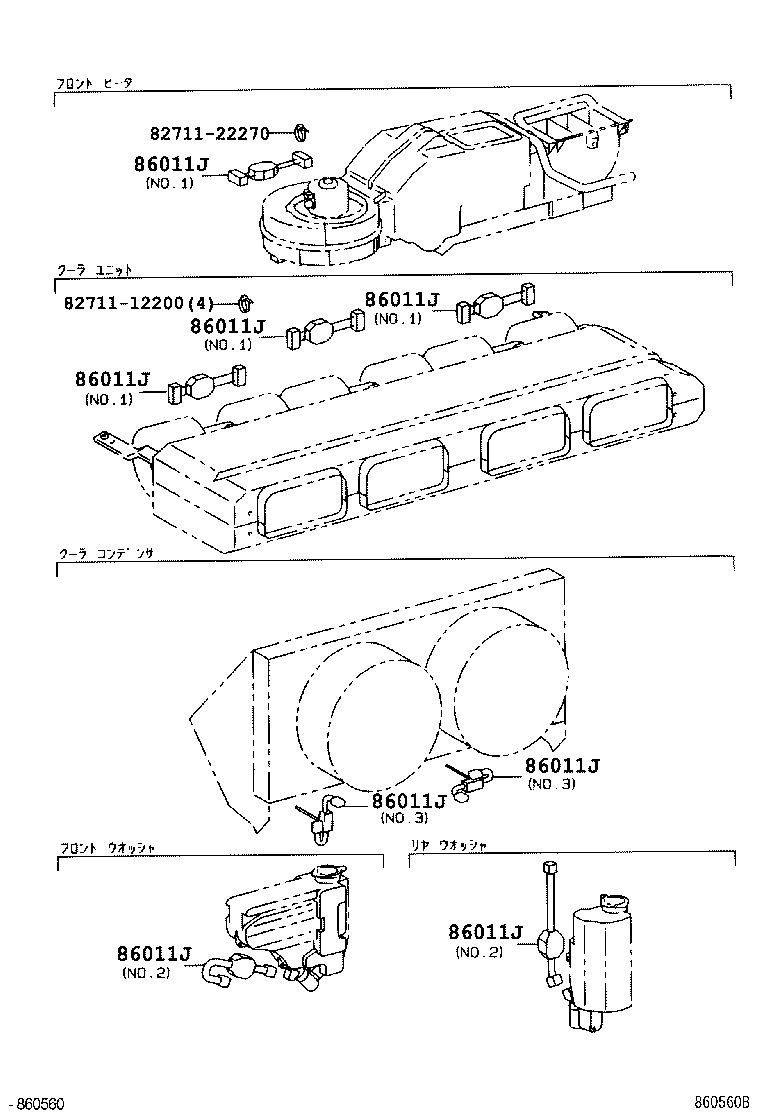

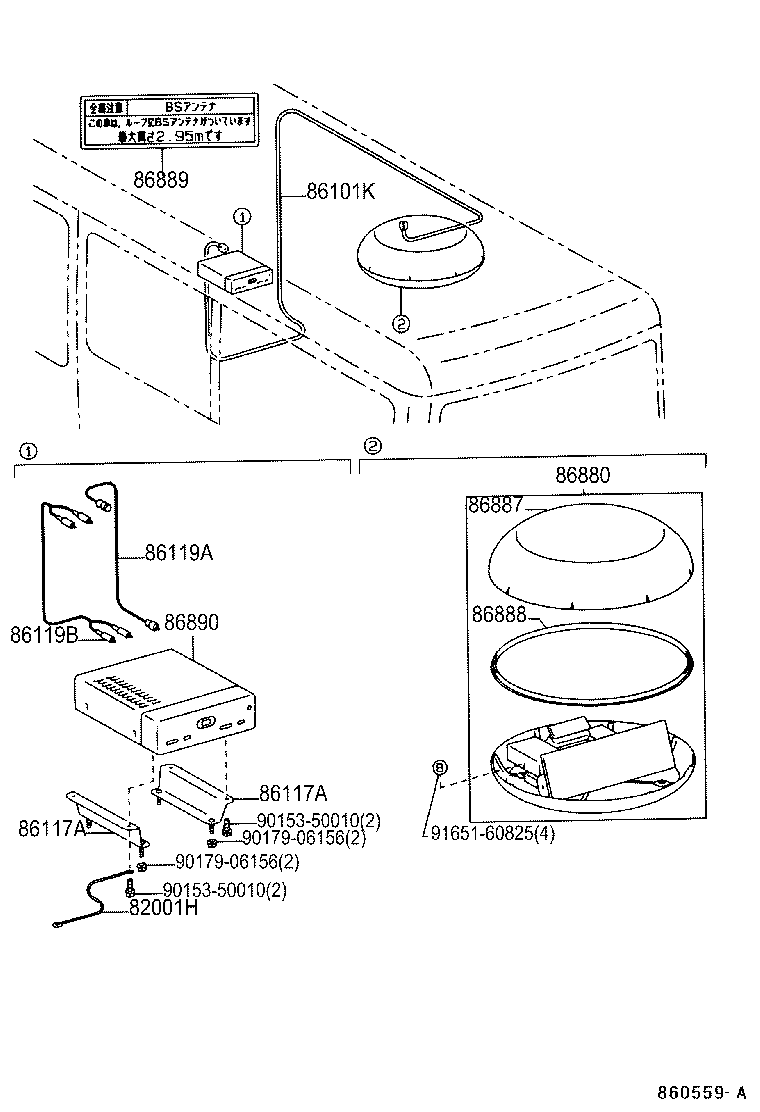

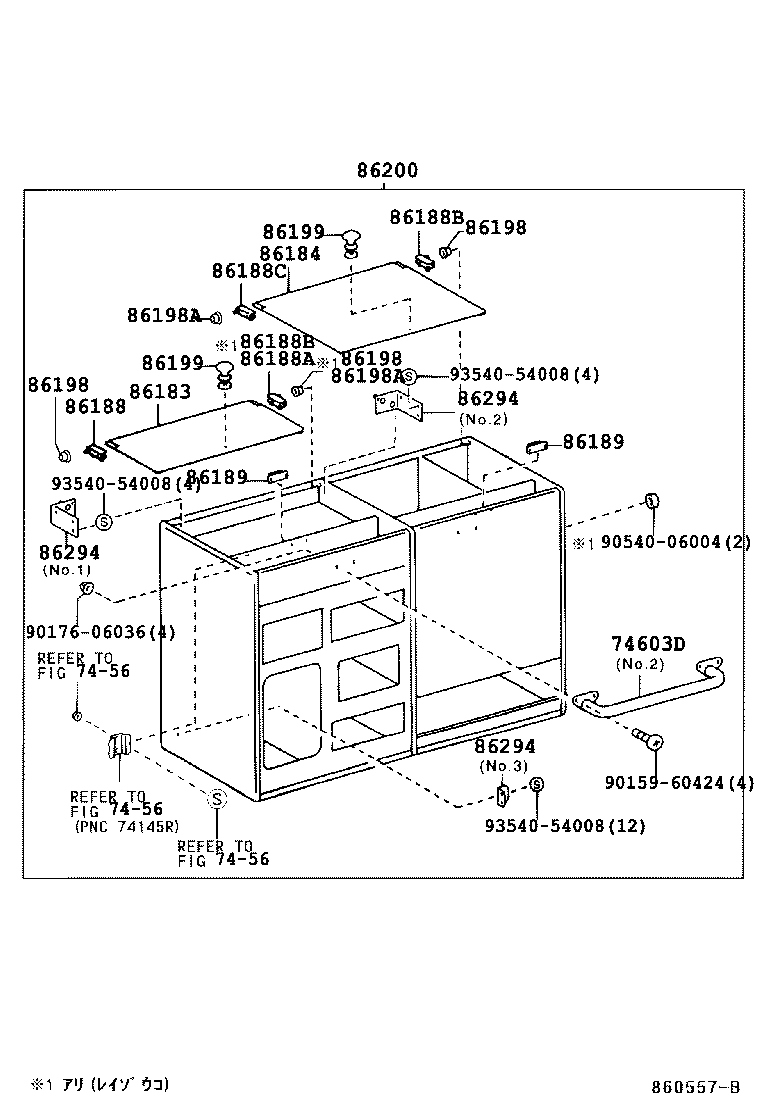

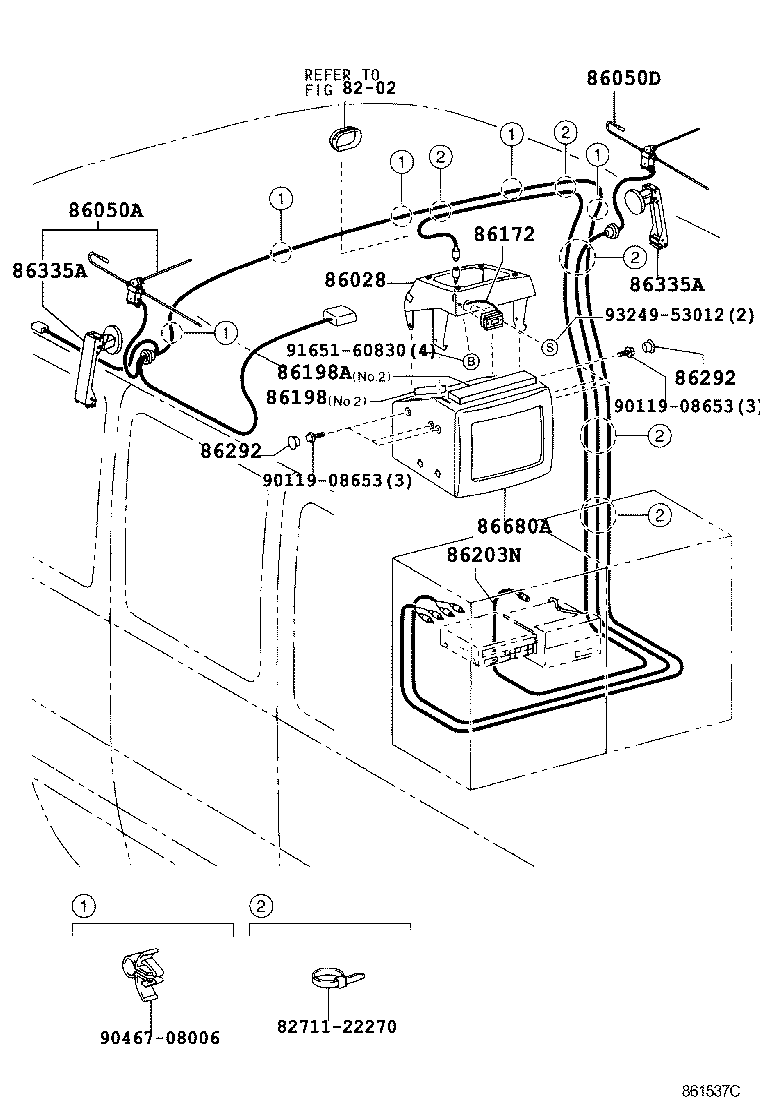

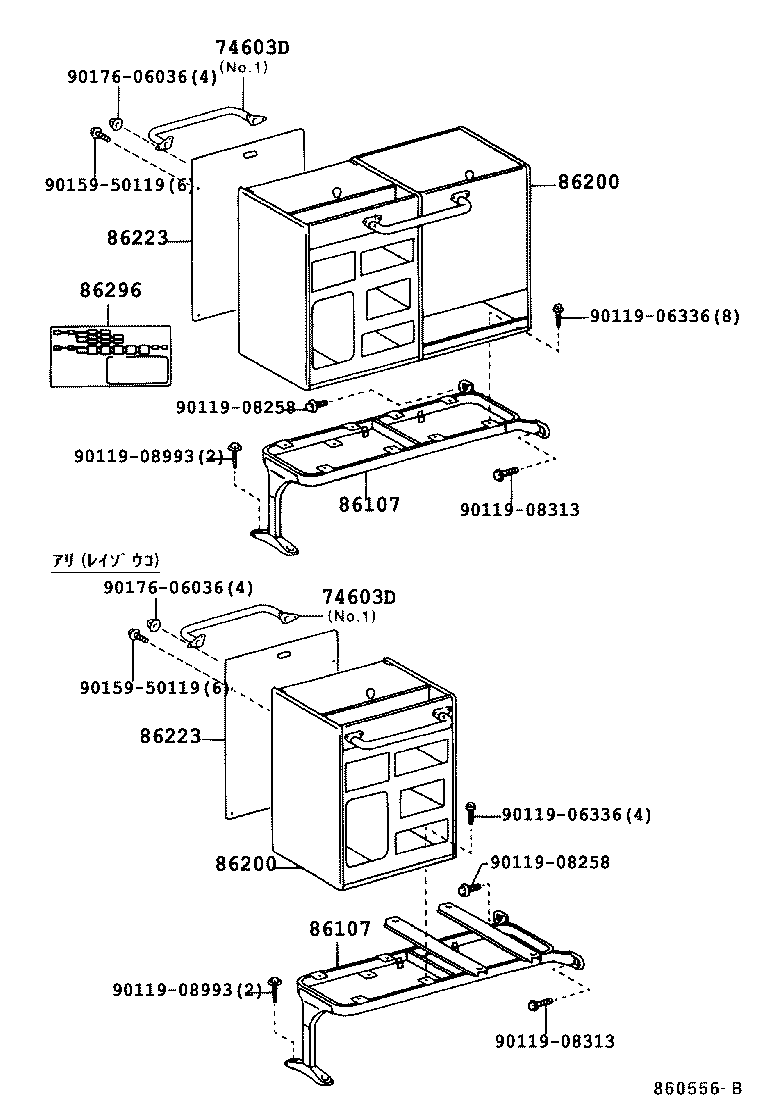

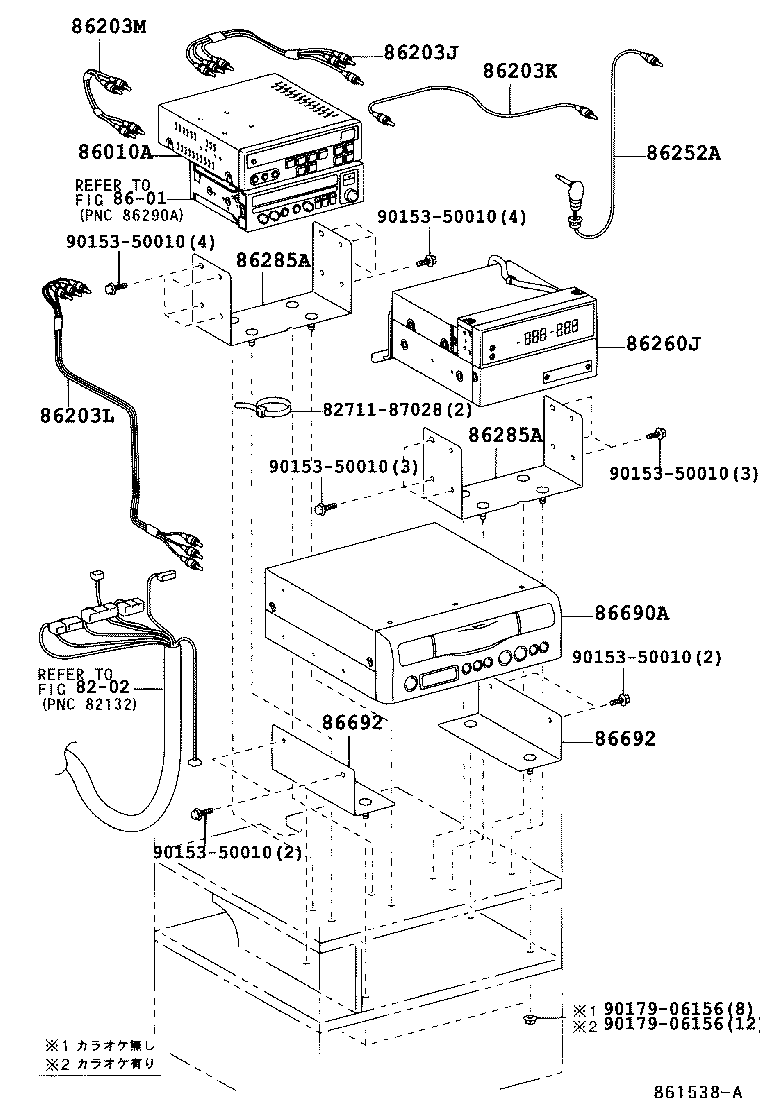

Figure 860553B 860553B 1993-01 → 2001-08 Figure 865351 865351 1993-01 → 2001-08 Figure 865352 865352 2001-08 → 2004-08 Figure 861537C 861537C 2001-08 → 2004-08 Figure 865353 865353 2004-08 → 2015-01 Figure 862287E 862287E 2004-08 → 2015-01 Figure 866012 866012 2015-01 → — Figure 860554A 860554A 1993-01 → 2001-08 Figure 860555A 860555A 1993-01 → 2001-08 Figure 861538A 861538A 2001-08 → 2004-08 Figure 862288B 862288B 2004-08 → 2015-01 Figure 860556B 860556B 1993-01 → 2001-08 Figure 860556B 860556B 2001-08 → 2004-08 Figure 860557B 860557B 1993-01 → 2001-08 Figure 861539A 861539A 2001-08 → 2004-08 Figure 862289E 862289E 2004-08 → 2015-01 Figure 860558A 860558A 1993-01 → 1999-07 Figure 860928D 860928D 1999-07 → 2004-08 Figure 860928D 860928D 2004-08 → — Figure 860559A 860559A 1993-01 → 1999-07 Figure 860560B 860560B 1993-01 → 2015-01

Part groups

PNCDescription
74603D Grip Sub-assy, Audio Rack Assist
82001H Cable, Bond
82046B Wire Sub-assy, Body Ground, NO.1
82046C Wire Sub-assy, Body Ground, NO.2
82201A Wire, Television
82819B Grommet, Wiring Harness
86010A Tuner Assy, Television
86011J Filter, Noise
86028 Bracket Sub-assy, Television
86050A Antenna Assy, Television
86050D Antenna Assy, Television
86101K Cord Sub-assy, Television Antenna
86107 Leg Sub-assy, Audio Rack, NO.1
86117A Bracket, Television Display, A
86119A Wire, Television Switch
86119B Wire, Television Switch
86170B Switch & Volume Assy, Television
86172 Receiver, Television Remote Control
86177 Bracket, Audio Rack Leg, NO.1
86178 Bracket, Audio Rack Leg, NO.2
86183 Cover, Audio Rack
86184 Cover, Audio Rack, NO.2
86188 Bracket, Audio Rack Cover, NO.1
86188A Bracket, Audio Rack Cover, NO.2
86188B Bracket, Audio Rack Cover, NO.3
86188C Bracket, Audio Rack Cover, NO.4
86189 Lock, Audio Rack Cover
86190B Adapter Assy, Remote Control
86198 Spacer, Audio Rack Cover, NO.1
86198A Spacer, Audio Rack Cover, NO.2
86199 Knob, Audio Rack Cover
86200 Rack Assy, Audio
86203J Wiring Sub-assy, Television, NO.1
86203K Wiring Sub-assy, Television, NO.2
86203L Wiring Sub-assy, Television, NO.3
86203M Wiring Sub-assy, Television, NO.4
86203N Wiring Sub-assy, Television, NO.5
86203S Wiring Sub-assy, Television, NO.6
86223 Board, Audio Rack, NO.1
86252A Cord, Microphone, NO.1
86253A Cord, Microphone, NO.3
86254 Index, Karaoke
86260J Karaoke Assy
86270D Disc Player Assy
86274E Bracket, Disc Player
86281 Plate, Microphone Jack Cover
86285A Bracket, Amplifier, NO.2
86291 Bracket, Television
86292 Cover, Television Set
86294 Bracket, Audio Rack
86296 Label, Television Information
86335A Base, Antenna Pole
86680A Display Assy, Television
86681A Relay, Television
86690A Video Deck Assy
86692 Bracket, Video, NO.1
86693 Bracket, Video, NO.2
86708 Bracket Sub-assy, Television Camera
86770 Display Assy, Television
86771A Bracket, Television Camera Display, RH
86772 Bracket, Television Camera Display, LH
86775 Plate, Television Camera Display
86790 Camera Assy, Television
86791 Bracket, Television Camera
86794 Cover, Television Camera Wire
86797 Wire, Television Camera, NO.2
86798 Wire, Television Camera, NO.3
86799 Wire, Television Camera
86880 Antenna Assy, Broadcasting Satellite
86887 Cover, BS Antenna
86888 Weatherstrip, BS Antenna
86889 Label, BS Antenna Notice
86890 Tuner Assy, Broadcasting Satellite
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
