Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

42 part groups · 23 illustrations

Illustrations

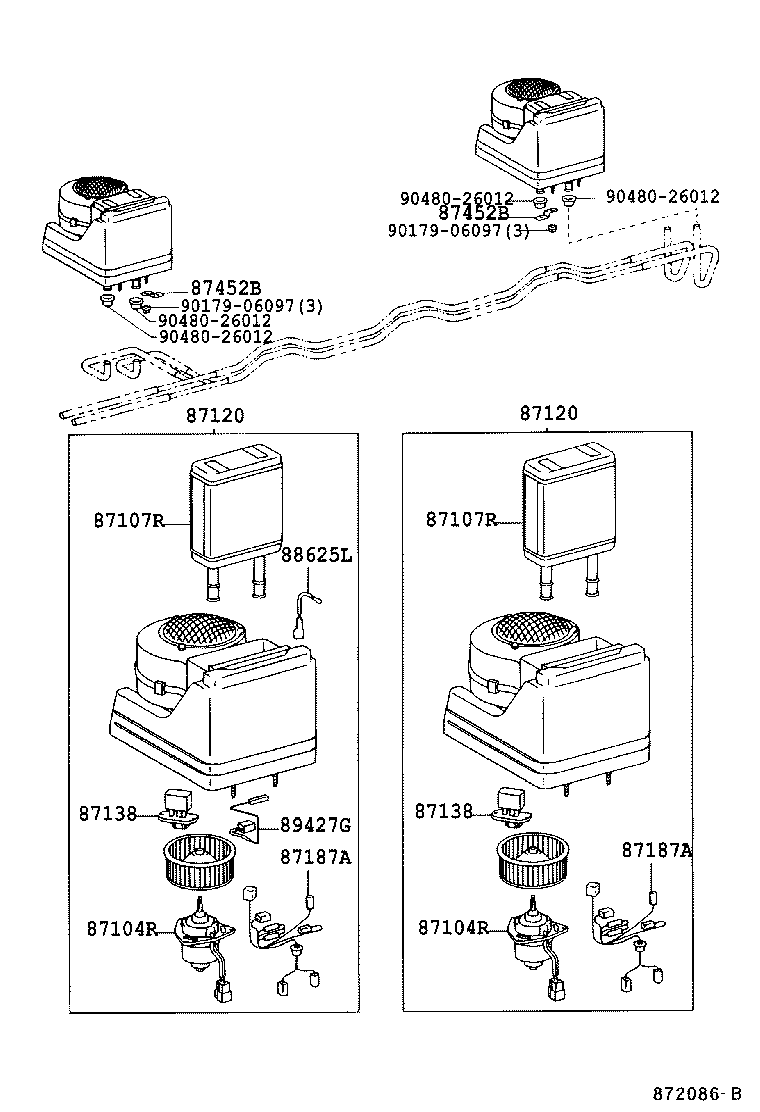

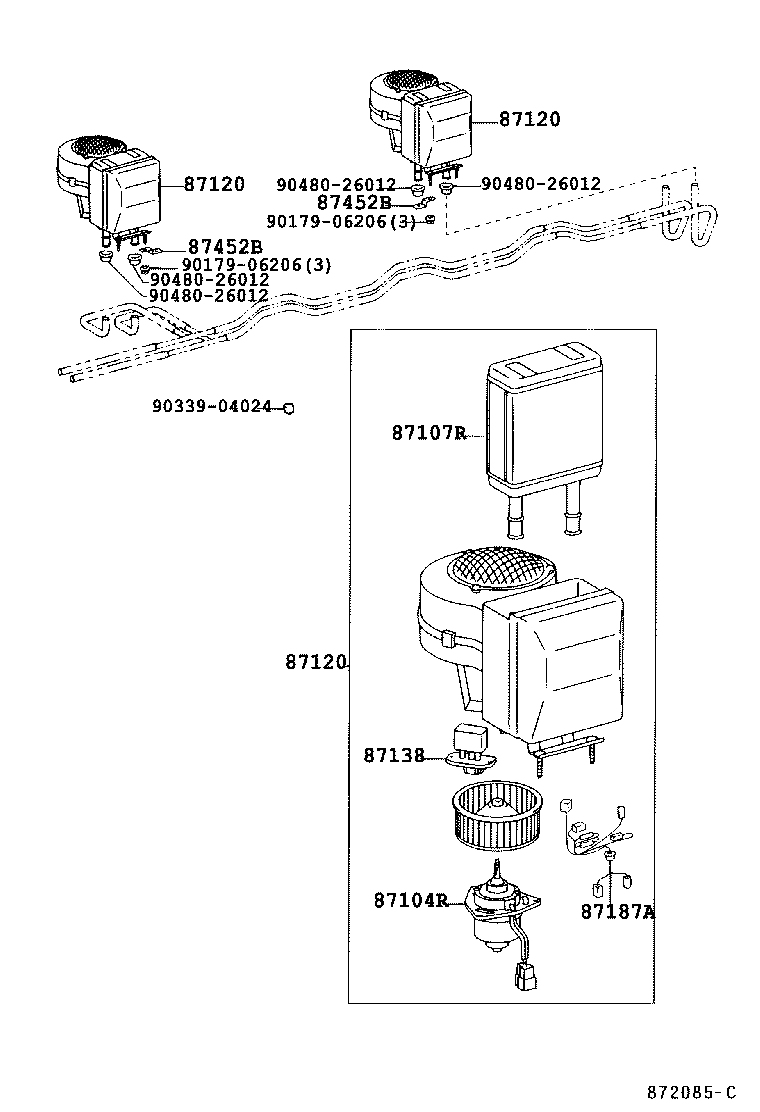

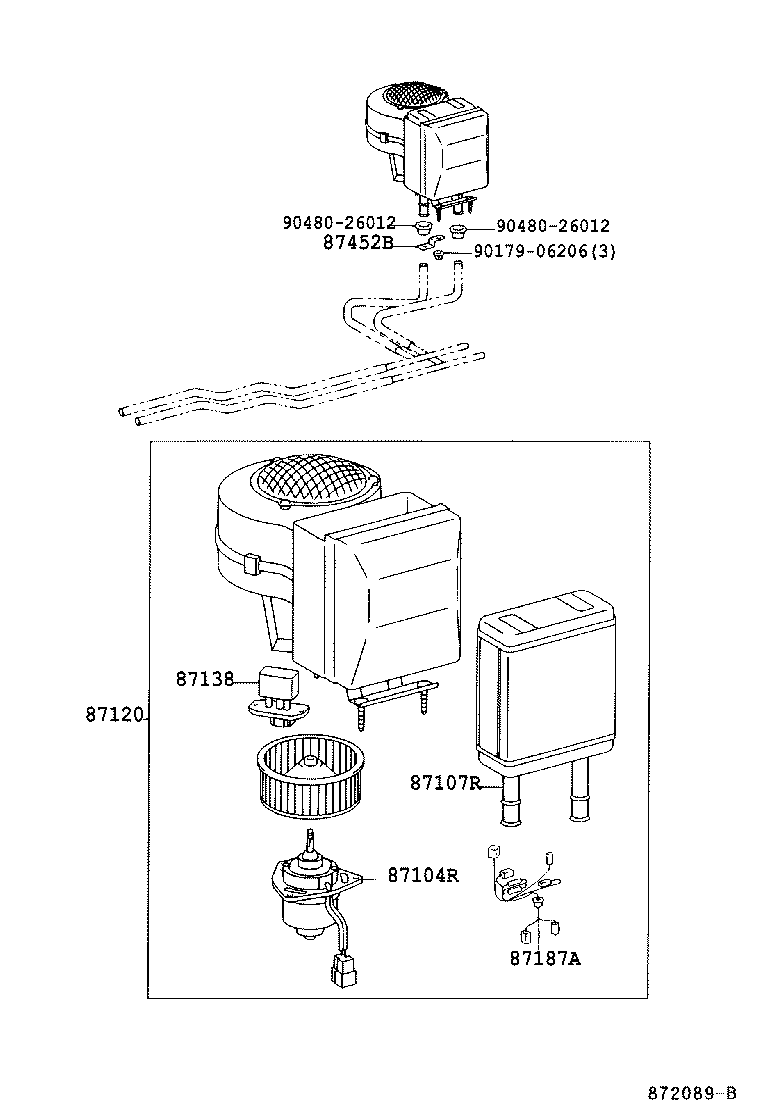

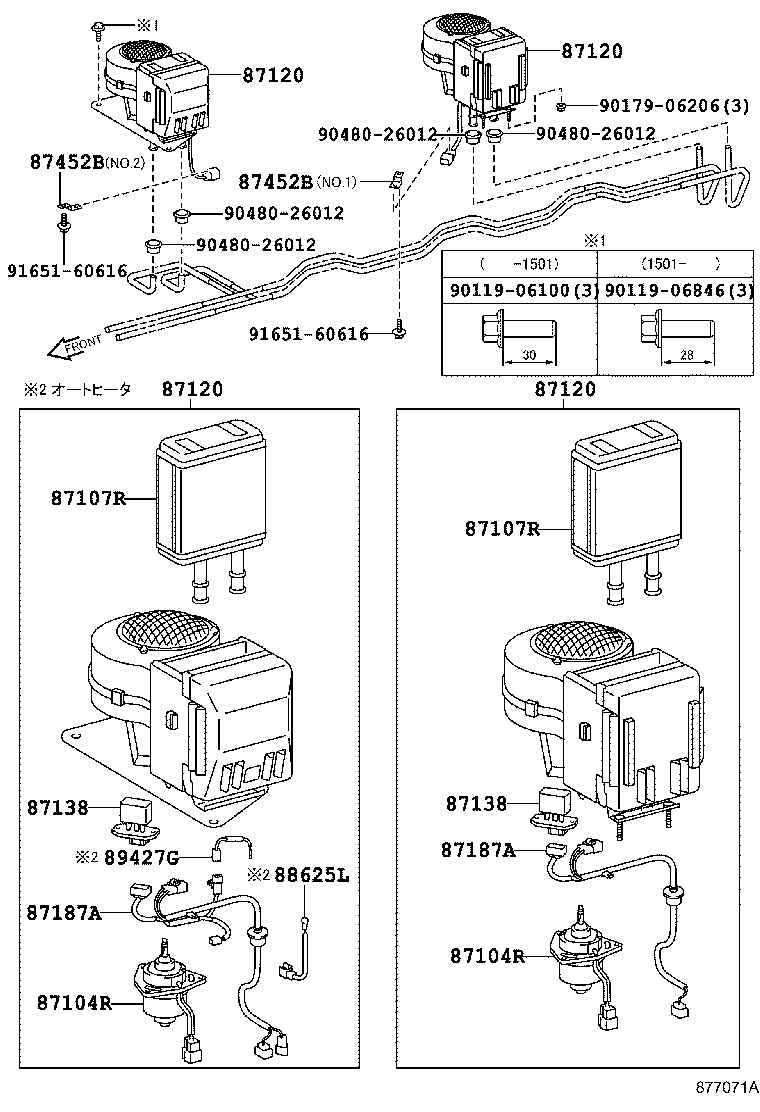

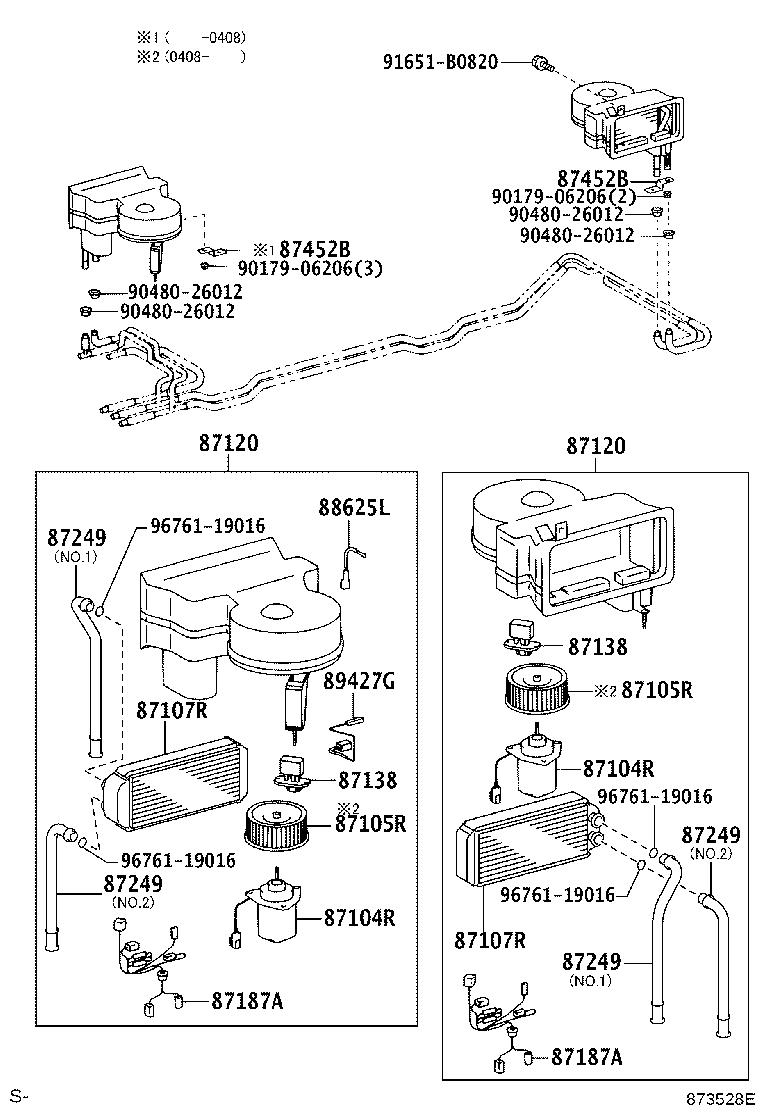

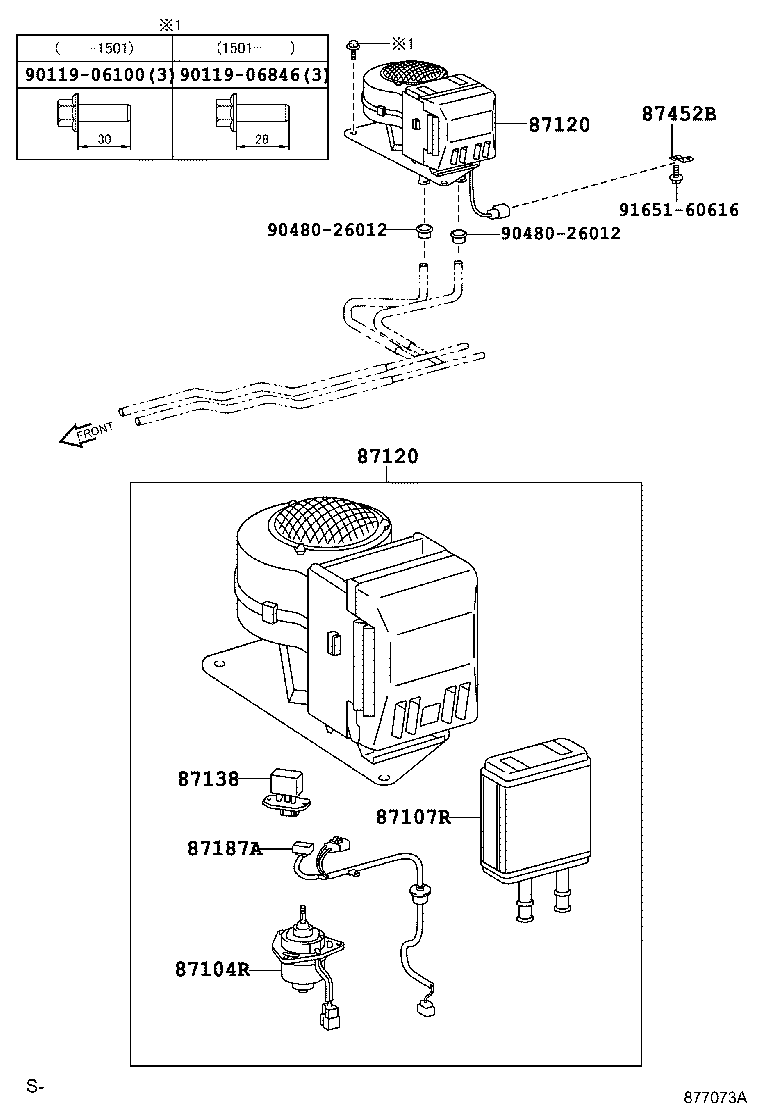

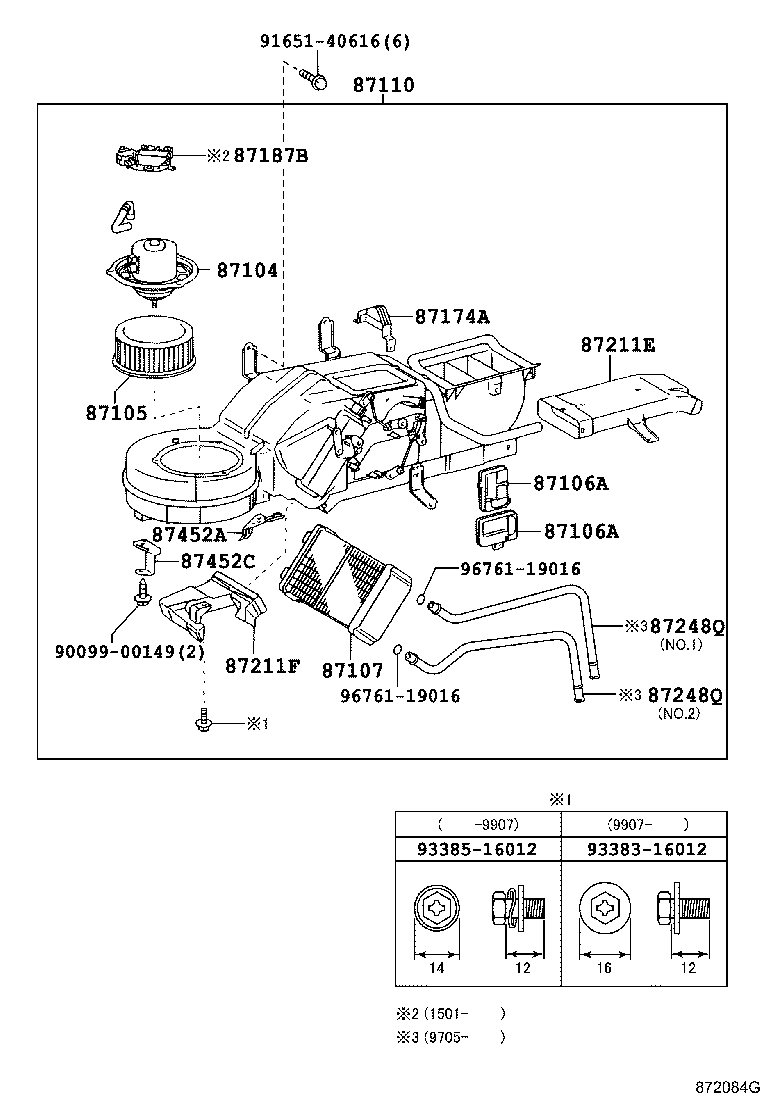

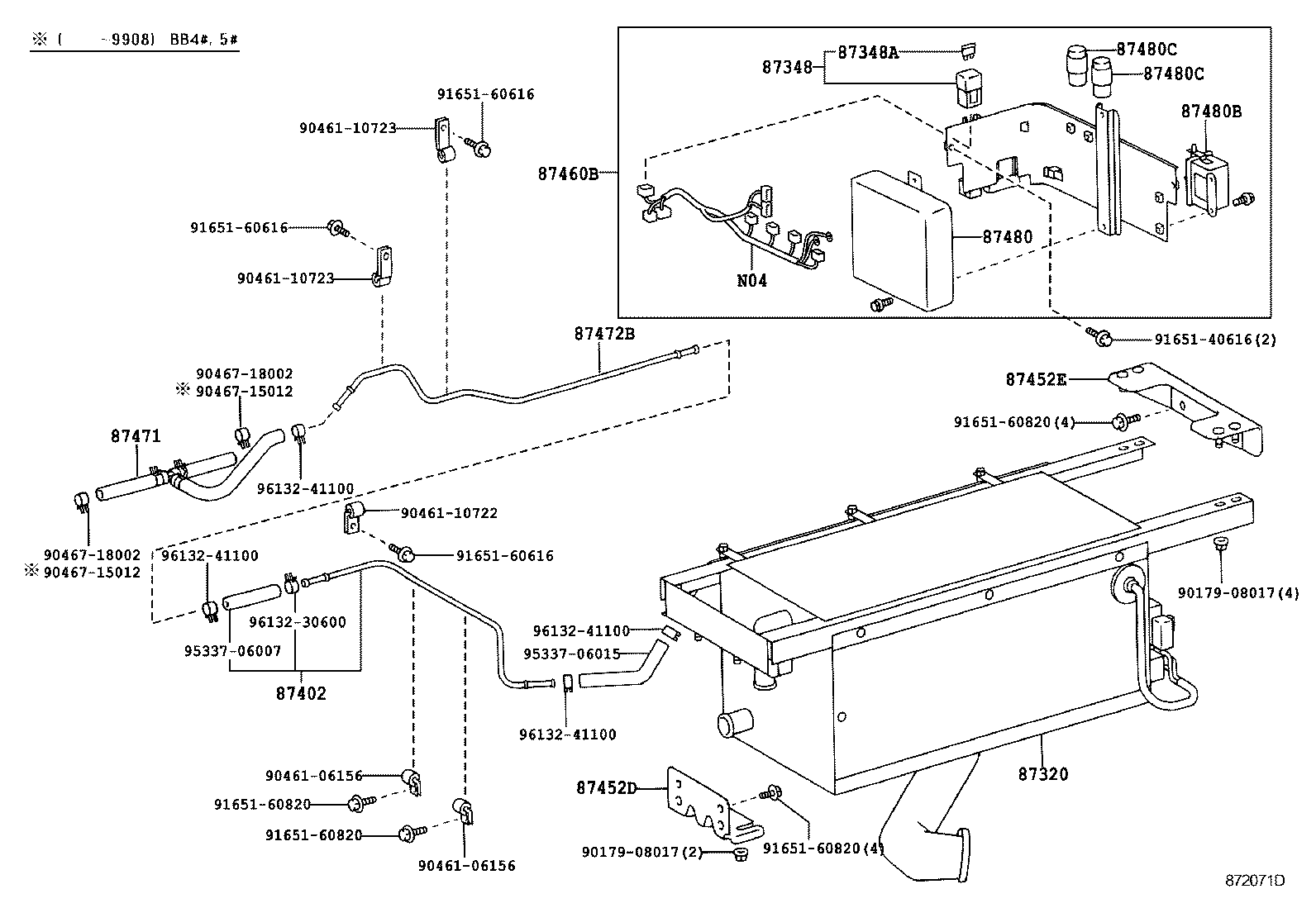

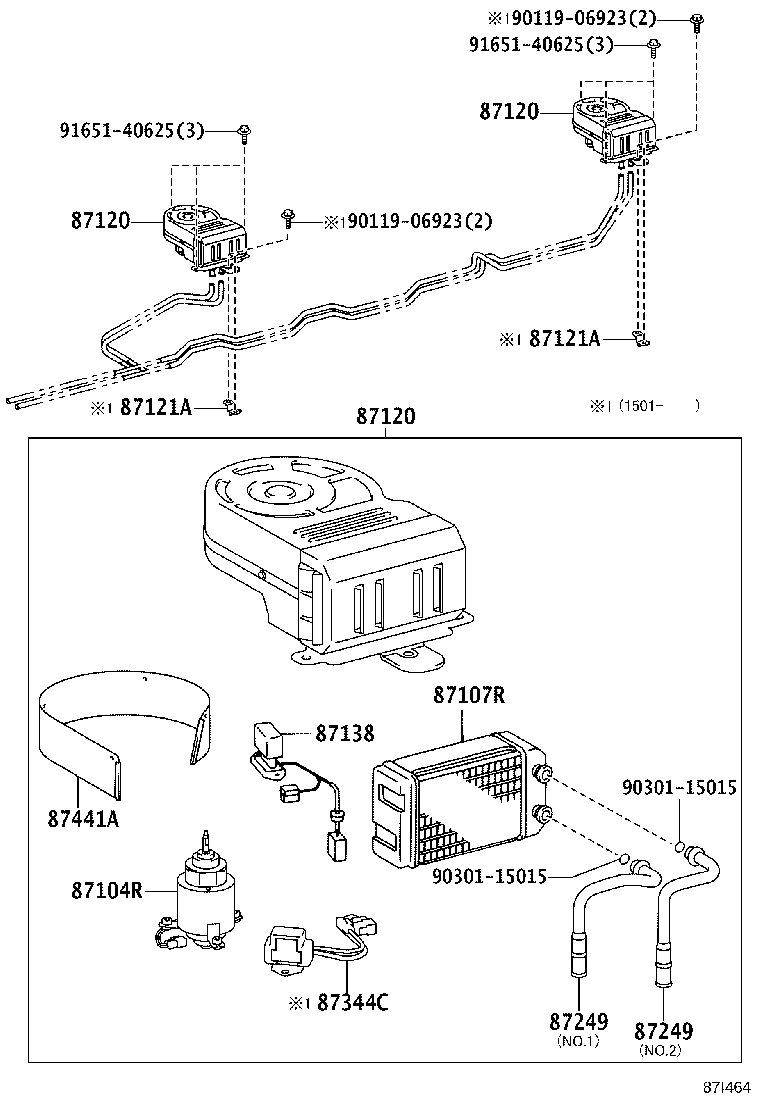

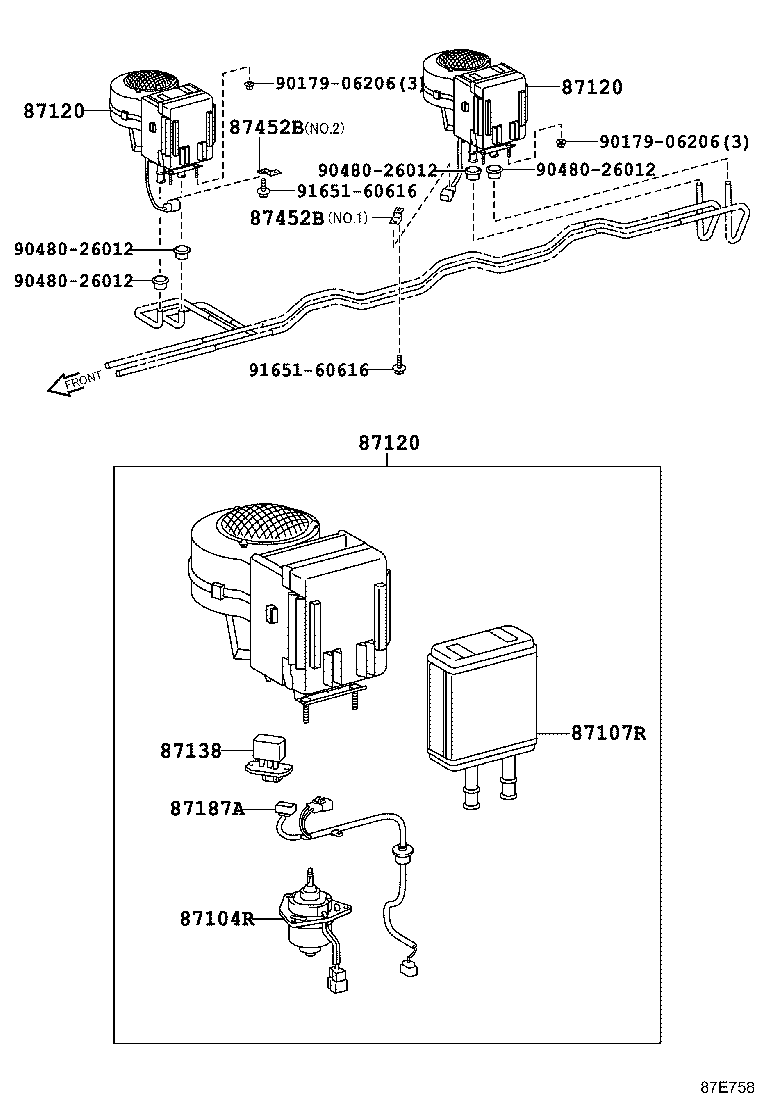

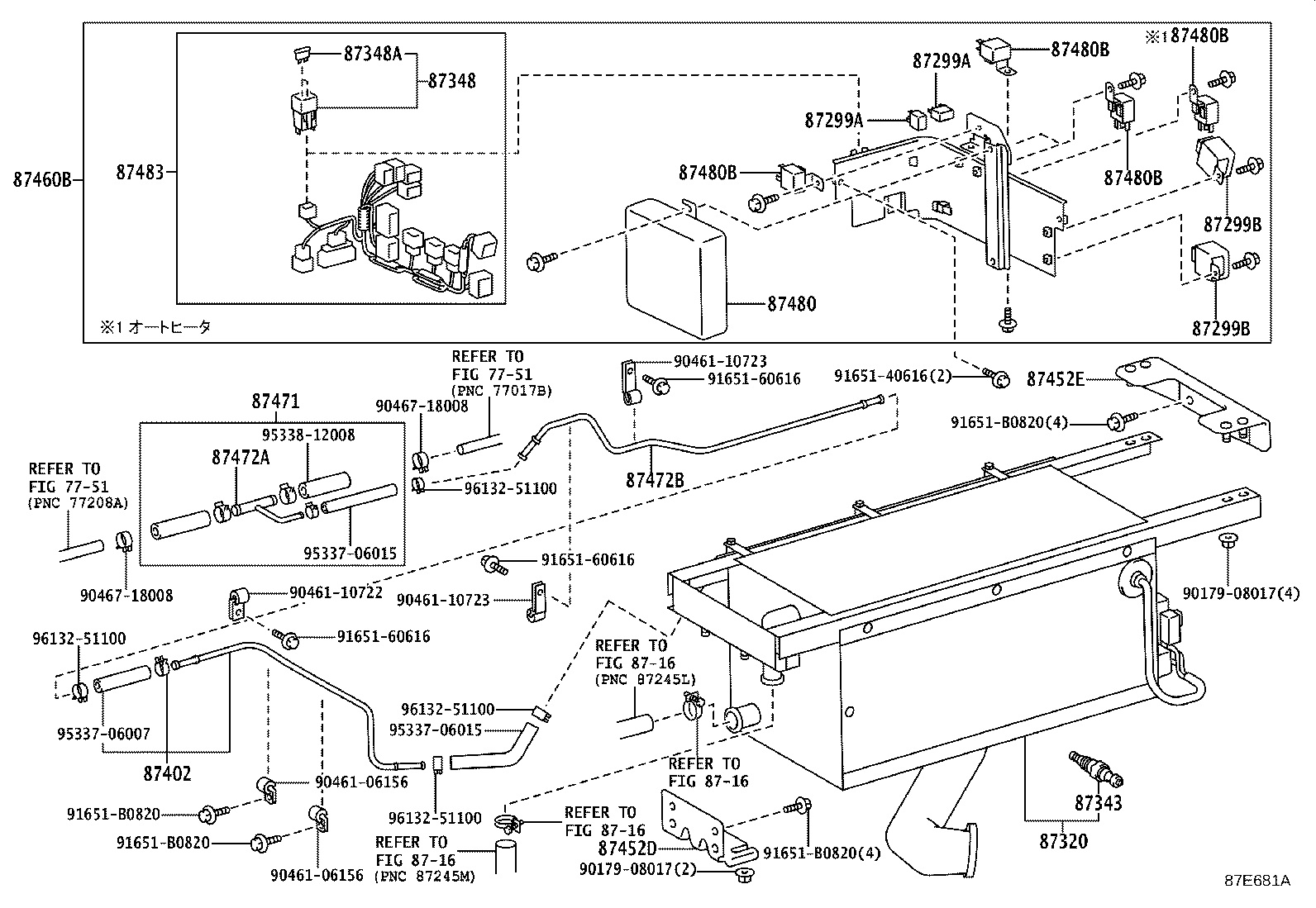

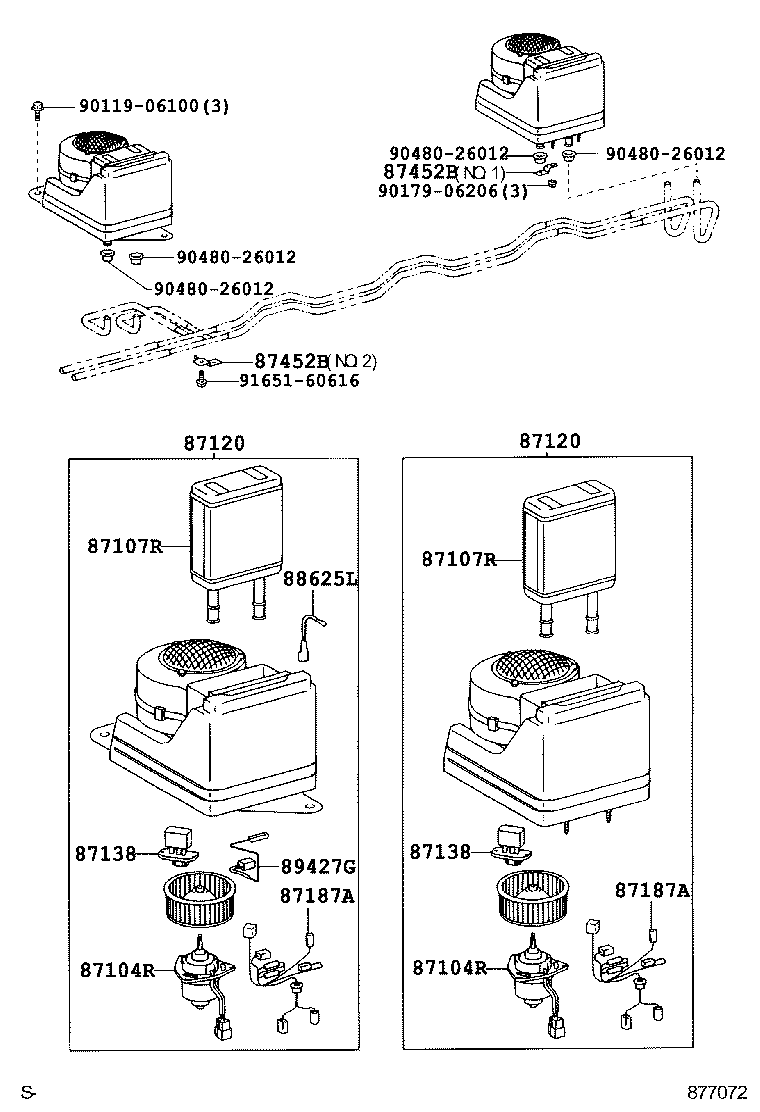

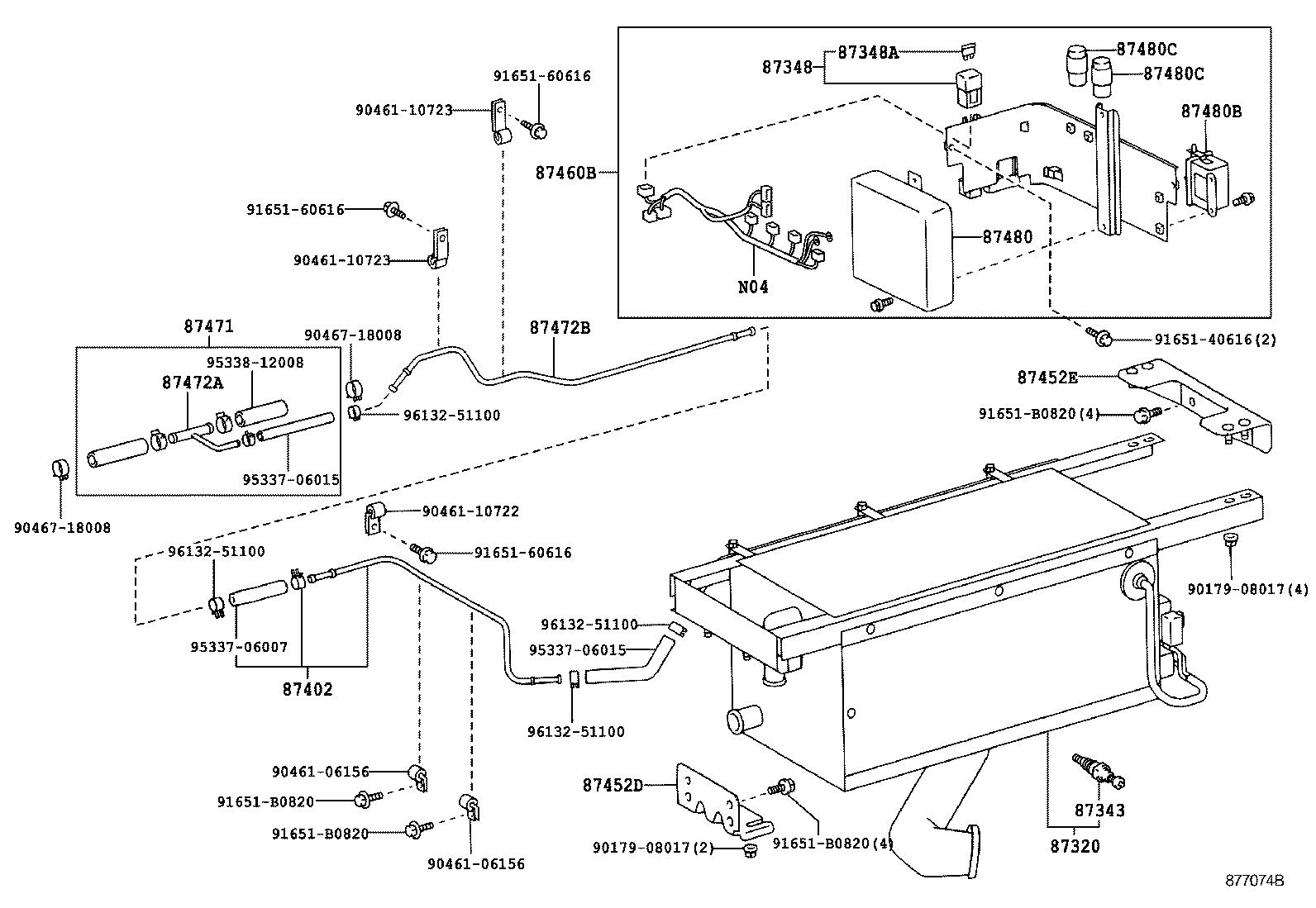

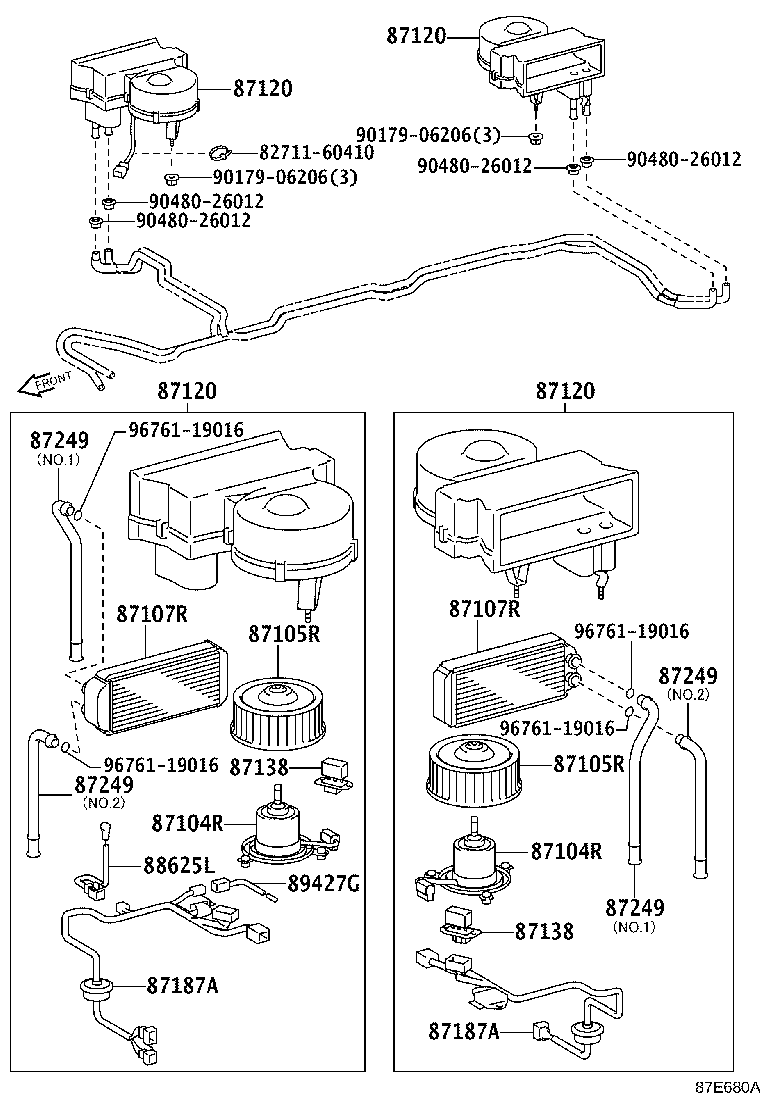

Figure 872083H 872083H 1993-01 → — Figure 872084G 872084G 1993-01 → 2004-08 Figure 872084G 872084G 2001-08 → 2004-08 Figure 872084G 872084G 2004-08 → — Figure 872085C 872085C 1993-01 → 2004-08 Figure 872085C 872085C 2002-11 → 2004-08 Figure 872085C 872085C 2004-08 → 2015-01 Figure 872086B 872086B 1993-01 → 2004-08 Figure 872086B 872086B 2001-08 → 2004-08 Figure 873528E 873528E 1993-01 → 2004-08 Figure 873528E 873528E 2004-08 → 2015-01 Figure 87I464 87I464 1993-01 → 2015-01 Figure 87I464 87I464 2015-01 → — Figure 872089B 872089B 1993-01 → 2004-08 Figure 877071A 877071A 2004-08 → 2015-01 Figure 877071A 877071A 2015-01 → — Figure 877072 877072 2004-08 → 2015-01 Figure 877073A 877073A 2004-08 → — Figure 87E758 87E758 2015-01 → — Figure 87E680A 87E680A 2015-01 → — Figure 872071D 872071D 1993-01 → 2004-08 Figure 877074B 877074B 2004-08 → 2015-01 Figure 87E681A 87E681A 2015-01 → —

Part groups

PNCDescription
87104 Motor Sub-assy, Heater Blower
87104R Motor Sub-assy, Rear Heater Blower
87105 Fan Sub-assy, Heater Blower
87105R Fan Sub-assy, Rear Heater Blower
87106A Servo Sub-assy, Damper
87107 Unit Sub-assy, Heater Radiator
87107R Unit Sub-assy, Rear Heater
87110 Heater Assy
87120 Heater Assy, Rear
87121A Bracket, Heater
87138 Resistor, Heater Blower
87174A Guide, Air Heater
87187A Wire, Blower Motor Lead
87187B Wire, Blower Motor Lead, NO.1
87211E Duct, Air
87211F Duct, Air
87248Q Pipe, Front Heater Radiator Water
87249 Pipe, Water
87299A Relay, Heater NO.1
87299B Relay, Heater NO.2
87320 Exchanger Assy, Heater Heat
87343 Plug, Combustion Heater Glow
87344C Wire, Heater
87348 Block, Fuse, NO.1
87348A Fuse
87402 Pipe Sub-assy, Heater Fuel
87441A Filter, Heater Air
87452A Bracket, Heater, Front
87452B Bracket, Heater, Rear
87452C Bracket, Front Heater, NO.2
87452D Bracket, Power Heater, NO.1
87452E Bracket, Power Heater, NO.2
87460B Parts Assy, Electrical
87471 Joint, Combustion Heater Fuel
87472A Pipe, Heater Fuel, NO.1
87472B Pipe, Heater Fuel, NO.2
87480 Amplifier Assy, Heater Control (FOR COMBUSTION HEATER)
87480B Relay Assy, Heater Control
87480C Relay, Heater Control
87483 Wire, Heater
88625L Thermistor, Cooler
89427G Switch, Temperature
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
