Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

59 part groups · 16 illustrations

Illustrations

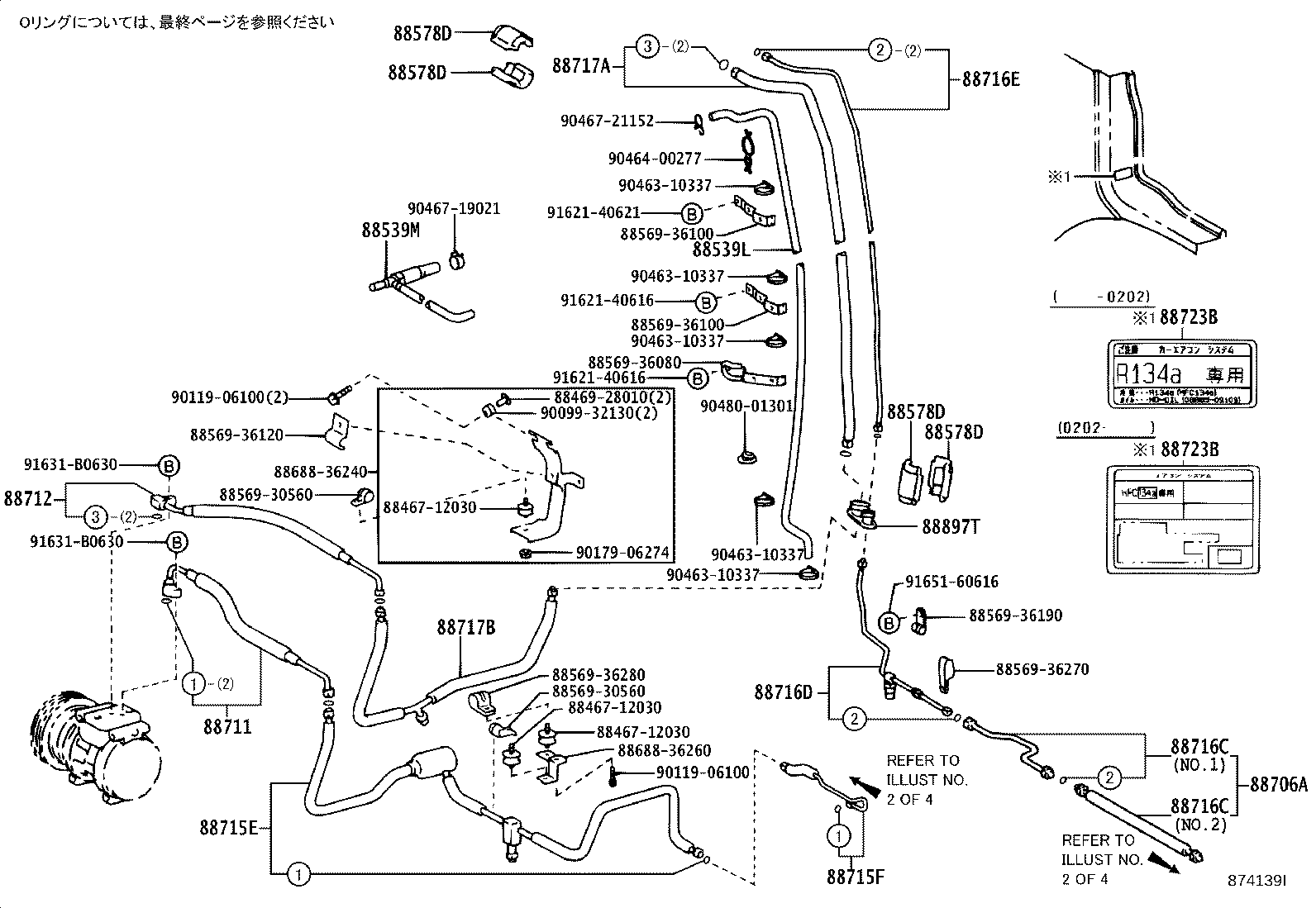

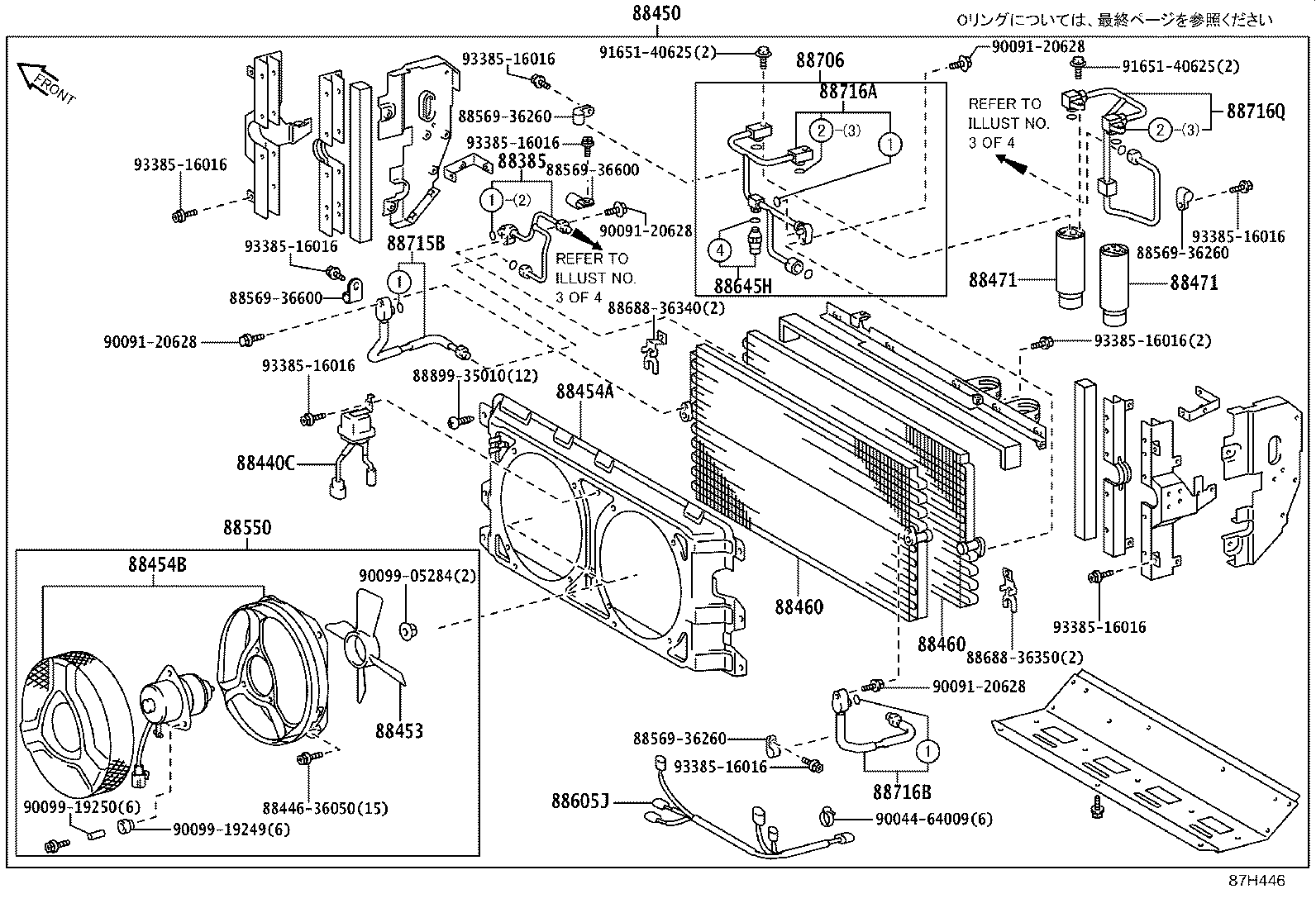

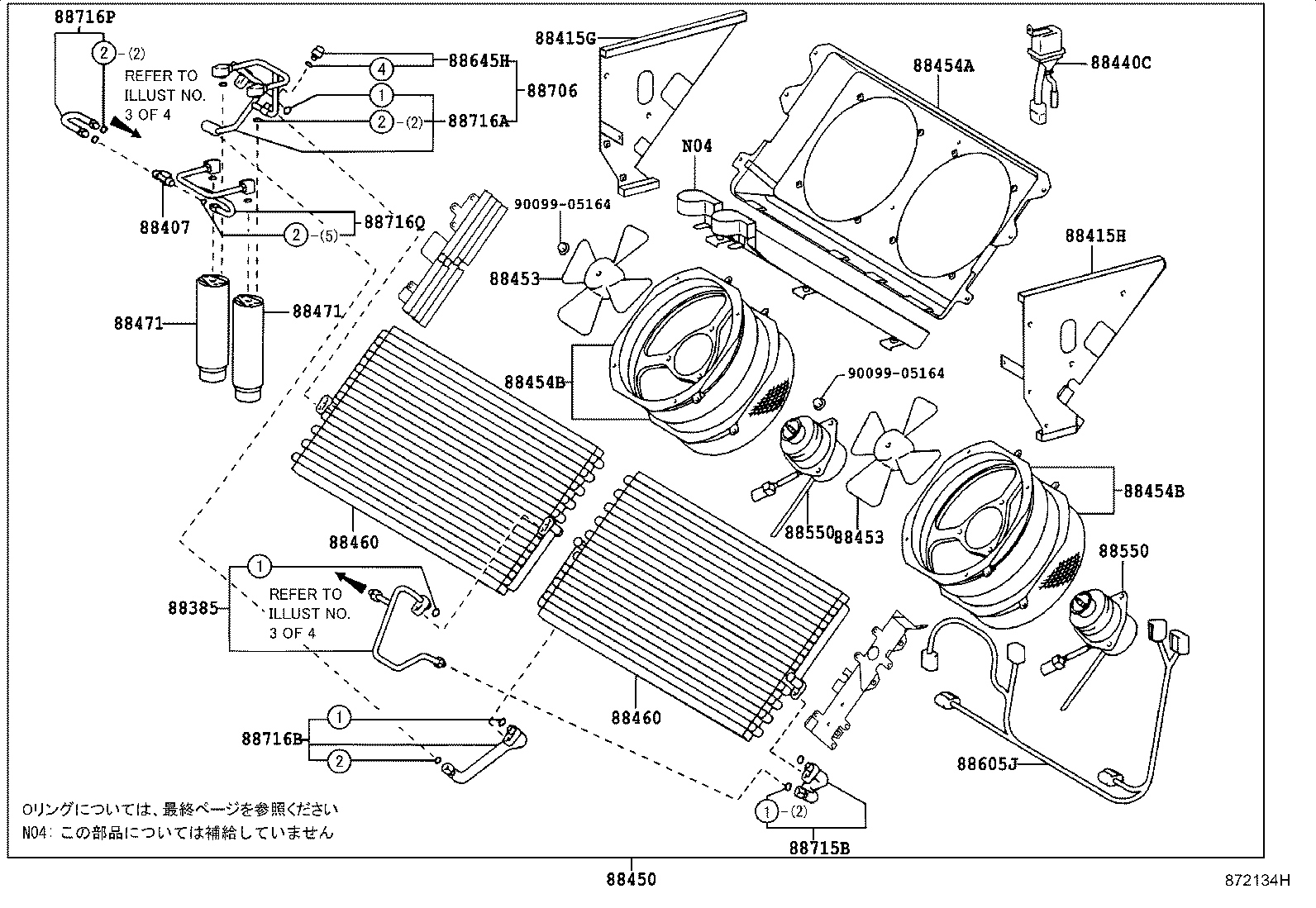

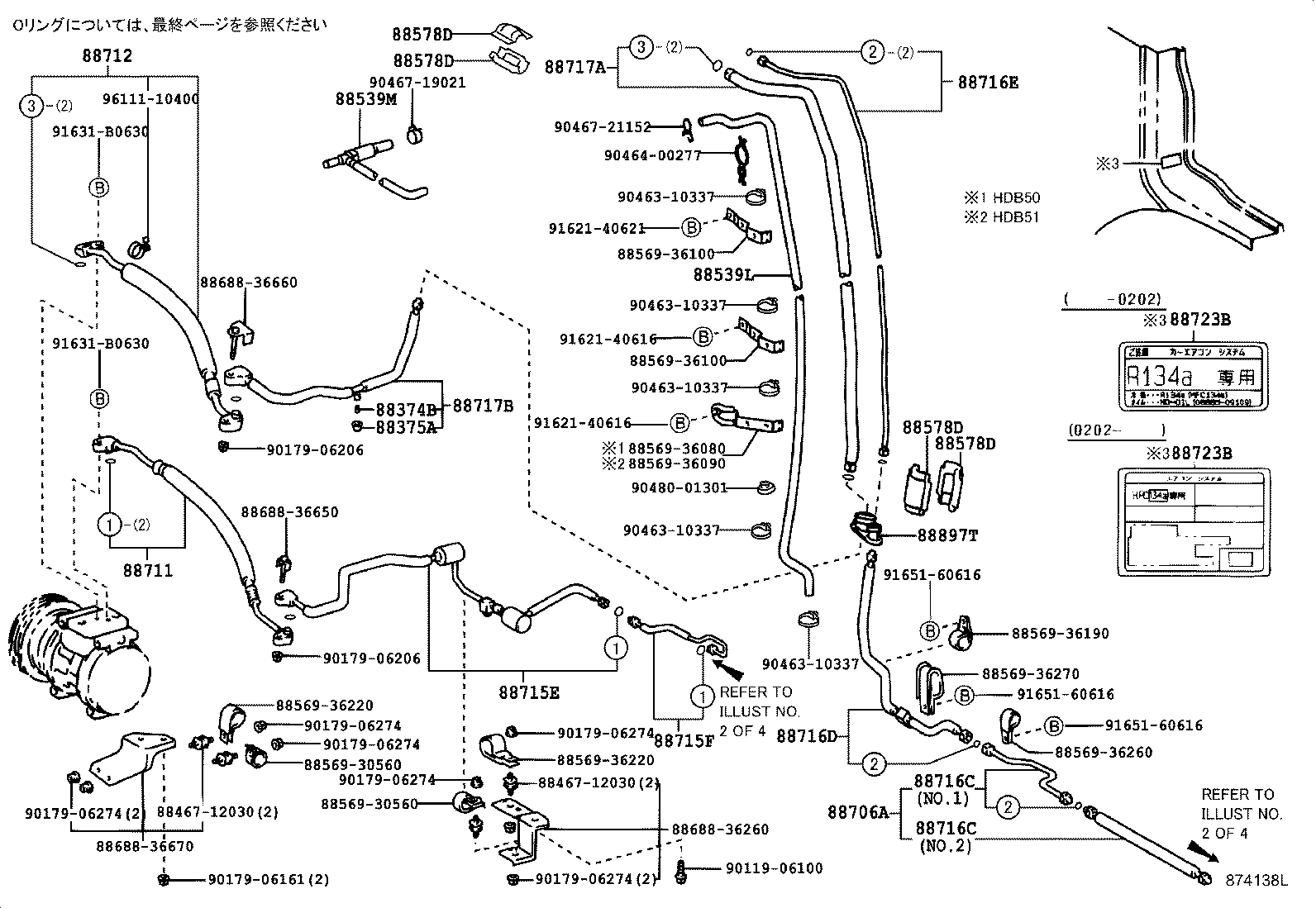

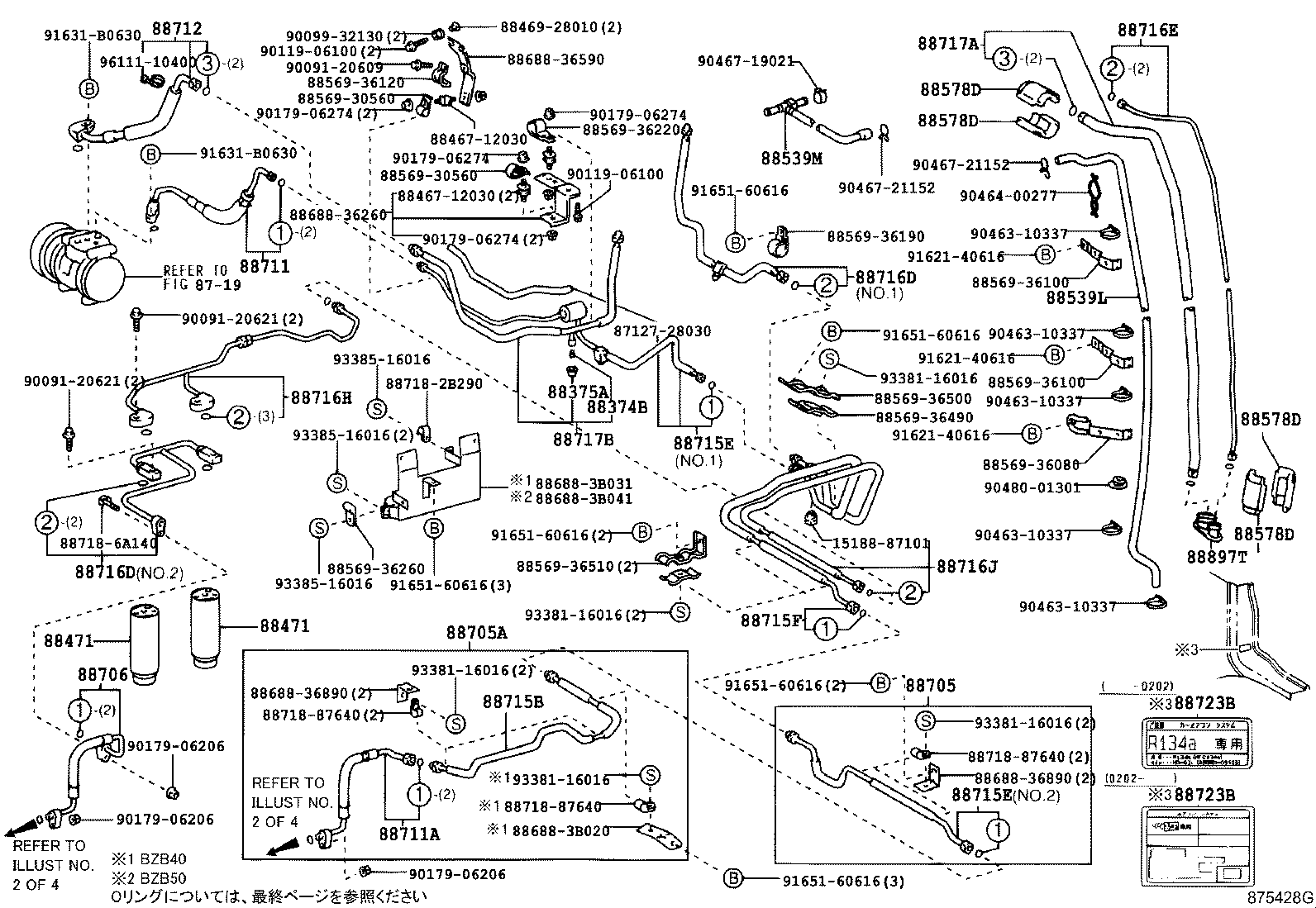

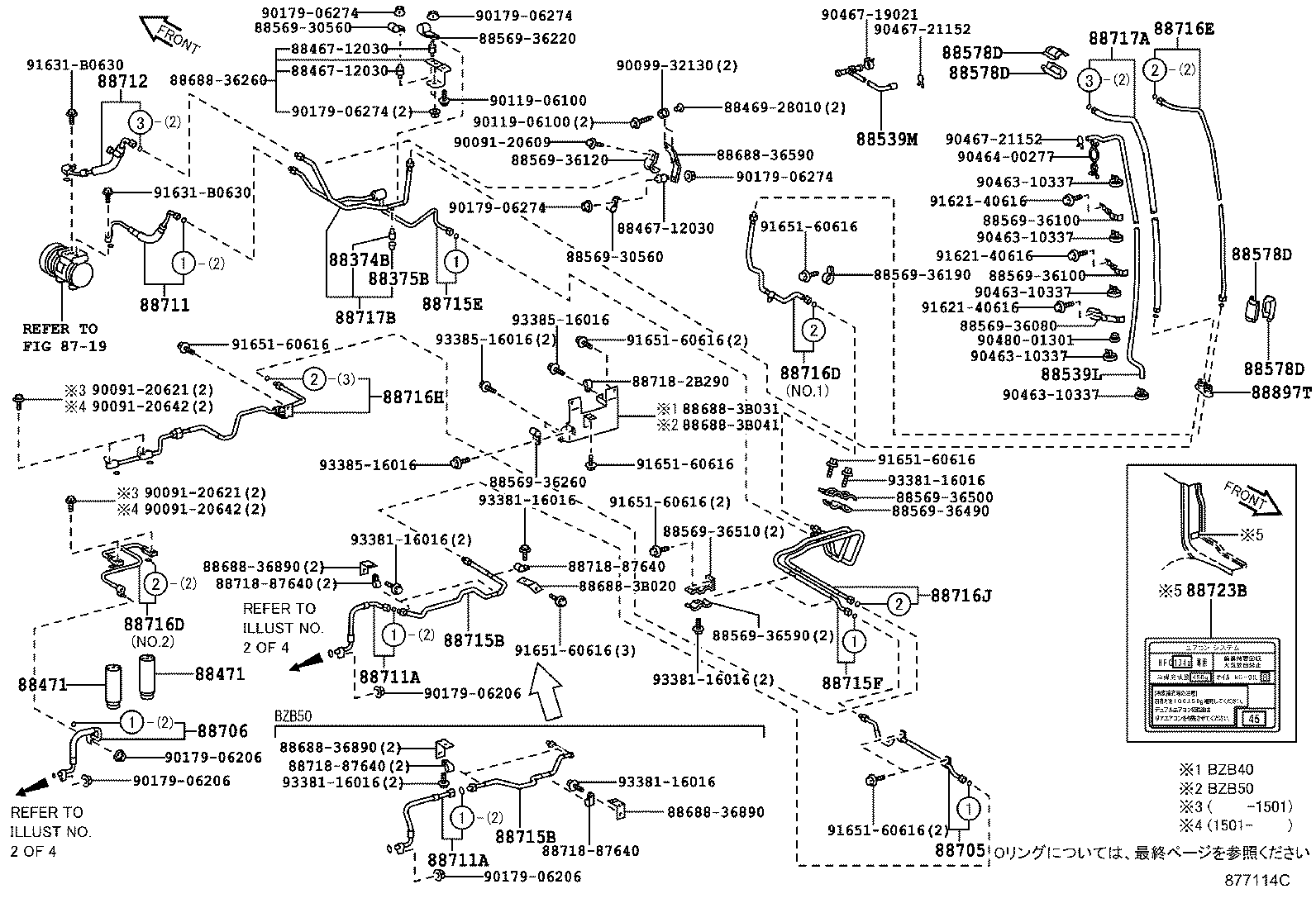

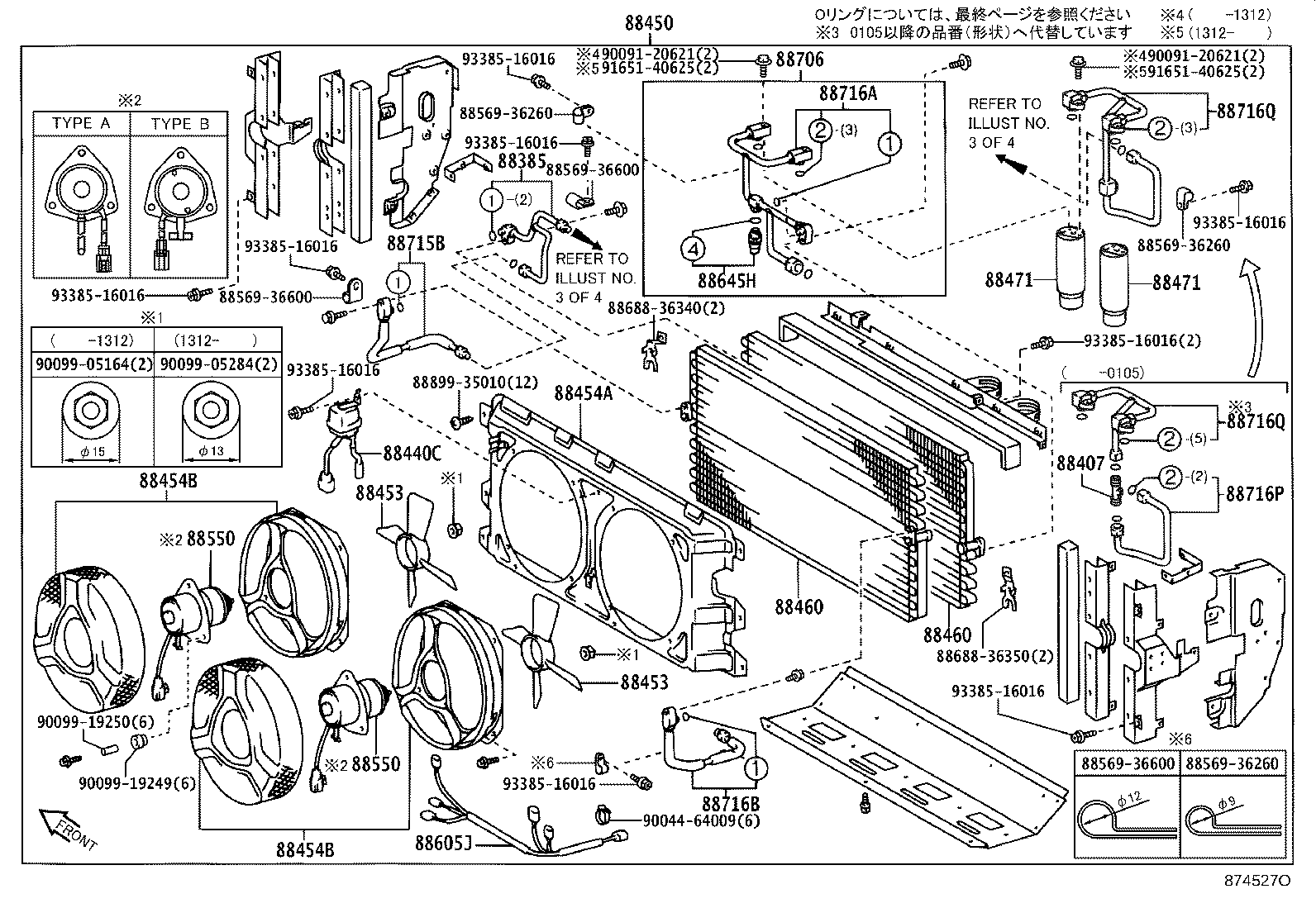

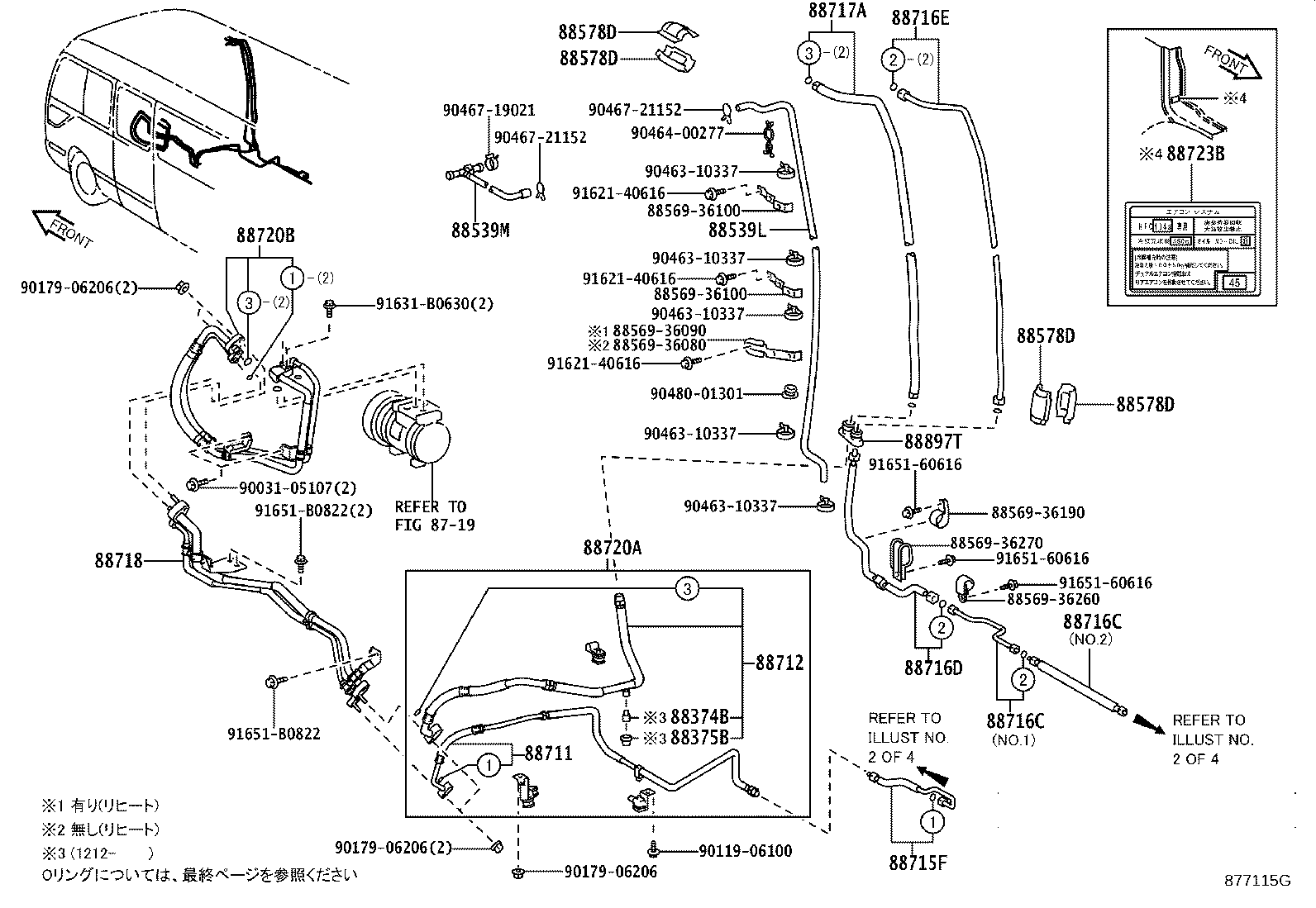

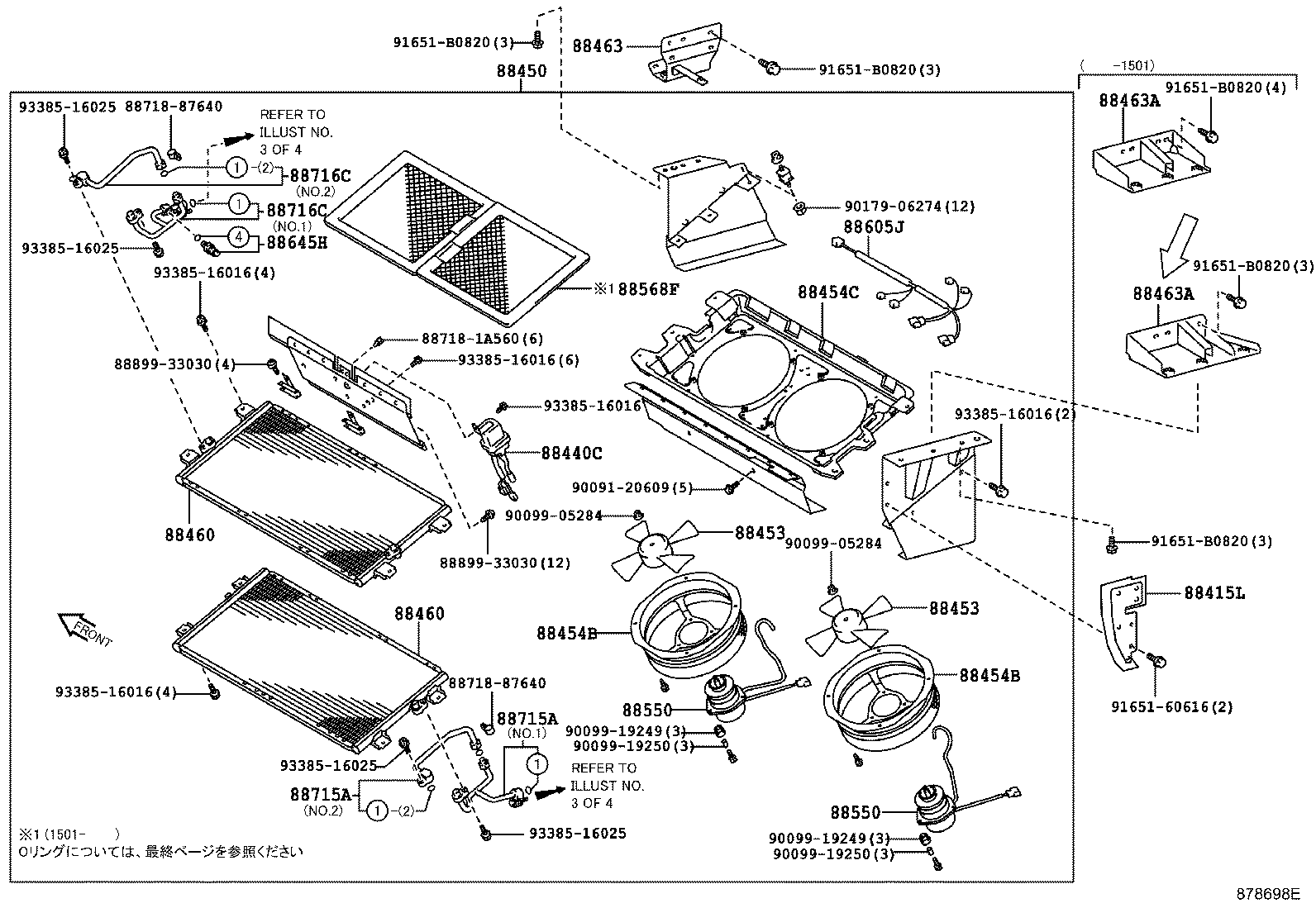

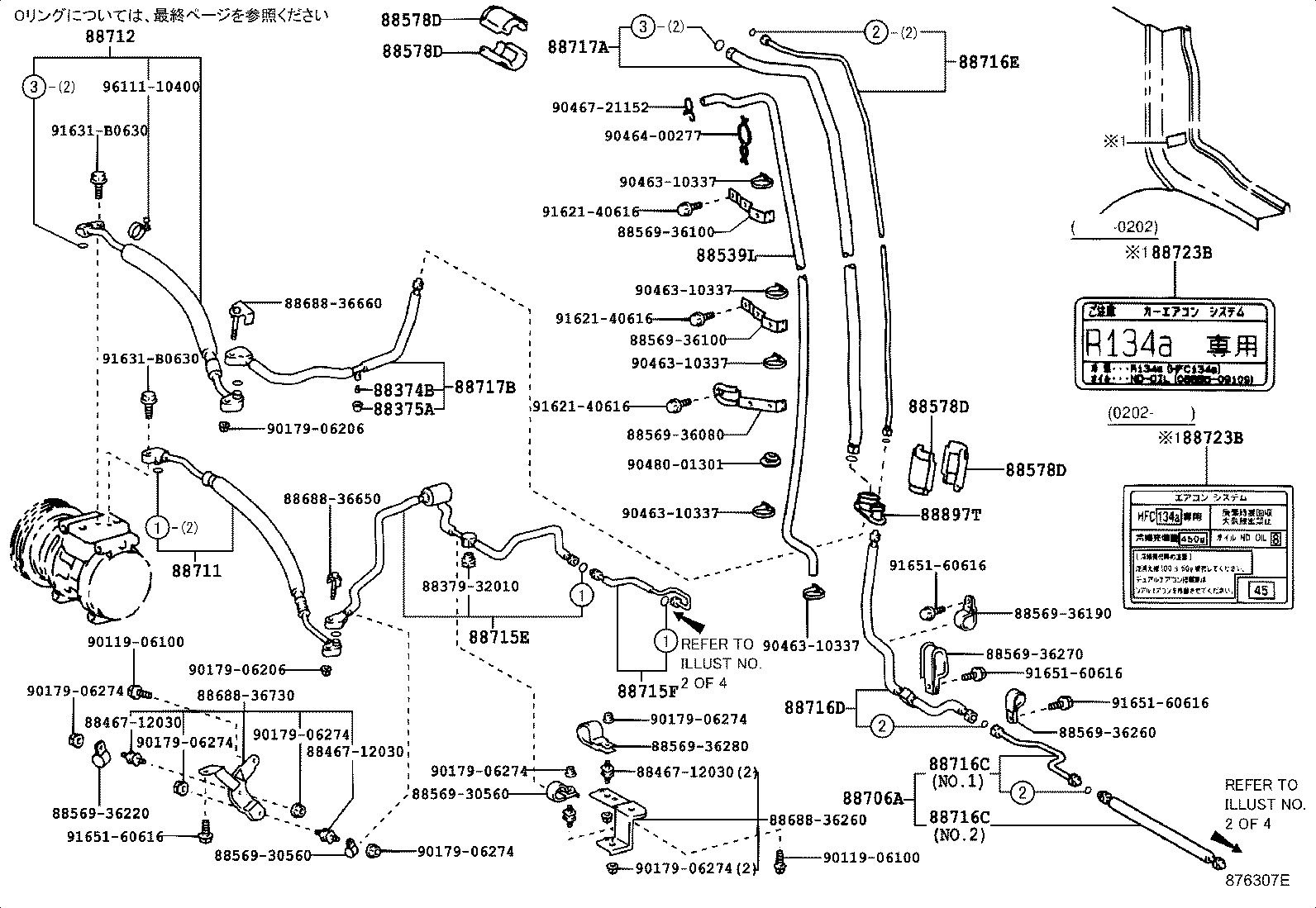

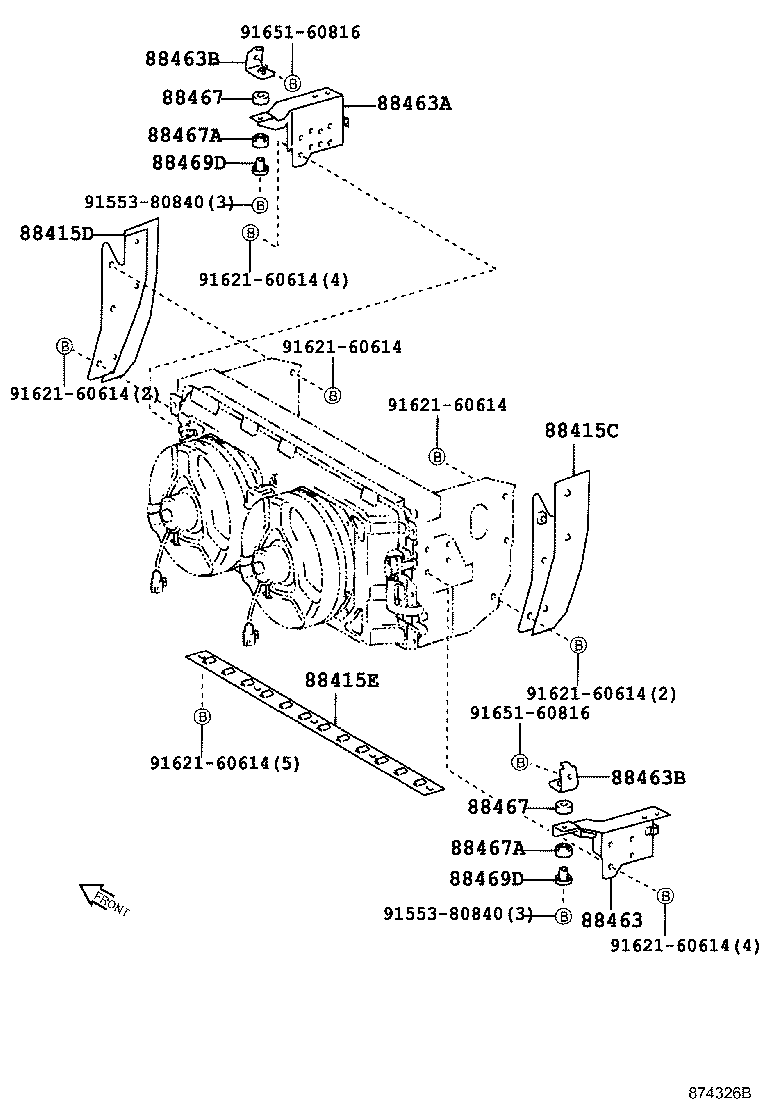

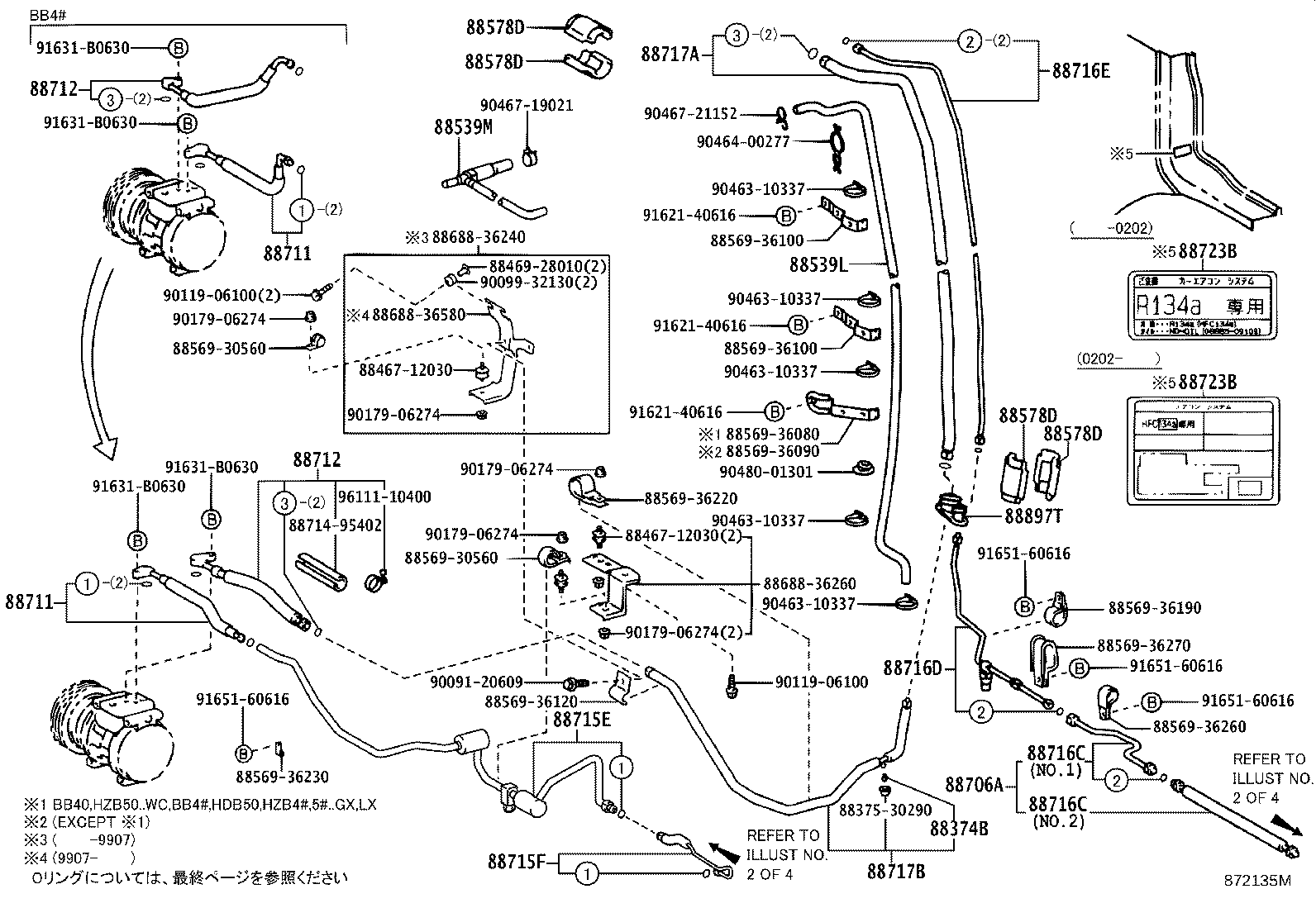

Figure 872133A 872133A 1993-01 → 1995-06 Figure 874326B 874326B 1995-06 → — Figure 872134H 872134H 1993-01 → 1995-06 Figure 874527O 874527O 1995-06 → — Figure 874527O 874527O 2015-01 → — Figure 87H446 87H446 2004-08 → 2015-01 Figure 878698E 878698E 2002-03 → — Figure 872135M 872135M 1993-01 → 1999-07 Figure 872135M 872135M 1999-07 → 2004-08 Figure 874139I 874139I 1995-12 → 1999-07 Figure 876307E 876307E 1999-07 → 2004-08 Figure 874138L 874138L 1999-07 → 2004-08 Figure 875428G 875428G 2002-03 → 2004-08 Figure 877114C 877114C 2004-08 → — Figure 877115G 877115G 2004-08 → — Figure 875384 875384 1993-01 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88375A Cap, Service Valve (FOR COOLER PIPE)
88375B Cap, Service Valve, NO.1
88385 Pipe, Cooler Refrigerant Discharge, NO.1
88407 Glass Sub-assy, Sight
88415C Cover, Dust, NO.1
88415D Cover, Dust, NO.2
88415E Cover, Dust, NO.3
88415G Cover, Cooler Condenser Dust, NO.4
88415H Cover, Cooler Condenser Dust, NO.5
88415L Cover, Dust, NO.8
88440C Relay Assy, Cooler Condenser Fan
88450 Condenser Assy, W/Receiver
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88454B Shroud, Fan
88454C Shroud, Cooler Condenser Fan NO.3
88460 Condenser Assy, Cooler
88463 Bracket, Cooler Condenser, NO.1
88463A Bracket, Cooler Condenser, NO.2
88463B Bracket, Cooler Condenser, NO.3
88467 Cushion, Cooler Condenser, NO.1
88467A Cushion, Cooler Condenser, NO.2
88469D Collar, Condenser Bracket, NO.1
88471 Tank, Receiver Air Conditioner
88539L Hose, Drain Cooler
88539M Hose, Drain Cooler, NO.2
88550 Motor Assy, Blower (FOR CONDENSER)
88568F Filter, Air
88578D Packing, Cooler Pipe, NO.1
88605J Harness Sub-assy, Air Conditioner Wiring
88645H Switch, Pressure NO.1
88705 Pipe Sub-assy, Discharge
88705A Tube Sub-assy, Discharge
88706 Pipe Sub-assy, Liquid
88706A Tube Sub-assy, Liquid, A
88711 Hose, Cooler Refrigerant Discharge, NO.1
88711A Hose, Cooler Refrigerant Discharge, NO.2
88712 Hose, Cooler Refrigerant Suction, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88715B Pipe, Cooler Refrigerant Discharge, B
88715E Pipe, Cooler Refrigerant Discharge, E
88715F Pipe, Cooler Refrigerant Discharge, F
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88716E Pipe, Cooler Refrigerant Liquid, E
88716H Pipe, Cooler Refrigerant Liquid, H
88716J Pipe, Cooler Refrigerant Liquid, J
88716P Pipe, Cooler Refrigerant Liquid, P
88716Q Pipe, Cooler Refrigerant Liquid, Q
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88718 Pipe, Cooler Refrigerant Suction, NO.2
88720A Hose & Accessory, Air Conditioner
88720B Hose & Accessory, Air Conditioner
88723B Label, Cooler Service Caution
88897T Grommet, Cooler
