Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

14 part groups · 8 illustrations

Illustrations

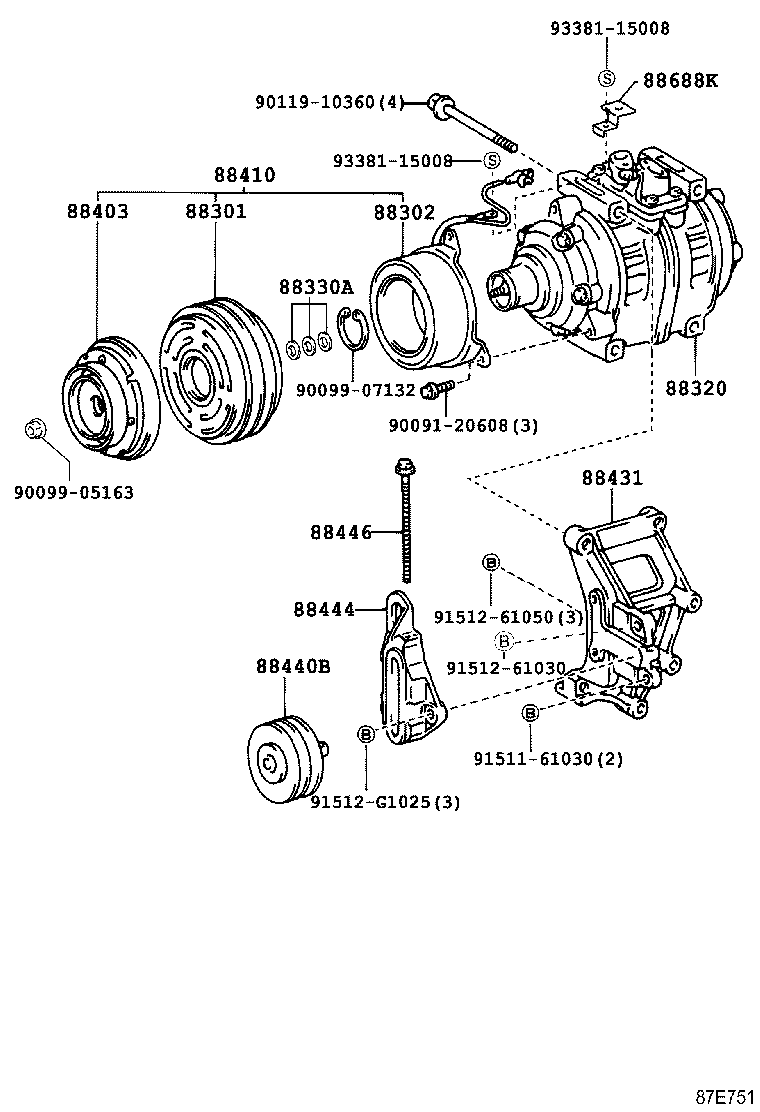

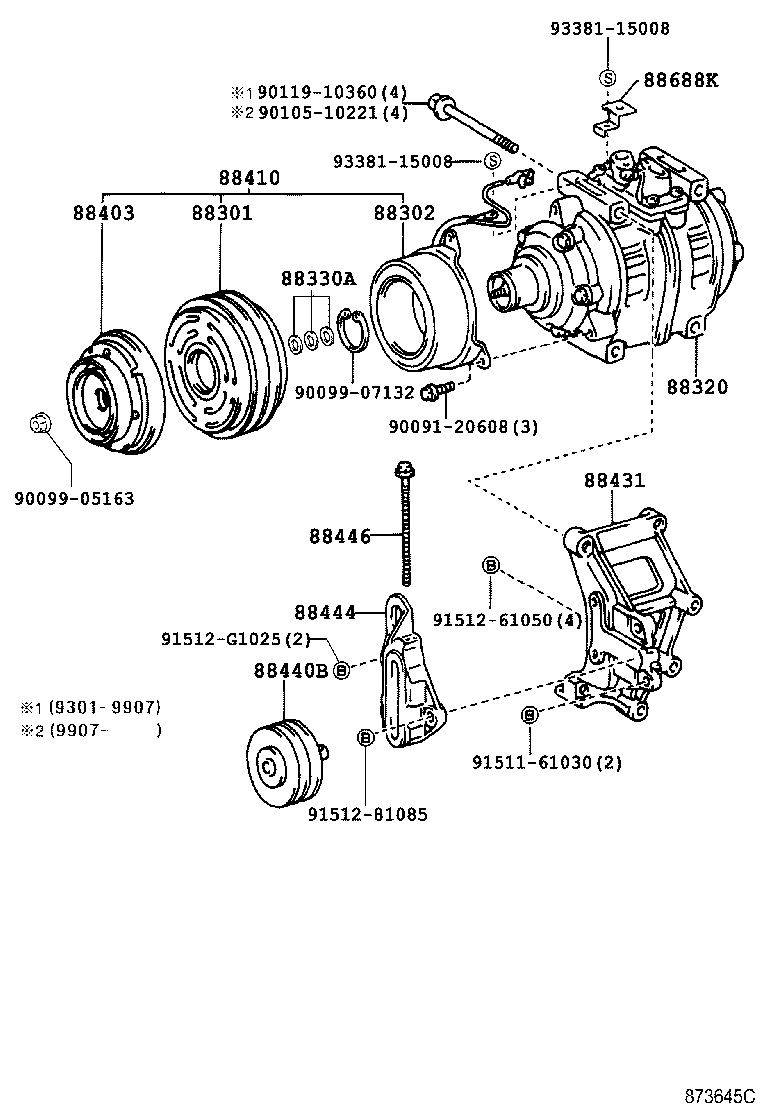

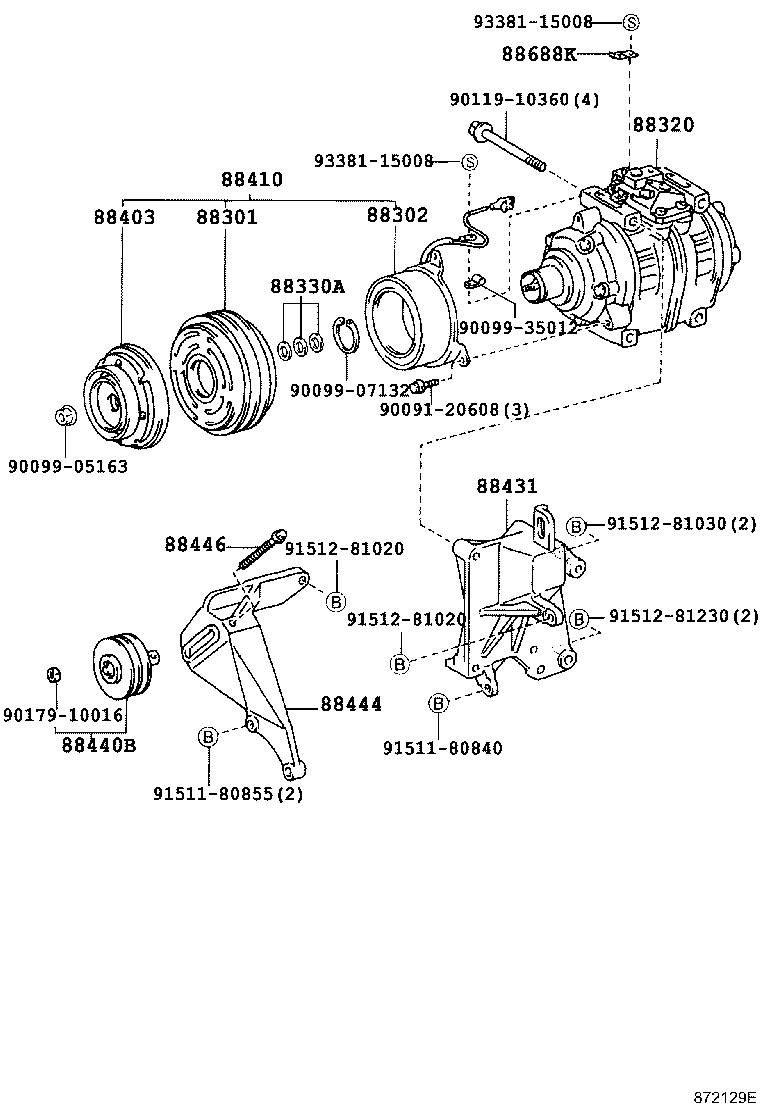

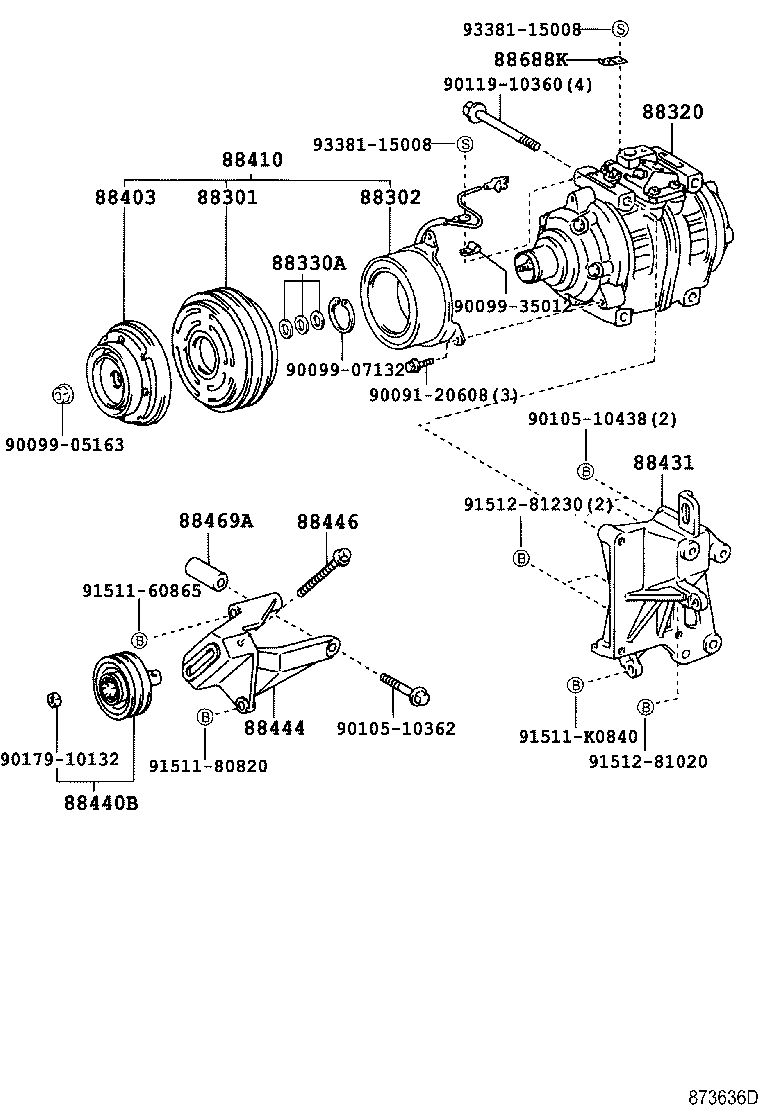

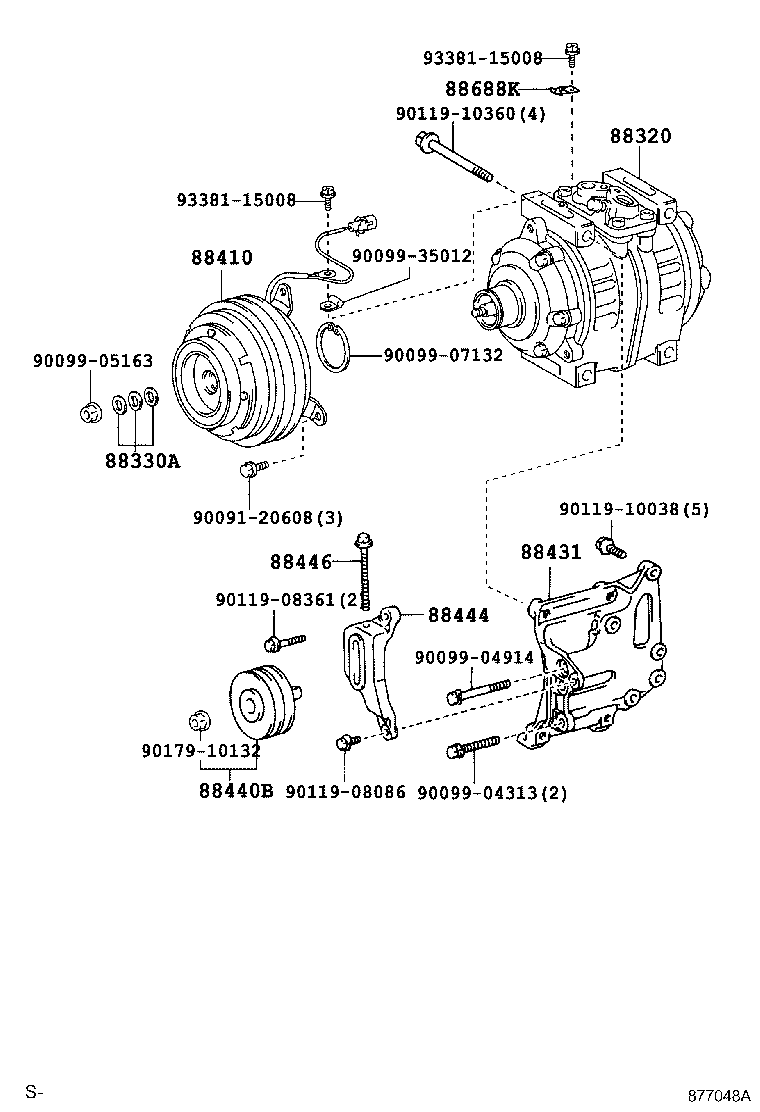

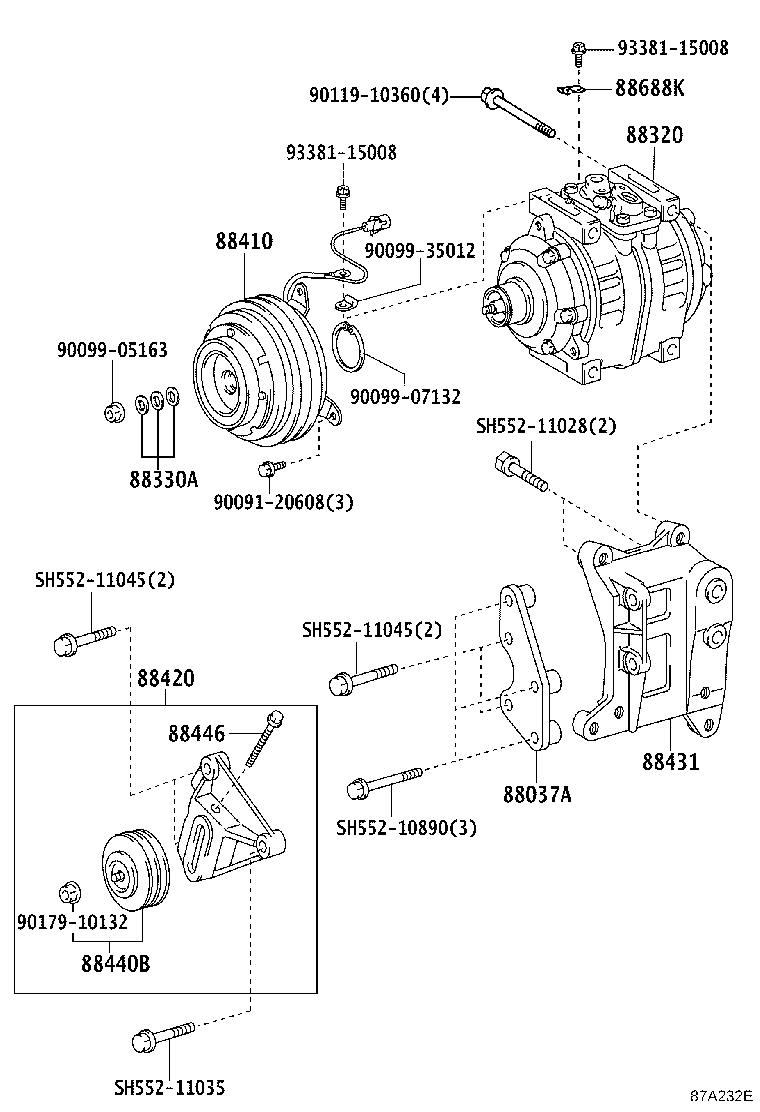

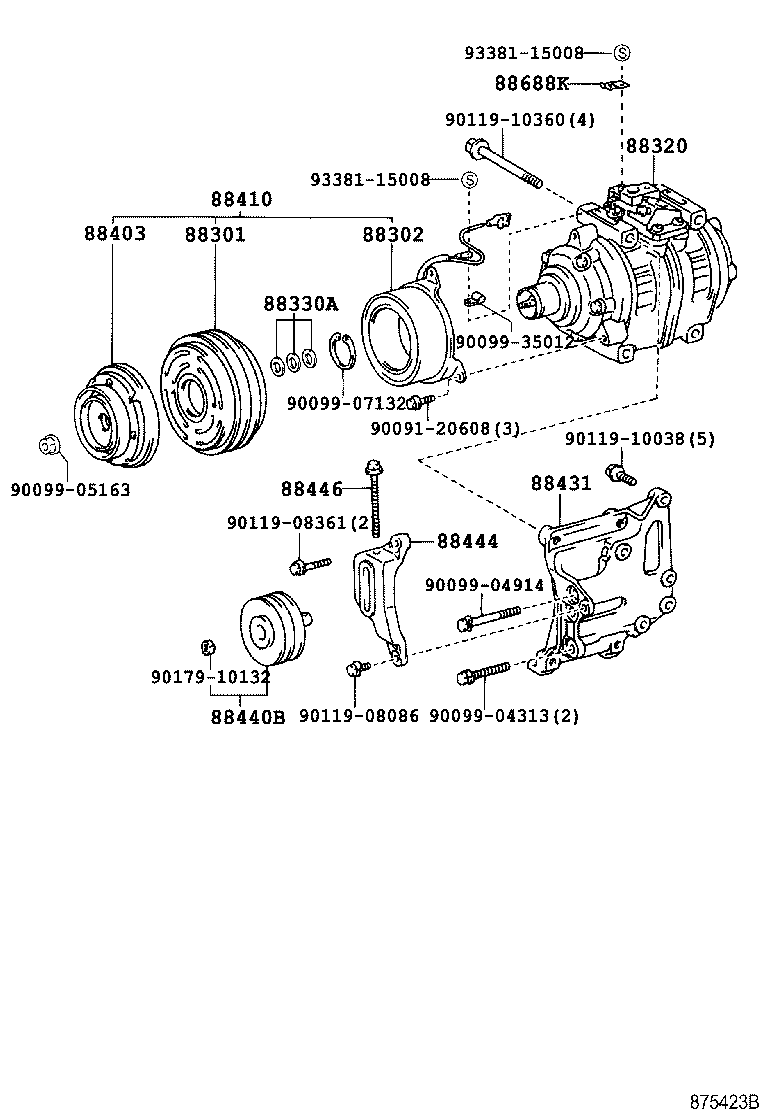

Figure 872128D 872128D 1993-01 → 1999-07 Figure 872129E 872129E 1995-12 → 1999-07 Figure 873636D 873636D 1999-07 → 2004-08 Figure 873645C 873645C 1993-01 → 2004-08 Figure 87E751 87E751 1993-01 → 2004-08 Figure 875423B 875423B 2002-03 → 2004-08 Figure 877048A 877048A 2004-08 → — Figure 87A232E 87A232E 2004-08 → —

Part groups

PNCDescription
88037A Bracket Set,Compressor Mounting
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88320 Compressor Assy, Cooler
88330A Washer (FOR MAGNET CLUTCH)
88403 Hub Sub-assy, Magnet Clutch
88410 Clutch Assy, Magnet
88420 Pulley Assy, Idle, W/Bracket
88431 Bracket, Compressor Mounting, NO.1
88440B Pulley Assy, Idle
88444 Bracket, Idle Pulley
88446 Bolt, Idle Pulley
88469A Collar, Adjusting
88688K Bracket, Cooler Compressor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
