Toyota Coaster

2017-01 → present · chassis GDB1#,60,70,80,XZB60,70,80 · catalogue 811140 · Japan

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

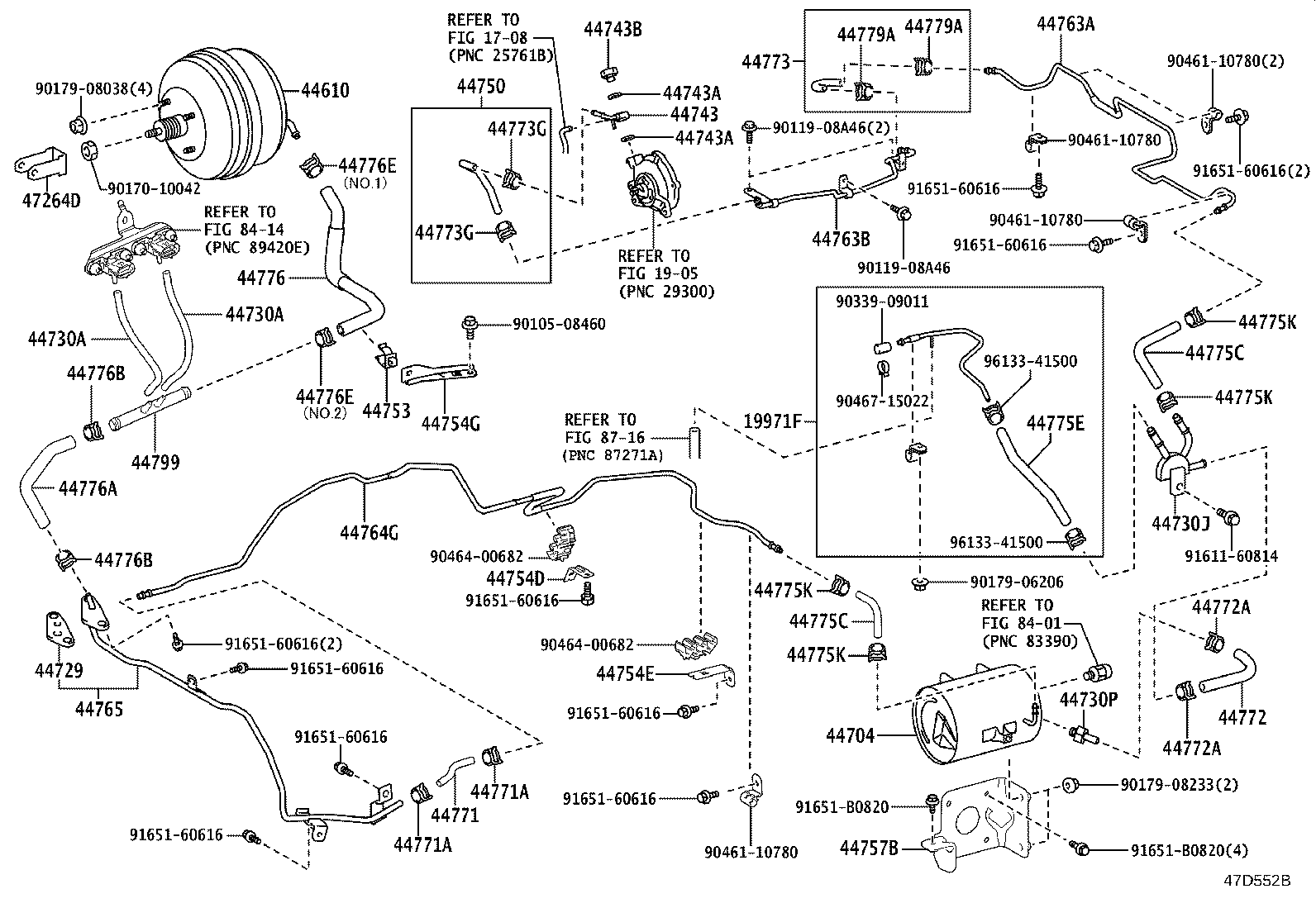

Exploded illustration 47D552B 19971F — PIPE, VACUUM (1 parts) 44730J — WAY(FOR BOOSTER VACUUM) (6 parts) 44775E — HOSE, WAY TO CONNECTOR (4 parts) 9017906206 — not listed in this catalogue 9033909011 — not listed in this catalogue 9046715022 — not listed in this catalogue 9613341500 — not listed in this catalogue 9613341500 — not listed in this catalogue 44775K — CLIP(FOR CONNECTOR TO 3 WAY HOSE) (4 parts) 44775K — CLIP(FOR CONNECTOR TO 3 WAY HOSE) (4 parts) 44772A — CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) (6 parts) 44772A — CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) (6 parts) 44772 — HOSE, CHECK VALVE TO CONNECTOR TUBE (6 parts) 44775C — HOSE, CONNECTOR TO WAY (5 parts) 9161160814 — not listed in this catalogue 1905 — not listed in this catalogue 1708 — not listed in this catalogue 44743 — UNION(FOR VACUUM PUMP) (1 parts) 44743A — GASKET(FOR VACUUM PUMP UNION) (1 parts) 44743A — GASKET(FOR VACUUM PUMP UNION) (1 parts) 44743B — BOLT, UNION(FOR VACUUM PUMP UNION) (1 parts) 44750 — HOSE ASSY, VACUUM (1 parts) 44763A — TUBE, HOSE TO HOSE, NO.1 (1 parts) 44763B — TUBE, TUBE CONNECTOR TO TUBE CONNECTOR (1 parts) 44773 — HOSE, VACUUM, NO.2 (1 parts) 44773G — CLIP(FOR UNION TO CHECK VALVE HOSE) (1 parts) 44773G — CLIP(FOR UNION TO CHECK VALVE HOSE) (1 parts) 44779A — CLIP(FOR UNION TO CONNECTOR HOSE) (1 parts) 44779A — CLIP(FOR UNION TO CONNECTOR HOSE) (1 parts) 9011908A46 — not listed in this catalogue 9011908A46 — not listed in this catalogue 9017010042 — not listed in this catalogue 9046110780 — not listed in this catalogue 9046110780 — not listed in this catalogue 9046110780 — not listed in this catalogue 44730P — VALVE ASSY, VACUUM CHECK, NO.1 (6 parts) 44775C — HOSE, CONNECTOR TO WAY (5 parts) 44775K — CLIP(FOR CONNECTOR TO 3 WAY HOSE) (4 parts) 44775K — CLIP(FOR CONNECTOR TO 3 WAY HOSE) (4 parts) 44610 — BOOSTER ASSY, BRAKE (4 parts) 47264D — CLEVIS, BRAKE MASTER CYLINDER PUSH ROD (4 parts) 44704 — RESERVOIR SUB-ASSY, VACUUM (6 parts) 44729 — GASKET, VACUUM TUBE (4 parts) 44730A — HOSE, VACUUM, NO.1 (4 parts) 44730A — HOSE, VACUUM, NO.1 (4 parts) 44753 — CLAMP, VACUUM RESERVOIR, NO.2 (4 parts) 44754D — BRACKET, VACUUM TUBE, NO.2 (4 parts) 44754E — BRACKET, VACUUM TUBE, NO.3 (4 parts) 44764G — TUBE, CONNECTOR TO BRAKE BOOSTER (4 parts) 44765 — TUBE, CONNECTOR TO BRAKE BOOSTER, NO.2 (6 parts) 44771 — HOSE, VACUUM TUBE CONNECTOR (4 parts) 44771A — CLIP(FOR VACUUM TUBE CONNECTOR HOSE) (4 parts) 44771A — CLIP(FOR VACUUM TUBE CONNECTOR HOSE) (4 parts) 44776 — HOSE, BRAKE BOOSTER (4 parts) 44776A — HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER (4 parts) 44757B — BRACKET, VACUUM TANK CLAMP, NO.2 (4 parts) 44776E — CLIP(FOR BRAKE BOOSTER HOSE) (8 parts) 44776E — CLIP(FOR BRAKE BOOSTER HOSE) (8 parts) 44776B — CLIP(FOR VACUUM RESERVOIR TO BRAKE BOOSTER) (4 parts) 44776B — CLIP(FOR VACUUM RESERVOIR TO BRAKE BOOSTER) (4 parts) 44799 — WAY, BRAKE VACUUM HOSE (4 parts) 44754G — BRACKET, VACUUM TUBE, NO.5 (4 parts) 9017908038 — not listed in this catalogue 9017908233 — not listed in this catalogue 9046110780 — not listed in this catalogue 9046400682 — not listed in this catalogue 9046400682 — not listed in this catalogue 9165160616 — not listed in this catalogue 9165160616 — not listed in this catalogue 9165160616 — not listed in this catalogue 9165160616 — not listed in this catalogue 9165160616 — not listed in this catalogue 9165160616 — not listed in this catalogue 9165160616 — not listed in this catalogue 9165160616 — not listed in this catalogue 9165160616 — not listed in this catalogue 91651B0820 — not listed in this catalogue 91651B0820 — not listed in this catalogue 9165160616 — not listed in this catalogue 9010508460 — not listed in this catalogue 8414 — not listed in this catalogue 8401 — not listed in this catalogue 8716 — not listed in this catalogue
47D552B · 48 callouts, 35 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
131 parts on this figure
Part number Description Fitment Price
19971F — Pipe, Vacuum
87207-V4010 Pipe, Vacuum
2022-01 → 2024-12 ended
1GDFTV GDB60,70 GX —
44610 — Booster Assy, Brake
44610-36650 Booster Assy, Brake
2017-01 → 2022-01 ended
XZB60 09S;XZB60,70 5F;XZB70,80 (13S,24S) +3 ¥46,000
44610-36650 Booster Assy, Brake
2017-01 → —
XZB70 (09S,24S) 6FC DCR;XZB60,80 +3 ¥46,000
44610-36650 Booster Assy, Brake
2022-01 → 2023-12 ended
XZB60 5F;XZB60 09S;XZB70 21S,29S,49S;XZB70,80 +2 ¥46,000
44610-36650 Booster Assy, Brake
2022-01 → 2024-12 ended
GDB60,70,80 ¥46,000
44704 — Reservoir Sub-assy, Vacuum
44704-36260 Reservoir Sub-assy, Vacuum
2017-01 → 2022-01 ended
XZB60,70 5F ¥3,790
44704-36270 Reservoir Sub-assy, Vacuum
2017-01 → 2022-01 ended
XZB60 09S;XZB70,80 (13S,24S) HDCR;XZB70 +2 ¥3,790
44704-36270 Reservoir Sub-assy, Vacuum
2017-01 → —
XZB70 (09S,24S) 6FC DCR;XZB60,80 +3 ¥3,790
44704-36260 Reservoir Sub-assy, Vacuum
2022-01 → 2023-12 ended
XZB60,70 5F ¥3,790
44704-36270 Reservoir Sub-assy, Vacuum
2022-01 → 2023-12 ended
XZB60 09S;XZB70,80 (13S,24S) HDCR;XZB70 +2 ¥3,790
44704-36270 Reservoir Sub-assy, Vacuum
2022-01 → 2024-12 ended
GDB60,70,80 ¥3,790
44729 — Gasket, Vacuum Tube
44729-36020 Gasket, Vacuum Tube
2017-01 → 2022-01 ended
XZB60 09S;XZB60,70 5F;XZB70,80 (13S,24S) +3 ¥120
44729-36020 Gasket, Vacuum Tube
2017-01 → —
XZB70 (09S,24S) 6FC DCR;XZB60,80 +3 ¥120
44729-36020 Gasket, Vacuum Tube
2022-01 → 2023-12 ended
XZB60 5F;XZB60 09S;XZB70 21S,29S,49S;XZB70,80 +2 ¥120
44729-36020 Gasket, Vacuum Tube
2022-01 → 2024-12 ended
GDB60,70,80 ¥120
44730A — Hose, Vacuum, NO.1
90999-92002 note Hose, Vacuum, NO.1
2017-01 → 2022-01 ended
XZB60 09S;XZB60,70 5F;XZB70,80 (13S,24S) +3 ¥460
90999-92002 note Hose, Vacuum, NO.1
2017-01 → —
XZB70 (09S,24S) 6FC DCR;XZB60,80 +3 ¥460
90999-92002 note Hose, Vacuum, NO.1
2022-01 → 2024-12 ended
GDB60,70,80 ¥460
90999-92002 note Hose, Vacuum, NO.1
2022-01 → 2023-12 ended
XZB60 5F;XZB60 09S;XZB70 21S,29S,49S;XZB70,80 +2 ¥460
44730J — Way(FOR BOOSTER VACUUM)
90413-09037 Way(FOR BOOSTER VACUUM)
2017-01 → 2022-01 ended
XZB60 09S;XZB70,80 (13S,24S) HDCR;XZB70 +2 ¥850
90413-09037 Way(FOR BOOSTER VACUUM)
2017-01 → —
XZB70 (09S,24S) 6FC DCR;XZB60,80 +3 ¥850
90414-09001 Way(FOR BOOSTER VACUUM)
2017-01 → 2022-01 ended
XZB60,70 5F ¥850
90413-09037 Way(FOR BOOSTER VACUUM)
2022-01 → 2023-12 ended
XZB60 09S;XZB70,80 (13S,24S) HDCR;XZB70 +2 ¥850
90413-09037 Way(FOR BOOSTER VACUUM)
2022-01 → 2024-12 ended
GDB60,70 GX ¥850
90414-09001 Way(FOR BOOSTER VACUUM)
2022-01 → 2023-12 ended
XZB60,70 5F ¥850
44730P — Valve Assy, Vacuum Check, NO.1
44730-60050 Valve Assy, Vacuum Check, NO.1
2017-01 → 2022-01 ended
XZB60 09S;XZB70,80 (13S,24S) HDCR;XZB70 +2 ¥1,360
44730-60050 Valve Assy, Vacuum Check, NO.1
2017-01 → 2022-01 ended
XZB60,70 5F ¥1,360
44730-60050 Valve Assy, Vacuum Check, NO.1
2017-01 → —
XZB70 (09S,24S) 6FC DCR;XZB60,80 +3 ¥1,360
44730-60050 Valve Assy, Vacuum Check, NO.1
2022-01 → 2023-12 ended
XZB60 09S;XZB70,80 (13S,24S) HDCR;XZB70 +2 ¥1,360
44730-60050 Valve Assy, Vacuum Check, NO.1
2022-01 → 2023-12 ended
XZB60,70 5F ¥1,360
44730-60050 Valve Assy, Vacuum Check, NO.1
2022-01 → 2024-12 ended
GDB60,70,80 ¥1,360
44743 — Union(FOR VACUUM PUMP)
90405-09196 Union(FOR VACUUM PUMP)
2022-01 → 2024-12 ended
GDB60,70,80 ¥360
44743A — Gasket(FOR VACUUM PUMP UNION)
90201-14099 Gasket(FOR VACUUM PUMP UNION)
2022-01 → 2024-12 ended
GDB60,70,80 ¥230
44743B — Bolt, Union(FOR VACUUM PUMP UNION)
90401-09003 Bolt, Union(FOR VACUUM PUMP UNION)
2022-01 → 2024-12 ended
GDB60,70,80 ¥160
44750 — Hose Assy, Vacuum
44750-V4010 Hose Assy, Vacuum
2022-01 → 2024-12 ended
GDB60,70,80 ¥1,690
44753 — Clamp, Vacuum Reservoir, NO.2
44753-30320 Clamp, Vacuum Reservoir, NO.2
2017-01 → 2022-01 ended
XZB60 09S;XZB60,70 5F;XZB70,80 (13S,24S) +3 ¥140
44753-30320 Clamp, Vacuum Reservoir, NO.2
2017-01 → —
XZB70 (09S,24S) 6FC DCR;XZB60,80 +3 ¥140
44753-30320 Clamp, Vacuum Reservoir, NO.2
2022-01 → 2023-12 ended
XZB60 5F;XZB60 09S;XZB70 21S,29S,49S;XZB70,80 +2 ¥140
44753-30320 Clamp, Vacuum Reservoir, NO.2
2022-01 → 2024-12 ended
GDB60,70,80 ¥140
44754D — Bracket, Vacuum Tube, NO.2
44754-36230 Bracket, Vacuum Tube, NO.2
2017-01 → 2022-01 ended
XZB60 09S;XZB60,70 5F;XZB70,80 (13S,24S) +3 ¥200
44754-36230 Bracket, Vacuum Tube, NO.2
2017-01 → —
XZB70 (09S,24S) 6FC DCR;XZB60,80 +3 ¥200
44754-36230 Bracket, Vacuum Tube, NO.2
2022-01 → 2023-12 ended
XZB60 5F;XZB60 09S;XZB70 21S,29S,49S;XZB70,80 +2 ¥200
44754-36230 Bracket, Vacuum Tube, NO.2
2022-01 → 2024-12 ended
GDB60,70,80 ¥200
44754E — Bracket, Vacuum Tube, NO.3
44754-36130 Bracket, Vacuum Tube, NO.3
2017-01 → 2022-01 ended
XZB60 09S;XZB60,70 5F;XZB70,80 (13S,24S) +3 ¥200
44754-36130 Bracket, Vacuum Tube, NO.3
2017-01 → —
XZB70 (09S,24S) 6FC DCR;XZB60,80 +3 ¥200
44754-36130 Bracket, Vacuum Tube, NO.3
2022-01 → 2023-12 ended
XZB60 5F;XZB60 09S;XZB70 21S,29S,49S;XZB70,80 +2 ¥200
44754-36130 Bracket, Vacuum Tube, NO.3
2022-01 → 2024-12 ended
GDB60,70,80 ¥200
44754G — Bracket, Vacuum Tube, NO.5
44754-36190 Bracket, Vacuum Tube, NO.5
2017-01 → 2022-01 ended
XZB60 09S;XZB60,70 5F;XZB70,80 (13S,24S) +3 ¥320
44754-36190 Bracket, Vacuum Tube, NO.5
2017-01 → —
XZB70 (09S,24S) 6FC DCR;XZB60,80 +3 ¥320
44754-36190 Bracket, Vacuum Tube, NO.5
2022-01 → 2024-12 ended
GDB60,70,80 ¥320
44754-36190 Bracket, Vacuum Tube, NO.5
2022-01 → 2023-12 ended
XZB60 5F;XZB60 09S;XZB70 21S,29S,49S;XZB70,80 +2 ¥320
44757B — Bracket, Vacuum Tank Clamp, NO.2
44757-36060 Bracket, Vacuum Tank Clamp, NO.2
2017-01 → 2022-01 ended
XZB60 09S;XZB60,70 5F;XZB70,80 (13S,24S) +3 ¥1,680
44757-36060 Bracket, Vacuum Tank Clamp, NO.2
2017-01 → —
XZB70 (09S,24S) 6FC DCR;XZB60,80 +3 ¥1,680
44757-36060 Bracket, Vacuum Tank Clamp, NO.2
2022-01 → 2023-12 ended
XZB60 5F;XZB60 09S;XZB70 21S,29S,49S;XZB70,80 +2 ¥1,680
44757-36060 Bracket, Vacuum Tank Clamp, NO.2
2022-01 → 2024-12 ended
GDB60,70,80 ¥1,680
44763A — Tube, Hose TO Hose, NO.1
44763-36043 Tube, Hose TO Hose, NO.1
2022-01 → 2024-12 ended
GDB60,70,80 ¥1,940
44763B — Tube, Tube Connector TO Tube Connector
44763-V4010 Tube, Tube Connector TO Tube Connector
2022-01 → 2024-12 ended
GDB60,70,80 ¥1,860
44764G — Tube, Connector TO Brake Booster
44764-36630 Tube, Connector TO Brake Booster
2017-01 → —
XZB70 (09S,24S) 6FC DCR;XZB60,80 +3 ¥2,270
44764-36630 Tube, Connector TO Brake Booster
2017-01 → 2022-01 ended
XZB60 09S;XZB60,70 5F;XZB70,80 (13S,24S) +3 ¥2,270
44764-36630 Tube, Connector TO Brake Booster
2022-01 → 2023-12 ended
XZB60 5F;XZB60 09S;XZB70 21S,29S,49S;XZB70,80 +2 ¥2,270
44764-V4010 Tube, Connector TO Brake Booster
2022-01 → 2024-12 ended
GDB60,70,80 ¥2,390
44765 — Tube, Connector TO Brake Booster, NO.2
44765-36370 Tube, Connector TO Brake Booster, NO.2
2017-01 → 2022-01 ended
XZB60 09S;XZB70,80 (13S,24S) HDCR;XZB70 +2 ¥2,390
44765-36370 Tube, Connector TO Brake Booster, NO.2
2017-01 → —
XZB70 (09S,24S) 6FC DCR;XZB60,80 +3 ¥2,390
44765-36380 Tube, Connector TO Brake Booster, NO.2
2017-01 → 2022-01 ended
XZB60,70 5F ¥3,710
44765-36370 Tube, Connector TO Brake Booster, NO.2
2022-01 → 2023-12 ended
XZB60 09S;XZB70,80 (13S,24S) HDCR;XZB70 +2 ¥2,390
44765-36370 Tube, Connector TO Brake Booster, NO.2
2022-01 → 2024-12 ended
GDB60,70,80 ¥2,390
44765-36380 Tube, Connector TO Brake Booster, NO.2
2022-01 → 2023-12 ended
XZB60,70 5F ¥3,710
44771 — Hose, Vacuum Tube Connector
90445-17141 Hose, Vacuum Tube Connector
2017-01 → —
XZB70 (09S,24S) 6FC DCR;XZB60,80 +3 ¥320
90445-17141 Hose, Vacuum Tube Connector
2017-01 → 2022-01 ended
XZB60 09S;XZB60,70 5F;XZB70,80 (13S,24S) +3 ¥320
90445-17141 Hose, Vacuum Tube Connector
2022-01 → 2024-12 ended
GDB60,70,80 ¥320
90445-17141 Hose, Vacuum Tube Connector
2022-01 → 2023-12 ended
XZB60 5F;XZB60 09S;XZB70 21S,29S,49S;XZB70,80 +2 ¥320
44771A — Clip(FOR VACUUM TUBE CONNECTOR HOSE)
96133-41500 Clip(FOR VACUUM TUBE CONNECTOR HOSE)
2017-01 → 2022-01 ended
XZB60 09S;XZB60,70 5F;XZB70,80 (13S,24S) +3 ¥140
96133-41500 Clip(FOR VACUUM TUBE CONNECTOR HOSE)
2017-01 → —
XZB70 (09S,24S) 6FC DCR;XZB60,80 +3 ¥140
96133-41500 Clip(FOR VACUUM TUBE CONNECTOR HOSE)
2022-01 → 2023-12 ended
XZB60 5F;XZB60 09S;XZB70 21S,29S,49S;XZB70,80 +2 ¥140
96133-41500 Clip(FOR VACUUM TUBE CONNECTOR HOSE)
2022-01 → 2024-12 ended
GDB60,70,80 ¥140
44772 — Hose, Check Valve TO Connector Tube
44772-36100 Hose, Check Valve TO Connector Tube
2017-01 → —
XZB70 (09S,24S) 6FC DCR;XZB60,80 +3 ¥650
44772-36100 Hose, Check Valve TO Connector Tube
2017-01 → 2022-01 ended
XZB60,70 5F ¥650
44772-36100 Hose, Check Valve TO Connector Tube
2017-01 → 2022-01 ended
XZB60 09S;XZB70,80 (13S,24S) HDCR;XZB70 +2 ¥650
44772-36100 Hose, Check Valve TO Connector Tube
2022-01 → 2023-12 ended
XZB60 09S;XZB70,80 (13S,24S) HDCR;XZB70 +2 ¥650
44772-36100 Hose, Check Valve TO Connector Tube
2022-01 → 2023-12 ended
XZB60,70 5F ¥650
44772-36100 Hose, Check Valve TO Connector Tube
2022-01 → 2024-12 ended
GDB60,70 GX ¥650
44772A — Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
96133-41500 Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
2017-01 → 2022-01 ended
XZB60 09S;XZB70,80 (13S,24S) HDCR;XZB70 +2 ¥140
96133-41500 Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
2017-01 → 2022-01 ended
XZB60,70 5F ¥140
96133-41500 Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
2017-01 → —
XZB70 (09S,24S) 6FC DCR;XZB60,80 +3 ¥140
96133-41500 Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
2022-01 → 2023-12 ended
XZB60 09S;XZB70,80 (13S,24S) HDCR;XZB70 +2 ¥140
96133-41500 Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
2022-01 → 2024-12 ended
GDB60,70 GX ¥140
96133-41500 Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
2022-01 → 2023-12 ended
XZB60,70 5F ¥140
44773 — Hose, Vacuum, NO.2
44750-V4030 Hose, Vacuum, NO.2
2022-01 → 2024-12 ended
GDB60,70,80 ¥850
44773G — Clip(FOR UNION TO CHECK VALVE HOSE)
96133-41500 Clip(FOR UNION TO CHECK VALVE HOSE)
2022-01 → 2024-12 ended
GDB60,70,80 ¥140
44775C — Hose, Connector TO Way
44775-36100 Hose, Connector TO Way
2017-01 → 2022-01 ended
XZB60 09S;XZB60,70 5F;XZB70,80 (13S,24S) +3 ¥590
44775-36100 Hose, Connector TO Way
2017-01 → —
XZB70 (09S,24S) 6FC DCR;XZB60,80 +3 ¥590
44775-36100 Hose, Connector TO Way
2022-01 → 2023-12 ended
XZB60 5F;XZB60 09S;XZB70 21S,29S,49S;XZB70,80 +2 ¥590
44775-36100 Hose, Connector TO Way
2022-01 → 2024-12 ended
GDB60,70,80 LX,S ¥590
44775-36100 Hose, Connector TO Way
2022-01 → 2024-12 ended
GDB60,70 GX ¥590
44775E — Hose, Way TO Connector
44775-36090 Hose, Way TO Connector
2017-01 → 2022-01 ended
XZB60 09S;XZB60,70 5F;XZB70,80 (13S,24S) +3 ¥1,040
44775-36090 Hose, Way TO Connector
2017-01 → —
XZB70 (09S,24S) 6FC DCR;XZB60,80 +3 ¥1,040
44775-36090 Hose, Way TO Connector
2022-01 → 2023-12 ended
XZB60 5F;XZB60 09S;XZB70 21S,29S,49S;XZB70,80 +2 ¥1,040
44775-36090 Hose, Way TO Connector
2022-01 → 2024-12 ended
GDB60,70 GX ¥1,040
44775K — Clip(FOR CONNECTOR TO 3 WAY HOSE)
96133-41500 Clip(FOR CONNECTOR TO 3 WAY HOSE)
2017-01 → —
XZB70 (09S,24S) 6FC DCR;XZB60,80 +3 ¥140
96133-41500 Clip(FOR CONNECTOR TO 3 WAY HOSE)
2017-01 → 2022-01 ended
XZB60 09S;XZB60,70 5F;XZB70,80 (13S,24S) +3 ¥140
96133-41500 Clip(FOR CONNECTOR TO 3 WAY HOSE)
2022-01 → 2023-12 ended
XZB60 5F;XZB60 09S;XZB70 21S,29S,49S;XZB70,80 +2 ¥140
96133-41500 Clip(FOR CONNECTOR TO 3 WAY HOSE)
2022-01 → 2024-12 ended
GDB60,70,80 ¥140
44776 — Hose, Brake Booster
44776-36190 Hose, Brake Booster
2017-01 → 2022-01 ended
XZB60 09S;XZB60,70 5F;XZB70,80 (13S,24S) +3 ¥1,120
44776-36190 Hose, Brake Booster
2017-01 → —
XZB70 (09S,24S) 6FC DCR;XZB60,80 +3 ¥1,120
44776-36190 Hose, Brake Booster
2022-01 → 2023-12 ended
XZB60 5F;XZB60 09S;XZB70 21S,29S,49S;XZB70,80 +2 ¥1,120
44776-36190 Hose, Brake Booster
2022-01 → 2024-12 ended
GDB60,70,80 ¥1,120
44776A — Hose, Vacuum Reservoir TO Brake Booster
44776-36131 Hose, Vacuum Reservoir TO Brake Booster
2017-01 → 2022-01 ended
XZB60 09S;XZB60,70 5F;XZB70,80 (13S,24S) +3 ¥520
44776-36131 Hose, Vacuum Reservoir TO Brake Booster
2017-01 → —
XZB70 (09S,24S) 6FC DCR;XZB60,80 +3 ¥520
44776-36131 Hose, Vacuum Reservoir TO Brake Booster
2022-01 → 2023-12 ended
XZB60 5F;XZB60 09S;XZB70 21S,29S,49S;XZB70,80 +2 ¥520
44776-36131 Hose, Vacuum Reservoir TO Brake Booster
2022-01 → 2024-12 ended
GDB60,70,80 ¥520
44776B — Clip(FOR VACUUM RESERVOIR TO BRAKE BOOSTER)
96133-41500 Clip(FOR VACUUM RESERVOIR TO BRAKE BOOSTER)
2017-01 → 2022-01 ended
XZB60 09S;XZB60,70 5F;XZB70,80 (13S,24S) +3 ¥140
96133-41500 Clip(FOR VACUUM RESERVOIR TO BRAKE BOOSTER)
2017-01 → —
XZB70 (09S,24S) 6FC DCR;XZB60,80 +3 ¥140
96133-41500 Clip(FOR VACUUM RESERVOIR TO BRAKE BOOSTER)
2022-01 → 2023-12 ended
XZB60 5F;XZB60 09S;XZB70 21S,29S,49S;XZB70,80 +2 ¥140
96133-41500 Clip(FOR VACUUM RESERVOIR TO BRAKE BOOSTER)
2022-01 → 2024-12 ended
GDB60,70,80 ¥140
44776E — Clip(FOR BRAKE BOOSTER HOSE)
90467-16014 note Clip(FOR BRAKE BOOSTER HOSE)
2017-01 → 2022-01 ended
XZB60 09S;XZB60,70 5F;XZB70,80 (13S,24S) +3 ¥230
90467-16014 note Clip(FOR BRAKE BOOSTER HOSE)
2017-01 → —
XZB70 (09S,24S) 6FC DCR;XZB60,80 +3 ¥230
96133-41500 note Clip(FOR BRAKE BOOSTER HOSE)
2017-01 → 2022-01 ended
XZB60 09S;XZB60,70 5F;XZB70,80 (13S,24S) +3 ¥140
96133-41500 note Clip(FOR BRAKE BOOSTER HOSE)
2017-01 → —
XZB70 (09S,24S) 6FC DCR;XZB60,80 +3 ¥140
90467-16014 note Clip(FOR BRAKE BOOSTER HOSE)
2022-01 → 2023-12 ended
XZB60 5F;XZB60 09S;XZB70 21S,29S,49S;XZB70,80 +2 ¥230
90467-16014 note Clip(FOR BRAKE BOOSTER HOSE)
2022-01 → 2024-12 ended
GDB60,70,80 ¥230
96133-41500 note Clip(FOR BRAKE BOOSTER HOSE)
2022-01 → 2023-12 ended
XZB60 5F;XZB60 09S;XZB70 21S,29S,49S;XZB70,80 +2 ¥140
96133-41500 note Clip(FOR BRAKE BOOSTER HOSE)
2022-01 → 2024-12 ended
GDB60,70,80 ¥140
44779A — Clip(FOR UNION TO CONNECTOR HOSE)
96133-41500 Clip(FOR UNION TO CONNECTOR HOSE)
2022-01 → 2024-12 ended
GDB60,70,80 ¥140
44799 — Way, Brake Vacuum Hose
90414-10043 Way, Brake Vacuum Hose
2017-01 → 2022-01 ended
XZB60 09S;XZB60,70 5F;XZB70,80 (13S,24S) +3 ¥240
90414-10043 Way, Brake Vacuum Hose
2017-01 → —
XZB70 (09S,24S) 6FC DCR;XZB60,80 +3 ¥240
90414-10043 Way, Brake Vacuum Hose
2022-01 → 2023-12 ended
XZB60 5F;XZB60 09S;XZB70 21S,29S,49S;XZB70,80 +2 ¥240
90414-10043 Way, Brake Vacuum Hose
2022-01 → 2024-12 ended
GDB60,70,80 ¥240
47264D — Clevis, Brake Master Cylinder Push Rod
47264-22040 Clevis, Brake Master Cylinder Push Rod
2017-01 → 2022-01 ended
XZB60 09S;XZB60,70 5F;XZB70,80 (13S,24S) +3 ¥320
47264-22040 Clevis, Brake Master Cylinder Push Rod
2017-01 → —
XZB70 (09S,24S) 6FC DCR;XZB60,80 +3 ¥320
47264-22040 Clevis, Brake Master Cylinder Push Rod
2022-01 → 2023-12 ended
XZB60 5F;XZB60 09S;XZB70 21S,29S,49S;XZB70,80 +2 ¥320
47264-22040 Clevis, Brake Master Cylinder Push Rod
2022-01 → 2024-12 ended
GDB60,70,80 ¥320
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
