Toyota Coaster
2017-01 → present · chassis GDB1#,60,70,80,XZB60,70,80 · catalogue 811140 · Japan
Supported model
Data version 2023-05

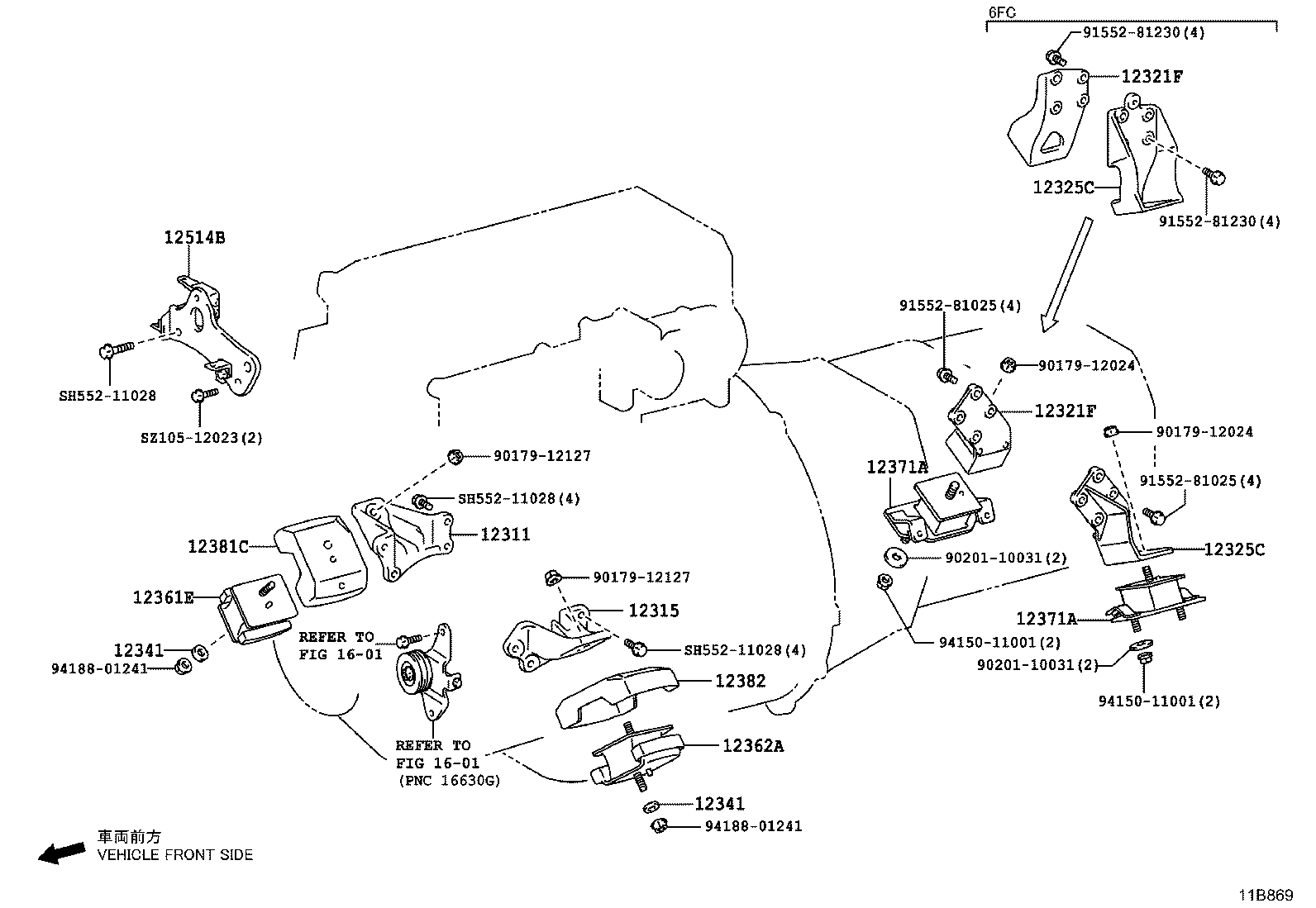

Mounting
16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 12311 | Bracket, Engine Mounting, Front NO.1 RH |
| 12315 | Bracket, Engine Mounting, Front NO.1 LH |
| 12319A | Spacer, Engine Front Support |
| 12321F | Bracket, Engine Mounting, Rear RH |
| 12325C | Bracket, Engine Mounting, Rear LH |
| 12341 | Spacer, Engine Mounting |
| 12361 | Insulator, Engine Mounting, Front |
| 12361E | Insulator, Engine Mounting, Front RH |
| 12362A | Insulator, Engine Mounting, Front LH |
| 12371A | Insulator, Engine Mounting, Rear |
| 12380A | Bolt(FOR ENGINE MOUNTING INSURATOR) |
| 12381C | Stabilizer, Engine Mounting, RH |
| 12382 | Stabilizer, Engine Mounting, LH |
| 12501 | Bracket Sub-assy, Alternator |
| 12514B | Brace Sub-assy, Alternator |
| 12582 | Insulator, Cylinder Block, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
