Toyota Coaster

2017-01 → present · chassis GDB1#,60,70,80,XZB60,70,80 · catalogue 811140 · Japan

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

22 part groups · 3 illustrations

Illustrations

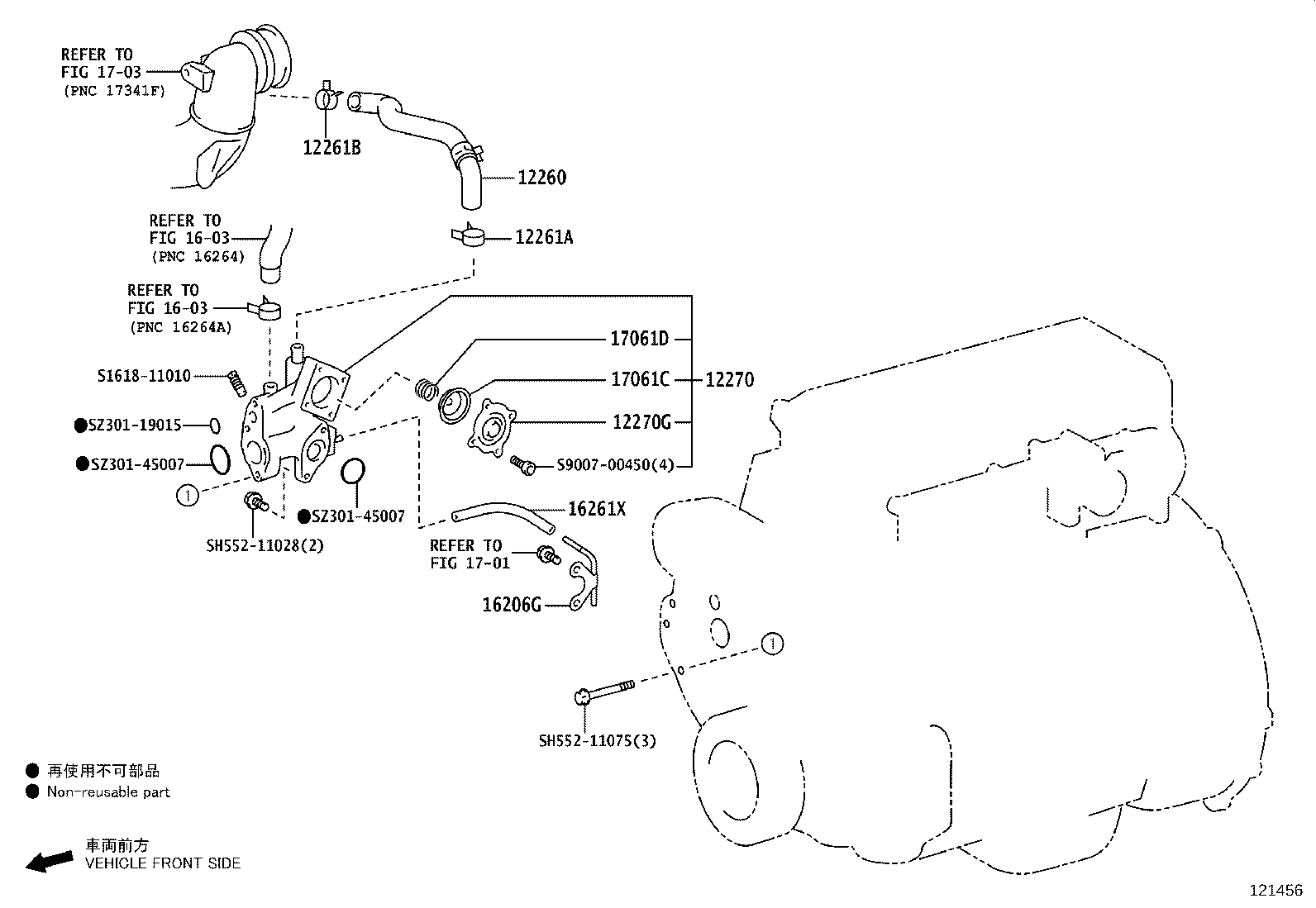

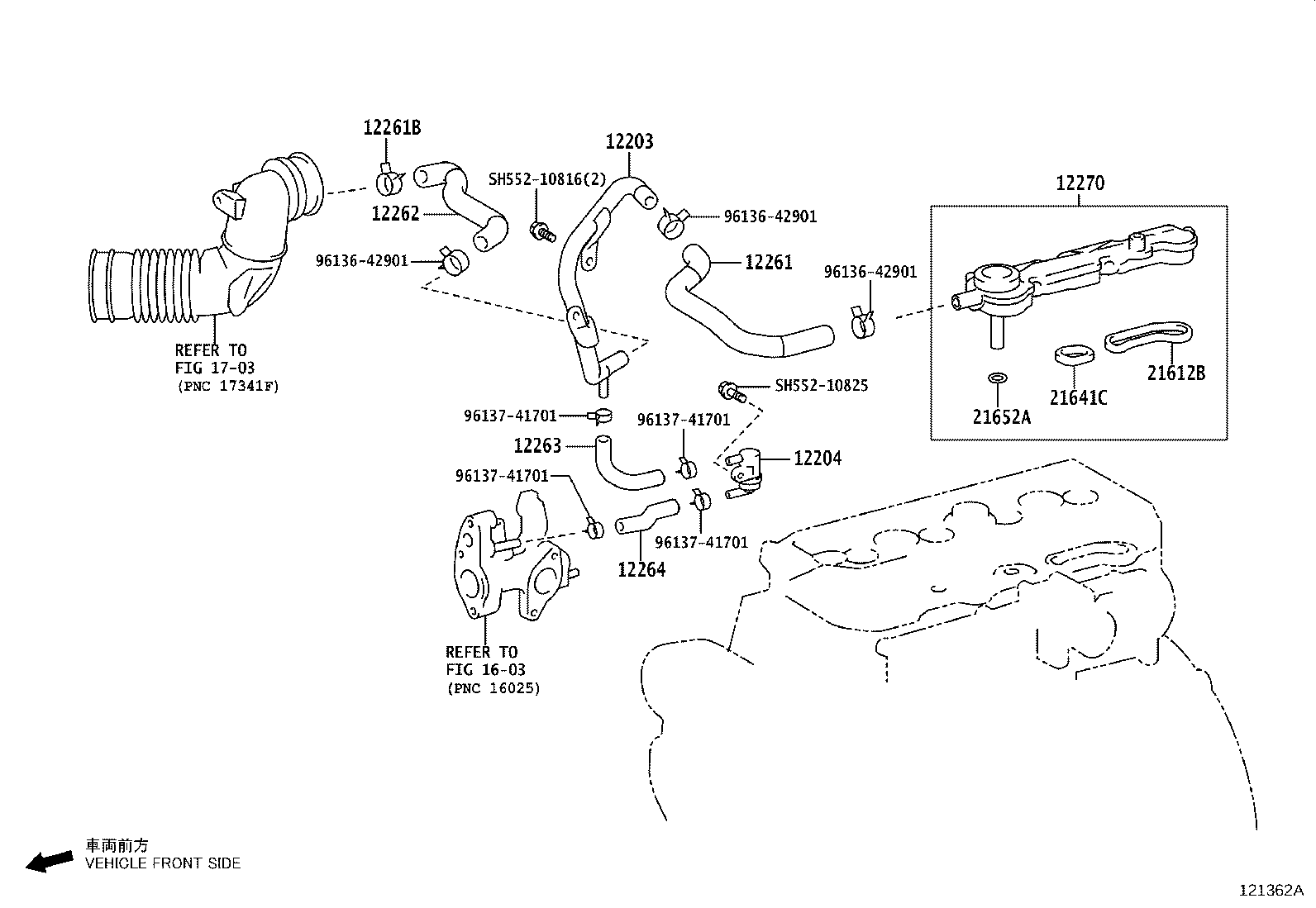

Figure 121538A 121538A 2022-01 → — Figure 121456 121456 2017-01 → 2019-08 Figure 121362A 121362A 2019-08 → —

Part groups

PNCDescription
12203 Pipe Sub-assy, Ventilation
12204 Valve Sub-assy, Ventilation
12229 Pipe, Ventilation
12260 Hose Assy, Ventilation
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12261B Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12263 Hose, Ventilation, NO.3
12264 Hose, Ventilation, NO.4
12270 Separator Assy, Oil
12270G Cover
16206G Pipe Sub-assy, Coolant By-pass
16261X Hose, Water
1629F Hose, Water By-pass, NO.19
1629G Hose, Water By-pass, NO.20
17061C Diaphragm Sub-assy
17061D Spring L
21612B Gasket
21641C Gasket
21652A Ring, O
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
