Toyota Coaster
2017-01 → present · chassis GDB1#,60,70,80,XZB60,70,80 · catalogue 811140 · Japan
Supported model
Data version 2023-05

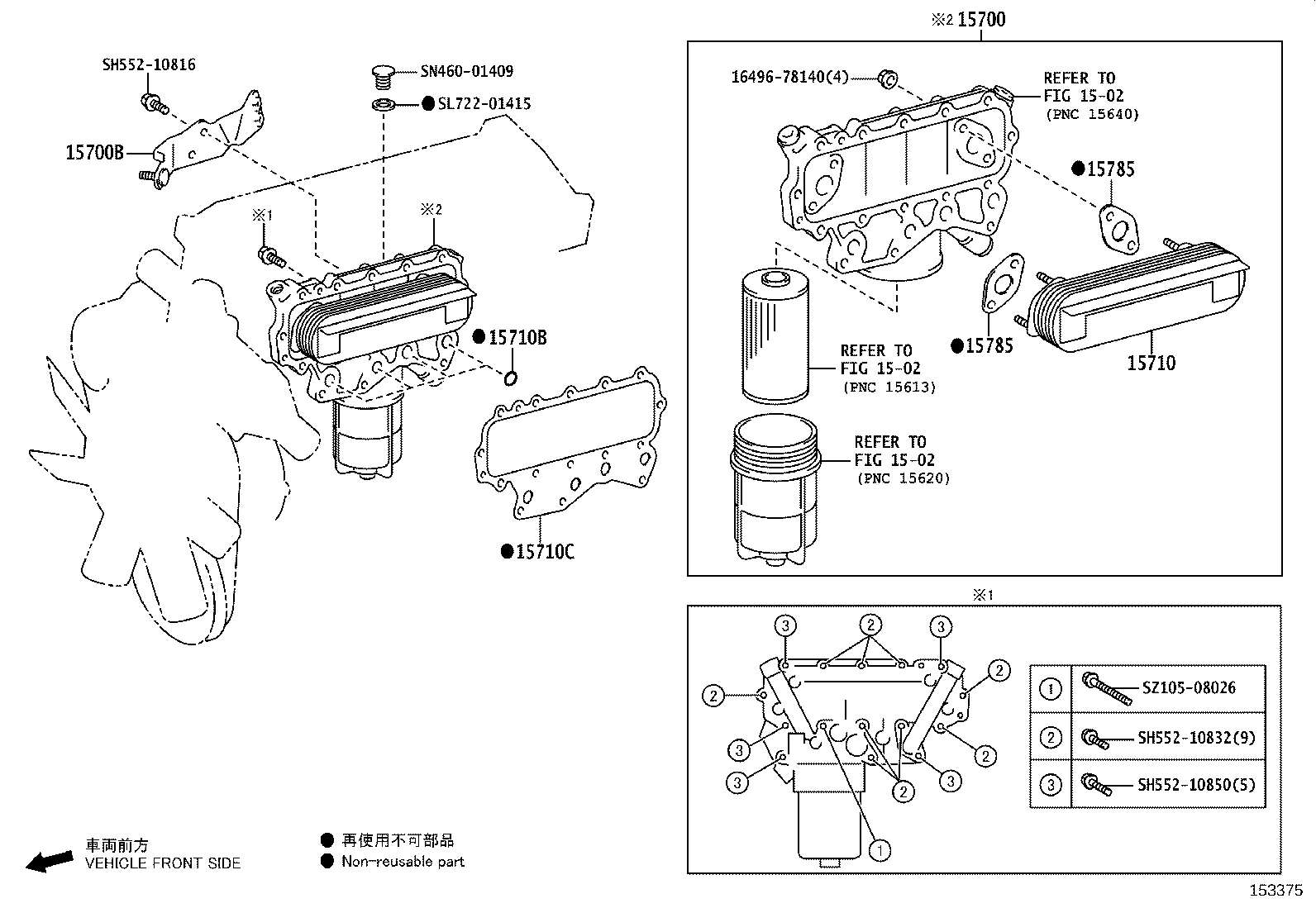

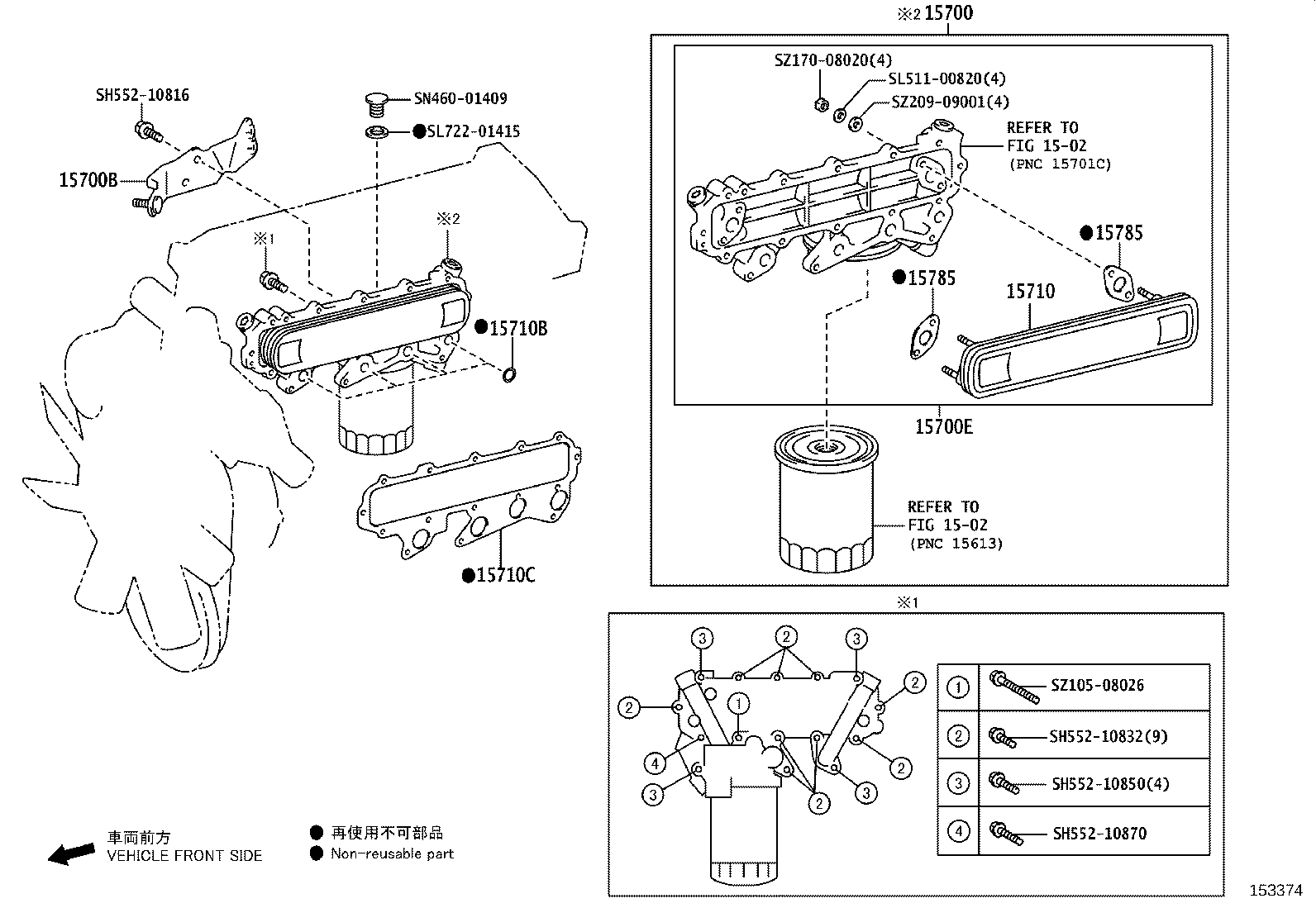

Engine Oil Cooler
10 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 15071 | Cooler Set, Engine Oil |
| 15700 | Cooler Assy, Oil W/Bracket |
| 15700B | Bracket(FOR OIL COOLER) |
| 15700E | Cooler Sub-assy, Oil, W/O Oil Filter |
| 15710 | Cooler Assy, Oil |
| 15710B | Ring, O(FOR OIL COOLER) |
| 15710C | Gasket(FOR OIL COOLER) |
| 15723 | Ring, O |
| 15785 | Gasket, Oil Cooler |
| 16345A | Gasket, Water Outlet Pipe |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
