Toyota Coaster
2017-01 → present · chassis GDB1#,60,70,80,XZB60,70,80 · catalogue 811140 · Japan
Supported model
Data version 2023-05

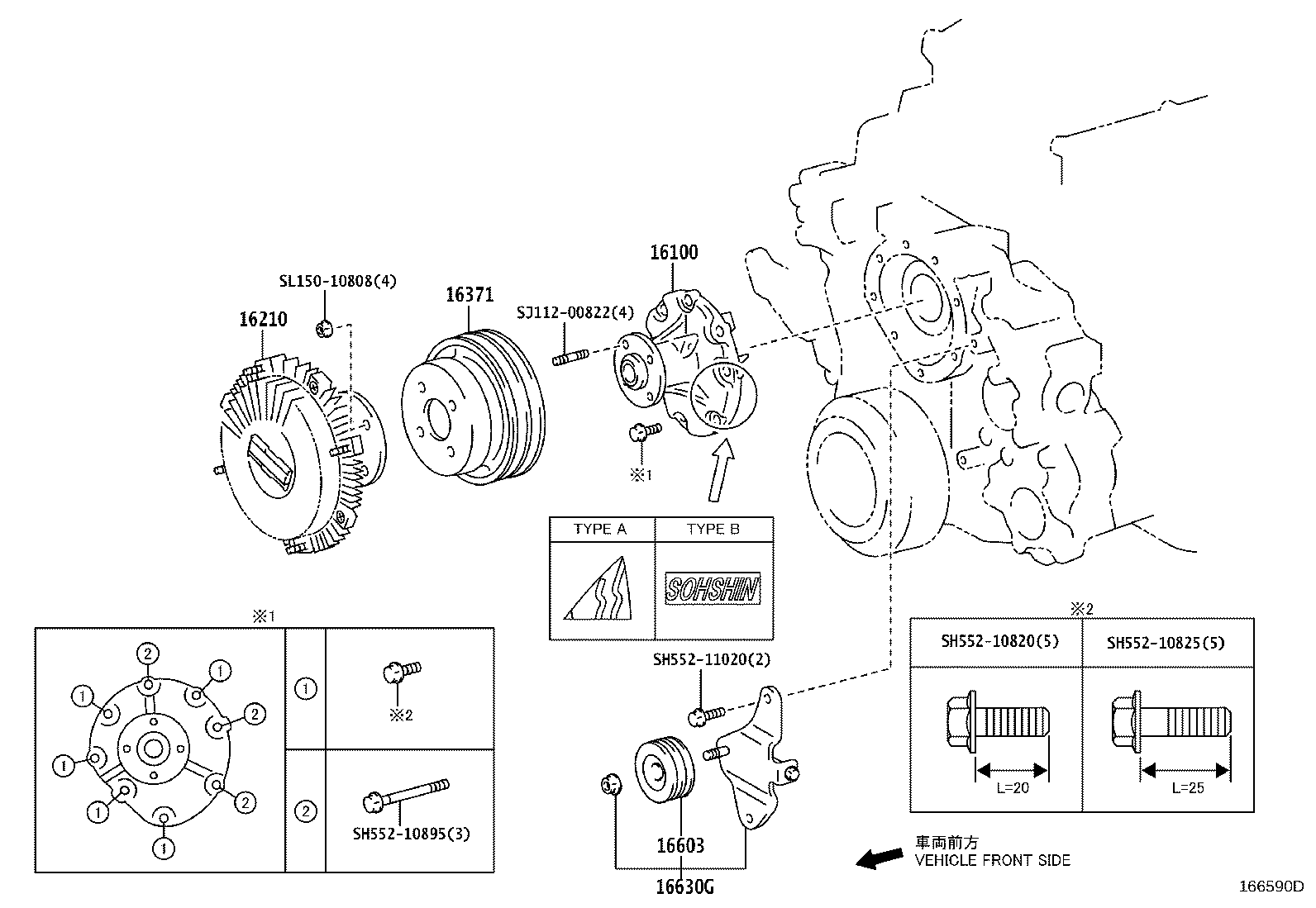

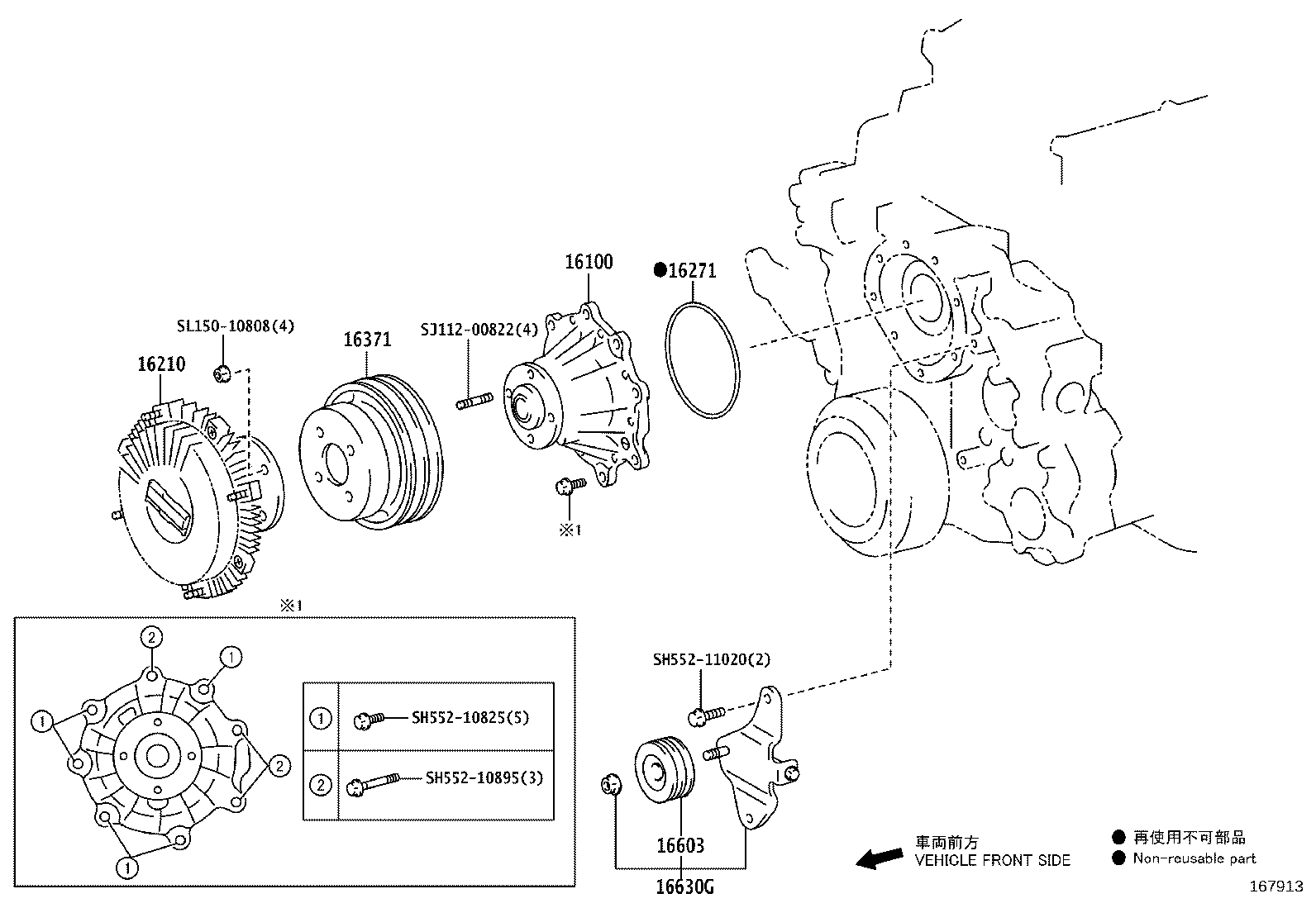

Water Pump
11 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 16100 | Pump Assy, Engine Water |
| 16210 | Coupling Assy, Fluid |
| 16271 | Gasket, Water Pump |
| 16272 | Gasket, Water Pump, NO.2 |
| 16371 | Pulley, Fan |
| 16603 | Pulley Sub-assy, Idler, NO.1 |
| 16603H | Bolt(FOR IDLER PULLEY) |
| 16603L | Pulley Sub-assy, Idler, NO.1 |
| 16603M | Bolt(FOR IDLER PULLEY) |
| 16620 | Tensioner Assy, V-ribbed Belt |
| 16630G | Pulley Assy, Idler |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
