Toyota Coaster

2017-01 → present · chassis GDB1#,60,70,80,XZB60,70,80 · catalogue 811140 · Japan

Supported model Data version 2023-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

149 part groups · 8 illustrations

Illustrations

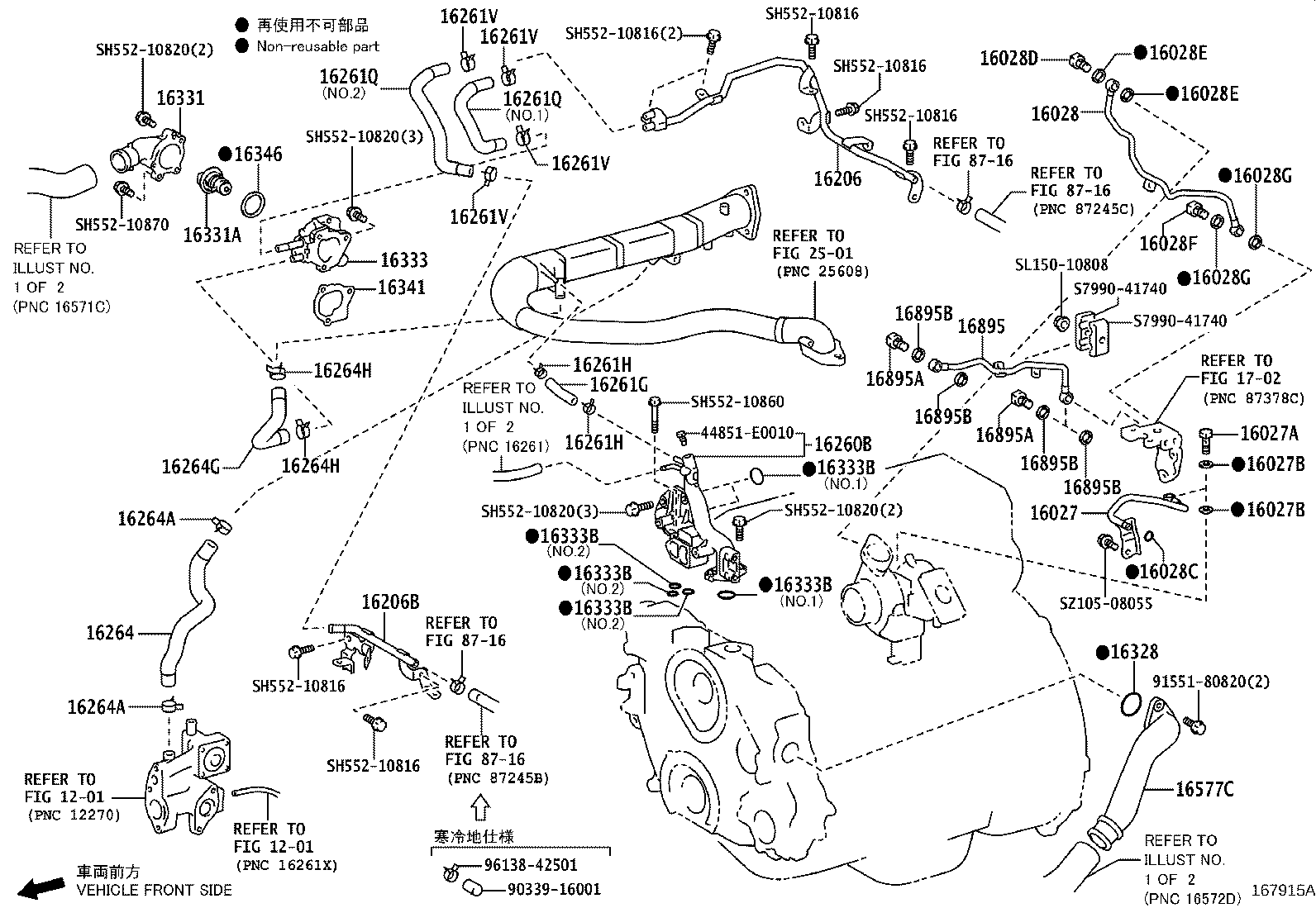

167915A 2017-01 → 2019-08

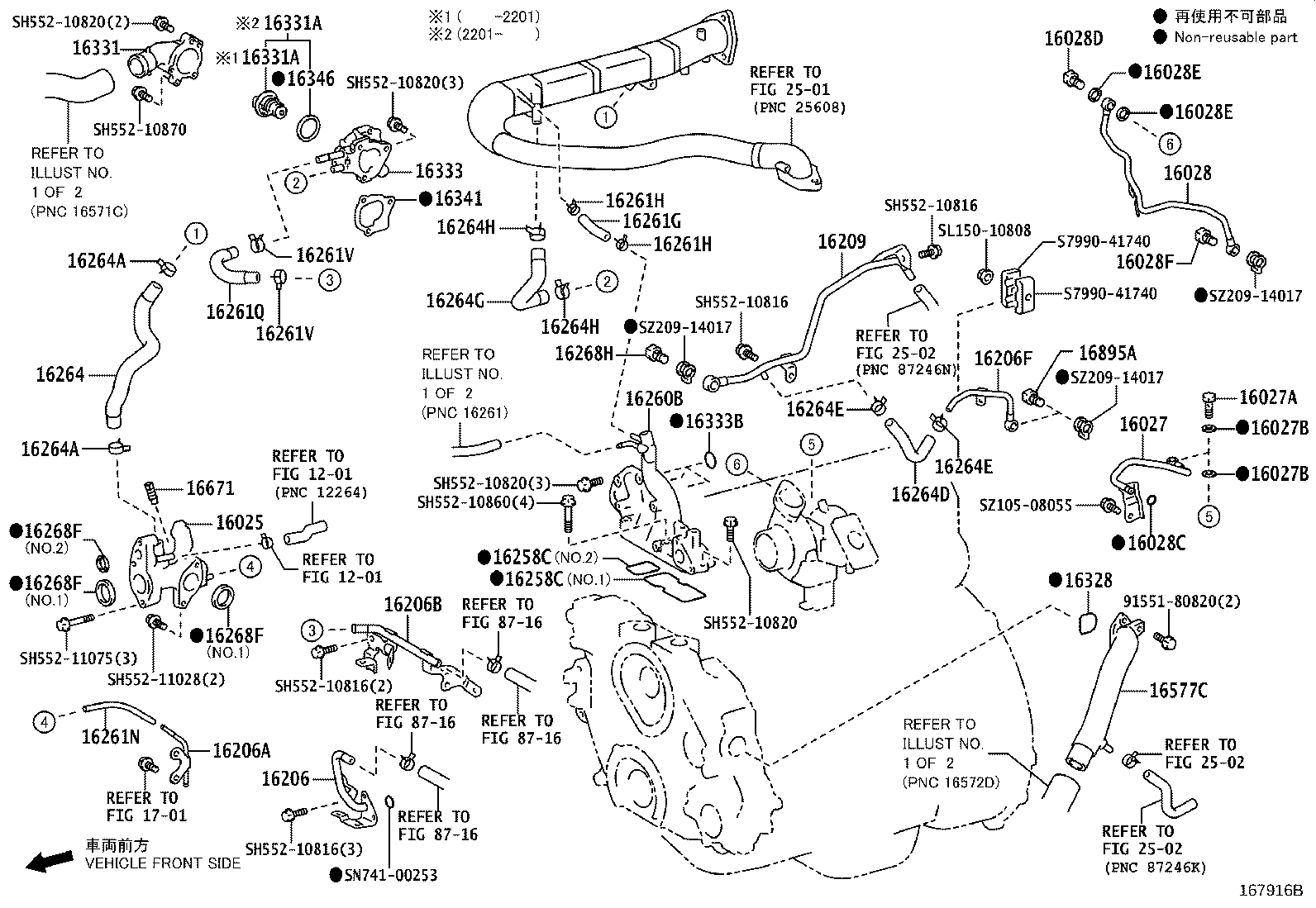

167916B 2019-08 → —

Part groups

PNC	Description

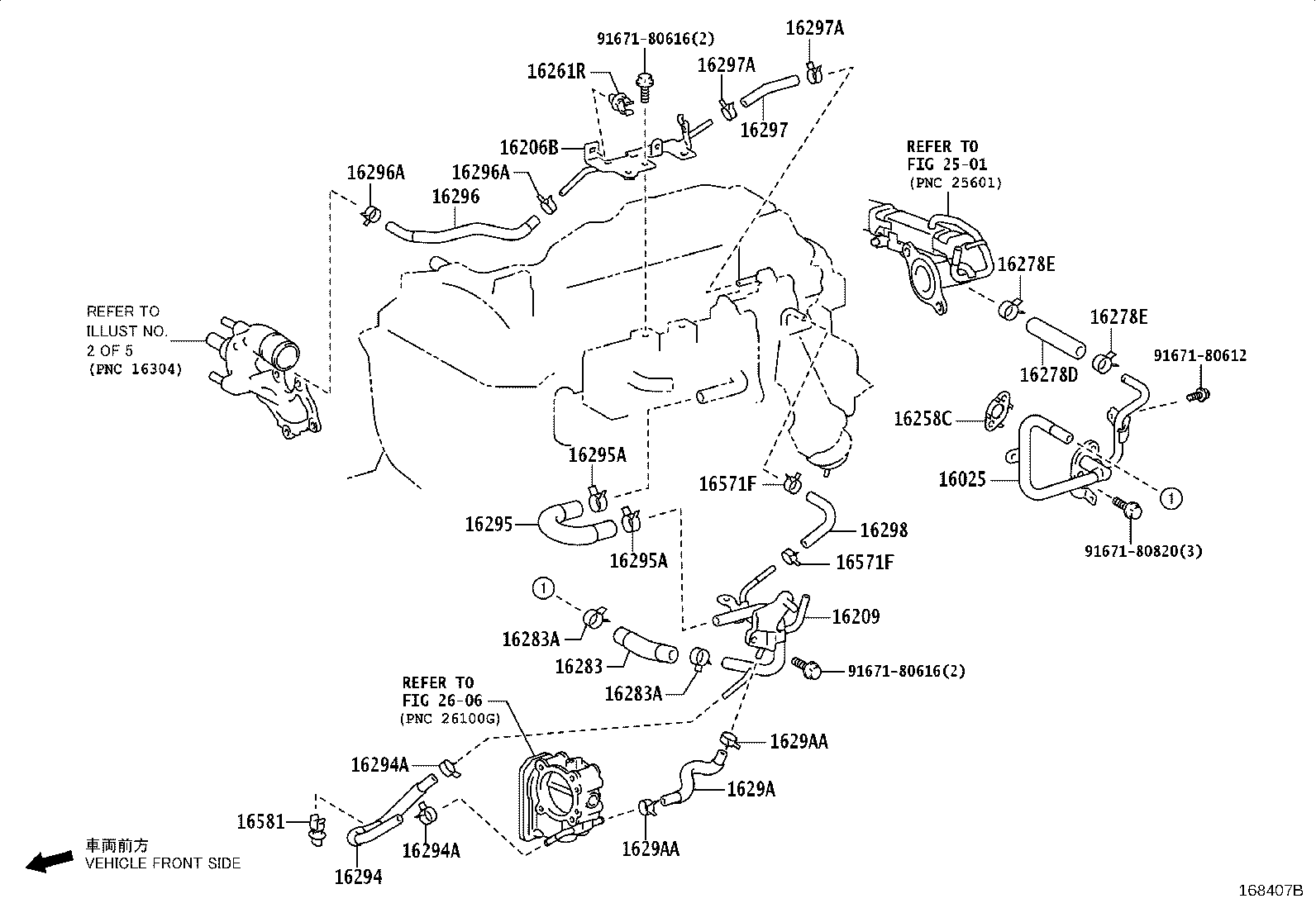

16025	Pipe Sub-assy, Water By-pass, NO.5

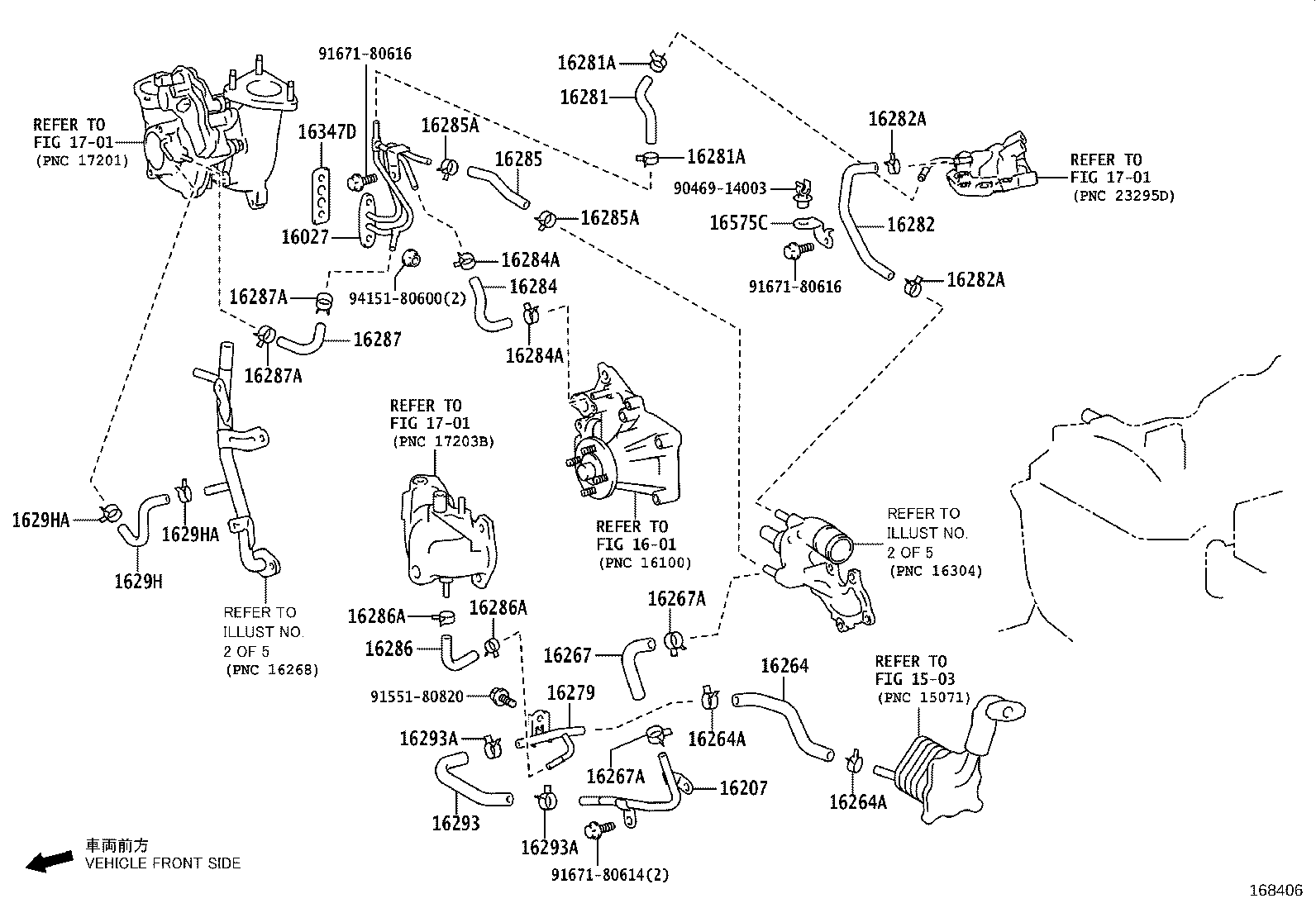

16027	Pipe Sub-assy, Turbo Water, NO.1
16027A	Bolt, Union(FOR TURBO WATER PIPE)
16027B	Gasket(FOR TURBO WATER PIPE)
16028	Pipe Sub-assy, Turbo Water, NO.2
16028C	Ring, O(FOR TURBO WATER PIPE)
16028D	Bolt, Union, NO.1(FOR TURBO WATER PIPE)
16028E	Gasket, NO.1(FOR TURBO WATER PIPE)
16028F	Bolt, Union, NO.2(FOR TURBO WATER PIPE)
16028G	Gasket, NO.2(FOR TURBO WATER PIPE)
161B0	Pump Assy, Electric Water
16206	Pipe Sub-assy, Water By-pass
16206A	Pipe Sub-assy, Water By-pass, NO.2
16206B	Pipe Sub-assy, Water By-pass, NO.3
16206F	Pipe Sub-assy, Water By-pass, NO.4
16207	Pipe Sub-assy, Water By-pass, NO.2
16209	Pipe Sub-assy, Water By-pass, NO.4
16258C	Gasket(FOR WATER BY-PASS PIPE)
16260B	Pipe Assy, Water By-pass
16261	Hose, Water By-pass
16261A	Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261G	Hose, Water By-pass, NO.1
16261H	Clip(FOR WATER BY-PASS HOSE NO.1)
16261N	Hose, Water By-pass, NO.2
16261Q	Hose, Water By-pass
16261R	Clamp OR Clip(FOR WATER BY-PASS HOSE)
16261V	Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16264	Hose, Water By-pass, NO.2
16264A	Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16264D	Hose, Water By-pass, NO.2
16264E	Clip(FOR WATER BY-PASS HOSE NO.2)
16264G	Hose, Water By-pass, NO.3
16264H	Clip(FOR WATER BY-PASS HOSE NO.3)
16267	Hose, Water By-pass, NO.3
16267A	Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16268	Pipe, Water By-pass, NO.1
16268F	Ring, O(FOR WATER BY-PASS PIPE)
16268H	Bolt, Union(FOR WATER BY-PASS PIPE)
16278	Pipe, Water By-pass, NO.2
16278D	Hose, Water By-pass
16278E	Clip(FOR WATER BY-PASS HOSE)
16279	Pipe, Water By-pass, NO.3
16281	Hose, Water By-pass, NO.4
16281A	Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16282	Hose, Water By-pass, NO.5
16282A	Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
16283	Hose, Water By-pass, NO.6
16283A	Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
16284	Hose, Turbo Water, NO.1
16284A	Clip(FOR TURBO WATER HOSE NO.1)
16285	Hose, Turbo Water, NO.2
16285A	Clip(FOR TURBO WATER HOSE NO.2)
16286	Hose, Turbo Water, NO.3
16286A	Clip(FOR TURBO WATER HOSE NO.3)
16287	Hose, Turbo Water, NO.4
16287A	Clip(FOR TURBO WATER HOSE NO.4)
16293	Hose, Water By-pass, NO.10
16293A	Clip(FOR WATER BY-PASS HOSE NO.10)
16294	Hose, Water By-pass, NO.11
16294A	Clip(FOR WATER BY-PASS HOSE NO.11)
16295	Hose, Water By-pass, NO.7
16295A	Clip(FOR WATER BY-PASS HOSE NO.7)
16296	Hose, Water By-pass, NO.8
16296A	Clip(FOR WATER BY-PASS HOSE NO.8)
16297	Hose, Water By-pass, NO.9
16297A	Clip(FOR WATER BY-PASS HOSE NO.9)
16298	Hose, Water By-pass, NO.12
1629A	Hose, Water By-pass, NO.14
1629AA	Clip(FOR WATER BY-PASS HOSE NO.14)
1629B	Hose, Water By-pass, NO.15
1629BA	Clip(FOR WATER BY-PASS HOSE NO.15)
1629H	Hose, Water By-pass, NO.21
1629HA	Clip(FOR WATER BY-PASS HOSE NO.21)

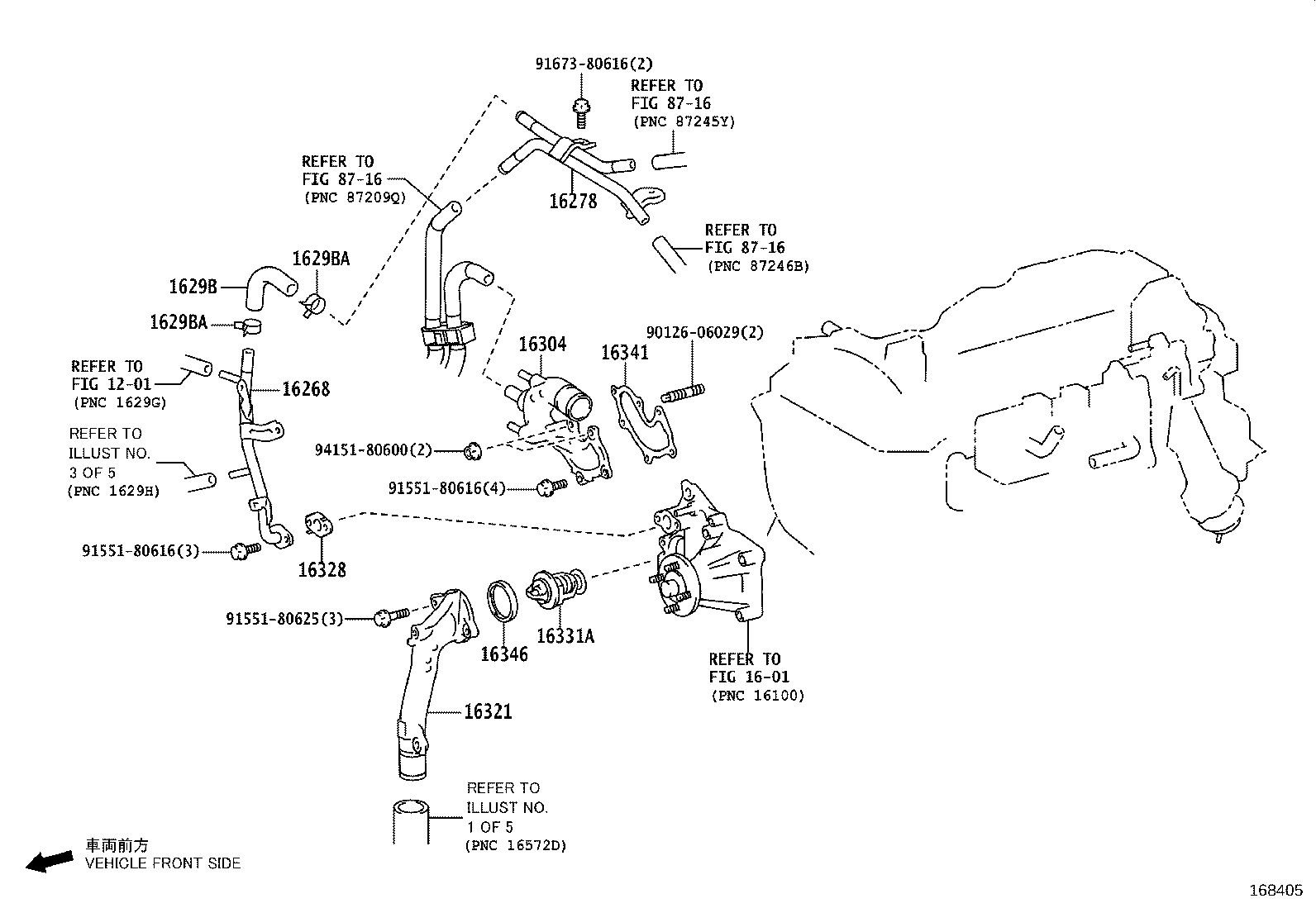

16304	Outlet Sub-assy, Water
16321	Inlet, Water
16328	Gasket, Water Inlet Pipe
16331	Outlet, Water
16331A	Thermostat
16333	Housing, Water Outlet
16333B	Ring, O(FOR WATER OUTLET HOUSING)
16341	Gasket, Water Outlet
16346	Gasket, Thermostat
16347D	Gasket, Water By-pass
16361	Fan

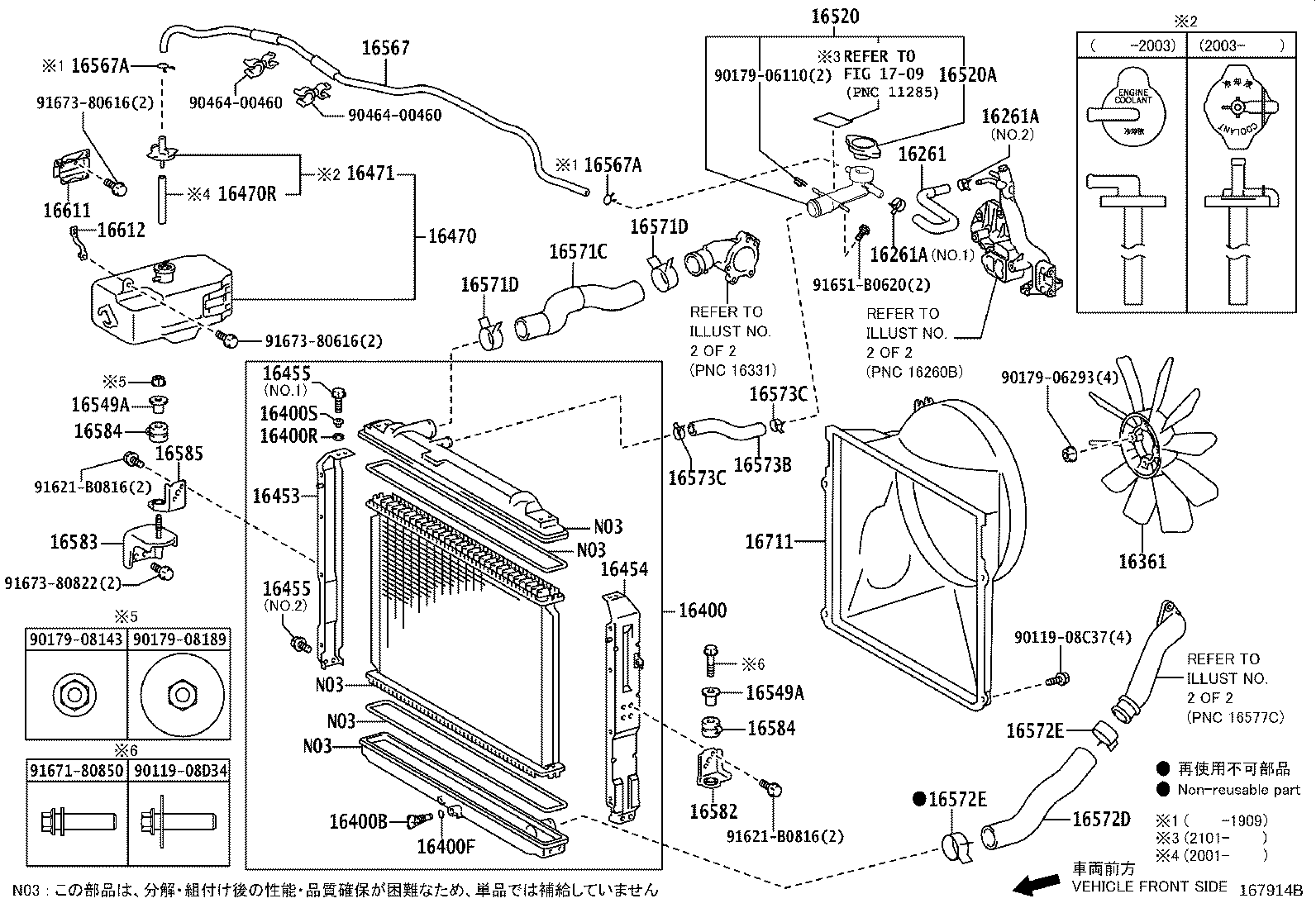

16400	Radiator Assy
16400B	Plug, Radiator Drain Cock
16400F	Packing(FOR RADIATOR DRAIN COCK)
16400L	Clamp, NO.1
16400N	Clamp, NO.2
16400R	Bushing(FOR RADIATOR)
16400S	Collar(FOR RADIATOR)
16401A	Cap Sub-assy, Radiator Reserve Tank
16453	Plate, Radiator Side
16454	Plate, Radiator Side
16455	Bolt, Radiator Side Support Plate
16470	Tank Assy, Radiator Reserve
16470C	Bracket(FOR RADIATOR RESERVE TANK)
16470M	Grommet
16470R	Hose, NO.2(FOR RADIATOR RESERVE TANK)
16471	Cap Sub-assy, Reserve Tank
16475A	Cap, Reserve Tank
16515A	Pipe, Intercooler Cooling Water, NO.1
16516A	Pipe, Intercooler Cooling Water, NO.2
16520	Filler Assy, Water
16520A	Cap Sub-assy, Water Filler
16549A	Collar, Radiator Support, NO.1

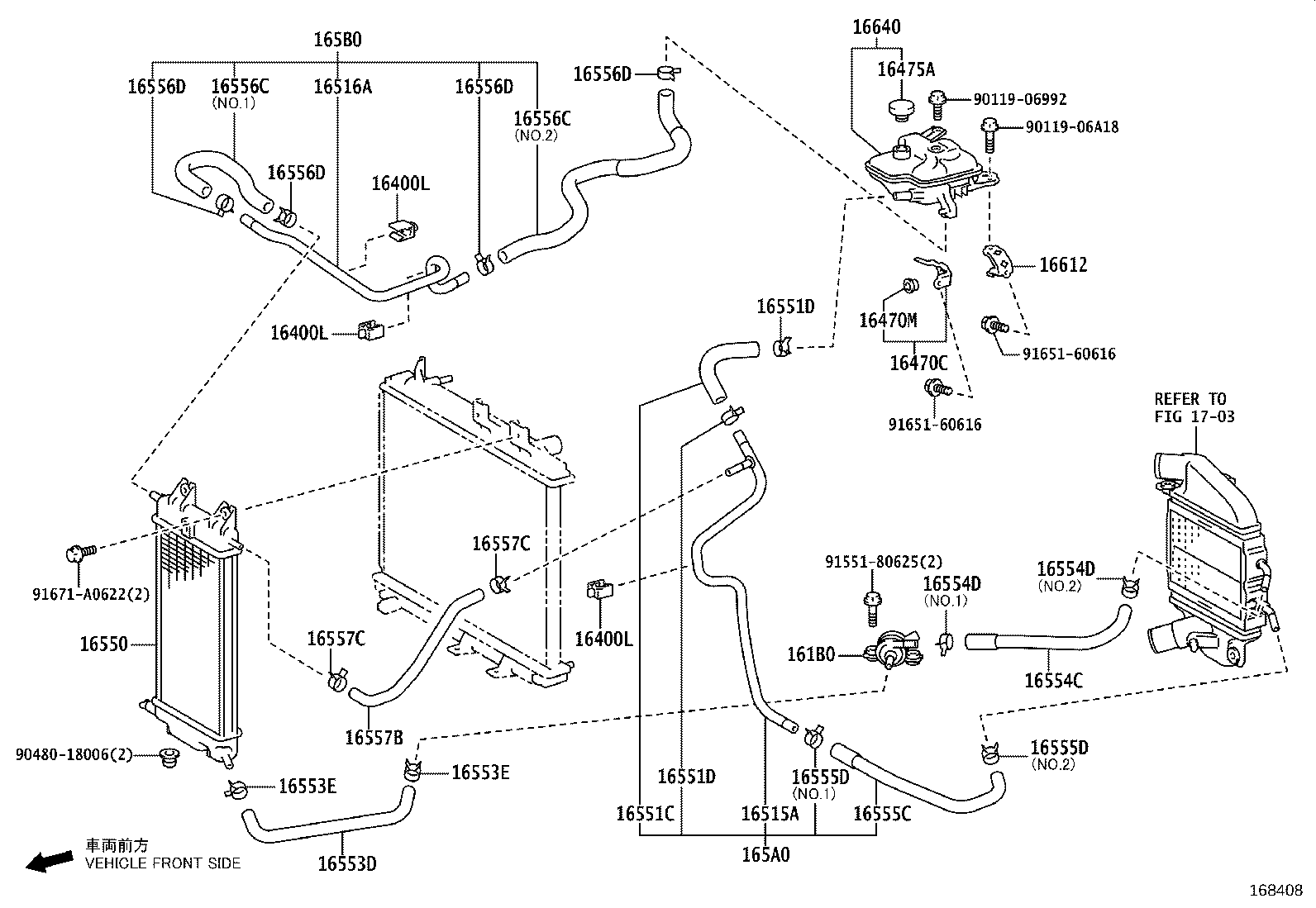

16550	Radiator Assy, Intercooler Cooling
16551C	Hose, Intercooler Cooling Water, NO.1
16551D	Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.1)
16553D	Hose, Intercooler Cooling Water, NO.3
16553E	Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.3)
16554C	Hose, Intercooler Cooling Water, NO.4
16554D	Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.4)
16555C	Hose, Intercooler Cooling Water, NO.5
16555D	Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.5)
16556C	Hose, Intercooler Cooling Water, NO.6
16556D	Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.6)
16557B	Hose, Intercooler Cooling Water, NO.7
16557C	Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.7)
16560	Pipe Assy, Radiator TO Reserve Tank, NO.1
16567	Hose(FOR RADIATOR RESERVE TANK)
16567A	Clip(FOR RADIATOR RESERVE TANK HOSE)
16571A	Clamp OR Clip, Hose(FOR RADIATOR INLET)
16571C	Hose, Radiator, NO.1
16571D	Clip, Radiator Hose, NO.1
16571F	Clamp OR Clip(FOR WATER HOSE)
16572A	Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
16572D	Hose, Radiator, NO.2
16572E	Clip, Radiator Hose, NO.2
16573B	Hose, Radiator, NO.3
16573C	Clamp OR Clip, Radiator Hose, NO.3
16575C	Bracket, Water Hose Clamp, NO.1
16577C	Pipe, Radiator
16581	Clamp, Hose(FOR WATER HOSE)
16582	Bracket, Radiator, NO.1
16583	Bracket, Radiator, NO.2
16584	Insulator, Radiator Mounting
16585	Bracket, Radiator, NO.3
16591	Pipe, Radiator
165A0	Hose Assy, Intercooler Cooling Water, NO.1
165B0	Hose Assy, Intercooler Cooling Water, NO.2
16611	Bracket, Radiator Reserve Tank
16612	Bracket, Radiator Reserve Tank, NO.2
16640	Tank Assy, Intercooler Reserve
16671	Valve, Water
16711	Shroud, Fan
16895	Pipe, Turbo Water, NO.1
16895A	Bolt, Union(FOR TURBO WATER PIPE NO.1)
16895B	Gasket(FOR TURBO WATER PIPE NO.1)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
