Toyota Coaster

2017-01 → present · chassis GDB1#,60,70,80,XZB60,70,80 · catalogue 811140 · Japan

Supported model Data version 2023-05

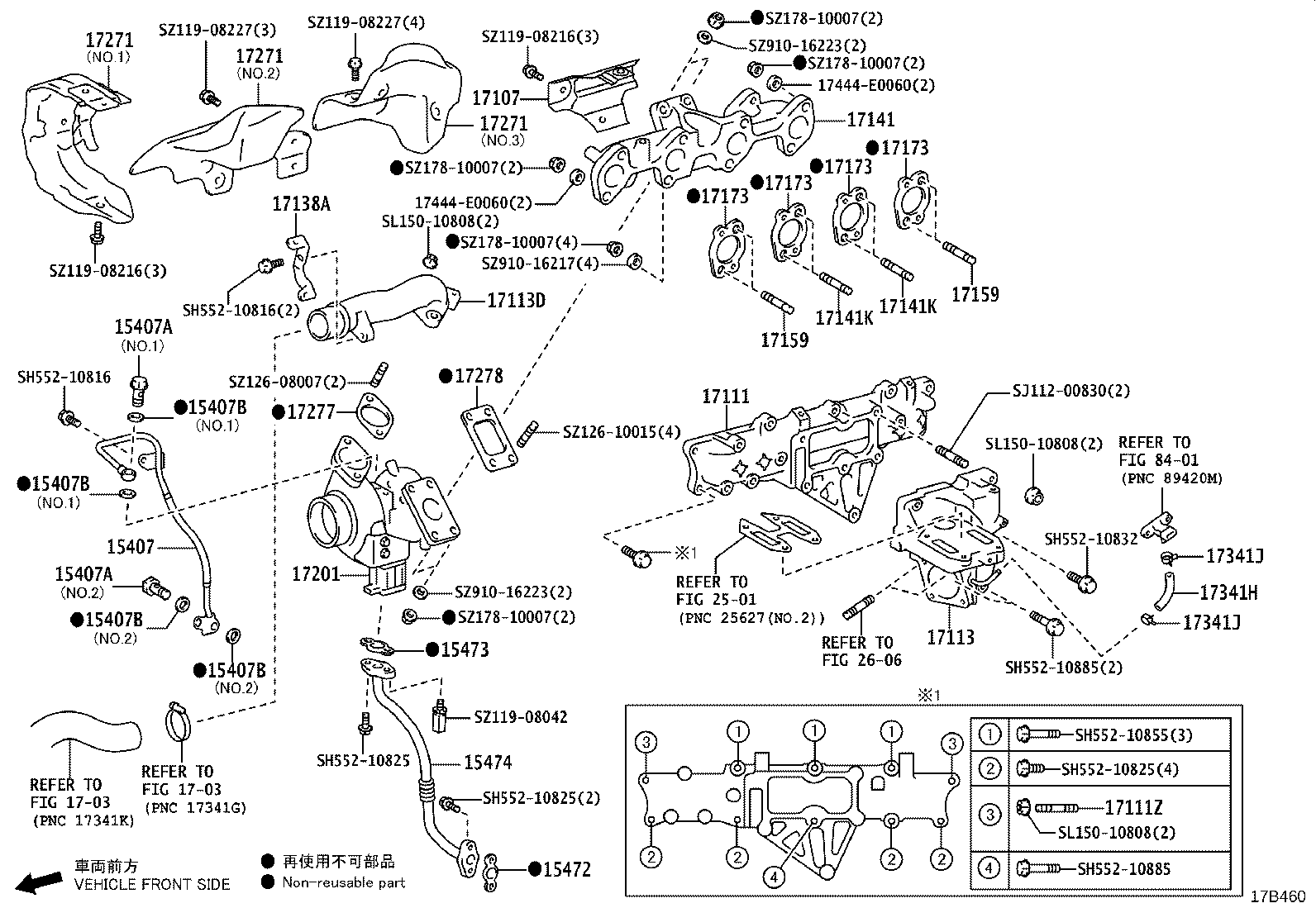

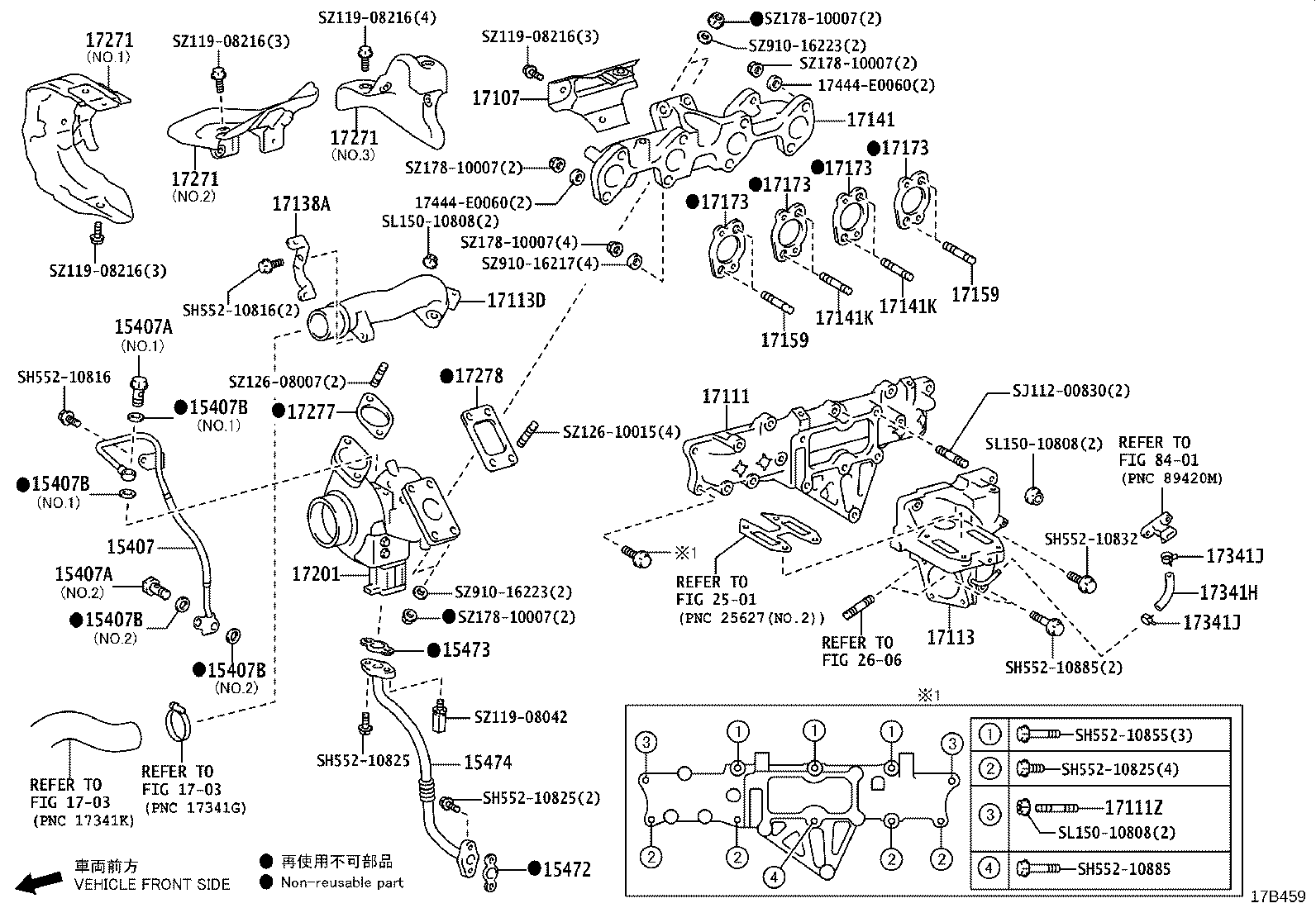

Manifold

44 part groups · 5 illustrations

PNC	Description

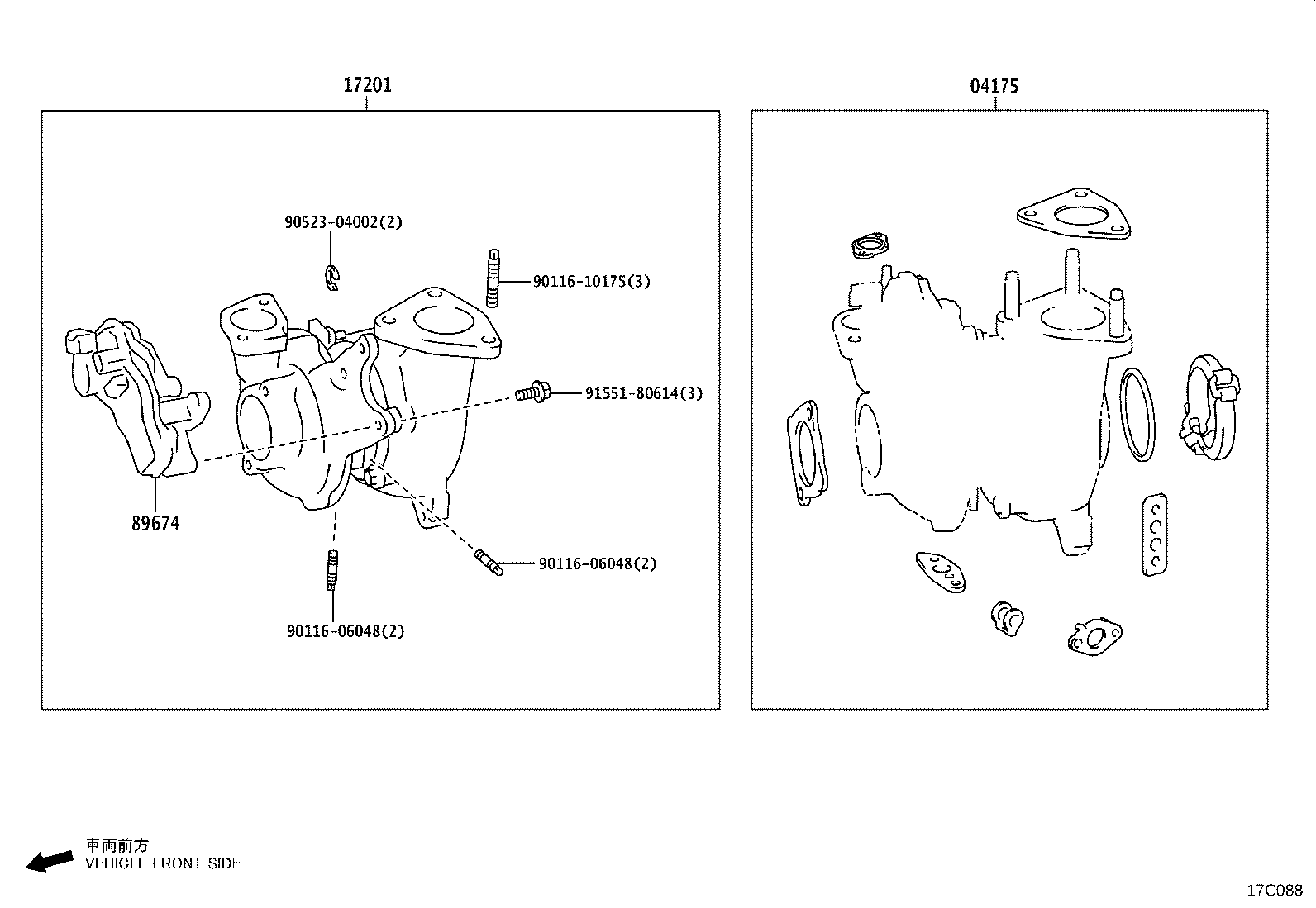

04175	Gasket Kit, Turbocharger
15407	Pipe Sub-assy, Turbo Oil Inlet
15407A	Bolt, Union(FOR TURBO OIL INLET PIPE)
15407B	Gasket(FOR TURBO OIL INLET PIPE)
15407F	Clamp OR Clip, Oil Hose
15471	Gasket, Turbo Oil Inlet
15472	Gasket, Turbo Oil Outlet, NO.1
15473	Gasket, Turbo Oil Outlet, NO.2
15474	Pipe, Turbo Oil Outlet
15474A	Hose, Turbo Oil Outlet

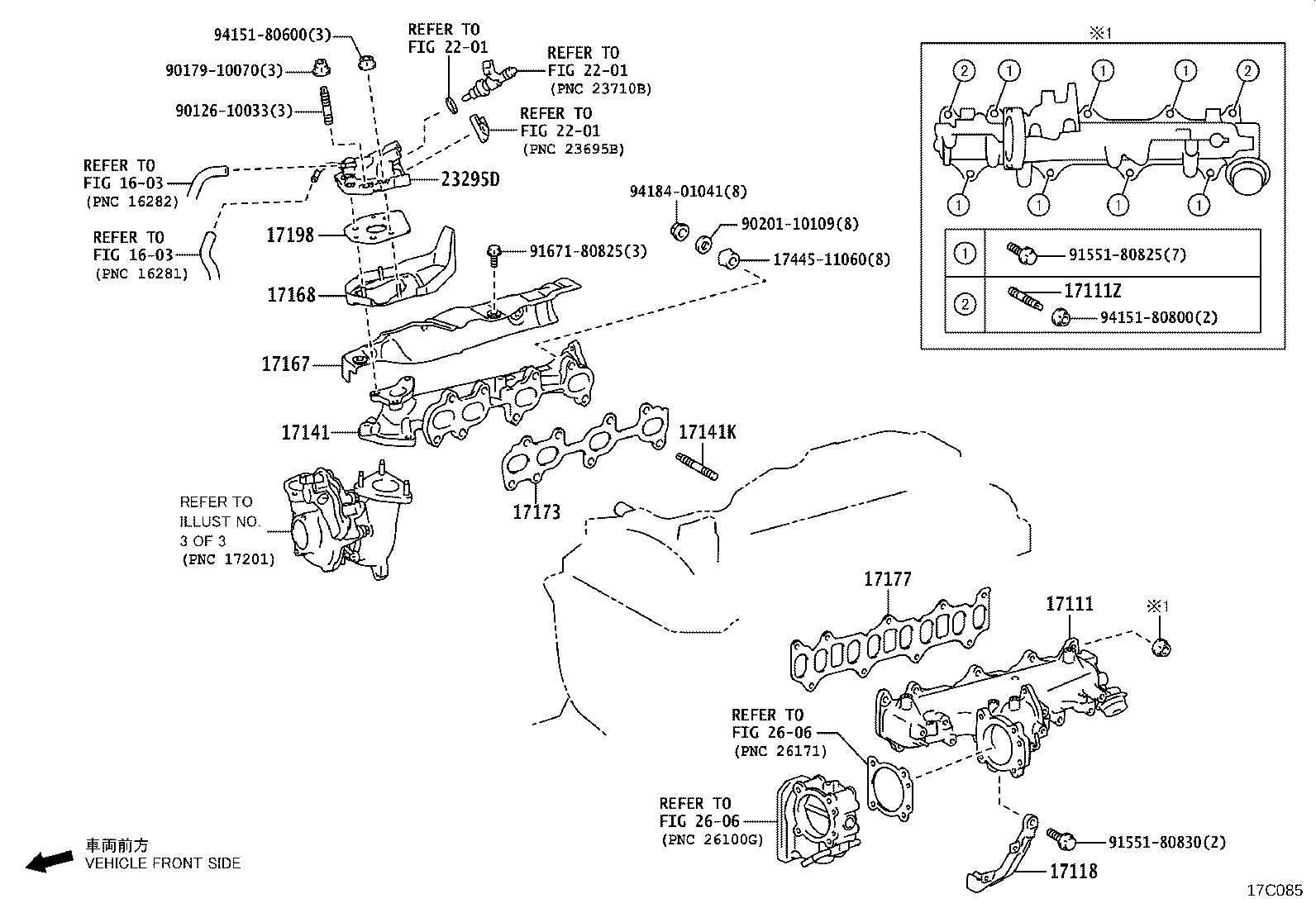

17107	Insulator Sub-assy, Exhaust Manifold Heat
17111	Manifold, Intake
17111Z	Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17113	Pipe, Intake
17113D	Pipe, Intake, NO.1
17118	Stay, Manifold
17138A	Stay, Intake Pipe
17141	Manifold, Exhaust
17141K	Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
17159	Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167	Insulator, Exhaust Manifold Heat, NO.1
17168	Insulator, Exhaust Manifold Heat, NO.2
17173	Gasket, Exhaust Manifold TO Head
17177	Gasket, Intake Manifold TO Head, NO.1
17198	Gasket, Exhaust Manifold, NO.2
17201	Turbocharger Sub-assy
17203B	Elbow Sub-assy, Compressor Inlet
17271	Insulator, Turbo, NO.1
17275	Elbow, Compressor Outlet
17276	Gasket, Compressor Inlet
17277	Gasket, Compressor Outlet
17278	Gasket, Turbo TO Exhaust Manifold
17279	Gasket, Turbine Outlet Elbow
17293	Stay, Turbocharger
17293C	Nut(FOR TURBOCHARGER STAY)
17298	Stay, Compressor Elbow
17341H	Hose, Air
17341J	Clamp, Hose
17452B	Clamp, Exhaust Pipe
17568A	Stay, Exhaust Pipe Support
17569D	Stay, Exhaust Pipe Support, NO.2
23295D	Holder, Injector, NO.1
25051	Converter Sub-assy, Exhaust Manifold
89674	Motor, Turbocharger Variable Nozzle

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
