Toyota Coaster

2017-01 → present · chassis GDB1#,60,70,80,XZB60,70,80 · catalogue 811140 · Japan

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

49 part groups · 7 illustrations

Illustrations

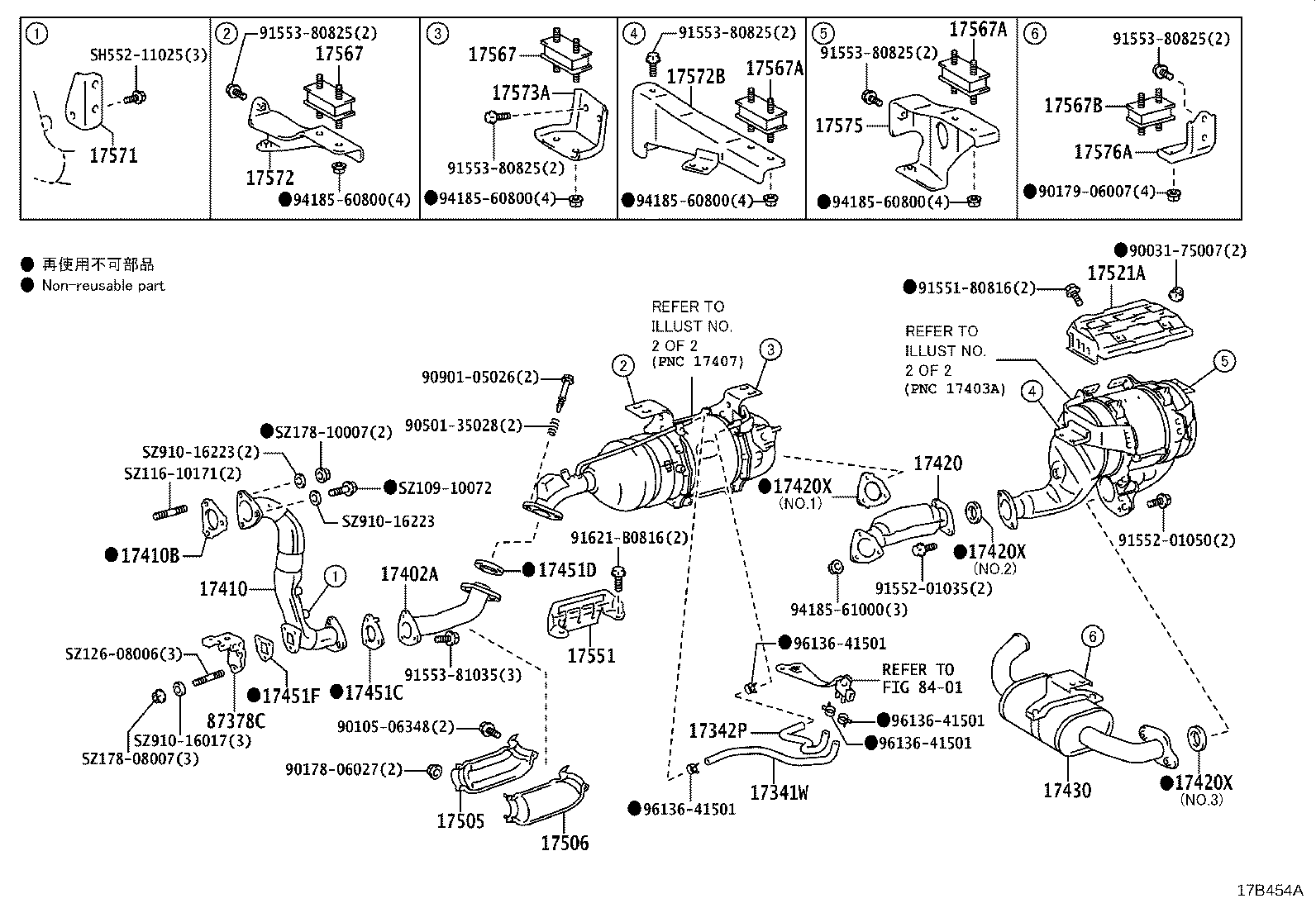

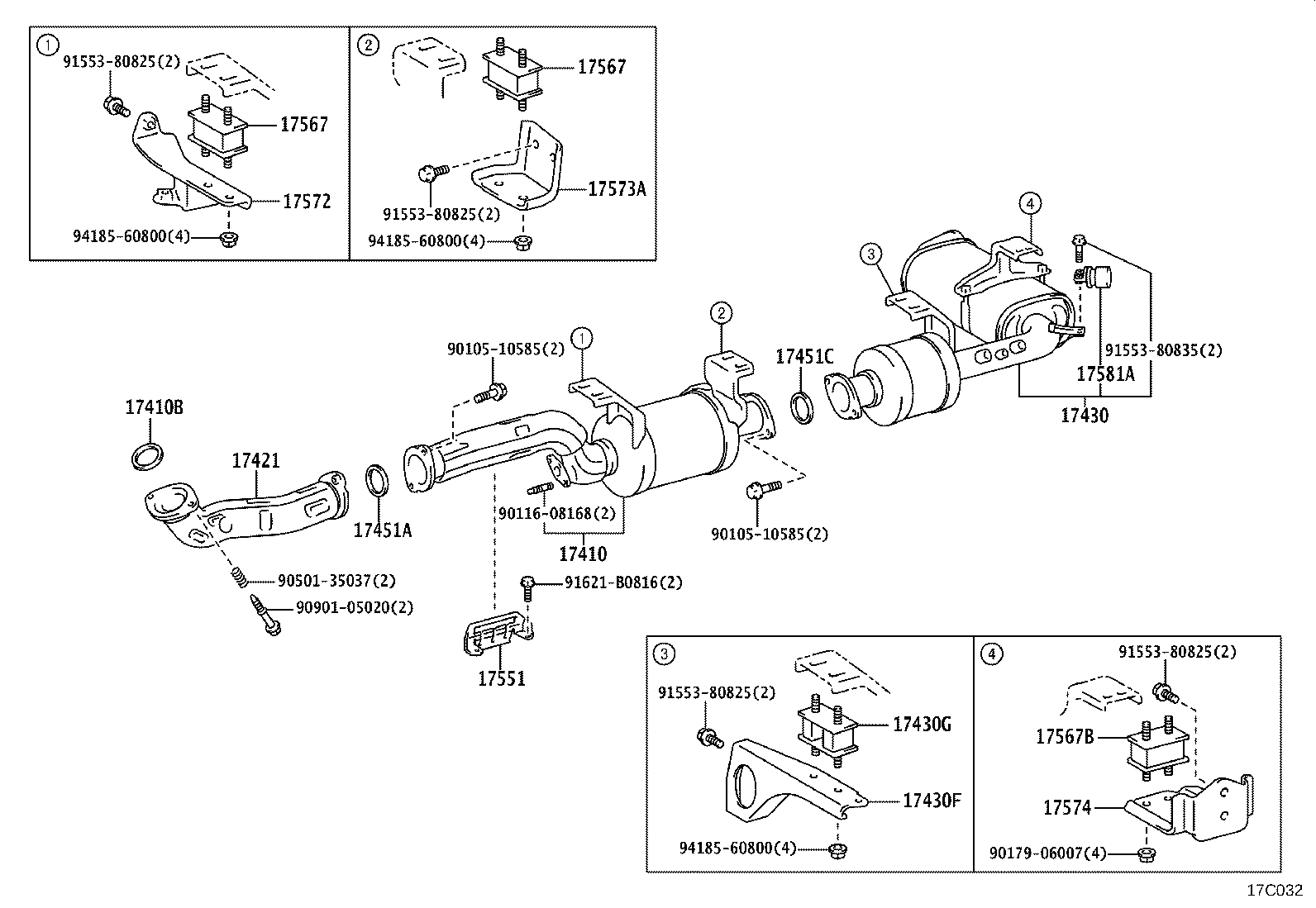

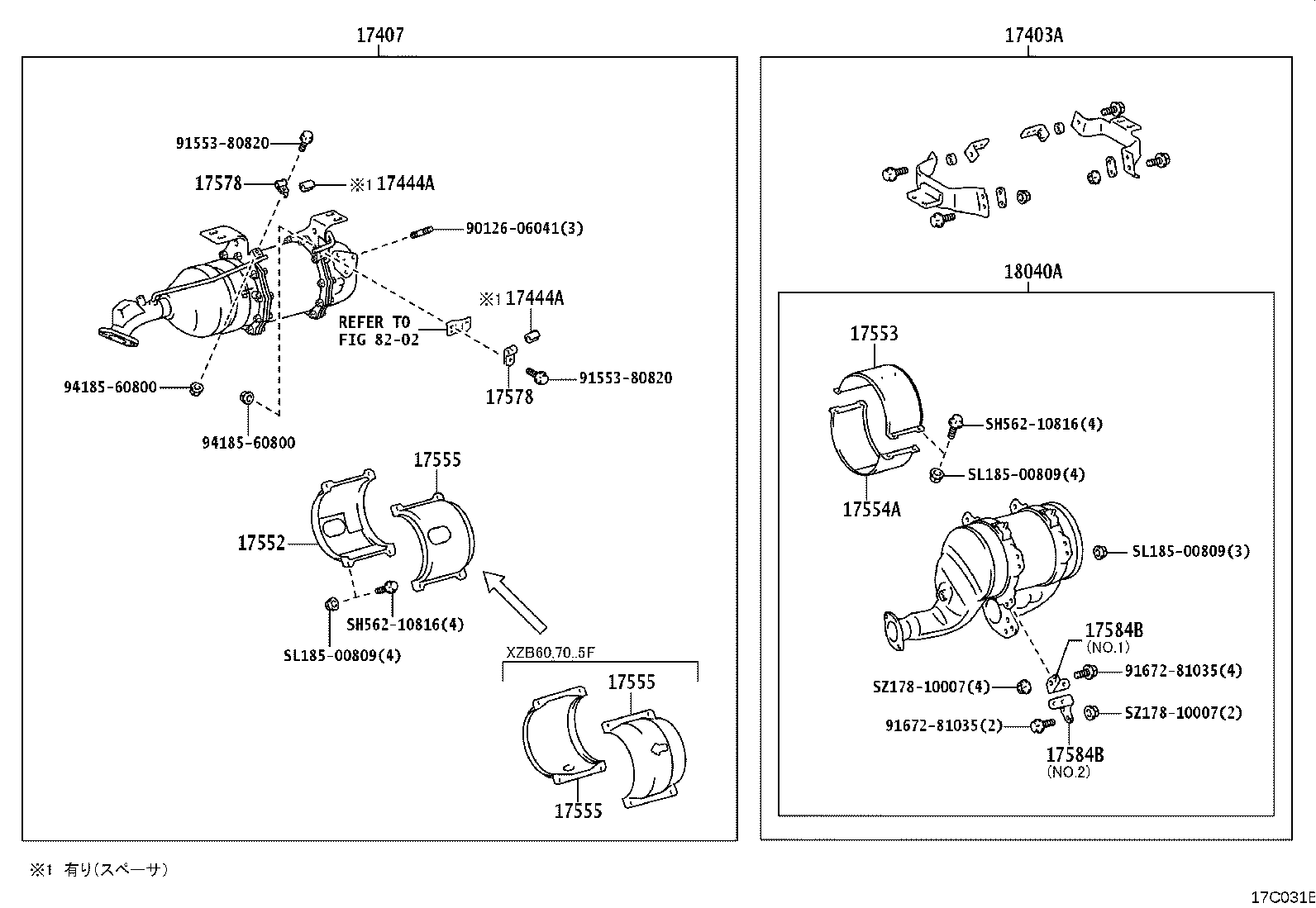

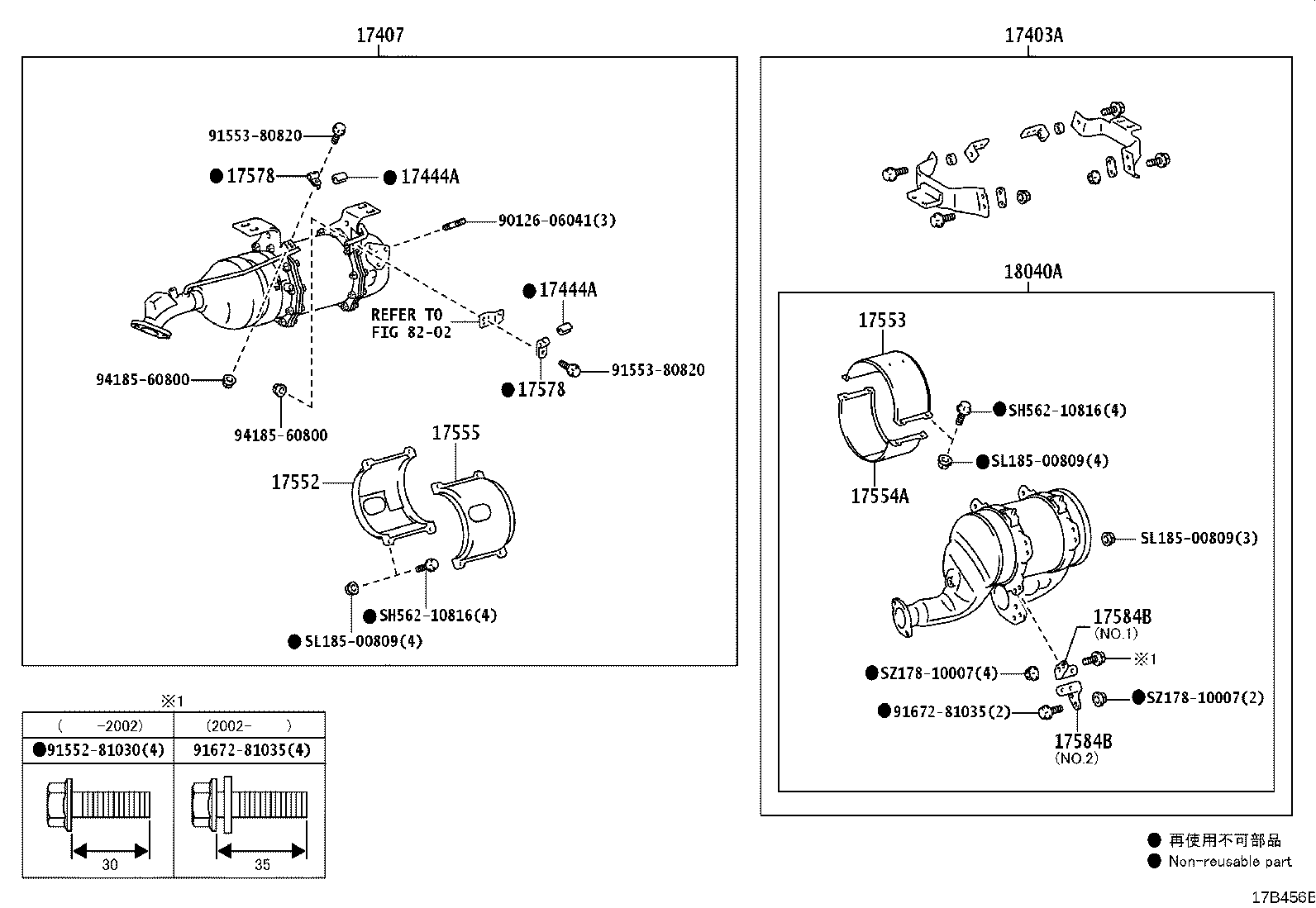

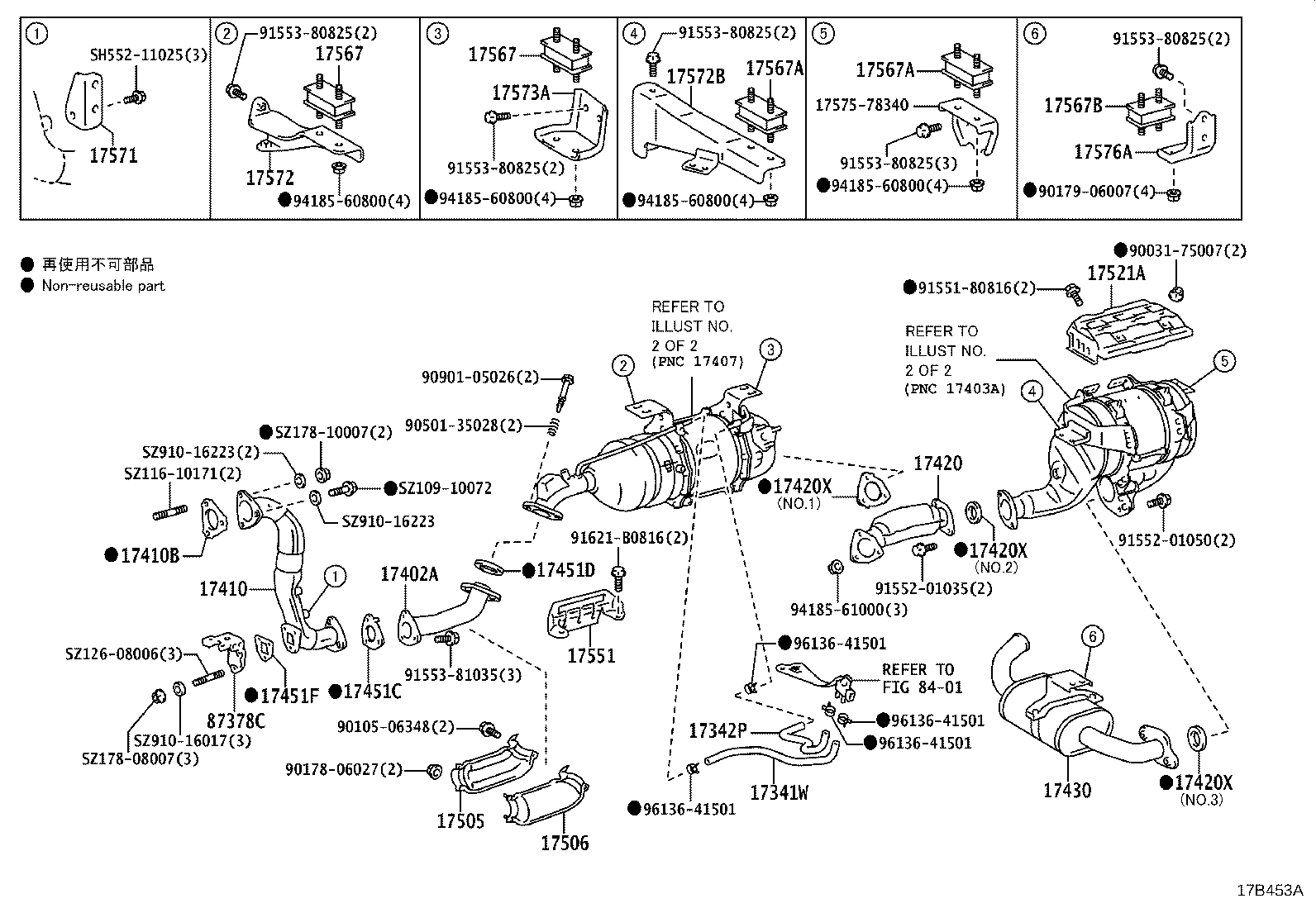

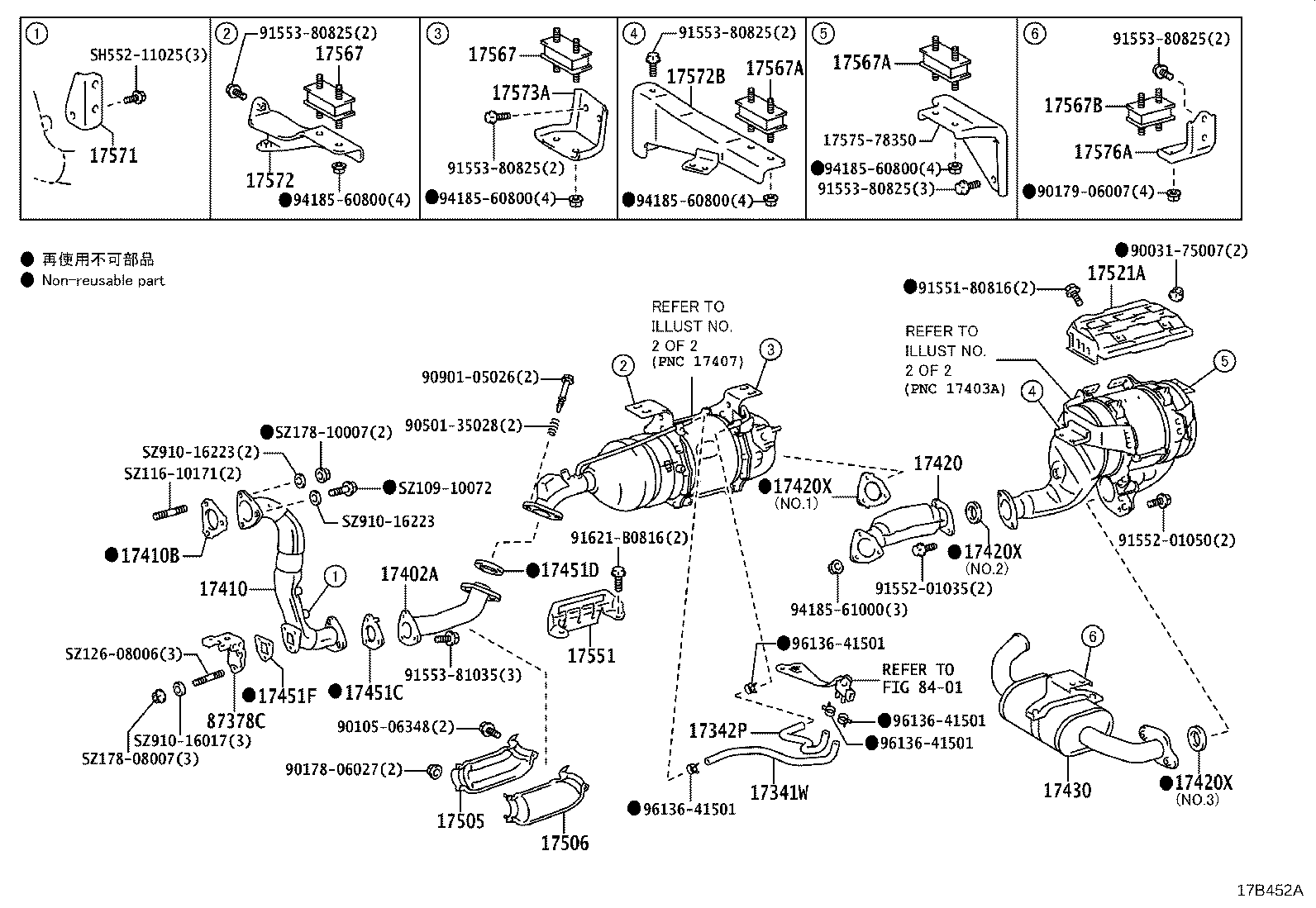

Figure 17B451A 17B451A 2017-01 → 2019-08 Figure 17B452A 17B452A 2019-08 → — Figure 17B453A 17B453A 2019-08 → — Figure 17B454A 17B454A 2019-08 → — Figure 17B456B 17B456B 2019-08 → 2022-01 Figure 17C031B 17C031B 2022-01 → — Figure 17C032 17C032 2022-01 → —

Part groups

PNCDescription
17341W Hose, Air, NO.1
17342P Hose, Air, NO.2
17402A Pipe Sub-assy, Exhaust, Center NO.1
17403A Pipe Sub-assy, Exhaust, Center NO.2
17407 Pipe Sub-assy, Exhaust, Center NO.3
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17421 Pipe, Exhaust, NO.2
17430 Pipe Assy, Exhaust, Tail
17430F Bracket, Exhaust Tailpipe(FOR CENTER)
17430G Cushion, Exhaust Tailpipe(FOR CENTER)
17444A Spacer, Exhaust Front Pipe
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17451C Gasket, Exhaust Pipe, NO.3
17451D Gasket, Exhaust Pipe, NO.4
17451E Gasket, Exhaust Pipe, NO.5
17451F Gasket, Exhaust Pipe, NO.6
17460 Converter Assy, Catalytic W/Pipe
17505 Insulator Sub-assy, Exhaust Pipe Heat NO.1
17506 Insulator Sub-assy, Exhaust Pipe Heat NO.2
17521A Protector, Exhaust Pipe, Upper NO.1
17551 Insulator, Exhaust Pipe Heat, NO.1
17552 Insulator, Exhaust Pipe Heat, NO.2
17553 Insulator, Exhaust Pipe Heat, NO.3
17554A Insulator, Exhaust Pipe Heat, NO.4
17555 Insulator, Exhaust Pipe Heat, NO.5
17564B Support, Catalytic Converter
17567 Cushion, Exhaust Pipe Support
17567A Cushion, Exhaust Pipe Support, NO.2
17567B Cushion, Exhaust Pipe Support, NO.3
17571 Bracket, Exhaust Pipe Support, NO.1
17572 Bracket, Exhaust Pipe NO.1 Support
17572B Bracket, Exhaust Pipe Support, NO.2
17573A Bracket, Exhaust Pipe Support, NO.3
17574 Bracket, Exhaust Pipe Support, NO.4
17575 Bracket, Exhaust Pipe Support, NO.5
17576 Bracket, Muffler Clamp
17576A Bracket, Exhaust Pipe Support, NO.6
17578 Clamp, Pipe
17581A Damper, Exhaust Pipe
17581D Bracket, Catalytic Converter Support
17582 Bracket, Catalytic Converter Support, Upper
17584B Bracket, Exhaust Pipe NO.1 Support
18040A Converter Assy, Exhaust Pipe, NO.2
18450 Converter Assy, Monolithic
87378C Pipe, Exhaust
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
