Toyota Coaster

2017-01 → present · chassis GDB1#,60,70,80,XZB60,70,80 · catalogue 811140 · Japan

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

32 part groups · 3 illustrations

Illustrations

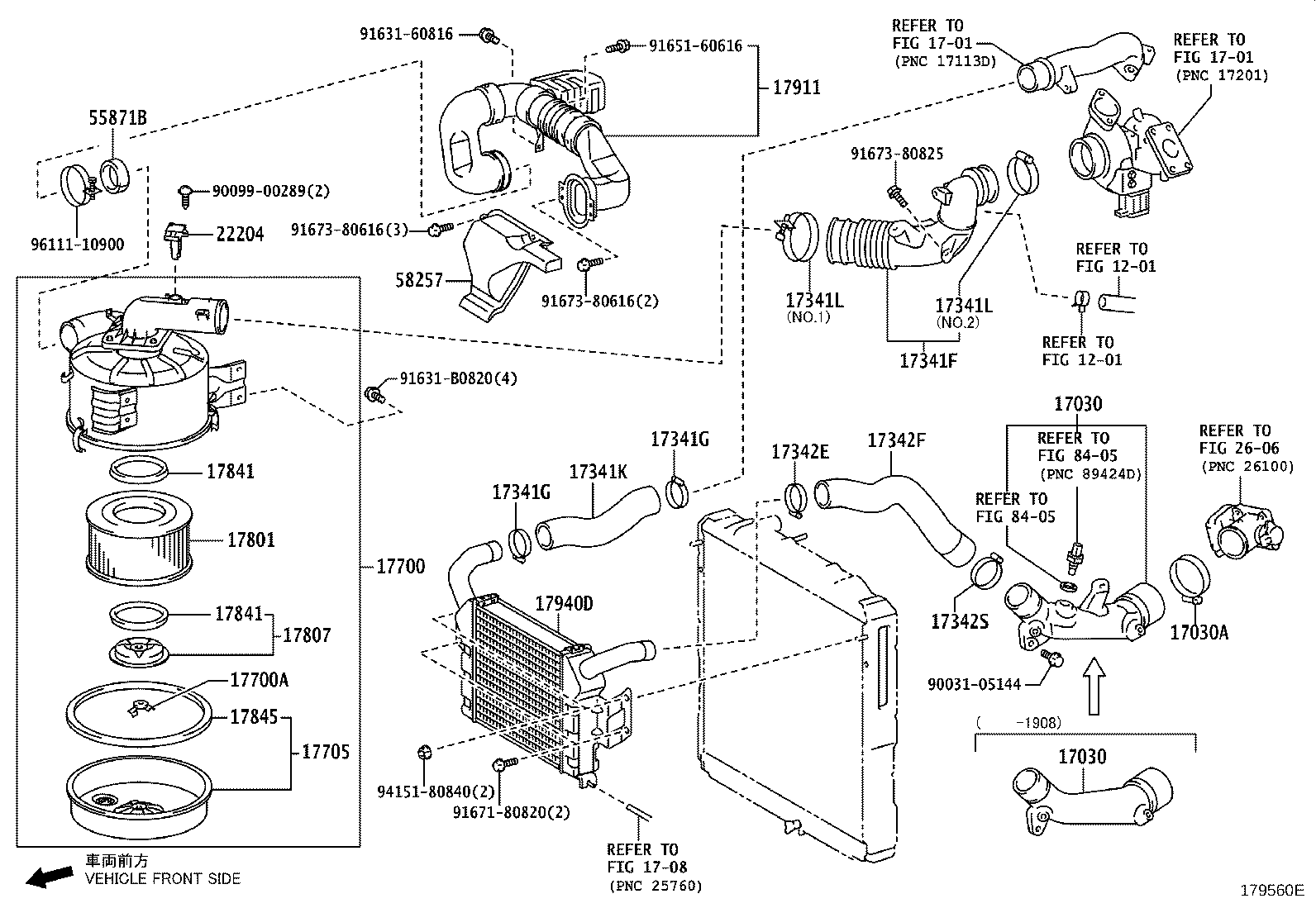

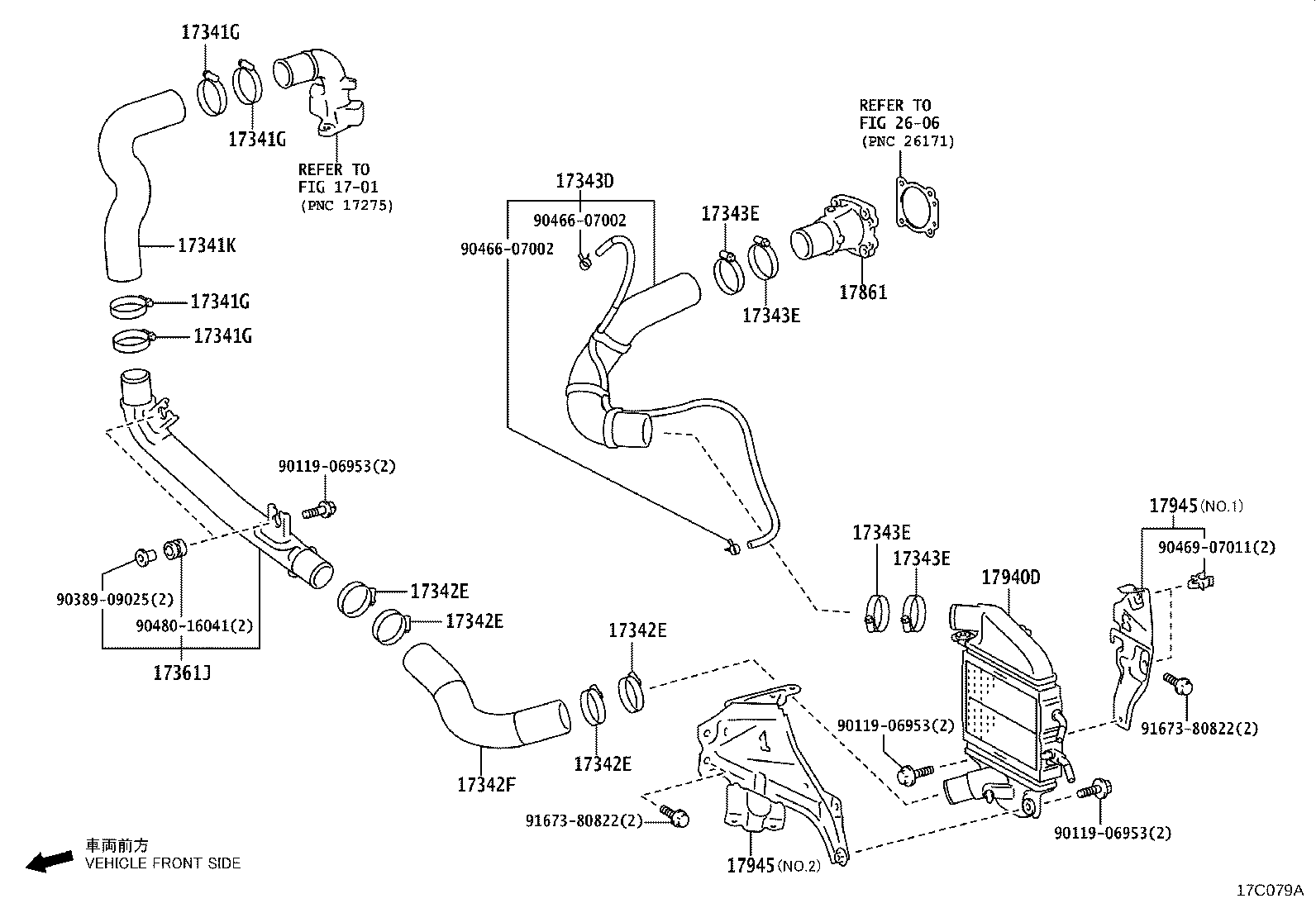

Figure 17C077 17C077 2022-01 → — Figure 17C079A 17C079A 2022-01 → — Figure 179560E 179560E 2017-01 → —

Part groups

PNCDescription
17030 Hose Assy, Air
17030A Clamp, Hose
17119A Bracket, Air Cleaner
17341F Hose, Air, NO.1
17341G Clamp OR Clip(FOR AIR HOSE, NO.1)
17341K Hose, Air, NO.1(FOR INTERCOOLER)
17341L Clamp, Hose
17342E Clamp OR Clip(FOR AIR HOSE, NO.2)
17342F Hose, Air, NO.2(FOR INTERCOOLER)
17342S Clamp OR Clip(FOR AIR HOSE, NO.2)
17343D Hose, Air, NO.3
17343E Clamp, Hose(FOR AIR HOSE, NO.3)
17361J Tube, Air, NO.1
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17705 Cap Sub-assy, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17807 Plate Sub-assy, Air Cleaner Filter Set
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17861 Connector, Intake Air
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17881C Clamp(FOR AIR CLEANER HOSE, NO.1)
17911 Duct, Cool Air Intake, NO.1
17940D Intercooler Assy
17945 Bracket, Intercooler Support
22204 Meter Sub-assy, Intake Air Flow
53199B Duct Sub-assy, Cool Air Intake
55871B Seal, Air Duct
58257 Plate, Air Cleaner House
59133 Hose, Cool Air Intake, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
