Toyota Coaster
2017-01 → present · chassis GDB1#,60,70,80,XZB60,70,80 · catalogue 811140 · Japan
Supported model
Data version 2023-05

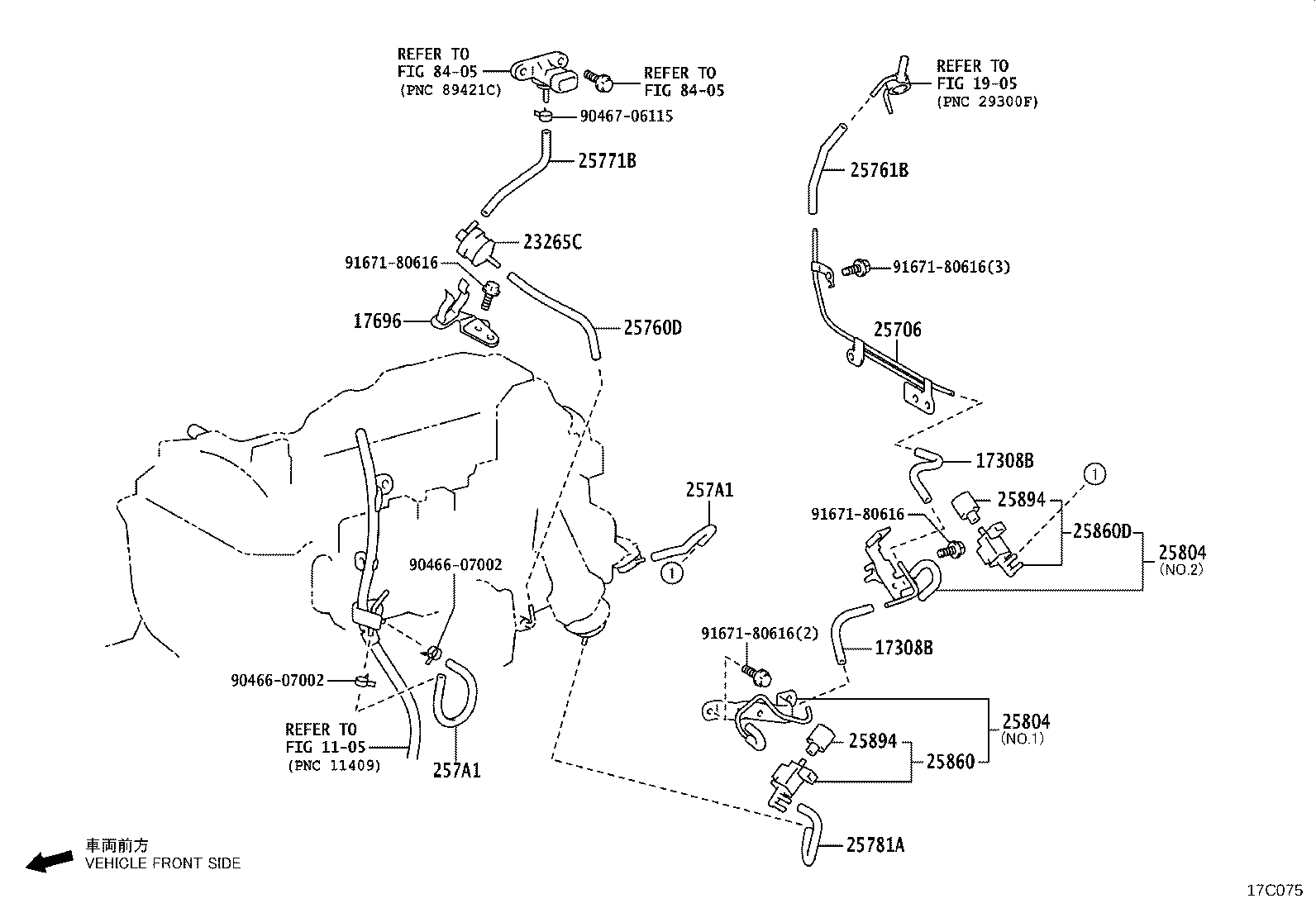

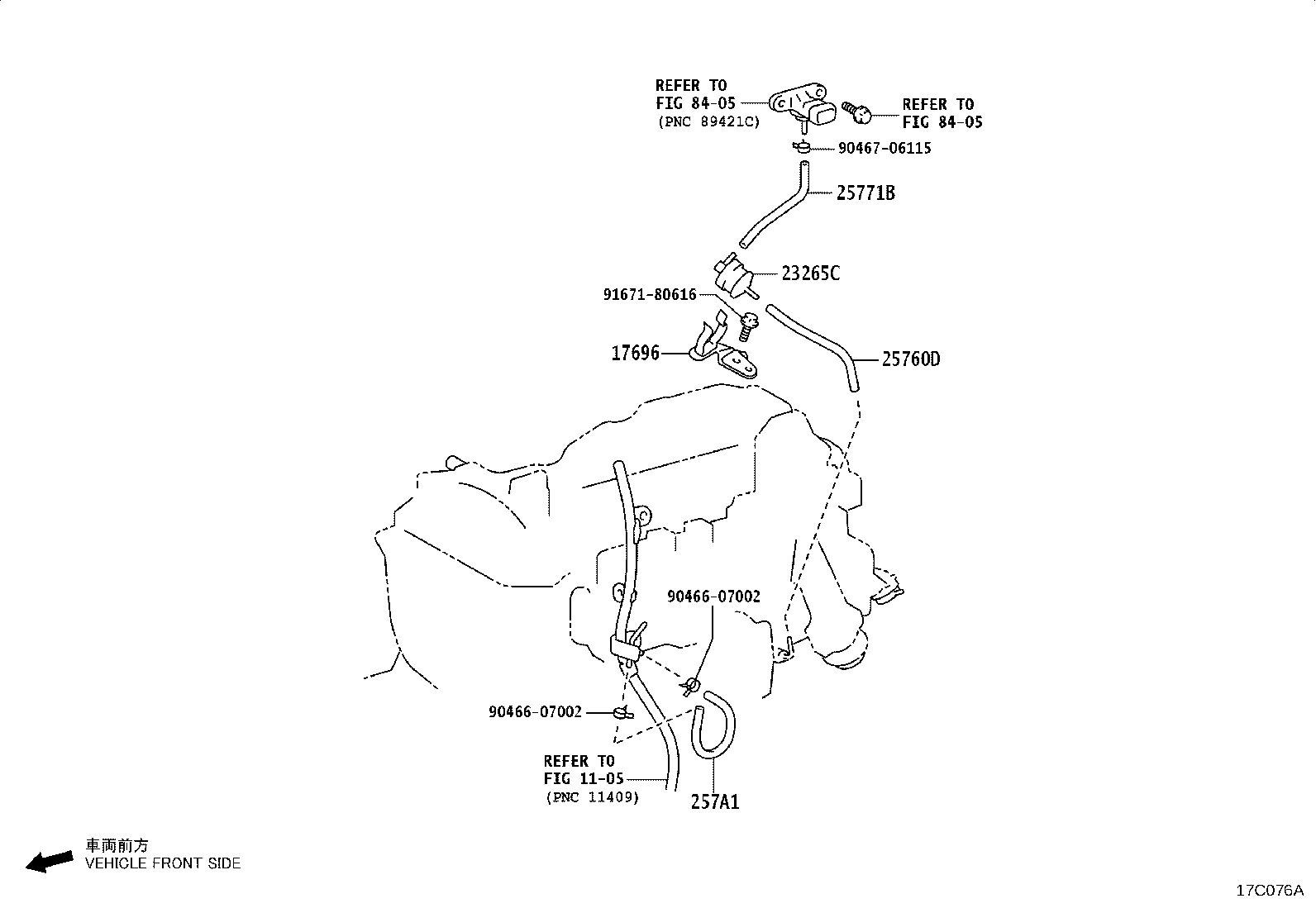

Vacuum Piping
20 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17308B | Hose Sub-assy, Vacuum |
| 17341P | Hose, Air |
| 17578B | Clamp, Pipe |
| 17696 | Bracket, Gas Filter |
| 23265C | Filter, Gas |
| 25706 | Pipe Sub-assy, Vacuum Transmitting, NO.1 |
| 25707 | Pipe Sub-assy, Vacuum Transmitting, NO.2 |
| 25733A | Pipe, Vacuum, NO.1 |
| 25734 | Pipe, Vacuum, NO.2 |

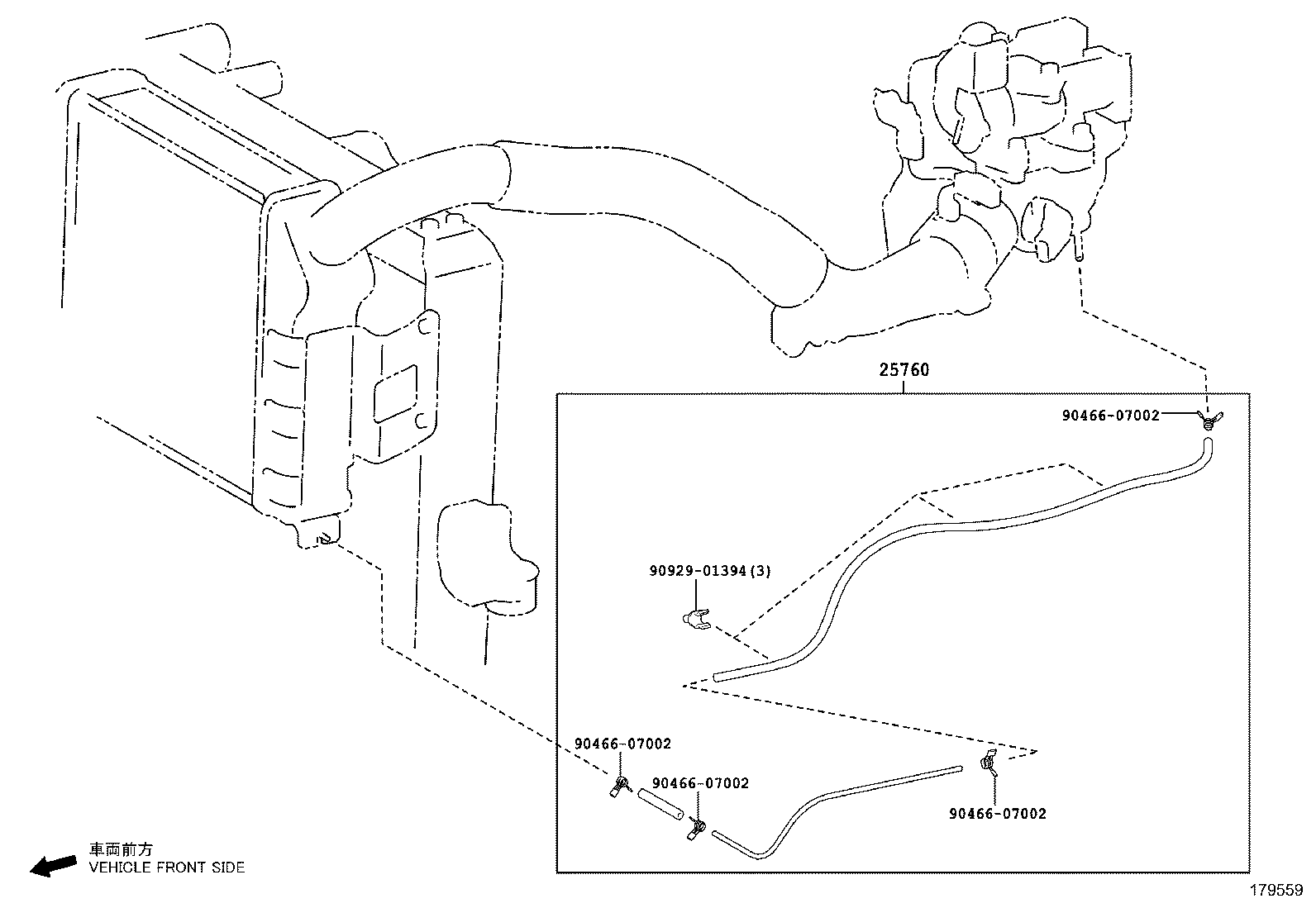

| 25760 | Hose Assy, Vacuum Transmitting |
| 25760D | Hose Assy, Vacuum Transmitting, NO.4 |
| 25761B | Hose, Vaccum Transmitting, NO.1 |
| 25771B | Hose, Vaccum Transmitting, NO.2 |
| 25781A | Hose, Vacuum Transmitting, NO.3 |
| 257A1 | Hose, Vacuum Transmitting, NO.5 |
| 25804 | Valve Set, Vacuum Control |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
| 25860D | Valve Assy, Vacuum Switching, NO.2 |
| 25894 | Filter, NO.1 |
| 89639E | Clamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
