Toyota Coaster

2017-01 → present · chassis GDB1#,60,70,80,XZB60,70,80 · catalogue 811140 · Japan

Supported model Data version 2023-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

5 part groups · 2 illustrations

Illustrations

196172 2022-01 → —

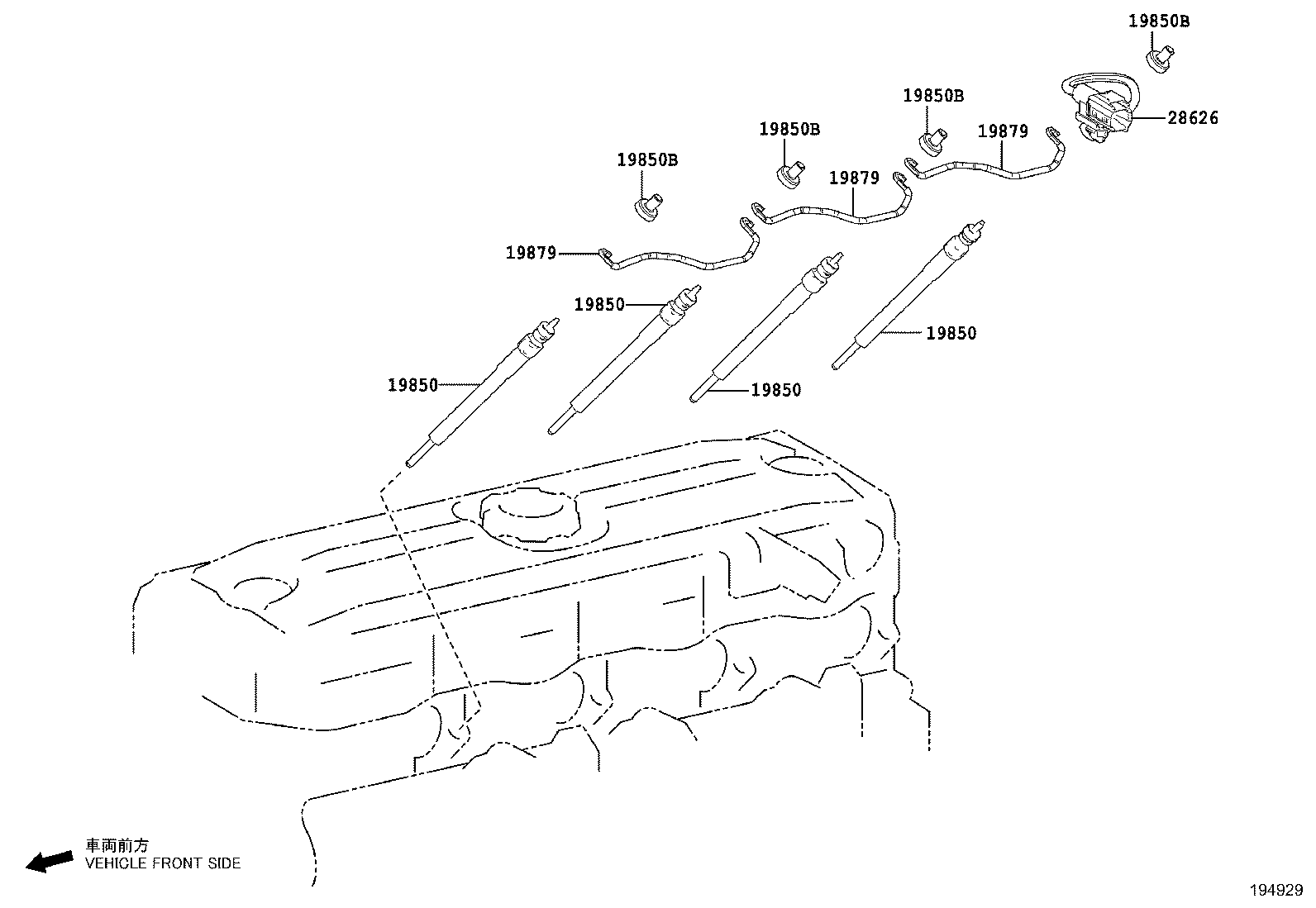

194929 2017-01 → —

Part groups

PNC	Description
19850	Plug Assy, Glow
19850B	Grommet, Screw(FOR GLOW PLUG)
19871	Connector, Glow Plug NO.1
19879	Wire, Glow Plug Ground
28626	Wire, Glow Plug

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
