Toyota Coaster
2017-01 → present · chassis GDB1#,60,70,80,XZB60,70,80 · catalogue 811140 · Japan
Supported model
Data version 2023-05

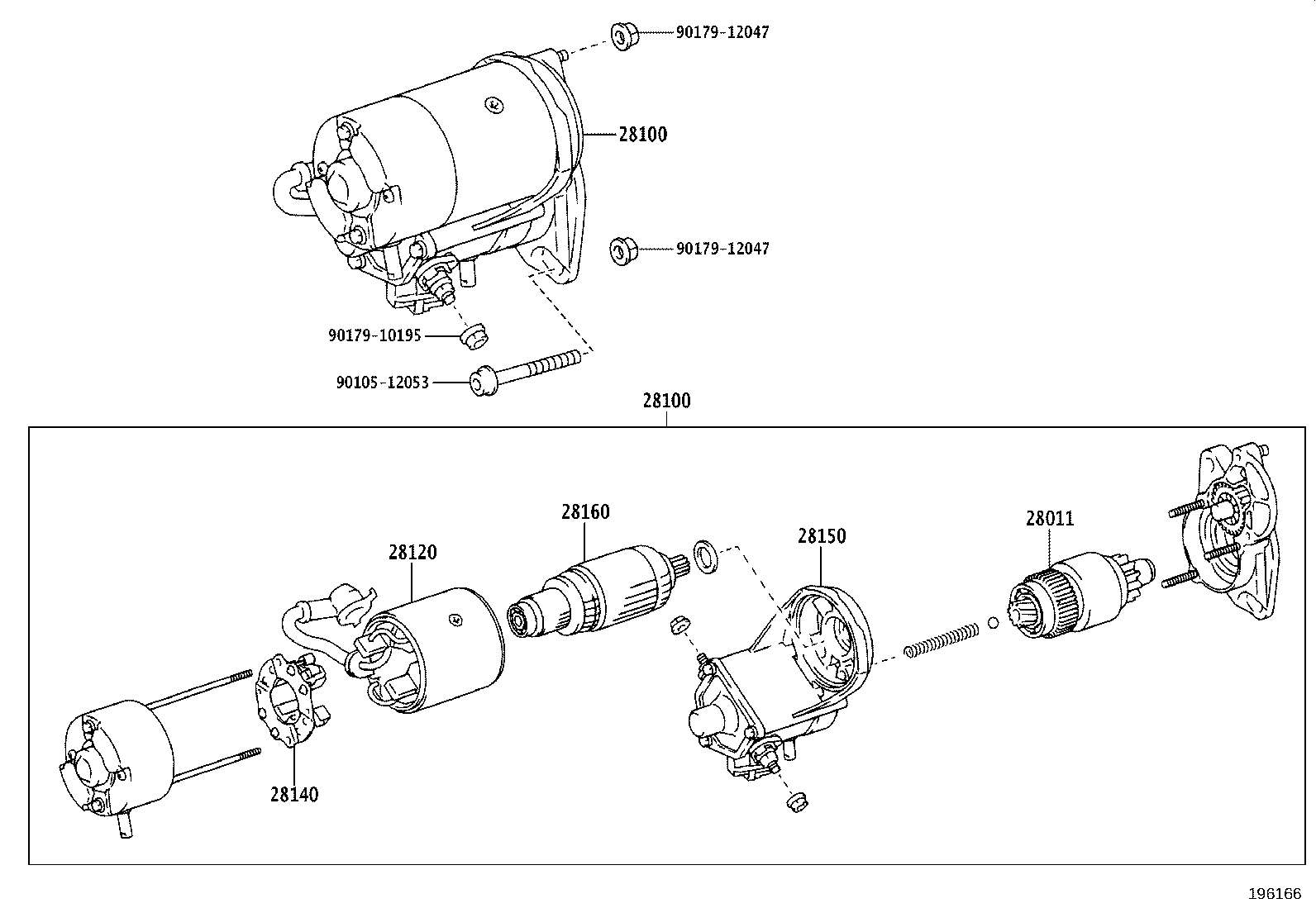

Starter
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 28011 | Clutch Sub-assy, Starter |
| 28100 | Starter Assy |
| 28110 | Housing Assy, Starter Drive |
| 28113 | Lever, Starter Pinion Drive |
| 28117 | Rubber(FOR STARTER YOKE) |
| 28120 | Yoke Assy, Starter |
| 28140 | Holder Assy, Starter Brush |
| 28150 | Switch Assy, Magnet Starter |
| 28160 | Armature Assy, Starter |
| 28213 | Pinion, Starter Clutch |
| 28226B | Starter Kit, Repair Service |
| 28256 | Gear, Starter Internal |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
