Toyota Coaster

2017-01 → present · chassis GDB1#,60,70,80,XZB60,70,80 · catalogue 811140 · Japan

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Nozzle

26 part groups · 3 illustrations

Illustrations

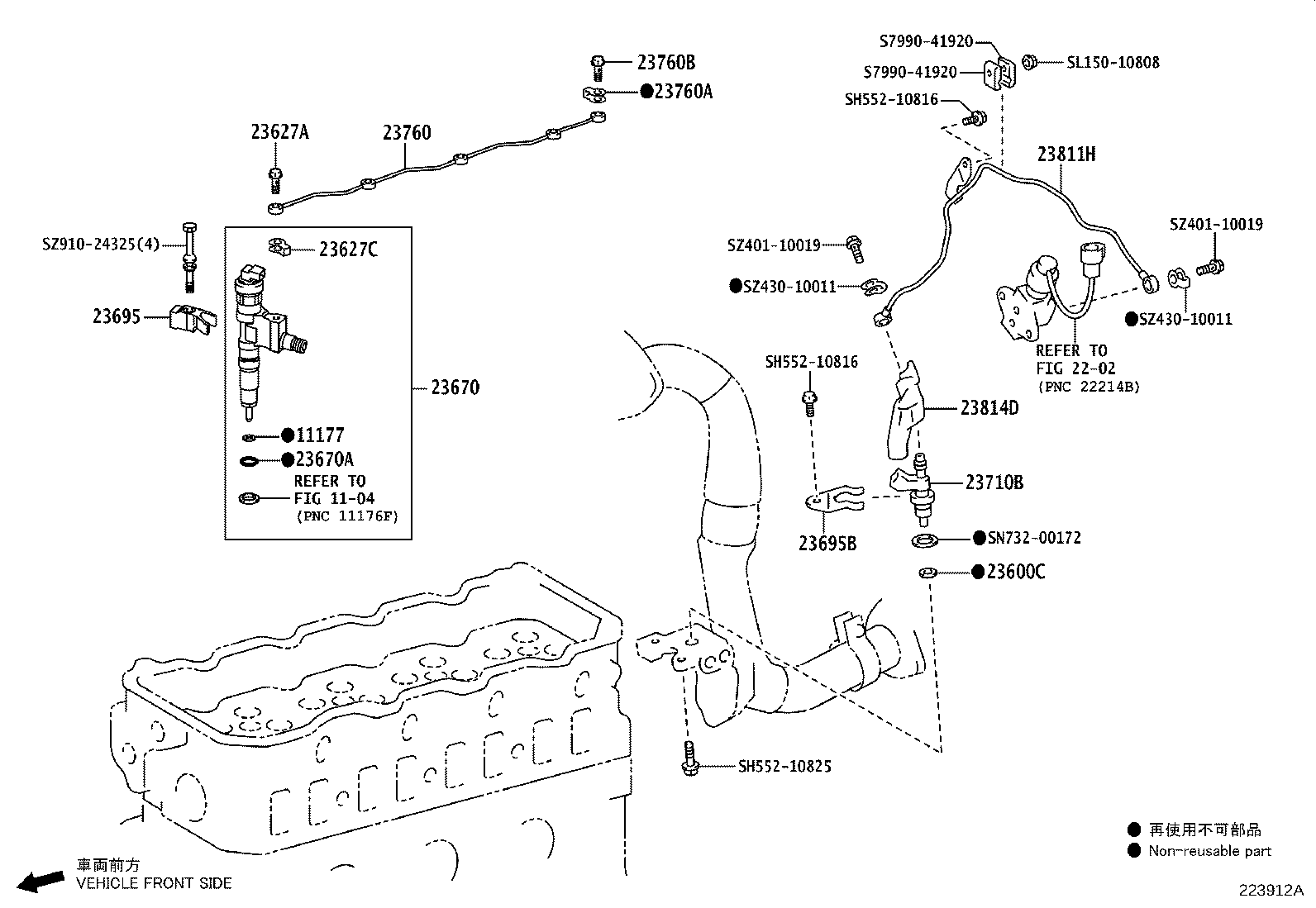

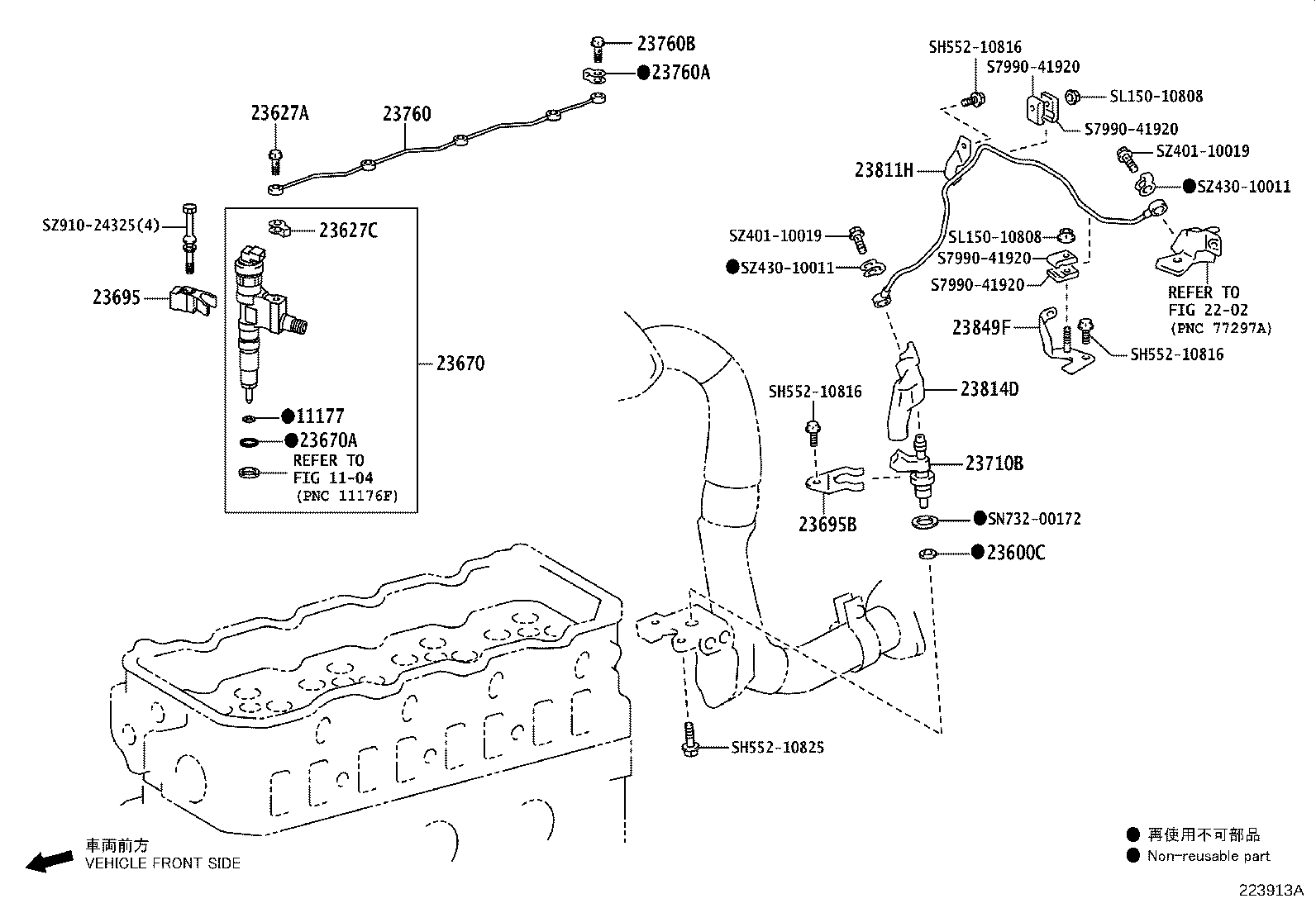

Figure 224108A 224108A 2022-01 → — Figure 223912A 223912A 2017-01 → 2019-08 Figure 223913A 223913A 2019-08 → —

Part groups

PNCDescription
11176 Seat, Injection Nozzle
11177 Gasket, Injection Nozzle Seat
23256B Ring, Fuel Injector Back-up, NO.1
23257B Ring, Fuel Injector Back-up, NO.2
23258B Ring, Fuel Injector Back-up, NO.3
23282H Hose, Fuel, NO.4
23284C Hose, Fuel, NO.5
23286C Hose, Fuel, NO.6
23295C Holder, Injector
23600C Gasket(FOR HOLDER & NOZZLE SET)
23627A Screw, Follow(FOR NOZZLE)
23627C Washer(FOR NOZZLE)
23670 Injector Assy
23670A Ring, O(FOR INJECTOR ASSY)
23679 Screw, Injector Follow
23695 Clamp, Nozzle Holder, NO.1
23695B Clamp, Nozzle Holder, NO.2
23699A Seat, Nozzle Holder Clamp
23710B Injector Assy, Exhaust Fuel Addition
23760 Pipe Assy, Nozzle Leakage
23760A Gasket
23760B Bolt, Union(FOR NOZZLE LEAKAGE PIPE)
23770 Pipe Assy, Nozzle Leakage, NO.2
23811H Pipe, Fuel, NO.1
23814D Pipe, Fuel Delivery
23849F Support, Fuel Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
