Toyota Coaster
2017-01 → present · chassis GDB1#,60,70,80,XZB60,70,80 · catalogue 811140 · Japan
Supported model
Data version 2023-05

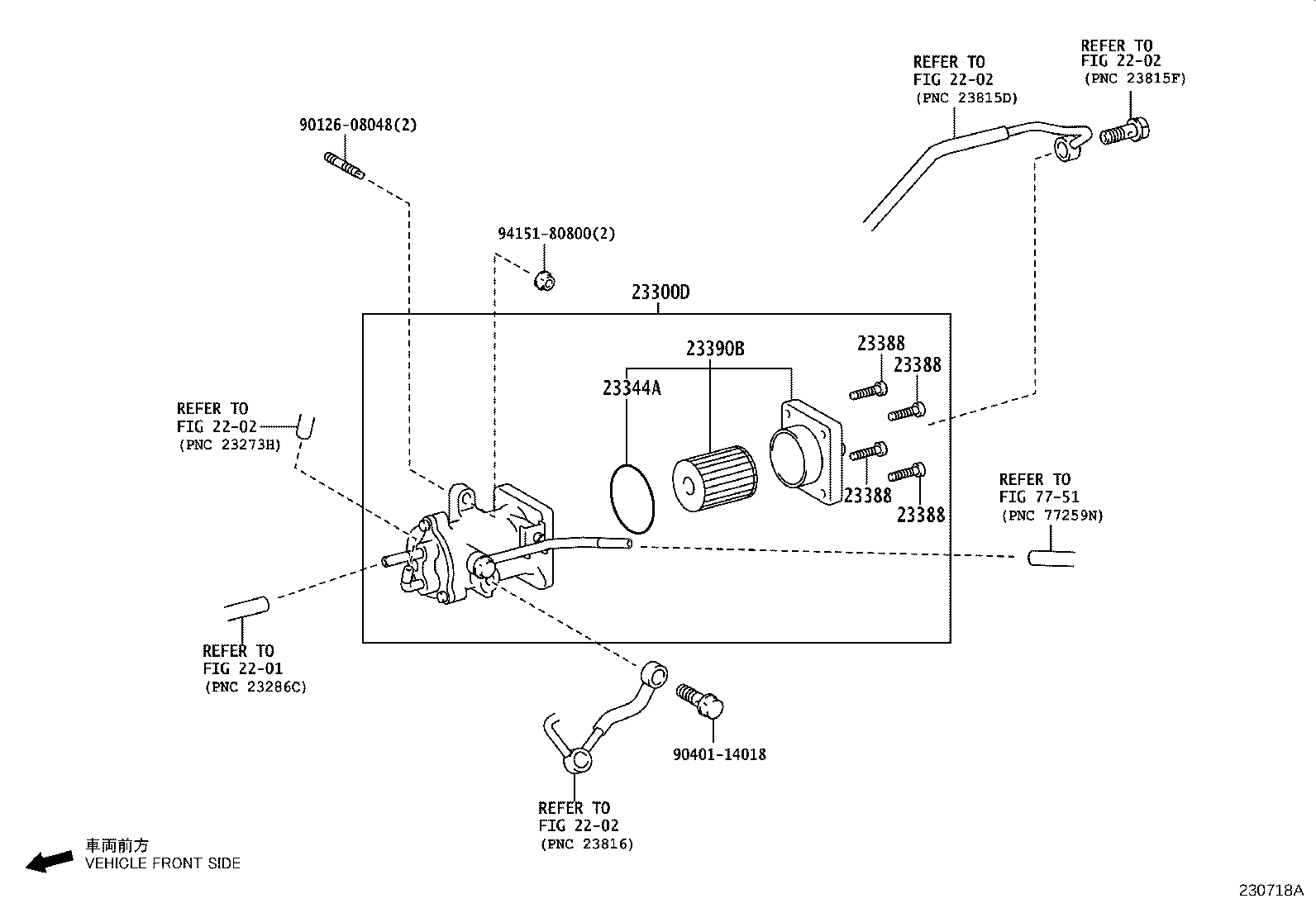

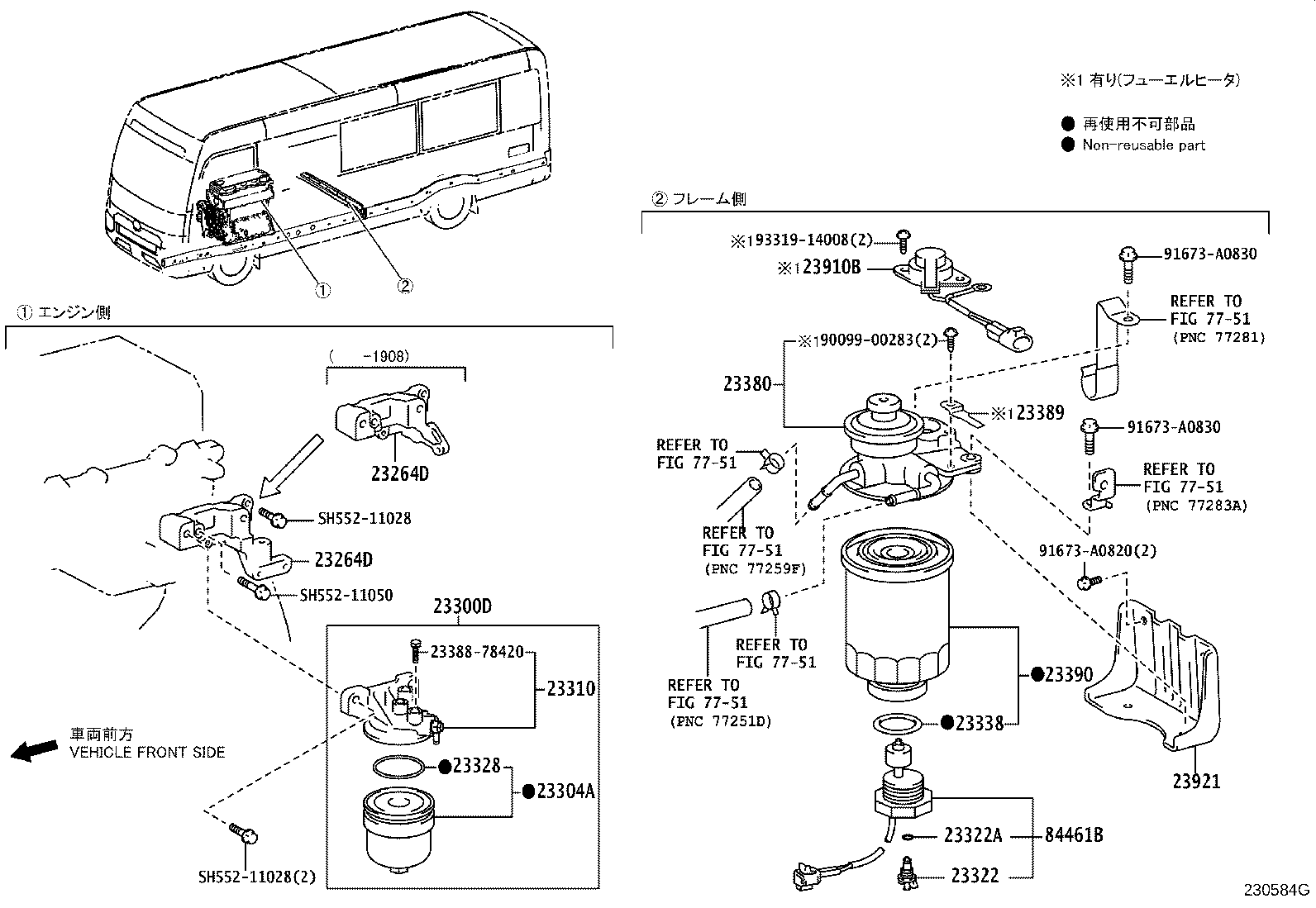

Fuel Filter
18 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 23264D | Bracket, Fuel Filter |
| 23300 | Filter Assy, Fuel |
| 23300D | Filter Assy, Fuel(FOR DIESEL) |
| 23304A | Element Set, Fuel Filter |
| 23310 | Body, Fuel Filter, Upper |
| 23322 | Plug, Drain(FOR FUEL FILTER) |
| 23322A | Ring, O(FOR DRAIN PLUG) |
| 23328 | Gasket(FOR FUEL FILTER) |
| 23338 | Gasket(FOR WARNING SWITCH) |
| 23344A | Gasket, Fuel Filter Element |
| 23380 | Cap Assy, Fuel Filter |
| 23388 | Plug, Fuel Filter Drain |
| 23389 | Clamp, Fuel Filter |
| 23390 | Element Assy, Fuel Filter |
| 23390B | Element Assy, Fuel Filter, NO.2 |
| 23910B | Heater Assy, Fuel |
| 23921 | Support, Fuel Filter |
| 84461B | Switch, Level Warning |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
