Toyota Coaster

2017-01 → present · chassis GDB1#,60,70,80,XZB60,70,80 · catalogue 811140 · Japan

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Gas Recirculation System

22 part groups · 3 illustrations

Illustrations

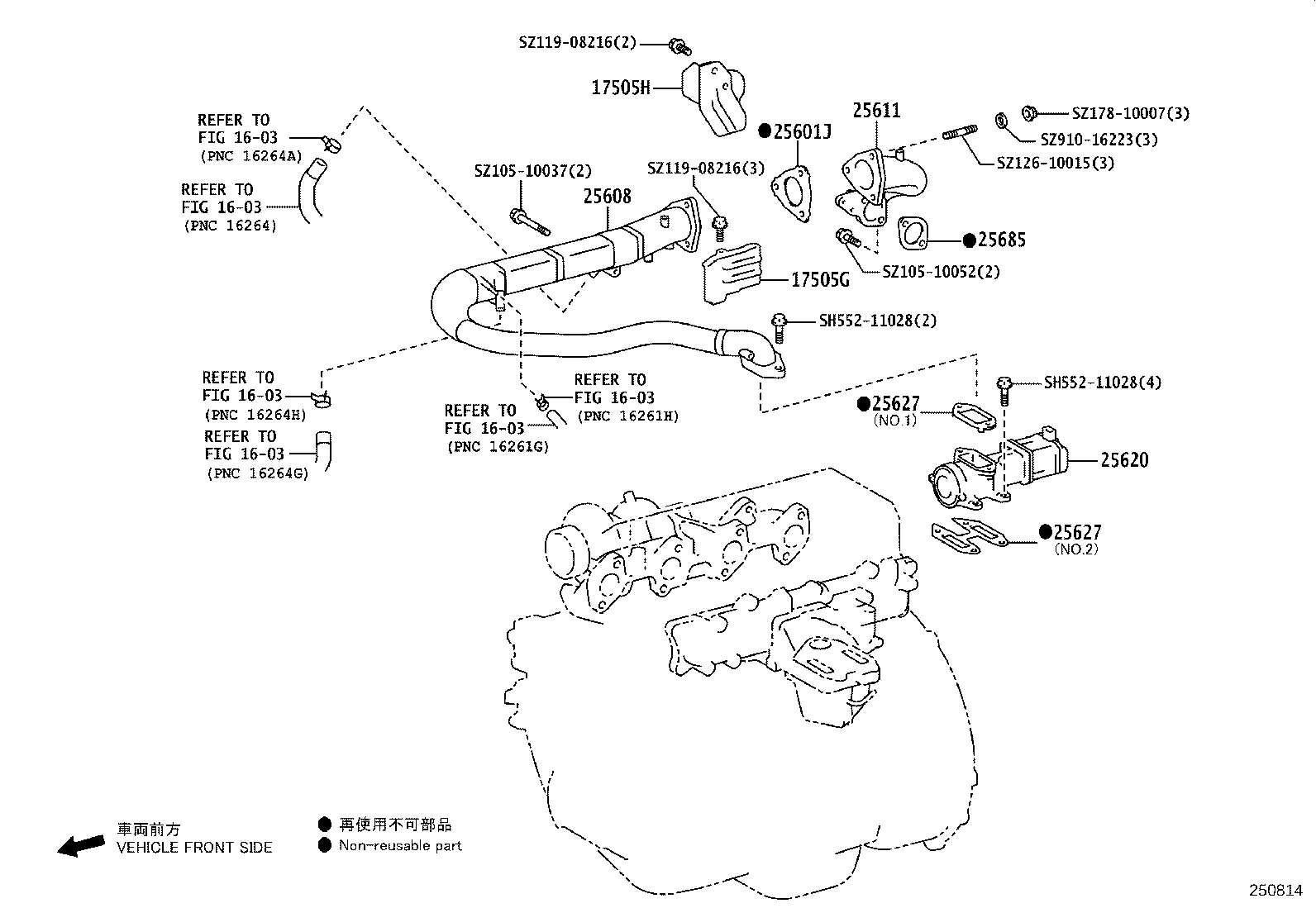

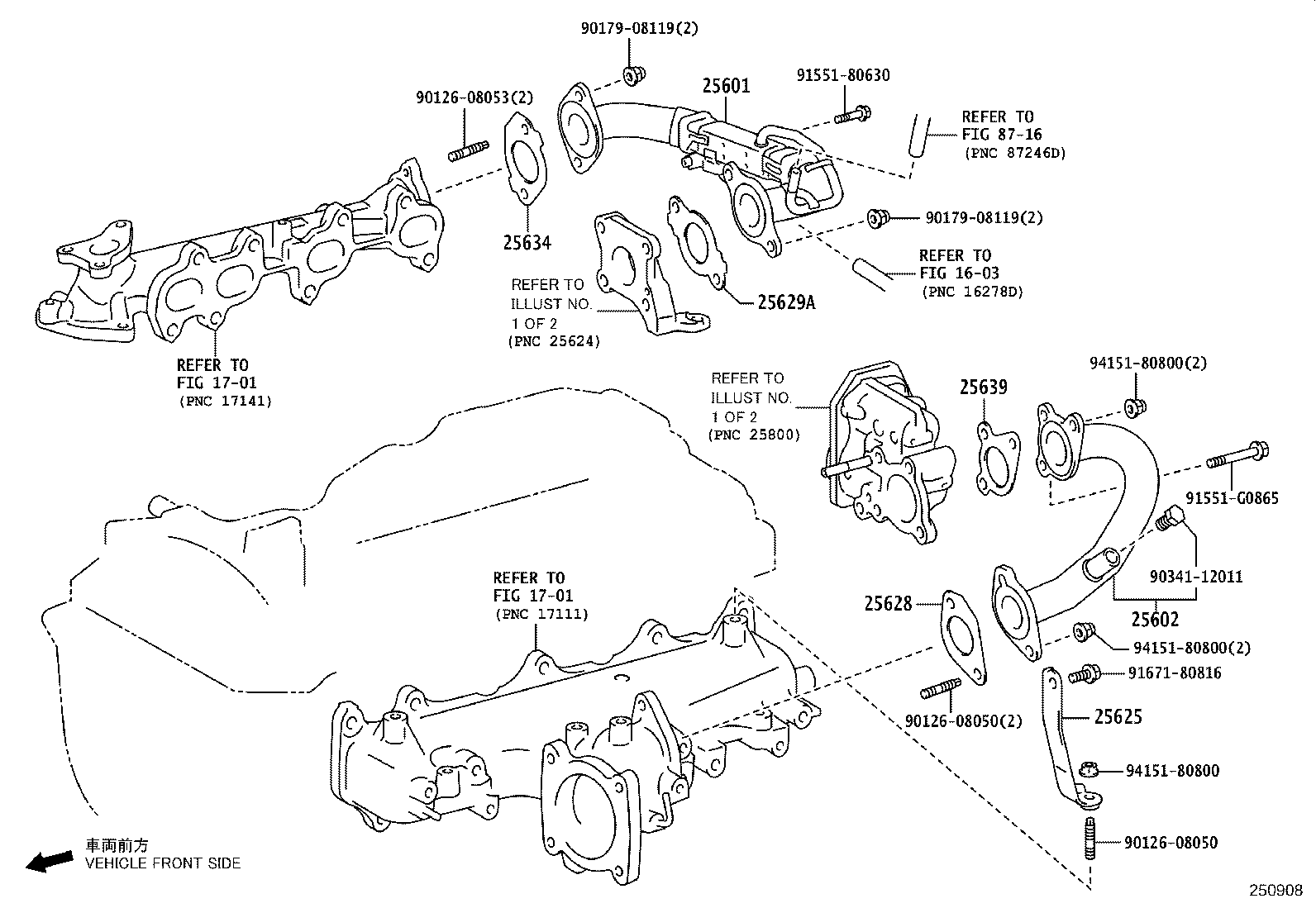

Figure 250907 250907 2022-01 → — Figure 250908 250908 2022-01 → — Figure 250814 250814 2017-01 → —

Part groups

PNCDescription
17505G Insulator Sub-assy, Exhaust Pipe Heat NO.1
17505H Insulator Sub-assy, Exhaust Pipe Heat NO.2
25601 Pipe Sub-assy, Egr, NO.1
25601J Gasket(FOR EGR PIPE, NO.1)
25602 Pipe Sub-assy, Egr, NO.2
25608 Cooler Sub-assy, Egr
25611 Connector, Egr Pipe
25620 Valve Assy, Egr
25620A Bolt, Stud(FOR EGR VALVE)
25620J Bolt(FOR EGR VALVE)
25624 Adapter, Egr Valve
25625 Bracket, Egr Valve
25627 Gasket, Egr Valve
25628 Gasket, Egr Inlet
25629A Gasket, Egr Pipe, NO.2
25630 Valve Assy, Egr, NO.2
25633 Gasket, Egr Valve
25634 Gasket, Egr Pipe
25639 Gasket, Egr Pipe, NO.3
25681 Cooler, Egr, NO.1
25685 Gasket, Egr Cooler, NO.1
25800 Valve Assy, Electric Egr Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
