Toyota Coaster

2017-01 → present · chassis GDB1#,60,70,80,XZB60,70,80 · catalogue 811140 · Japan

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transmission Case & Oil Pan (ATM)

26 part groups · 2 illustrations

Illustrations

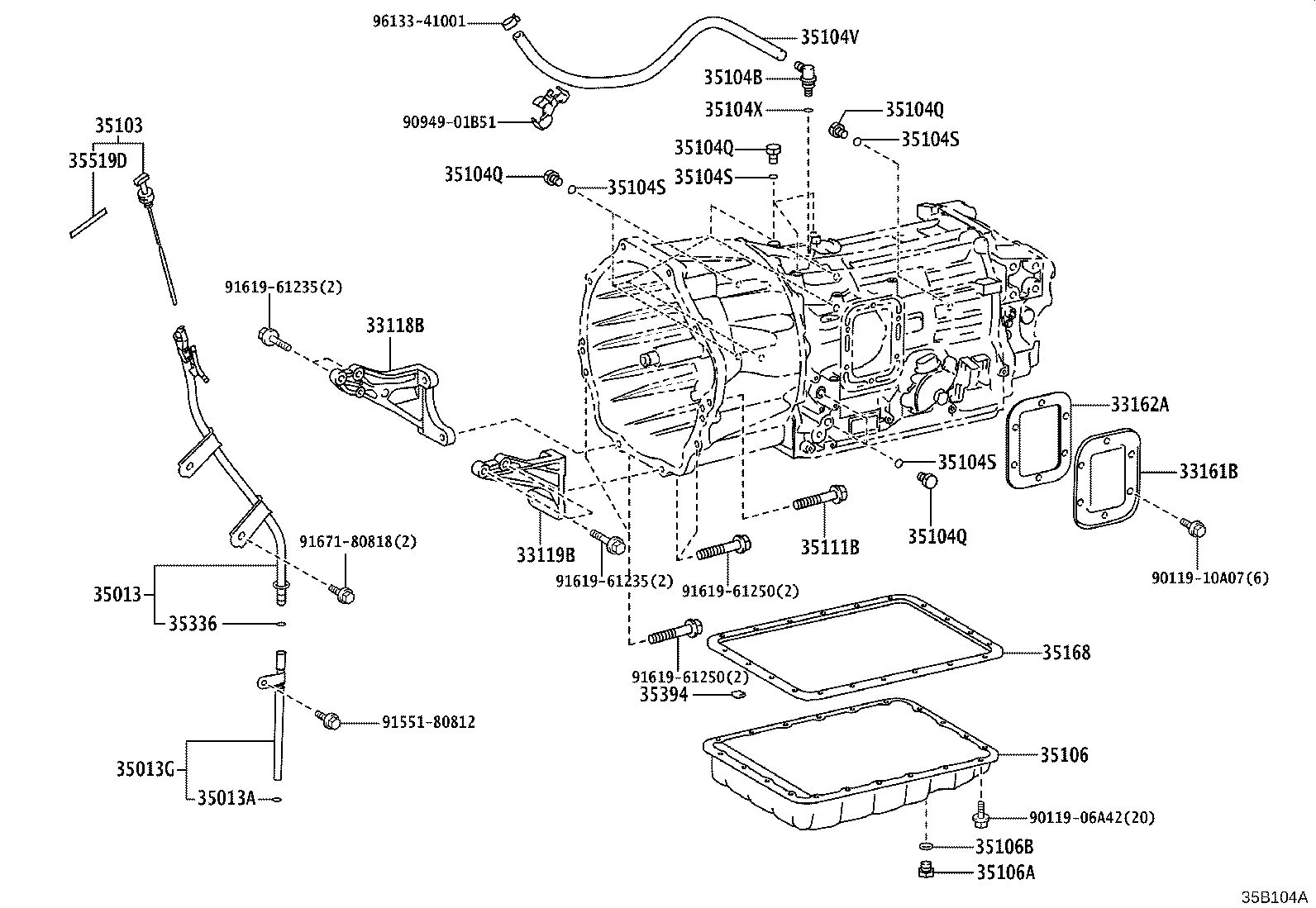

Figure 35A787A 35A787A 2017-01 → — Figure 35B104A 35B104A 2022-01 → —

Part groups

PNCDescription
33118B Plate, Stiffener, RH(ATM)
33119B Plate, Stiffener, LH(ATM)
33161B Cover, Transmission Power Take-off
33162A Gasket, Transmission Power Take-off
33403M Cover Sub-assy, Speedometer Driven Hole (ATM)
33403N Ring, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)
33485F Plate, Speedmeter Lock
35013 Tube Sub-assy, Transmission Oil Filler
35013A Ring, O(FOR TRANSMISSION OIL FILLER TUBE)
35013G Tube Sub-assy, Transmission Oil Filler, NO.2
35019 Cover Sub-assy, Transmission Case Dust
35103 Gage Sub-assy, Transmission Oil Level
35104B Plug, Breather, NO.1 (ATM)
35104Q Plug, NO.1 (FOR TRANSAXLE CASE)
35104S Ring, O (FOR TRANSAXLE CASE PLUG NO.1)
35104V Hose (FOR BREATHER PLUG)
35104X Ring, O (FOR BREATHER PLUG)
35106 Pan Sub-assy, Automatic Transmission Oil
35106A Plug Sub-assy, Drain (ATM)
35106B Gasket, Drain Plug (ATM)
35111B Bolt (FOR TRANSMISSION HOUSING & ENGINE SETTING)
35111K Bolt (FOR TRANSMISSION HOUSING & CASE SETTING)
35168 Gasket, Automatic Transmission Oil Pan
35336 Ring, O (FOR TRANSMISSION OIL FILLER TUBE)
35394 Magnet, Oil Cleaner (FOR TRANSMISSION)
35519D Label, Automatic Transmission Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
