Toyota Coaster
2017-01 → present · chassis GDB1#,60,70,80,XZB60,70,80 · catalogue 811140 · Japan
Supported model
Data version 2023-05

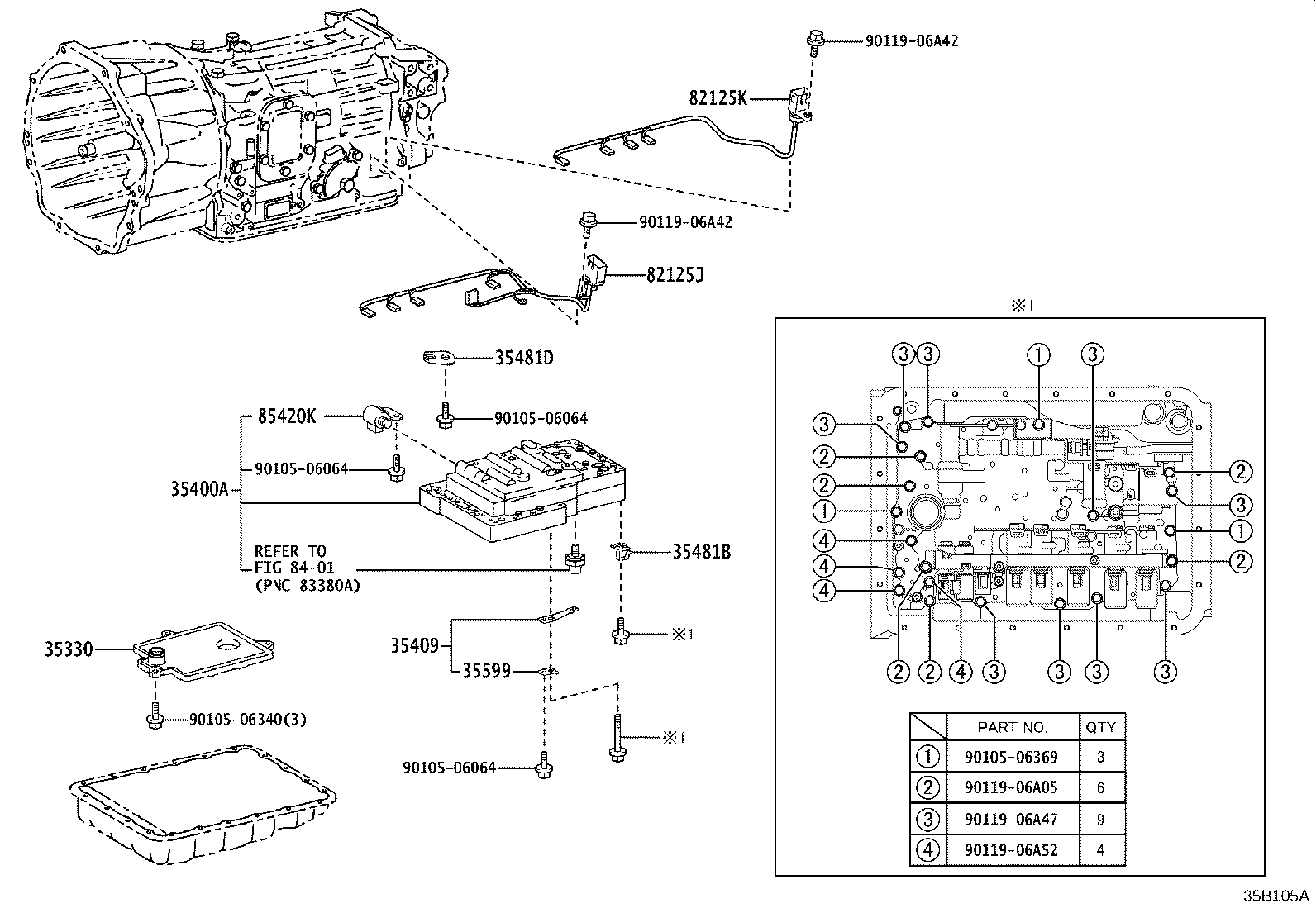

Valve Body & Oil Strainer (ATM)
18 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 35205C | Spring Sub-assy, Accumulator |
| 35240E | Valve, Solenoid(S1) |
| 35240F | Valve, Solenoid(S2) |
| 35240G | Valve, Solenoid(S3) |
| 35240H | Valve, Solenoid(S4) |
| 35330 | Strainer Assy, Valve Body Oil |
| 35400A | Body Assy, Transmission Valve W/Solenoid |
| 35409 | Spring Sub-assy, Manual Detent |
| 35421 | Piston, Accumulator, NO.1 |
| 35421F | Piston, Accumulator, NO.2 |
| 35421P | Piston, Accumulator, NO.3 |
| 35431 | Gasket,Valve Body |
| 35481B | Clamp, Valve Body Wire Harness |
| 35481D | Clamp, Valve Body Wire Harness, NO.2 |
| 35599 | Cover, Manual Detent Spring |

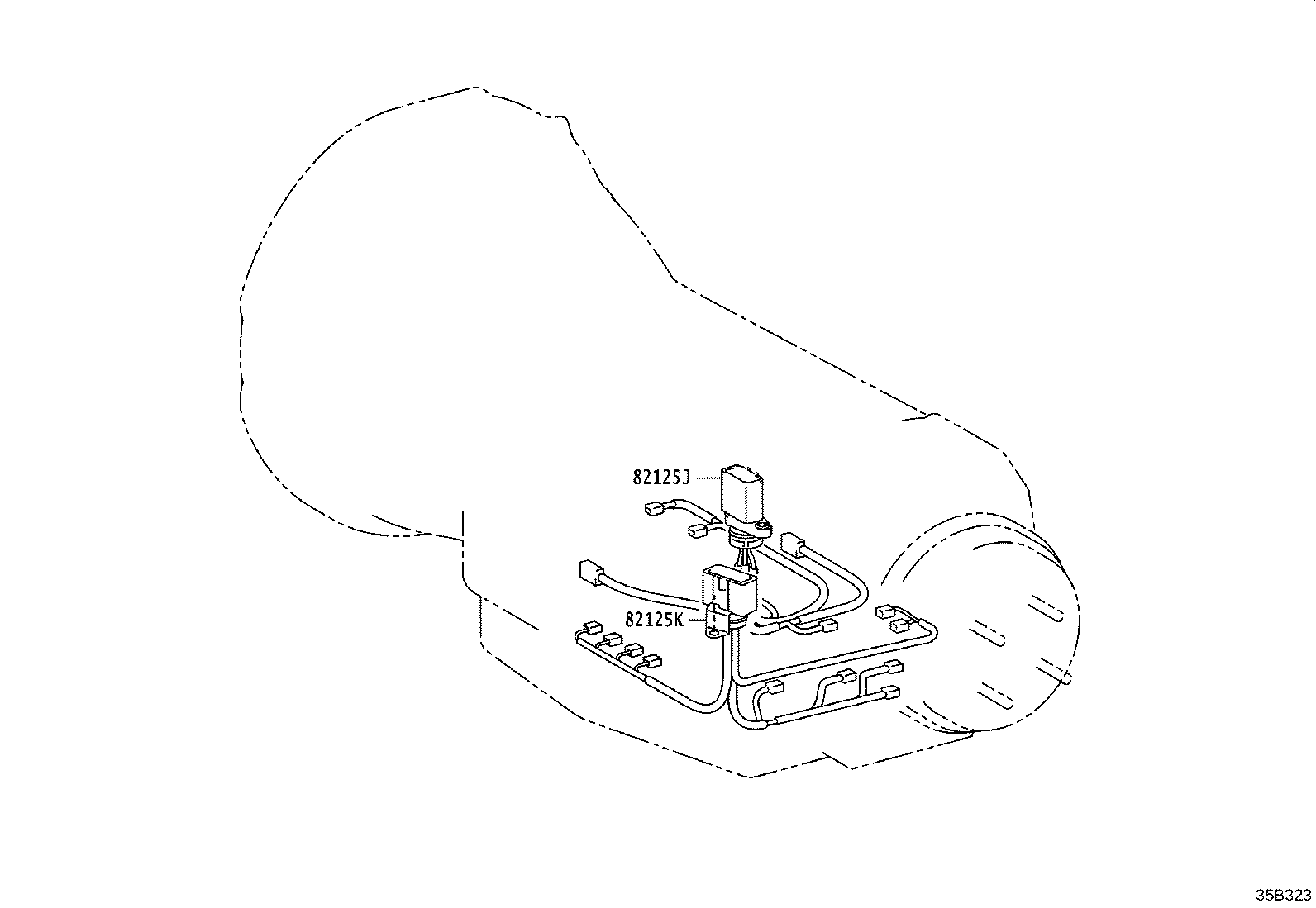

| 82125J | Wire, Transmission |
| 82125K | Wire, Transmission |
| 85420K | Solenoid Assy, Transmission |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
