Toyota Coaster

2017-01 → present · chassis GDB1#,60,70,80,XZB60,70,80 · catalogue 811140 · Japan

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Disc Wheel & Wheel Cap

10 part groups · 3 illustrations

Illustrations

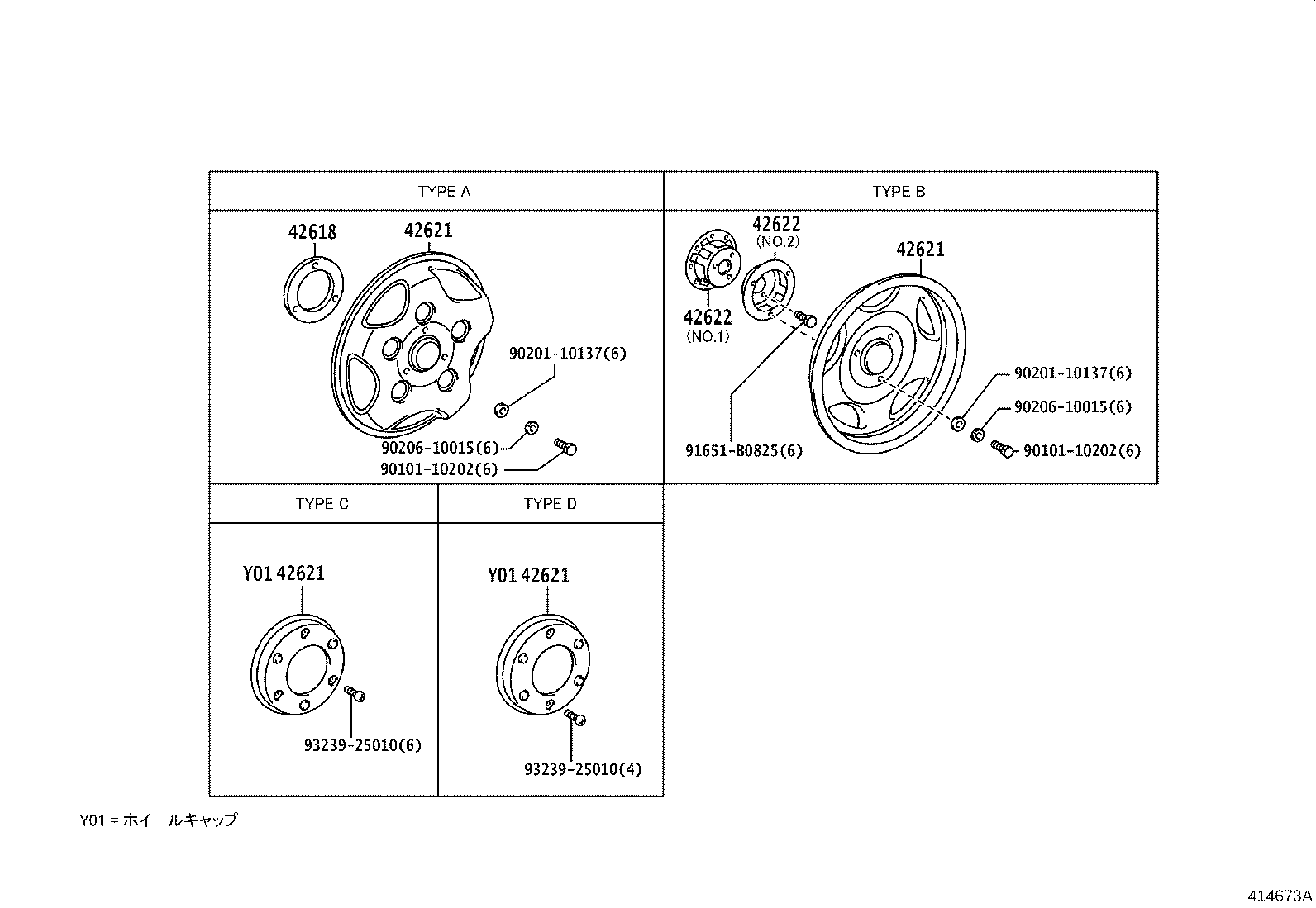

Figure 414670C 414670C 2017-01 → — Figure 414673A 414673A 2017-01 → — Figure 414671 414671 2017-01 → —

Part groups

PNCDescription
42601A Wheel, Disc (FOR SPARE)
42601F Wheel, Disc (FOR FRONT)
42601H Nut,Hub (FOR FRONT AXLE)
42601J Nut,Hub (FOR REAR AXLE)
42601R Wheel, Disc (FOR REAR)
42611G Valve (FOR TUBELESS TIRE)
42611J Valve (FOR TUBELESS TIRE SPARE)
42618 Retainer, Wheel Cap
42621 Cap, Wheel
42622 Holder, Wheel Cap
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
