Toyota Coaster

2017-01 → present · chassis GDB1#,60,70,80,XZB60,70,80 · catalogue 811140 · Japan

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vane Pump & Reservoir (POWER STEERING)

10 part groups · 2 illustrations

Illustrations

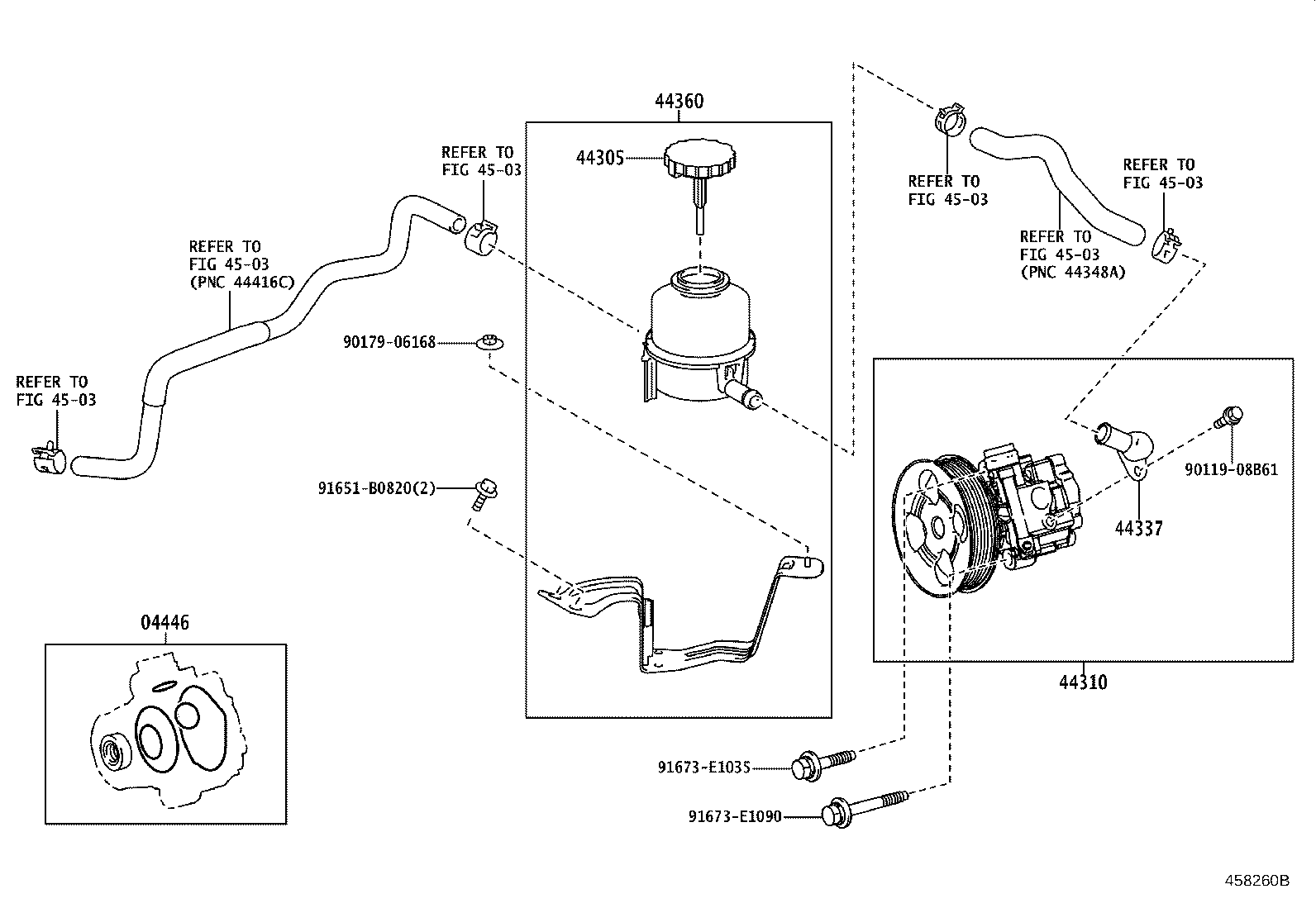

Figure 457930A 457930A 2017-01 → — Figure 458260B 458260B 2022-01 → —

Part groups

PNCDescription
04446 Gasket Kit, Power Steering Pump
44305 Cap Sub-assy, Vane Pump Oil Reservoir
44310 Pump Assy, Vane
44310C Ring, O(FOR VANE PUMP)
44337 Union, Power Steering Suction Port
44337A Ring, O(FOR POWER STEERING SUCTION PORT)
44338 Union, Pressure Port
44360 Reservoir Assy, Vane Pump Oil
44379A Bracket, Oil Reservoir, NO.2
44391 Plate, Power Steering Oil Reservoir Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
