Toyota Coaster
2017-01 → present · chassis GDB1#,60,70,80,XZB60,70,80 · catalogue 811140 · Japan
Supported model
Data version 2023-05

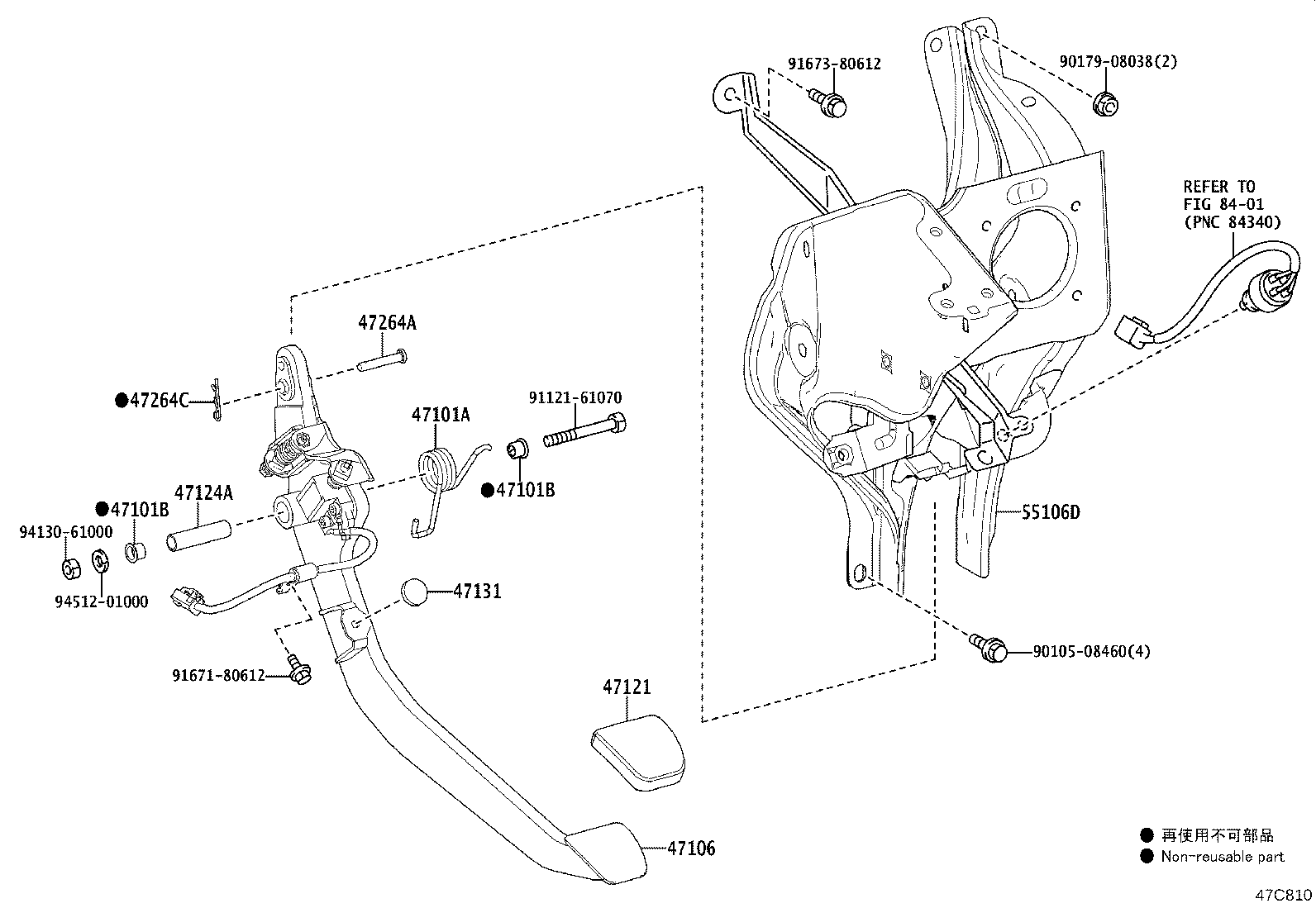

Brake Pedal & Bracket
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 47101A | Spring(FOR BRAKE PEDAL RETURN) |
| 47101B | Bush(FOR BRAKE PEDAL) |
| 47105A | Support Sub-assy, Brake Pedal |
| 47106 | Pedal Sub-assy, Brake W/Switch |
| 47121 | Pad, Brake Pedal |
| 47123B | Cable, Brake Pedal Adjustment |
| 47124A | Collar(FOR BRAKE PEDAL SHAFT) |
| 47131 | Cushion(FOR STOP LAMP SWITCH) |
| 47264A | Pin(FOR PUSH ROD) |
| 47264C | Clip(FOR PUSH ROD CLEVIS PIN) |
| 55106D | Bracket Sub-assy, Pedal |
| 55107B | Bracket Sub-assy, Pedal, NO.2 |
| 55266A | Plate, Brake Pedal Support, NO.1 |
| 55266B | Plate, Brake Pedal Support, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
