Toyota Coaster

2017-01 → present · chassis GDB1#,60,70,80,XZB60,70,80 · catalogue 811140 · Japan

Supported model Data version 2023-05

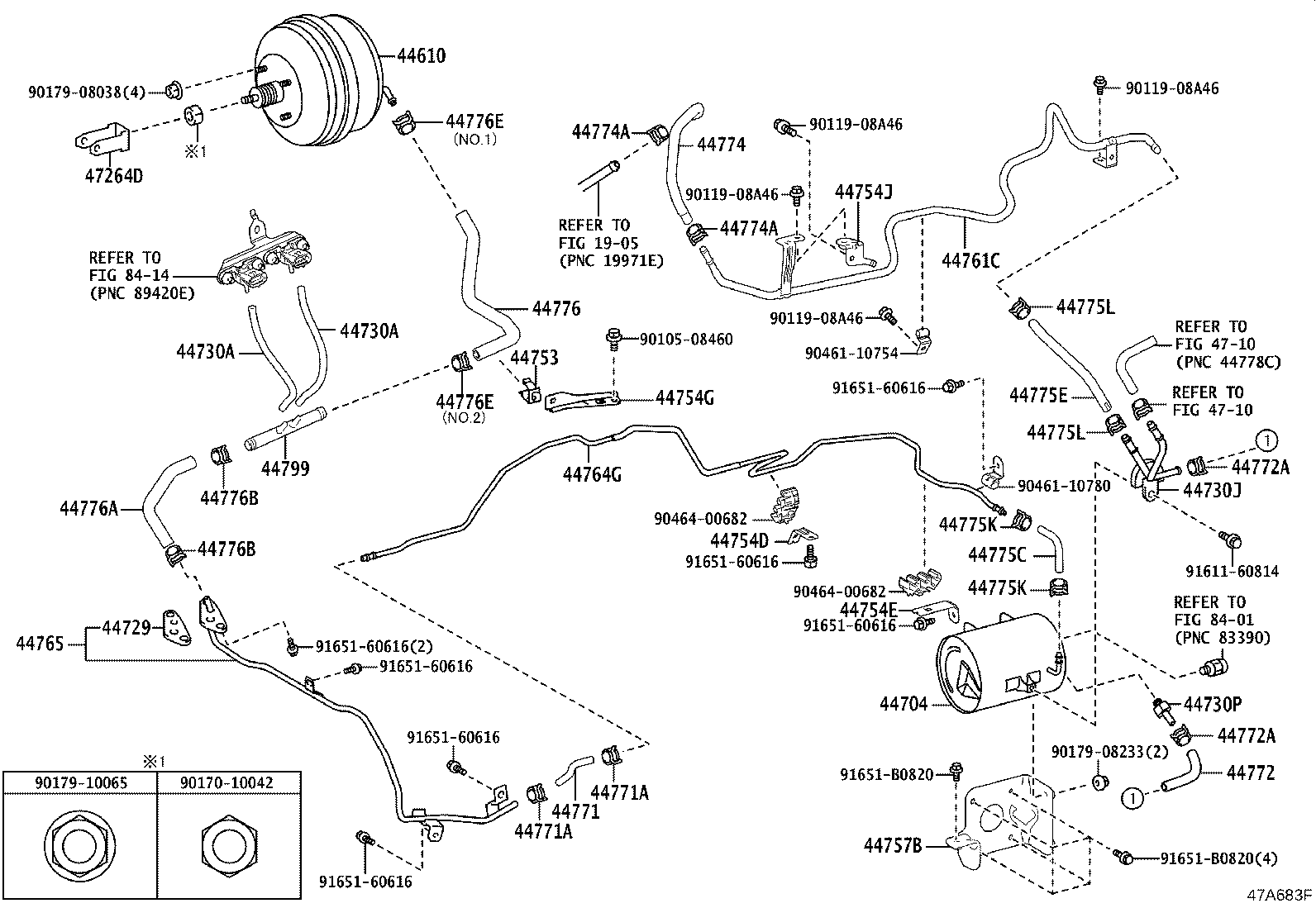

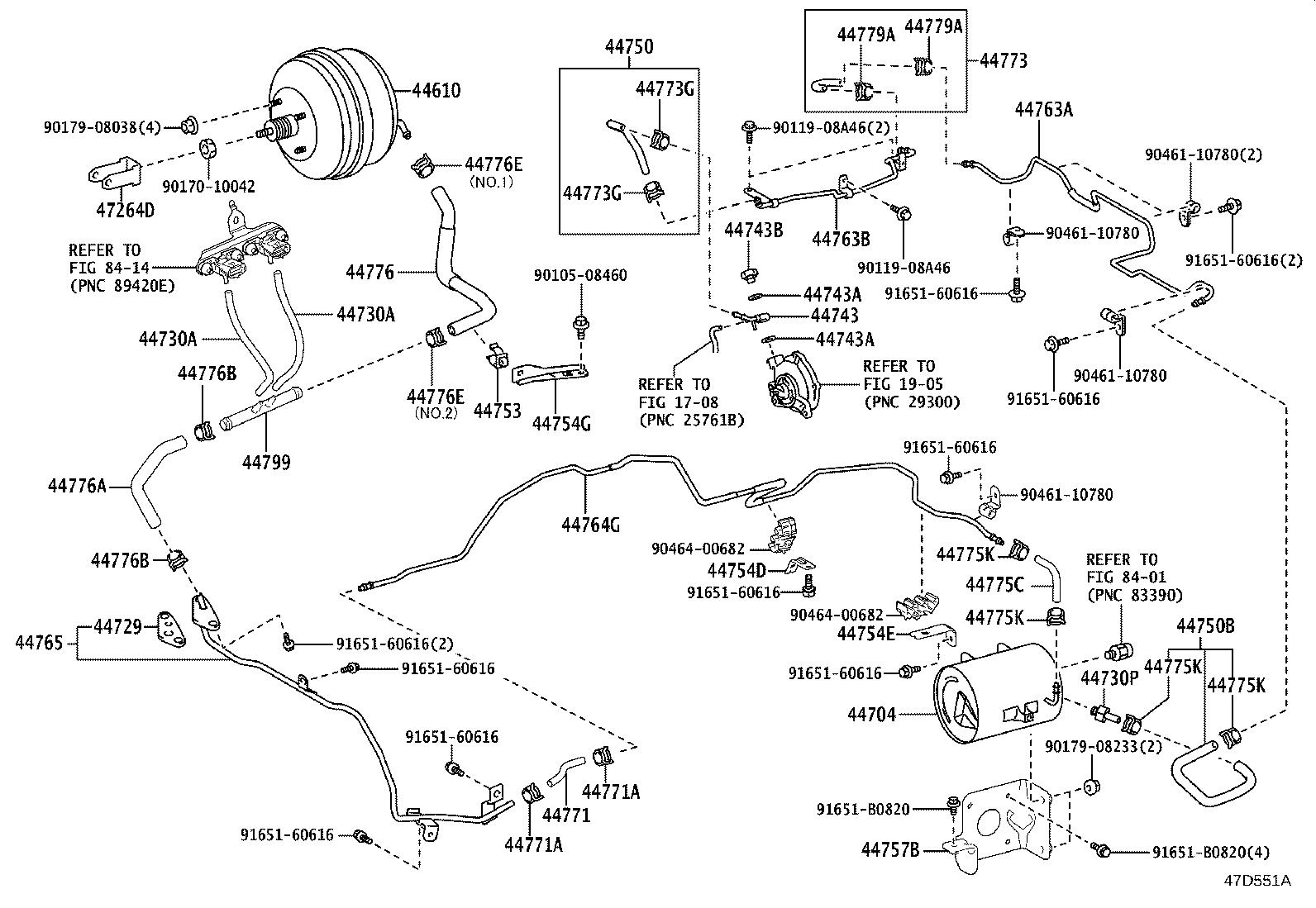

Brake Booster & Vacuum Tube

42 part groups · 4 illustrations

PNC	Description
19971F	Pipe, Vacuum
44610	Booster Assy, Brake
44704	Reservoir Sub-assy, Vacuum
44729	Gasket, Vacuum Tube
44730A	Hose, Vacuum, NO.1
44730J	Way(FOR BOOSTER VACUUM)
44730P	Valve Assy, Vacuum Check, NO.1
44743	Union(FOR VACUUM PUMP)
44743A	Gasket(FOR VACUUM PUMP UNION)
44743B	Bolt, Union(FOR VACUUM PUMP UNION)
44750	Hose Assy, Vacuum
44750B	Hose Assy, Vacuum, NO.2
44753	Clamp, Vacuum Reservoir, NO.2
44754D	Bracket, Vacuum Tube, NO.2
44754E	Bracket, Vacuum Tube, NO.3
44754G	Bracket, Vacuum Tube, NO.5
44754J	Bracket, Vacuum Tube, NO.6
44757B	Bracket, Vacuum Tank Clamp, NO.2
44761C	Tube, Vacuum Pump TO Connector
44763A	Tube, Hose TO Hose, NO.1
44763B	Tube, Tube Connector TO Tube Connector
44764G	Tube, Connector TO Brake Booster
44765	Tube, Connector TO Brake Booster, NO.2
44771	Hose, Vacuum Tube Connector
44771A	Clip(FOR VACUUM TUBE CONNECTOR HOSE)
44772	Hose, Check Valve TO Connector Tube
44772A	Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
44773	Hose, Vacuum, NO.2
44773G	Clip(FOR UNION TO CHECK VALVE HOSE)
44774	Hose, Union TO Connector Tube
44774A	Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44775C	Hose, Connector TO Way
44775E	Hose, Way TO Connector
44775K	Clip(FOR CONNECTOR TO 3 WAY HOSE)
44775L	Clip(FOR 3 WAY TO CONNECTOR HOSE)
44776	Hose, Brake Booster
44776A	Hose, Vacuum Reservoir TO Brake Booster
44776B	Clip(FOR VACUUM RESERVOIR TO BRAKE BOOSTER)
44776E	Clip(FOR BRAKE BOOSTER HOSE)
44779A	Clip(FOR UNION TO CONNECTOR HOSE)
44799	Way, Brake Vacuum Hose
47264D	Clevis, Brake Master Cylinder Push Rod

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
