Toyota Coaster

2017-01 → present · chassis GDB1#,60,70,80,XZB60,70,80 · catalogue 811140 · Japan

Supported model Data version 2023-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

8 part groups · 2 illustrations

Illustrations

Figure 523467H

523467H 2017-01 → —

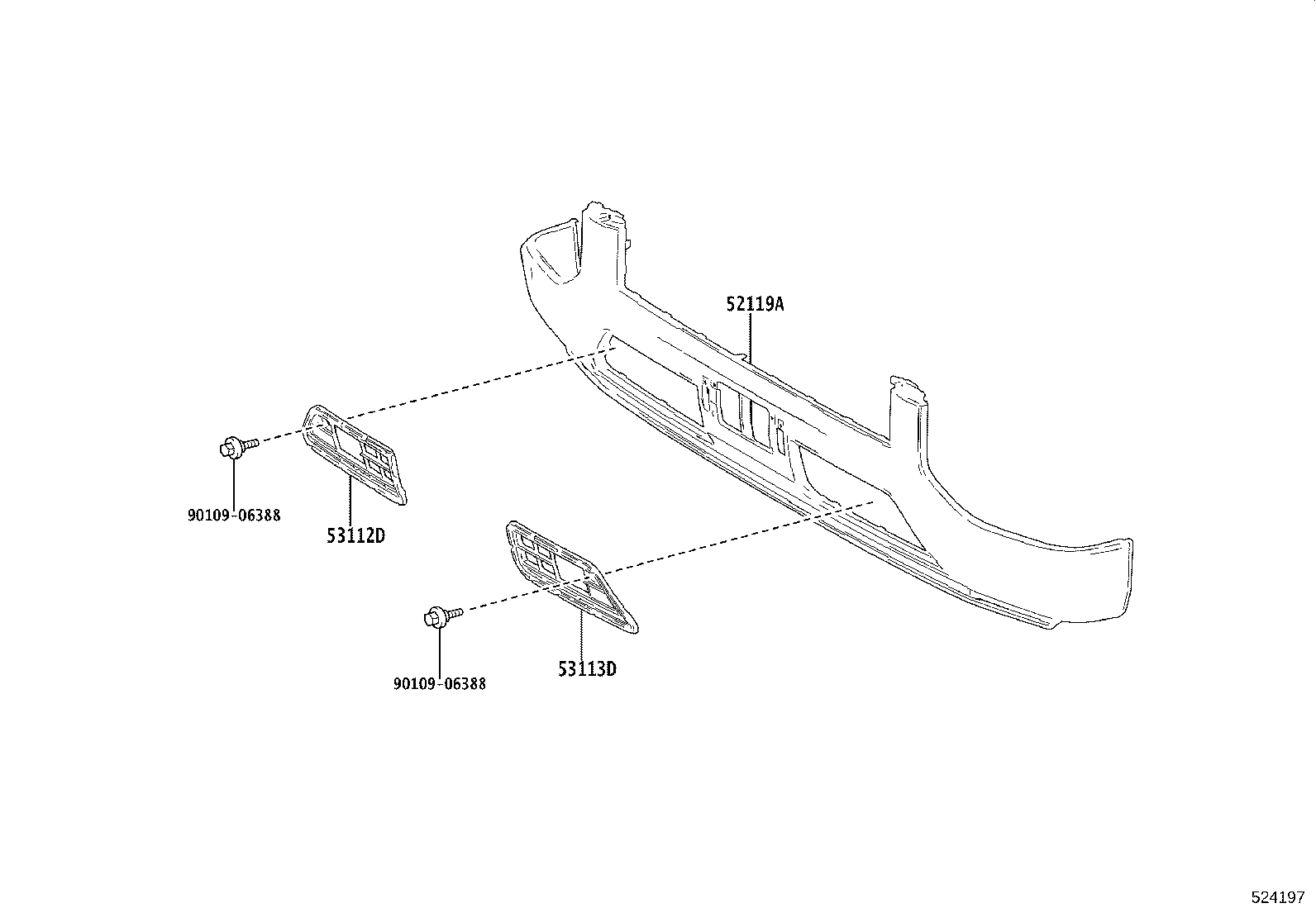

524197 2017-01 → —

Part groups

PNC	Description
52115A	Support, Front Bumper Side, RH
52116A	Support, Front Bumper Side, LH
52119A	Cover, Front Bumper
52141D	Stay, Front Bumper, RH
52142C	Stay, Front Bumper, LH
52161T	Piece, Front Bumper
53112D	Grille, Radiator, Lower RH
53113D	Grille, Radiator, Lower LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
