Toyota Coaster
2017-01 → present · chassis GDB1#,60,70,80,XZB60,70,80 · catalogue 811140 · Japan
Supported model
Data version 2023-05

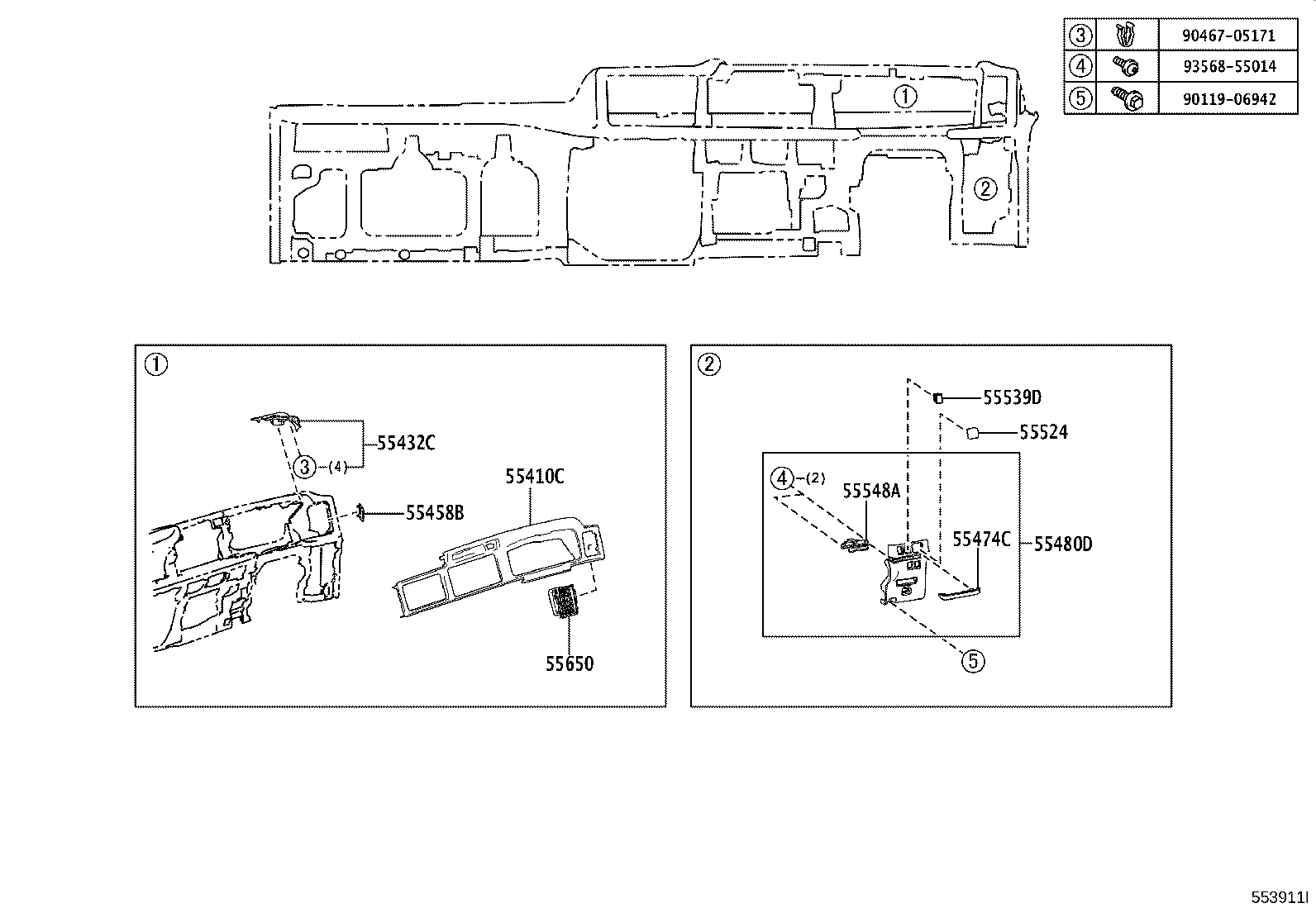

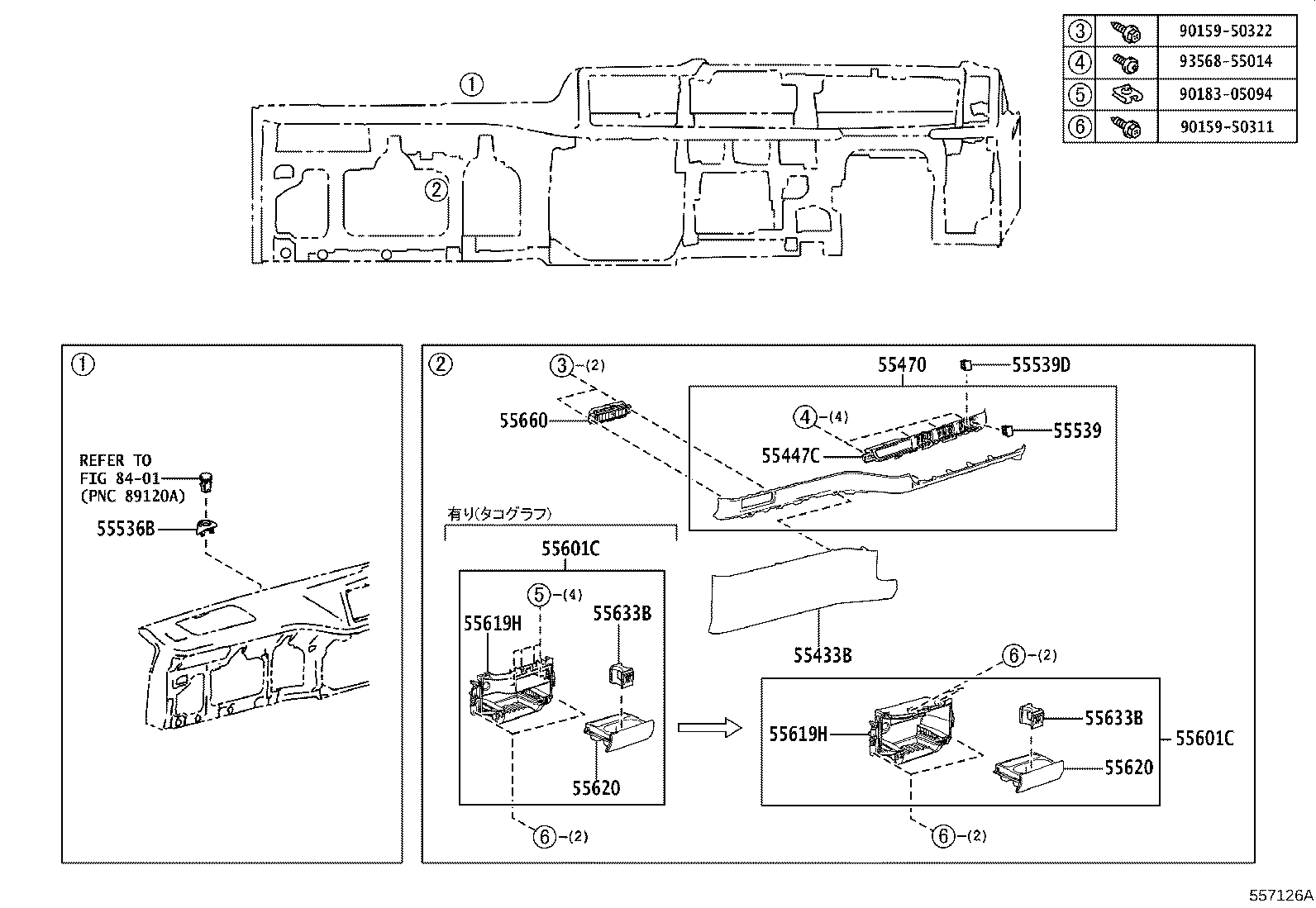

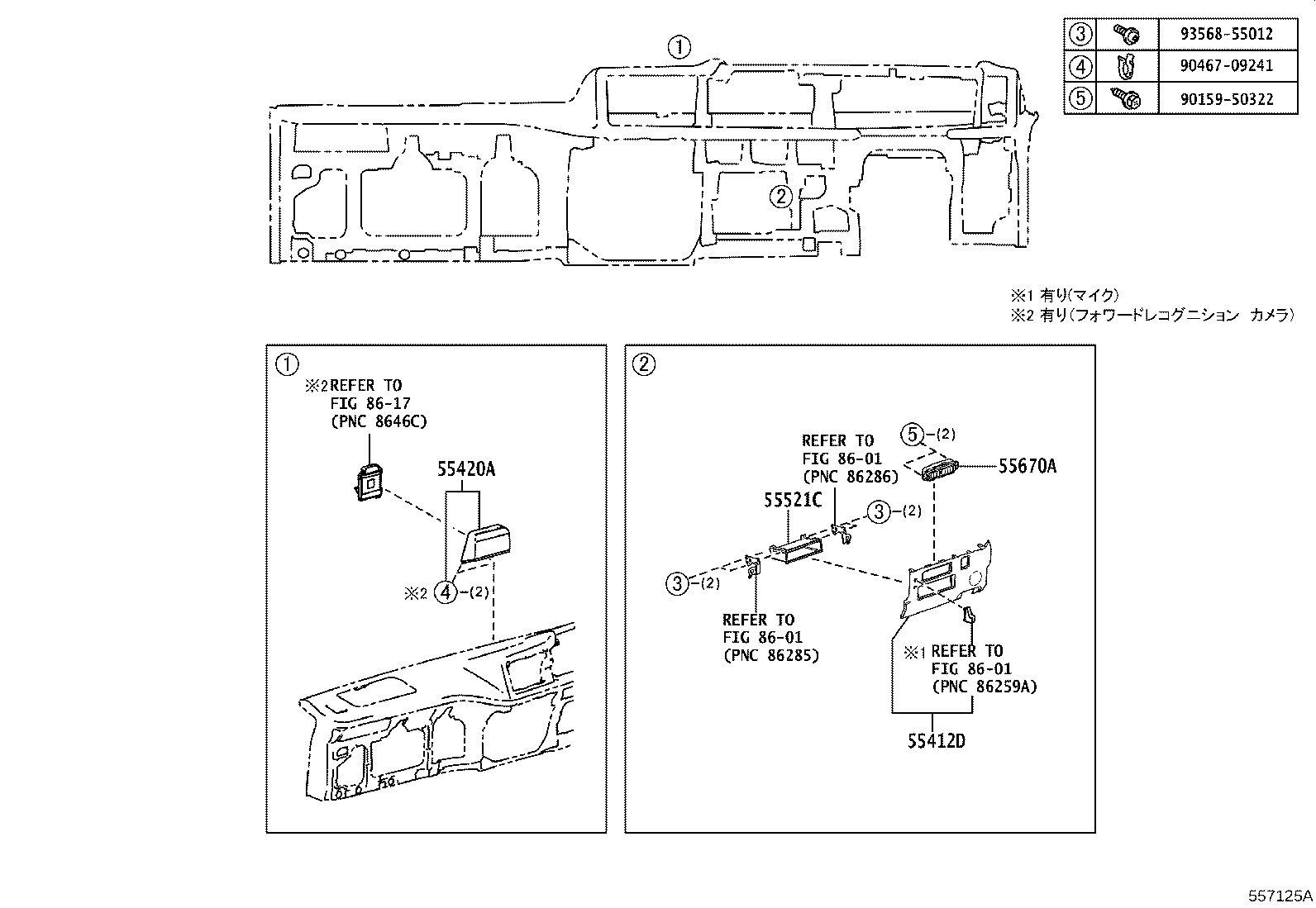

Instrument Panel & Glove Compartment
43 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55123B | Reinforcement, Steering Support |
| 55301 | Panel Sub-assy, Instrument |
| 55305C | Reinforcement Sub-assy, Instrument Panel |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55312A | Clip, Instrument Panel |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55341 | Brace, Instrument Panel, NO.1 |
| 55346A | Clip, Instrument Panel, NO.2 |
| 55349E | Bracket, Instrument Panel Brace Mounting, Lower |
| 55366A | Bracket, Radio Mounting, NO.1 |
| 55376 | Bracket, Instrument Panel Mounting, NO.1 |
| 55377A | Bracket, Instrument Panel Mounting, NO.2 |
| 55391A | Panel, Instrument Panel Reinf, Inner NO.1 |
| 55410C | Panel Assy, Instrument Cluster Finish |
| 55412A | Clip, Panel, Instrument Cluster Finish, End |
| 55412D | Panel, Instrument Cluster Finish, Center |
| 55420A | Panel Assy, Instrument Cluster Finish, Center |
| 55429B | Protector, Instrument Cluster Finish Panel |
| 55432C | Door, Reservoir Tank |
| 55433B | Panel, Instrument Panel Finish, Lower NO.2 |
| 55447C | Base, Switch Hole, NO.2 |
| 55458B | Cover, Instrument, Lwr |
| 55470 | Garnish Assy, Instrument Cluster Finish Panel |
| 55474C | Garnish, Instrument Cluster Finish Panel, NO.1 |
| 55480D | Panel Assy, Instrument Panel Finish, Lwr |
| 55521C | Cover, Stereo Opening |
| 55524 | Cover, Switch Bace Hole |
| 55536B | Cover, Light Control Switch Hole |
| 55539 | Cover, Spare Switch Hole |
| 55539D | Cover, Spare Switch Hole |
| 55548A | Cover, Instrument Panel Hole |
| 55601C | Tray Sub-assy, Instrument Panel Under |
| 55619H | Holder, Instrument Panel Cup, NO.2 |
| 55620 | Holder Assy, Instrument Panel Cup |
| 55633B | Support, Instrument Panel Cup Holder |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670A | Register Assy, Instrument Panel, Center |
| 55771 | Bracket, Instrument Panel, Upper |
| 55961A | Nozzle, Side Defroster, RH |
| 55962A | Nozzle, Side Defroster, LH |
| 73970A | Airbag Assy, Instrument Panel Passenger |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
